Iwata Eclipse G3, Eclipse G6, Eclipse G5 User Manual

G3
G-SERIES MANUAL & PARTS GUIDE
日本版は裏面にございます。
G5 G6
ANEST IWATA-MEDEA, INC.
Portland, Oregon U.S.A. +1-503-253-7308 www.Iwata-medea.com
ANEST IWATA AUSTRALIA PTY LTD.
Mt. Druitt, NSW +61-(02)-9853-2000 www.anest-iwata.com.au
ANEST IWATA EUROPE S.R.L.
Torino, Italy +39-01-1248-0868 www.anest-iwataeu.com
ANEST IWATA SOUTH-EAST ASIA CO., LTD.
Bangkok, Thailand +66-(0)-2643-2870 www.anest-iwatasoutheastasia.com
ANEST IWATA SHANGHAI
Shanghai, China +86-(0)21-6407-9713 / 15 / 16 www.anest-iwata-sh.com/ja
ANEST IWATA RUS LLC
Moscow, Russia +7-495-938-77-28 www.anestiwata.ru
ANEST IWATA CORPORATION
Yokohama, Japan +81-(0)45-591-1111 www.anest-iwata.co.jp
ANEST IWATA (U.K.) LTD.
Neots Cambs, England +44-(0)1480-474742 www.anest-iwata.co.jp
ANEST IWATA MOTHERSON LTD.
Uttar Pradesh, India +91-(0)120-4600500 / 14 / 17 www.motherson.com
ANEST IWATA SOUTH AFRICA (PTY) LTD.
Johannesburg, Republic of South Africa +27-11-463-2169/2265/2223
ANEST IWATA DO BRASIL COMERCIAL LTDA.
Bairro do Paraiso, Sao Paulo +55-11-3171-0072 www.anest-iwata.net.br
CENTURY TRADING CO., LTD.
Seoul, Korea 82-2-2163-0300 www.centrading.co.kr
If you have any issues with this product,
call ANEST IWATA-MEDEA (U.S.A.) 503-253-7308
(M-F 8am-4pm Pacic Time)
or your local ANEST IWATA aliate before returning to your place of purchase.
NEED ASSISTANCE
Congratulations on your purchase of an Iwata Eclipse™ G-Series, a versatile, reliable and high-performance airbrush-gun. The Iwata Eclipse G-Series Airbrush-Guns are a breakthrough in large-format airbrushes. The ability to control detailed spray and finely atomize large swathes of paint highlight the airbrush’s unique spray characteristics. It can also adjust spray pattern shapes from round circles to flattened ovals and everything in between. A stainless steel nozzle, paint passage and heat-tempered needle reflect Iwata’s unceasing commitment to long-lasting, peak-performance spray equipment.
The G-Series Airbrush-Guns use reliable, easily serviceable air-valve and air-valve packing cartridge sets. Should the need arise, cartridge sets can be serviced outside the airbrush and can be easily replaced.
Designed for use with the Iwata Studio Series Power Jet, Power Jet Lite or Power Jet Pro compressors, these low air consumption airbrush-guns provide high atomization while minimizing overspray.
Ideal uses for the G-Series include automotive touch-up, custom automotive painting, motorcycle painting, illustration, background spraying, large studio work, murals and airbrush tanning.
4
Iwata airbrushes are designed for the demanding professional. Modern precision machining and high quality materials are used in the manufacturing process to ensure consistent high performance and long life. Each Iwata airbrush is spray­tested before shipment to assure maximum performance and adherence to Iwata’s strict quality standards. To maintain your Eclipse G-Series at its peak performance, proper care and attention must be observed.
ONLY FROM IWATA-MEDEA
IWATA ECLIPSE G-SERIES AIRBRUSH-GUNS
These multi-purpose, high paint flow, Eclipse G-Series Airbrush-Guns cover a wide range of uses. Commonly used to spray pre-mixed or heavier paints, they are well suited for uses that demand precise control of spray when applying moderate-to-large amounts of paint to a variety of surfaces and to various-sized areas. These Eclipse Series Airbrush-Guns have established a benchmark for excellence in an all-purpose airbrush.
A unique “Pistol Grip” airbrush, the Eclipse G-Series Airbrush-Guns look like a miniature spray gun, but spray and perform like a large airbrush with its 0.3-mm to 0.6-mm stainless-steel nozzles.
· Equipped with a long tapered needle that ensures a smooth, wide background spray
· Utilizes a dual-purpose air cap and a fan adjustment valve that lets the airbrush spray a round or oval pattern
· The round pattern is useful for painting graphics, while the oval shape creates a smooth background spray
· Works well with the Iwata Studio Series Power Jet, Power Jet Pro and Power Jet Lite Compressors
NOTE: With the Eclipse G6, only round pattern can be achieved using these air sources.
5
Iwata Eclipse G6
• MAC Valve for precise control of air and spray
• 0.6-mm stainless-steel nozzle
• Spray width - 1/8” up to 2.5”+
• Long tapered needle for smooth transition between ne-to-wide background spray
• Dual-purpose air cap and fan adjustment valve to spray round or oval patterns
• Interchangeable with airbrush bottles – optional gravity-feed cups available
6

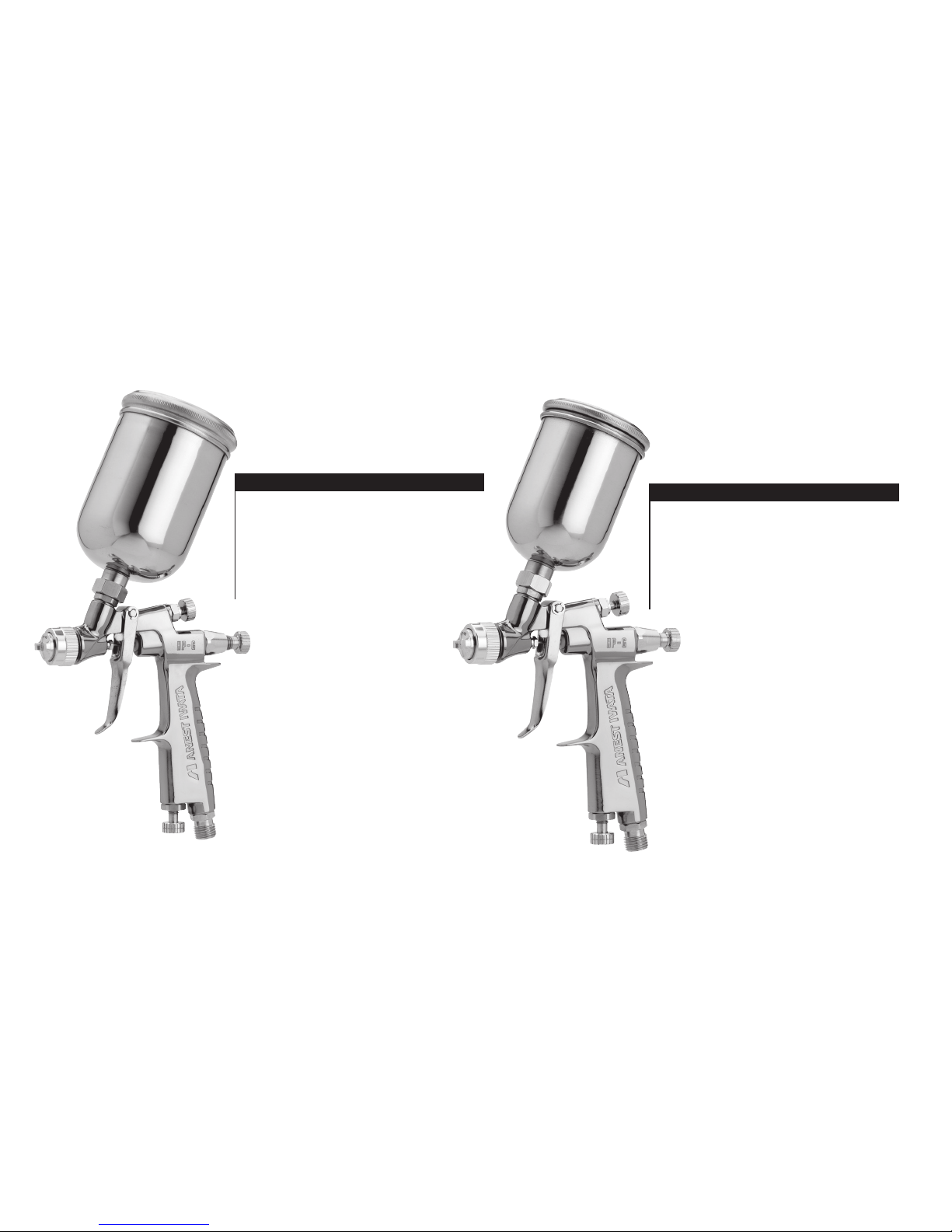

Iwata Eclipse G5
• True center-post gravity-feed airbrush
• MAC Valve for precise control of air and spray
• 0.5-mm stainless steel nozzle
• Spray width - 1/4” up to 3”
• Twilight-chrome nish
Iwata Eclipse G3
• True center-post gravity-feed airbrush
• MAC Valve for precise control of air and spray
• 0.3-mm stainless steel nozzle
• Spray width - 1/8” up to 2”
• Twilight-chrome nish
7
GETTING STARTED
Pre-Check the Airbrush Settings
1. Close the pattern adjustment knob (#14) fully by gently twisting it clockwise until it stops. It doesn’t need to be tight.
2. Open the uid-adjustment knob (#22) fully by gently twisting it counterclockwise. NOTE: You might unscrew the uid adjustment
knob o of the airbrush. Don’t worry. Screw it back on one or two full turns.
3. Open the air adjustment knob (#23) fully by twisting it counter clockwise until it stops. It doesn’t need to be tight.
4. Loosen air cap cover ring (#3) to adjust the air cap (#1), specically the little nger-like projections until they are horizontal to the ground. Then tighten air cap cover ring (#3).
Assembly
1. Screw the airhose rmly onto the air source outlet.
NOTE: In many cases the air source is a compressor.
2. Screw the air hose rmly onto the G-Series’ air inlet beneath
the handle.
G-6 Spraying
1. When using the G-6, ll a bottle at least 1/2 of the way full of
properly prepared paint.
2. Screw the lid (bottle cap set) onto the bottle.
3. Push the metal nipple of the bottle rmly onto the bottle joint adaptor (#6). NOTE: Push the bottle rmly into the bottle joint adaptor ensuring a tight t.
4. Adjust the air source pressure to 35 psi and spray away.
G-3 and G-5 Spraying
1. Screw metal gravity cup onto G-3 or G-5 Airbrush-Gun.
2. Fill cup at least 1/2 of the way full of properly prepared paint.
3. Attach lid to cup.
4. Adjust the air source to 35 psi and spray away.
General Spraying
1. Pull the trigger back slightly and only the air will come out.
2. Pull the trigger back more until paint starts to spray in small amounts.
3. Pulling the trigger back further releases even more paint until the trigger is pulled as far as it can go.
8
GENERAL OPERATION
Fine-Line Spray
1. Pull the trigger back slightly to start the air.
2. Position the airbrush close to the surface. About 1 inch
or 2.5 cm.
3. Pull the trigger back a little more to start the ow of paint.
Control line thickness by adjusting the distance between the airbrush and the surface, and also by adjusting the paint ow amount.
Background Spraying
1. Position the airbrush further from the surface – 4-6 inches or
10-16 cm is common.
2. Pull the trigger back a lot to release a large amount of paint.
Control spray width by adjusting the distance between the airbrush and the surface and by opening the pattern adjustment knob (#14). Opening the pattern adjustment knob changes the spray pattern shape from a circle to an oval.
Control spray consistency over large areas by setting the uid adjustment knob (#22) to limit the amount of paint volume sprayed.
1. Pull the trigger back to the desired amount of spray.
2. Screw the uid-adjustment knob in until it pushes the trigger.
Cleaning
Cleaning the Airbrush-Gun between Colors
1. Replace the color bottle with a bottle containing the appropriate cleaning solution (when using the G-6). Rinse out gravity cup (when using G-3 and G-5) and ll with cleaning solution.
2. Spray until the solution sprays clear and clean.
3. Remove the bottle of cleaning solution (when using the G-6). Dump out remaining solution from gravity cup (when using G-3 and G-5).
4. Spray air until the airbrush sprays dry.
5. Fit a color bottle with the new color and spray or add new color to gravity cup.
6. Repeat the procedure when nished.
9
Before Each Session
Spray water, or appropriate solvent, through the airbrush to ensure the airbrush is in proper working order.
After Each Session
Or any time the airbrush becomes clogged:
1. Increase the air pressure.
2. Spray cleaning solution through the airbrush for a short time.
3. Unscrew the uid adjustment knob (#22).
4. Remove the spring (#21).
5. Pull out the needle (#5).
6. Wipe down the needle.
7. Gently reinsert the needle. NOTE: The needle is delicate and sharp. Be careful not to bend the tip of the needle or hurt yourself while reinserting it.
8. Place the spring on the needle.
9. Screw the uid adjustment knob onto the airbrush.
The higher air pressure will help to thoroughly clean out the paint.
Safety Tips
•Always spray in a well-ventilated area.
•Do not spray solvent-based (ammable) paints around open ames.
•Use the appropriate respirator to safely lter out the paint vapors
particular to the to the kind of paint you are using.
•Wear eye protection to prevent paint contact with eyes.
•Never use air pressure that exceeds the airbrush-gun’s limit.
(6.8 bar, 10.68 MPa, 98 psi)
10
ECLIPSE G-SERIES DESCRIPTION OF FEATURES
Pattern Adjustment Set (#14)
This adjustment creates a circular- or oval-shaped spray pattern. When the valve is fully closed, twisted fully clockwise, the spray pattern will be a round shape. The round pattern is best for doing graphics in small areas. When the valve is fully opened, twisted fully counter-clockwise, the spray pattern will be an oval shape, also known as a fan pattern. The oval fan pattern provides a smooth background spray.
When using the Power Jet compressor, the pattern adjustment valve should only be opened a maximum of ½ turn. Using a compressor with power greater than 1 HP allows the valve to be fully opened, creating the fan pattern shape.
Air Cap (#1)
The air cap produces a round or an oval fan-shaped pattern depending on how the pattern adjustment valve is set. Refer to the Pattern Adjustment Set Instructions if necessary.
Orientation of the oval varies based on where the nger-like protrusions on the air cap are oriented. The nger-like protrusions dictate where the fat part of the oval will be. Spray with the fat part of the oval. If the oval is vertical, spray up and down. If the oval is horizontal, spray side to side.
Change the orientation by simply twisting the aircap. (Remember to loosen air cap cover ring rst.)
Fluid Adjustment Knob (#22)
The uid adjustment knob limits how much uid will be sprayed when the trigger is pulled all the way back. After setting the spray pattern (see #14 description), the uid adjustment knob sets the amount of spray delivered to an object’s surface. This feature proves invaluable each time the trigger is pulled back while spraying large areas that need precise, repeatable spray output. It’s cruise control for the long haul.
1. Start spraying with the knob fully opened, but don’t screw it
entirely o the airbrush!
2. Find the best trigger position for the best spray.
3. Screw the knob clockwise until the trigger pull is limited to the
desired position. Don’t forget! Unscrew the knob when you can’t gure out why you don’t get as much spray as you used to.
Air Adjusting Set (#23)
The air adjustment knob sets the amount of air owing through the airbrush. It’s a convenient way to adjust the pressure on the y. It functions like a MAC Valve*. Start with the knob set at the full open position by twisting it counterclockwise until it stops. After you’re familiar with the airbrush, adjust the air pressure to achieve the best spray pattern as necessary.
*The MAC (Micro Air Control) Valve controls airow to the airbrush-gun.
11
20
7-1
14
5
14
12
15
10
13
16
16-1
17
18
19
6
4
11
23
7-2
24
8
9
1
2
3
6-1
6-2
7
21
22
22
16
16-2
12

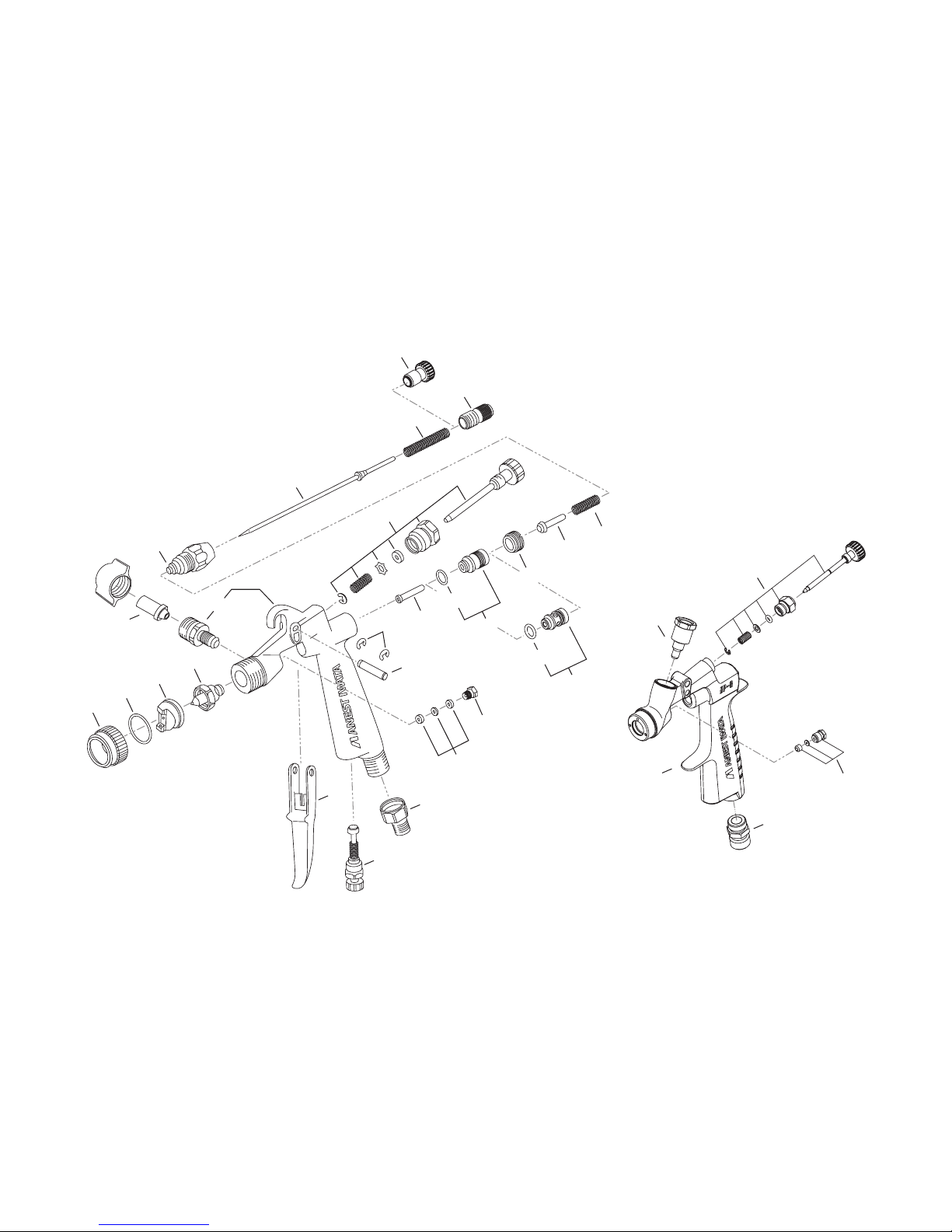

— IWATA ECLIPSE G-SERIES SERIES AIRBRUSH-GUNS • MASTER PARTS LIST —
PRICE ITEM ALSO # ITEM DESCRIPTION CODE # G3 G5 G6 FITS
1 Air Cap 0.6 mm H I 600 1 opt opt n
0.3 mm J I 600 4 n opt opt
0.5 m m J I 600 5 opt n opt
2 Air Cap Packing A I 600 2 n n n
3 Air Cap Cover Ring C I 600 3 n n n
4 Fluid Head 0.6 mm I I 604 4 opt opt n
Nozzle
0.3 mm I I 604 5 n opt opt*
0.5 mm I I 604 6 opt n opt*
5 Fluid Needle 0.6 mm F I 617 4 x x n
Duplex Needle 0.3/0.5 mm I 617 5 n n x
6 Airbrush Body Set (G6) O I 307 1 x x n LPH-50
6-1 Fluid Cup Joint D I 212 2 x x n RG-3/LPH-50
6-2 Bottle Joint Adapter F I 623 1 x x n (Opt) RG-3/ LPH-50
7 Airbrush Body Set (G3/G5) O I 307 2 n n x
7-1 Fluid Nipple D I 650 1 x x n
7-2 Air Nipple B I 680 1 x x n
8 Fluid Needle Packing D I 215 2 x x n RG-3/LPH-50
9 Needle Packing Seat A I 219 2 x x n RG-3/LPH-50
10 Needle Packing Set D I 640 1 n n x
11 Trigger C I 233 1 n n n RG-3/LPH-50
12 E Stopper 2 pcs/pk A I 332 1 n n n LPH-50
13 Trigger Stud A I 234 1 n n n RG-3/LPH-50
14 Pattern Adjustment Set H I 625 2 n n x
G I 625 1 x x n
PRICE ITEM ALSO # ITEM DESCRIPTION CODE # G3 G5 G6 FITS
15 Air Valve Shaft C I 202 3 n n n RG-3/LPH-50
16 Air Valve Seat Set F I 205 2 x x n RG-3/LPH-50
16-1 Gasket Air Valve Seat I 217 1 x x n
16-2 O-Ring A I 660 1 n n x
17 Air Valve Seat Screw A I 205 3 n n n RG-3/LPH-50
18 Air Valve C I 202 2 n n n RG-3/LPH-50
19 Air Valve Spring A I 206 2 n n n RG-3/LPH-50
20 Fluid Adjustment Guide Set F I 208 2 n n n RG-3/LPH-50
21 Needle Spring B I 225 2 n n n RG-3/LPH-50
22 Fluid Adjusting Knob C I 209 1 x x n RG-3
I 670 1 n n x
23 Air Adjusting Set D I 626 1 x x n
I 626 2 n n x
24 Air Hose Adapter (1/4”-1/8”) D I 624 1 x x n (Opt) RG-3/ LPH-50
3 oz Fluid Bottle I 480 3 x x opt
4 oz Fluid Bottle (PC-61) I 210 1 x x opt
Spanner I 230 1 x x opt
Fluid Cup 4 oz I 210 1 x x opt
7 oz (PC-51) I 210 2 x x opt
8 oz (PC-5) I 210 3 x x opt
Fluid Cup Lid (PC-61) I 211 1 x x opt
(PC-51) I 211 2 x x opt
(PC-5) I 211 3 x x opt
n = yes x = no opt = optional
*You must change the aircap and needle to use optional nozzle sizes.
CA PROP
65
CA PROP
65
CA PROP
65
CA PROP
65
CA PROP
65
CA PROP
65
CALIFORNIA PROP 65 WARNING: Certain products identied with this symbol and oered for sale in this catalog contain lead, a chemical known to the State of California to cause cancer, birth defects and other reproductive harm.
CA PROP
65
13
Genuine Iwata
All Iwata airbrushes are Warranted against all manufacturing defects of material and manufacture or workmanship for a period of FIVE years from the date of purchase. This warranty does not cover uid needles or uid nozzles since these parts need to be replaced occasionally due to normal wear. Any other part or material that is or becomes defective so as not to be usable within this period will be repaired or replaced. This warranty does not cover damage caused by negligence or airbrushes that have been altered or abused in any way. Call or email Iwata-Medea before returning an airbrush for the appropriate procedure for warranty repairs.
©2008 Anest Iwata-Medea, Inc. All rights reserved. The Anest Iwata-Medea logo, Anest Iwata-Medea, Power Jet, Power Jet Pro, Power Jet Lite and Medea Super Lube are trademarks of Anest Iwata-Medea Inc. Iwata Eclipse is a trademark of ANEST IWATA Corporation. Iwata and the Iwata logo are registered trademarks of ANEST IWATA Corporation. All other trademarks are of their respective owners. For more information visit www.iwata-medea.com
14
www.IWATA-AIRBRUSH.com
4
3
2
1
Part No. ECL 903 Rev5 12/15
