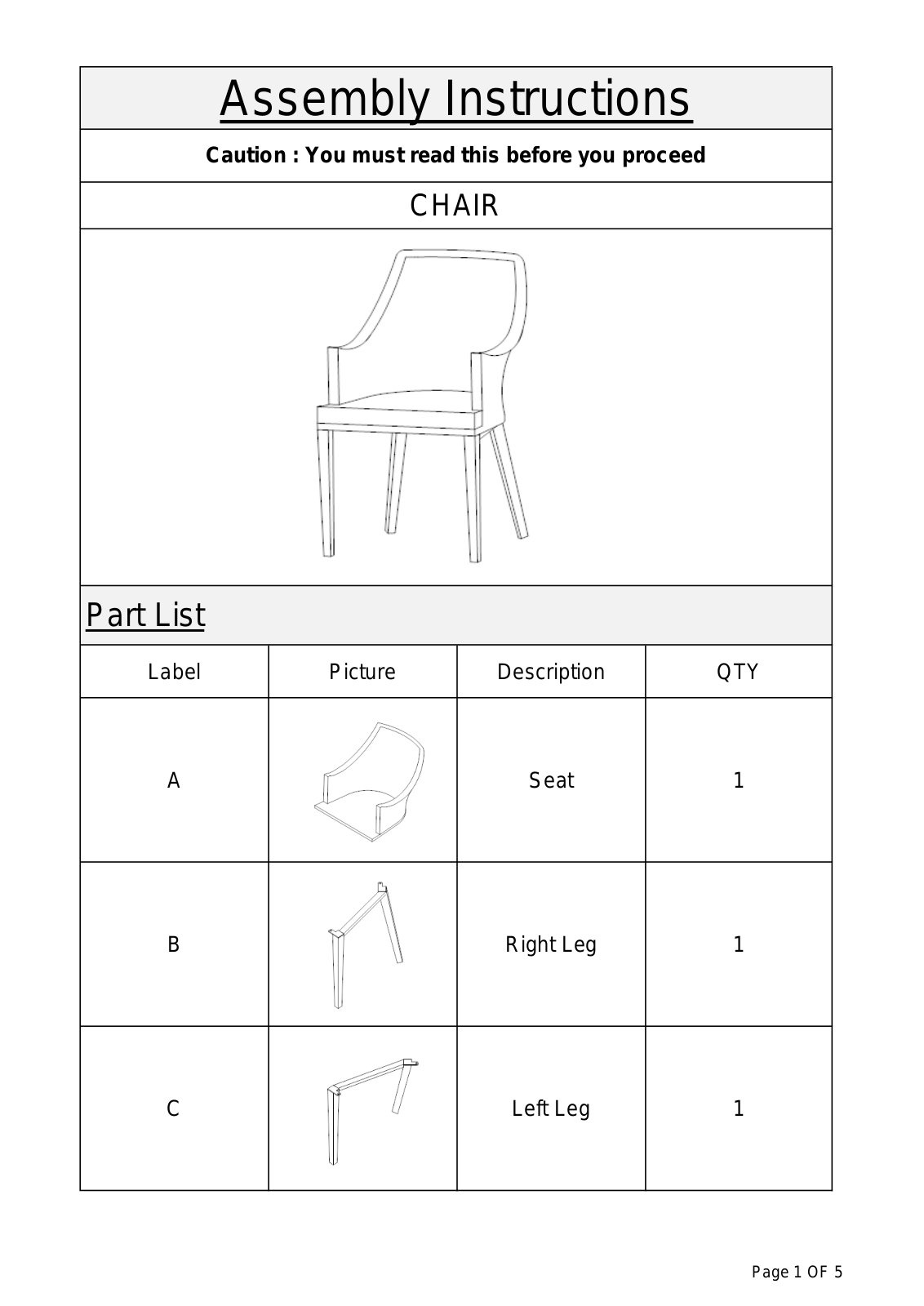

Page 1
Label Picture Description QTY
A Seat 1
B Right Leg 1
C Left Leg 1
Assembly Instructions
Caution : You must read this before you proceed
CHAIR
Part List
Page 1 OF 5

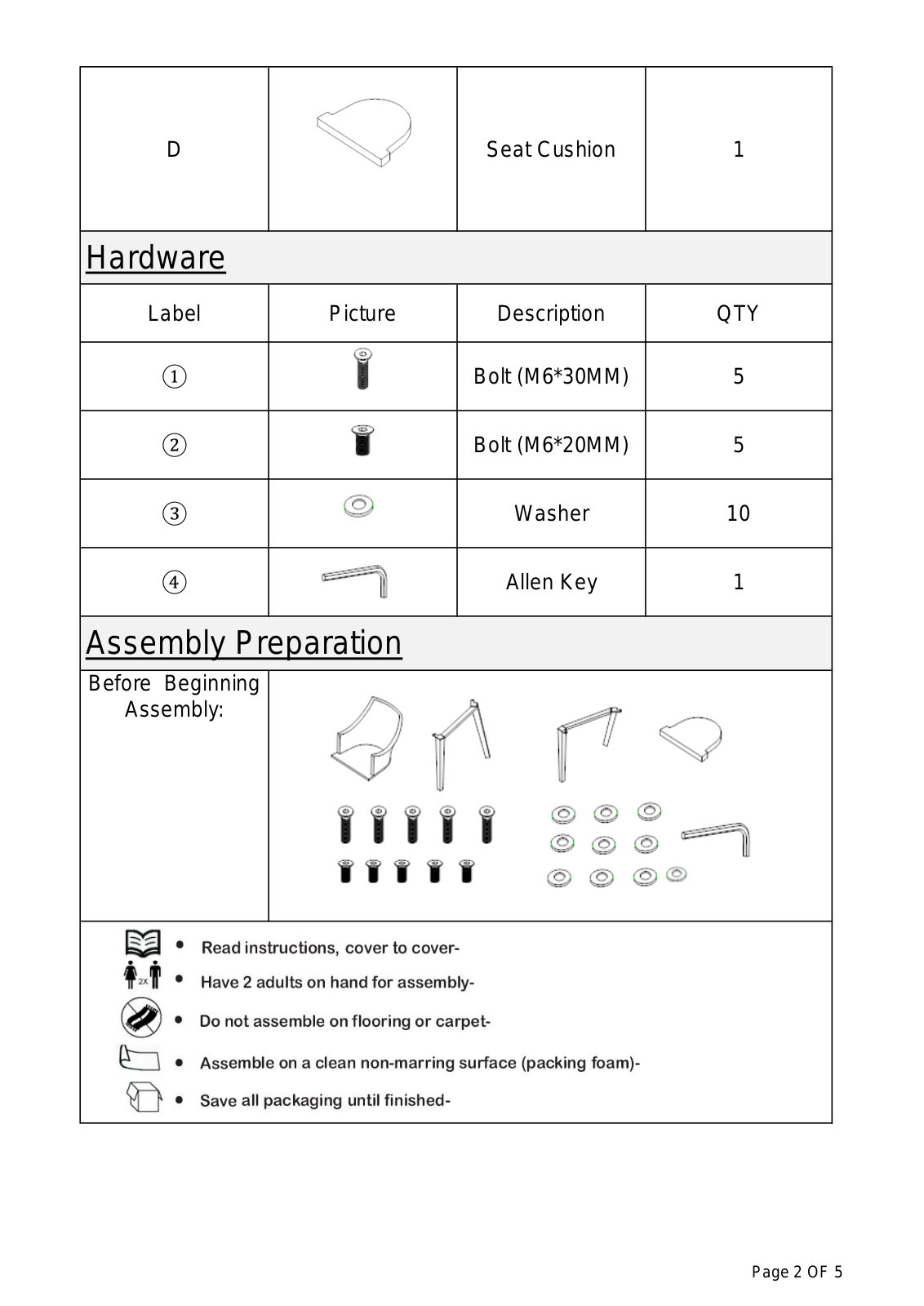

Page 2
D Seat Cushion 1
Label Picture Description QTY
① Bolt (M6*30MM) 5
② Bolt (M6*20MM) 5
③ Washer 10
④ Allen Key 1
Hardware
Assembly Preparation
Before Beginning
Assembly:
Page 2 OF 5

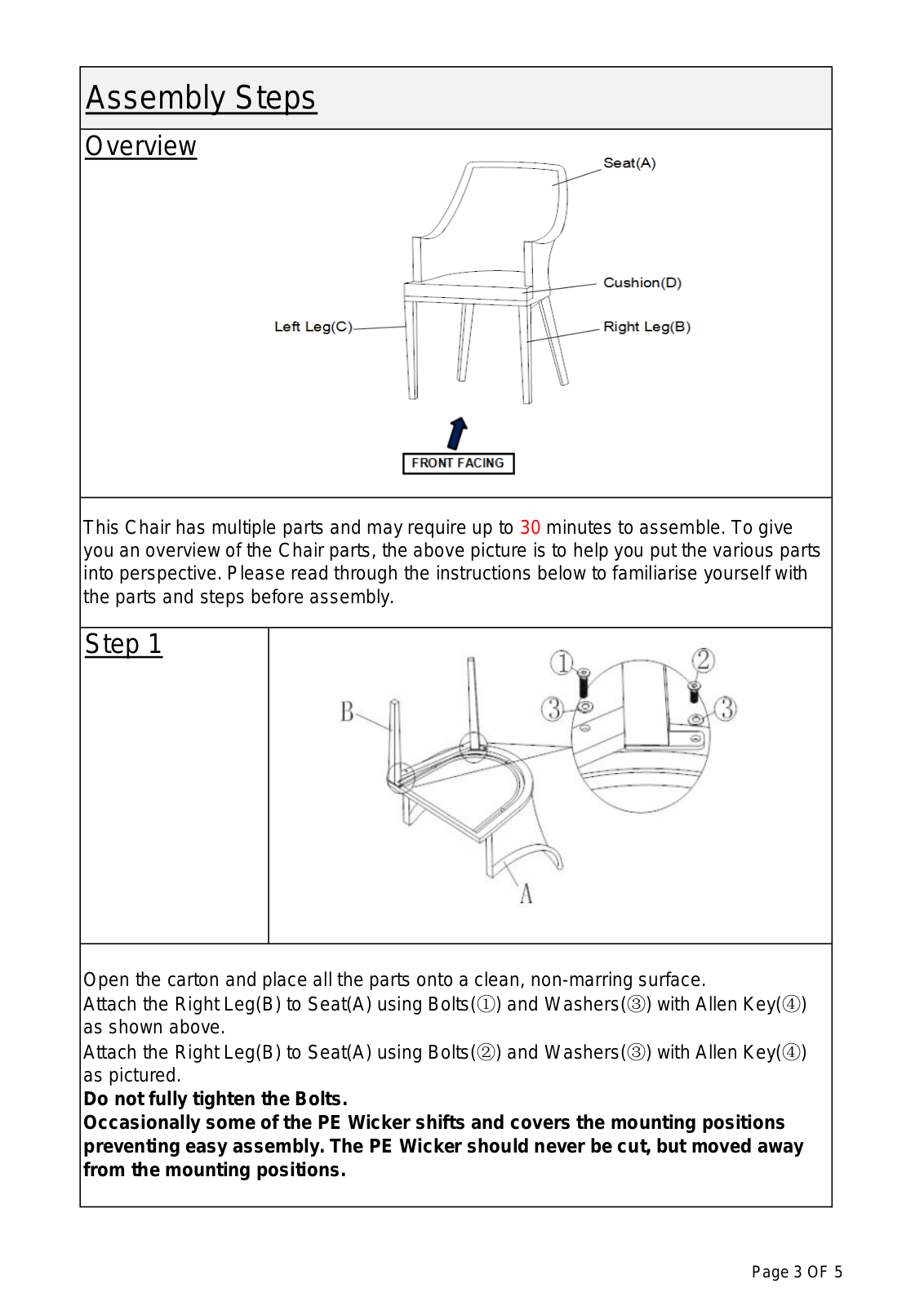

Page 3
Step 1
Assembly Steps
Overview
This Chair has multiple parts and may require up to 30 minutes to assemble. To give
you an overview of the Chair parts, the above picture is to help you put the various parts
into perspective. Please read through the instructions below to familiarise yourself with
the parts and steps before assembly.
Open the carton and place all the parts onto a clean, non-marring surface.
Attach the Right Leg(B) to Seat(A) using Bolts(①) and Washers(③) with Allen Key(④)
as shown above.
Attach the Right Leg(B) to Seat(A) using Bolts(②) and Washers(③) with Allen Key(④)
as pictured.
Do not fully tighten the Bolts.
Occasionally some of the PE Wicker shifts and covers the mounting positions
preventing easy assembly. The PE Wicker should never be cut, but moved away
from the mounting positions.
Page 3 OF 5

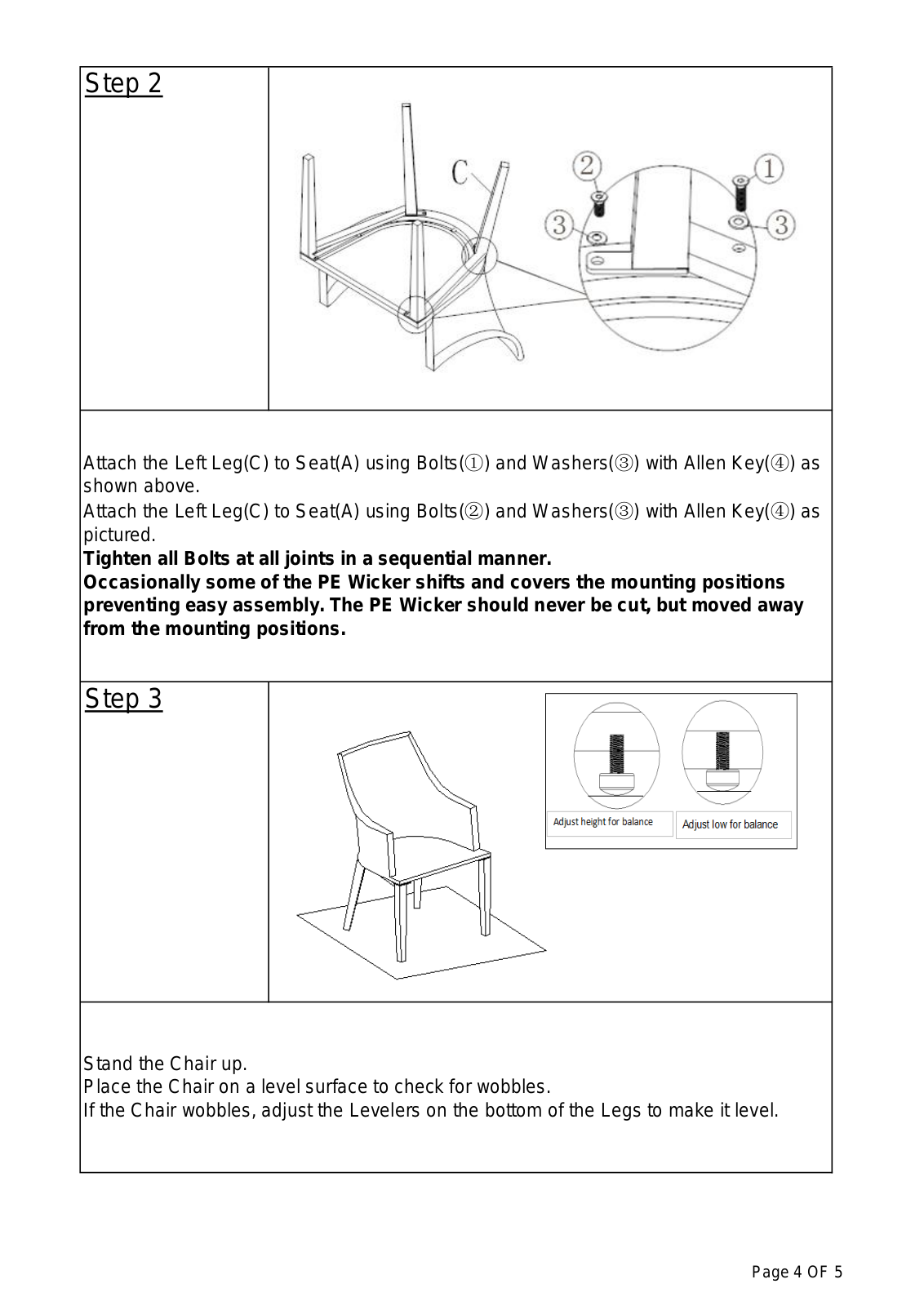

Page 4
Step 2
Step 3
Attach the Left Leg(C) to Seat(A) using Bolts(①) and Washers(③) with Allen Key(④) as
shown above.
Attach the Left Leg(C) to Seat(A) using Bolts(②) and Washers(③) with Allen Key(④) as
pictured.
Tighten all Bolts at all joints in a sequential manner.
Occasionally some of the PE Wicker shifts and covers the mounting positions
preventing easy assembly. The PE Wicker should never be cut, but moved away
from the mounting positions.
Stand the Chair up.
Place the Chair on a level surface to check for wobbles.
If the Chair wobbles, adjust the Levelers on the bottom of the Legs to make it level.
Page 4 OF 5

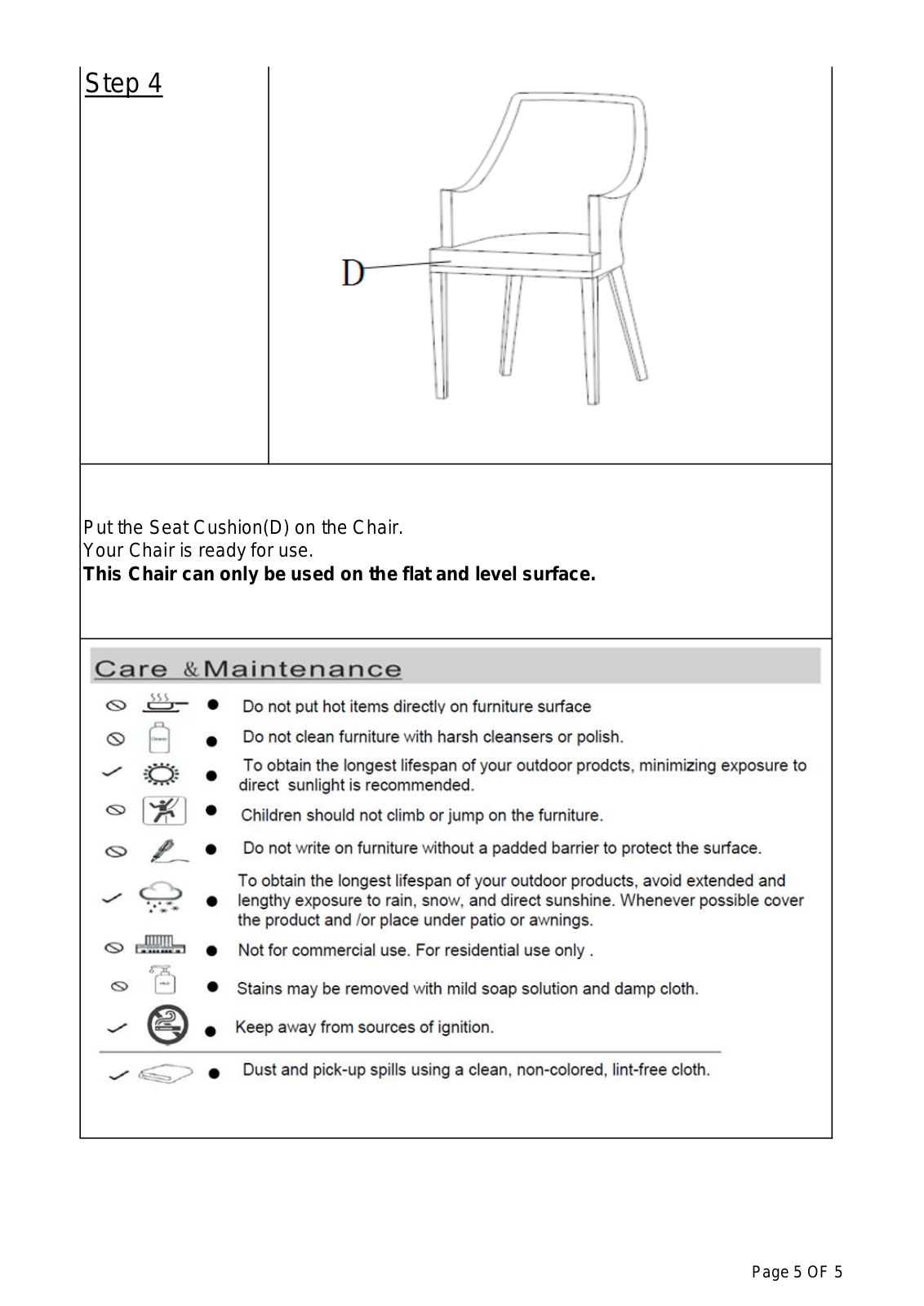

Page 5
Step 4
Put the Seat Cushion(D) on the Chair.
Your Chair is ready for use.
This Chair can only be used on the flat and level surface.
Page 5 OF 5
