components
chair Assembly
item description qty
hardware
A
B
A Seat 1
B Back 1
C Legs 4
Please note: actual product may
look dierent than illustration.
C
(H1) x 3
1 1/4" flat washer
larger
Please note: you will need a wrench to complete this assembly.
limited warranty
We guarantee our upholstered furniture against defects in construction for a period of one (1) year. When
a structural defect is brought to our attention, we will repair or replace it at our option at no charge to the customer (inculdes parts and labor,
not transportation costs). Fabric wearability for upholstered furniture is not covered by the warranty. Vacuum for regular cleaning.
PLEASE DISPOSE OF PLASTIC BAG(S) AND CARTON(S) RESPONSIBLY.
(H2) x 3
5/16" nut
(H3) x 8
2" bolt
(H4) x 8
1 1/4" flat washer
smaller
(H5) x 8
spring washer
L wrench
(H6) x 1
1

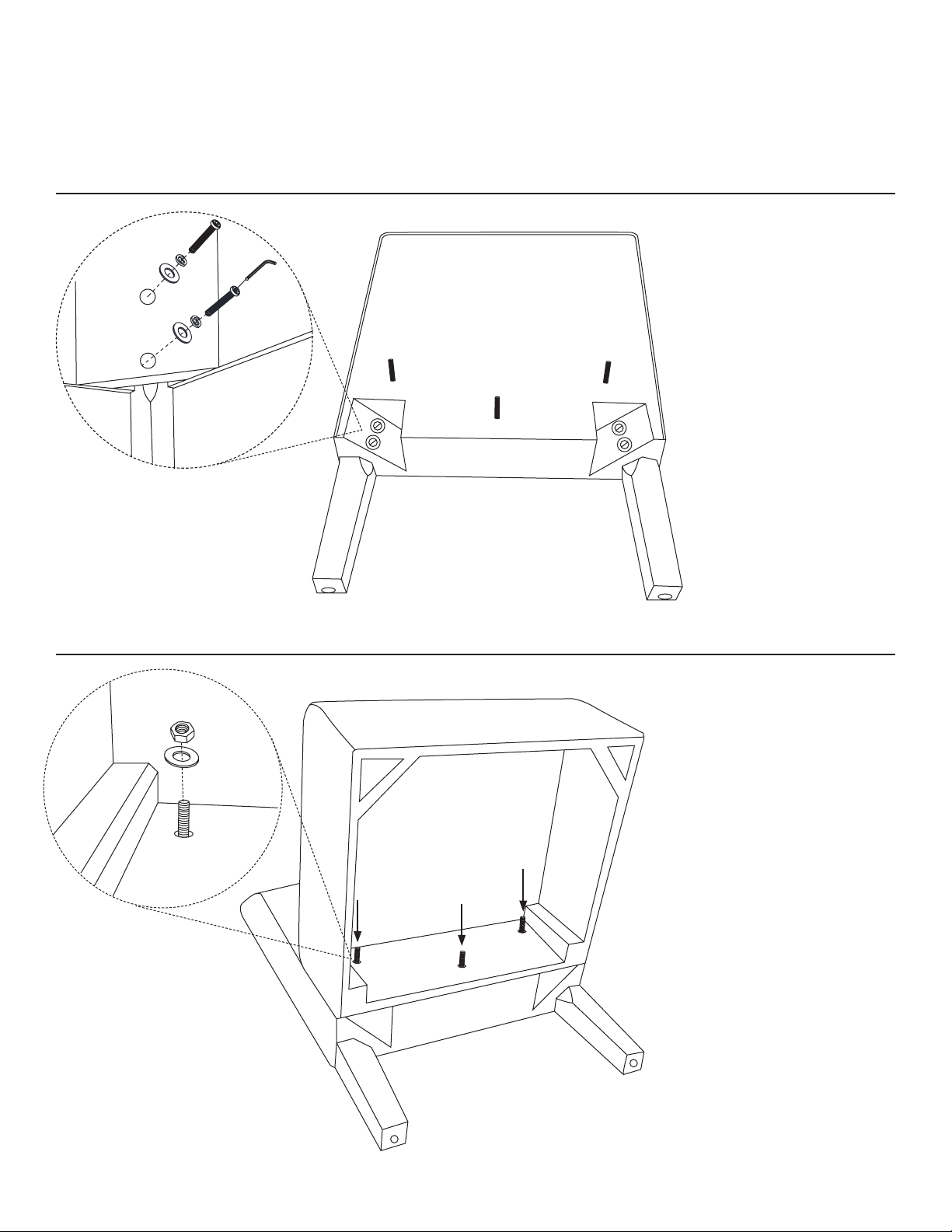

step 1
chair Assembly
1.1
Insert (C) legs into holes on the
bottom of (B) back, making sure
(C) legs are flush against the
bottom of (B) back.
Attach using (H3) bolts and (H4,
H5) washers. Tighten with (H6) L
wrench.
step 2
2.1
Fit (A) seat onto bolts of (B) back,
aligning sides and bottoms of
both pieces.
1.2
Attach (A) seat to (B) back using
(H1) washers and (H2) nuts.
Tighten with wrench.
2

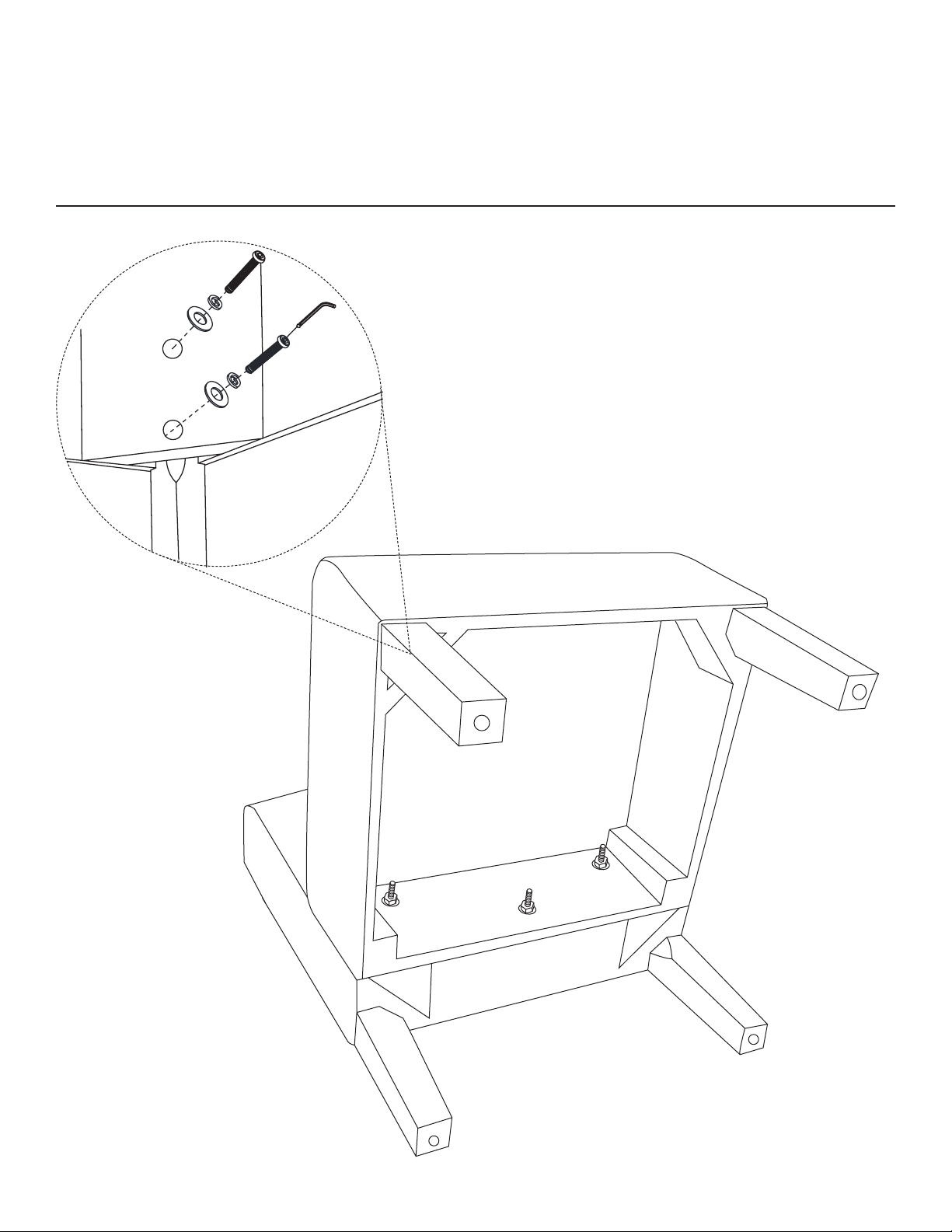

step 3
chair Assembly
3.1
Insert (C) legs into holes on the
bottom of (A) seat, making sure
(C) legs are flush against the
bottom of (A) seat.
Attach using (H3) bolts and (H4,
H5) washers. Tighten with (H6) L
wrench.
3
