ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTEUR.

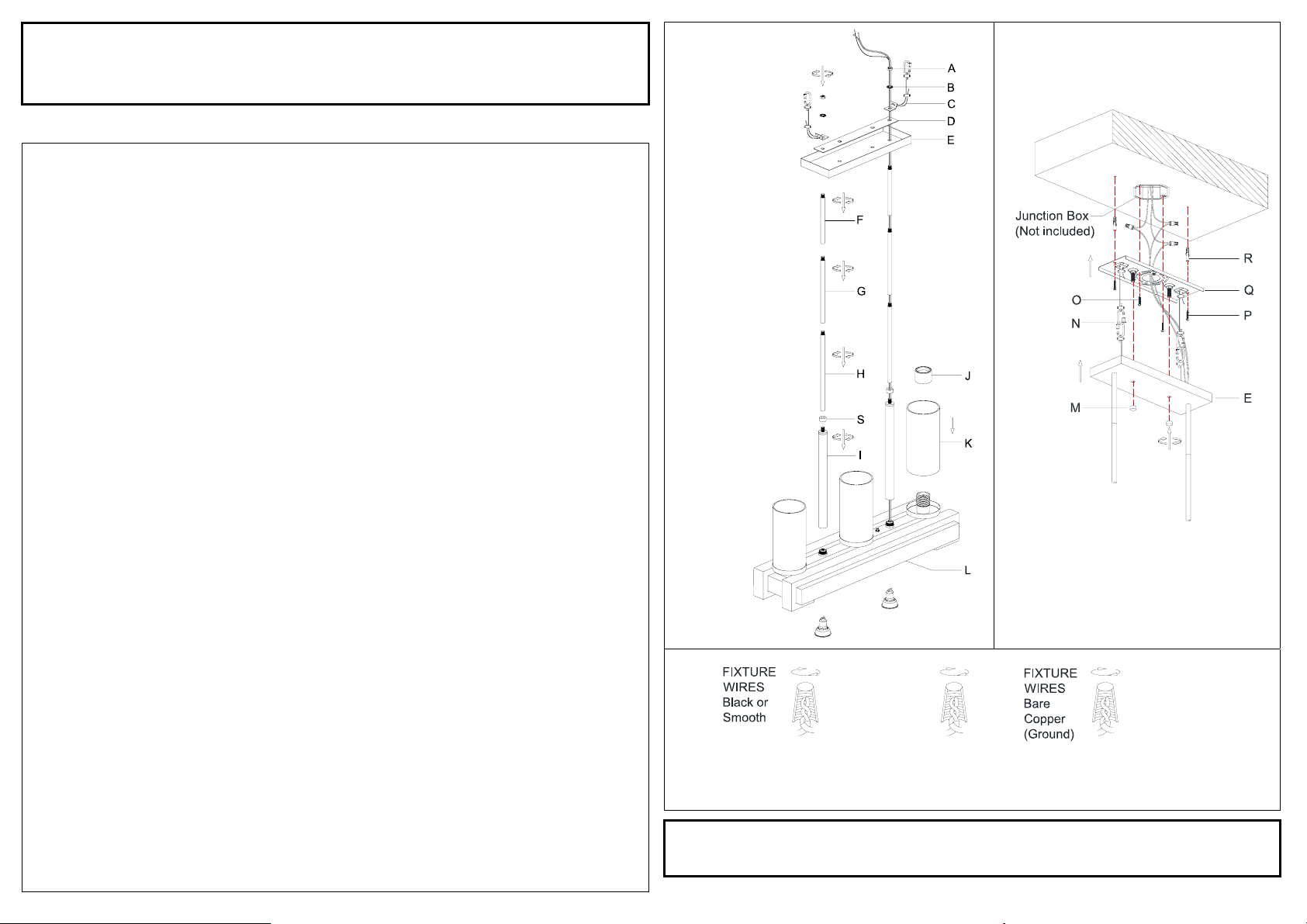

ASSEMBLING THE FIXTURE (Fig.2).
1. Determine the desired hanging height and thread rods (I, S,H, G and/or F) to lamp body (L).
Feed the wires carefully through each rod during assembl ing.
2. Attach the canopy (E), the reinforced plate (D) and the metal plates (C) with the washer (B) and
the hex nut (A) to the top of the rod (F), then lock the canopy (E), the reinforced plate (D) and
the metal plates (C) with the hex nut (A).
3. Attach the glass shade (K) onto the socket of lamp body (L), and then lock it securely with the
check ring (J).
4. Install the light bulbs
NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE! Install the light bulbs GU10 in
accordance with the fixture specifications. NOTE: DO NOT EXCEED THE SPECIFIED
WATTAGE!
HANGING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker and remove old fixture from ceiling, including the old
single bar.
2. Carefully unpack new fixture and lay all the parts on a clear surface.
3. Mount the plastic anchor（R）to the ceiling. Secure the mounting plate (Q) onto the outlet box,
using Outlet Box Screws (O) and uses the wood screw (P) to tighten the mounting back plate.
The side of the mounting back plate marked “GND” must be facing out (See illustration). The
junction is not included.
4. With the help of another person to hold the weight of the light fixture, unscrew the closable link
screw cap from the closable link (N) of the canopy (E), and attach the closable link (N) of the
canopy (E) onto the closable link (N) from the mounting plate (Q). Tighten each closable link
screw cap. Now the lighting fixture is supported by the steel wire.
CONNECTING THE WIRES (Fig.3)
1. Take the black wire from the ceiling junction box and the smooth wire leg from the fixture and
twist bare ends together. Twist wire connector onto end of wire until snug.
2. Repeat same process with white junction box wire and ribbed wire leg of fixture wire. NOTE:
Twist wires together in the same direction you twist the wire connector onto wires.
3. If your junction box has a grounding wire (green or bare copper), attach this wire and the bare
copper wire from the fixture together as step 1. If junction box has no ground wire, attach the
bare copper fixture wire to the green ground screw on the mounting plate.
4. Put the Lamp Body onto the ceiling, aligning the screws on the mounting plate with the
mounting holes on the canopy (E). Lock it securely with the Ball Nut (M).
Your installation is now complete. Return power to the junction box and test the fixture.
(Not included) TYPE A in accordance with the fixture specifications.
FIG.2 FIG.1
The figure is only for
reference.
FIG.3
HOUSE
WIRES
Black (Hot)
Need assistance with parts or assembly? Please call customer service
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
Thank you for purchasing a product.
HOUSE
WIRES
Green or Bare
Copper (Ground)
ALL RIGHTS RESERVED.
