I-View ATX-100V, ARX-100V, ARX-400V User Manual

4

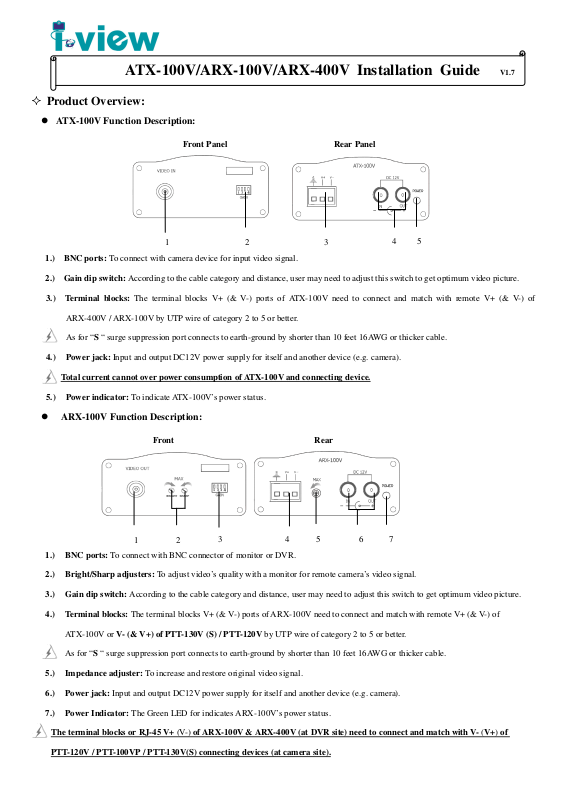

ATX-100V/ARX-100V/ARX-400V Installation Guide

 Product Overview:

 ATX-100V Function Description:

1.) BNC ports: To connect with camera device for input video signal.

2.) Gain dip switch: According to the cable category and distance, user may need to adjust this switch to get optimum video picture.

3.) Terminal blocks: The terminal blocks V+ (& V-) ports of ATX-100V need to connect and match with remote V+ (& V-) of

ARX-400V / ARX-100V by UTP wire of category 2 to 5 or better.

As for “S “ surge suppression port connects to earth-ground by shorter than 10 feet 16AWG or thicker cable.

4.) Power jack: Input and output DC12V power supply for itself and another device (e.g. camera).

Total current cannot over power consumption of ATX-100V and connecting device.

1 2 3

Rear Panel Front Panel

5

V1.7

5.) Power indicator: To indicate ATX-100V’s power status.

 ARX-100V Function Description:

1.) BNC ports: To connect with BNC connector of monitor or DVR.

2.) Bright/Sharp adjusters: To adjust video’s quality with a monitor for remote camera’s video signal.

3.) Gain dip switch: According to the cable category and distance, user may need to adjust this switch to get optimum video picture.

4.) Terminal blocks: The terminal blocks V+ (& V-) ports of ARX-100V need to connect and match with remote V+ (& V-) of

ATX-100V or V- (& V+) of PTT-130V (S) / PTT-120V by UTP wire of category 2 to 5 or better.

As for “S “ surge suppression port connects to earth-ground by shorter than 10 feet 16AWG or thicker cable.

5.) Impedance adjuster: To increase and restore original video signal.

6.) Power jack: Input and output DC12V power supply for itself and another device (e.g. camera).

7.) Power Indicator: The Green LED for indicates ARX-100V’s power status.

Front

1 2

3 4

Rear

5

6 7

The terminal blocks or RJ-45 V+ (V-) of ARX-100V & ARX-400V (at DVR site) need to connect and match with V- (V+) of

PTT-120V / PTT-100VP / PTT-130V(S) connecting devices (at camera site).

 ARX-400V Function Description:

1.) Surge ground: As for “S “ surge suppression port connects to earth-ground by shorter than 10 feet 16AWG or thicker cable.

2.) Front panel screws: The screws for fixing front panel and RMP-219 (19” rack mount panel)

3.) Power indicator: To indicate the status power-on or power-off of ARX-400V.

4.) Gain dip switches: According to the cable category and distance, user may need to adjust this switch to get optimum video picture.

5.) BNC ports: To connect with BNC connector of monitor or DVR.

6.) Bright/Sharp adjusters: To adjust video’s quality with a monitor for remote camera’s video signal.

7.) 8 pin RJ-45 connector: To connect to ATX-100V or PTT-100V(S) /130V(S) /120V by UTP wire of category 2 to 5 or better. Refer

2

3

4

5

6

to the pin assignment as below:

ARX-400V/100V RJ45

Front Panel

Rear Panel

7

UTP cable

1

9

8

Remote Terminal

ATX-100V

8.) Impedance adjuster: To increase and restore original video signal.

9.) Power jack: Plug DC12V power supply.

Video

or PTT-120V

or PTT-130V

 Product Application Diagram and Installations

 Using the ARX-100V to connect with ATX-100V at both Monitor and camera ends.

 Using the ARX-100V to connect with PTT-100V(S) /130V(S)/120V at both Monitor and camera ends.

 Using the ARX-400V to connect with PTT-100V/130V(S)/120V and ATX-100V devices at both DVR control and cameras ends
