iView 2000KII User Manual

Specifications and Main Features

  • The model of IVIEW-2000KII has
  • A power supply of 90-250V, 50/60Hz
  • A power capacity below 25W
  • A device weight of about 2Kg
  • Size metrics of 483(L) x 148(W) x 416(H) mm
  • Supported compatibility for CD, CD+G, VCD, MP3, DVD, AVI and MIDI
  • Video output support for VIDEO OUT, S-VIDEO, VGA and interlace VIDEO (Y, U, V)
  • Supports PAL, NTSC and AUTO for video output
  • Supports multiple modes for TV screen Normal/PS, Normal/LB, Wide
  • A built in 5+1 audio output device along with coaxial cable, Optical fiber, L/R audio output
  • S/N ratio above 80dB
  • SD and MMC card reader built in USB
  • Two Microphones with volume adjustment control
  • Karaoke function with echo control
  • I-Fun scoring function
  • Multi language capability of English, Chinese, Japanese, Filipino, Spanish, Russian, Thai, Brazilian, Korean and Vietnamese
  • Music Scene Choices including, Rock, Classic, Stadium, Disco, Plaza, Jazz and Normal
  • Shares song memory function for a maximum of 12 songs
  • Automatic Shuffle function for random playback
  • Multi-Angle, Multi-View, Multi-Audio, Multi-Subtitle
  • Supports for Echo
  • Control on 12 Step Key and 12 Step Tempo
  • More than 500 lines for Horizontal Resolution

Frequently Asked Questions

  • Q: IVIEW-2000KII is capable of playing what disc?

A: It is able to play CD, CD+G, VCD, MP3, DVD, AVI and MIDI.

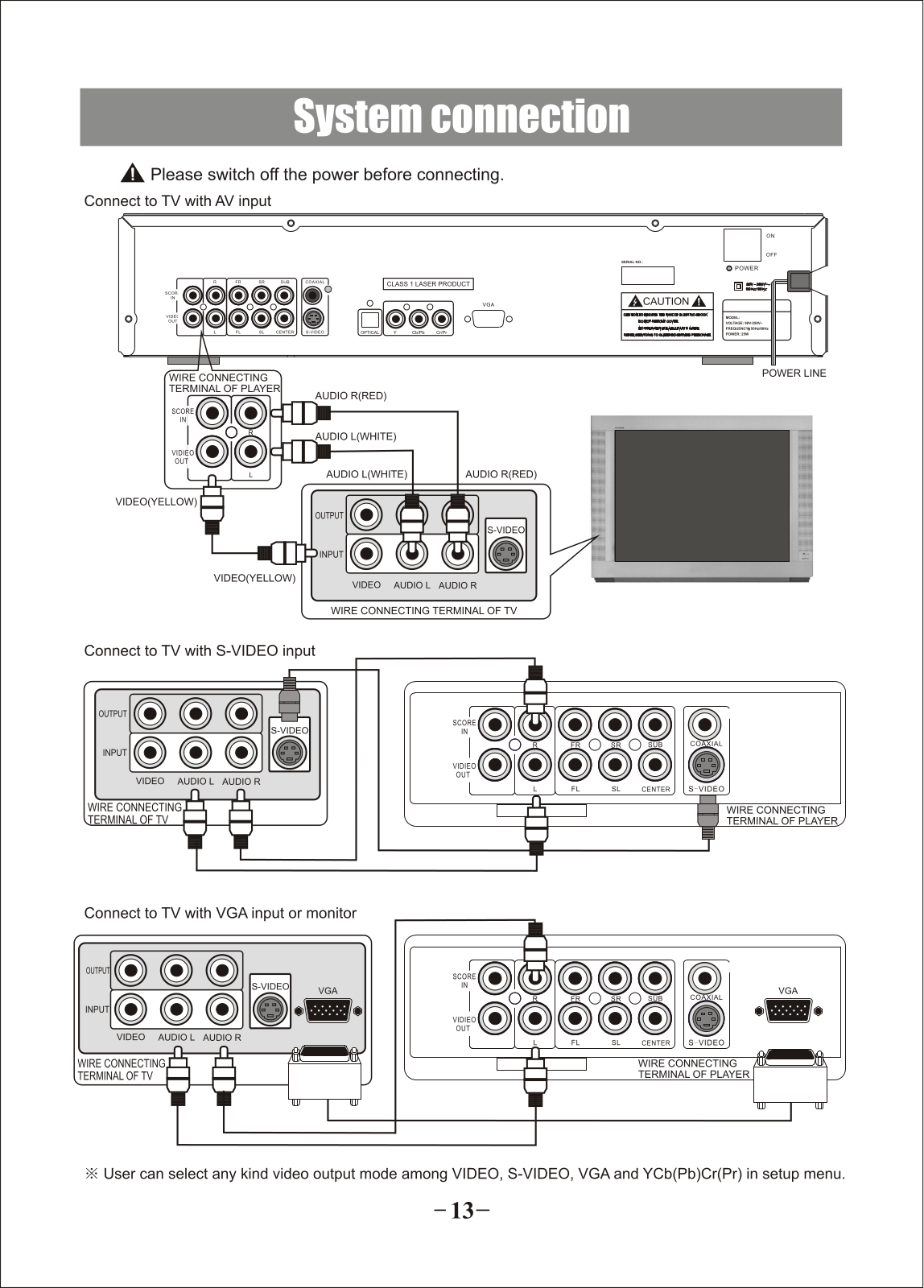

  • Q: What are the methods of linking the player onto the TV.

A: In order to establish a connection with your TV set, the player is equipped with an AV, S-VIDEO, VGA or Y,Cb/Pb,Cr/Pr input.

  • Q: What are the available Audio Outputs of the player?

A: The player is designed to have audio output 5+1, coaxial cable, optical fiber as well as L/R audio.

  • Q: Does the player accept USB devices and SD cards?

A: Indeed, for the player supports USB and card readers for SD and MMC formats.

  • Q: What is meant by I-FUN Scoring Function?

A: Real-time feedback when singing is one of the features of this application along with dynamic scoring which serves as a guide during practice, which is available using the I-FUN scoring function.

  • Q: Is there an option for microphone inputs.?

A: Yes, this device has two available Mic input with its own volume control.

  • Q: What is the power in input for the device?

A: The device is powered by AC 250V with a frequency of 50/60Hz and above.

  • Q: In case one fancies a method aside from English, can that particularly be an option?

A: Yes, unlike many other devices that are capable of playing songs only supporting the English language, this device supports multiple including, Chinese, Japanese, Filipino, Spanish, Russian, Thai, Brailian, Korean and Vietnam.
