Page 1
Left hand
installation

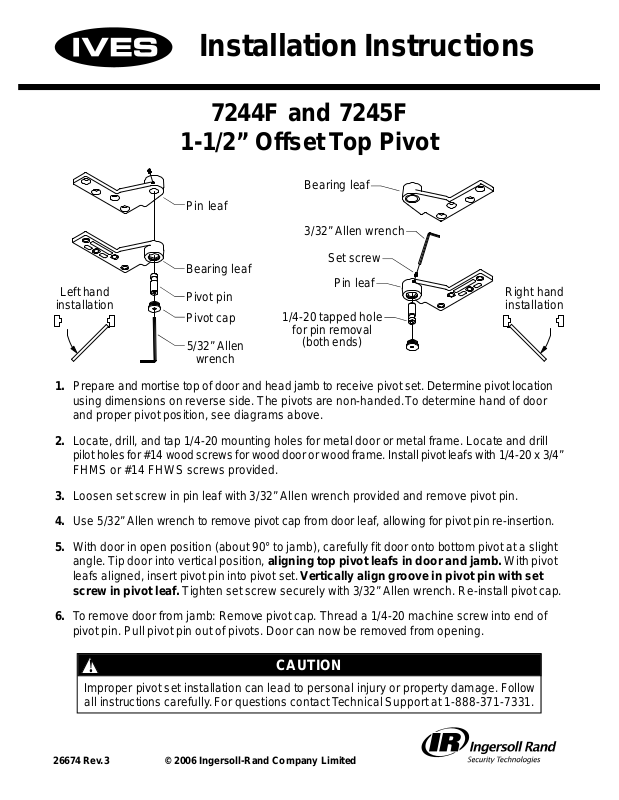

Installation Instructions
7244F and 7245F

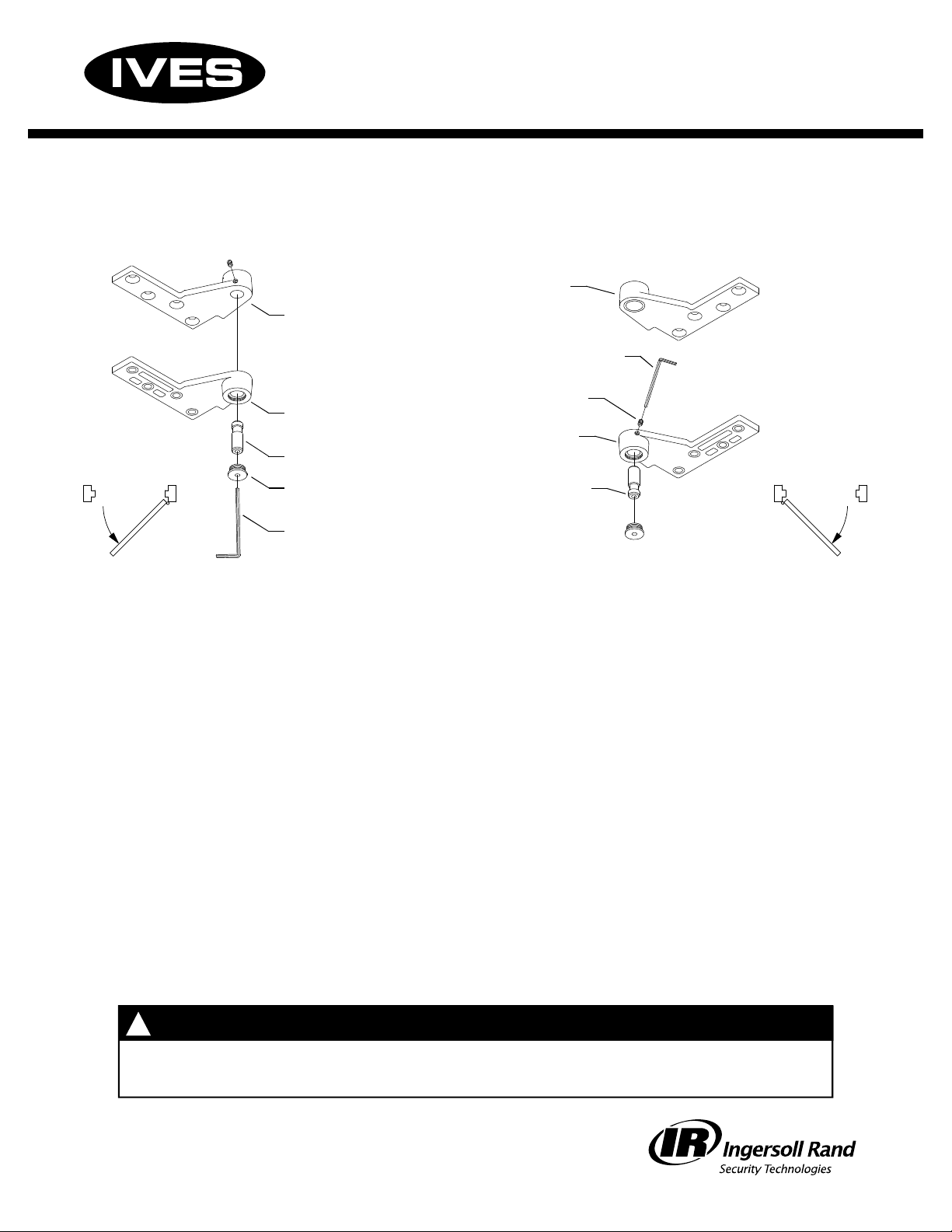

1-1/2” Offset Top Pivot
Bearing leaf
Pin leaf
3/32” Allen wrench
Set screw
Bearing leaf
Pin leaf
Pivot pin
Pivot cap
5/32” Allen
wrench
1/4-20 tapped hole
for pin removal
(both ends)
Right hand
installation
1. Prepare and mortise top of door and head jamb to receive pivot set. Determine pivot location
using dimensions on reverse side. The pivots are non-handed. To determine hand of door
and proper pivot position, see diagrams above.
2. Locate, drill, and tap 1/4-20 mounting holes for metal door or metal frame. Locate and drill
pilot holes for #14 wood screws for wood door or wood frame. Install pivot leafs with 1/4-20 x 3/4”
FHMS or #14 FHWS screws provided.
3. Loosen set screw in pin leaf with 3/32” Allen wrench provided and remove pivot pin.
4. Use 5/32” Allen wrench to remove pivot cap from door leaf, allowing for pivot pin re-insertion.
5. With door in open position (about 90° to jamb), carefully fit door onto bottom pivot at a slight
angle. Tip door into vertical position, aligning top pivot leafs in door and jamb. With pivot
leafs aligned, insert pivot pin into pivot set. Vertically align groove in pivot pin with set
screw in pivot leaf. Tighten set screw securely with 3/32” Allen wrench. Re-install pivot cap.
6. To remove door from jamb: Remove pivot cap. Thread a 1/4-20 machine screw into end of
pivot pin. Pull pivot pin out of pivots. Door can now be removed from opening.
!
CAUTION
Improper pivot set installation can lead to personal injury or property damage. Follow
all instructions carefully. For questions contact Technical Support at 1-888-371-7331.
26674 Rev. 3 © 2006 Ingersoll-Rand Company Limited
Page 2
!

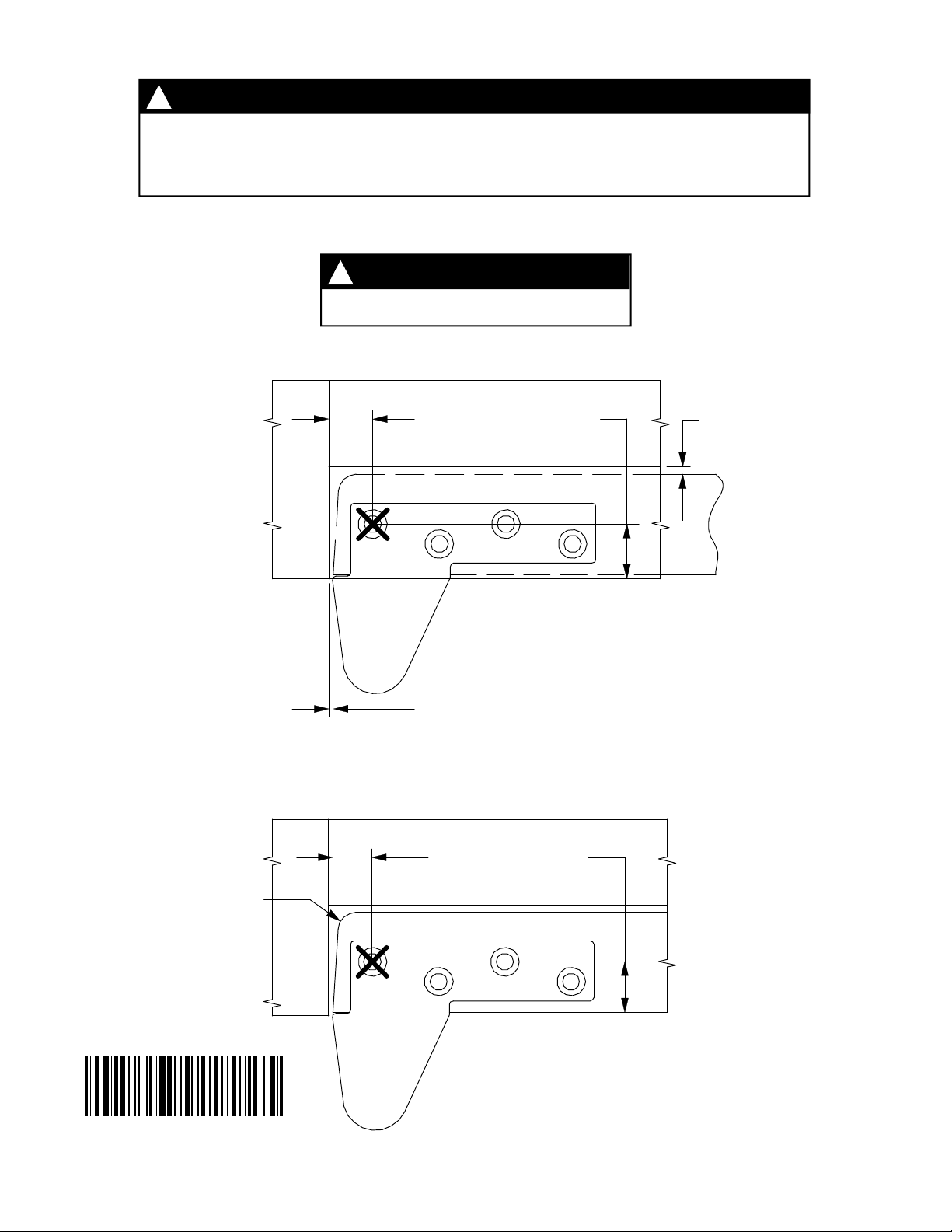

It is very important for installer to verify that center line of top pivot point lines up
with center line of bottom pivot point before final installation. Heel edge of door
must be beveled 1/8” in 2” as shown below.
NOTE
!
Mortise depth for pivot leafs is 5/16”.
NOTE
3/4”
*
19 mm
15/16”
24 mm
*
Frame Leaf
1/16”
2 mm
typ
These dimensions apply to industry standard
*
1-3/4” door in a 1-15/16” rabbeted frame. For
other frame conditions, locate frame leaf of
pivot identical to door leaf as shown below.
1/8”
3 mm
typ
Bevel heel edge of
door 1/8” in 2” with
3/16” rad, typ
26674-00
11/16”
17 mm
7/8”
22 mm
Door Leaf
26674 Rev. 3
