HLX Scale System
Operator Manual
ML-29278 HLX Scale
701 S. RIDGE AVENUE
TROY, OHIO 45374
www.hobartcorp.com
F-35516 (May 2007)
-355
Review Copy 6/1/0
7
HLX Scale System Operator Manual
b
(May 2007) i Ta
TABLE OF CONTENTS
Chapter 1: Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
FCC Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Verify Correctness of Weight and Price. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Operator Manual Terminology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Chapter 2: Understanding the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Communication Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Operator Start Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Chapter 3: Using the HLX Scale System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Power Up the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Logging onto the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Using RFID Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Shutting Down the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Operator Start Screen Menu Buttons and Flashkeys . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

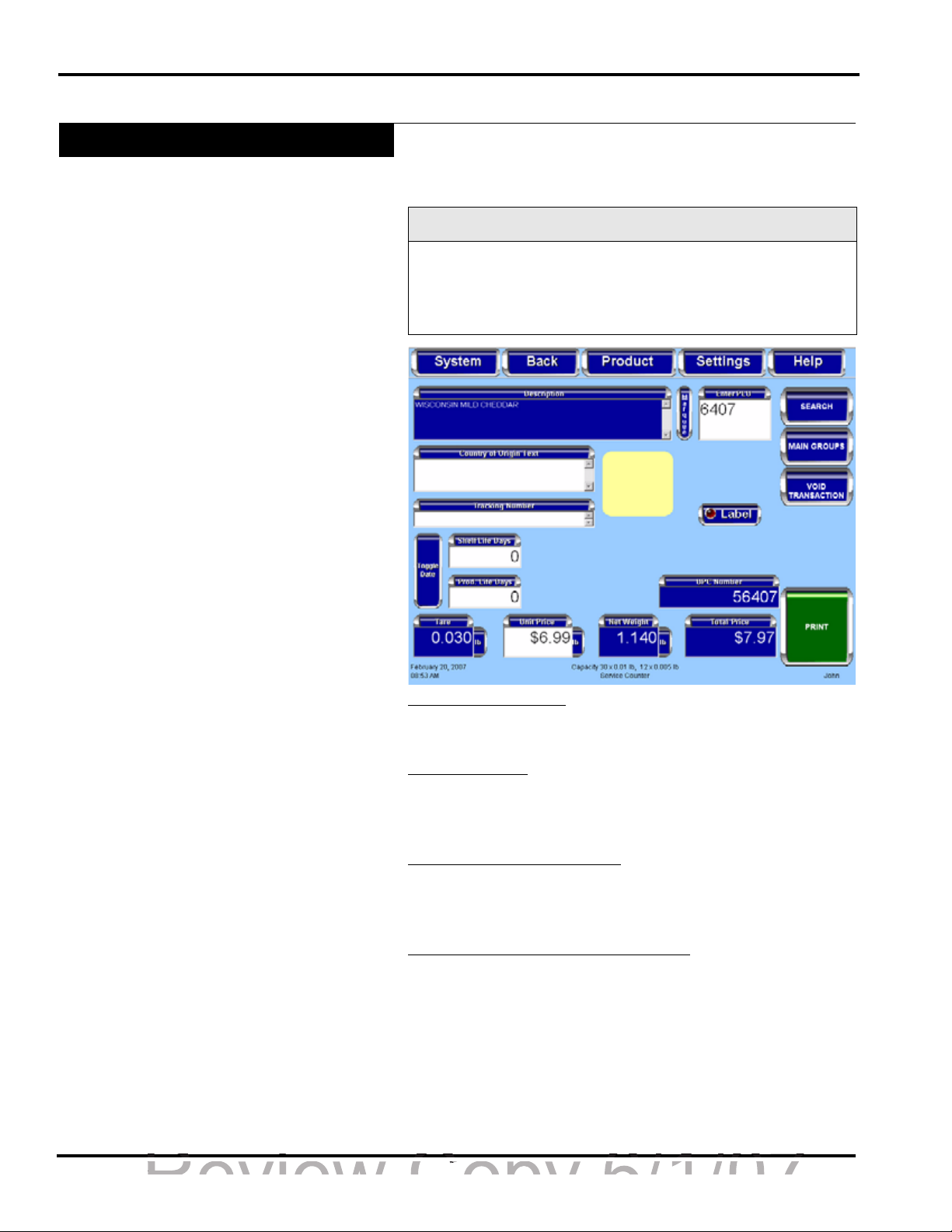

Run Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
Modifying the Run Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6
Running a Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7
Using the Operator Run Screen Drop-Down Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8
Product Drop-Down Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9
Settings Drop-Down Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-15
Help Drop-Down Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-18
Chapter 4: Maintenance & Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Removing the Label Cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Installing the Label Cassette. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Removing the Label Roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Loading the Label Cassette. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Removing the Scale Platter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Installing the Scale Platter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Adjusting Console Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Adjusting the Scale Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
Cleaning the Printhead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Cleaning the Exterior of Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
Index: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I-1
F-35516 (May 2007) i Table of Contents
(May 2007) i Ta
HLX Scale System Operator Manual
a
Java is a trademark of Sun Microsystems, Inc.
Copyright
Hobart, A division of ITW Food Equipment Group LLC 2007
2007 General Software Inc. All Rights Reserved
Table of Contents ii F-35516 (May 2007)
nts ii F-35516 (M
HLX Scale System Operator Manual
(May 2007) 1-1
Chapter 1: Introduction
Introduction
Welcome The HLX Scale System is perfect for your over-the-counter
weighing applications. This weighing system can handle a broad
variety of products for deli, produce, seafood, and cheese departments. It enhances your merchandising capabilities with multiple
fonts, graphics, and label types.
FCC Note
HLX Scale System
All necessary operator data appears on the touch screen.
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference, in which
case, the user will be required to correct the interference at their
own expense.
Note
NO MODIFICATIONS: Modifications to this device shall not
be made without the written consent of ITW Food Equipment
Group. Unauthorized modifications may void the authority
grated under Federal Communications Commission Rules
permitting the operation of this device.
F-35516 (May 2007) 1-1 Introduction
(May 2007) 1-1
HLX Scale System Operator Manual
a
1-2 F-35516 (M
Verify Correctness of
Weight and Price
Routinely verify label information. Check the multiplication of
price per pound times weight, and check the scale weight against
printed label weight. Weigh the same package several times to
verify outcome consistency. Packages that weigh near the middle
of the 0.005 lb. increment will vary up or down by 0.005 lb. Variation greater than 0.005 lb indicates the need for weigher adjustment. In such a case, or whenever necessary, contact your local
Hobart Representative.
Operator Manual Terminology
This manual uses the following terminology for keystrokes and
data manipulation procedures:
• The word TYPE means to touch a series of keys on the Operator Screen Numeric Keypad or the Operator Screen Alpha
Keyboard.
• The word TOUCH means to activate an entry shown on the
Operator Display screen.
• The word SELECT means to choose one item from a list
brought up on the Operator Screen.
The following special instructions are used in the manual:
Note
A Note is information that you need to know, but is not an actual
step in the process.
Tip
A Tip is additional information that may be useful when you are
using the system.
Look At This
Look At This is information to alert you that you may be doing
something that will permanently alter your system.
Important Information
The following warning is provided for your protection.
WARNING
FLUORESCENT LAMP IN DISPLAY PANEL CONTAINS A
SMALL AMOUNT OF MERCURY. PLEASE DISPOSE OF
ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS.
Introduction 1-2 F-35516 (May 2007)
1-2 F-35516 (M
Chapter 2: Understanding the System
n
(May 2007) 2-1 Understand
Understanding the System
HLX Scale System Operator Manual
The HLX Scale System operates on the Microsoft Windows XP
Embedded operating system. If configured, you can access the
Windows desktop to use the features provided with the Windows
XP Embedded operating system. Contact your network
administrator with any questions regarding the use of Windows.
The HLX Scale System can store information on thousands of
products. Retail store information required for product handling
and processing, such as PLU number, UPC number, Pricing,
Tare, and Shelf Life is included. Consumer information
describing products, such as NutriFacts, Safe Handling,
Expanded Text, Health Tips, Meal Planners, Recipes, Cooking
Instructions, and Merchandising Graphics is also included.
Look At This
The scale should be installed and/or moved only by a qualified
Hobart Service Technician. The system can operate in a temperature range from 32°F to 104°F (0°C to 40°C).
Electrical Connections
Communication Connections
The following topics are discussed in this chapter:
Electrical Connections
Communication Connections
Operator Start Screen
A power cord is located on the bottom of the scale. Electric
power of 120 V., 60 Hz., 1 phase (2-wire plus ground) is required.
There are several ports that can be configured:
• RJ-45 Jack for an Ethernet Connector (TCP/IP)
–OR–
• Wireless TCP/IP (optional).
• 2 Type A USB 2.0 Ports
F-35516 (May 2007) 2-1 Understanding the System
(May 2007) 2-1 Understandi
HLX Scale System Operator Manual
a
Operator Start Screen
The Operator Start Screen is a touch screen that enables you to
enter information and move through the display screens.
Attributes Functions
Menu Buttons The menu buttons on the Operator Start Screen are used to access the drop-down
menus, which show the subcategories of data available for selection.
Check Box A check box enables or disables optional functions. A check mark or circle appears in
the box when a function is enabled.
Text Box A text box is a field into which you enter data.
Grayed Field A grayed field indicates the field is not available for the current screen or transaction.
Flashing Cursor The flashing cursor in a text box indicates that the field is currently activated and is
available for data entry.
Light Blue Highlighted
Drop-Down Menu
A drop-down menu, shown in light blue, indicates the menu has been activated and a
subcategory can be selected.
Flashkeys The Flashkeys provide quick access to frequently used products and functions.
Numeric Keypad The numeric keypad appears on the screen when numeric data is to be entered.
Alpha Keyboard The alpha keyboard appears on the screen when alpha data is to be entered.
Understanding the System 2-2 F-35516 (May 2007)
the System 2-2 F-35516 (M
Chapter 3: Using the HLX Scale System
(May 2007) 3-1 Using the HLX
Using the HLX Scale System
HLX Scale System Operator Manual
Power Up the System
Logging onto the System
To power up the HLX Scale System, plug the power cord into a
dedicated electrical receptacle.
The HLX Scale System may require an operator to login before
use. Not all systems are setup to require an operator to login.
Note
Some systems may use the RFID option. See Using RFID
Option.
The instructions for using this system are detailed in this chapter.
To login to the system you should be at the Operator Login
Screen shown below.
To Login to the System
TYPE your Operator ID. You should now be on the Operator
Main Menu Screen.
: TOUCH the Operator ID field and
To Logoff the Operator Start Screen
Operator Start Screen. No further action is required. The Operator
Login Screen will be displayed.
F-35516 (May 2007) 3-1 Using the HLX Scale System
(May 2007) 3-1 Using the HLX
: TOUCH Logoff on the
HLX Scale System Operator Manual
a
Using RFID Option
The RFID option is used to allow an operator to login quickly and
easily to the scale system. The scale senses when an RFID tag is
in range. The RFID tag can be a wristband or other device.
RFID Tag (Wristband Style)
To Login to the System Using RFID Tag
: Position the RFID tag
within 9 inches of the center of the display screen. Your user
name or operator ID should now appear in the lower right corner
of the display screen.
To Logoff the System Using RFID Tag
: Remove the RFID tag
from the read zone, the user will be logged off after 5 seconds.
Not all systems are setup to require that the RFID tag be used for
all transaction. Some only require the RFID tag when
modifications have been made to the product sale. The following
screen will appear when this is the case. Follow the on-screen
instructions.
Using the HLX Scale System 3-2 F-35516 (May 2007)
Scale System 3-2 F-35516 (M
(May 2007) 3-3 Using the HLX
Shutting Down the System
HLX Scale System Operator Manual
The Shutdown feature is designed to stop all internal functions.
Shutdown is required before power can be disconnected from the
system.
To Shutdown the System:
1. From the Operator Start Screen, TOUCH System.
2. From the System Menu, TOUCH Shutdown. A screen will
appear and ask, “Are you sure you want to shutdown?”
3. TOUCH OK.
4. When the sytem is ready to shutdown, a screen will appear
and say, “The scale application is ready to shutdown. Press
the Shut Down Button to power down the scale or Reboot to
restart.” TOUCH Shut Down.
Look At This
Shutdown may take a few minutes to complete depending on the
size of the database in the scale. DO NOT disconnect power to
the system during shutdown.
5. Wait for Windows to shutdown (the screen will go black).
Unplug scale.
F-35516 (May 2007) 3-3 Using the HLX Scale System
(May 2007) 3-3 Using the HLX
HLX Scale System Operator Manual
a
Power Button
Located on the left side of the scale is the Power Button. In the
unlikely event the scale stops responding, use the Power Button
to reboot the scale.
To reset the scale, hold in the Power Button until scale reboots.
Operator Start Screen Menu
Buttons and Flashkeys
The Operator Menu Buttons provide access to drop-down menus
showing available menu choices. The use of these buttons, the
screens accessed, and the functions performed through these
buttons are described in the next section of this manual.
Note
The Product Menu Button will only be available when a PLU is
entered.
Flashkeys are the keys located below the Operator Menu Buttons.
These keys are configured individually for each system to
provide quick access to products and functions frequently used.
Using the HLX Scale System 3-4 F-35516 (May 2007)
Scale System 3-4 F-35516 (M
(May 2007) 3-5 Using the HLX
Run Screen
HLX Scale System Operator Manual
The Run Screen displays product information for the PLU that is
entered. The type of data displayed depends upon the product
weigh type of the PLU.
The Run Screen displays the following information, if applicable:
• Enter PLU Number
• Product Description
• Shelf Life Days (toggles to Sell By Date)
• Product Life Days (toggles to Best Before Date)
• Country of Origin Text (COOL)
• Tracking Number
• Product Image
• UPC/EAN Number
•Net Weight
• Total Price
• Automatic Label Print (toggles on/off)
• Tare
• Unit Price
• By Count
• Exception Price
•Volume
• Run Screen Flashkeys
Note
System configuation may show different options.
F-35516 (May 2007) 3-5 Using the HLX Scale System
(May 2007) 3-5 Using the HLX
HLX Scale System Operator Manual
a
Modifying the Run Screen
The operator can modify certain settings that display on the Run
Screen. Only text fields with a white background can be
modified. Text fields with a blue background cannot be edited
and provide information only.
Note
Changes made at the Run Screen, other than certain COOL
information, will be in effect for the current run only. The scale
will revert to the system default settings when a different PLU is
entered.
To change Field values: TOUCH the field and TYPE the change
on the pop-up Numeric Keypad or Alpha Keyboard. TOUCH
Enter. The value change will be displayed in field.
To change COOL
: TOUCH the Country of Origin Text field. You
should now be on the COOL Screen. See Product Drop-Down
Menu - COOL Screen for information about modifying COOL.
The setting changes made will be displayed on the Run Screen.
To change Automatic functions
: TOUCH the Label button on the
screen to turn automatic printing on or off. If the indicator is
green, then it is in automatic mode. If the indicator is red, then it
is in manual mode.
To View Message Displayed on Marquee
: TOUCH the Marquee
button to toggle the marquee message or product description.
Using the HLX Scale System 3-6 F-35516 (May 2007)
Scale System 3-6 F-35516 (M
(May 2007) 3-7 Using the HLX
Running a Product
HLX Scale System Operator Manual
Running a product is the basic function of the operator. This
function allows the operator to select the PLU, weigh, and print
the label.
From the Operator Start Screen, TOUCH a Flashkey
–OR– TOUCH the Enter PLU field and TYPE the product
number on the Numeric Keypad. TOUCH Enter. You should now
be on the Run Screen.
To run in Automatic Mode
: Place the product on the scale. The
label will print automatically when a stable weight has been
sensed by the scale.
To run in Manual Mode
: Place the product on the scale. TOUCH
Print to print a label. The label will print when a stable weight has
been sensed by the scale.
F-35516 (May 2007) 3-7 Using the HLX Scale System
(May 2007) 3-7 Using the HLX
HLX Scale System Operator Manual
a
Using the Operator Run Screen
Drop-Down Menus
Additional information is available by selecting a menu button;
Product, Settings, and Help located on the Operator Screen menu
bar as shown on the Operator Run Screen.
The Operator Run Screen drop-down menus include:
Note
The Product Menu Button will only be available when a PLU is
entered.
For Product
• Label Data
• Product Note
• Product & Shelf Life
• COOL
• Void Transaction
For Settings
• Printer Settings
• Total Types
• Expiration Label History
• Rezero Weigher
For Help
•Search
• Describe this Page
• Questions
• Operator Note
• Weights & Measures
• About Hobart HLX
Using the HLX Scale System 3-8 F-35516 (May 2007)
Scale System 3-8 F-35516 (M
(May 2007) 3-9 Using the HLX
Product Drop-Down Menu
HLX Scale System Operator Manual
The Product Drop-Down Menu has the following selections:
Label Data Screen
Product Note Screen
Product & Shelf Life Screen
COOL Screen
Void Transaction
Product Drop-Down Menu Label Data Screen
From the Operator Run Screen, TOUCH Product. TOUCH
Label Data. You should now be on the Label Data Screen.
To change the Label Type
: TOUCH the Label Type text box. The
Numeric Keypad will be displayed. TYPE the label number or
TOUCH clear to delete the label number and enter another one,
then TOUCH enter to complete the label number entry. The width
and length of the label will automatically be displayed below the
Label Type text box.
To change a Graphic
: TOUCH the graphic field and SELECT a
graphic from the list.
To exit this screen
F-35516 (May 2007) 3-9 Using the HLX Scale System
(May 2007) 3-9 Using the HLX
: TOUCH Back.
HLX Scale System Operator Manual
a
Product Drop-Down Menu Product Note Screen
From the Operator Run Screen, TOUCH Product. TOUCH
Product Note. You should now be on the Product Note Screen.
Note
Not all PLU’s have an associated Product Note.
To exit this screen
: TOUCH Back.
Using the HLX Scale System 3-10 F-35516 (May 2007)
Scale System 3-10 F-35516 (M
Loading...
