ITWell XPDA-S PCI Technical Manual

Mobile POS XPDA-S PCI

Technical Manual

Revision: V2.0E

January 2012

ITWell Co.,Ltd.

#505 Gayang Techno Tow n, 1487 Gayang-Dong , Gangseo-Gu, Seoul

Tel +82 2 360 2345 | Fax +82 2 720 1916

www.itwell.co.kr

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 2/28

XPDA-S PCI ITWell Confidential

Index

1. Overview ............................................................................... 5

2. Overall Features .................................................................... 5

3. Device ................................................................................... 6

3.1 Hardware Description .................................................................. 6

3.1.1 Platform ............................................................................................................ 6

3.1.2 Operating System .............................................................................................. 6

3.1.3 Display ............................................................................................................... 7

3.1.4 Keypad............................................................................................................... 8

3.1.5 Magnetic Card Reader ...................................................................................... 8

3.1.6 Printer ............................................................................................................... 9

3.1.7 Smart Card Reader .......................................................................................... 10

3.1.8 USIM ................................................................................................................ 11

3.1.9 SAMs ............................................................................................................... 11

3.1.10 Expansion Slot ............................................................................................... 12

3.1.11 Audio ............................................................................................................. 13

3.1.12 Battery........................................................................................................... 13

3.1.13 Barcode Scanner ........................................................................................... 15

3.1.14 GPS ................................................................................................................ 15

3.2 General Description ................................................................... 16

3.2.1 Dimension ....................................................................................................... 16

3.2.2 Weight ............................................................................................................. 16

3.2.3 Operating Temperature .................................................................................. 16

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 3/28

XPDA-S PCI ITWell Confidential

4. Communication ................................................................... 17

4.1 Modem ...................................................................................... 17

4.2 USB ............................................................................................ 18

4.3 WiFi ........................................................................................... 18

4.4 Bluetooth ................................................................................... 18

4.5 RFID ........................................................................................... 19

5. Accessories .......................................................................... 19

5.1 Optional Accessories .................................................................. 20

5.1.1 Cradle .............................................................................................................. 20

5.1.2 AC Power Adapter ........................................................................................... 21

5.1.3 Battery Pack .................................................................................................... 21

5.2 Included Accessories .................................................................. 22

5.2.1 Others ............................................................................................................. 22

6. Support ............................................................................... 22

6.1 SDK and APIs ............................................................................. 22

6.2 Testers ....................................................................................... 22

6.3 Maintenance ............................................................................. 22

6.4 Quick Starting ............................................................................ 23

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 4/28

XPDA-S PCI ITWell Confidential

Version History

Version Date Description of Changes Author

V0.92E April 28, 2010 2nd Draft K Han

V1.0E April 29, 2010 3rd Draft K Han

V1.1E April 30, 2010 4th Draft K Han

V1.2E August 19, 2010 Janus V2.0 Specification K Han

V1.3E July 13, 2011

Added CDMA Modem ports

description

K Han

V2.0E January 16, 2012

CPU type, RFID, Modem and Cradle

specification have been changed

K Han

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 5/28

XPDA-S PCI ITWell Confidential

1 Overview

XPDA-S PCI is a secure all-in-one mobile computer that satisfies PCI PED security standard and EMV. Based on Windows CE.net 5.0, XPDA-S PCI has integrated printer, barcode scanner, and secure PIN-PAD with smart card reader and magnetic stripe reader. Complex business applications that need to collect data and perform realtime communication is easy and fast with XPDA-S PCI. In addition, PCI PED certified PIN PAD will allow you process credit card securely and effortlessly. As, printer, barcode scanner, GSM and PIN PADs are all integrated in to a single device, there is no need to purchase additional accessories or device to handle printing or payment.

2 Overall Features

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 6/28

XPDA-S PCI ITWell Confidential

3 Device

3.1 Hardware Description

3.1.1 Platform

Characteristics XPDA-S PCI

CPU Marvell Xscale 806Mhz PXA320

Memory Flash 512MB (1GB optional)

Memory RAM 256MB

External Memory Micro SD(T-Flash) up to 32GB

USIP Innova Card secure module

MAXIM secure chip provides a secure logic for XPDA-S PCI. It means that XPDA-S PCI can protect customer’s precious information and data within XPDA-S PCI using MAXIM secure module.

3.1.2 Operating System

Operating System WinCE.net 5.0 Professional

WinCE 5.0 is used and spread out all over the world. It is compatible with various applications and development languages.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 7/28

XPDA-S PCI ITWell Confidential

3.1.3 Display

Characteristics XPDA-S PCI

Type TFT Transmissive color (QVGA)

Screen Size 3.5 inch(89 mm)

Display Area 53.28(W) X 71.04(H)

Number of Colors 262K(262,000 Colors)

Touch Screen Analog Resistance Type

Resolution(W X H) 240 X 320

Viewing Direction 12 o’clock

Backlight White LED

The XPDA-S PCI’s Transmissive LCD can be used by a finger and a stylus pen as well. Also, Transmissive LCD is brighter than Transflective LCD under sunlight.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 8/28

XPDA-S PCI ITWell Confidential

3.1.4 Keypad

Characteristics XPDA-S PCI

Number of Keys

-12 Numeric Keys

-3 Programmable keys(F1,F2 and F3)

-TAB, ESC and Enter

-Power

-Backspace

Triggers

-1 programmable Trigger(set TAB as default)

-2 Scanner Triggers(left and right)

Type

Plastic hard keys

Backlit

No

Braille bumps

Point on 5

The XPDA-S PCI numeric key pads are PIN Entry key pad for PIN when it needs to be encrypted.

3.1.5 Magnetic Card Reader

Characteristics XPDA-S PCI

Reader Type Manual

Tracks ISO Track 1,2 and 3

Card format accepted ISO7811

Read Direction Bi-directional

Reading Method F2F(FM)

Card Thickness

Plastic 0.76±0.08mm

Jitter Card Less than 18%

Card Swiping Speed 20 to 120cm/sec

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 9/28

XPDA-S PCI ITWell Confidential

For more MSR information,

Track used Track 1(ISO 1 IATA) Track2(ISO2 ABA) Track3 ISO3(MINTS) Reading Density 210 BPI 75 BPI 210 BPI Reading Capacity 79 Characters 40 Characters 107 Characters Reading Bits 7-bit code 5-bit code 5-bit code

3.1.6 Printer

Characteristics XPDA-S PCI

Type of Print Thermal

Color Black and white

Length of Print 58mm

Loading and Opening System Easy loading and Easy opening system

Printing Speed 70 mm/sec

Printing Column

-English Alphabet/Number: 32 Column

- Asian Character: 16 Column

Resolution 203dpi/8dots per mm

Maximum roll size

-Paper Width: 58mm

-Max roll Diameter: 24mm

-Max roll length: 6~7meter

Fonts

-English Characters

-Chinese simplified

Character Size

-ASCII 12X24(as a default setting)

-Chinese Simplified 24X24(as a default setting)

Dot Matrix Buffer

5000 dot lines

-

Keep printing about 200 lines of 24X24

Chinese characters once.

Barcodes -1D barcode types will be supported soon

Images YES(up to 384 dots)

Black Mark Detection YES

Paper Detection YES

Life Span 30Km

Every basic font can be programmed to double the size in height and width, underline, margined in the center, right and left, and bold at the same time. For more information, please refer to the API document.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 10/28

XPDA-S PCI ITWell Confidential

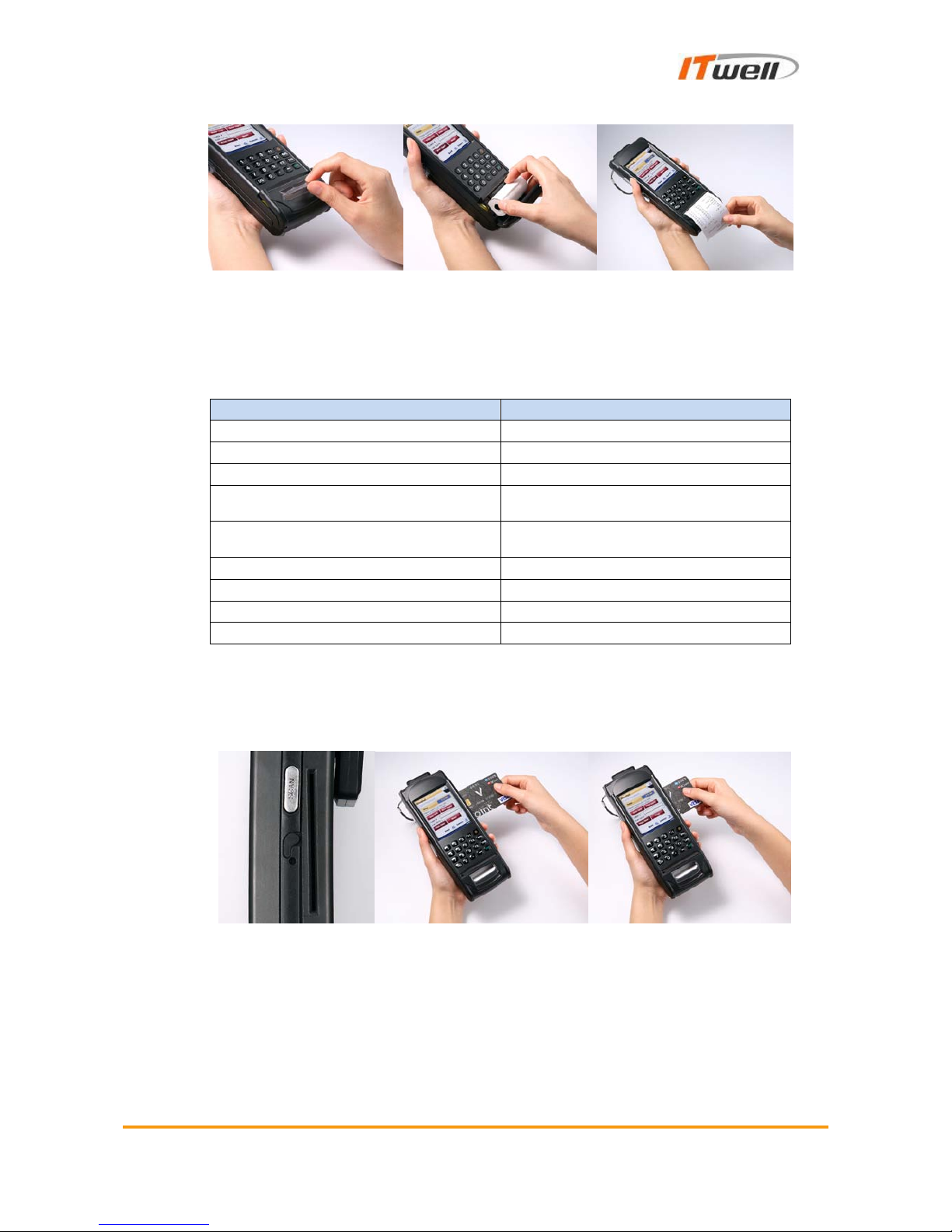

-Pull up the cover to open the lid of printer.

-Load the paper roll with correct direction.

3.1.7 Smart Card Reader

Characteristics XPDA-S PCI

ISO Standard ISO 7816 EMV level 1 certified

Contact Principle Friction Technology

Switch Blade contact, Normal open

Durability

Up to 100,000 inserted Rate of 600 inserts per hour

Material

-Data Contact: Copper alloy

-Insulation: Thermoplastic, UL94V-0

Card Insertion Force 15N Maximum

Card Withdraw Force 1n Minimum

Normal Contact Force 0.2N ~ 0.6N

Contact Retention Force 0.3Kg Minimum

The smart card reader is located on the right side of XPDA-S PCI as shown below. The card needs to be inserted with the card facing up.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 11/28

XPDA-S PCI ITWell Confidential

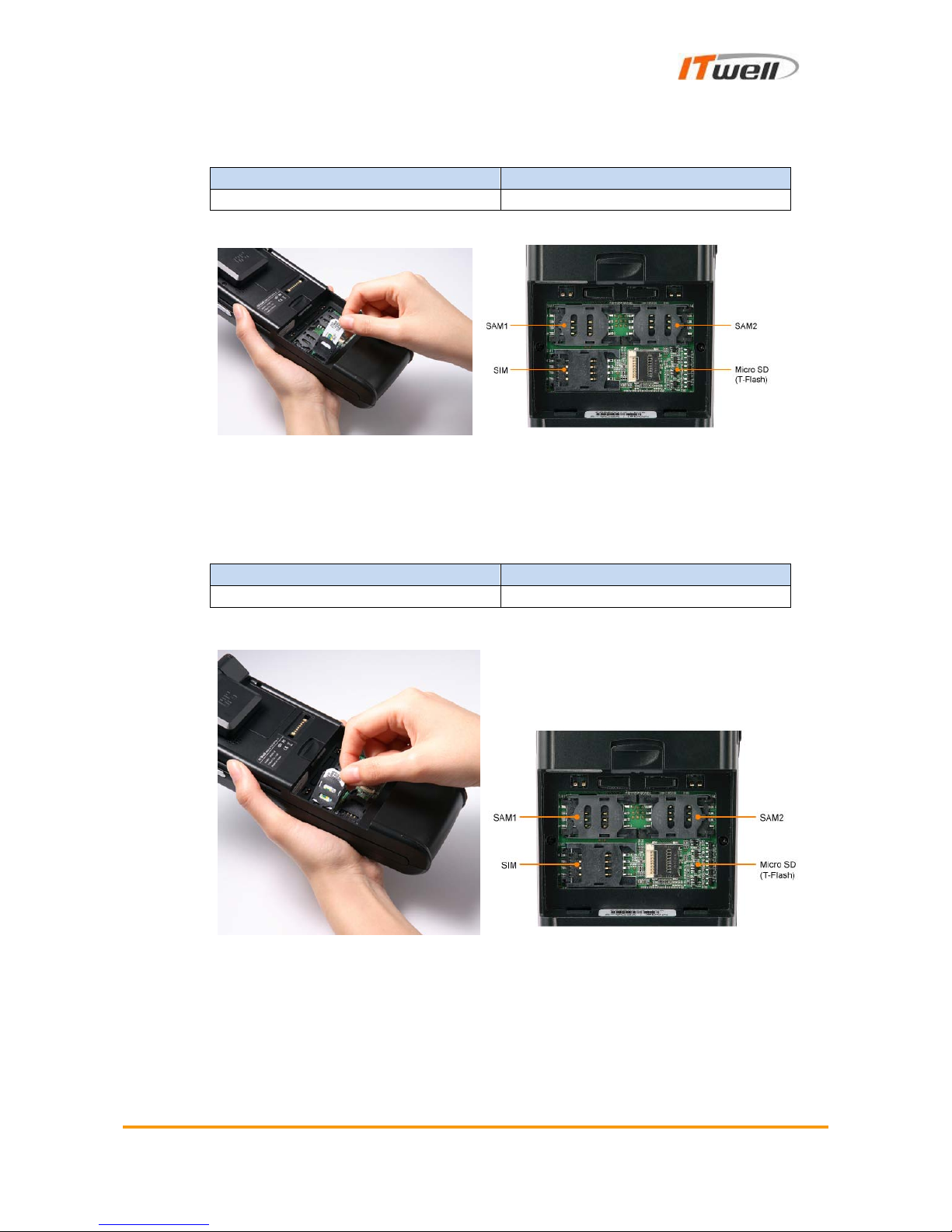

3.1.8 USIM

Characteristics XPDA-S PCI

Number of Slot 1

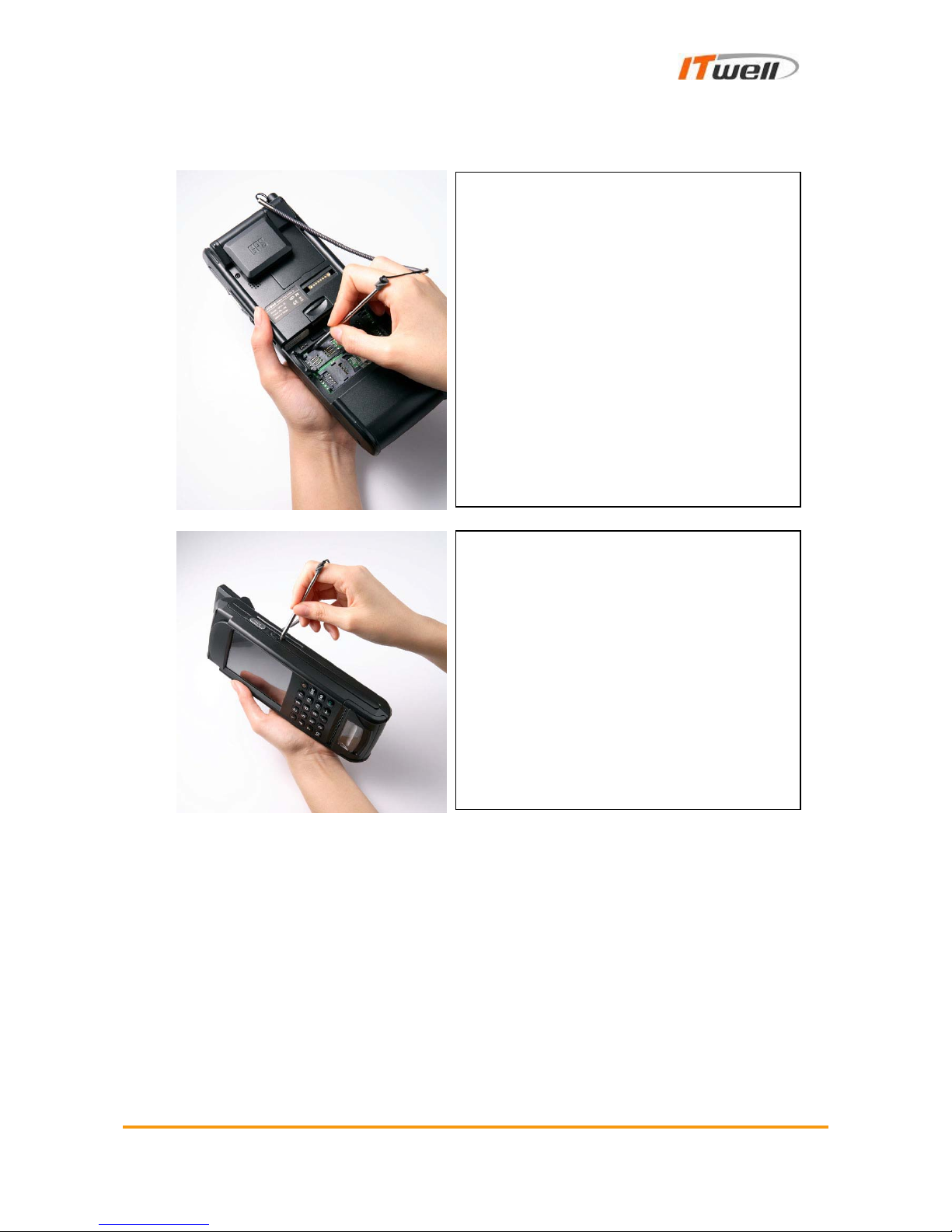

SIM Slot is located under Battery pack. The SIM slot is Unlocked when SIM Slot cover is shifted to the left.

3.1.9 SAMS

Characteristics XPDA-S PCI

Number of Slot 2

SAM Slots are located under Battery pack. The SAM1 slot is unlocked when SAM1 Slot cover is shifted to the left. Reversely, The SAM2 slot is unlocked when SAM2 Slot cover is shifted to the right.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 12/28

XPDA-S PCI ITWell Confidential

3.1.10 Expansion Slot

Characteristics XPDA-S PCI

Micro SD (T-Flash) Up to 32GB

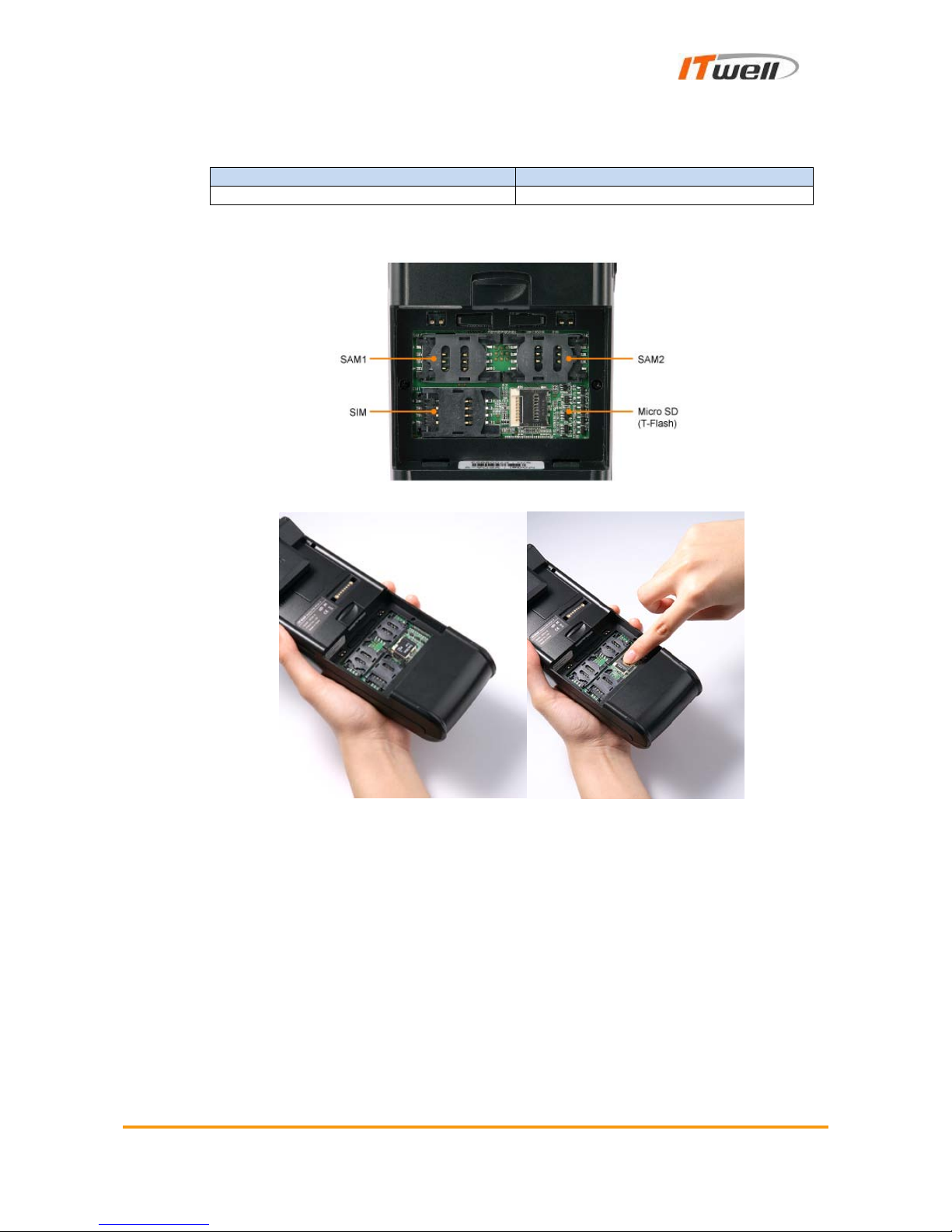

Micro SD slot is located under the battery pack. First, Open slot first then insert a Micro SD in the slot and vice versa for locking the slot.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 13/28

XPDA-S PCI ITWell Confidential

3.1.11 Audio

Characteristics XPDA-S PCI

Type Mono Audio speaker

Audio-in Built in microphone

Audio-out Earpiece

Audio is located on the back side of XPDA-S PCI

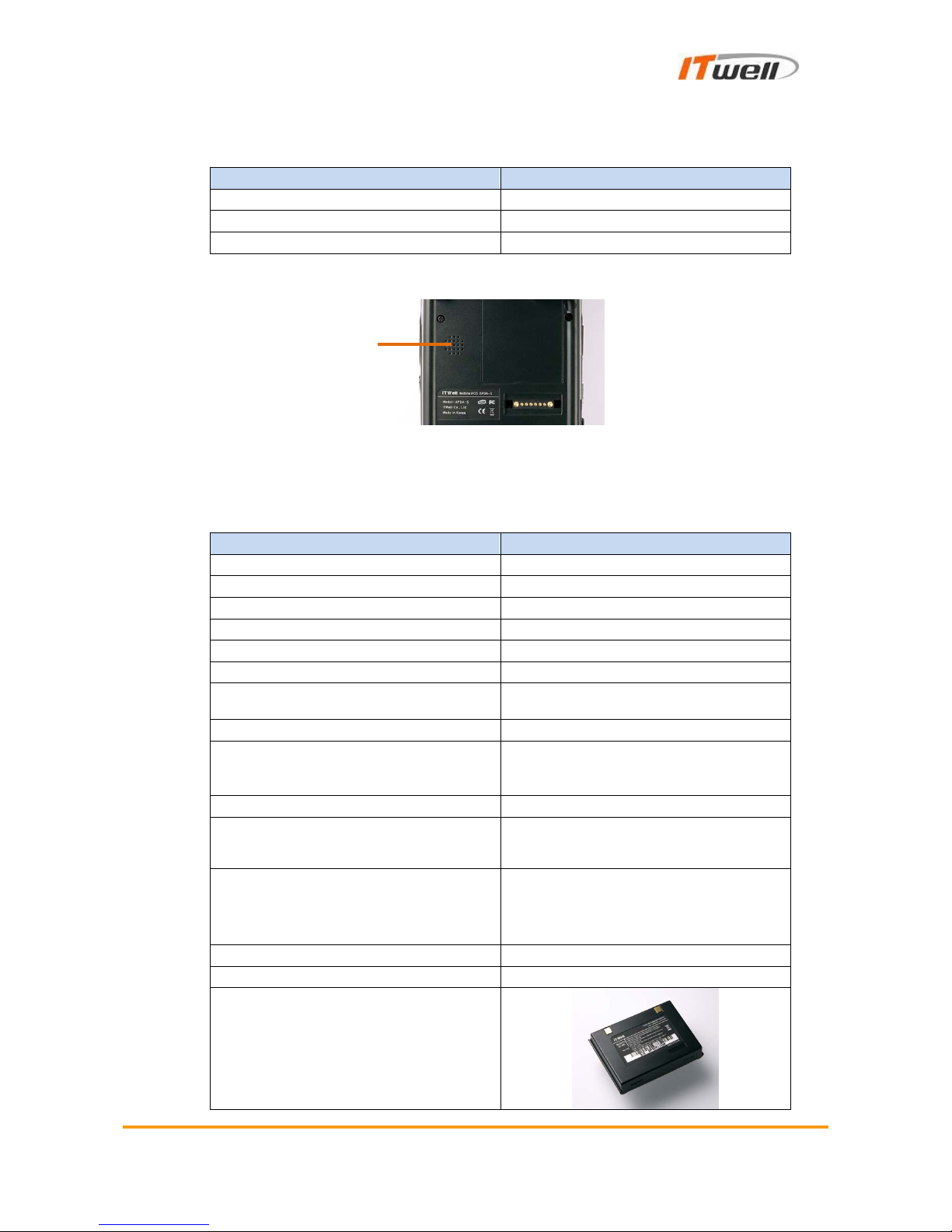

3.1.12 Battery

Characteristics XPDA-S PCI

Type of Battery 7.4V 1900mAh Li-Ion Rechargeable battery

Package Type Replaceable battery hard pack

Nominal Capacity 1,900mAh

Minimum Capacity 1850mAh

Nominal Voltage 7.4V

Cells

2 Cells of 3.7V

Standard Charge

Constant Current(CC) a

nd Constant

Voltage(CV)

MAX Charge Current

2775mA

Standard Discharge

Constant Current(CC)

-Current: 370mA

-End Voltage: 6.0V

Weight

81g

Operating Temperature

-Charge: 0 to 45℃

-Discharge: -20 to 60℃

Storage Temperature

-1month: -20 to 60℃

-3month: -20 to 45℃

-1 year: -20 to 20℃

Backup Battery

YES, Li-polymer 190mA

Lifespan

Depending on user usage


Speaker

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 14/28

XPDA-S PCI ITWell Confidential

Charging

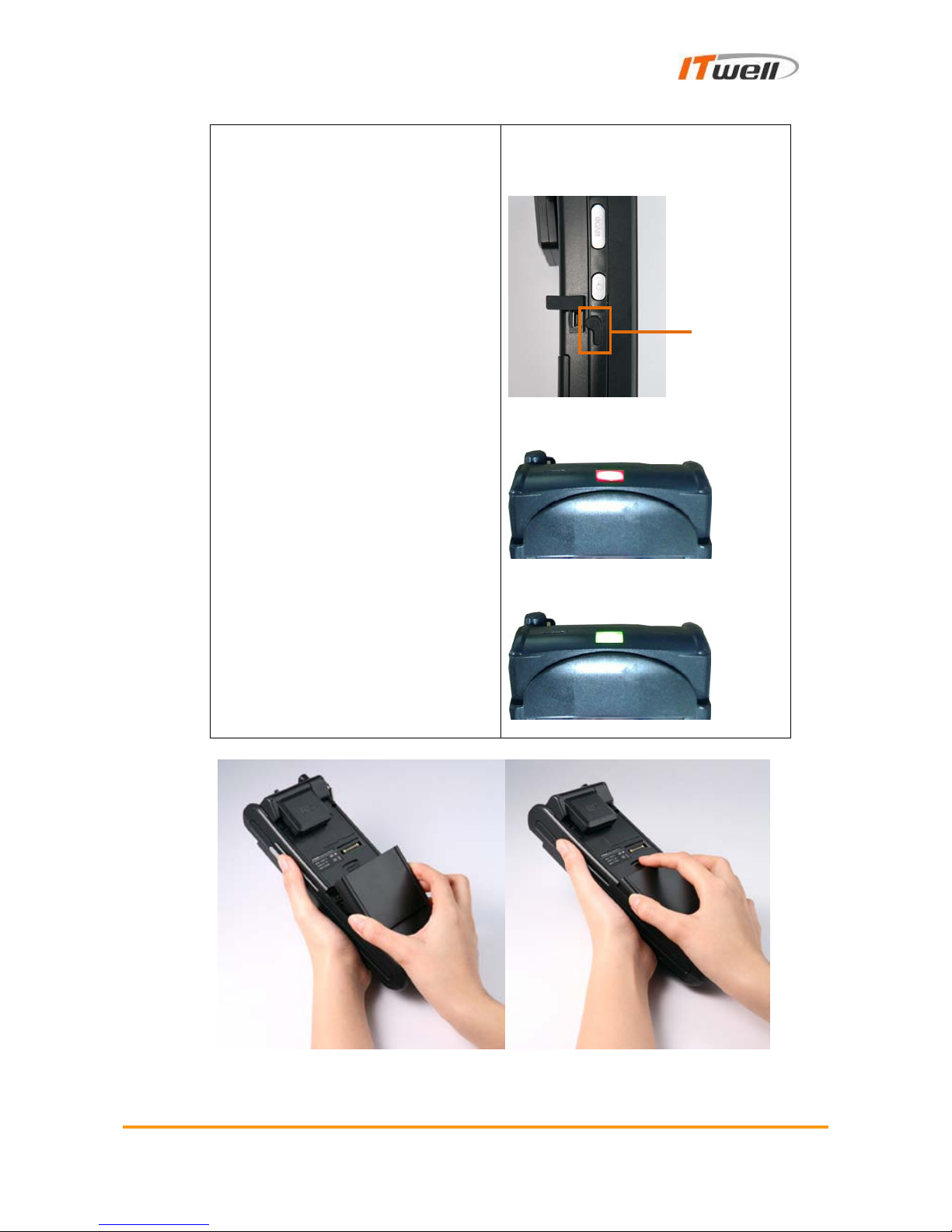

Use direct port located on the left of the device. Charging indicator is located in the front of the device.

-Charging (Red)

-Fully Charged (Green)

Push the lock upward to release the battery.

Charging Port

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 15/28

XPDA-S PCI ITWell Confidential

3.1.13 Barcode Scanner(Optional)

Characteristics XPDA-S PCI

Type

Laser type barcode scan engine Or 2D CMOS Imager

Type of Barcode

-General 1D barcodes can be read (Laser Option)

-Ge

neral 1D and 2D barcodes can be read

(COMS Imager Option)

3.1.14 GPS(Optional)

Characteristics XPDA-S PCI

Module MTK3318F

Channels 32 channels

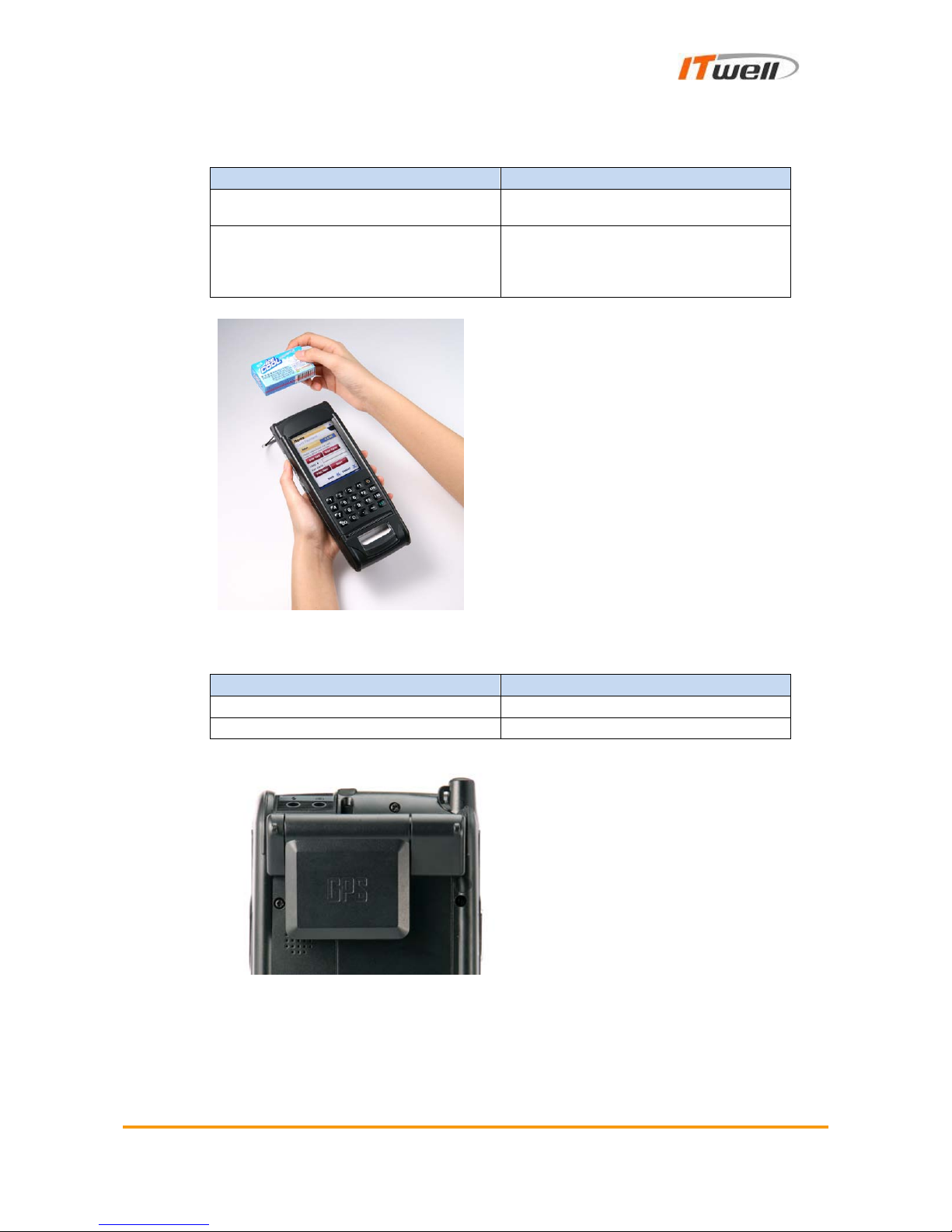

Barcode scanner is located at the top of XPDA-S PCI. (Same as the camera location)

Also

, there are two scanner

triggers on the left and right side.

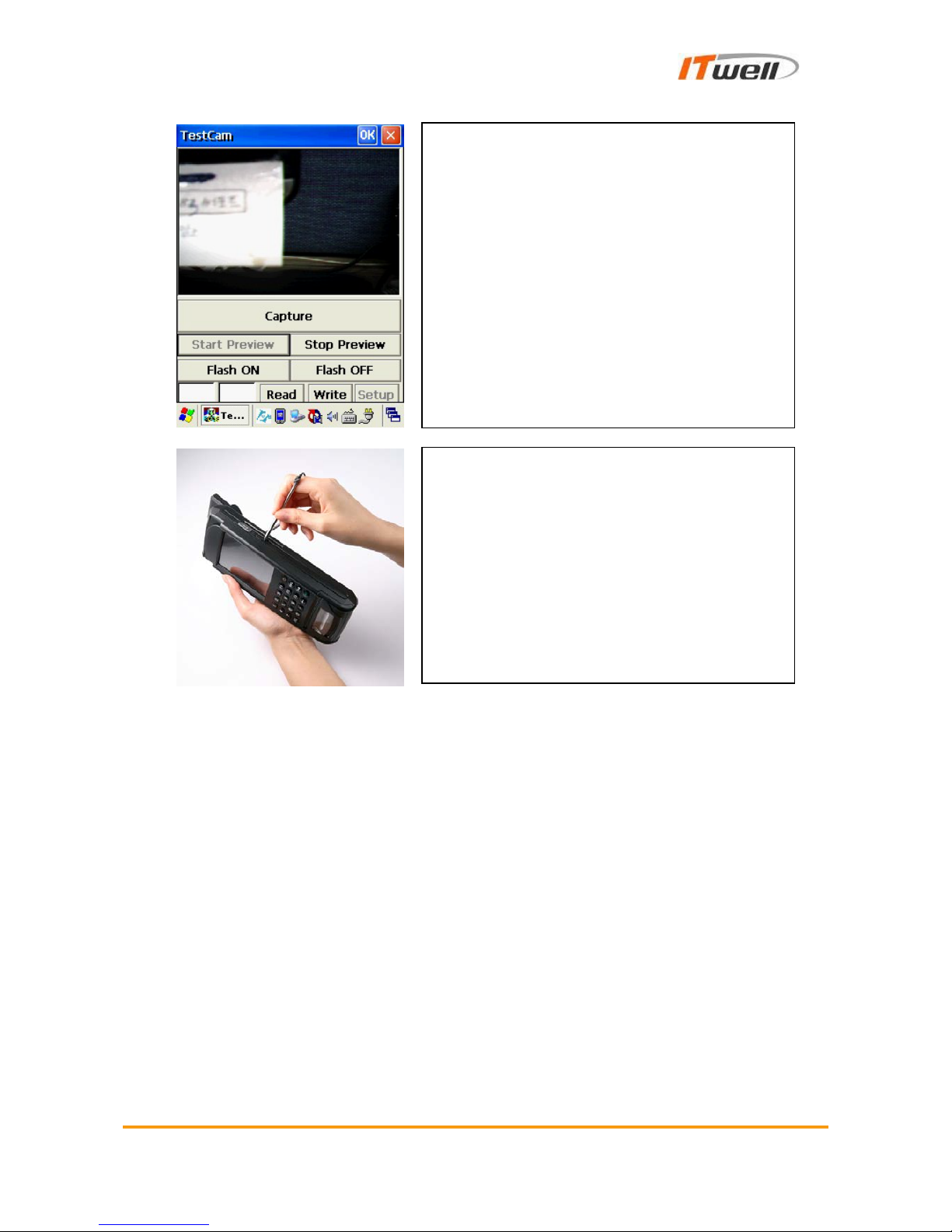

GPS is located on the back side of XPDA-S PCI. GPS is foldable. Unfold the GPS in use for GPS connectivity. GPS maps are not provided.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 16/28

XPDA-S PCI ITWell Confidential

3.2 General Description

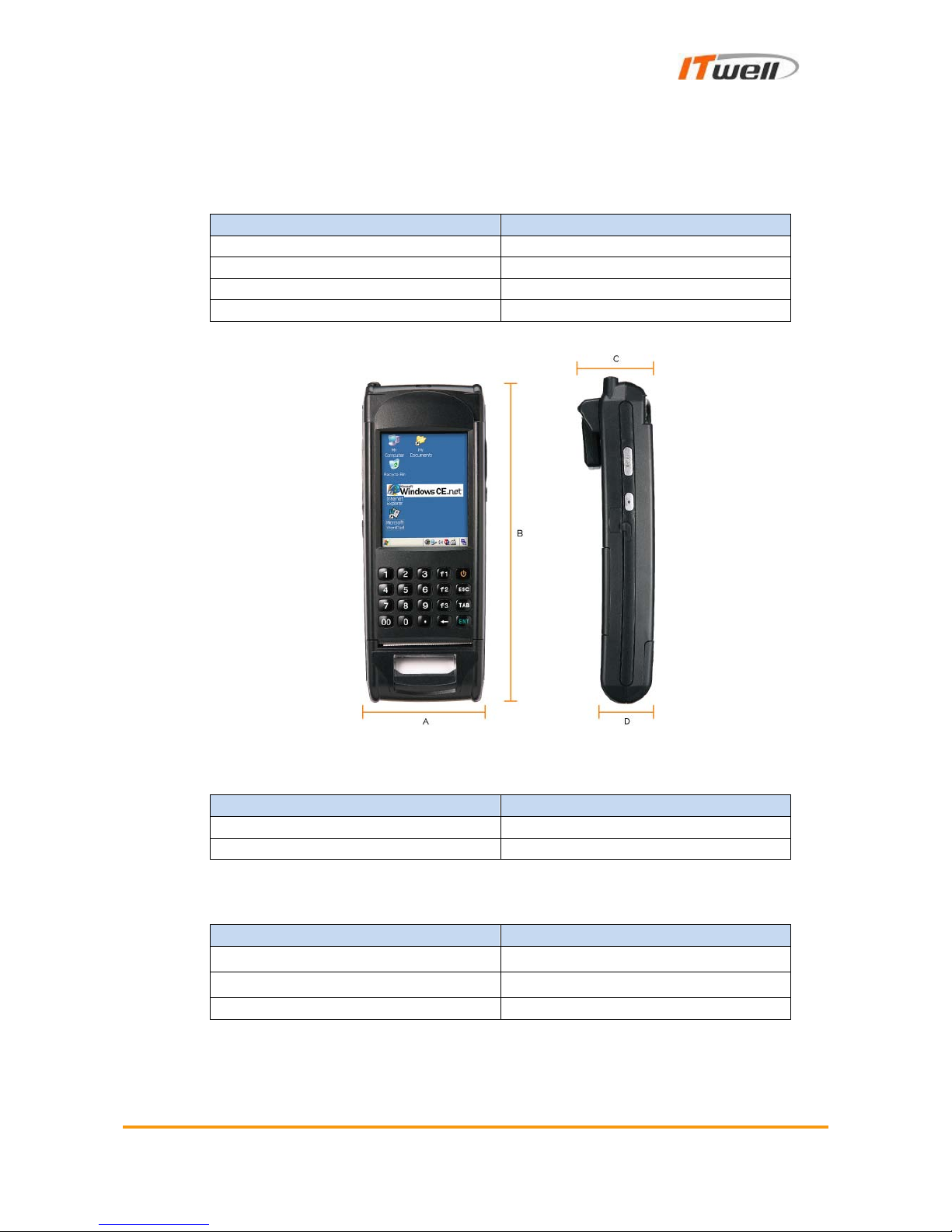

3.2.1 Dimension

Characteristics XPDA-S PCI

A 75mm

B 205mm

C (if GPS featured) 47mm

D 31mm

3.2.2 Weight

Characteristics XPDA-S PCI

Weight 500g

Including Battery Pack and Printer roll 560g

3.2.3 Operating Temperature

Characteristics XPDA-S PCI

Operating Temperature

-5℃ ~ 40℃

Storage Temperature

-20℃ ~ 60℃

Operating Humidity 90% RH

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 17/28

XPDA-S PCI ITWell Confidential

4 Communication

4.1 Modem

Characteristics XPDA-S PCI

Frequency

WCDMA Dual band 850/1900Mhz GSM/GPRS/EDGE 850/900/1800/1900Mhz

Data Transfer

GSM CS: UL 9.6kbps/DL 9.6kbps GPRS/EDGE: Multi-slot Class 12, Class B WCDMA CS: UL 64kbps/DL 64kbps WCDMA PS: UL 384kbps/DL 384kbps HSDPA: DL 3.6Mbps

USB Driver is supported. Please see the table below.

Port Type Speed Functions

COM 1 Serial Up to 115200bps Serial Communication

COM 8 USB

Depends on the

network provider

AT only

COM 9 USB

Depends on the

network provider

Data Communication

COM 10

(invisible)

USB

Depends on the

network provider

Diagnostics

* Some of network providers disconnect the data connection by force if there is no packet transmission between the device and the provider for 30 minutes. * COM 1 can be used with both data and voice. However, data and voice can’t be used concurrently.

Ex) if there is an incoming call during data transmission, the data transmission will be held during the call.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 18/28

XPDA-S PCI ITWell Confidential

4.2 USB

Characteristics XPDA-S PCI

USB Host & Client Supported (Switching available by software)

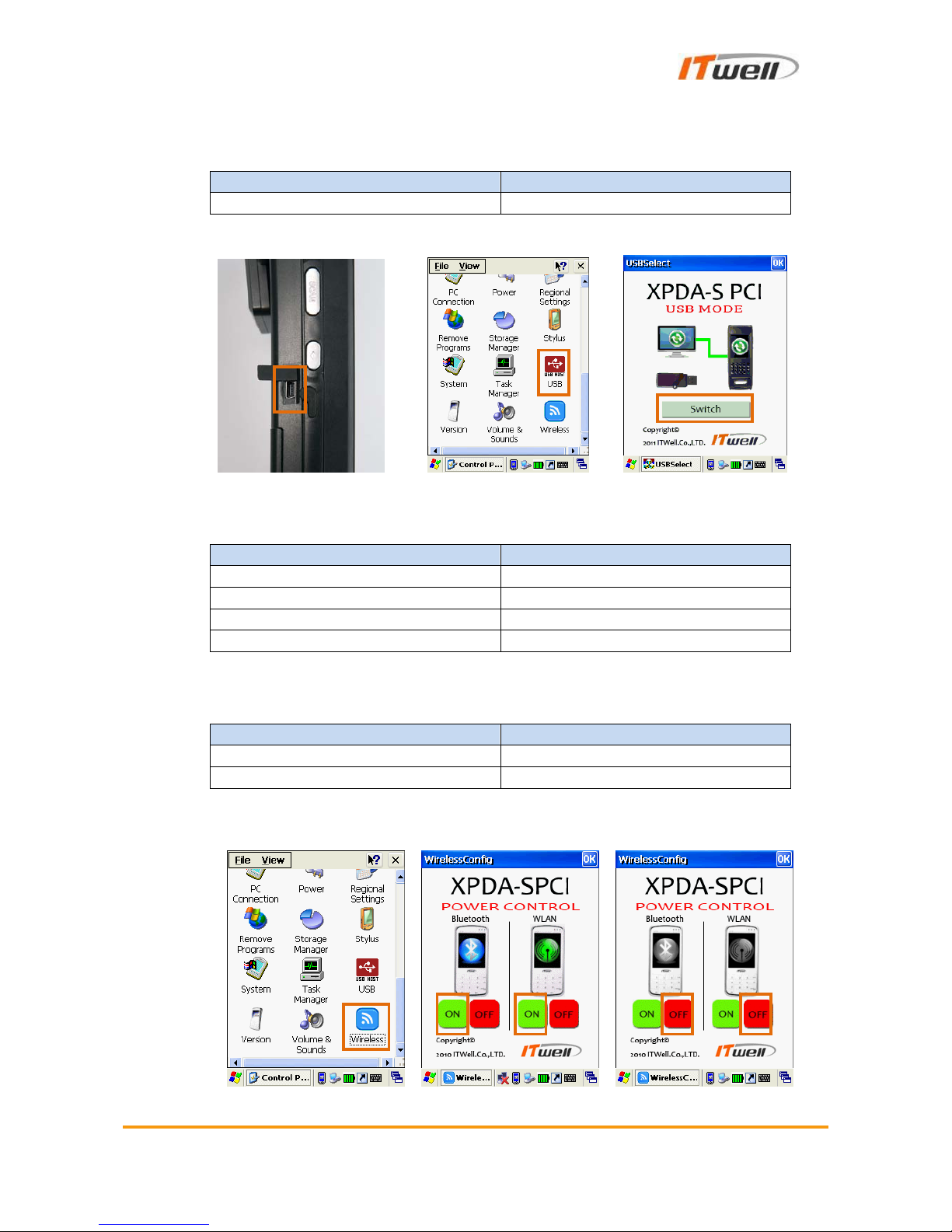

Host and Client mode can be switched by software placed in the control panel.

4.3 WiFi

Characteristics XPDA-S PCI

Standard IEEE WiFi 802.11 b/g/n

Radio link encryption WEP, T KI P, AE S

Security type WEP, WPA, WPA2

Band 2.4Ghz

4.4 Bluetooth

Characteristics XPDA-S PCI

Standard compliance Bluetooth V2.1+EDR Class 2

Bluetooth Manager Adeneo licensed manager provided

WiFi and Bluetooth Power control program is supported on the control panel

< Power On > < Power Off > < Control Panel >

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 19/28

XPDA-S PCI ITWell Confidential

4.5 RFID

Characteristics XPDA-S

Frequency 13.56MHz

Cards Accepted

Mastercard PayPass Visa PayWave 14443 A/B type Near Field Communication supports

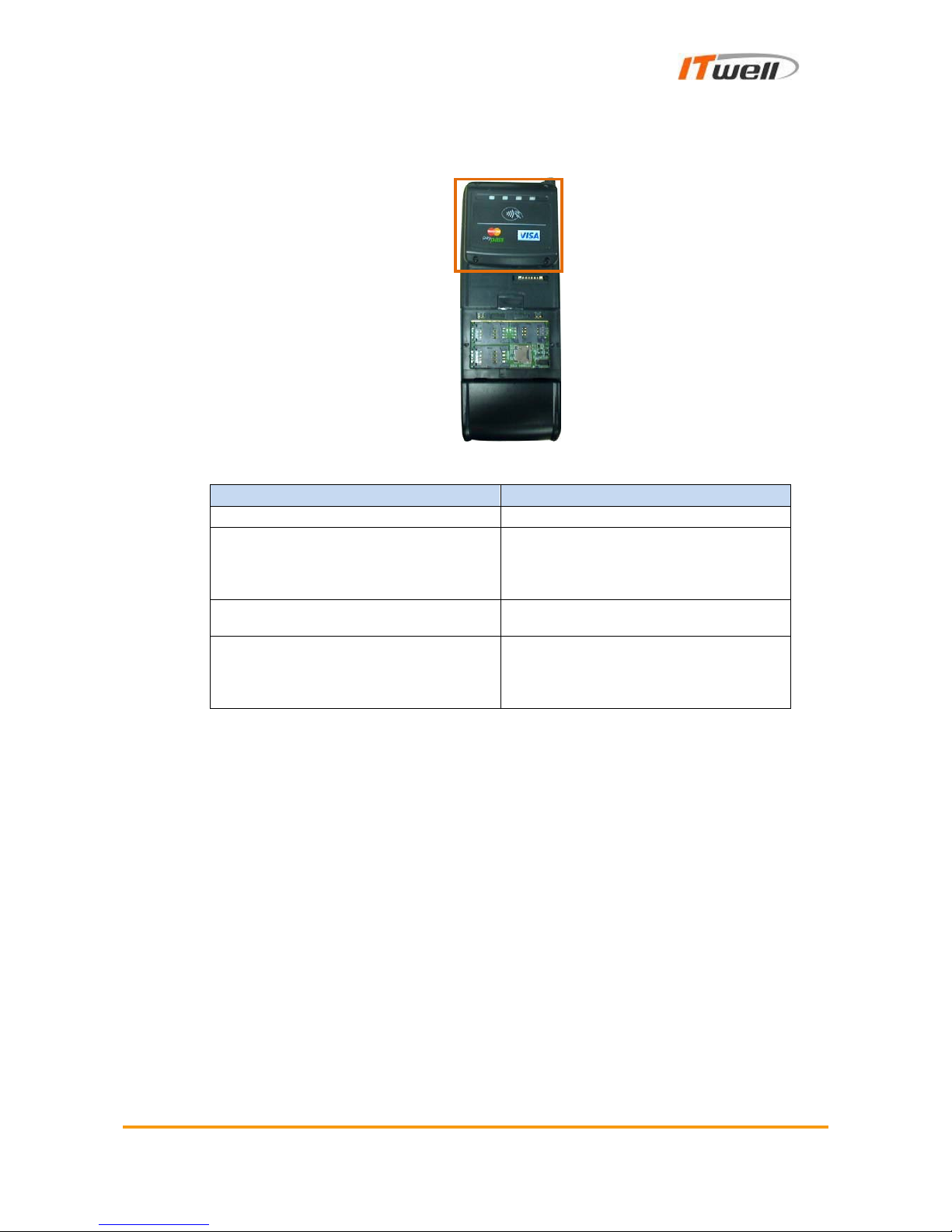

Landing Zone

ITWell Contactless reader named UM-100F is attached on the back of XPDA-S PCI

Certification

EMV Contactless L1 approved Mastercard PayPass L2 approved Visa PayWave L2 approved Mastercard TQM approved

Landing zone of UM-100F

Secure Mobile POS XPDA-S PCI 

Technical Manual V2.0E

 20/28

XPDA-S PCI ITWell Confidential

5 Accessories

5.1Optional Accessories

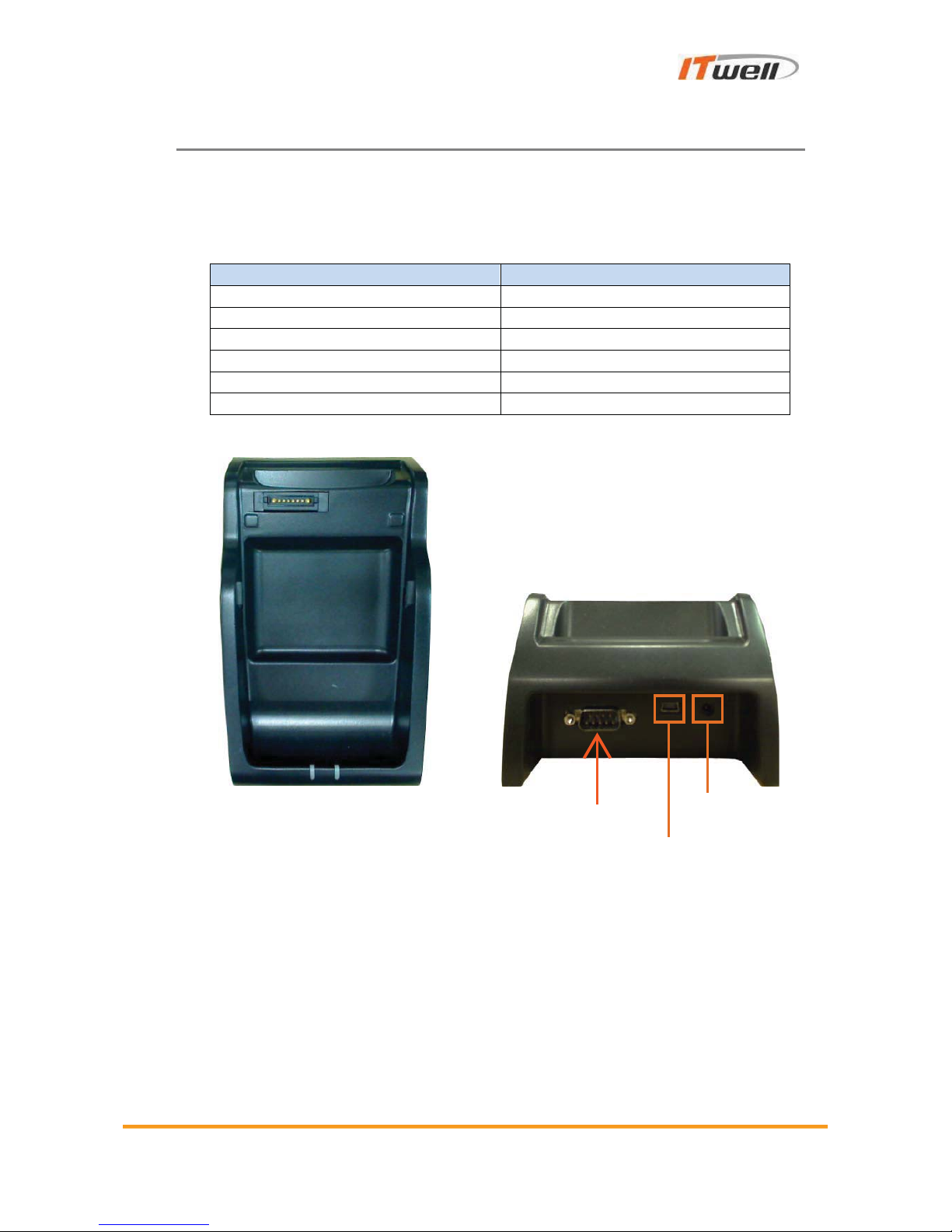

5.1.1 Cradle

Characteristics XPDA-S PCI

USB Connector Mini type B USB port

Charging Slot 1 Extra battery Charging slot at the bottom

AC Power 10V, 3A input

Charging Indicators Device and Extra battery

Maximum Charging Time 5 Hours

Dimension 180mm X 103mm X 73mm (L X W X H)

Charging port

USB port

can't used

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 21/28

XPDA-S PCI ITWell Confidential

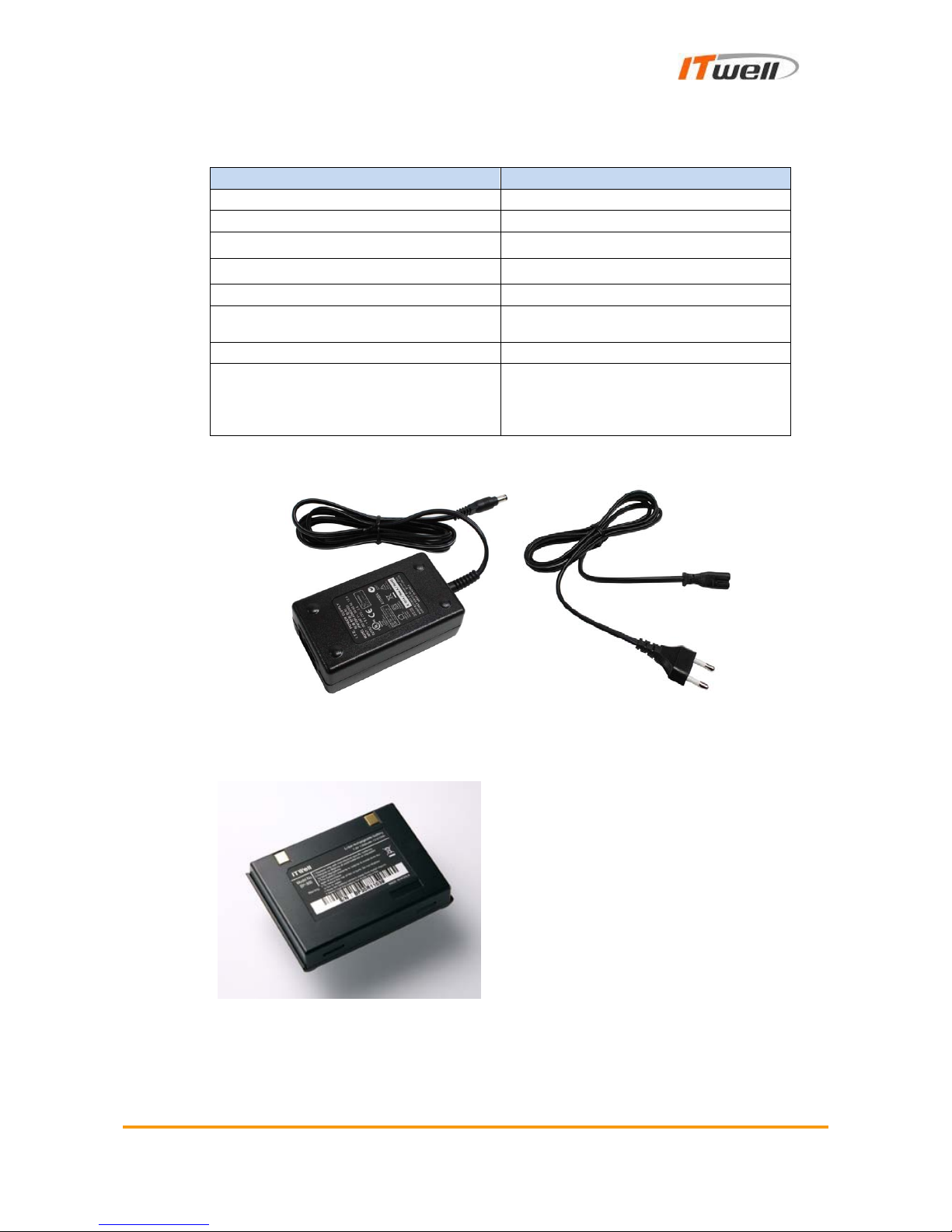

5.1.2 AC Power Adapter

Characteristics XPDA-S PCI

Input Voltage 100 to 250V AC -10% +10%

Output Voltage 10V 3.0A

Operating Temperature

0 to 40℃

Storage Temperature

-30 to 85℃

Weight 7 ounces, 198g

Dimension

3.74 X 2.13 X 1.26 inch (L X W X H) 95 X 54 X 32 mm (L X W X H)

Cord Length 1.8m + 1.8m

Safety Approval

UL60950-1 EN60950-1 TUV/IEC EN55022/55024/61000 EMC K60950-1

5.1.3 Battery Pack

Please refer to Section 3.1.12 for more information.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 22/28

XPDA-S PCI ITWell Confidential

5.2 Included Accessories

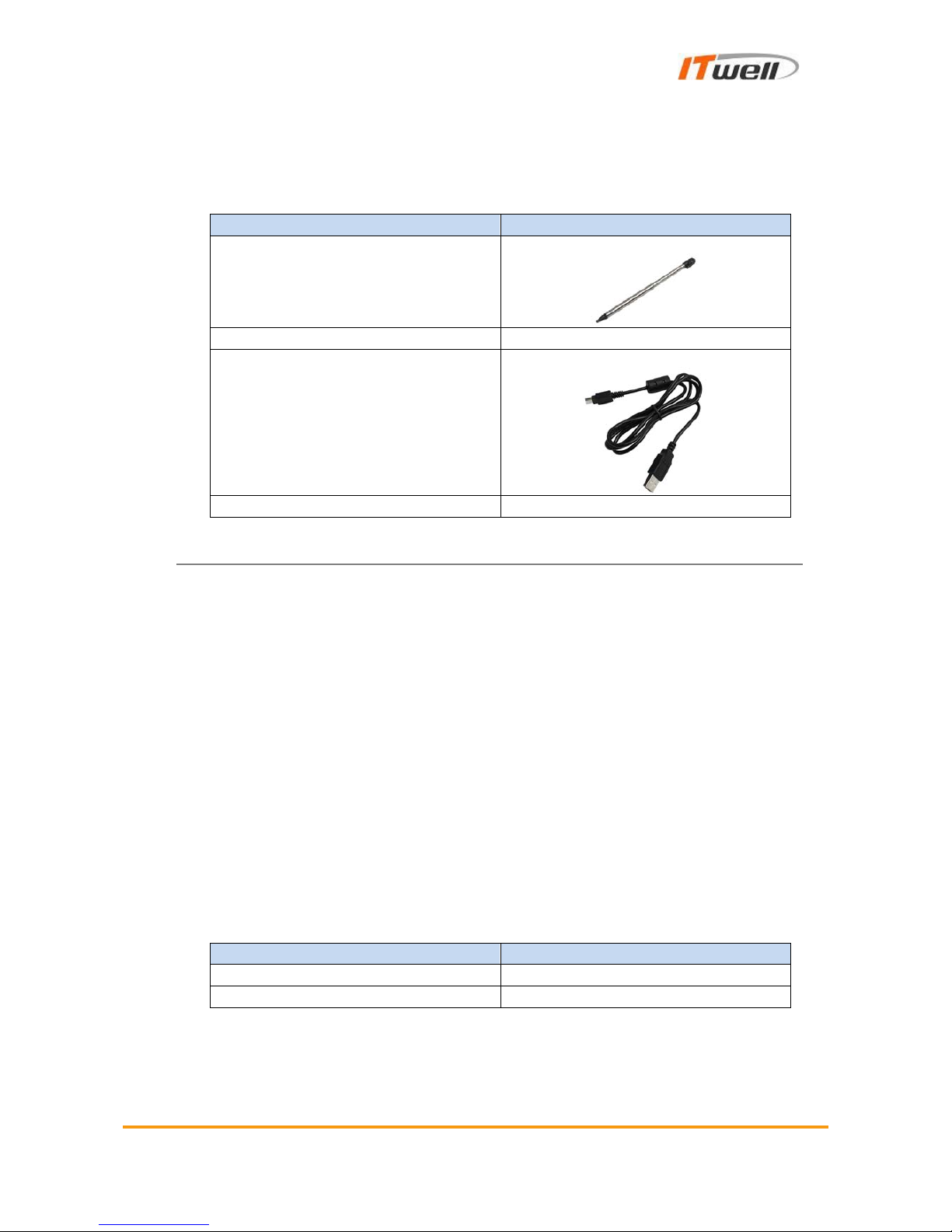

5.2.1 Others

Characteristics XPDA-S PCI

Stylus

Stylus pen for touching the screen.

Paper Roll Thermal Printer roll

USB cable

USB cable for ActiveSync

CD CD includes applications for users

6 Support

6.1 SDK and APIs

We are supporting VPOS312DLL.dll for USIP control. Also, we provide XPDANET.dll for device control. Printer, MSR and Smartcard are controlled by USIP and VPOS312DLL.dll.

Various sample source codes will be provided to the customers in C# and C++.

6.2 Testers

FunctionTester.exe, a testing program for the XPDA-S PCI shows you how to operate the XPDA-S PCI. It contains various testing sections for Keypad, Scanner, Printer, WiFi, Speaker, Modem, MSR and Smart Card. Furthermore, IO control program will be supported and provided in eVC++.

6.3 Maintenance

Characteristics ITWell

Technical Support Hot-line Support

Sales Support Hot-line Support

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 23/28

XPDA-S PCI ITWell Confidential

6.4 Quick Starting

Step 1

There is a backup battery switch on the back of the XPDA-S PCI. To turn the backup battery on, push the switch right aside with the stylus pen.

Then, install the main battery pack until you hear the lock sound.

Step 2

Press the reset hole on the right side of the device to boot the XPDA-S PCI for a second.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 24/28

XPDA-S PCI ITWell Confidential

Step 3

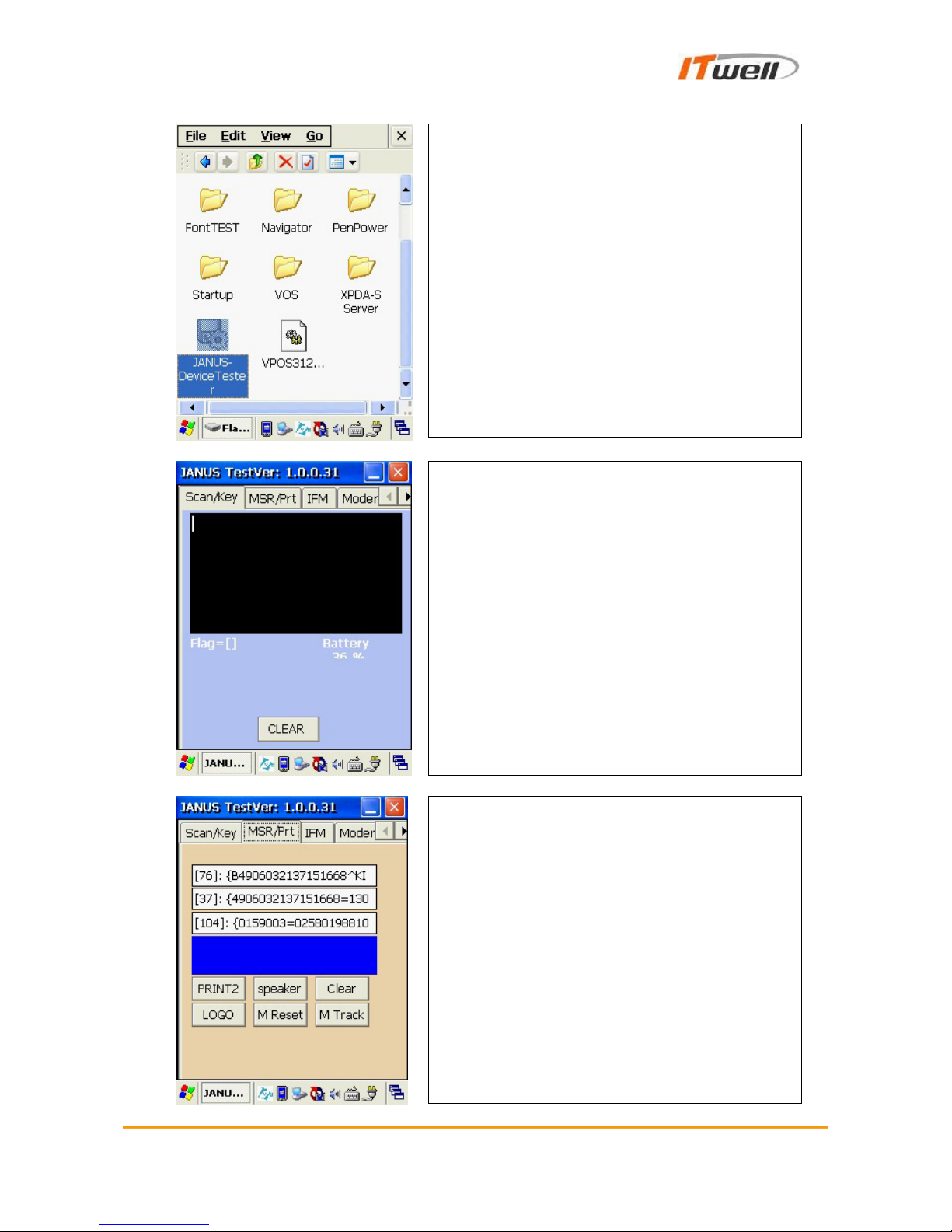

After the startup procedure is done, Double click the Flash disk icon to go into the Flash Disk.

Then, press JANUS-DeviceTester.exe to run the test application.

Step 4

1st Tab – Scan/Key tab

Press any buttons on the keypad to start testing. You can also see the battery level on the right bottom side of the black square blank.

Step 5

2nd Tab – MSR/Printer tab

By swiping the test card, you can see the data of the card. In addition you can print the data by pressing the “Printer” button.

*Bi-Directional Magnetic Stripe Reader is located on the top of the device.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 25/28

XPDA-S PCI ITWell Confidential

Step 6

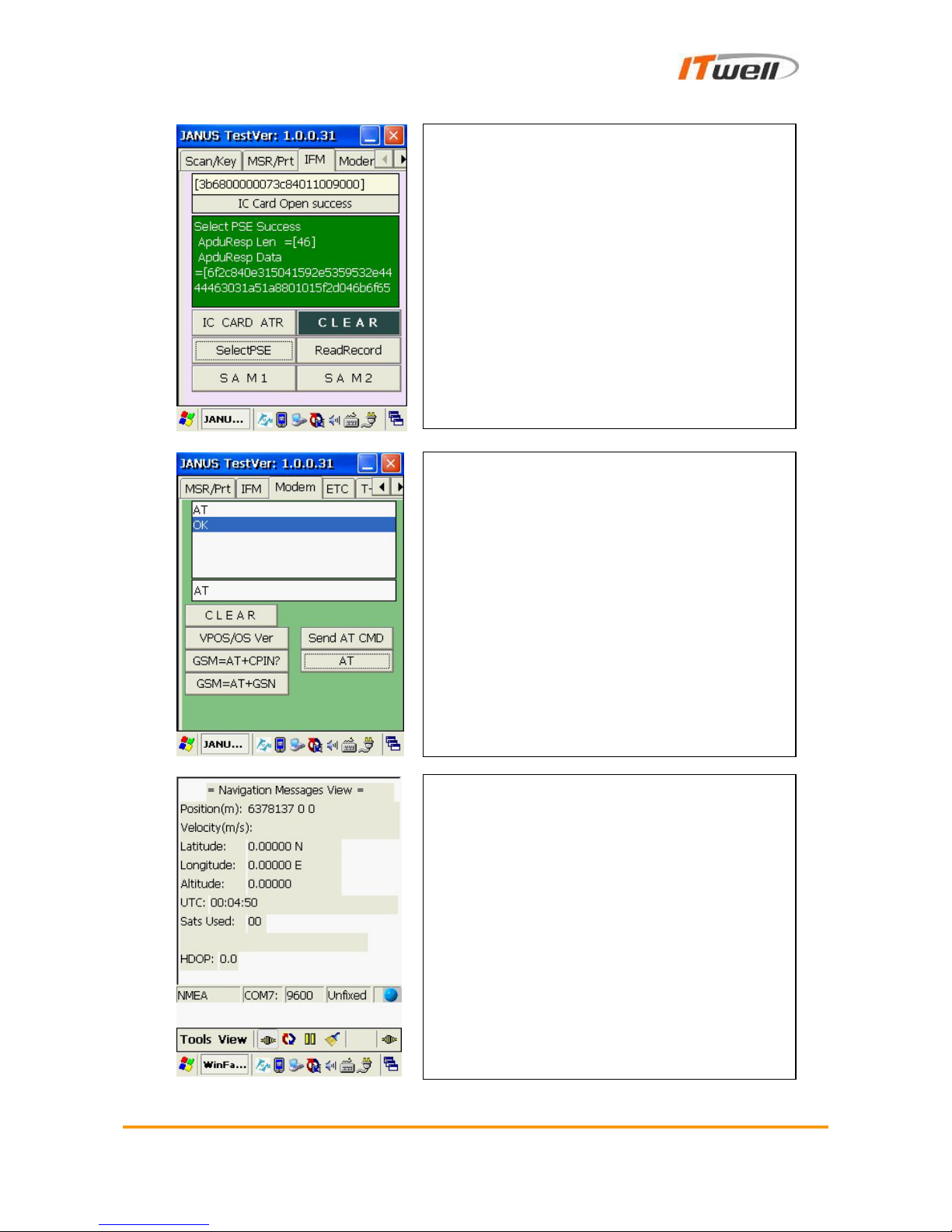

3rd Tab – IFM (Interface Module)

Insert the Test card into Smart card reader. Then, Press “IC Card ATR” button, “Select PSE” button and press “Read Record” button to read the data from the card.

*Smart Card Reader is located on the right side of the device.

Step 7

4th Tab – Modem (EDGE)

Press AT button to test AT Command “AT”.

For other AT command Testing, please input an AT

command you would like to test then press “Send AT CMD button”

Also, you can get WinCE OS version through pressing

“VPOS/OS Ver” button.

Step 8

5th Tab – GPS

Exit Janus-Tester (press X button on the top-right side of the application.)

Go into Navigator folder and Run Navigator.exe Then, press connect button which is right by “View”

You will see GPS data.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 26/28

XPDA-S PCI ITWell Confidential

Step 9

6th Tab – Camera

Exit Navigator (press Tools menu and exit)

Go into Camera folder and Run Camera.exe Press Start Preview to see preview. Also, you can turn on the Flash by pressing the “Flash On” button.

Exit the application.

Step 10

Press and hold the reset button for 5 seconds to turn off the XPDA-S PCI completely.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 27/28

XPDA-S PCI ITWell Confidential

This Document is Copyright©2012 by ITWell Co.,Ltd. ITWell retains full copyright ownership, all rights and protection in all material contained in this document. The recipient can receive this document on the condition that he will keep the document confidential and will not use its contents in any form or by any means, except as agree beforehand, without the prior written permission of ITWell. In addition, nobody is authorized to place this document at the disposal of any third party without the prior permission of ITWell.

This document is created as accurate as possible. However, ITWell has no responsibility for inaccurate, incomplete of outdated information. The contents of this document many change without notice. Do not modify or replace any contents in this document without the permission of ITWell. Nobody can have this document in modifiable format. This document is only released in non-modifiable format.

All trademarks used in this document remain the property of their rightful owners.

ITWell Co.,Ltd.

#505 Gayang Techno Town, 1487 Gayang- Dong, Gangseo-Gu, Seoul

Tel +82 2 360 2345 | Fax +82 2 720 1916

www.itwell.co.kr

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E

• 28/28

XPDA-S PCI ITWell Confidential

FCC NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

ITWell XPDA-S PCI Technical Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
