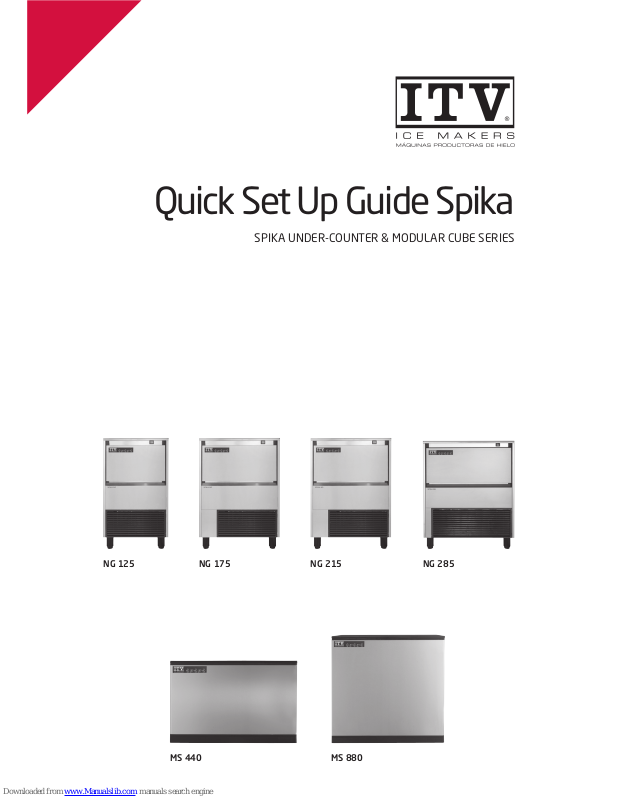

SPIKA UNDER-COUNTER & MODULAR CUBE SERIES

Quick Set Up Guide Spika

NG 125 NG 175 NG 215 NG 285

MS 440

MS 880

Installation and Operating Instructions

05) This ice maker should be installed in accordance with applicable national, state, and local

regulations.

06) The machine must be installed “indoors” and should not be located next to or near high heat

producing equipment or where air inflow is limited.

07) Electrical Connections-Check that the voltage is the same as on the nameplate before

connecting the unit. Make sure the ice maker is connected to its own circuit and individually fused.
Install a proper ground wire to the machine.

08) Water Connection-Water supply should be a minimum of 10 psi. (0.7 bar) and a maximun of 85

psi. (6 bar). Do not connect the machine to a hot water supply.

SPIKA NG & MODULAR SERIES

Before Installation

01) Visually inspect the exterior of the shipping container,

and report to the freight carrier; any severe damage, after
inspection, remove all packing material.

02) Remove all internal support packing on the shields,

through the door (under-counter and self-contained models)
and removing the front panel (modular models) and removing
the front panel (modular models). Check that the ice curtain
hangs freely.

03) Place the legs into the 4-corners at the bottom of the

machine (only under-counter and self-contained models) and
level the icemaker by adjusting them properly. (See Fig.1)

04) Complete ITV’s warranty card and submit via fax, mail or

e-mail to

ITV’s oce.

Fig.1

Leveler

4’’ (10cm)

Plug

Socket

Tap

Water Inlet

Bin Drain

6’’ (15cm)

Plug

Socket

Tap

Water Inlet

Bin Drain

Water Condenser Drain
(Water cooled units)

Fig.2

QUICK SET UP GUIDE SPIKA

09) Water Filtration-Connect the machine to a water filter, as required by ITV warranty.

10) Drain Connections-Drain pipes should be at least 6” (15cm.) below the drain of the ice maker.

Initial Startup

11) Turn on the water supply. (Insure that there are no leaks).

12) Connect to the electric power.

13) Set the ON/OFF switch to Position I: In the front of under-counter and self-contained units. On

modular models, switch is located in the rear of the machine.

14) After the startup, if we observe, that the pump is unprimed (does not drop water), we should

turn the timer until the pins press the micros (harvest position) to get a new entry of water to the
production water pan.

15) Check that water flows into the machine, and compressor is running. If water is not flowing,

“prime” the reservoir, with water, just the first time.

16) If ice thickness is not as expected, wait until a second cycle is complete before making any

adjustment on the under-counter’s cycle thermostat, or modular’s ice thickness probe. Remove all ice
from these two cycles.

Important: Please, refer to the user’s manual supplied with the machine for detailed information on the

installation, startup, use and maintenance of the equipment, otherwise, ITV reserves the right to void the
warranty statement.

For immediate assitance, do not hesitate to contact our service sta, eastern daylight/standard time, by calling
ITV’s toll free number +1-888 ITV 1 ICE ([phone]), or by e-mail: [e-mail]. Visit
our website www.itvice.com for further information about ITV’s authorized service agencies throughout
the U.S. and Canada.

SPIKA NG & MODULAR SERIES

QUICK SET UP GUIDE SPIKA

FRONT

6’’ (15cm)

6’’ (15cm)

6’’ (15cm)

6’’ (15cm)

FRONT

29,5’’ (75cm)

4’’ (10cm)

4’’ (10cm)

Fig.3

ITV ICE MAKERS, INC.

12800 NW 38th. Ave.
Miami, FL 33054-4525
Ph. [phone] | Fax. [phone]
Service Toll Free 1-888-ITV 1 ICE (1-888 488 1423)

www.itvice.com | [e-mail]

COD. 49506_17/07/2012
