NDC-F18
Access Control Panel
Installation Manual
NDC-F18
ACCCESS CONTROL PANEL
®
http://www.itvsystems.com.ua Integrated Technical Vision Ltd 3
This manual covers installation, programming and utilization of NDC-F18 access control panel. Read this manual carefully prior to installing and programming the unit.
Design Change Disclaimer
Due to design changes and product improvements, information in this manual is subject to change without notice. ITV reserves the right to change product design any time, which may subsequently affect the contents of this manual.
ITV assumes no responsibility for any errors that may appear in this manual. ITV will make every reasonable effort to ensure that this Installation/Programming Manual is up to date and corresponds with your shipped unit.
Reproduction Disclaimer
All rights on this document are preserved by Integrated Technical Vision Ltd. Copying, printing and any other kind of reproduction of the document or its part without permission of Integrated Technical Vision Ltd. is prohibited.
Trademarks
ITV® is a registered trademark of Integrated Technical Vision Ltd.
Training and technical support
Integrated Technical Vision Ltd. performs training on the installation, programming and utilization of NDC-F18 access control panel. For additional information about training and discussing of your particular requirements to the unit please contact our personnel by the phone numbers below.
It is recommended to pass the training in Integrated Technical Vision Ltd. to person­nel intended for sales and installation of NDC-F18 access control panel on perma­nent basis. Technical support for all products of Integrated Technical Vision Ltd. can be obtained at business time by the phones below:
+380 (0) 44 248 65 88
+380 (0) 44 248 65 89
+380 (0) 44 248 65 90
This support assumes the calls of trained specialists. End users must apply to their dealers or installers before calling us.
This information is available on our web site www.itvsystems.com.ua
http://www.itvsystems.com.ua Integrated Technical Vision Ltd 5
Contents
Preface .......................................................................................6
Features ............................................................................................... 6
Specifications .......................................................................................7
Terms ................................................................................................... 8
What's inside ............................................................................10
Wiring diagram ................................................................................... 11
Controls and connections on the board ............................................. 12
Control Panel Operation ............................................................13
Mounting ................................................................................... 15
Wiring .......................................................................................16
Readers' connection .......................................................................... 16
Inputs' wiring....................................................................................... 16
RTE button .........................................................................................17
Door Contact ...................................................................................... 17
Door contact and RTE button ............................................................ 17
Free Pass and Blocking .....................................................................18
Executive devices .............................................................................. 18
Locking devices .................................................................................. 18
Sirens, Bells and agents .................................................................... 19
RS-485 Interface ................................................................................ 20
Address settings ...................................................................... 21
Limited Warranty .......................................................................22
Preface
NDC-F18 access control panel is designed for use in access control systems. Primary goals of Access Control System are: identification of a person, confirmation or not confirmation of access, control of movements in a necessary zone. It can provide time and attendance logging, in addition to the usual task of restricting individuals' access to certain areas.
All users' access information is gathered by a server, where administrators can retrieve and analyze it. This data provides recording of staff movement within an organization, whether it is a small company or a company that employs thou­sands.
NDC-F18 panel operates as a total stand-alone unit with fully distributed database. All valid card numbers, time zones and relay pulse times are loaded into controller's memory. The panel controls access on two access points on a stand-alone basis with no dependency on central computer system. Control panels are connected via RS-485 dropline in Access Control Systems.
Features
o Supports all Wiegand reader technologies
o Distributed database for independent operation
o Operates in remote site configurations with dial-up (requires NDC-B052)
o 4-wire RS-485 communications, protection rated at 3000 V
o RS-232 communication port for local programming
o 8 supervised programmable inputs
o Tamper switch contact
o 4 Form C relays
o Up to 255 time zones to control card access
o Real time clock
o PC programming
o Local antipassback function
Preface
http://www.itvsystems.com.ua Integrated Technical Vision Ltd 7
Specifications
Primary power supply ~220
+22
--44
V, 50 hertz
Power consumption of alternate current net 25 VA
Secondary power supply: 10.8 V... 38 V of continuous current
11V... 24 V of alternating current
Peak current 100 mA @ 12 V
Voltage ripple 500 mV @ 12 V
Inputs 8 programmable EOL supervised inputs
2 inputs for battery and power state control
Outputs Two 1 A @ 24 V relays
Two 5 A @ 24 V relays
Networking RS232/485 interface
Operation temperature 0° С … +55° С;
Relative Humidity 95% relative at +25° С;
Nonvolatile memory capacity is shown in the table below:
Overall dimensions 300х310х80 mm
Weight 2,45 kg
srotacifitnedI6904
stnevE4908
senozemiT052
seludehcS052
syadiloH052
Preface
Terms
Access point
Access point is a logical concept of the access control system implying the control of passing through the door in one direction. It consists of reader, access control panel (or it’s part), door supervision devices (like magnetic contact, RTE etc.) and door locking device. For instance, the turnstile with two way passes has two Access points – one for entrance and the other one for exit, door of this type is called double-sided door. A door with the reader on one side has only one Access
point – Entry point, and it is called single-sided door.
Antipassback
The Antipassback function is implemented in the NDC-F18 access control panel in order to prevent the situation when user gives his ID to another person after passing to the premises. If this function is on, NDC-F18 tracks an ID position – Inside or Outside the premises. On any attempt to pass in the same direction twice NDC­F18 denies access and stores “Access Denied, Antipassback” event into the Log.
The antipassback function can be set on, only in case of the double-sided door control.
Code matching
NDC-F18 can arise alarm in case of an attempt of a code (or ID) matching. The Code matching is considered when invalid code (or ID) entered several times. Valid code entrance clears the counter. This function switching on and number of code entrances are subjects of programming.
Door Contact (DC)
In access control systems various sensors are used to supervise the status (opened or closed) of the pass way – magnetic door sensor, sensor of the turnstile rotor position, inductive sensor of car passing through the road barrier, etc.
The Door Contact terminal of NDC-F18 is intended for connection of these sensors.
Door time
If the door contact is open, the corresponding access point goes into alarm. Alarm is not invoked, if the contact is opened during the Door Time interval of time. This interval starts when access is granted and lasts for the programmed time or terminates on opening and subsequent closing of the door contact.
Downloading
NDC-F18 is to be downloaded after setting all parameters – modes of inputs, outputs, access rights and others on the computer. During the downloading parameters are rewritten into the access control panel. If you change control panel parameters in your computer, they will not take effect until this parameters down­loaded into the control panel.
PIN (Personal Identification Number)
Some readers have built-in keypad. The keypad may be used to enter ID in this
Preface
http://www.itvsystems.com.ua Integrated Technical Vision Ltd 9
case. Usually this ID is named PIN (Personal Identification Number). It can be both self dependant or used as an additional code for ID. When this PIN is .
programmed as additional code, NDC-F18 waits for PIN entrance after the ID read­out. PIN is associated with ID.
Proximity Identificator
In access control systems each user has ID (identificator) with the unique code. Proximity ID’s may be in shape of plastic card, key trinket, etc.
Reader
Readers are devices assigned for reading information from ID’s and transmitting it to the control panel
There are several types of ID’s and readers for them. It is essential that reader and control panel should use the same interface. NDC-F18 utilizes Wiegand interface.
RTE (Request to Exit)
To exit from the premises with a single-sided door, the button wired to the control panel is used. This button is called RTE (Request To Exit) button. If someone opens the door otherwise than pressing the RTE button – by reenergizing locking device, opening lock with a key etc., the Door Forced Open event arises.
RTE button may be used for remote door opening as well.
Schedules
NDC-F18 is capable to store up to 100 time zones. 100 week schedules can be combined from these time zones, including 70 holidays.
Moreover NDC-F18 can store several “floating” schedules, based on the period different to a week. The number of such “floating” schedules depends on the period length.
“Several ID's” access
To access the high security premises the presence of more than one person may be required . NDC-F18 allows assigning of up to 15 groups of people with the access rights. The access is granted only in case when one person from each group is present. For instance you have the room which can be attended only by the personnel of R&D department escorted with guard. You can form two groups for this access – group of R&D employees and group of guard. The access is granted if two ID's from different groups read on panel readers – one belongs to the R&D department employee and the other one – to a guardian.
Time zone
Any interval of time which has the beginning and the end.
Preface
What's inside

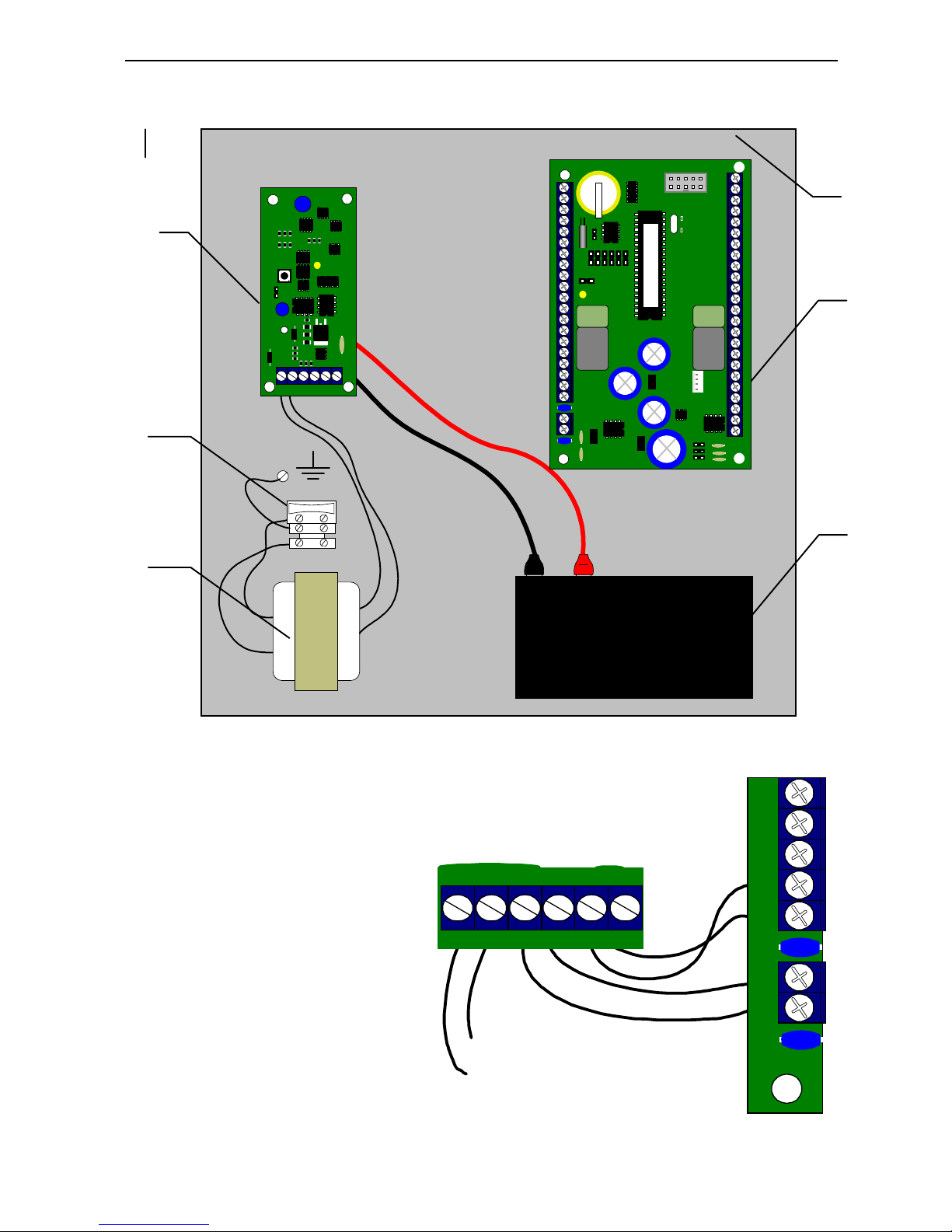

The layout of NDC-F18 is shown on picture below.
Figure 1 View of the Panel inside the box:
1 - Mains power connection terminal with fuse
2 - Transformer
3 - Power supply plate
4 - Box
5 - Control panel baseplate
6 - Battery
The wiring of the power supply plate to the control panel base plate is shown on diagram to the right
What's inside
1
3
5
-
+
~220 В 50 Гц
2
6
GND 1D0 1D11RD1GN|1BZZ1 GND Z2X1 Z3 GND Z4 +9V | C3 NO3 C1 NC1 NO1|DCG ACG AC / DC X3
ITV NDC-F18
S3
S6
B- GND +EB|TMPGND| Z6 GND Z5Z8 GND Z72GN2RD2D12D0GND 2BZ|+9VC4|NO4C2NC2NO2A+
X2
F16-r5
X5 EXT. MODULE
IDN
RST
X4
RS232
4
primary winding
secondary winding
AC(24V) +12V GND PWG ACG
C1
X3
NC1 NO1 |DCG ACG AC / DC
transformer
secondary winding
http://www.itvsystems.com.ua Integrated Technical Vision Ltd 11

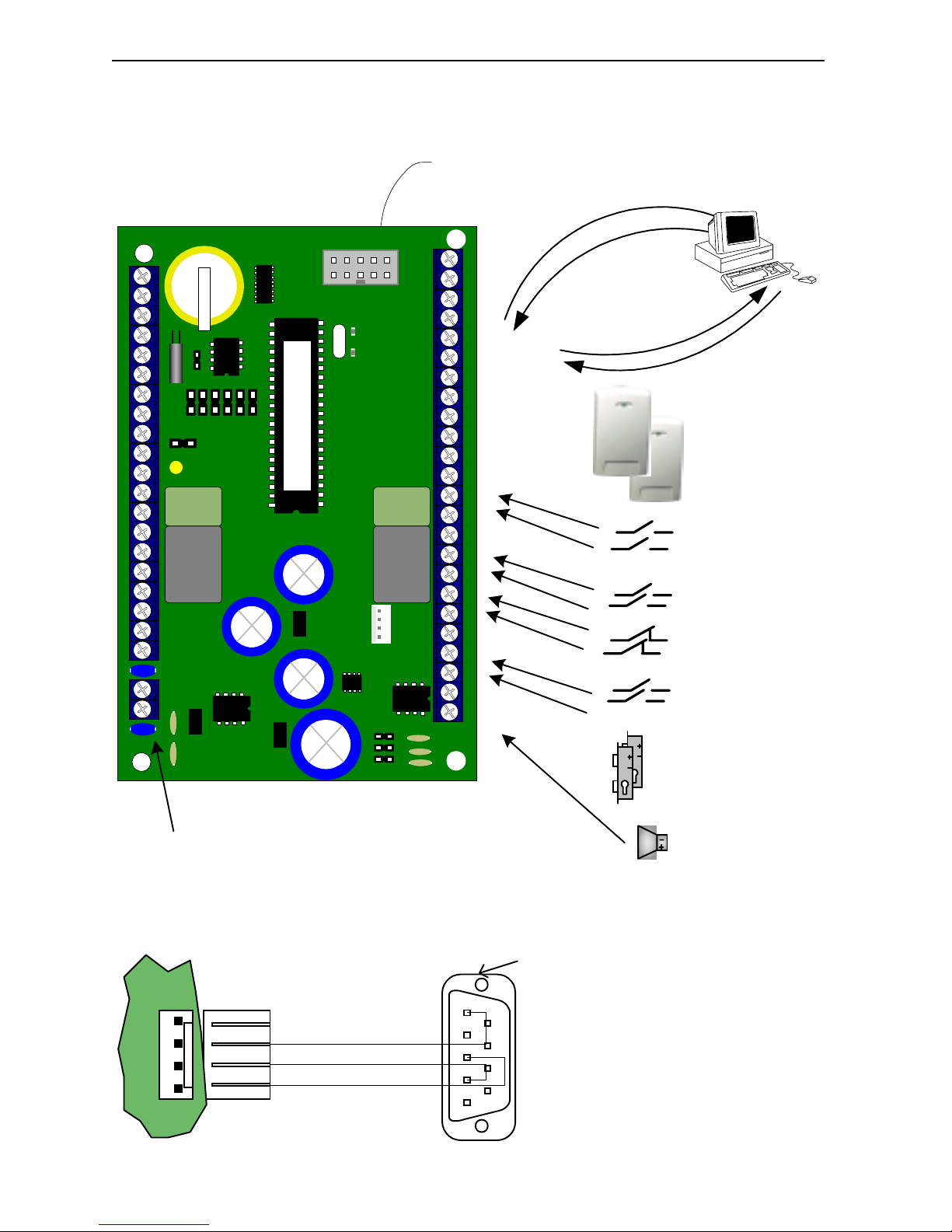

Wiring diagram
Figure 2 NDC-F18 access control panel wiring
Diagram of null-modem cable, used for connection to PC is shown below:
What's inside
Bell
Locks/latch
PC
RS485
or
RS232
Future used
Door contacts
RTE buttons
Free Pass buttons
Blocking buttons
Output of power supply with direct or alternate current protected against overvoltage and crosspolarity
Up to two
Wiegand
readers
GND1RD1GN|1BZ1 GN Z2X Z3 GN Z4 +9V | NO3 C1 NC1NO1|DCACG AC / X3
ITV NDC-F18
S3
S6
B- GN
D
+EB|TM
P
GND
|
Z6 GND
Z5
Z8 GND
Z7
2GN
2RD
2D12D0GND
2BZ
|
+9V C4
|
NO
4
C2NC
2
NO2A+
X2
F16-r5
X5 EXT. MODULE
IDN
RST
X4
RS232
RXD
TXD
GND
2
3
5
WH4
DB9
RXD
TXD
GND
1
NDC-F18
PC
Controls and connections on the board
lanimreTemaNnoitcnuF
1X
1Z1Z
noitcennocstupnirof'slanimreT
DNGDNG 2Z2Z 3Z3Z
DNGDNG 4Z4Z
ZB1rezzub
slanimretAredaeR
NG1DELneerg
DR1DELder
1D11atad 0D10atad DNGDNG
V9+V9+
3CnommoC
slanimret3yaleR
3ONnepoyllamroN
1CnommoC
slanimret1yaleR1CN1desolcyllamroN
1ONnepoyllamroN
CA
G
doogyrettaB
slangisylppusrewoP
WP
G
doogrewop022
3X
CD/CArewoP
ylppusrewopetanretlarotceriD
noitcennoc
2X
+A+A-584SR
enilpord584SR
-B-B-584SR DNGDNG
BE+rewop'secivedlanoitiddA PMTPMT
noitcennocrepmaT
DNGDNG
2ONnepoyllamroN
slanimret2yaleR2CNdesolcyllamroN
2CnommoC
4ONnepoyllamroN
slanimret4yaleR
4CnommoC
V9+V9+
slanimretBredaeR
DNGDNG 0D20atad
1D21atad
DR2DELder
NG2DELneerg ZB2rezzub
8Z8Z
slanimretnoitcennoc'stupnI
DNGDNG
7Z7Z 6Z6Z
DNGDNG
5Z5Z
What's inside
http://www.itvsystems.com.ua Integrated Technical Vision Ltd 13
Terminal assignment
Connectors
- X5 - Not Used - for future use
- X4 - RS-232 communication port
Jumpers and LED
- RST - Reset jumper
- S2 - Address of the control panel
- S3, S4, S6 Jumpers for RS-485 load selection
- BAT - Real-time clock’ power switch.
- LED - Live function indicator (Yellow)
Set jumper BAT during panel installation and withdraw it for storage and transportation
to avoid lithium battery discharge.
Control Panel Operation
Control panels are supplied unprogrammed. In this state reader's LEDs do not light. Yellow LED situated on PCB blinks 5 times per second. Panel does not respond to cards passing and inputs opening and closing. The panel should be downloaded to start the operation with DC Configurator or Golden Gate program.
Yellow LED starts to blink one time per second and switches to the main mode automatically after successful settings’ downloading.
The panel can be turned to unloaded status only with command from PC, see programming instruction.
The panel can control two independent access points. Each access point may be in one of the four modes: main mode, alarm, blocked or free pass. Free pass mode has the highest priority, as panel switches to this mode in case of fire, then blocked, alarm and main modes follow.
Main Mode
Panel grants or denies access to cardholders in this mode. In main mode reader’s LEDs blink red.
Access with ID
To access the premises cardholder passes RF ID to reader. If it is valid, panel grants access, unlocks the door and switches on green LED of the reader.
Access with ID and PIN
To access the premises cardholder passes RF ID to the reader. Panel checks up the necessity of PIN entry, and, if it is necessary, reader's LED blinks yellow, which means PIN is awaited. After valid PIN entry door is unlocked. Reader's LED lights green.
RTE button
To exit from the premises with single-sided door, user has to depress (press and release) Request To Exit button. Reader's LED lights green.
Control Panel Operation
Outputs’ use and operation modes
All outputs of the panel can be programmed at will one of the use variants: lock, bell, alarm or programmed output. Moreover every output is set an operational mode: start-stop (an output is activated whilst the proper command is present, for example, during the time of control panel Alarm mode), impulse (an output is activated for the programmed time), trigger (at first event an output is activated, at the next event it is switched off), and continuous.
Access Denial
Access may be denied to cardholder for the following reasons:
- Panel was not downloaded (reader's LED does not light or blink)
- ID was not enrolled in panel (on ID passing panel switches reader's red LED and buzzer for 1 second)
- ID expired (on ID passing panel switches reader's red LED and buzzer for 1 second)
- Access is not allowed according to the schedule (on ID passing panel switches reader's red LED and buzzer for 1 second)
- Antipassback violation (on ID passing panel switches reader's red LED and buzzer for 1 second)
- Lost or Blocked ID passed (on ID passing panel switches reader's red LED and buzzer for 1 second)
- Access point is in alarm mode (reader's red LED lights constantly)
- Access point is in blocked mode (reader's red LED lights constantly)
Alarm Mode
In alarm mode reader's red LED lights constantly.
Access point goes into alarm mode for following reasons:
- In case of door ajar
- Panel box tampering (both Access points)
- Attempt of access with lost ID
- If door is opened too long (door time expired)
- In case of attempt of code matching (if switched on during programming).
In alarm mode the panel activates outputs assigned for BELL and ALARM. Alarm output is deactivated when panel switches into the mode different from alarm mode and BELL output is deactivated after programmed time.
If access point is in alarm mode to pass through this point is prohibited. RTE button unlocks the door.
To switch alarm mode off, pass card with "Alarm OFF" sign or with command from computer.
Free Pass mode
Sometimes the conditions arise when door should be opened for free pass for everyone, in case of fire, earthquake or other disaster, for instance. For this case panel has free pass mode.
Control Panel Operation
http://www.itvsystems.com.ua Integrated Technical Vision Ltd 15
In the free pass mode reader's LED blinks red and yellow alternately.
Access point switches into free pass mode at operator's command or when input, programmed as "FREE PASS" is open. Access point remains in free pass mode until this input is open or until operator cancels this mode.
While Access point is in free pass mode the locking device is in unlocked state and panel does not respond to ID passing, PIN entry or RTE button pressing.
Blocked mode
The blocked mode is designed for situations when access to the premises should be prohibited for everyone, in case of security alarm for instance. When access point is in blocked mode access is granted to cardholders of IDs with "Security Service" sign. Door cannot be unlocked with RTE button.
When access point is in blocked mode reader's LED blinks red and green alter­nately.
Access point switches into blocked mode by operator's command or when input, programmed as "BLOCKING" is open. Access point remains in blocked mode until this input is open or until operator cancels the mode.
Mounting
NDC-F18 is delivered in the rugged metal box with rechargeable battery. Mount the panel in place, convenient for service.
To mount the panel on a wall proceeds as follows:
- Open box cover, place the box in the required position on a wall and mark the holes for mounting screws, using backplate as a template;
- pass the wires through the holes on a back plate,
- fasten the frame,
- connect the wires.
Set jumper S7 during control panel mounting before programming. Withdraw jumper 7
for long-term storage and transportation.
Mounting
Wiring

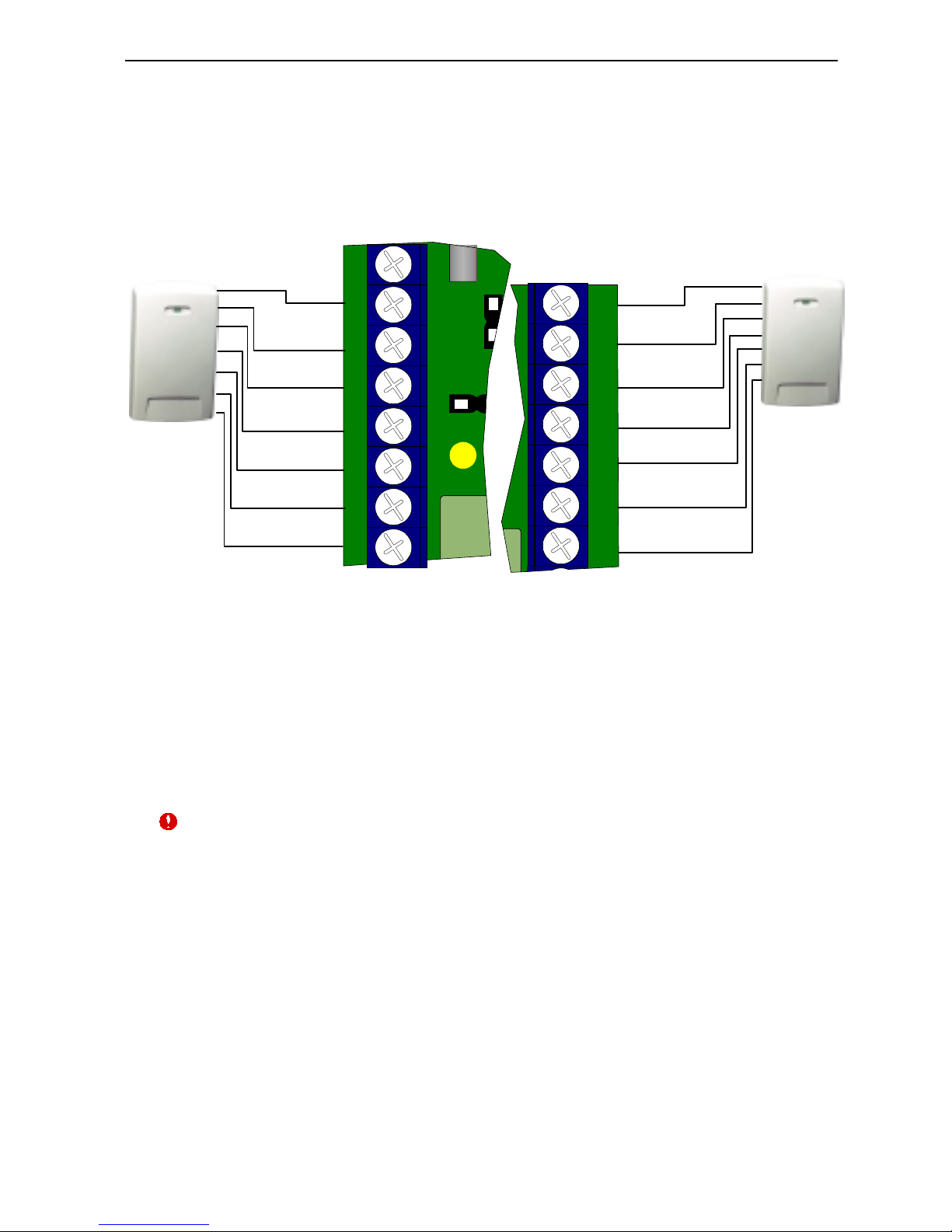

Readers' connection
NDC-F18 has two sets of terminals for Wiegand readers' connection. The wiring is shown on Figure 3 Reader connection.
Figure 3 Readers’ connection
Wire colors’ correspondence:
white - data 1
green - data 0
blue - buzzer
brown - red LED
orange -green LED
black - GND
red - +9V
The wires' colors can differ in readers from other vendors. Please refer to reader's
Installation manual.
Inputs' wiring
NDC-F18 has eight EOL inputs. All inputs are programmable. Their functions are set during programming.
The possible inputs’ functions are:
- door contact,
- RTE button,
- door contact and RTE button,
- free pass (A, B, A+B)
- blocking (A, B, A+B)
- state monitoring
2GN
2RD
2D12D0GND
2BZ|+9V
GND
1D0
1D11RD1GN
|1BZ
Z4 +9V
IDN
red
white
green
brown
orange
blue
black
red
white
green
brown
orange
blue
black
Wiring
http://www.itvsystems.com.ua Integrated Technical Vision Ltd 17
After reset to factory defaults all inputs become unassigned and not supervised. All inputs supervise shortage and break. The EOL usage is mandatory.
Input normal state is from 1,4 kOm up to 3 kOm. Input short circuit is less
than 1,4 kOm and input break is more than 3 kOm.

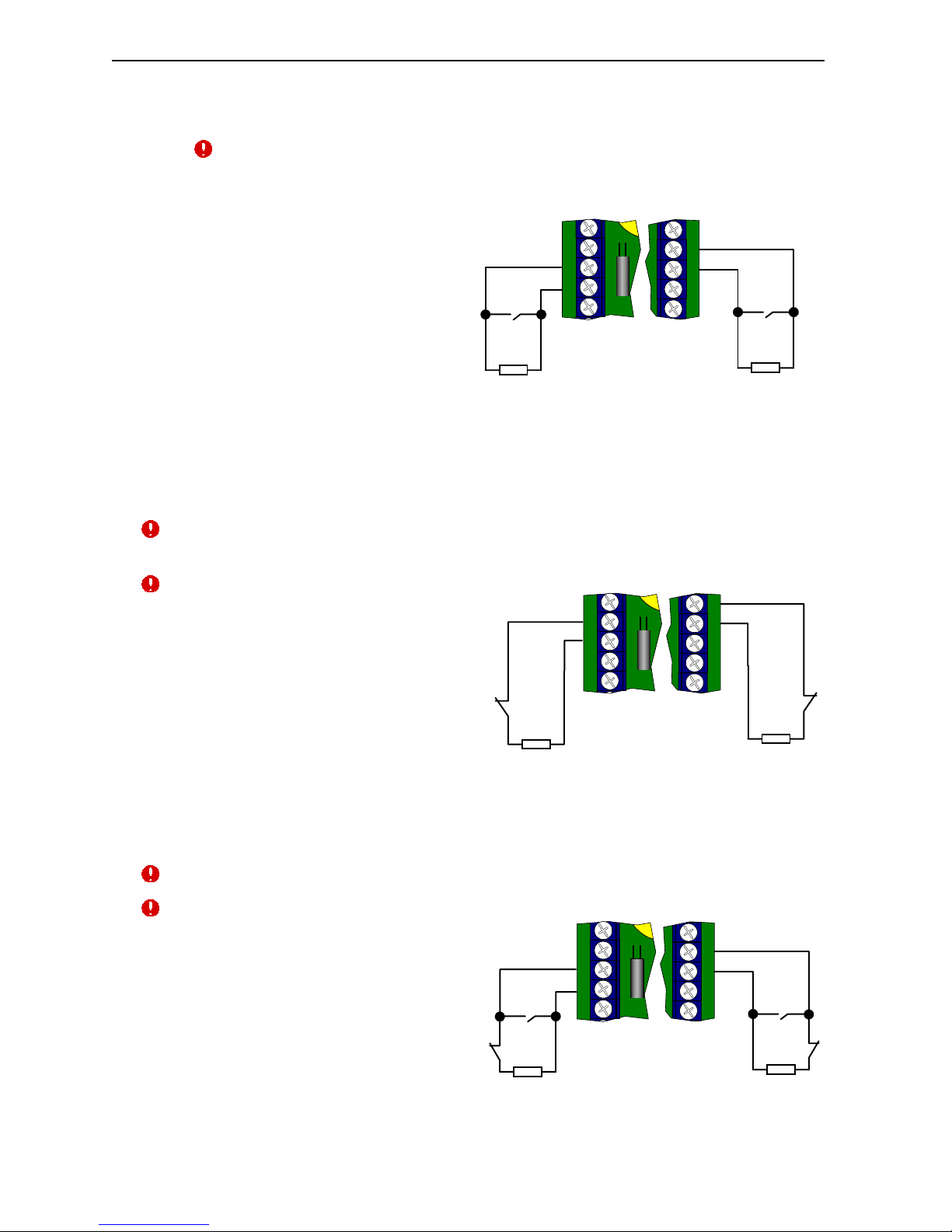

RTE button
Request To Exit (RTE) button is to be used for one - sided door. In this case the door opens on depressing of RTE button for exit.
RTE button may be used for remote door opening - secretary or guard can open the door, for instance.
On the diagram to the right wiring of normally opened RTE button contacts is shown. RTE is wired to Z4 and Z8 terminals.
Usage of the deblocking button on the electric lock instead of RTE will cause "Door
Forced" event.
So that the panel could work properly set
attached inputs as RTE button inputs.
Door Contact
Door state (opened or closed) is determined by the status of door contact. If door contact is not connected, the panel is not able to determine the events of door force or not closed door.
The wiring of door contacts (normally closed) to Z3 and Z7 terminals is shown on wiring diagram.
So that door contact could work properly set attached inputs as door contact inputs.
Provide a door under system control
with door closer.
Door contact and RTE button
Control panel inputs can be pro­grammed for simultaneous use of RTE button and door contact.
Input break means Door contact violation and input shortage means RTE button pressing.
RTE button of
access point B
RTE button of
access point A
R
n
|1B
Z
Z2 Z3 GN
D
Z4
ID
N
Z8 GND
Z7
2GN
2BZ
|
R
n
Door contact of
access point A
Door contact of
access point B
R
n
|1B
Z
Z2 Z3 GN
D
Z4
ID
N
Z8 GND
Z7
2GN
2BZ
|
R
n
Door contact and
RTE button of
access point B
Door contact and
RTE button of
access point A
R
n
|1B
Z
Z2 Z3 GN
D
Z4
ID
N
Z8 GND
Z7
2GN2BZ
|
R
n
Wiring
Any of eight inputs can be programmed as combined one, that is for simultaneous use
of door contact and RTE button.
Free Pass and Blocking
Owing to the fact that any input may be programmed for Free Pass or Blocking the control panel can be easily integrated to intruder alarm system.
If the input is programmed for Free Pass, Free Pass Door A or Free Pass Door B then shortage or opening of this input unlocks the corresponding locking device and personnel can pass the door freely.
If the input is programmed for Blocking, then shortage or opening of this input denies access rights to all cards, except those with "Security service" mark.

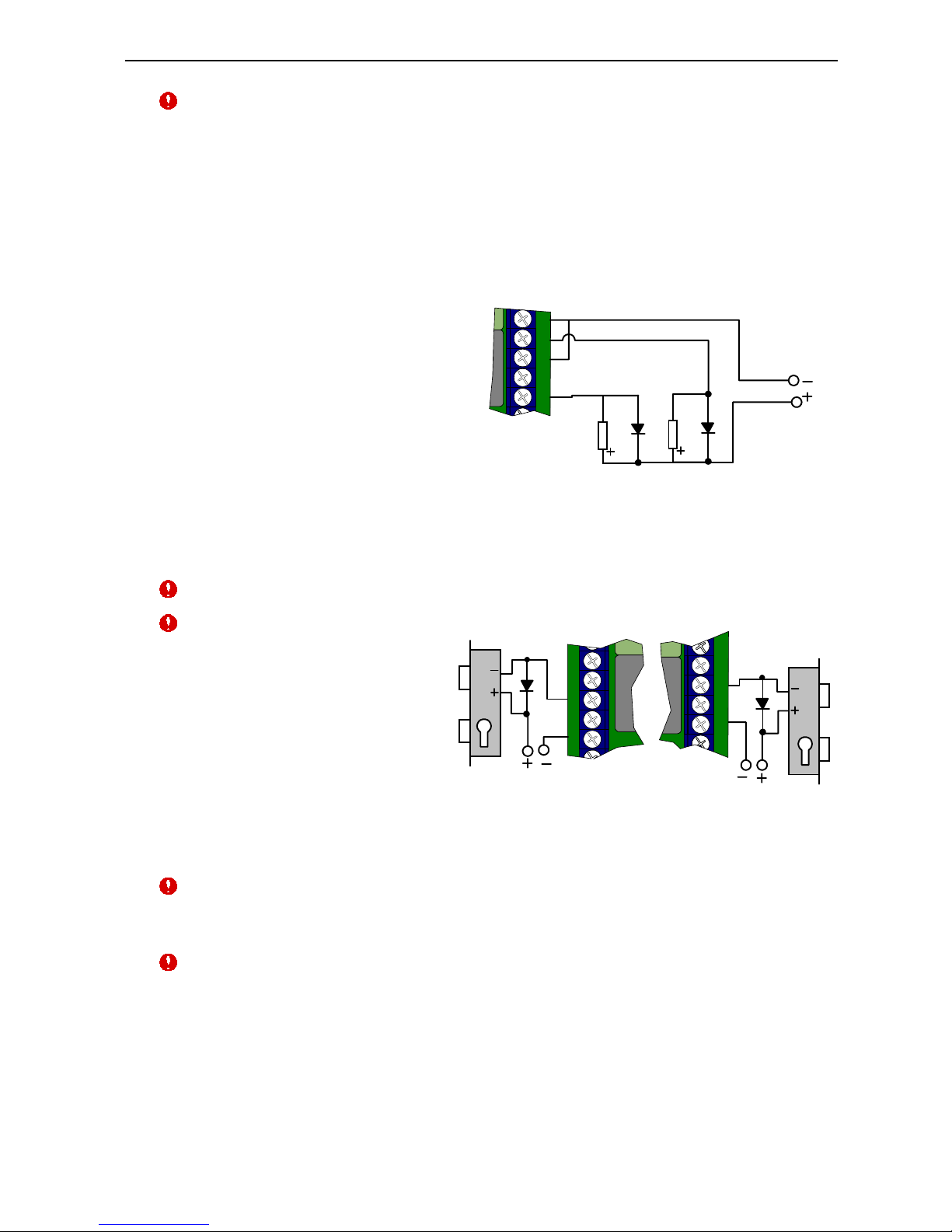

Executive devices
NDC-F18 has four relay outputs to control operation of executive devices, that can be electric locks, turnpike, turnstile, bell, and so on.
Relay 1 and 2 have normally open and normally closed contacts rating 5 A @ 24 V. Relay 3 and 4 have normally open contacts rating 1A@ 24V.
Do not use diodes when executive devices are attached to alternate current net.
When selecting power supply for
the control panel mind that its capacity should correspond to power consumption of the control panel and executive devices.
Locking devices
NDC-F18 has two relay outputs with form C contacts. The operation time of these outputs may be programmed from 1 to 255 sec, which allows control­ling of any type of locking device.
Commutation of the inductive load, electric lock for instance, causes high energy
electric impulse induced through relay contacts. To save the contacts from damage, protect them with diode, connected in reverse to current supply of the coil.
Note the fact, that some cheap electric door strikes are not intended for been energized
for a prolonged time. Program relay time as short as possible to avoid door strike coil overheat­ing.
Relay 4
loading
Relay 2
loading
Power
|C4
|
NO
4
C2NC
2
NO2
Lock of access
point B
Lock of access
point A
V |
C3
NO3 C1 NC1NO1|
GND
|
C4
|
NO
4
C2NC
2
NO2
Wiring
http://www.itvsystems.com.ua Integrated Technical Vision Ltd 19

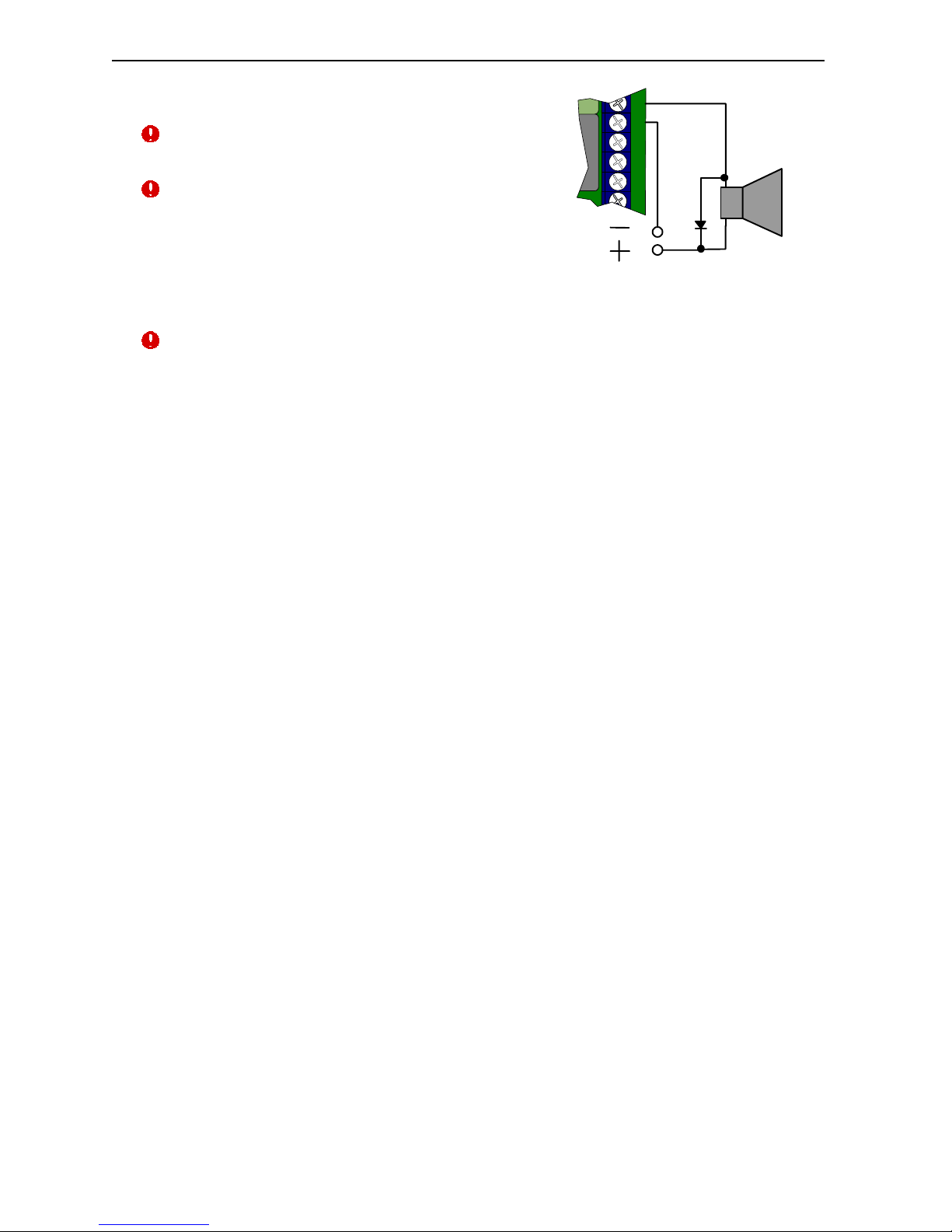

Sirens, Bells and agents
When connecting a bell study carefully user
manual of the bell.
Consumption power of the bell should not
exceed 1A.
Some sirens require polarity observing.
Often Electric bells are the inductive load for power supply. Connecting the bells observe the warning about the inductive load above.
So that the siren could work properly set attached relay output as siren output while
programming.
Bell
up to +24V,1А
GND
|
C4
|
NO
4
C2NC
2
NO2
Wiring

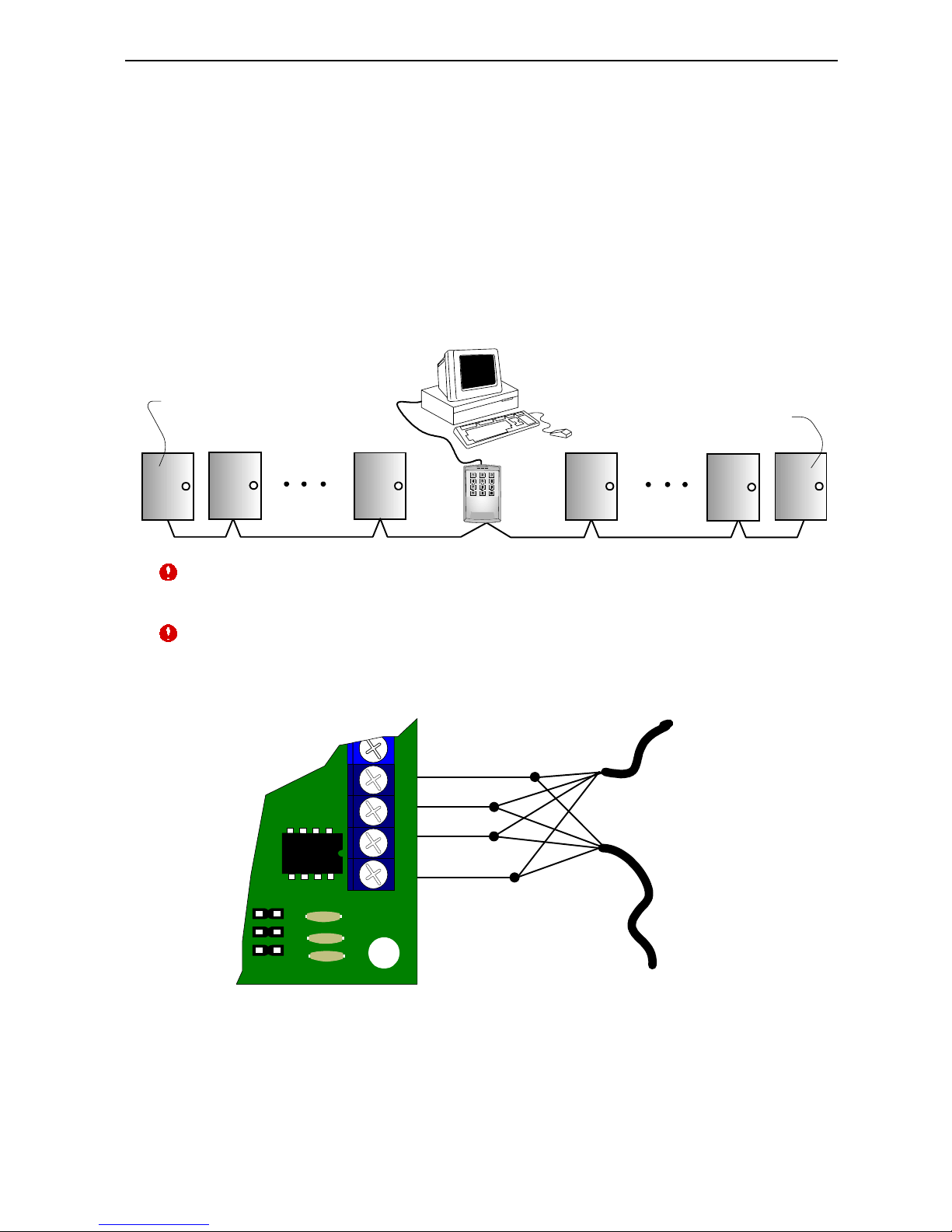

RS-485 Interface
RS-485 Interface is used for networking of the system components - PC and panels. The range of RS-485 bus is up to 1200 meters. The number of devices in one bus segment is up to 32.
RS-485 port is protected against overvoltage (60 V) and crosspolarity.
The unshielded four-wire cable may be used for RS-485 wiring. For maximal range of 1200 meters please use 0.4 mm2 cross section wire. 0.2 mm2 cross section wire will provide the range of 500 meters.
On the first and the last panel in the dropline short jumpers S3, S4 and S6, which connect loading resistors:
Take care of proper grounding of all panels in the network.
RS485 cables are connected to +A and B- GND and +EB contacts.
Connect wires of one color always to the same terminal, for example blue-colored wire
always connect to terminal A.
RS485
RS485
RS232
LNET
loading is on
loading is on
black
yellow
blue
red
S3
S6
B- GND +EB |TMPA+
X2
Wiring
http://www.itvsystems.com.ua Integrated Technical Vision Ltd 21
Address settings
Each panel on RS-485 dropline must have the unique address from 0 to 31. To adjust the panel address, use the S2 jumpers set.
"+" - jumper is shorted;
"-" - Jumper is open
Address settings
sserddA
srepmuJ
6.2S5.2S4.2S3.2S2.2S1.2S
0+ + ++++
1+ + +++­2+ + + + - + 3+ + + + - ­4+ + + - + + 5+ + + - + ­6+ + + - - + 7+++--­8+ + - +++ 9+ + - + + -
01+ + - + - + 11+ + - + - ­21+ + - - + + 31+ + - - + ­41++---+ 51++---­61+ - ++++ 71+ - +++­81+ - + + - + 91+ - + + - ­02+ - + - + + 12+ - + - + ­22+ - + - - + 32+-+--­42+ - - +++ 52+ - - ++ ­62+ - - + - + 72+ - - + - ­82+ - - - ++ 92+ - - - + ­03+- ---+ 13+- ----
Limited Warranty
Limited Warranty
Integrated Technical Vision Ltd. warrants that for a period of eighteen months from
the date of purchase, the product shall be free of defect in materials and workman-
ship under normal use and that in fulfillment of any breach of such warranty,
Integrated Technical Vision ltd. shall, at its option, repair or replace the defective
equipment upon return of the equipment to its repair depot. This warranty applies
only to defects in parts and workmanship and not damaged incurred in shipping or
handing, or damaged due to causes beyond the control of Integrated Technical
Vision Ltd. such as lightning, excessive voltage, mechanical shock, water damage,
or damage arising out of abuse, alteration or improper application of the equipment.
The foregoing warranty shall apply only to the original buyer, and is and shall be lieu
of any and all other warranties, whether expressed or implied and of all other
obligations or liabilities on the part of Integrated Technical Vision Ltd. This warranty
contains the entire warranty. Integrated Technical Vision Ltd. neither assumes, nor
authorizes any other person purporting to act on its behalf to modify or to change
this warranty, nor to assume for it any warranty or liability concerning this product.
In no event shall Integrated Technical Vision Ltd. be liable for any direct, indirect or
consequential damages. Loss of anticipated profits, loss of time or any other losses
incurred by the buyer in connection with the purchase, installation or operation or
failure of this product.
http://www.itvsystems.com.ua Integrated Technical Vision Ltd 23
060504
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
