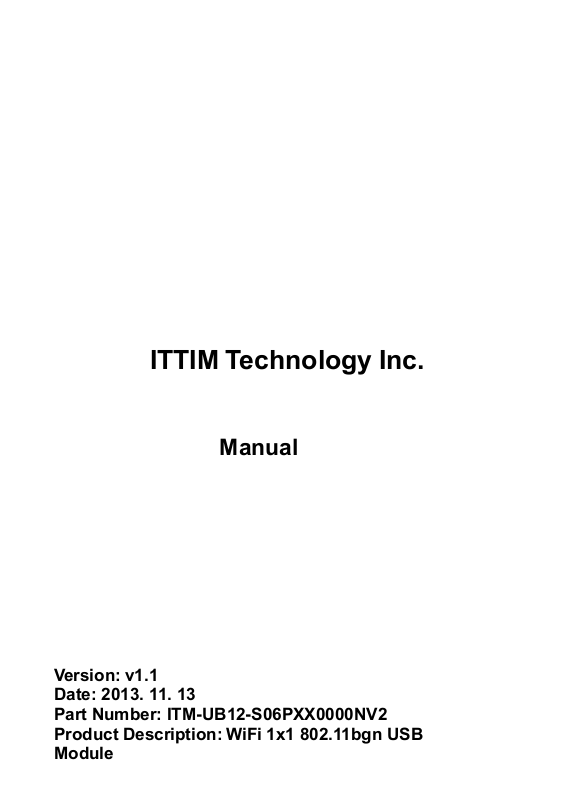

ITTIM Technology Inc.
Manual
Version: v1.1
Date: 2013. 11. 13
Part Number: ITM-UB12-S06PXX0000NV2
Product Description: WiFi 1x1 802.11bgn USB
Module
ITM-UB12-S06PXX0000NV2
General Description
The module ITM-UB12-S06PXX0000NV2 is a highly integrated
solution for 2.4 GHz 802.11n-ready wireless local area networks
(WLANs) that enables a high-performance 1x1 configuration for
wireless station applications demanding robust link quality and
maximum throughput and range.
The ITM-UB12-S06PXX0000NV2 integrates a multi-protocol MAC,
baseband processor, analog-to- digital and digital-to-analog
(ADC/DAC) converters, 1x1 radio transceiver, RF switch, and USB
interface in an all-CMOS device for low power and small form factor
applications.
The ITM-UB12-S06PXX0000NV2 implements half-duplex OFDM,
CCK, and DSSS baseband processing, supporting 72.2 Mbps for 20
MHz and 150 Mbps for 40 MHz channel and IEEE 802.11b/g data
rates. Other features include signal detection, automatic gain control,
frequency offset estimation, symbol timing, and channel estimation.
The ITM-USB91 MAC supports the 802.11 wireless MAC protocol,
802.11i security, receive and transmit filtering, error recovery, and quality
of service (QoS). The ITM- UB12 supports one transmit traffic stream
and one receive traffic stream
using one integrated Tx chain for high throughput and range
performance. The Tx chain combines baseband in-phase (I) and
quadrature (Q) signals, converts them
to the desired frequency, and drives the RF signal to the antenna.
The frequency synthesizer supports frequencies defined by IEEE
802.11b/g/n specifications.
The ITM-UB12-S06PXX0000NV2 supports frame data transfer to
and from the host using a USB interface that provides interrupt
generation/reporting, power save, and status reporting. Other
external interfaces include serial EEPROM and GPIOs. The ITMUB12-S06PXX0000NV2 is interoperable with standard legacy
802.11b/g devices.
Features
■
All-CMOS solution interoperable with IEEE 802.11b/g/n WLANs
■
Intergrate PA, LNA, Rx/Tx switch
■
Supports 72.2 Mbps for 20 MHz and 150 Mbps or 40 MHz channel operations
■
Supports WMM
■
Supports WAPI
■
Supports WiFi Direct
■
Support SoftAP
■
USB 2.0 interface
■
6-pin, 18.2 mm x 14.8 mm
RF Performance
- Tx Power
Max Output Power:15dBm for 802.11b, 13dBm for 802.11g, 12dBm for
802.11n20, 11dBm for 802.11n40
Antenna Type: Chip Antenna
Antenna gain: 0dBi(declare by Applicant)
FCC Caution.
1. This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
2. Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
3. This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment g
enerate
s uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser
gain may be used with this transmitter
The WIFI module is designed to comply with the FCC statement. FCC ID is 2AEU8UB12.
The host system using Windos7, should have label indicated it contain modular’s FCC ID
2AEU8UB12
This radio module must not installed to co-locate and operating simultaneously with other
radios in host system , additional testing and equipment authorization may be required to
operating simultaneously with other radio.
Instruction for OEM:
- Rx Sensitivity
Data Rate (Mbps)
Sensitivity (dBm)
Legacy Mode
2412 MHz
2437 MHz
2462 MHz
2472 MHz
1L-95
-96
-96
-95
6
-90
-91
-91
-90
11S
-90
-87
-87
-87
54
-76
-76
-76
-75
HT20 Mode
MCS 7
-73
-73
-72
-72
MCS 0
-90
-91
-91
-90
HT 40 Mode
2422 MHz
2437 MHz
2452 MHz
2457 MHz
2462 MHz
MCS 7
-69
-69
-69
-69
-69
MCS 0
-87
-87
-88
-87
-87
Pin Description
Pin
No.
Name
Description
1
GND
GROUND
2
USB_D+
USB D+ Signal
3
USB_D-
USB D- Signal
4
Vdd33
3.3V Power Supply
5
GND
GROUND
6
RFIN
RF interface
a:Please provide below statement sontheend product user manual or on the product。
b:This LMA does not have RF shielding and is tested and approved as standalone
configuration, additional evaluation may be required for any system integrated this radio
module.
c:The following regulatory and safety notices must be published in documentation supplied to
the end user of the product or system incorporating the WIFI module, in compliance with
local regulations. Host system must be labeled with "Contains FCC ID: 2AEU8UB12",
FCC ID displayed on label.
d: This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body
e:This radio module must not installed to co-locate and operating simultaneously with other
radios in host system , additional testing and equipment authorization may be required to
operating simultaneously with other radio.
f: This module has data buffer.
g: This module has internal power regulation inside the chipset.
h: The modular has an integral chip antenna, it’s fulfil the requirements of 15.203.
i: The modular is tested in a stand-alone configuration powered by USB Port .
k: The modular complies with any applicable RF exposure requirements.
Electrical Characteristics
- Absolute Maximum Ratings
Symbol
Parameter
Max Rating
Unit
Vdd33
Maximum Supply Voltage
-0.3 to 4.0
V
RFin
Maximum RF Input (reference 50Ω)
+10
dBm
Tstore
Storage Temperature
-65 to 150
C
- Recommended Operation Conditions
Symbol
Patameter
Min
Typ
Max
Unit
Vdd33
Supply Voltage
2.97
3.3
3.63
V
Mechanical Drawing & Mechanical Size
