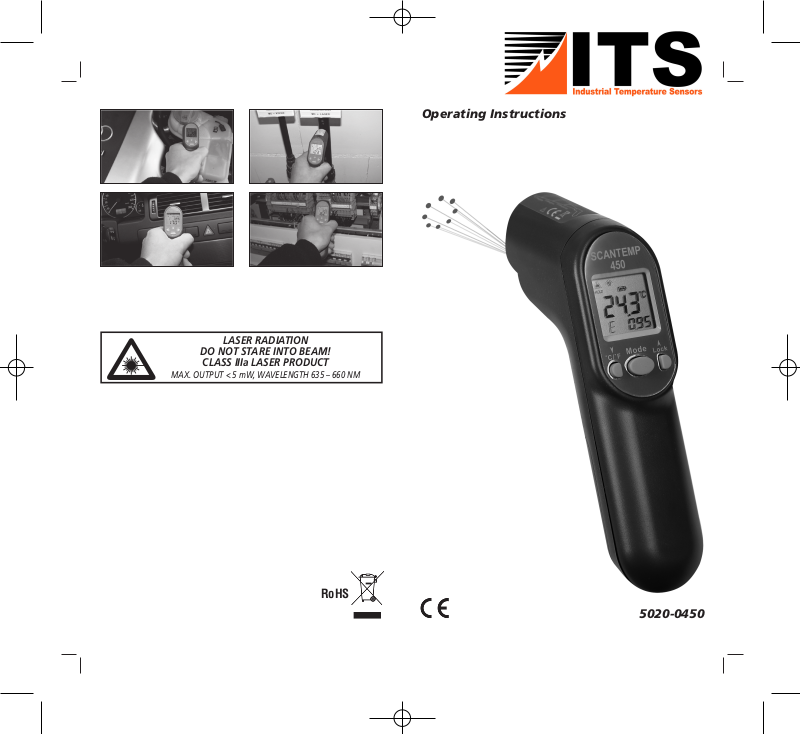

Page 1
5020-0450
LASER RADIATION
DO NOT STARE INTO BEAM!
CLASS IIIa LASER PRODUCT
MAX. OUTPUT < 5 mW, WAVELENGTH 635 – 660 NM
RoHS
Operating Instructions
Page 2
Table of emissivity values
Table of emissivity values of common materials:
Aluminum* 0.30
Asbestos 0.95
Asphalt 0.95
Basalt 0.70
Brass* 0.50
Brick 0.90
Carbon 0.85
Ceramic 0.95
Concrete 0.95
Copper* 0.95
Dirt 0.94
Frozen food 0.90
Hot food 0.93
Glass (plate) 0.85
Ice 0.98
Iron* 0.70
Lead* 0.50
Limestone 0.98
Oil 0.94
Paint 0.93
Paper 0.95
Plastic** 0.95
Rubber 0.95
Sand 0.90
Skin 0.98
Snow 0.90
Steel* 0.80
Textiles 0.94
Water 0.93
Wood*** 0.94
* oxidized
** opaque; over 20 mils
*** natural
Page 3
ScanTemp 450 – Infrared Thermometer
1. Before you start using it
• Please make sure to read the instruction manual carefully
.
•
Following and respecting the instructions in your manual will prevent damage to your instrument and loss of
your statutory rights arising from defects due to incorrect use. We shall not be liable for any damage occurring as a result of non-following of these instructions.
• Likewise, we take no responsibility for any incorrect
readings and for any consequences which may result
from them.
• Please take particular note of the safety advice!
• Please keep this instruction manual for future reference.
2. Field of operation and all the benefits
• The ScanTemp 450 infrared thermometer is a non-contact
infrared thermometer with Thermocouple connector.
For the infrared part, simply aim the thermometer at the
target and press the measurement button to display the
surface temperature in less than a second. Plug in the
specific thermocouple (not included), ScanTemp 450 may
take contact temperature as high as 1400 °C.
• The distance to target diameter ratio (field of view) is
12:1. For accurate reading, please make sure the target
size is smaller than the spot size.
3. Featur
es
• 2 x 1,5 Volt AAA batteries included
•
Large LCD screen, with backlight
• Friendly user interface: 3-Key with trigger
• With high-end arithmetic: Max; Min and DIF; AVG mode
•
Auto Power Off in 1 minute
• Precision K type thermocouple thermometer inside
Page 4
4. For your safety
• The device should only be used as described within
these instructions.
• Unauthorized repairs, modifications or changes to the
product are prohibited.
Caution!
Risk of injury:
• Never point the device towards anyone’s eyes.
• Keep this device and the battery out
of the reach of children.
• Batteries must not be thrown into a
fire, short-circuited, taken apart or
recharged. Risk of explosion!
• Batteries contain harmful acids. Low
batteries should be changed as soon as
possible to prevent damage caused by leaking.
• Never use a combination of old and new batteries
together, nor batteries of different types. Wear chemical-resistant protective gloves and safety glasses when
handling leaking batteries.
• Remove the battery if you do not use the device for a
long period of time.
Important information on product safety!
EMC/RFI
• Readings may be affected if the device is operated within radio frequency electromagnetic field strength of
approximately 3 volts per meter, but the performance of
the instrument will not be permanently affected.
• Do not place your device near extreme temperatures,
vibrations or shocks.
• The ScanTemp 450 should be stored at room temperature between –20 to +65°C.
• The lens should be kept clean at all times.
ScanTemp 450 – Infrared Thermometer
Page 5
ScanTemp 450 – Infrared Thermometer
• The sensor lens is the most delicate part of the ScanTemp. The lens should be kept clean at all times, care
should be taken when cleaning the lens using only a
soft cloth or cotton swab with water or medical alcohol,
allowing the lens to fully dry before using the ScanT
emp
450.
• Do not leave the device near objects of high temperature.
5. Parts description
•
Simply aim the ScanTemp450 at the measure target and
press the Meas. key
⑥
to display the surface tempera-
ture.
①
LCD
⑥
Measuring key
②
Up key
⑦
Infrared Lens
③
Down key
⑧
Laser
④
Mode key
⑨
Battery cover
⑤
Thermocouple socket
Page 6
Default Screen
Infrared function
ScanT
emp 450 is supplied with a
default emissivity of 0.95.
→ Press Mode key
④
for scrolling more display function as
follows:
➞ ScanTemp will automatically shut off if left idle for more
than 60 sec, unless in PRB mode.
Thermocouple probe scan function:
Press the mode key
④
until PRB appears: on the LCD.
Connect the thermocouple with Scan Temp 450’s thermocouple socket
⑤
and put the probe in or on the target, the tem-
perature will be displayed beside the ”PRB” icon.
ScanTemp 450 – Infrared Thermometer
Press emissivity key ④key to adjust the emissivity.
The emissivity can be changed from 0.10 to 1.00.
Press the Meas. key ⑥to display the surface
temperature.
Keep pressing Mode key
④
for the Maximum
(MAX), Minimum (MIN), Different between
MAX and MIN (DIF) and Average (AVG) readings
during the last measurement period.
Press Down key
②
or Up key ③to change the
High Alarm (HAL) or Lo Alarm (LAL). F. e.: When
the reading 27 °C < LAL 27.1 °C, the Low icon will
flash and you will hear a beep sound.
The measurement range: - 60.. +500 °C.
Page 7
ScanTemp 450 – Infrared Thermometer
➞ ScanTemp 450 will automatically shut off if left idle for
more than 12 min in PRB mode.
➞ The measurement range: -64 to +1400 °C.
After measure high temp, the probe may remain HOT
for a while.
Key pad:
Battery:
When the ‘Low Battery’ icon indicates the battery is low
,
the battery should be replaced immediately with two
AAA, 1.5V batteries.
Please note: It is important to turn the instrument off
before replacing the battery otherwise the ScanTemp
450 may malfunction.
Press Lock key for infrared LOCK mode
ON/OFF.
Press °C/°F key for °C or °F transferred.
Press Lock key for backlight function
ON/OFF.
Press °C/°F key for Laser function ON/OFF.
In Default:
Max, Min,
DIF, AVG,
HAL, LAL,
PRB
In all
modes:
Hold the
Measuring
key
⑥
Battery OK
Measurements
are possible
Battery Low
Battery needs to
be replaced,
measurements are
still possible
Battery Exhausted
Measurements are
not possible
Page 8
15
6. Trouble shooting
ScanTemp 450 – Infrared Thermometer
➞ ‘Low Battery’ icon indicates the battery is low.
➞
The battery should be replaced with
2x AAA (LR6), 1.5V batteries immediately.
➞ Please check the model with/without this
function.
➞ Replace the batteries
➞
‘Hi’ is displayed when the temperature being
measured is outside of the settings of HAL.
➞ Please reset the HAL or select target within
specifications.
➞
’Lo’ is displayed when the temperature being
measured is outside of the settings of LAL.
➞ Please reset the LAL or select target within
specifications.
➞
For all other error messages it is necessary
to reset the ScanTemp 450.
➞ T
o reset the ScanTemp 450, please wait the
instrument automatic off, remove the battery
and wait for a minimum of one minute, reinsert the battery and turn on.
➞ If the error message remains please contact
the Service Department for further assistance.
no function
HI
LOW
Page 9
ScanTemp 450 – Infrared Thermometer
7. Waste disposal
This product has been manufactured using high-grade
materials and components which can be recycled and
reused.
Never dispose of empty batteries and
rechargeable batteries in household waste.
As a consumer, you are legally required to
take them to your retail store or to an appropriate collection site depending on national
or local regulations in order to protect the
environment
The symbols for the heavy metals contained
are: Cd=cadmium, Hg = mercury, Pb=lead
This instrument is labelled in accordance with
the EU Waste Electrical and Electronic Equipment Directive (WEEE).
Please do not dispose of this instrument in
household waste. The user is obligated to
take end-of-life devices to a designated collection point for the disposal of electrical and
electronic equipment, in order to ensure environmentally-compatible disposal.
8. Specifications
Measurement range Infrared: -60 to +500 °C
(-76 to +932 °F)
Measurement range
Thermocouple:
(-83.2 to +1999 °F)
Infrared accuracy Infrared: +2% of reading or +2 °C
which is greater
Infrared accuracy
Thermocouple:
+1% of reading or +1 °C
which is greater
-64 to +1400 °C
Page 10
Operating range: 0 to +50 °C (32 to 122°F)
Storage range: -20 to +65 °C
(-4 to 149 °F), 95%RH
Response time: 1sec
Distance to Spot size: 12:1
Emissivity: 0.10~1.00 step 0.01
Update frequency: 1.4Hz
Mode: MAX, MIN, dIF, AVG, HAL,
LAL, PRB, Lock
Battery life: min 180 hours
continuous use*
Dimensions: 141 x x134 x 42 mm
Weight: 186 grams including
batteries (AAA*2pcs)
10/15
ScanTemp 450 – Infrared Thermometer
* without laser and backlight.
Note: Subject to change without notice.
