1x2 HDMI Splitter Over Single Cat5e/6 Cable
Up to 50M with IR
Operating Instructions
Notice
The information in this document is subject to change without notice. Every effort has
been made in the preparation of this document to ensure accuracy of the contents, but
all statements, information, and recommendations in this document do not constitute
the warranty of any kind, express or implied.
Features
Distribute 1 HDMI singal to 2 identical UTP outputs synchronously,
with 1xlooping HDMI output.
Transmit over 50m single Cat5e/6 cable.
Can be cascaded for 4 layers.
With wide-band Bi-Direction IR control (38 ~ 56 kHz).
(IR extension from Sender t
o Receiver or from Receiver to Sender)
Support Full HD 1080p, VESA resolution: 1920x1200.
Supports Dolby TrueHD, DTS-HD Master Audio.
Support 3D.
Package Contents
1 x HDMI Splitter
1 x 5V DC Adapter
1 x User Manual
Operating Instructions
2
SPECIFICATIONS
Operating Temperature Range -5 to +35℃(+23 to +95℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Video Amplifier Bandwidth 140MHz
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Data transfer speed rate 6.75Gbps(Maximum)
IMDHx1 trop tupnI
IMDHx1 ,6/e5taCx2 strop tuptuO
Video Format Supported
DTV/HDTV:576i/576P/720P/1080i/1080P
VESA resolution:1920x1200
①
3D video support
Vertical Frequency range 60Hz
Support Audio Format DTS-HD Master Audio, Dolby True HD, multi-channel 5.1, stereo etc
②
Transmission Distance
1080P 8-bit 50m
Over single cat5e or cat6 cable/24AWG/Solid
③
Power consumption 6W(Max)
Dimension (L×W×H) L149xW79xH28mm
g7.713 thgieW teN
Note: ① The transmission distance is Max 40m under 1920x1200 resolution.
② The distance is 40m under 5.1CH or 7.1CH.
③ Under perfect transmission conditions including straight cable runs with no
electrical interference, bends, kinks, patch panels or wall outlets.
PANEL DESCRIPTIONS

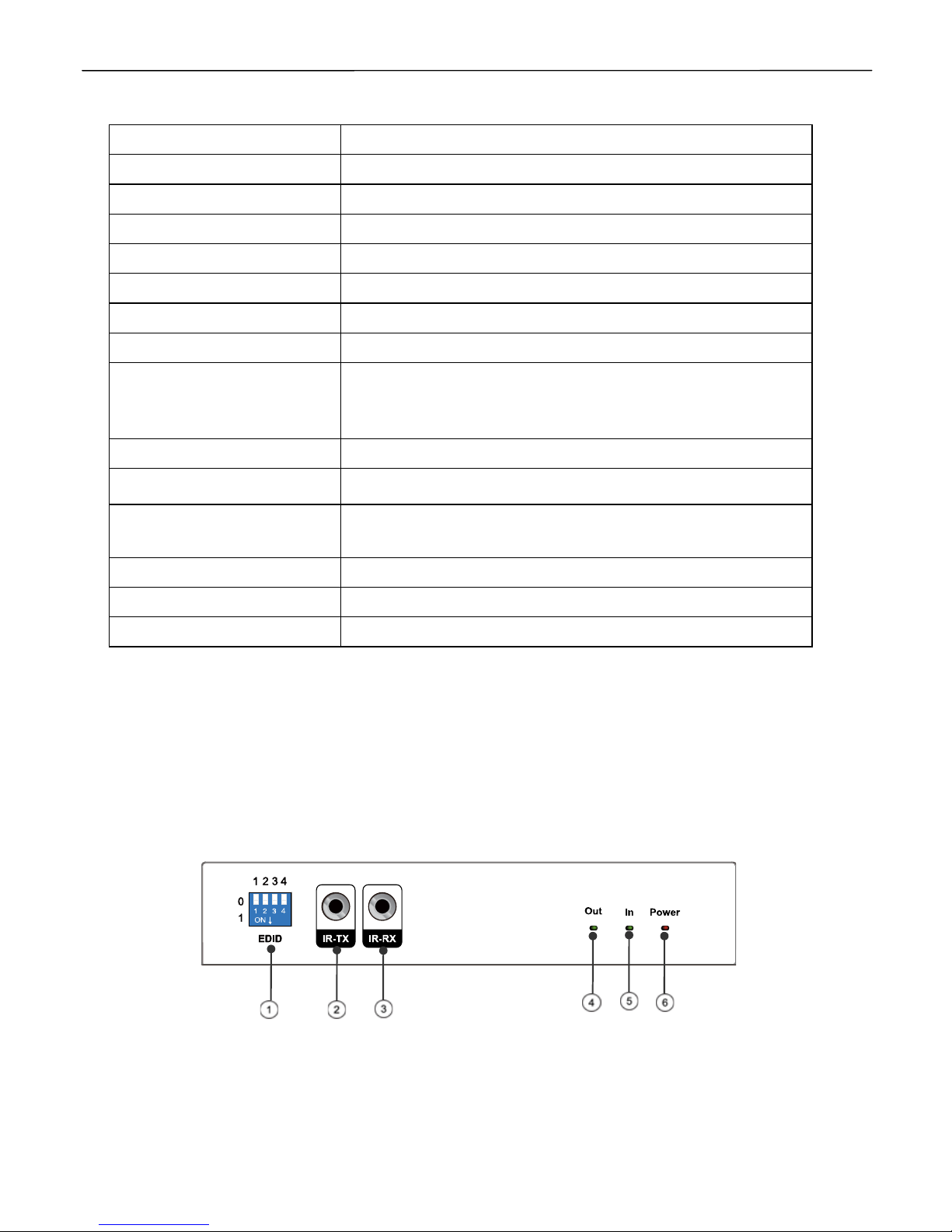

Front Panel
1. DIP switch for EDID setting 2. IR-TX port
3. IR-RX port 4. Indicator of HDMI output
5. Indicator of HDMI input 6. Power input indicator
Operating Instructions
3

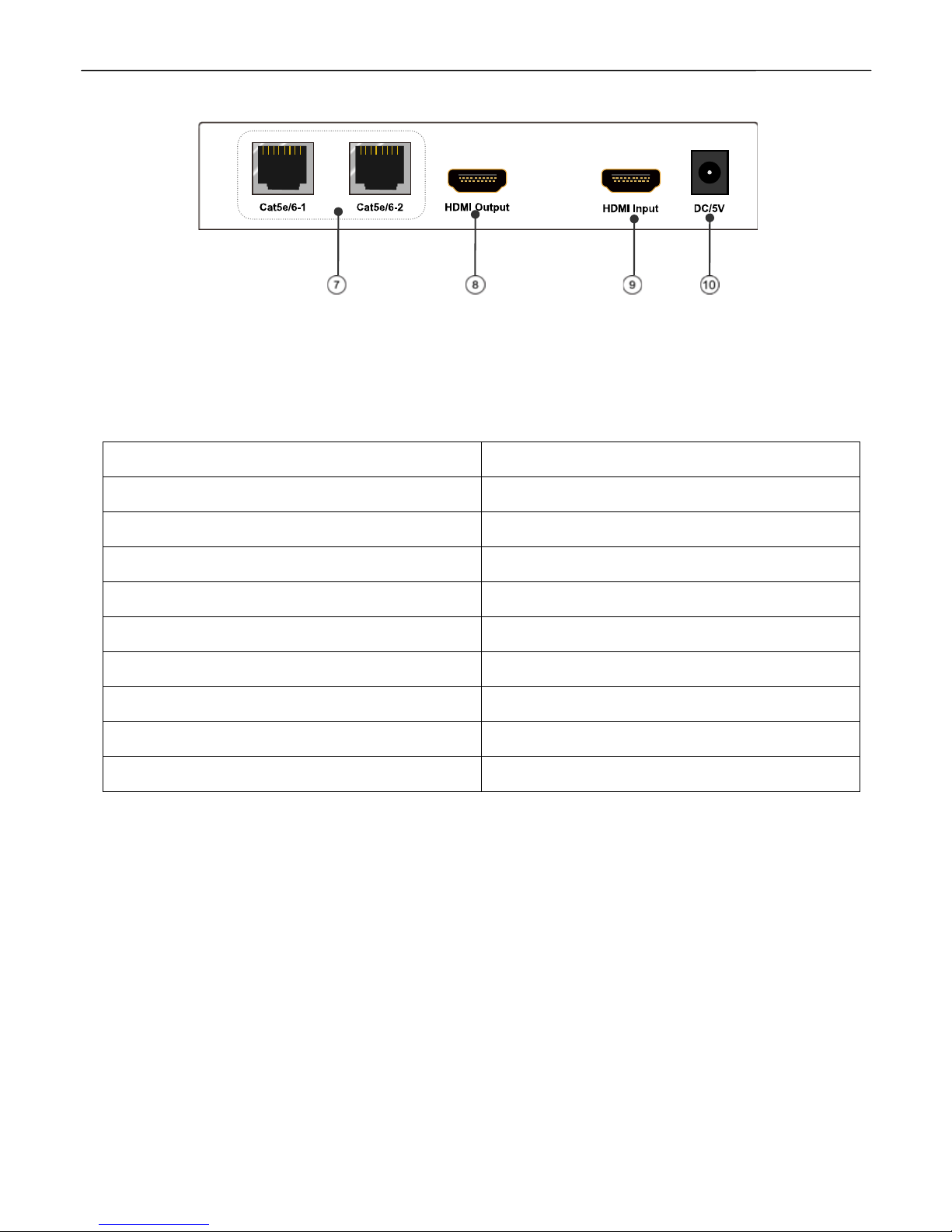

Rear Panel
7. CAT-5E/6 out ports 8. HDMI output
9. HDMI input 10. Power input
DIP Switch for EDID Setting
DIP Switch EDID
0000
Default (1080P2D 2ch)
0001
Copy from HDMI output
0010 1080P2D 2CH
0011
1080P2D 6CH
0100
1080P2D 8CH
0101
Reserved
0110
1080P3D 2CH
0111
1080P3D 6CH
1111
1080P3D 8CH
Connecting and operating
1) Connect the HDMI input source into HDMI splitter.
2) Connect HDMI splitter and receiver by single cat5e/6 cable
(The cable termination must follow the standard of EIA/TIA 568B).
3) Connect the HDMI display (such as HD-LCD/HD-DLP) into the HDMI output of
receiver.
4) Connect the Loop HDMI output port of HDMI Splitter with the HDMI Display (such
as HD-LCD/HD-DLP) by HDMI cable.
5) Plug IR TX cable and IR RX cable to IR port of the Splitter.
6) Plug IR TX cable and IR RX cable to IR port of the Receiver.
7) Insert the DC 5V power supply into HDMI splitter and receiver.
Operating Instructions
4
Connection Diagram
Application 1:
Application 2: Cascade for 4 layers
Operating Instructions
5
MAINTENANCE
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to
clean this unit.
PRODUCT SERVICE
1) Damage requiring service:
The unit should be serviced by qualified service personnel if:
(a) The DC power supply cord or AC adaptor has been damaged;
(b) Objects or liquids have gotten into the unit;
(c) The unit has been exposed to rain;
(d) The unit does not operate normally or exhibits a marked change in performance;
(e) The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that described in
these operating instructions. Refer
all other servicing to authorized servicing
personnel.
3) Replacement parts: When parts need replacing ensure the servicer uses parts
specified by the manufacturer or parts that have the same characteristics as the
original parts. Unauthorized substitutes may result in fire, electric shock, or other
hazards.
4) Safety check: After repairs or service, ask the servicer to perform safety checks
to confirm that the unit is in proper working condition.
WARRANTY
If your product does not work properly because of a defect in materials or
workmanship, our Company (referred to as "the warrantor" ) will, for the length of the
period indicated as below,
(Parts(2)Year, Labor(90) Days) which starts with the date
of original purchase ("Limited Warranty period"), at its option either(a) repair your
product with new or refurbished parts, or (b) replace it with a new of a refurbished
product. The decision to repair or replace will be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in
your product during the warranty period. This Limited Warranty is extended
only to the
original purchaser and only covers product purchased as new. A purchase receipt or
other proof of original purchase date is required for Limited Warranty service.
MAIL-IN SERVICE
When shipping the unit carefully pack and send it prepaid, adequately insured and
preferably in the original carton. Include a letter detailing the complaint and provide a
day time phone and/or email address where you can be reached.
Operating Instructions
6
LIMITED WARRANTY LIMITS AND EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
The Limited Warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by warrantor, or
failures which result from accidents, misuse, abuse, neglect, mishandling,
misapplication, alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning damage,
modification, or service by anyone other than a Factory Service center or other
Authorized Servicer, or damage
that is attributable to acts of God.
