HD Panorama Network Camera Quick Start Guide

Version 1.0.0

i

Welcome

Thank you for purchasing our network camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use
this series product!
Please keep this user’s manual well for future reference!

1．Electrical safety

All installation and operation here should conform to your local electrical
safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low
Voltage) and the Limited power source is rated 12V DC in the IEC60950-1.
This series product supports PoE too.

Note: Do not connect these two power supplying sources to the device
at the same time; it may result in device damage!

We assume no liability or responsibility for all the fires or electrical shock
caused by improper handling or installation.
We are not liable for any problems caused by unauthorized modification or
attempted repair.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during
transportation, storage and installation.

3．Installation

Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation
connection.
Always follow the instruction guide the manufacturer recommended.

4．Qualified engineers needed
All the examination and repair work should be done by the qualified service

engineers.
We are not liable for any problems caused by unauthorized modifications or
attempted repair.

ii

5．Environment

This series network camera should be installed in a cool, dry place away from
direct sunlight, inflammable, explosive substances and etc.
Please keep it away from the electromagnetic radiation object and
environment.
Please make sure the CCD (CMOS) component is out of the radiation of the
laser beam device. Otherwise it may result in CCD (CMOS) optical
component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
Thunder-proof device is recommended to be adopted to better prevent
thunder.
The grounding holes of the product are recommended to be grounded to
further enhance the reliability of the camera.

6. Daily Maintenance

Please shut down the device and then unplug the power cable before you
begin daily maintenance work.
Do not touch the CCD (CMOS) optic component. You can use the blower to
clean the dust on the lens surface.
Always use the dry soft cloth to clean the device. If there is too much dust,
please use the water to dilute the mild detergent first and then use it to clean
the device. Finally use the dry cloth to clean the device.
Please put the dustproof cap to protect the CCD (CMOS) component when
you do not use the camera.
Dome enclosure is the optical component, do not touch the enclosure when
you are installing the device or clean the enclosure when you are doing
maintenance work.

7. Accessories

Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components
are included.
Contact your local retailer ASAP if something is broken in your package.

Accessory Name

Amount

Network Camera

1

Quick Start Guide

1

Installation Accessories Bag

1

CD

1

iii

Table of Contents

1 Structure .................................................................................................... 1

1.1 Multi-function Combination Cable ................................................. 1

1.2 Dimensions ................................................................................... 1

1.3 Bidirectional Talk ........................................................................... 2

1.3.1 Device-end to PC-end ............................................................. 3

2 Installation ................................................................................................. 4

2.1 General Installation ....................................................................... 4

2.2 Device Installation Steps ............................................................... 4

2.3 Micro SD Card Installation............................................................. 5

2.4 Manual Zoom Lens Focus Operation ............................................ 6

3 Quick Configuration Tool ................................................................ ........... 7

3.1 Overview ....................................................................................... 7

3.2 Operation ...................................................................................... 7

4 Web Operation ........................................................................................ 10

4.1 Network Connection .................................................................... 10

4.2 Login and Main Interface ............................................................. 10

4.3 Panorama Function on Web........................................................ 12

4.3.1 Installation Mode ................................................................... 12

4.3.2 Display Mode ........................................................................ 13

5 FAQ ......................................................................................................... 14

Appendix Toxic or Hazardous Materials or Elements .................................... 15

1

1 Structure

1.1 Multi-function Combination Cable

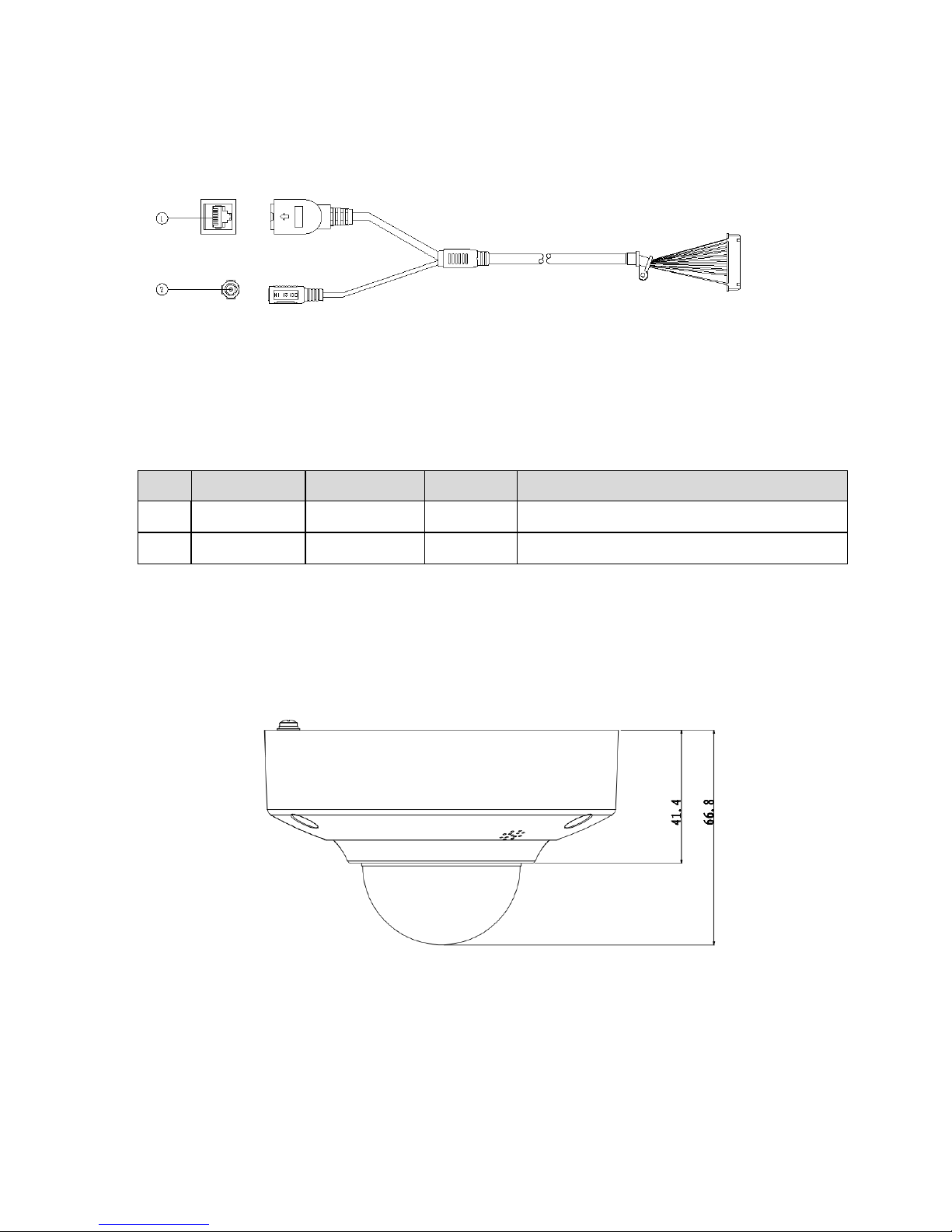

Figure 1- 1

The multi-function cable is in Figure 1- 1.
Please refer to the following sheet for corresponding information.

1.2 Dimensions

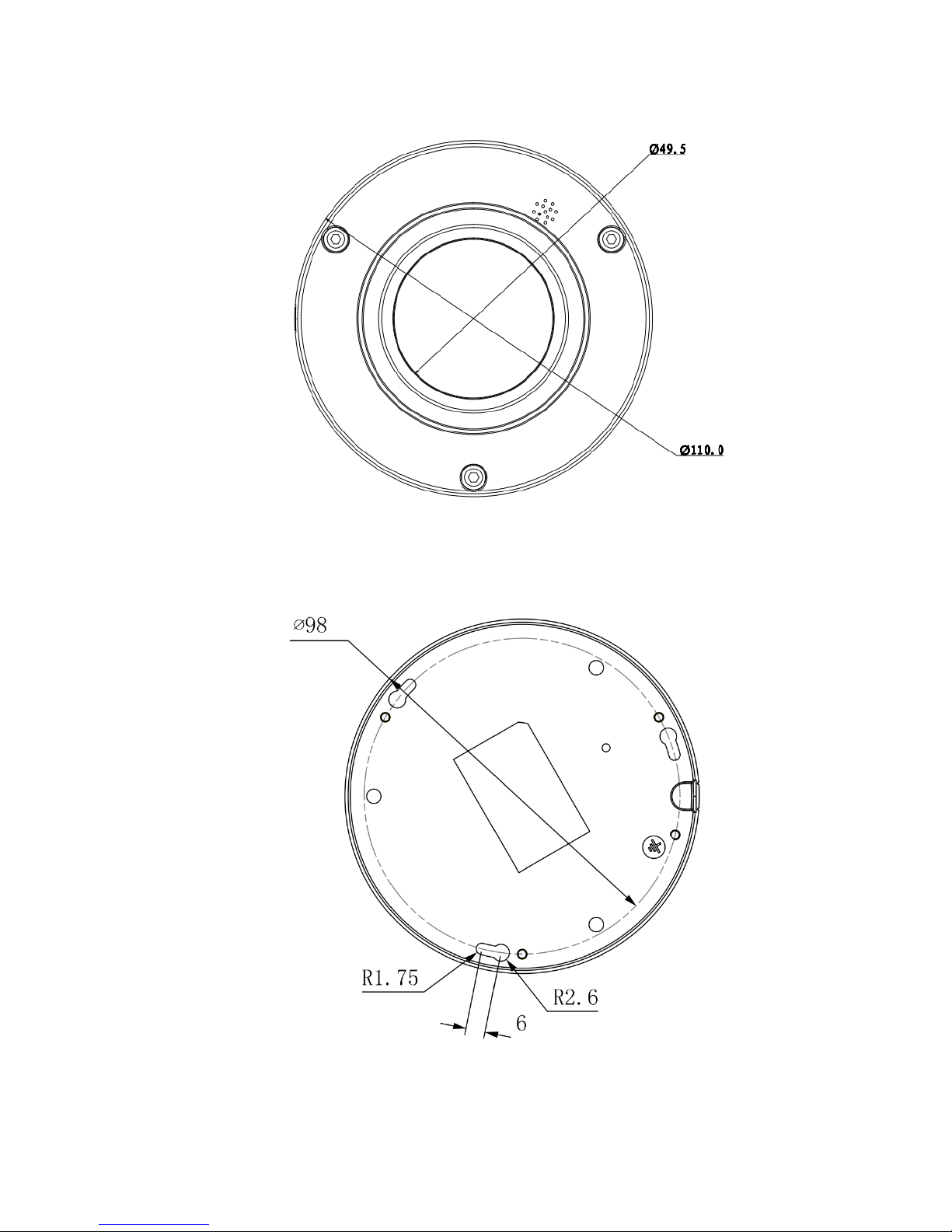

You can refer to the following figures for dimension information. The Unit is mm. See

Figure 1- 2, Figure 1- 3, and Figure 1- 4.

Figure 1- 2

No.

Port

Port Name

Connector

Description

1

LAN

Network port

Ethernet

Connect to Ethernet cable.

2

DC12V

Power input

/

Power port, input 12V DC.

2

Figure 1- 3

Figure 1- 4

1.3 Bidirectional Talk

3

1.3.1 Device-end to PC-end
Device Connection

Please connect the speaker to the audio input port of the PC.
Login the Web and then click the Talk button to enable the bidirectional talk function.
You can see the button becomes orange after you enabled the bidirectional talk function.
Click Talk button again to stop the bidirectional talk function.

Listening Operation

At the device end, speak via the speaker, and then you can get the audio at the pc-end.

4

2 Installation

Important
 Before you complete the installation and setup, do not remove the electrostatic

attraction film on the transparent enclosure. Otherwise it may result in injury.

 After remove electrostatic attraction film, do not touch dome enclosure in case

it may leave stain.

 Before the installation, please make sure the installation surface can sustain at

least 3X weight of the bracket and the camera.

2.1 General Installation

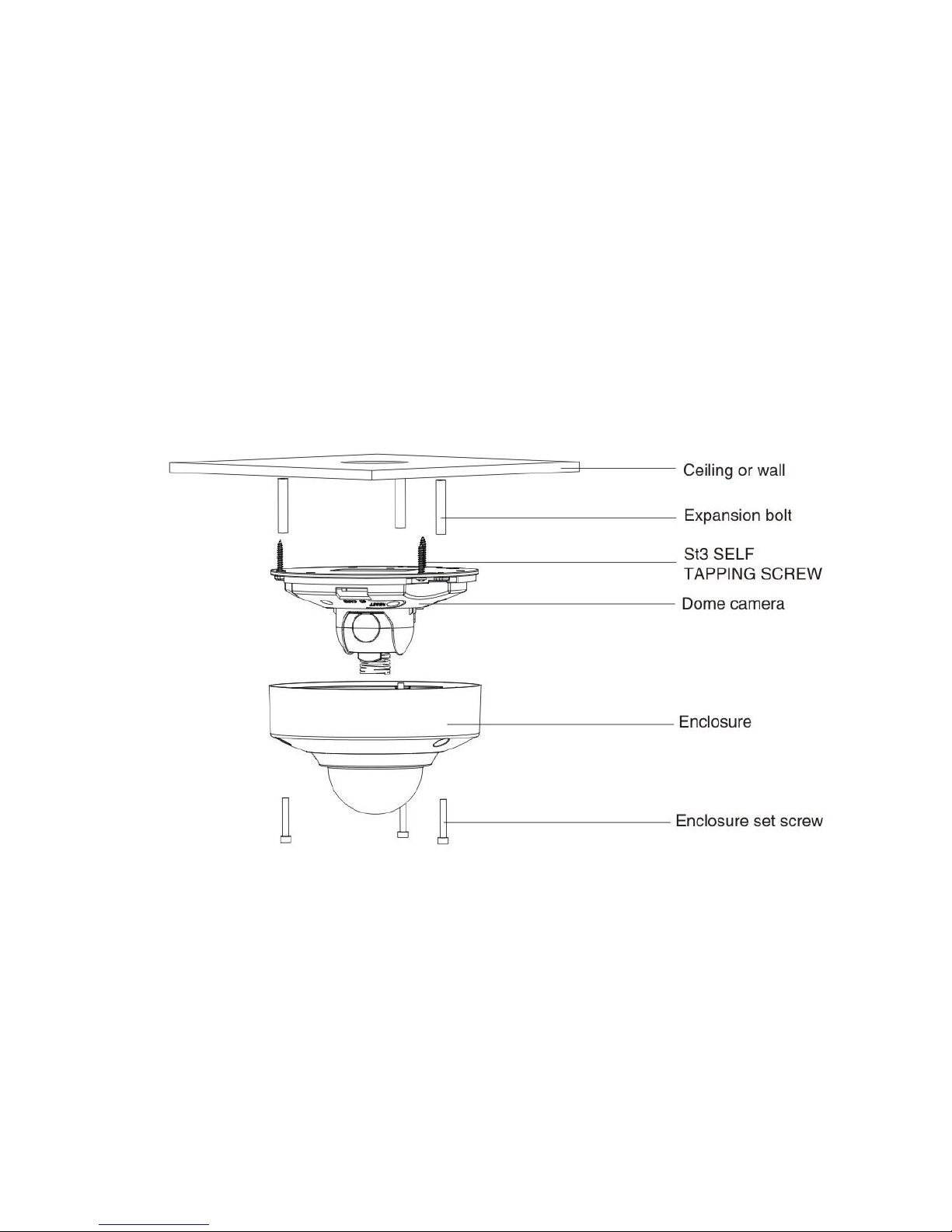

Please refer to Figure 2- 1 for device installation information. You can see there are

installation screws in the accessories bag for you to install the device conveniently.

Figure 2- 1

2.2 Device Installation Steps
Step 1

Use the inner hex wrench from the accessories bag to unfasten the 3 hex screws on the
dome camera enclosure and then remove it.

Step 2

Take the installation position diagram from the accessories bag and then paste it on the
installation ceiling or the wall according to the monitor area. Please dig three bottom holes

5

of the plastic expansion bolts according to the diagram. Take three expansion bolts from
the accessories bag and then insert them to the holes you just dug and then fix firmly. If
you need to dig a hole to pull through the cable on top of installation surface, you need to
dig a cable exit hole on the installation surface according to the installation positioning
diagram. If you need to pull through the cable on the side, you need to dig through the U­shape exit hole on the side of chassis.

Step 3

Adjust the device chassis and pull the cable through the exit hole. Make “TOP” direction
of the device identical with installation diagram. Make fixture hole on chassis face the
three plastic expansion bolts (in Step 1). Take 3 ST3.0 self-tapping screw out from the
accessories bag and fix them on the three plastic expansion bolts to secure the chassis
on installation surface.

Step 4

Line up the dome camera protection enclosure and follow step 1 reversely to put it back.
Use the inner hex wrench from the accessories bag to fasten the 3 hex screws. For
Micro-SD card installation, please refer to Chapter 2.3.
See Figure 2- 2 for grounding hole (GND).

Figure 2- 2

Note: If connect the GND to ground lead, may improve device reliability. The GND
locates next to exit hole on chassis and the GND screw is M3.

2.3 Micro SD Card Installation
Warning!

6

Please unplug the device power cable and then shutdown the device before you
install the Micro SD card.
Please make sure the wire between power panel and device motherboard is firm,
otherwise may cause abnormity.
Please put the enclosure back and fasten the screws tightly to prevent dust.

Step 1

Please refer to Step 1 in chapter 2.2 to open the device protection enclosure.

Step 2

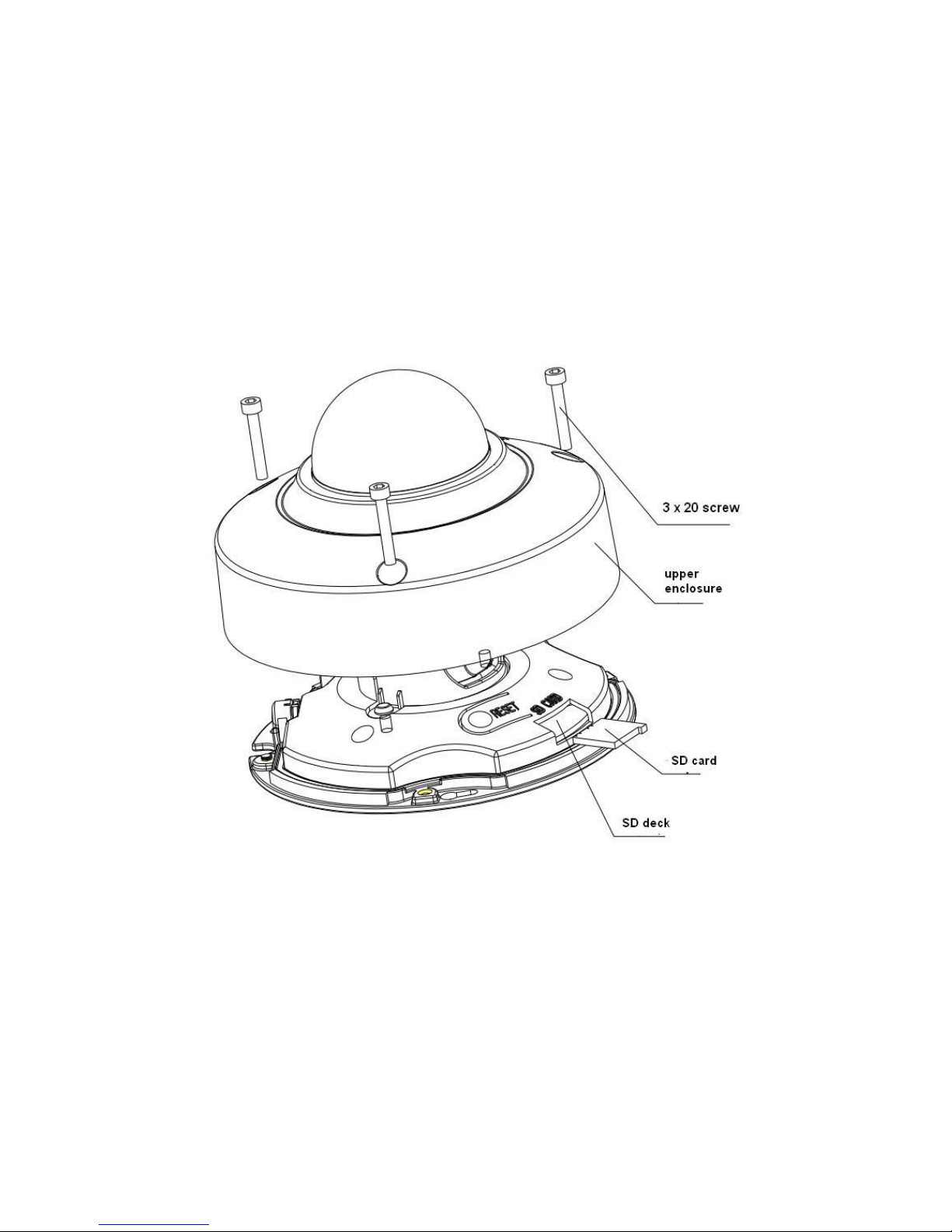

Please find the “SD” mark inside the device according to Figure 2- 3. Insert Micro-SD card
and put the enclosure back.

Figure 2- 3

2.4 Manual Zoom Lens Focus Operation
The lens of the HD panorama network camera is 180°, no manual zoom is required.

7

3 Quick Configuration Tool

3.1 Overview
Quick configuration tool can search current IP address, modify IP address. At the same

time, you can use it to upgrade the device.

Please note the tool only applies to the IP addresses in the same segment.

3.2 Operation

Double click the “ConfigTools.exe”icon, you can see an interface is shown as in Figure 3-

1.

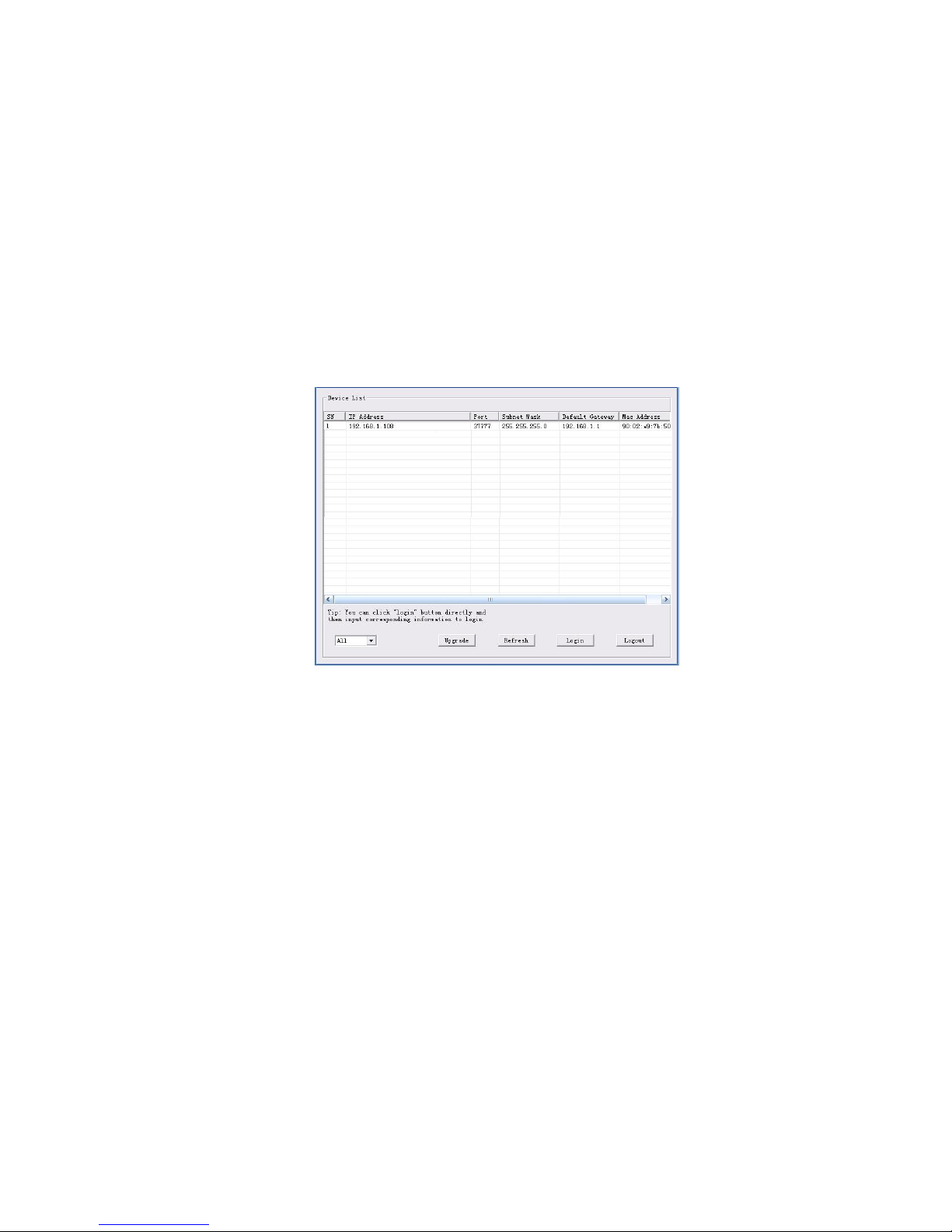

In the device list interface, you can view device IP address, port number, subnet mask,
default gateway, MAC address and etc.

Figure 3- 1

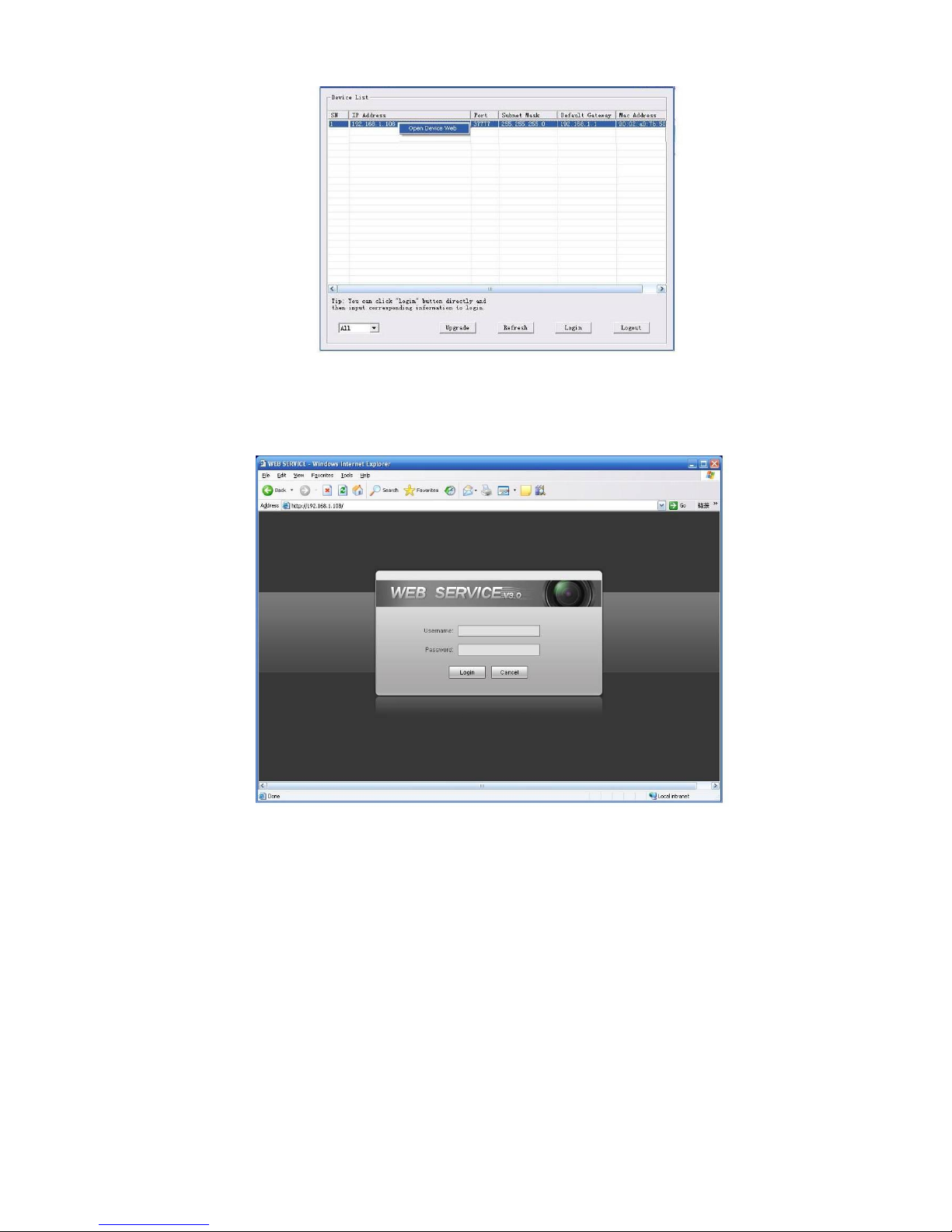

Select one IP address and then right click mouse, you can see an interface is shown as in
Figure 3- 2.

Note:

You can set the IP address, subnet mask and gateway for the network camera and PC.
Please note network camera IP address and PC IP address shall be in the same network
segment if there is no router. Network camera default IP address is 192.168.1.108. If
there is a router, please set the corresponding gateway and subnet mask.
The factory default user name is admin and password is admin. For security reasons,
please modify your password after you first login.
For detailed WEB operation, please refer to the Network Camera Web Operation Manual
in the resource CD.

8

Figure 3- 2

Select the “Open Device Web” item; you can go to the corresponding web login interface.

See Figure 3- 3.

Figure 3- 3

If you want to modify the device IP address without logging in the device web interface,
you can go to the configuration tool main interface to set.
In the configuration tool search interface (Figure 3- 1), please select a device IP address
and then double click it to open the login interface. Or you can select an IP address and
then click the Login button to go to the login interface. See Figure 3- 4.

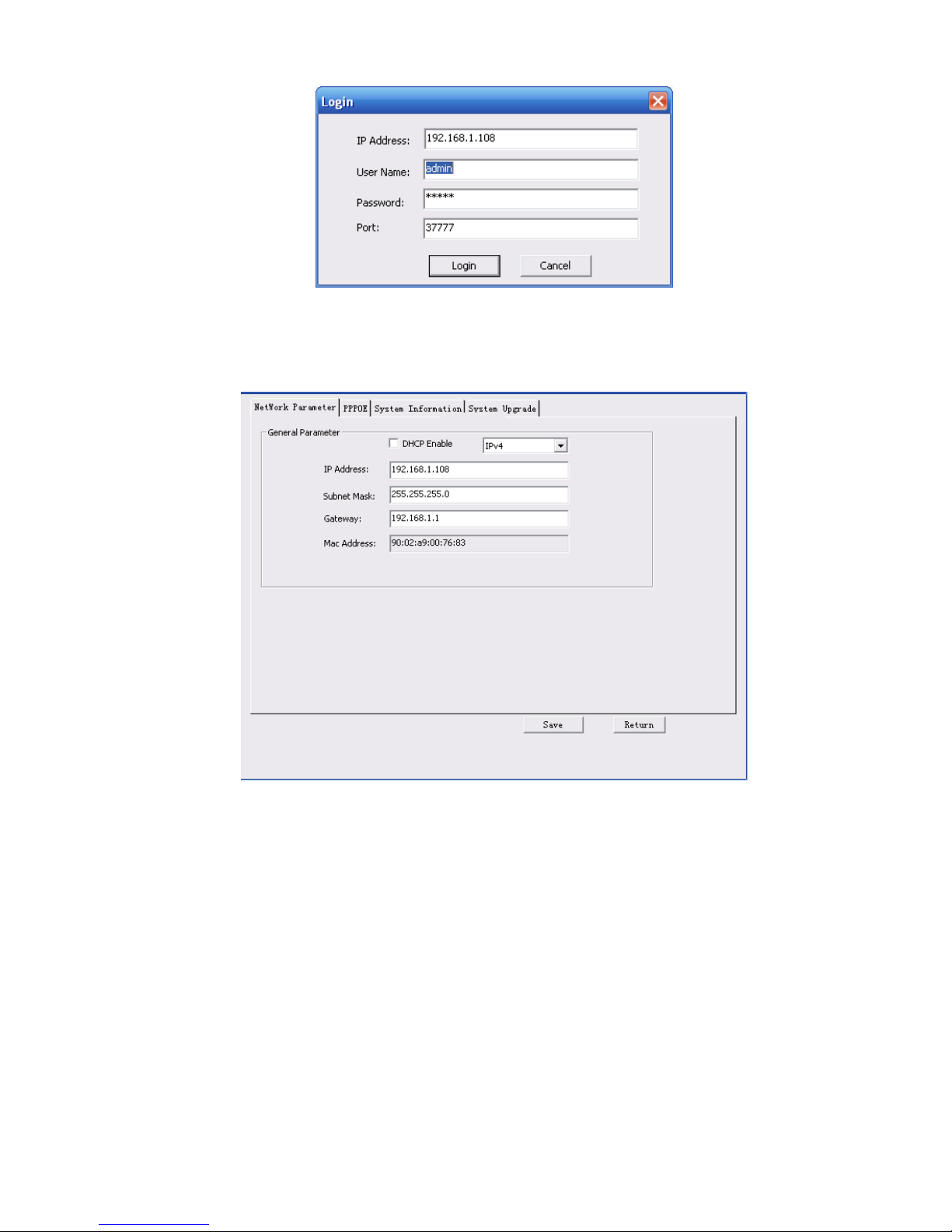

In Figure 3- 4, you can view device IP address, user name, password and port. Please
modify the corresponding information to login.
Please note the port information here shall be identical with the port value you set in TCP
port in Web Network interface. Otherwise, you cannot login the device.
If you are using device background upgrade port 3800 to login, other setups are all invalid.

9

Figure 3- 4

After you logged in, the configuration tool main interface is shown as below. See Figure 3-

5.

Figure 3- 5

For detailed information and operation instruction of the quick configuration tool,
please refer to the Quick Configuration Tool User’s Manual included in the
resources CD.

10

4 Web Operation

This series network camera products support the Web access and management via PC.
Web includes several modules: Monitor channel preview, system configuration, alarm and
etc.

4.1 Network Connection
Please follow the steps listed below for network connection.

 Make sure the network camera has connected to the network properly.
 Please set the IP address, subnet mask and gateway of the PC and the network

camera respectively. Network camera default IP address is 192.168.1.108. Subnet
mask is 255.255.255.0. Gateway is 192.168.1.1

 Use order ping ***.***.***.***(* network camera address) to check connection is OK or

not.

4.2 Login and Main Interface
Open IE and input network camera address in the address bar.

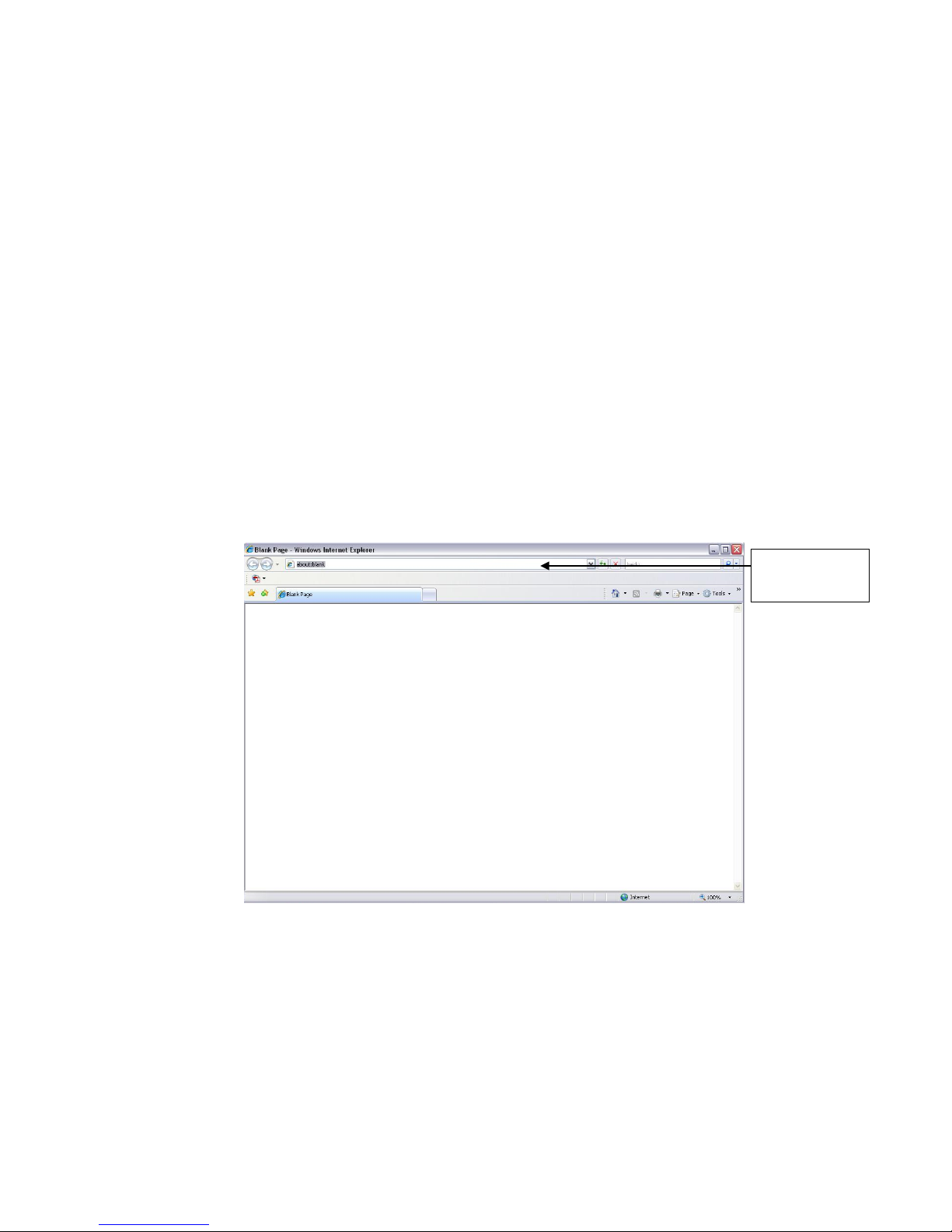

For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108
in IE address bar. See Figure 4- 1.

Figure 4- 1

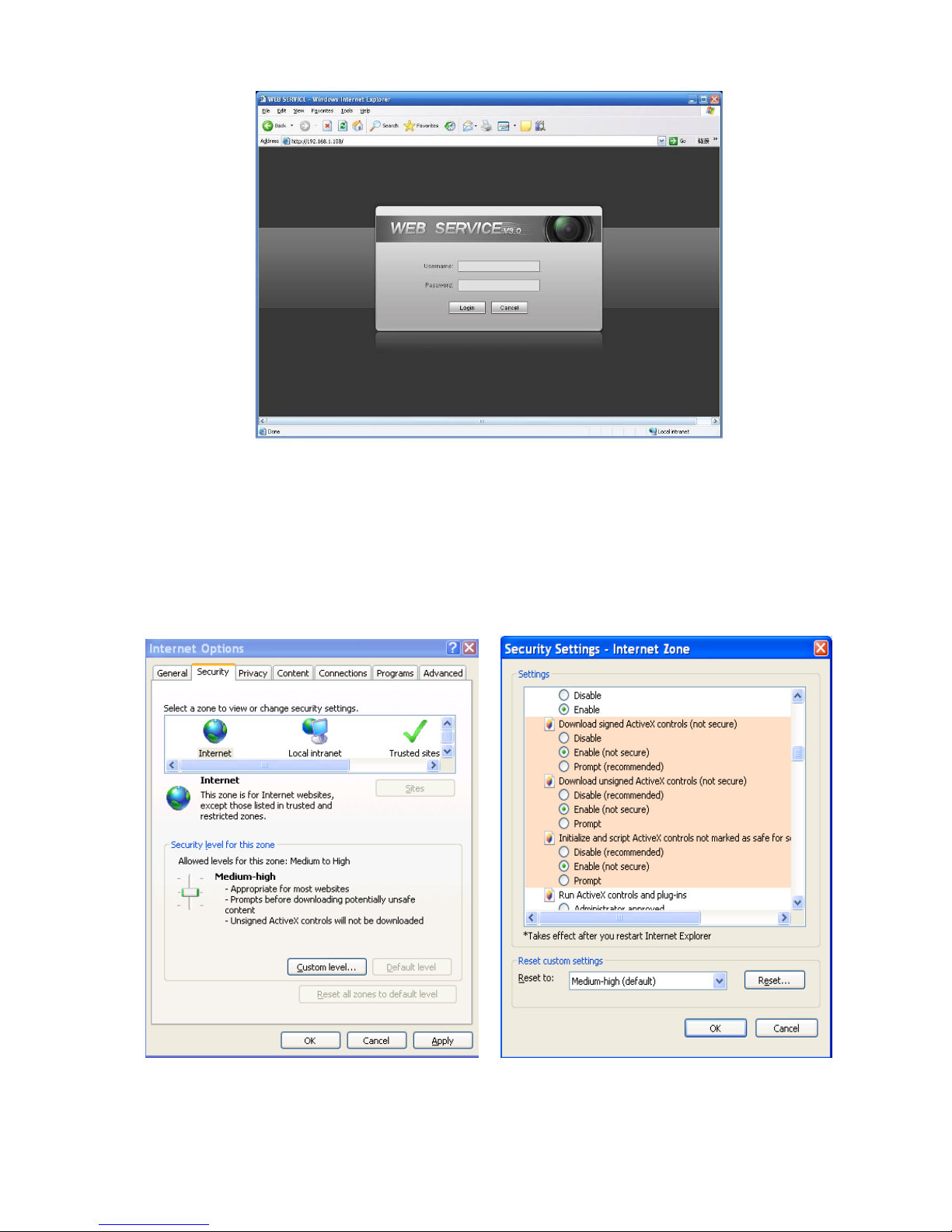

The login interface is shown as below. See Figure 4- 2.
Please input your user name and password.
Default factory name is admin and password is admin.

Note: For security reasons, please change your password after you first login.

Input your IP
address here

11

Figure 4- 2

If it is your first time to login in, system pops up warning information to ask you whether
install control webrec.cab or not after you logged in for one minute. Please click OK
button, and system will automatically install the control. When system is upgrading, it will
overwrite the previous Web too.
If you can’t download the ActiveX file, please check whether you have installed the plug-in
to disable the control download. Or you can lower the IE security level. See Figure 4- 3.

Figure 4- 3

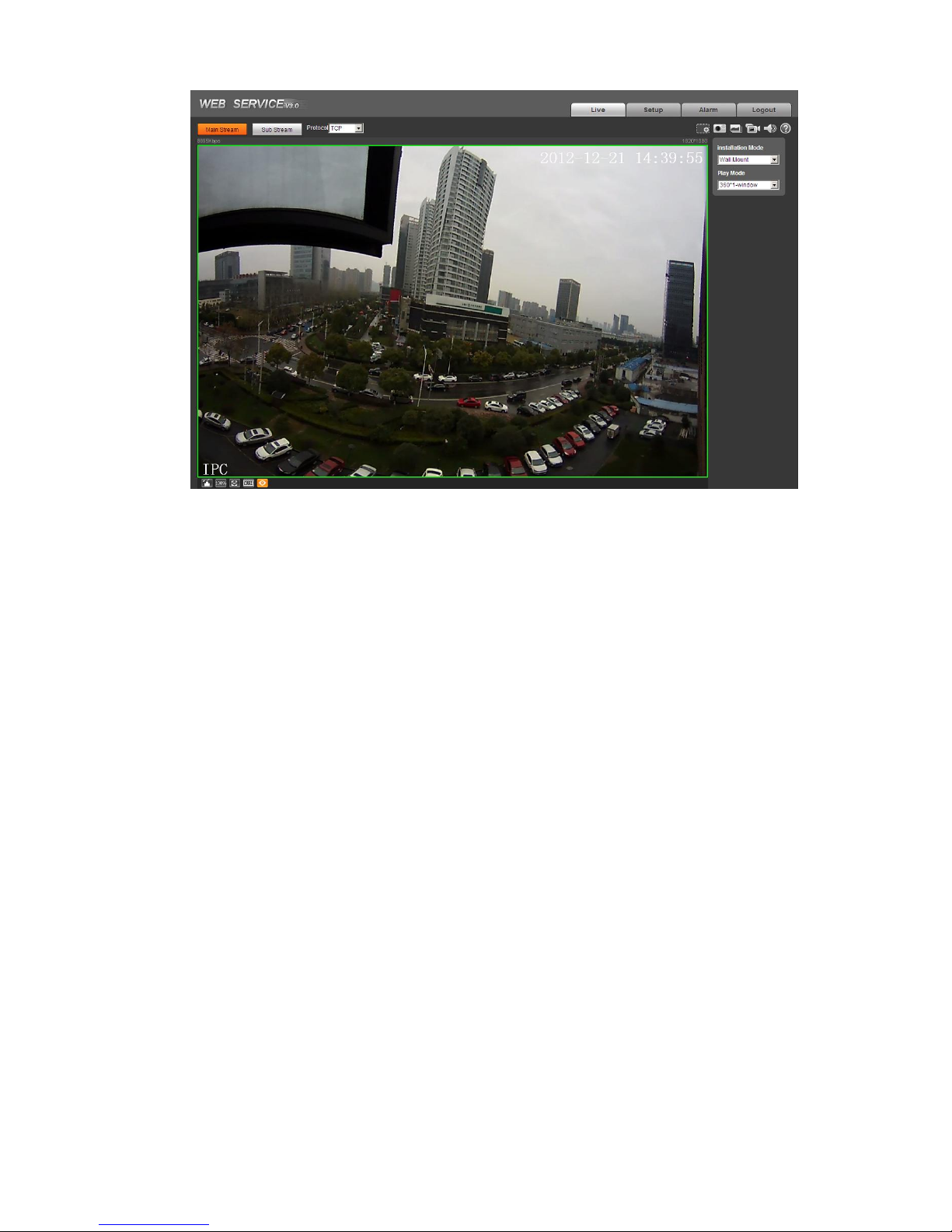

After you logged in, you can see the main window. See Figure 4- 4.

12

Figure 4- 4

Please refer to the Web Operation Manual included in the resource CD for detailed
operation instruction.

4.3 Panorama Function on Web
There is a panorama icon at the lower-left corner of web interface and you can click it to

view installation mode and display mode at the right.
Please set installation mode according to actual installation condition.

4.3.1 Installation Mode

There are three modes: wall mount, in-ceiling and ground.

 Wall mount: It is wall mount and the camera is pointing to the front.
 In-ceiling: It is the in-ceiling mount and the camera is pointing to the bottom.
 Ground: It is the ground installation and the camera is pointing to the top.

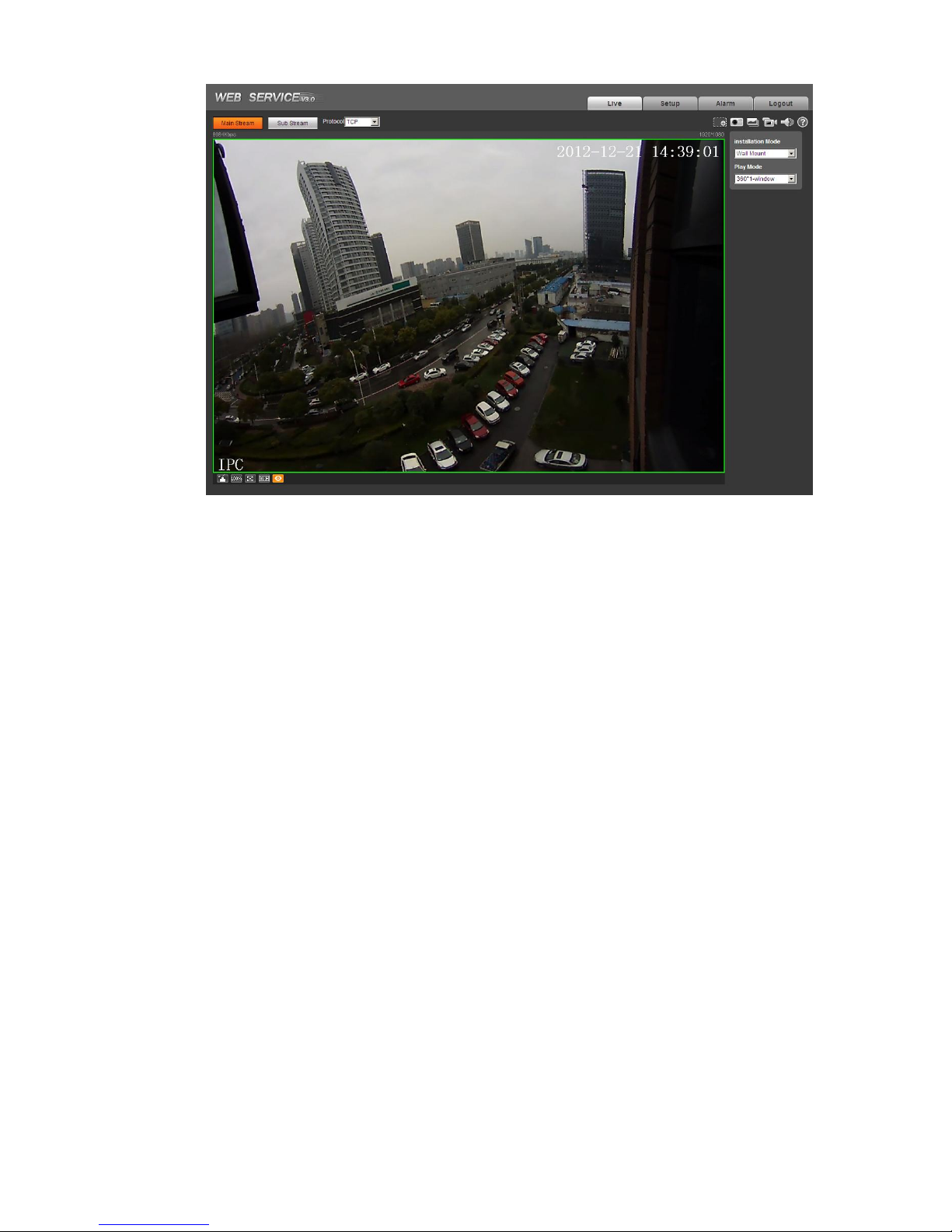

See Figure 4- 5.

13

Figure 4- 5

4.3.2 Display Mode

There are four modes: 360°1-window, dual-picture panorama, 1-window and 90°4-window

 360°1-window: It takes the whole panorama and is one-window 360 degrees panorama.
 Dual-picture panorama: It is the dual-window 180 degrees panorama.
 1-window: It is to display one of the four windows. It can show the video around the 360 degrees

panorama. You can select video and then implement corresponding operation.

Where you can:

1. Adjust camera direction via arrow keys. Click OK to restore default position.

2. Step length is mainly used for speed adjustment as the longer the step, the higher the speed.
Zoom step length is to adjust zoom speed; movement step length is to adjust rotation speed per
step; rotation step length is to adjust clockwise/counterclockwise rotation speed.

 90°4-window: Panorama 360 digress is divided into four windows. Each window has 90 digress

and totally displayed in four channels.

14

5 FAQ

Bug

Solution

I cannot boot up
the device.

Please click RESET button for at least five seconds to restore
factory default setup.

Micro SD card
write times

Do not set the Micro SD card as the storage media to store
the schedule record file. It may damage the Micro SD card
duration.

I cannot use the
disk as the storage
media.

When disk information is shown as hibernation or capacity is 0,
please format it first (Via Web).

I cannot upgrade
the device via
network.

When network upgrade operation failed, you can use port
3800 to continue upgrading.

Recommended
Micro SD card
brand

Kingston 4GB, Kingston 16GB, Kingston 32GB, Transcend 16GB，
SanDisk 4GB, SanDisk 32GB.

Usually we recommend the 4GB (or higher) or industry-level high
speed card in case the slow speed results in data loss.

Save config

When you are done with config, to ensure the config is saved on
storage media, we recommend you to reboot the device via
software.

Power adaptor

The suggested environment temperature of power adaptor is
0~40 ℃, and for other temperatures, a industry-level power adaptor
is required.

15

Appendix Toxic or Hazardous Materials or Elements

Component Name

Toxic or Hazardous Materials or Elements

Pb

Hg

Cd

Cr VI

PBB

PBDE

Circuit Board Component

○ ○ ○ ○ ○

○

Device Case

○ ○ ○ ○ ○

○

Wire and Cable

○ ○ ○ ○ ○

○

Packing Components

○ ○ ○ ○ ○

○

Accessories

○ ○ ○ ○ ○

○

O: Indicates that the concentration of the hazardous substance in all homogeneous
materials in the parts is below the relevant threshold of the SJ/T11363-2006 standard.

X: Indicates that the concentration of the hazardous substance of at least one of all
homogeneous materials in the parts is above the relevant threshold of the SJ/T11363­2006 standard. During the environmental-friendly use period (EFUP) period, the toxic or
hazardous substance or elements contained in products will not leak or mutate so that the
use of these (substances or elements) will not result in any severe environmental
pollution, any bodily injury or damage to any assets. The consumer is not authorized to
process such kind of substances or elements, please return to the corresponding local
authorities to process according to your local government statutes.

Note
 This user’s manual is for reference only. Slight difference may be found in user

interface.

 All the designs and software here are subject to change without prior written

notice.

 All trademarks and registered trademarks mentioned are the properties of their

respective
owners.

 If there is any uncertainty or controversy, please refer to the final explanation of

us.

 Please visit our website for more information.
