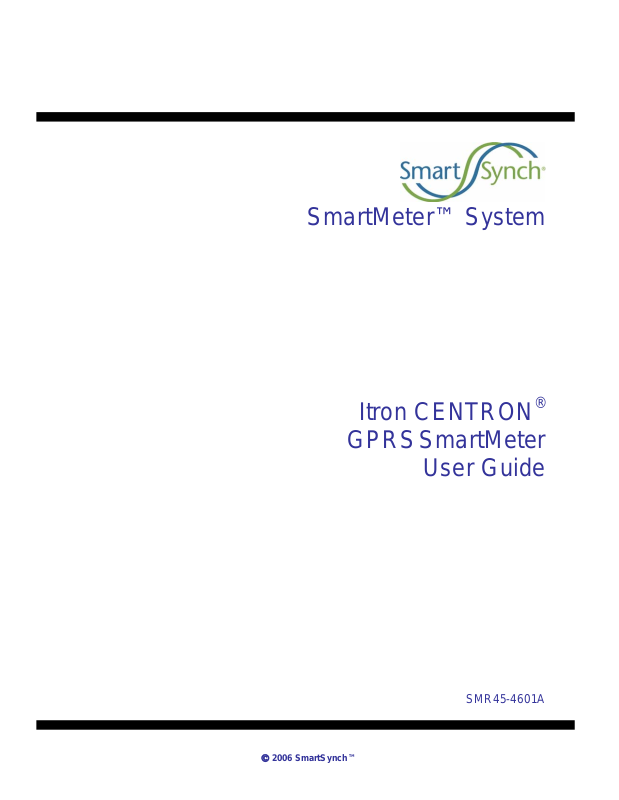

Itron CENGPRS1 User Manual

SmartMeter™ System

®

Itron CENTRON

GPRS SmartMeter

User Guide

SMR45-4601A

© 2006 SmartSynch™

CENTRON GPRS SmartMeter User Guide

Copyrights

Copyright 2006 SmartSynch

®

, Inc. All rights reserved.

No part of this documentation may be reproduced transmitted, processed, or recorded by any means or
form, or be released to any third party without the express written consent of SmartSynch, Inc.

Trademarks

SmartSynch

®

, SmartSynch logo, TMS™, and SmartMeter™ are trademarks or registered trademarks of
SmartSynch, Inc. All other companies, brands, and product names listed herein are trademarks o r
registered trademarks of their respective holders.

Document Revisions

The CENTRON SmartMeter User Guide can be referred to by its document number: SMR45-4601A.
Each revision of this document is designated with a letter, beginning with “A”. SmartSynch, Inc. reserves
the right to revise this publication and to make any modifications to its content, at any time, without
obligation to notify any party, person, or entity of such revisions or changes. Occasionally, changes or
variations exist in the products that are not reflected in the documentation. Generally, if such changes or
variations are known to exist and affect the product significantly, release notes will accompany the
documentation.

The information in this guide should not be considered as all-inclusive or coverin g all cases for events
that may occur. If further information is required, consult your technical support representative.

See the License Agreement contained in the product for complete license information.

Contact your technical support representative for more information on any of our products.

SMR45-4601A 2

CENTRON GPRS SmartMeter User Guide

Table of Contents

1 INTRODUCTION...............................................................................................................................................5

1.1 ABOUT THIS GUIDE........................................................................................................................................5

1.2 REFERENCE MATERIALS.................................................................................................................................5

1.3 CONTACTING SMARTSYNCH...........................................................................................................................5

1.3.1 Technical Support..................................................................................................................................5

1.3.2 Documentation Feedback......................................................................................................................6

1.3.3 SmartSynch Headquarters.....................................................................................................................6

2 GETTING STARTED.........................................................................................................................................7

2.1 OPERATIONS...................................................................................................................................................7

2.2 SAFETY PRECAUTIONS....................................................................................................................................7

2.2.1 Interference with Medical Equipment....................................................................................................7

2.2.2 Fire or Explosion Hazards ....................................................................................................................7

2.2.3 Interference with Other Devices............................................................................................................8

2.3 PREREQUISITES...............................................................................................................................................8

3 INSTALLING THE CENTRON SMARTMETER..........................................................................................9

3.1 PRELIMINARY INSPECTIONS............................................................................................................................9

3.2 INSTALLATION PROCESS.................................................................................................................................9

3.2.1 Option 1: Direct Field Installation........................................................................................................9

3.2.2 Option 2: Meter Shop Test and Field Installation .................................................................................9

3.2.3 Meter Installation ..................................................................................................................................9

3.3 PROVISIONING THE SMARTMETER ...............................................................................................................10

4 TROUBLESHOOTING....................................................................................................................................11

4.1 TROUBLESHOOTING PROCESS FLOW ............................................................................................................11

4.2 TROUBLESHOOTING PROCESS DESCRIPTION.................................................................................................12

5 CENTRON DISPLAY FEATURE...................................................................................................................14

6 REQUIREMENTS AND COMPLIANCE......................................................................................................16

SMR45-4601A 3

CENTRON GPRS SmartMeter User Guide

1 Introduction

1.1 About This Guide

This document is a manual designed to help guide you through the testing, installation and activation of
your Itron CENTRON
SmartMeter and references to supporting manufacturer documentation for detailed guidelines and
instructions on features and operating characteristics of the SmartMeter for installation, programming,
communication, and troubleshooting.

®

SmartMeter. This manual provides general instructions on the support of your

1.2 Reference Materials

The following reference software and documentation are pertinent to the successful installation and use
of the CENTRON SmartMeter.

Itron/Schlumberger

• CENTRON Device Manual

• PC-PRO+Advanced Software

• PC-PRO+Advanced Installation Guide

• PC-PRO+Advanced User Guide

SmartSynch

For more information on the CENTRON SmartMeter, see the product brochure and spec sheet, available
online at

http://smartsynch.com/support/documents/CENTRON_SmartMeter_e.pdf.

1.3 Contacting SmartSynch

1.3.1 Technical Support

SmartSynch’s technical support staff is ready to answer your technical questions. Your technical support
representative can provide information about the latest SmartSynch products, upgrade options, and more.
Contact your technical support representative directly, through the Online Customer Support Center at

http://smartsynch.com/support/login.html, or by email at [e-mail].

Note: You must be a registered user to access SmartSynch’s online sup port services.

Help us help you

When contacting technical support please provide the following information for the fastest possible
service:

• Your name, company name, and contact number

• SmartMeter make and model (meter manufacturer, SSI version number)

• Complete description of the issue, including the steps to reproduce it

• Wording of any message(s) displayed when the issue was encountered

• Action taken to resolve the problem

SMR45-4601A 5

CENTRON GPRS SmartMeter User Guide

1.3.2 Documentation Feedback

SmartSynch, Inc. strives to produce quality documentation for our products and welcomes your feedback.
If you have comments or recommendations about our online help or printed guides, you can em ail us.
Please send email messages to
feedback. If you have a technical question, please contact your technical support representative.

[e-mail]. This email addres s is only for documentation

1.3.3 SmartSynch Headquarters

SmartSynch, an energy technology company based in Jackson, Mississippi, is the leading provider of
advanced metering solutions to the energy and utility industry. Its core product, the SmartMeter System,
enables energy and utility companies to communicate with commercial and industrial electricity meters
using wireless communications and the Internet. The SmartMeter System manages the delivery of critical
information to any application system, workstation, computer, or browser-enabled personal
communication device.

Mailing Address: SmartSynch, Inc. Telephone: [phone]
P.O. Box 12250
Jackson, MS 39236-2250 Fax: [phone]

Street Address: 4400 Old Canton Road World Wide Web:
Suite 300
Jackson, MS 39211 Office Hours: 8:00 a.m. to 5:00 p.m.

www.smartsynch.com

Central Time

SMR45-4601A 6

CENTRON GPRS SmartMeter User Guide

2 Getting Started

Please review the reference documentation before you begin the installation and use of the supporting
software.

2.1 Operations

The CENTRON SmartMeter is an Itron CENTRON electronic single-phase electricity meter integrated
with a SmartSynch Interface (SSI) Module, which fully supports ANSI standards for electricity metering
and is intended for use by commercial and industrial utility customers.

The CENTRON SmartMeter offers you secure over-the-air transfer of data between the SmartMeter and
the TMS (Transaction Management System).

2.2 Safety Precautions

The CENTRON SmartMeter contains a Siemens MC56 GPRS Cellular Engine for wireless
communication purposes. The following safety precautions pertain to the hazards related to this device’s
radio frequency (RF) functionality and must be observed during all phases of installation, operation,
service, and repair. Failure to comply with these precautions violates safety standards of design,
manufacture, and intended use of the product.

WARNING!

Use authorized utility procedures for installing, maintaining, and removing a SmartMeter.
Equipment damage, personal injury, or death can result if devices are not properly
installed and operated.

2.2.1 Interference with Medical Equipment

Before installing the CENTRON SmartMeter on the premises of a hospital or other health care facility,
observe the restrictions on the use of mobile communication devices in sensitive areas. Some medical
equipment may be sensitive to radio frequency (RF) energy, possibly requiring the meter to be properly
shielded or placed in an alternate location.

The operation of cardiac pacemakers, hearing aids, and other implanted medical equipment can be
affected by interference from cellular devices placed too closely. Pacemaker patients are advised to
observe the same precautions recommended for handheld mobile phones while installing or operating the
CENTRON SmartMeter.

2.2.2 Fire or Explosion Hazards

Do not install or operate the CENTRON SmartMeter in the presence of flammable gases or fumes. This
includes gasoline stations, fuel depots, chemical plants, or sites where blasting operations are in
progress. Operation of any electrical equipment in potentially explosive atmospheres can constitute a
safety hazard.

SMR45-4601A 7

CENTRON GPRS SmartMeter User Guide

2.2.3 Interference with Other Devices

The communication module embedded in the CENTRON SmartMeter receives and transmits radio
frequency (RF) energy while in operation. Interference can occur if it is placed too close to televisions,
radios, computers, or inadequately sheltered equipment. Follow any applicable regulations if you suspect
that this device may cause interference or danger.

2.3 Prerequisites

To perform the installation of your SmartMeter, you must have access to the following supporting software
and should have reviewed relevant documentation:

Itron/Schlumberger (Meter Configuration and Analysis Tool) software, for programming the
CENTRON meter. PC-PRO+98 is a Microsoft Windows-based tool that communicates with the
CENTRON meter for program development, meter programming, meter reading, meter testi ng, and report
generation. PC-PRO+ system requirements and installation instructions may be obtained in the:

• PC-PRO+Advanced Installation Guide

• PC-PRO+Advanced User Guide

SMR45-4601A 8

CENTRON GPRS SmartMeter User Guide

3 Installing the CENTRON SmartMeter

3.1 Preliminary Inspections

The CENTRON SmartMeter is calibrated and tested at the factory and is ready for installation. Before
installing and applying power to the SmartMeter, a quick inspection of the SmartMeter is recommend ed to
ensure there is no damage to the SmartMeter, which could possibly occur durin g shipping. Physical
damage to the SmartMeter indicates potential damage to the inside of the SmartMeter. Do not connect
power to a SmartMeter that is suspected of having internal damage. Contact your SmartSynch technical
support representative if you suspect your SmartMeter is damaged.

3.2 Installation Process

The customer will receive meters in a “Preconfigured” state. This means that meters have been
integrated with an SSI SmartMeter Module loaded with the SSI embedded software, an inactive (unless
shipped active per customer request) cellular network Subscriber Identity Module (SIM) card, and has
passed several quality control stages. In addition, a Ship file containing device specific information has
been generated by SmartSynch for the customer. This file is imported into a configuration server by SSI
personnel and a copy is provided to the customer. Upon SIM card activation, upon shipment, or later
upon customer request, an Activation file containing cellular network-specific informatio n is generated.
This file is also imported into the configuration server and a copy is provided to the customer.

Typically, a customer can deploy the meter using one of two methods, depending
on business needs:

3.2.1 Option 1: Direct Field Installation

This option is used when the customer prefers immediate deployment of the meters “from the box to the
base.” This option is desirable in a deployment situation where a large number of meters need to be
deployed in a relatively short period of time. The customer-specific information is automatically Over-the­Air downloaded to the SSI module upon energizing the meter and no addition action is needed on-site.
Follow the meter installation instructions in Section 3.2.3.

3.2.2 Option 2: Meter Shop Test and Field Installation

There is no need for the Meter Shop to reprogram and test the SmartMeter when it arrives. Upon
shipment, the meter will have undergone significant functional and RF testing at the factory. Internal
quality control checks will ensure the SSI module is able to communicate with the meter successfully as
well as communicate with all other internal components before it is shipped. The device will also arrive in
a generic “Preconfigured” state with no customer-specific data stored in internal memory. Th ere is no
need for the Meter Shop to perform any programming steps on the meter.

3.2.3 Meter Installation

1. The installer verifies network coverage with a SmartSynch Coverage Validation Unit (CVU).

2. The meter is placed in the socket and energized. The meter is now in the Pre-Configured state.

3. Once in the Pre-Configured state, the SSI embedded software transmits an Auto-Configuration
message to the configuration server.

4. Upon receiving the meter’s Auto-Configuration message, the configuration server will set all of the
customer specific parameters into the SSI module’s non-volatile memory.

SMR45-4601A 9

CENTRON GPRS SmartMeter User Guide

5. When the SSI module inside the meter is fully configured with the customer specific information it
will immediately send an Auto-Registration message to the customer’s TMS server.

6. If the meter successfully communicates with TMS the Registration message is processed and the
meter sends a confirmation message back to the configuration server.

7. The meter is added/updated in the “Registration Group” under the Master List in TMS.

8. The meter is now in the “Placed” state.

9. The meter is ready to receive the Provisioning commands from TMS.

10. Once the meter is provisioned, meter data can be collected from the meter.

3.3 Provisioning the SmartMeter

The provisioning process must be completed to ensure the resulting transaction communication between
the TMS and the device is correctly interpreted. If the provisioning process does not run to completion
within 30 minutes, the TMS Operator should confirm that coverage validation procedures were properly
followed and then review the PIN settings in the Device properties setup.

Next, the operator should check the events in Monitoring Home>Event Search that have occurred within
the time following the provision request.

There should be a response within a short time period from the specified device showing the version of
the SSI Module, since the Get Version transaction is the initial start of the provisioning process. Once the
Get Version response is returned to the TMS for the TMS to determine certain attributes of the Device,
the TMS sends a number of other transactions to the device to complete the provisioning process.

If the Get Version does not complete successfully, check your Device PIN configuration.
If there is no response of the initial provisioning transaction, follow the troubleshooting processes outlined

in Section 4. If unsuccessful, check the status of your local Internet connection, and then contact
SmartSynch Customer Support for assistance.

SMR45-4601A 10

CENTRON GPRS SmartMeter User Guide

4 Troubleshooting

4.1 Troubleshooting Process Flow

The troubleshooting support directives may involve a number of participants to resolve the issue,
depending on the type of issue involved. Resolution may include TMS Administrators, TMS Operators,
Field Meter Support personnel, or any user who may be required to support the TMS, its clients, or
related data.

Section 4.2 describes the required corrective action that corresponds with each step in the flowcharts.
The first chart describes the process for Onsite (Field) troubleshooting, and the next describes the
process from the TMS Operator’s perspective

Onsite Troubleshooting Flowchart

SMR45-4601A 11

CENTRON GPRS SmartMeter User Guide

With either process, be sure to perform these initial steps:

1. Confirm that the meter is actually installed in the field.

2. Verify that the PIN for that meter is correct.

3. Verify that the site exceeds the acceptable minimums using the Coverage Validation Unit.

TMS Troubleshooting Flowchart (for meters that have been previously provisioned successfully)

4.2 Troubleshooting Process Description

Process
Steps

1 Is Meter Installed in field? Check work orders, inventory management, or verify with

2 Install Meter

SMR45-4601A 12

Description Action

Field Personnel that meter is installed and energized at a
valid Customer location.
Refer to the Installation section of this document

CENTRON GPRS SmartMeter User Guide

Process
Steps

3 Is Pin # Correct? Validate that the pin number in the TMS system is

4 Did site pass CVU tests?

5 Get Version? Perform Get Version ANSI action on device. (See TMS
6 Restore Meter to Factory

7 Get Status? Perform Get Status ANSI action on device. (See TMS
8 Get Status Successful? Check the results of the Get Status ANSI using Event
9 Execute the following Task:

10 Did the meter provision?
11 Sync System to Device

12 Put meter into production

13 Ping the Pager Using the

14 Is Pin Active?

15 Activate Pin Through

16 Field Site Visit - Call into

17 Bring Meter in for evaluation Replace meter with another SmartMeter and bring into

Description Action

indeed the pin number that is matched with the correct
meter. Checking the manufacturer’s spreadsheet sent
with the meters and/or visually inspecting the label on
the meter can accomplish this task.
Check Meter Test Person’s site validation notes and

Defaults?

Provision

system

Internet/Web Browser

SmartSynch

TMS Operator

verify that test were properly run and meet the minimum
requirements.

User Guide)
Perform Restore Meter to Factory Defaults ANSI (see
TMS User Guide)

User Guide)
Search and View Details. (See TMS User Guide)

Execute Provision on the meter. (See TMS User Guide)

Check the results of the Provision ANSI using Event
Search and View Details. (See TMS User Guide)
If meter is already in a Functional Group, user will need
to execute task Sync System to device. (See TMS User
Guide)
Do the necessary paperwork to put meter on production
system and notify appropriate stakeholders.

Go to the Network web page. Send a message tab.
Enter in the pin number of the device and a
miscellaneous message in the message field. Click
Send. (See Section 4.2.1)
After using the internet/web browser, does the screen
say message submitted (yes) or invalid pin (no)? (See
Section 4.2.1)
Log on to the OCS and create a new case for the invalid
pin. SmartSynch Personnel will take care of the issue
and notify the user when the PIN is active.
Dispatch a meter tech to perform the Onsite
troubleshooting procedure and have them call into the
TMS operator at the time of completion.

Meter Shop for further evaluation.

SMR45-4601A 13

CENTRON GPRS SmartMeter User Guide

5 CENTRON Display Feature

1. SmartSynch Identifier: In general, the meter program controls the number of displays, associated
fields, and display time. This 3-letter field identifies SmartSynch display among available displays.

Values Description

SSI SmartSynch, Inc.

2. SmartMeter Warning: displays error codes generated by SmartSynch embedded software.

−
1
2
3
4
5
6
7

Good. Warning. Error

3. Wireless Coverage Status: coverage status detected by the GPRS modem.

Values Description

1 In coverage: modem can hear the network
0 Out of coverage: modem can’t hear the network
2 Shut-down: modem power is off when temperature is outside [-20C, +70C] range
3 Not Registered: modem is not currently registered to any networks, but is trying to

Normal operations – no errors
SmartMeter module’s NVRAM error
Read/write failure in the Common Configuration area - NVRAM
Read/write failure in the App. Specific Configuration area - NVRAM
Actual firmware binary image is corrupted
Firmware image decompression error
Meter clock deviation is greater than the maximum correction limit
Software watchdog triggered – processor is reset

manually register on its own

SMR45-4601A 14

CENTRON GPRS SmartMeter User Guide

4. SmartMeter State: provides a high-level state of SmartSynch firmware.

00
01
02
03
04
30
05
31
06
80
81
82

Initial state – SmartMeter not Quality Controlled yet
SmartMeter passed the Meter Integrator QC
SmartMeter passed Utility QC & is ready for deployment
SmartMeter is attempting to auto-configure with configuration server
SmartMeter is configured & is attempting to register with TMS
SmartMeter failed to automatically download configuration
SmartMeter has automatically registered with TMS
SmartMeter failed to automatically register with TMS
TMS has successfully provisioned the SmartMeter
SmartMeter failed to transmit messages in up to 24 hours
SmartMeter failed to transmit in at least 24 hours (# messages < 10)
SmartMeter failed to transmit in at least 24 hours (# messages >= 10)

Not ready. Good. Warning. Error
States: 00 – 29; Errors: 30 – 59; Warnings: 80-99

5. Received Signal Strength Indicator (RSSI): signal strength as reported by the modem

Displayed RSSI Value Equivalent Power Value (dBm)

0 -113 or less
1 -111
2 -109
3 -107
5 -103
7 -99
9 -95
11 -91
13 -87
15 -83
17 -79
19 -75
21 -71
23 -67
25 -63
27 -59
29 -55
31 -51
99 not known or not detectable

SMR45-4601A 15

CENTRON GPRS SmartMeter User Guide

6 Requirements and Compliance

The CENTRON GPRS SmartMeter is compliant with all applicable Federal Co mmunications Commission
(FCC) and Industry Canada (IC) requirements. The FCC and IC identification numbers for the CENTRON
GPRS SmartMeter are listed as follows:

FCC identifier: QHC-CENGPRS1
IC identifier: 4393B-CENGPRS1

This certification is granted to SmartSynch Inc.
The reference application registered under the above identifier is certified to be in accordance with the

following Rules and Regulations of the Federal Communications Commission (FCC):

“This device contains GSM 1800MHz function that is not operational in U.S. Territories. This
device is to be used only for mobile and fixed applications. The antenna(s) used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operating in conjunction with any other antenna or transmitter.
Users and installers must be provided with antenna installation instructions and transmitter
operating conditions for satisfying RF exposure compliance. Antennas used for this OEM modu l e
must not exceed 7dBi gain (GSM 1900) and 1.4dBi (GSM 850) for mobile and fixed operating
configurations. This device is approved as a module to be installed in other devices. Each OEM
must obtain their own Certification for each device containing this module.”

In addition, the CENTRON GPRS SmartMeter fully complies with the TS 51.010 tests as adopted by the
PTCRB and defined in the NAPRD section 11.

SMR45-4601A 16
