C HAPTER

Before You Begin

This document describes the installation of the 60WP Endpoint for rod mount, wall mount,
through-lid, and shelf mount installations. The 60WP Endpoint is available in the following
cable configurations:

• Inline connector with approximately six inches of cable

• 5-foot open-end cable

• 6-inch open-end cable

These cable combinations allow easy interface to several types of pulser meter registers.

The 6-inch cable variant allows meter manufacturers to integrally mount the endpoint to
their respective meter registers. When installing a meter register in a water pit box that is
configured in this manner, it is important to recognize that the distance from which the
endpoint's radio signal can be detected will be significantly reduced as the meter is located
deeper in the pit box. When a point is reached where read reliability is compromised, a new
installation method must be selected.

How This Document is Organized

This document is organized as shown in the following table.

Chapter Description

Before You Begin Provides information about this publication.
About the 60WP Endpoint

Installing the 60WP Endpoint

Connecting the Endpoint to the Register

Programming the 60WP Endpoint

Gives an overview of the 60WP endpoint installation,
including installation options, positioning, and required
tools.

Provides step-by-step instructions for installing the
endpoint using the rod mount, wall mount, through lid
mount, or pit lid shelf mount.

Provides information about wiring the endpoint to a
register using the inline connector, a 5-foot cable, or an
extended cable.

Describes how to activate programming mode,
program the endpoint, and verify operation of the
endpoint.

Water Solutions 60WP Endpoint Installation Guide v

Before You Begin

Documentation Conventions

The following documentation conventions are used in this guide:

Convention Example

Itron product part numbers are noted in
parentheses.

Hypertext links are in blue.

WARNING! This type of note is used to warn of potential physical harm
to the user or hardware. It is critical that you pay strict attention to
WARNING notes, read the information carefully, and heed the advice
and instructions.

CAUTION! This type of note warns the user that failure to head the
information in the note could result in loss of data. Be sure to carefully read
a CAUTION note and heed the advice/instructions.

NOTE! This type of note provides additional information to the user.

To install the endpoint (ERW-0771-3XX), perform the
following steps.

See

Installation Process Overview on page 10 for a

diagram of the installation process.

vi Water Solutions 60WP Endpoint Installation Guide

C HAPTER 1

About the 60WP Endpoint

The 60WP Endpoint is an Automatic Meter Reading (AMR) module that collects
consumption and tamper information and reports in a bubble-up fashion. Approximately
every seven seconds, the 60WP Endpoint transmits a standard consumption message (SCM)
at approximately +10dBm (10 milliwatts) between 910-920 MHz.

The 60WP Endpoint supports protocols for a variety of meter manufacturer's registers,
including but not limited to AMCO, Badger, Sensus and Actaris registers. Refer to Itron
part number PUB-0063-002, Water Meter Compatibility List, for the list of meter
manufacturers currently supported.

The 60WP Endpoint features the following capabilities:

• Leak Detection–The 60WP Endpoint indicates by meter reading software that a

potential system leak exists if a zero consumption value does not occur over a seven
day period of hourly register reads. Upon detecting a zero consumption the leak
message will be changed to an "Off" status and the seven day test period will be reset.

• Tamper Indicators–To minimize the possibility of theft, the 60WP Endpoint features

cut cable tamper reporting as well as a security seal to indicate physical tampering. A
cut cable tamper is reported when the cable connecting the register and endpoint has
been cut or disconnected. The tamper indicator will continue incrementing until the
problem has been resolved.

Battery Life

Powered by a non-replaceable long life dual lithium battery pack, the 60WP Endpoint has
an expected battery life of approximately 15 years.

Installation Options

The 60WP Endpoint can be installed using the following methods:

• Rod Mount–Rod mount installation allows the endpoint to be mounted on a 1/2 inch

outside diameter rod.

• Wall Mount–Wall mount installation attaches the endpoint to a wall or other vertical

surface within a meter pit.

• Through Lid–Requires the pit lid mounting kit, enabling the endpoint to be mounted

in lids with hole sizes from 1 3/4 inches to 2 inches. This method is used for passive
radiator antenna applications.

• Shelf Mount–Used in conjunction with the shelf mount adaptor, this option allows the

endpoint to slide into a pit lid slot.

Water Solutions 60WP Endpoint Installation Guide 7

Chapter 1 About the 60WP Endpoint

Generally, for water pit boxes, the type of installation method chosen will be based on two
factors: the type of lid material and the current lid configuration. Metal lids usually require a
through-lid solution for optimal endpoint radio performance. Plastic lids and other
composite materials are acceptable for any of the installation methods described above with
some lids having an underneath shelf design.

NOTE For the shelf mount option, the pit lid slot must be the correct dimensions
for the 60WP Endpoint assembly to fit. Evaluate each type of pit lid to determine
the proper installation option. See
information.

Operating Modes

The 60WP Endpoint provides the following operating modes:

•

Programming Mode - Use the programming magnet (Itron part number MSE-0159-003)

to activate the unit and put it into Programming Mode. The 60WP Endpoint stays in

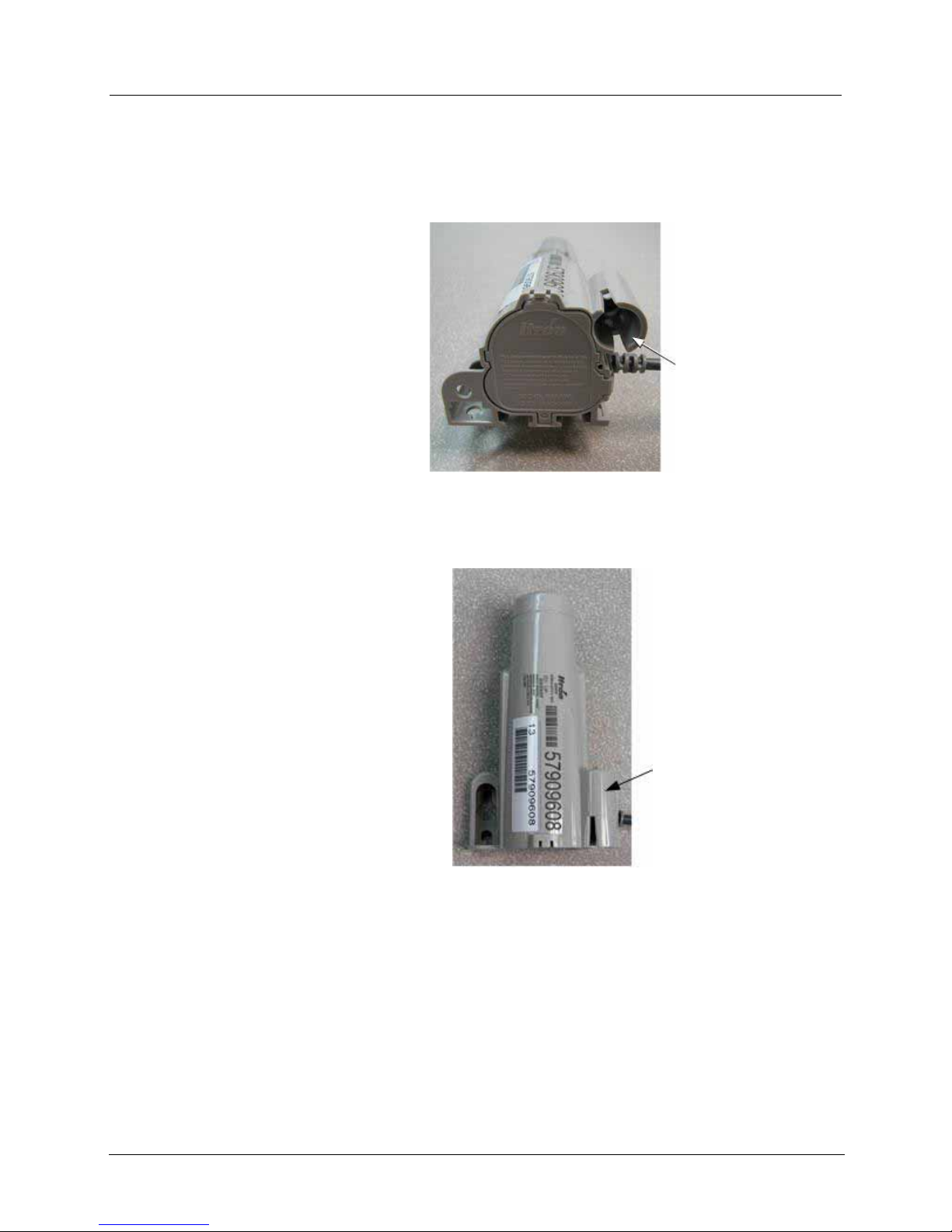

Programming Mode for 15 minutes. For the location of the magnet see

Programming Mode on page

Shelf Mount Installation on page 23 for more

Activating

31.

NOTES!

• Hold the magnet in position for three seconds to activate

Programming Mode. If it is held there longer than 15 minutes,
you must remove the magnet for three seconds and then put it
back into position to reactivate Programming Mode.

• You must activate Programming Mode in the 60WP Endpoint to

verify operation. For more information see

of the 60WP Endpoint on page

•

Normal Mode - Following the 15-minute Programming Mode, the endpoint goes into

34.

Verifying Operation

Normal Mode and begins to operate as programmed.

Quiet Mode - In Quiet Mode the endpoint turns off its transmitter and receiver

•

functions. The unit can be put into Normal Mode by adding counts to the attached
register or into Programming Mode using the magnet.

Off Mode - The 60WP Endpoint is shipped in Off Mode. In Off Mode the unit does

•

nothing unless activated by a magnet for programming.

You can program the 60WP Endpoint using an FC200SR handheld computer running the
Endpoint-Link software. For more information about programming the endpoint, see

Programming the 60WP Endpoint on page 32.

8 Water Solutions 60WP Endpoint Installation Guide

Included Materials

Included Materials

The following materials are supplied by Itron:

• 60WP Endpoint with inline connector, protective cover for inline connector, and

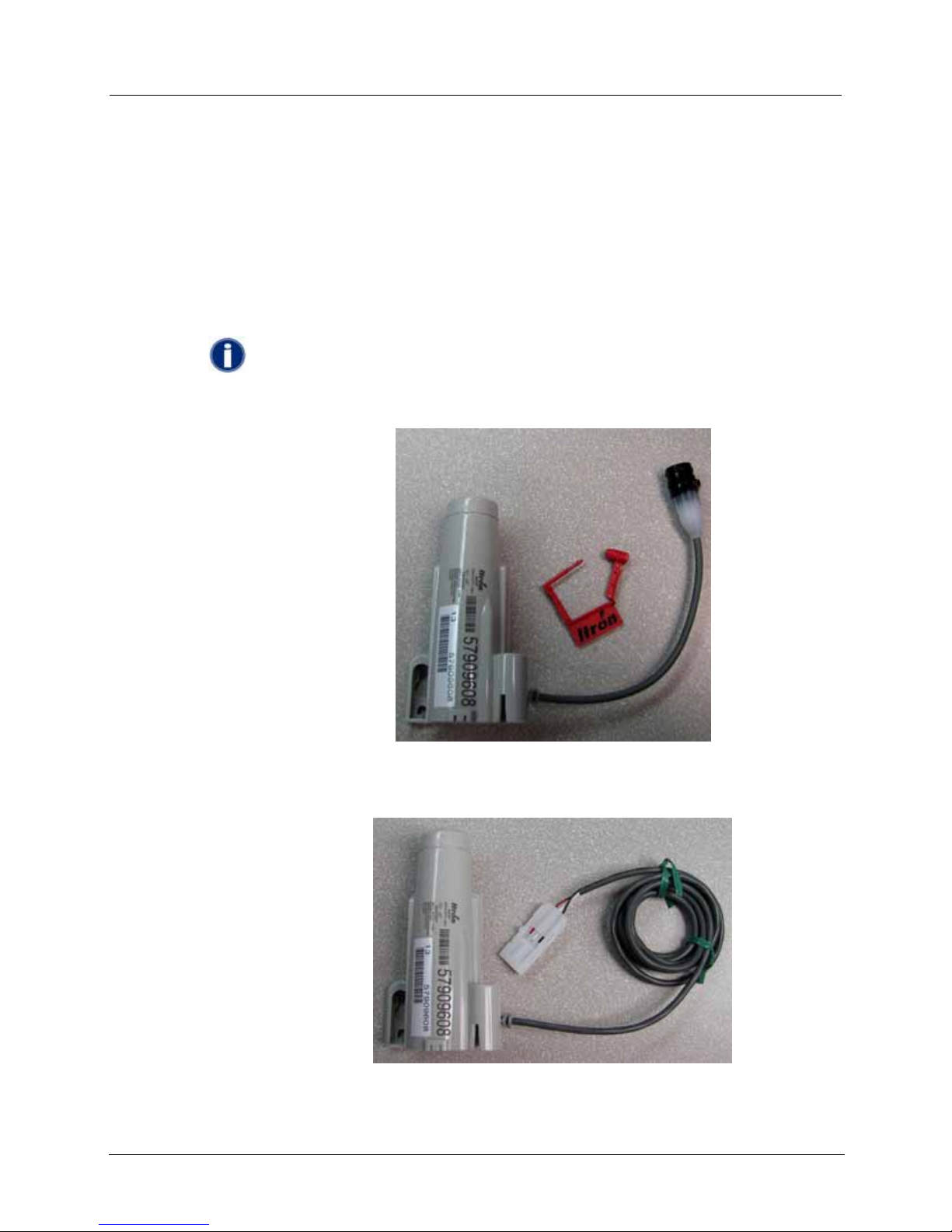

tamper seal for security - (ERW-0771-301) (Figure 1)
OR

• 60WP endpoint with a 5-foot cable - (ERW-0771-311) (Figure 2)

NOTE! The 6-inch cable variant is only available to meter manufacturers and,
therefore, installation for this model is not covered in this document.

Figure 1: 60WP Endpoint with Inline Connector and Tamper Seal

Figure 2: 60WP Endpoint With 5-Foot Cable

Water Solutions 60WP Endpoint Installation Guide 9

Chapter 1 About the 60WP Endpoint

Accessories

The following additional materials may be needed depending on your type of installation.

• Cable Ties (15-inch for indoor pipe mounting installation) - Itron part number CFG-

0771-003 (Qty 72)

IMPORTANT! These cable ties are not intended to be used for
mounting the 60WP in an outdoor or pit box environment. Use Panduit
PLT4H-76 (or equivalent) cable ties for outdoor and pit box applications.

• Through-Lid Mounting kit - Itron part number CFG-0771-010 (Minimum order: 36)

• Shelf Mount Adaptor - Itron part number CFG-0771-007 (Minimum order: 36)

Installation Process Overview

The process for installing a 60WP Endpoint is illustrated below.

Mount

60WP endpoint

Is inline

connector

used?

Yes

Connect

inline connector

Use magnet to put

endpoint into

programming mode and

program endpoint

Verify 60WP operation

No

Mount register according

to manufacturer's

recommended procedure

10 Water Solutions 60WP Endpoint Installation Guide

C HAPTER 2

Installing the 60WP Endpoint

This chapter shows you how to install the 60WP endpoint. Use one of the following
procedures to mount the 60WP endpoint:

•

Rod Mount Installation on page 11

•

Wall Mount Installation on page 16

•

Through-Lid Mounting on page 18
Shelf Mount Installation on page 23

•

Rod Mount Installation

The 60WP endpoint can be mounted below the pit lid on a customer-supplied rod. The
example installation described in this section utilizes a 1/2-inch fiberglass rod. For supplier
information on the rod material, see information under Compatibility Chart at the following
Itron website address:

www.itron.com/pages/products_detail.asp?ID=itr_000428.xml&pgtype=&subID=ar

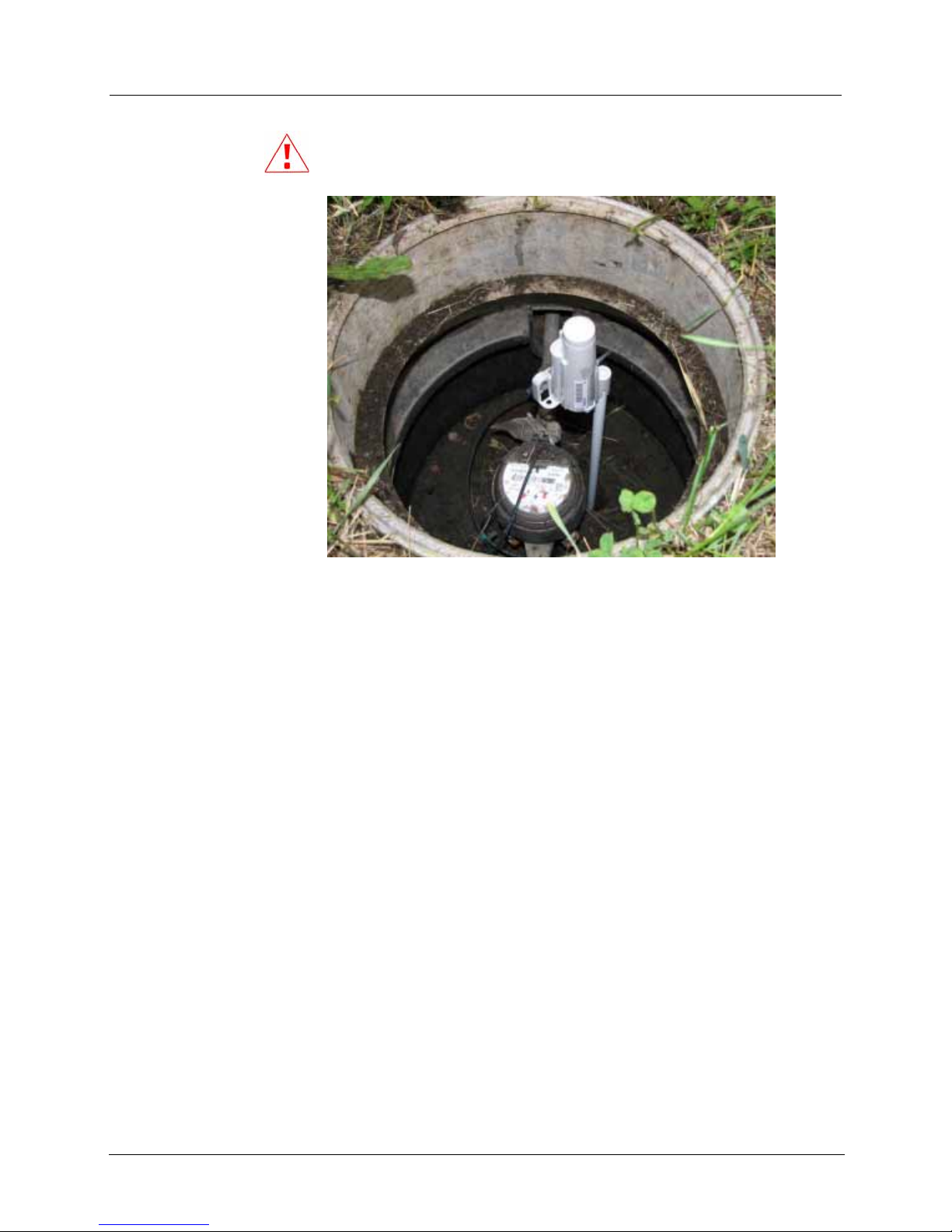

WARNING! You must ensure that the area where the rod will be installed is
free from other pipes, wires, or facilities that may be damaged by driving a rod
into the ground.

CAUTION! You must follow local codes when using the rod mount installation
method.

Required Tools and Hardware - Rod Mount Installation

The following items are required for the rod mount installation:

• Hammer

• 3/8-inch to 1/2-inch outside diameter rod (1/2-inch diameter is preferred for new

installations)

• Tape measure

• Cutting tool for adjusting rod length

Water Solutions 60WP Endpoint Installation Guide 11

Chapter 2 Installing the 60WP Endpoint

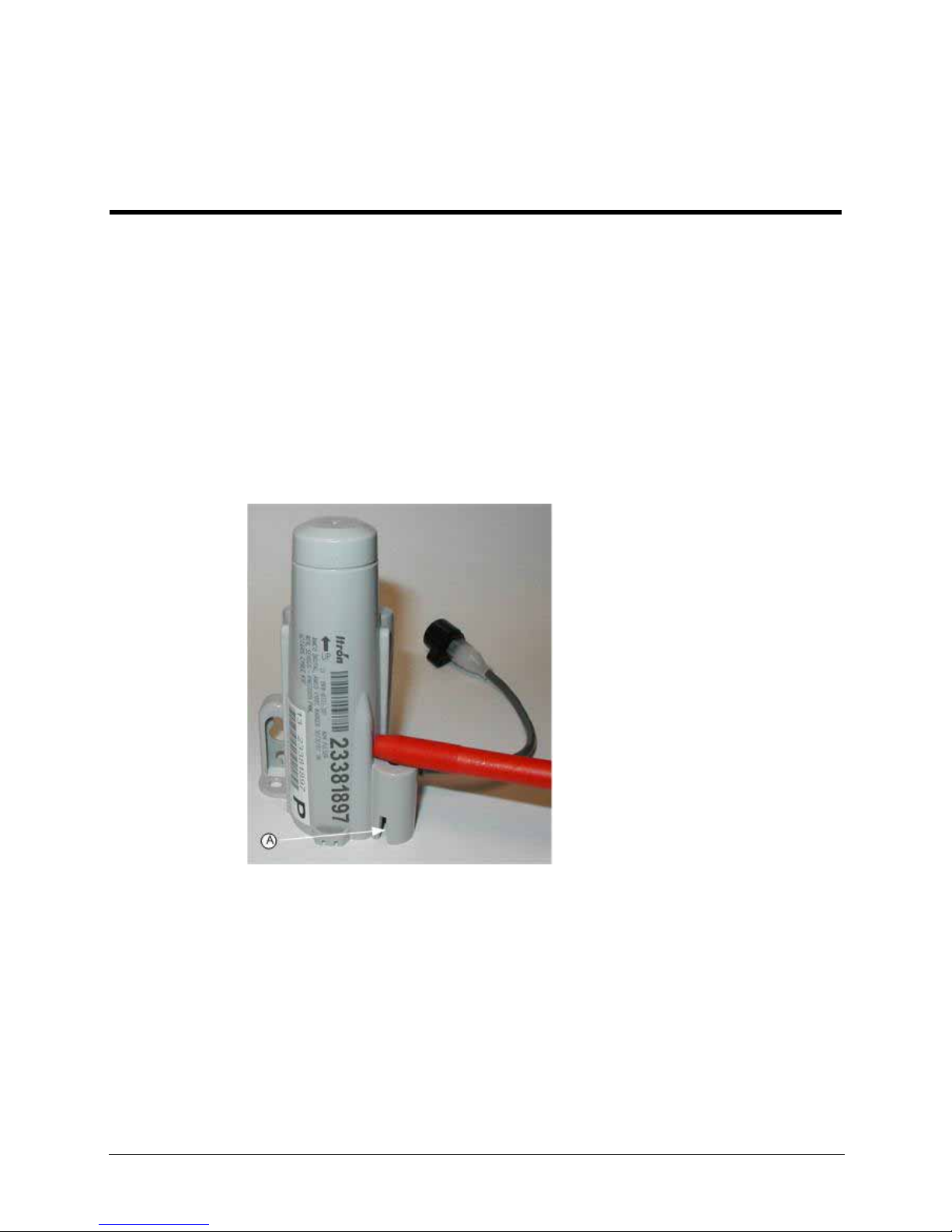

The following figure shows a bottom view of the rod mount. The 1/2-inch diameter rod hole
is indicated in the photo.

The following figure shows a side view of the rod mount, also indicating the 1/2-inch
diameter rod hole.

Figure 3: Rod Mount, Bottom View

Figure 4: Rod Mount, Side View

12 Water Solutions 60WP Endpoint Installation Guide

Rod Mount Installation

To install using a rod mount

1. Remove the pit lid. Inspect the area to make sure there are no buried cables, pipes, or

other obstructions.

2. Measure the depth of the pit box from the top of the lip on which the lid will rest to

the bottom of the pit. Be sure to measure the depth at the point where the rod will be
driven into the ground.

3. Add 12 inches to the pit box depth measurement taken in step 1.2. The resulting total

represents the minimum length of rod needed. Soil types and moisture conditions may
require longer rod lengths to ensure the endpoint is well supported and remains
vertical.

4. Without touching the meter body or adjacent pipes, position the rod as close to the

center of the pit as possible, and then drive it into the ground.
Ensure that the rod remains vertical.

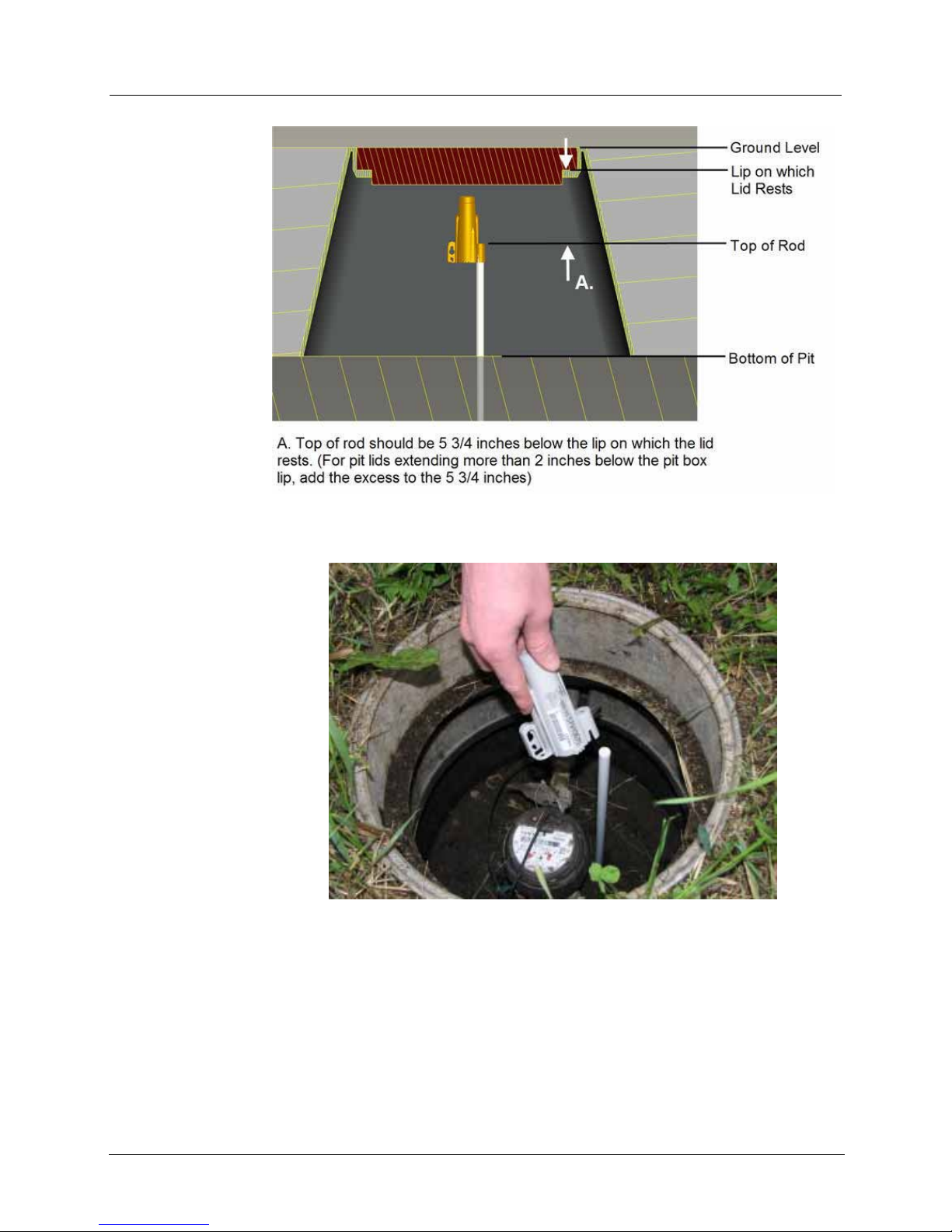

5. Drive the rod into the ground to a depth that achieves dimension A in the illustration

below.

• If rod cannot be driven in sufficiently to achieve the 5 3/4 inch spacing, cut the

remaining rod length to the proper height by using an abrasive cut off tool.

• If the rod is driven to the correct depth but remains loose in the soil the rod

should be replaced with a longer version.

CAUTION! When cutting fiberglass, use proper safety precautions when using
cut-off tools and to prevent exposure to fiberglass dust particles.

Water Solutions 60WP Endpoint Installation Guide 13

Chapter 2 Installing the 60WP Endpoint

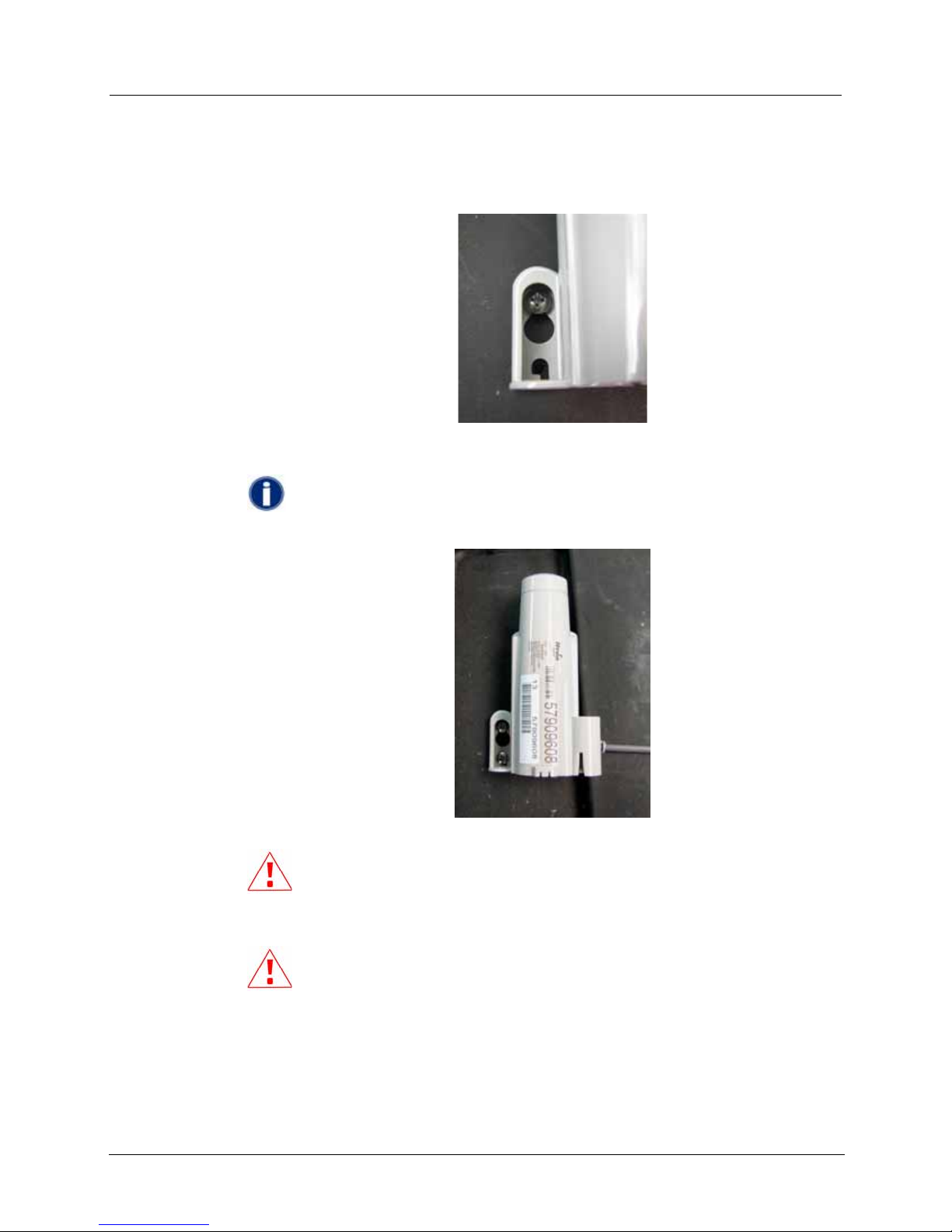

6. Place the endpoint onto the rod, making sure the rod is completely seated into the Rod

Mount hole of the endpoint. The endpoint should slide freely onto the rod; it should
not be forced.

7. When the installation is complete the endpoint should be perpendicular to the

underside of the lid. The endpoint should not contact the pit structure or lid.

14 Water Solutions 60WP Endpoint Installation Guide

Rod Mount Installation

CAUTION! If the endpoint module installation is too high, too low, or touching any
of the surrounding surfaces, then adjust as necessary.

Water Solutions 60WP Endpoint Installation Guide 15

Chapter 2 Installing the 60WP Endpoint

Wall Mount Installation

For locations other than a water pit box, select a flat vertical mounting surface. Install the
endpoint in an upright position, ensuring that the arrow on the endpoint label is pointing
upward. Mounting the unit in an upside-down orientation will shorten battery life.

To mount the endpoint to a water pit box, select a mounting location on the inside the pit
box and try to maintain a distance of one to three inches from the bottom of the pit box lid.

NOTE For cable lengths exceeding 150 feet, see Connecting With an Extended
Cable.

Required Tools and Hardware - Wall Mount Installation

The following items are required for a wall mount installation:

• Drill and drill bits for expected pit box material.

• Common hand tools for the type of fastening method selected.

• Mounting screws. Select a #10 size pan head screw that is appropriate for the type of

box material.

Installing Using a Wall Mount

To install the 60WP Endpoint using the wall mount method, mount the endpoint on the pit
box wall so that the top of the endpoint is between one and three inches below the bottom of
the lid.

Always mount the endpoint in a vertical position. When mounting to a curved surface, such
as a round pit box, only tighten the mounting screws to a point where the endpoint is secure.
Over-tightening could fracture the plastic mounting tabs.

CAUTION! When using the wall mount method, be careful not to over-tighten the
mounting screws; the mounting tabs on the endpoint may break as a result.

Procedure

1. Select a vertical surface in the meter box.

2. Position the endpoint vertically and approximately 1 inch from the top of the lid lip

and mark location of top mounting hole.

3. Pre-drill a pilot hole in the pit box wall. Follow the screw manufacturer's

recommendation to determine the size of the pilot hole.

4. For concrete-type pit boxes, it may be necessary to use a screw anchor. Choose an

anchor that will accommodate a #10 pan head screw.

16 Water Solutions 60WP Endpoint Installation Guide

Wall Mount Installation

5. Start a screw into the pilot hole. Using the top hole of the endpoint, set the endpoint

over the screw head and slide it down so the screw is now at the top of the notch as
shown below. Tighten the screw until snug. Do not over tighten as this could
potentially crack the endpoint housing.

6. Keeping the 60WP endpoint in the upright position, drill the second pilot hole using

the bottom mounting hole as a template.

NOTE! If using a screw anchor, mark the location of the bottom
anchor, remove the endpoint, drill the required hole, insert the anchor
and reattach the endpoint.

IMPORTANT! Any endpoint position other than upright may
negatively affect radio performance and battery life.

7. Screw the bottom screw into the pilot hole until snug.

IMPORTANT! Over tightening the screws may crack the endpoint

housing plastic around the screw.

Water Solutions 60WP Endpoint Installation Guide 17

Chapter 2 Installing the 60WP Endpoint

Through-Lid Mounting

This section describes mounting the 60WP Endpoint in a pit lid that has an 1 3/4-inch, 1
7/8-inch, or 2-inch round hole drilled through it.

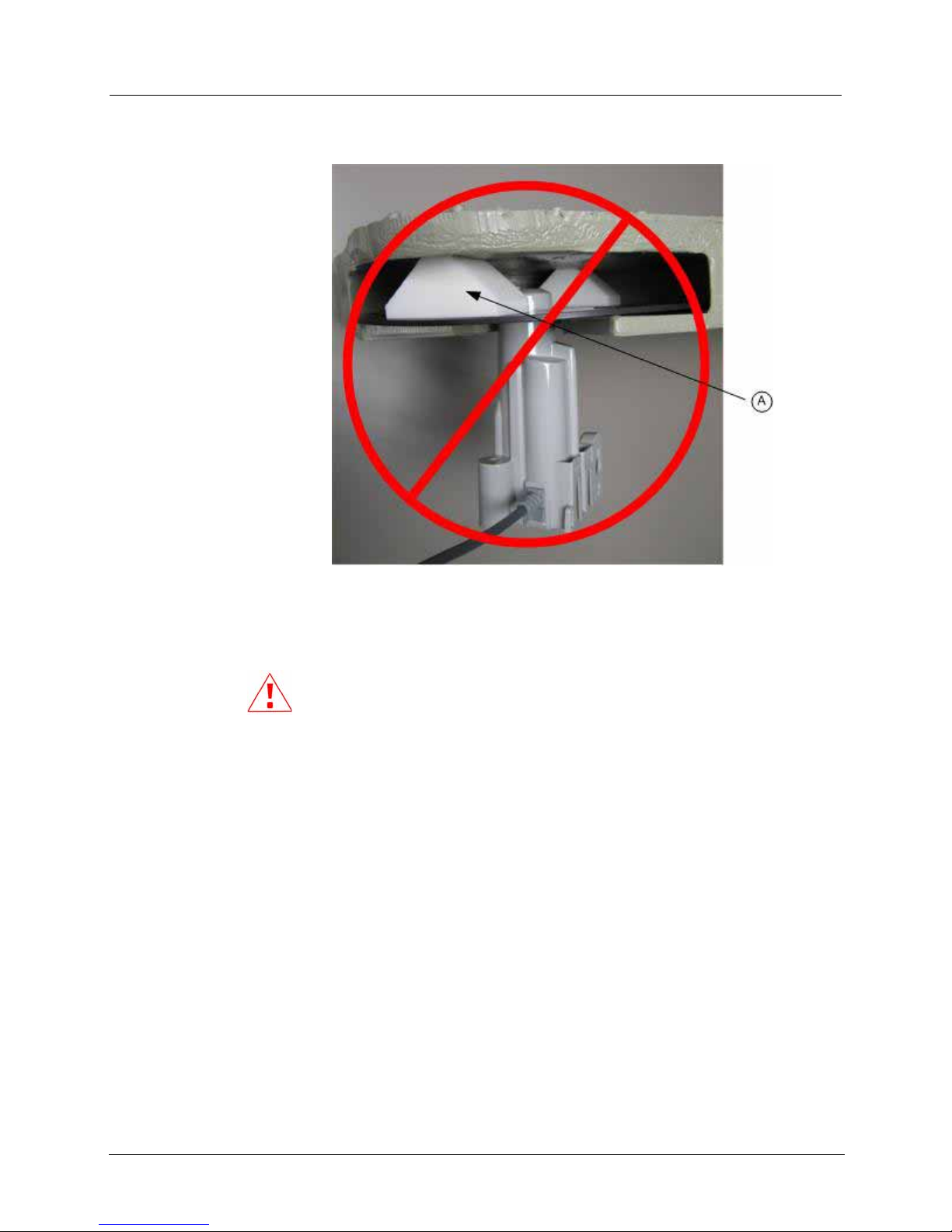

CAUTION! Some pit lids have a molded, recessed cavity that allows Itron 40W-1,
50W-1, and 50W-2 ERT modules to sit flush with the top surface of the lid.
However, the dome of the endpoint retainer for the 60-series endpoints, and
passive radiator antenna, have a smaller diameter and do not fill the pit lid cavity.
This can make the cavity a trip hazard. Itron does not recommend using this type
of pit lid with the 60-series endpoints.

Pit Lids with Holes

This section describes how to install the 60WP Endpoint in a pit lid that already has a 1 3/4­inch, 1 7/8-inch or 2-inch hole in the lid. The Pit Lid Mounting Kit or the Passive Radiator
Antenna Kit can be used for this application. This section will explain how to install both
types of kits. Please refer to publication PUB-0771-010 for guidance on which kit to install
for different pit lid material and traffic conditions.

NOTE For lids that require a hole to be drilled, see To install in new lids on page

21.

Required Tools and Hardware

• Pit lid mounting kit (Itron part number CFG-0771-010) or passive radiator antenna kit

(Itron part number CFG-0771-006)

• Cable tie gun

NOTE The pit lid mounting kit is not intended for applications involving
vehicular traffic. The passive radiator antenna should be used in incidental traffic
areas, such as residential environments.

18 Water Solutions 60WP Endpoint Installation Guide

Through-Lid Mounting

To install in lids with holes

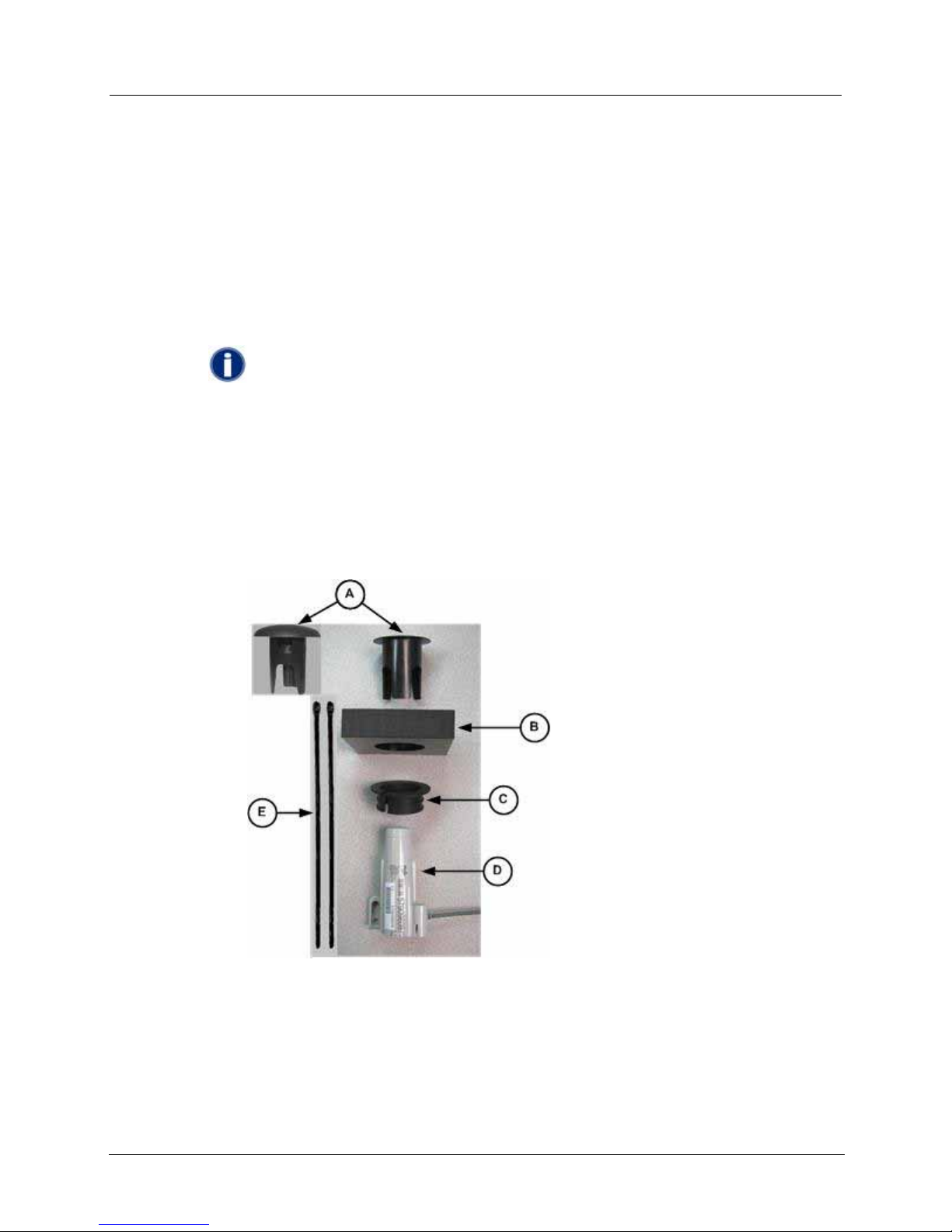

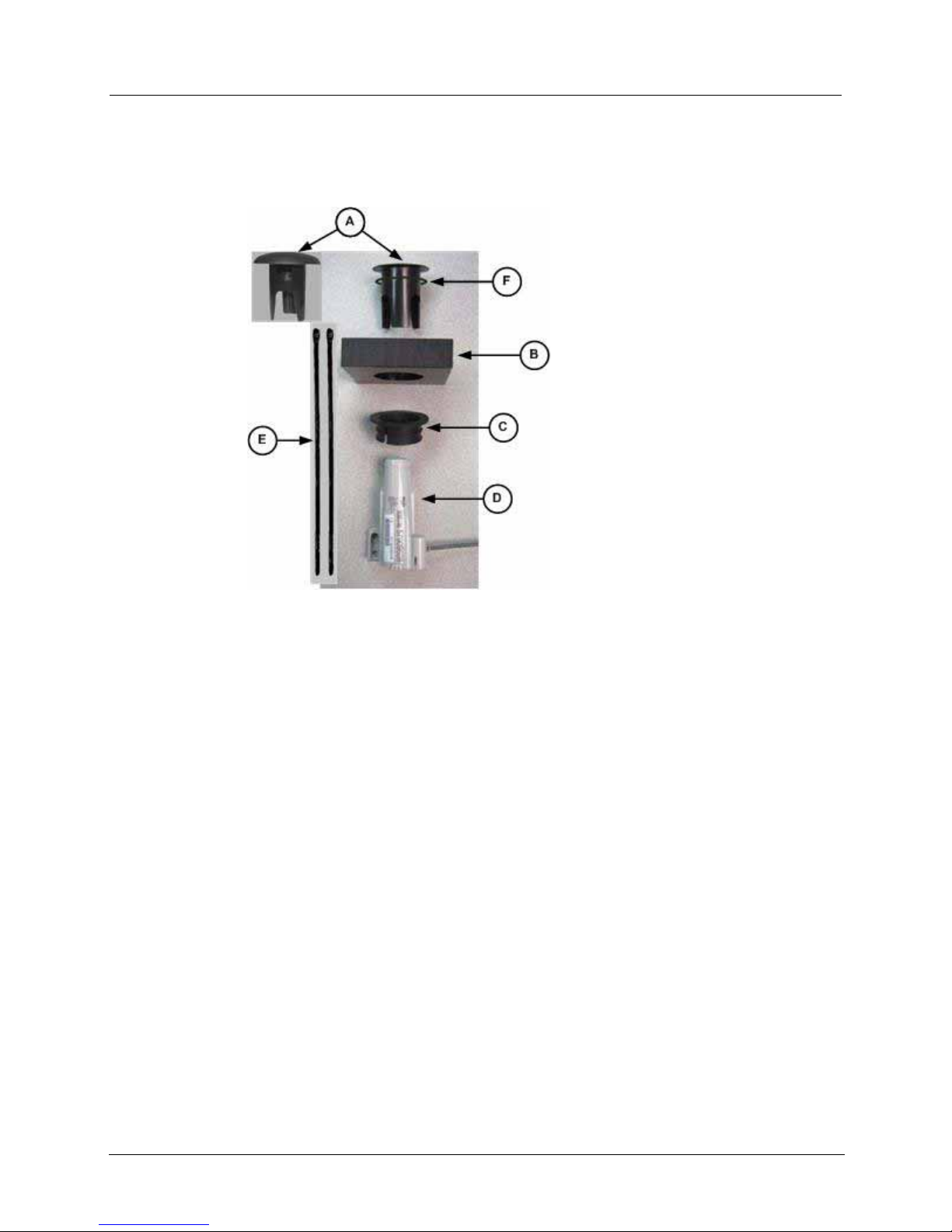

1. Make sure you have all the following items to complete the installation.

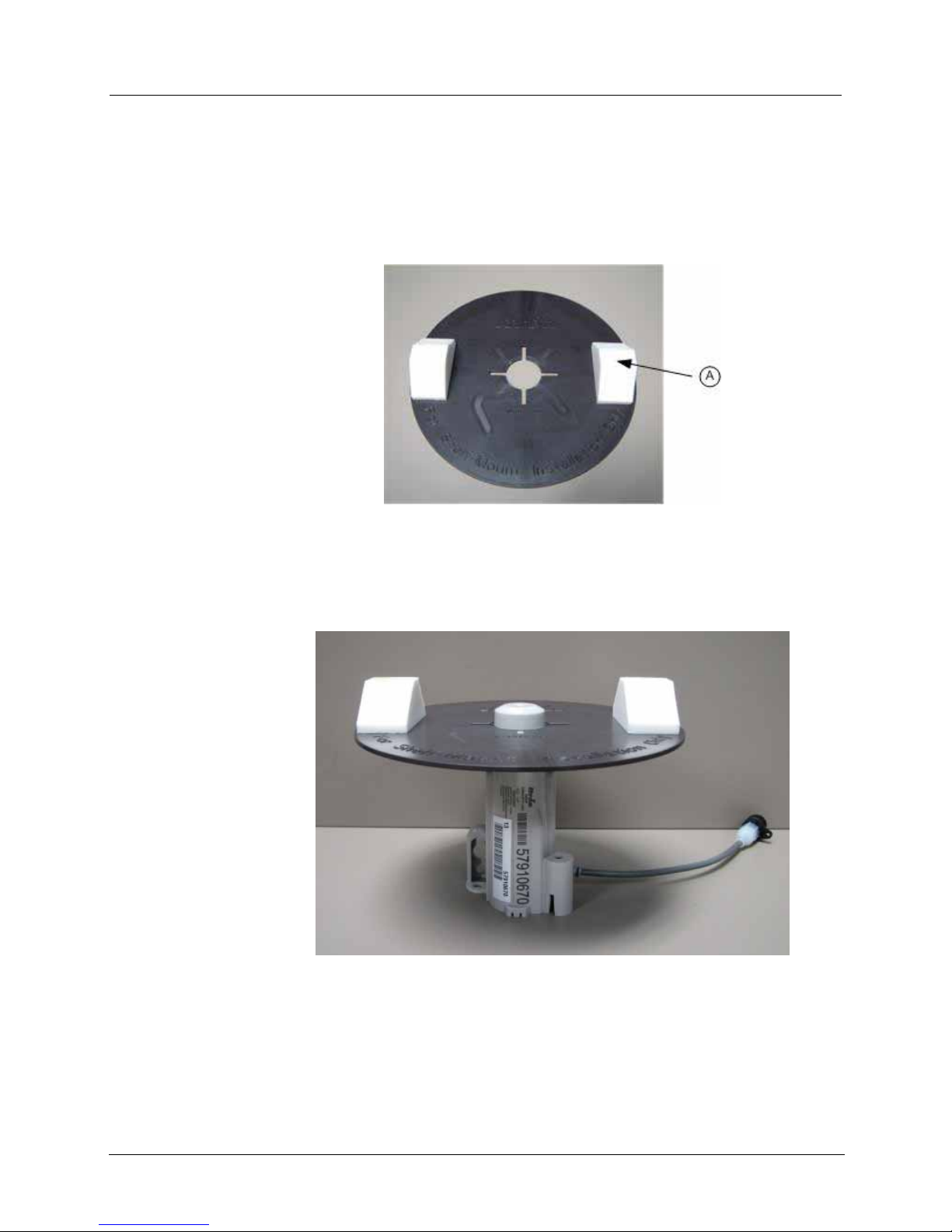

A Retainer clip or passive radiator antenna
B Simulated pit lid
C Retainer clip collar
D 60WP Endpoint
E Cable ties
F O-ring spacer (not required for 1 3/4-inch holes)

2. Measure the diameter of the hole in the pit lid. If the hole diameter is 1 3/4-inch, an O-

ring spacer is not required.

3. For 1 7/8-inch or 2-inch holes place the appropriate O-ring spacer over the pit lid

mounting kit, or passive radiator antenna.

4. Insert the retainer clip, or passive radiator antenna, into the hole in the pit lid.

5. From the underneath side of the lid, place the retainer clip collar around the retainer

clip and snug the collar to the bottom side of the pit lid. Ensure that the top of the
retainer clip is seated against the lid surface as shown below.

Water Solutions 60WP Endpoint Installation Guide 19

Chapter 2 Installing the 60WP Endpoint

6. Secure the assembly with 2 cable ties (A).

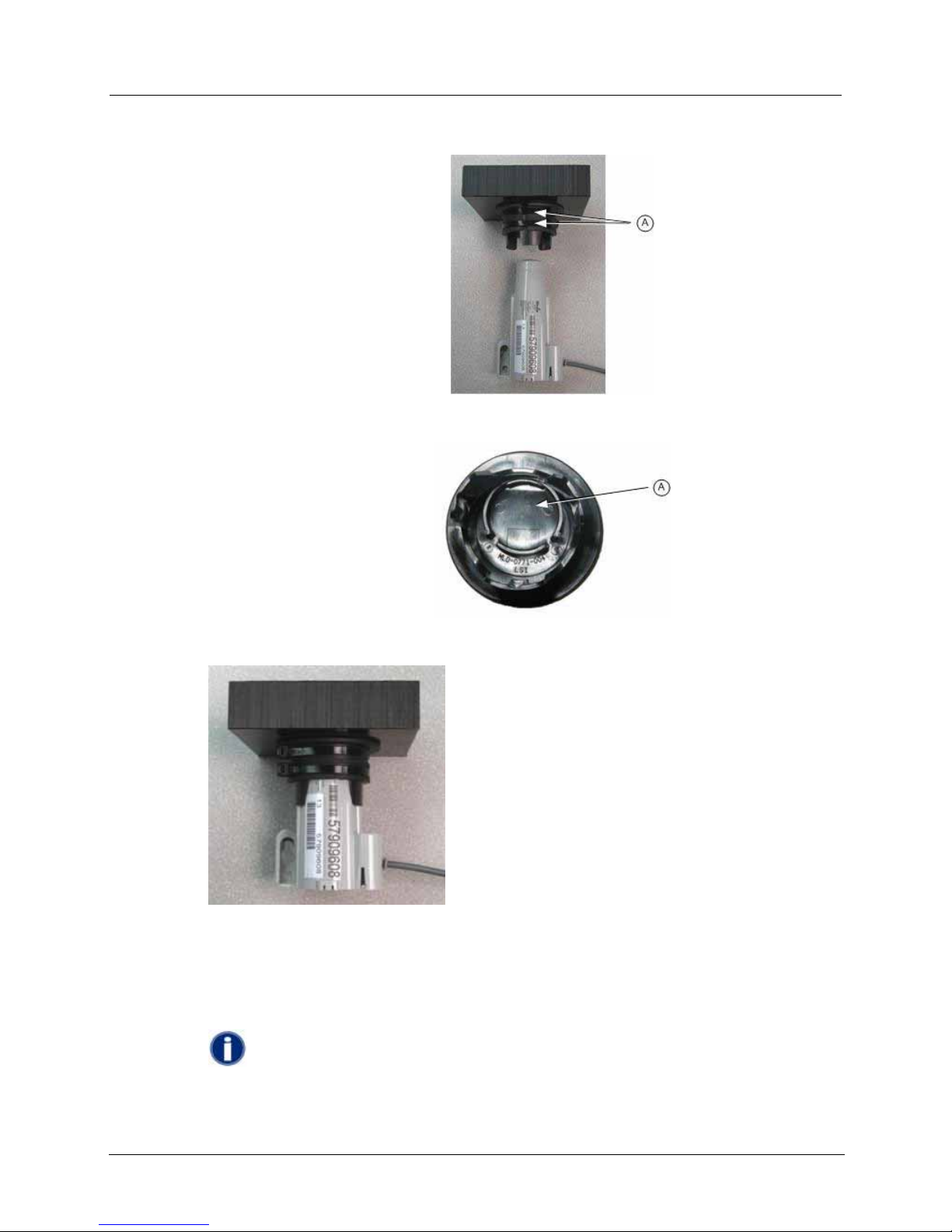

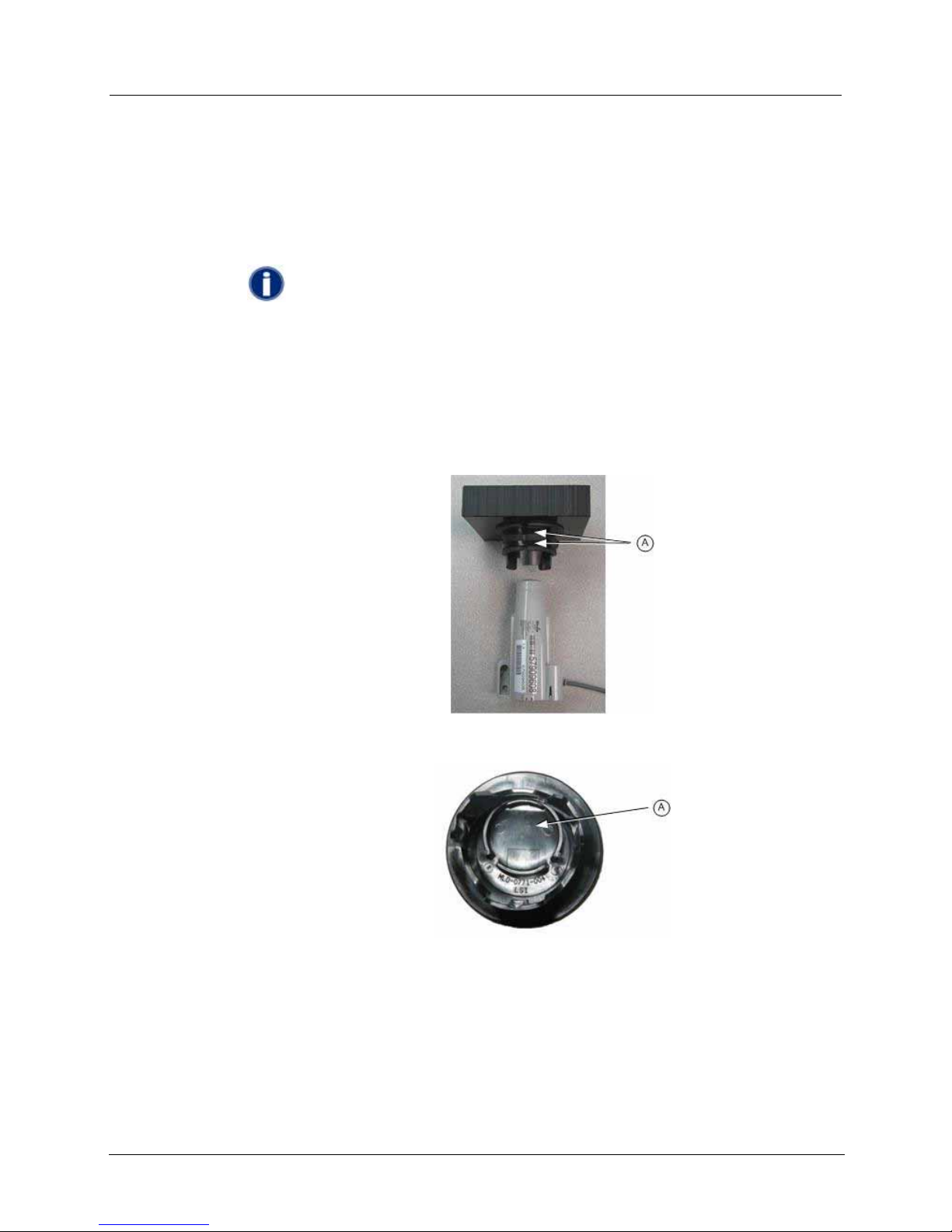

7. Align and insert the top of the 60WP Endpoint into the offset cavity (A) of the retainer

clip, or passive radiator antenna, and push until it snaps into place.

The finished assembly is shown below.

Installing Through New Lid

This section describes how to install the 60WP Endpoint in a pit lid that does not have a
hole drilled through it.

NOTE For lids with holes already drilled, see Pit Lids with Holes on page 18.

20 Water Solutions 60WP Endpoint Installation Guide

Through-Lid Mounting

Required Tools and Hardware

• Drill

• 1 3/4-inch drill bit appropriate for the lid material

• Pit lid mounting kit (Itron part number CFG-0771-010) or passive radiator antenna kit

(Itron part number CFG-0771-006)

• Cable tie gun

NOTE The pit lid mounting kit is not intended for applications involving
vehicular traffic. The passive radiator antenna should be used in incidental traffic
areas, such as residential environments.

To install in new lids

1. Make sure you have all the following items to complete the installation.

A Retainer clip or passive radiator antenna
B Simulated pit lid
C Retainer clip collar
D 60WP Endpoint
E Cable ties

Water Solutions 60WP Endpoint Installation Guide 21

Chapter 2 Installing the 60WP Endpoint

2. Select a location for the hole that will give sufficient clearance on the bottom side of

the lid to attach the retainer clip collar and cable ties.

3. Drill a 1 3/4 inch hole in the lid.

NOTE The O-ring spacers included with the Pit Lid Mounting Kit are not

used with this size hole. You can discard the O-rings.

4. Insert the retainer clip, or passive radiator antenna, into the hole in the pit lid.

5. From the underneath side of the lid, place the retainer clip collar around the retainer

clip and snug the collar to the bottom side of the pit lid. Ensure that the top of the
retainer clip is seated against the lid surface as shown below.

6. Secure the assembly with 2 cable ties (A).

7. Align and insert the top of the 60WP Endpoint into the offset cavity (A) of the retainer

clip, or passive radiator antenna, and push until it snaps into place.

22 Water Solutions 60WP Endpoint Installation Guide

Shelf Mount Installation

The finished assembly is shown below.

Shelf Mount Installation

This section describes 60WP Endpoint installation when using a shelf mount adaptor to
mount the endpoint in a pit lid slot.

IMPORTANT! The pit lid and slot must have the correct dimensions for the 60WP
assembly to fit properly.

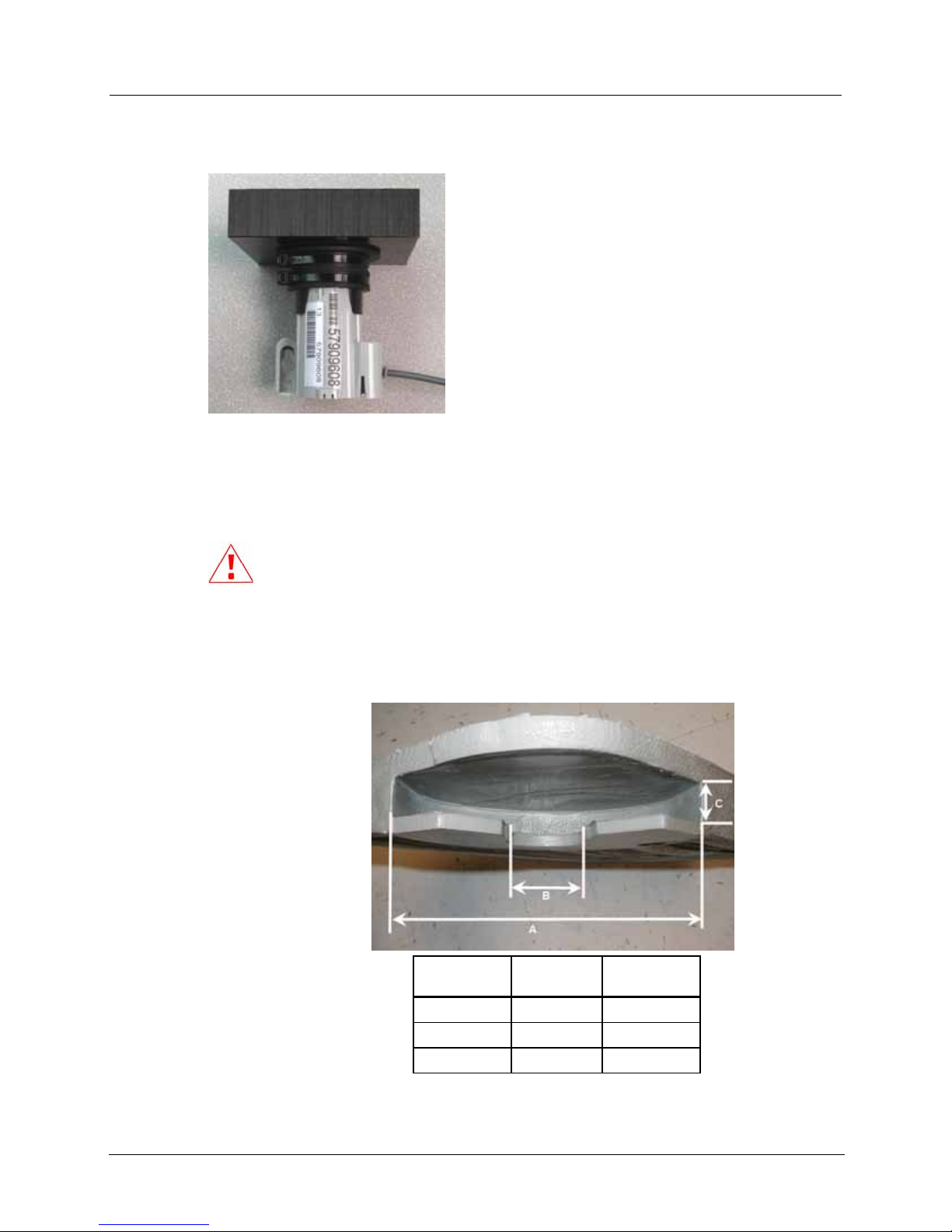

The following illustration and the accompanying table give pit lid slot dimensions that will
accommodate the shelf mount installation method.

Figure 5: Pit Lid Slot Dimensions

Water Solutions 60WP Endpoint Installation Guide 23

Dimension Minimum

(Inches)

Maximum
(Inches)

A 6 3/4 N/A
B 2 5 3/4
C 3/4 1

Chapter 2 Installing the 60WP Endpoint

Required Tools and Hardware

The following tools and hardware are required when installing the 60WP Endpoint using a
shelf mount adaptor for a pit lid slot:

• Shelf Mount Adapter (Itron part number CFG-0771-007)

A Foam spacers

To install using the shelf mount adapter

1. With the foam spacer side of the adaptor up, snap the top of the 60WP into the shelf

mount adaptor.

24 Water Solutions 60WP Endpoint Installation Guide

Shelf Mount Installation

2. Ensure that all 4 snap fingers are engaged in the groove around the 60WP endpoint.

3. Slide the adapter assembly into the pit lid with the foam spacers positioned on each

side of the pit lid slot.

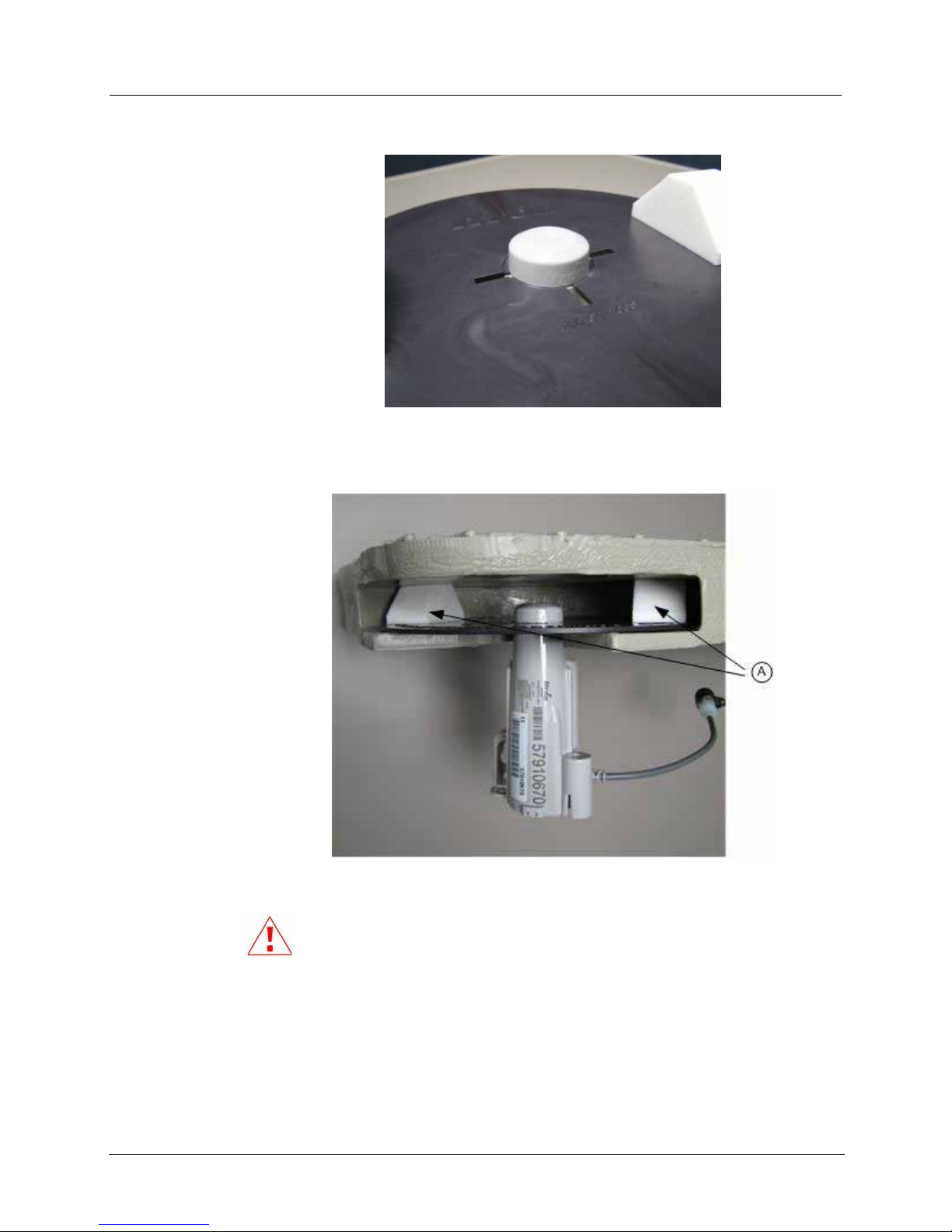

Figure 6: Correct Position With Foam Spacers on Each Side of Slot

A Correct position for foam spacers

IMPORTANT! Do not install the adapter assembly in a manner that provides little
or no support under the foam spacers. The following is an example of an incorrect
position for foam spacers.

Water Solutions 60WP Endpoint Installation Guide 25

Chapter 2 Installing the 60WP Endpoint

Figure 7: Wrong Position for Spacers - Spacers are not supported!

A Unsupported foam spacer

4. The installed position of the endpoint should be vertical and upright when the lid is

replaced on the pit.

IMPORTANT! Any endpoint position other than upright may negatively affect radio
performance and battery life.

26 Water Solutions 60WP Endpoint Installation Guide

C HAPTER 3

Connecting the 60WP

This chapter contains information about connecting the 60WP Endpoint to the water meter
using an inline connector, a 5-foot cable, or a longer cable.

Using an Inline Connector

This section describes how to connect the 60WP Endpoint to the water meter register using
an inline connector assembly. Follow the manufacturer's recommended procedure for
installing the water meter register on the meter.

To connect the inline connector

NOTE Skip this step if an inline connector is not being used and the 60WP is
already connected to the water meter register.

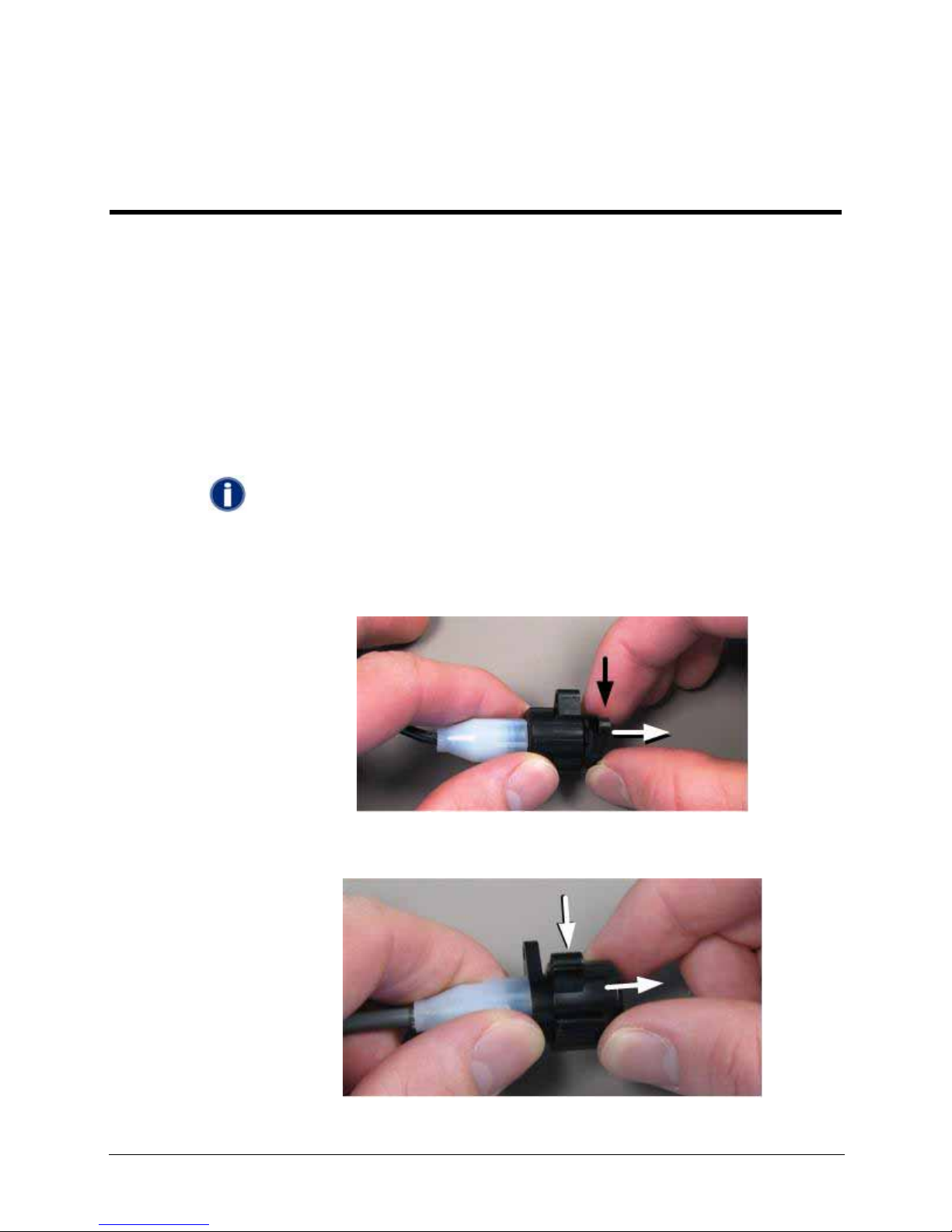

1. Remove the protective cover from the connector by twisting the two halves in

opposite directions, and then pull the halves apart.

Figure 8: Register or Reed Switch Connector

Figure 9: Endpoint Connector

Water Solutions 60WP Endpoint Installation Guide 27

Chapter 3 Connecting the 60WP

IMPORTANT! Make sure the connector halves are clean and dry
before assembly.

CAUTION! If any of the following conditions occur, do not install the
endpoint:

2. Connect the endpoint to the register cable connector. Holding the connectors by the

back shells, rotate one end to align the keyed slots. Push until snug.

• Any of the three pins are damaged or missing

• The O-ring is missing

• The cable is cut or nicked

A O-Ring

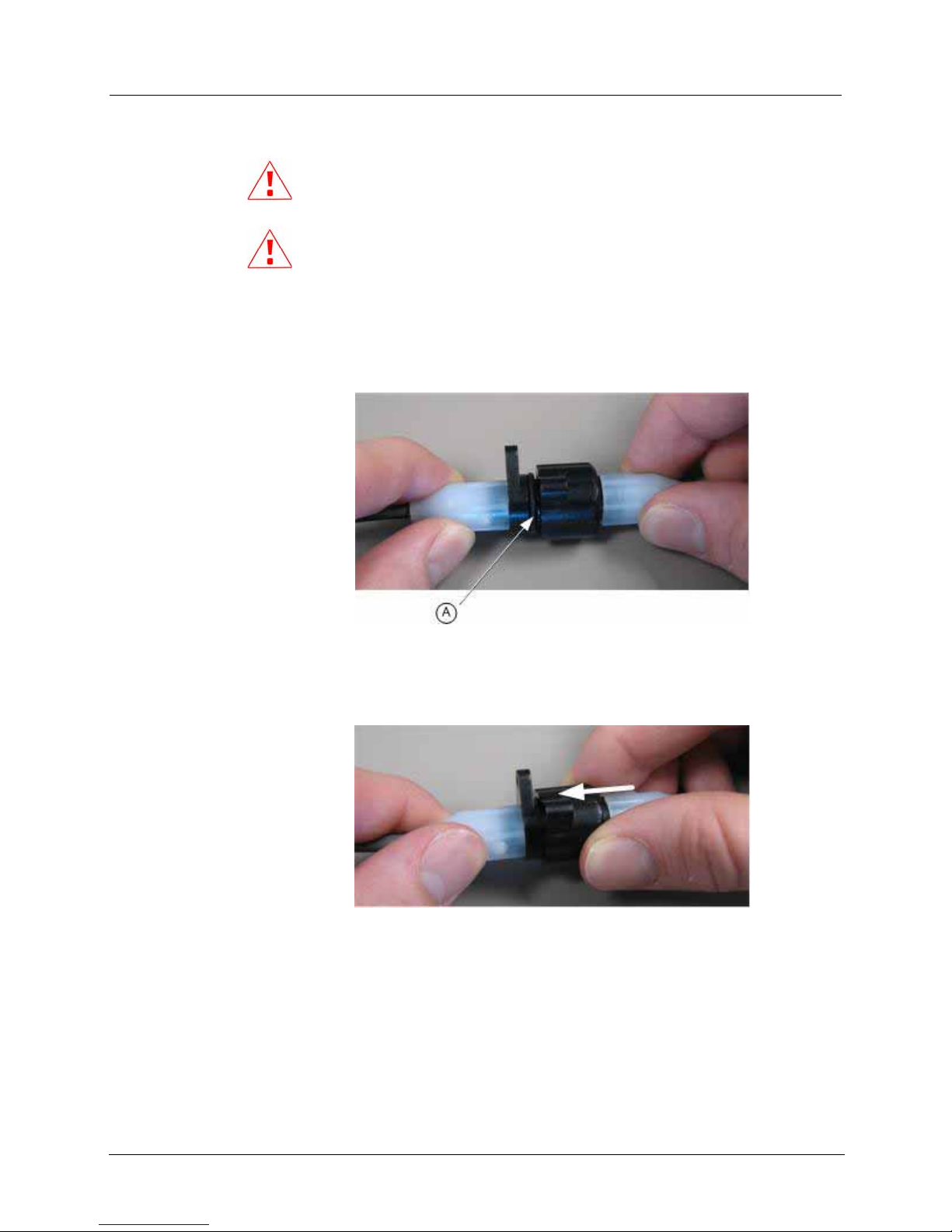

3. Slide the black coupling over the O-ring. Make sure the O-ring stays seated. If the O-

ring does not stay seated, disconnect and try again.

28 Water Solutions 60WP Endpoint Installation Guide

Using a 5-Foot Cable

4. Twist to align the two tabs.

5. Install the security seal as shown. Push it until it snaps into place.

NOTE! For future servicing of either the meter or endpoint, break

the security seal by pulling apart. The original protective connector
covers can be reused if kept clean and dry. Install a new security seal
after servicing either device. To order more parts, see the Water
Endpoint Ordering Guide (PUB-0063-001).

IMPORTANT! Be sure to protect connectors with protective covers.
Do not leave an exposed connector in the field.

Using a 5-Foot Cable

This section describes how to connect the 60WP endpoint to the water meter register using
the 5-foot cable.

To connect the cable to the register

NOTE The wire terminations must be properly coated with a non-conductive gel
material to prevent water intrusion, or this configuration should not be used in a
pit box environment.

Water Solutions 60WP Endpoint Installation Guide 29

Chapter 3 Connecting the 60WP

1. Remove the protective cover from the end of the cable.

2. Connect each cable wire to the appropriate meter register screw terminal as indicated

in the table below.

60WP Cable Wire Color Elster/AMCO Digital Register Screw Terminal

Red B
White G
Black R

Figure 10: 60WP Endpoint With 5-Foot Cable

Using an Extended Cable

If you need to extend the length of the existing endpoint cable (up to a maximum of 300
feet), additional cable can be ordered from Itron.

For cable lengths exceeding 150 feet, you must update the endpoint's operating parameters.
This is accomplished by reprogramming the endpoint and selecting the appropriate cable
length description during the programming operation. Failure to update the parameters
could affect the endpoint's ability to count accurately.

For more information, see

Programming the 60WP Endpoint on page 32.

30 Water Solutions 60WP Endpoint Installation Guide

C HAPTER 4

Programming and Verifying 60WP Endpoint Operation

To program the endpoint, first activate Programming Mode using the programming magnet
and then program the endpoint using the FC200SR Handlheld device.

Activating Programming Mode

Use the programming magnet (Itron part number MLD-0175-001) to place the endpoint into
Programming Mode.

Place the magnet on top of the Rod Mount Hole (A) as shown below and hold it there for
three seconds to activate Programming Mode.

Figure 11: Magnet Placement for Programming Mode

Water Solutions 60WP Endpoint Installation Guide 31

Chapter 4 Programming and Verifying 60WP Endpoint Operation

NOTES!

• The 60WP Endpoint will remain in Programming Mode for 15 minutes. After

15 minutes you can reactivate Programming Mode using the magnet.

• If the magnet is held in place longer than 15 minutes, remove the magnet for

three seconds and then put it back into position to reactivate Programming
Mode.

• Endpoints that have been factory programmed will still require activation with

the magnet before they will detect register pulses. The one exception to this
rule is units that have been placed in the "Quite Mode". For more information

Operating Modes on page 8.

see

Programming the 60WP Endpoint

To program a 60WP Endpoint, use an FC200SR handheld running the Itron Endpoint-Link
or Endpoint-Link Pro software and loaded with the endpoint programming configuration
file.

With the handheld, enter the endpoint ID, select the endpoint type (60WP), select the
correct meter configuration, select the length of the cable, and enter in the initial reading
from the register. When the is successfully programmed, the endpoint enters Normal Mode
and operates as programmed.

NOTES!

• The FC200SR is the only handheld that supports programming for the 60WP

endpoint.

• The endpoint and programmer should be a minimum of 12 inches apart while

programming.

• Do not place the programmer antenna directly on the endpoint.

32 Water Solutions 60WP Endpoint Installation Guide

Programming the 60WP Endpoint

The correct position for programming the endpoint is shown below.

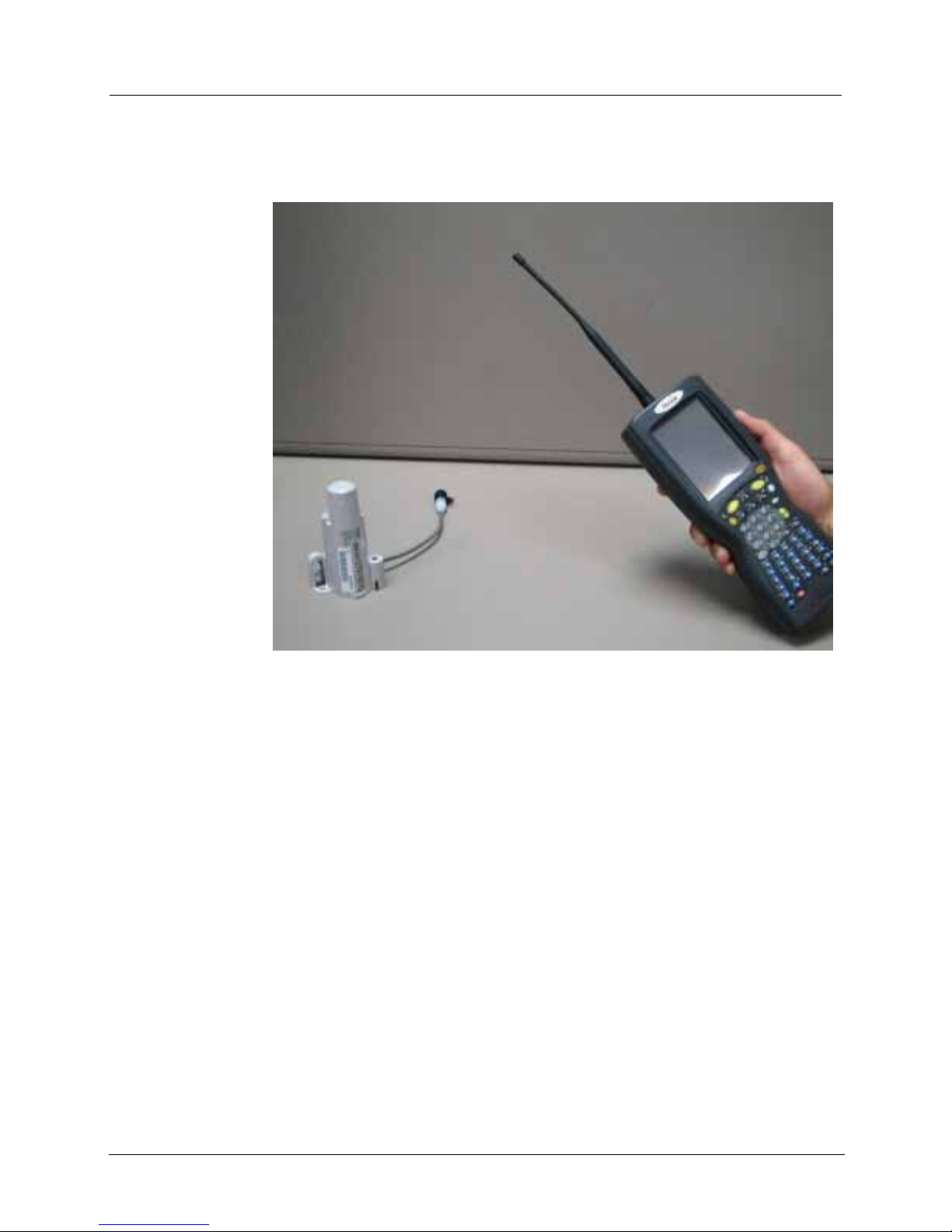

Figure 12: Programming the 60WP - Correct Position for Handheld Antenna

Water Solutions 60WP Endpoint Installation Guide 33

Chapter 4 Programming and Verifying 60WP Endpoint Operation

An incorrect position for programming the endpoint is shown below.

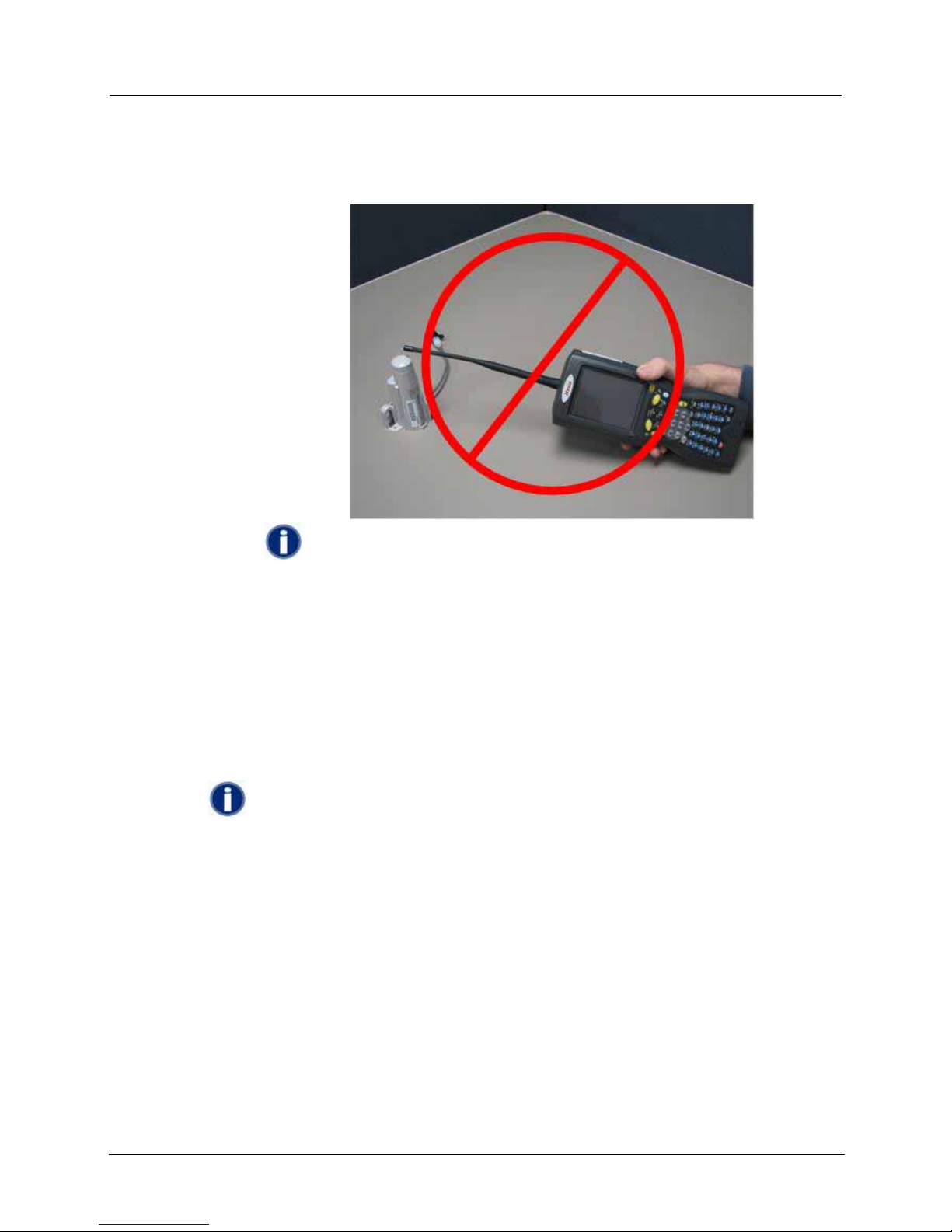

Figure 13: Wrong Position for Handheld

NOTE! Do not place the programmer antenna directly on the endpoint.

Verifying Operation of the 60WP Endpoint

After you have programmed the 60WP Endpoint, verify that it is correctly reporting
consumption data. Use one of the following handheld computers to verify consumption:

• G5R

• FC200R

• FC200SR

NOTES

• Each handheld radio requires special setup and configuration parameters to

successfully read and program 60-series products. Refer to the respective
meter reading application for specific instructions.

• To verify operation using the Check Endpoint function, you must activate

Programming Mode in the 60WP Endpoint. For more information see

Activating Programming Mode on page 31.

• ReadOne Pro, FS2PN and FS3PN readers should not be used to read the

60WP Endpoint. These readers do not keep their receivers on long enough or
at the right frequency to reliably capture a 60WP Endpoint transmission.

34 Water Solutions 60WP Endpoint Installation Guide
