Itron 24ZRA Users Manual
OpenWay
2.4ZR-IPP Range Extender
Installation Guide
DRAFT OpenWay
Identification
OpenWay Batter-powered Gas Range Extender Installation Guide
09/22/2009 TDC-0832-000
Copyright
© 2009 Itron, Inc. All rights reserved.
Trademark Notice
Itron is a registered trademark of Itron, Inc.
All other product names and logos in this documentation are used for identification purposes only and may be trademarks or registered trademarks of their respective companies.
Suggestions
If you have comments or suggestions on how we may improve this documentation, send them to TechnicalCommunicationsManager@itron.com
If you have questions or comments about the software or hardware product, contact Itron Technical Support:
Contact
• Internet: www.itron.com
• E-mail: support@itron.com
• Phone: 1 800 635 8725
Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference that may cause undesirable operation.
This device must be permanently mounted such that it retains a distance of 20 centimeters (7.9 inches) from all persons in order to comply with FCC RF exposure levels.
UL Hazardous Locations
This device is certified under Electrical Equipment for use in Class 1, Division 2, Groups C and D, UL Standard 1604.
Transportation Classification
The Federal Aviation Administration prohibits operating transmitters and receivers on all commercial aircraft. When powered, the is considered an operating transmitter and receiver and
cannot be shipped by air. All product returns must be shipped by ground transportation.
Modification and Repairs
To ensure system performance, this device and antenna shall not be changed or modified without the expressed approval of Itron. Any unauthorized modification will void the user’s
authority to operate the equipment.
Warning Only authorized Itron personnel should attempt repairs on Itron equipment. Attempts to do so by others might void any maintenance
contract with your company.
Contents
Before You Begin ..........................................................................................................v
Chapter 1 Introduction .................................................................................................1
Specifications ......................................................................................................................................2
Related Documents.............................................................................................................................3
Chapter 2 Installation ...................................................................................................5
Installation Checklist............................................................................................................................5

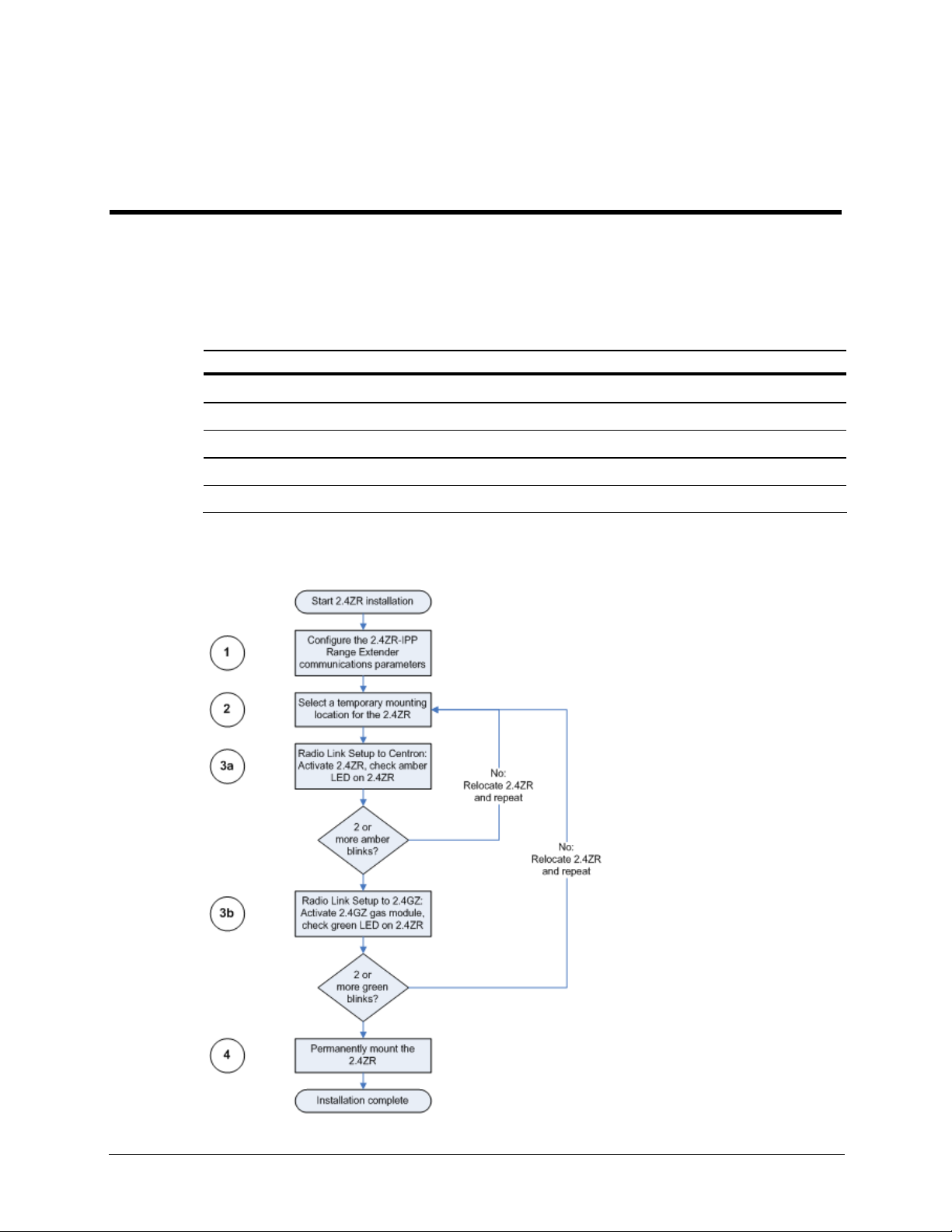

Installation Flowchart ................................................................................................................5
Configure the 2.4ZR-IPP Range Extender..........................................................................................6
Reconfigure an Installed 2.4ZR-IPP Range Extender..............................................................7
Read an Installed 2.4ZR-IPP Range Extender.........................................................................8
Select a Mounting Location.................................................................................................................8
Link to a CENTRON Meter..................................................................................................................8
Link to the 2.4GZ OpenWay Gas Module .........................................................................................10
Mount the Range Extender ...............................................................................................................12
Chapter 3 Troubleshooting........................................................................................13
Index .............................................................................................................................15
DRAFT OpenWay Installation Guide iii
Contents
iv DRAFT OpenWay Installation Guide
Before You Begin
Before beginning the installation, verify that you have the following equipment and tools
available.

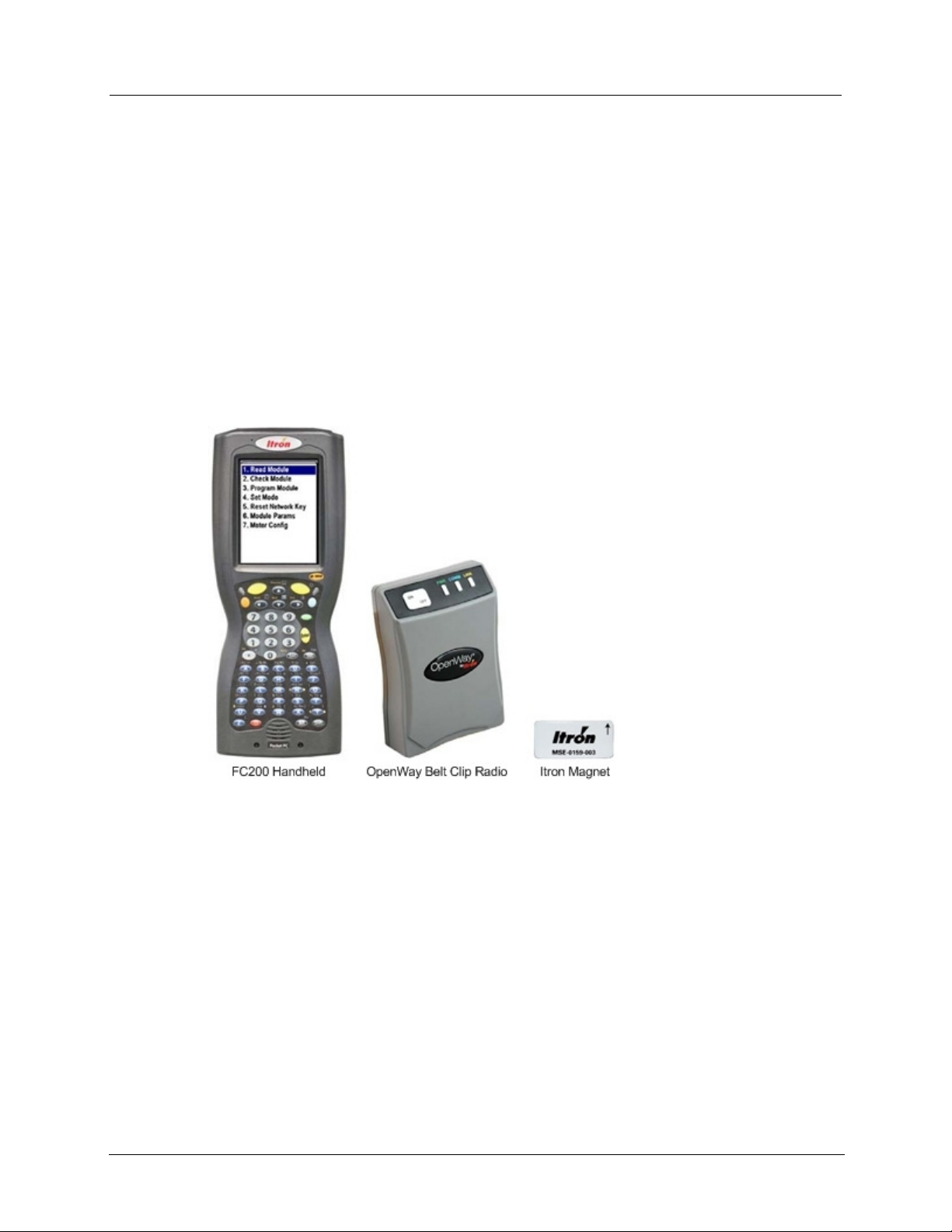

Equipment Provided by Itron
• 2.4ZR-IPP Range Extender (OWR-1000-001).

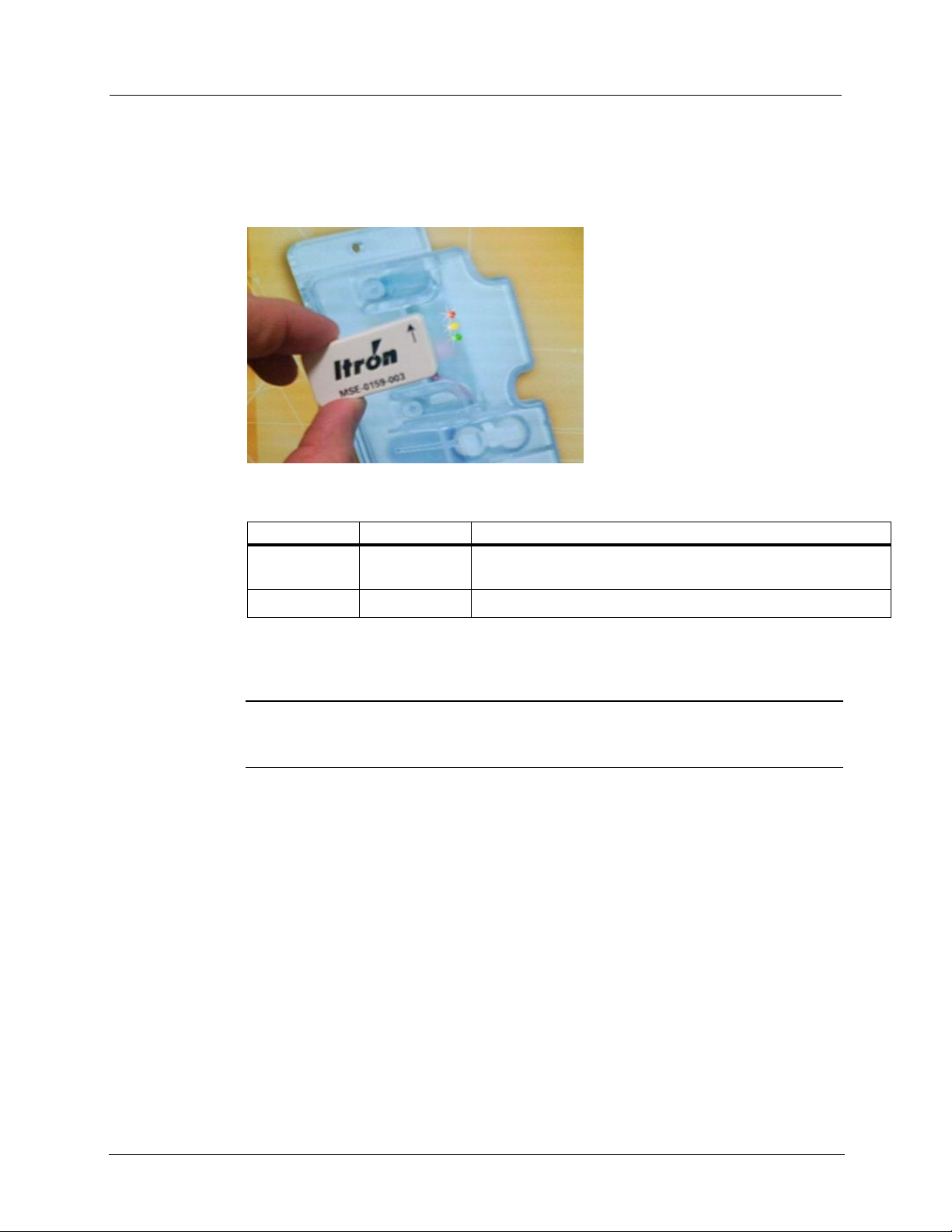

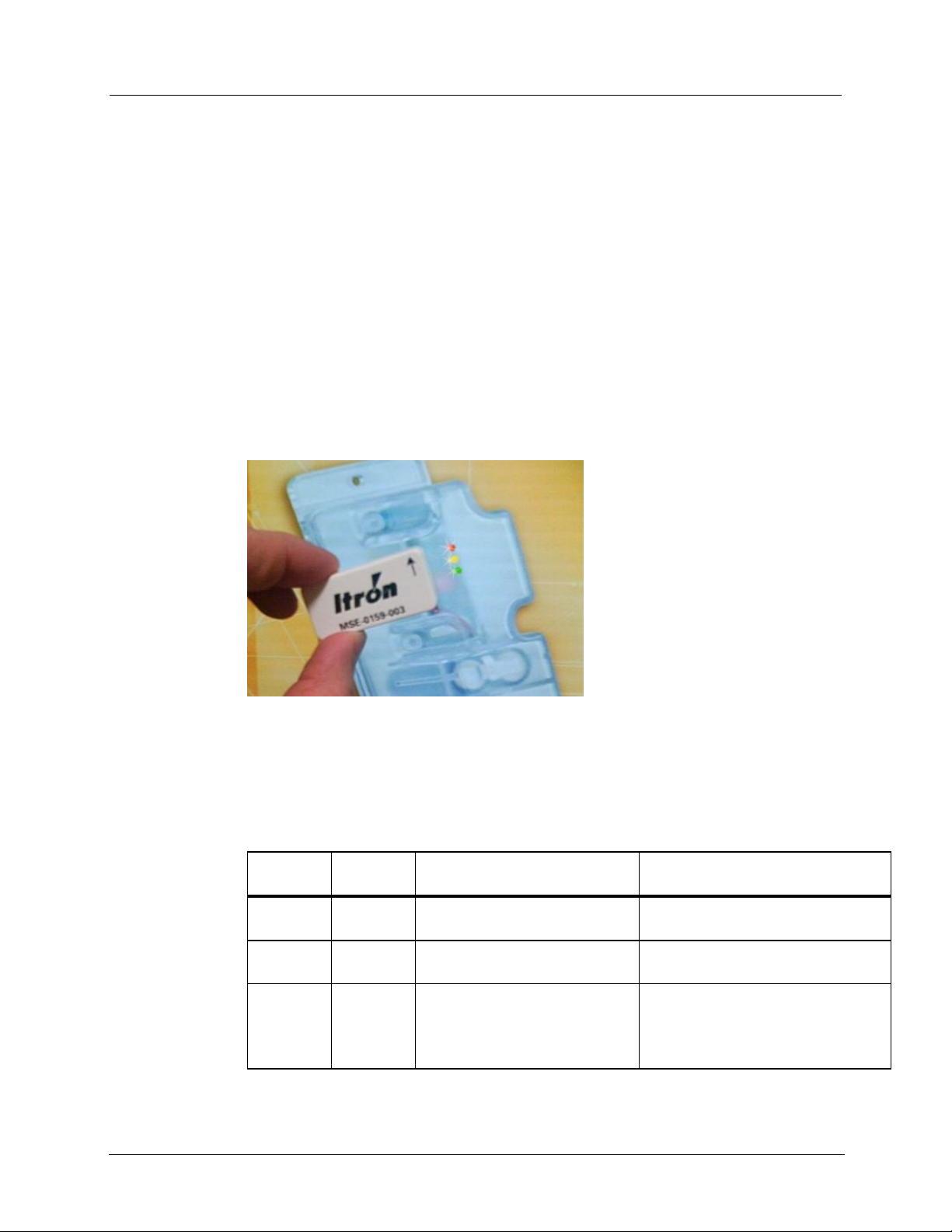

• Itron magnet (MSE-0159-003).
• Bluetooth-enabled FC200 handheld computer (or laptop computer) loaded with
Endpoint-Link or Endpoint-Link Pro software version 5.4 or higher.
• OpenWay Belt Clip Radio (AMI-0100-001).
2.4GZ OpenWay Gas Module Installation Guide (TDC-0816-xxx).
•
Equipment Provided by You
• Location and serial number of the 2.4GZ OpenWay Gas Module needing mitigation.
• Two #8 screws – the type of screw depends on the mounting surface.
• Screwdriver – the type of screwdriver depends on the screws.
DRAFT OpenWay Installation Guide v
Before You Begin
vi DRAFT OpenWay Installation Guide
C HAPTER 1
Introduction
Itron's OpenWay® 2.4ZR-IPP (Itron Private Profile) Range Extender is installed when data
is not being exchanged between an OpenWay CENTRON® electric meter and a 2.4GZ
OpenWay Gas Module. If both the CENTRON meter and the gas module are working
properly, there may be radio frequency (RF) signal constraints preventing the meter and the
module from communicating with one another. RF signal constraints may be caused by
physical barriers between the components or there may be too great a distance between the

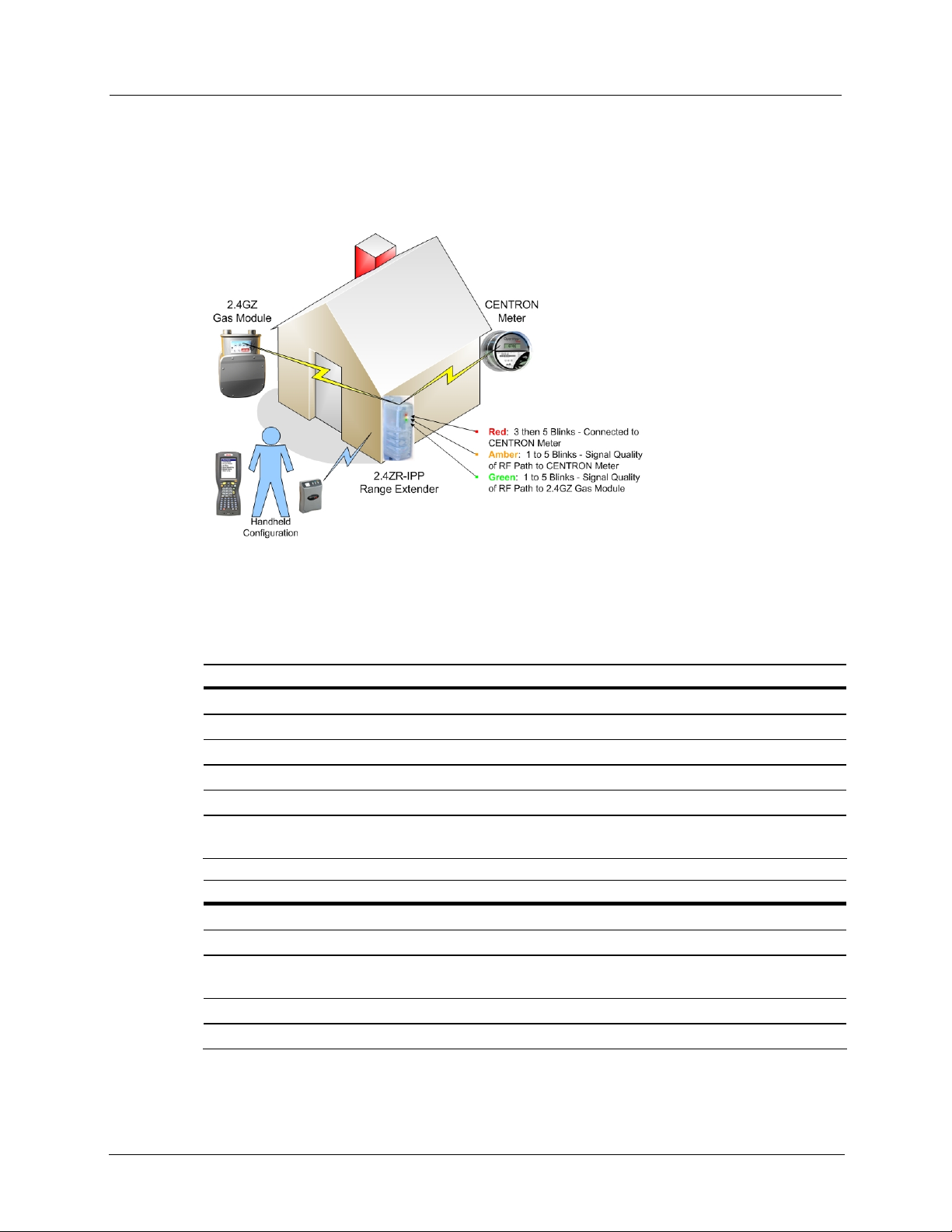

meter and the gas module. The range extender is strategically placed between the meter and
the gas module, providing an extension to the gas module's RF range that enables data flow.
The range extender is small and easy to install. Its electronic components, radio antenna,
and group of A-cell batteries are all enclosed in a translucent, polycarbonate weather-proof
casing that is mounted and secured to a stationary object with two screws. The batteries are
designed to last for the life of the product and do not need replacing.
Note The 2.4ZR-IPP Range Extender is not a signal amplifier.
DRAFT OpenWay Installation Guide 1
