Rotary Meter Installation
This chapter provides the instructions to install the 2.4GZ OpenWay Remote Mount Gas
Module on rotary gas meters. Reference the Gas Endpoint Meter Compatibility List (see
Related Documents on page 3) for rotary meters compatible with the 2.4GZ OpenWay
Remote Mount Gas Module.
American rotary meter Dresser ROOTS
®
Series LMMA rotary meter
Dresser ROOTS® series B3 meter Romet Imperial series RM meter
Romet Imperial ECM2 meter
TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount 23
Chapter 3 Rotary Meter Installation
Required Installation Materials Available from Itron
The materials in the following table are required to install a 2.4GZ OpenWay Remote
Mount Gas Module.
Itron Part Number
OWG-5001-502 IPP
OWG-5002-502 SEP
OWG-5001-503 IPP
OWG-5002-503 SEP
Note: this remote mount endpoint comes
standard with 12" lead wires and may be
shipped directly to the meter
manufacturer for a factory-installed cable
(interface).
Important The interface cable must be purchased directly from the meter
manufacturer.
CFG-0005-003
Remote Endpoint Mounting Kit
24 TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount
Connecting the 2.4GZ OpenWay Remote Mount Module to the Rotary Meter Cable
Connecting the 2.4GZ OpenWay Remote Mount Module to the
Rotary Meter Cable
You may ship the Itron 2.4GZ OpenWay Remote Mount Gas Module directly to the meter
manufacturer fo r a fac tory -installed cable. If you connect the endpoint to the meter using an
existing cable purchased from the meter manufacturer, complete the following cable
installation procedure.
Caution The purchased cable must have a mating connector compatible to the
meter receptacle. Meter manufacturer's cables may be wired in different
configurations for specific applications. If necessary, contact your meter's
manufacturer for wiring diagrams for your specific application.
To connect the 2.4GZ OpenWay Remote Mount Gas Module to the rotary
meter cable
1. Remove the backplate (4 screws) from the 2.4GZ OpenWay Remote and expose the
module's lead wires. The backplate and screws will be re-installed on the gas module
later in this procedure so store them (temporar ily ) in a safe, secure place.
TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount 25
Chapter 3 Rotary Meter Installation
2. Insert the lead wires from the 2.4GZ OpenWay Remote Mount Gas Module into new
3M gel connectors (Itron part number CON-0023-001) together with the same colored
lead wire from the meter cable (see the wiring table below) and crimp using a 3M
hand-held crimping tool.
Note Do not strip lead wire prior to inserting the wire in the gel connector.
Rotary Meter to Remote Module Wire Table
Rotary Meter
Wire
Red Red
White White
Blue Blue
Remote module wire
26 TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount
Connecting the 2.4GZ OpenWay Remote Mount Module to the Rotary Meter Cable
3. After completing the wiring connections, install a cable tie to the meter cable just
below the exposed colored lead wires on the cable insulation. Remove the excess
cable tie using a hand-held sidecutter pliers. The cable tie performs as a cable strain
relief to mitigate the risk of destructive tension on the lead wires.
4. Tuck the three gel connectors and cable tie inside the module housing, as shown.
TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount 27
Chapter 3 Rotary Meter Installation
5. Install the 2.4GZ OpenWay Remote Mount Gas Module backplate using the four
screws previously removed from the module and a Torx T-15 screwdriver. Install the
new 2.4GZ OpenWay Remote Mount Gas Module on the wall or a pipe using the
Remote Endpoint Mount Kit (Itron part number CFG-0005-003). See Mounting the
2.4GZ OpenWay Remote Mount Gas Module on page 9 for mounting instructions.
To connect the 2.4GZ OpenWay Remote Mount Gas Module cable assembly
to the rotary meter
Caution Verify the cable connector mates with the meter connector. Meter
manufacturers use different connector styles (types).
1. Align the large lug on the 2.4GZ OpenWay Remote Mount Gas Module connector
with the large notch on the meter connector.
28 TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount
Connecting the 2.4GZ OpenWay Remote Mount Module to
the Rotary Meter Cable
2. Align the lock ring notches on the module cable connector with the pins on the meter
connector.
3. Hold the lock ring on the module connector back and push the plug into the meter
connector until it is securely seated.
4. Turn the lock ring clockwise as far as it will go. You will feel it snap into place when
it locks.
Warning To remove the module connector plug from the meter connector jack,
push in on the lock ring, turn the lock ring counterclockwise as far as possible,
and pull out the plug body. Do not pull on the module's connector cable.
TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount 29
Chapter 3 Rotary Meter Installation
drive or
Programming 2.4GZ OpenWay Remote Mount Gas Module for
Dresser ROOTS
To program 2.4GZ OpenWay Remote Mount Gas Modules for use with Dresser ROOTS®
rotary meters, use the meter drive rates from the drive rate table in this section.
B3, LMMA & S3A CTR/TC Meter Pulse Rates for Remote
Module Programming
B3 CTR Meter
®
Rotary Meters
Caution Do not use these meter drive rates to program residential direct-
commercial direct-drive modules. Use the information in the following tables to
program 2.4GZ OpenWay Remote Mount Gas Modules connected to Dresser
ROOTS
Size
8C 10 1.5M 10
®
rotary meters.
B3 CTR Meter
Pulse Rate
LMMA CTR
Meter Size
LMMA CTR
Meter Pulse
Rate
11C 10 3M 10
15C 10 5M 10
2M 10 7M 10
3M 10 11M 10
5M 10 16M 100
7M 10 23M 100
11M 10 38M 100
16M 100 56M 100
23M 100 102M 100
38M 100
56M 100
LMMA CTR
Meter Size
1.5M 10 1.5M 10
3M 10 3M 10
5M 10 5M 10
LMMA CTR
Meter Pulse
Rate
LMMA TC
Meter Size
LMMA TC Meter
Pulse Rate
7M 10 7M 10
11M 10 11M 10
16M 100 16M 100
30 TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount
Programming 2.4GZ OpenWay Remote Mount Gas Module for Dresser ROOTS® Rotary Meters
Size
Pulse Rate
Size
Pulse Rate
B3 CTR Meter
Size
B3 CTR Meter
Pulse Rate
LMMA CTR
Meter Size
LMMA CTR
Meter Pulse
Rate
23M 100
38M 100
56M 100
102M 100
Meters built 1/99 and beyond Meters built prior to 1/99
B3 TC Meter
B3 TC Meter
B3 TC Meter
B3 TC Meter
8C 10 8C 50
11C 10 11C 50
15C 10 15C 50
2M 10 2M 50
3M 10 3M 50
5M 10 5M 50
7M 10 7M 50
11M 10 11M 50
16M 100 16M 500
S3A CTR
Meter Size
S3A CTR
Meter Pulse
S3A TC Meter
Size
S3A TC Meter
Rate
1.5M 10 1.5M 10
3M 10 3M 10
5M 10 5M 10
7M 10 7M 10
11M 10 11M 10
16M 100 16M 100
Pulse Rate
TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount 31
Chapter 3 Rotary Meter Installation
Installing the 2.4GZ OpenWay Remote Mount Gas Module to
the Elster American Meter RPM Series Rotary Meter
Some meter manufacturers provide endpoint mounting kits and installation procedures for
their meters.
If 2.4GZ OpenWay Remote Mount Gas Module to Elster American RPM meter install at ion
instructions are not available, follow the installation procedure in this section.
To install the 2.4GZ OpenWay Remote Mount Gas Module on an Elster
American RPM series meter
1. Remove the meter's top plate by removing the two (2) 5mm screws and carefully
prying up on the plate. The plate is secured with an o-ring seal. Remove the o-ring
from the plate.
Caution If the o-ring is damaged during removal, obtain a replacement from
Elster American Meter Co.
2. Look into the meter tower and find the meter switch lead and connector (4-pin).
32 TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount
Installing the 2.4GZ OpenWay Remote Mount Gas Module to the Elster American Meter RPM Series Rotary Meter
3. If the lead and connector are not visible or cannot be found, remove the four (4) 5mm
mounting screws and the register cover. The m eter swi tch lead and conne cto r will be
visible inside the cover.
Note Save any meter tags. You will re-install them later in the installation
process.
4. Feed the lead and connector into the register cover tower.
5. If you removed the register cover, replace the cover using the four (4) 5mm mounting
screws.
6. Attach the 4-pin male connector on the Elster American Meter adapter plate to the 4-
pin female connector inside the meter's tower. The connectors will slide together and
latch.
7. Carefully push the connectors and wires into the meter tower housing.
TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount 33
Chapter 3 Rotary Meter Installation
8. Lubricate the o-ring with o-ring lubricant and install the o-ring on the adapter plate.
Insert the adapter plate into the tower and tighten the (2) 5 mm screws.
To connect the manufacturer cable to the endpoint
Note Connection to an Elster American Meter requires a cable interface
compatible to an Elster American Meter RPM rotary meter.
1. Trim the 2.4GZ OpenWay Remote Mount Gas Module wires to 3.5".
2. Carefully strip the insulation covering from the meter cable (purchased from the meter
manufacturer) approximately 1 1/2" from the end.
Caution Do not cut through the individual wire insulat i on.
3. Separate the black, white, and blue wires for connection to the 2.4GZ OpenWay
Remote Mount Gas Module. Cut off the unused wires even with the outer covering
(insulation).
Caution Do not strip the individual wires.
34 TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount
Installing the 2.4GZ OpenWay Remote Mount Gas Module to the Elster American Meter RPM Series Rotary Meter
4. Connect the meter cable to the 2.4GZ OpenWay Remote Mount Gas Module using
3M gel-cap connectors. Follow the wire connection table and wiring diagrams below.
See Installation Prerequisites on page 7 for appropriate 3M crimping tools.
American RPM Meter to 2.4GZ Remote Mount Module Wire
Connections
American RPM Meter wire 2.4GZ Remote Mount module wire
Red Red
White White
Black Blue
TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount 35
Chapter 3 Rotary Meter Installation
5. Insert the meter cable through the slot on the module backplate. Install a cable tie to
the meter cable wire below the meter cable insulation to provide strain relief.
6. Tuck the connectors and cable tie into the endpoint housing. Place backplate on the
assembly and tighten the four backplate screws using a size T-10 Torx screwdriver.
36 TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount
Mounting the 2.4GZ OpenWay Remote Mount Module
To install the 2.4GZ OpenWay Remote Mount Gas Module cable
1. Insert the plug on the cable connected to the module into the receptacle on the meter
adapter plate.
2. Tighten the threaded collar on the plug onto the Amercian Meter interface receptacle.
Verify the connection is hand-tight.
Mounting the 2.4GZ OpenWay Remote Mount Module
Select an appropriate mounting location on adjacent piping close to the meter. Using the
pipe bracket, mounting plate and band clamps from the Remote Mount Kit (Itron part
number CFG-0005-003), secure the 2.4GZ OpenWay Remote Mount Gas Module. Use the
cable ties from the kit to secure any excess wire to the piping (see Mounting the 2.4GZ
Remote Mount Module on a Pipe on page 10).
TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount 37
Chapter 3 Rotary Meter Installation
Installing the 2.4GZ OpenWay Remote Mount Gas Module to
the Romet Electronically Compensated Meter (ECM2
The Romet ECM2® meter has three Form "A" outputs that can be configured at the factory
to provide any combination of the following three outputs:
®
)
• Uncorrected volume (UNC VOL)
• Corrected volume (COR VOL)
• Alarm
The pulse weight for the volumetric outputs is configured in SetUp Mode at Menu
items>SET UNC OUT and SET COR OUT. Since Setup Mode is fully configurable, the
®
ECM2
Romet technical manual for specific details on the ECM2
module is universally adaptable to all Romet TC meter bodies. Reference the
®
.
38 TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount
Connecting the 2.4GZ OpenWay Remote Mount Gas Module to the Romet ECM2® Meter
Connecting the 2.4GZ OpenWay Remote Mount Gas Module
to the Romet ECM2
®
Meter
Function
Endpoint Wire
Pin location
for Cannon
Connector
Part Number
Connect the correct interface wirings and set the output pulse spacing to complete 2.4GZ
OpenWay Remote Mount Gas Module installation with the Romet ECM2
®
ECM2
34-125-20 C B A B E D
34-125-40 A B C D E F
34-125-41 A B C D E F
34-125-42 E F A B C D
34-125-43
34-125-44
34-125-45 A B E D C F
34-125-50 3 1 2 5 6 4
34-125-51 3 1 2 5
Interface Wiring Table below to complete wire connections.
(+)UC (-)UC (+)CC (-)CC (+)ALM (-)ALM (+)Aux.CC (-)Aux.CC
White and
Blue
Red White and
Blue
A B E F C D
Red White and
Blue
Red White and
®
meter. See the
Blue
A B
6 4
®
Caution Set the ECM2
2.4GZ OpenWay Remote Mount Gas Module. Output spacing represents an off-
time between pulses.
output pulse spacing to 750ms for operation with the
Red
To mount the 2.4GZ OpenWay Remote Mount Gas Module on the Romet
ECM2 meter
This mounting procedure requires the Romet ECM2/Module Mounting Kit (Romet part
number 34-444-1-KIT).
TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount 39
Chapter 3 Rotary Meter Installation
1. Remove the module screw from the back of the ECM2 meter and discard.
2. Insert the mounting screw fitted with the three lock washers. Two lock washers are
used as spacers as shown.
3. Attach the mounting plate to the meter. Insert the mounting screw where the module
screw was removed. Torque the mounting screw to 5 - 7 ft.lbs. to secure the plate to
the Romet meter.
40 TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount
Connecting the 2.4GZ OpenWay Remote Mou
nt Gas Module to the Romet ECM2® Meter

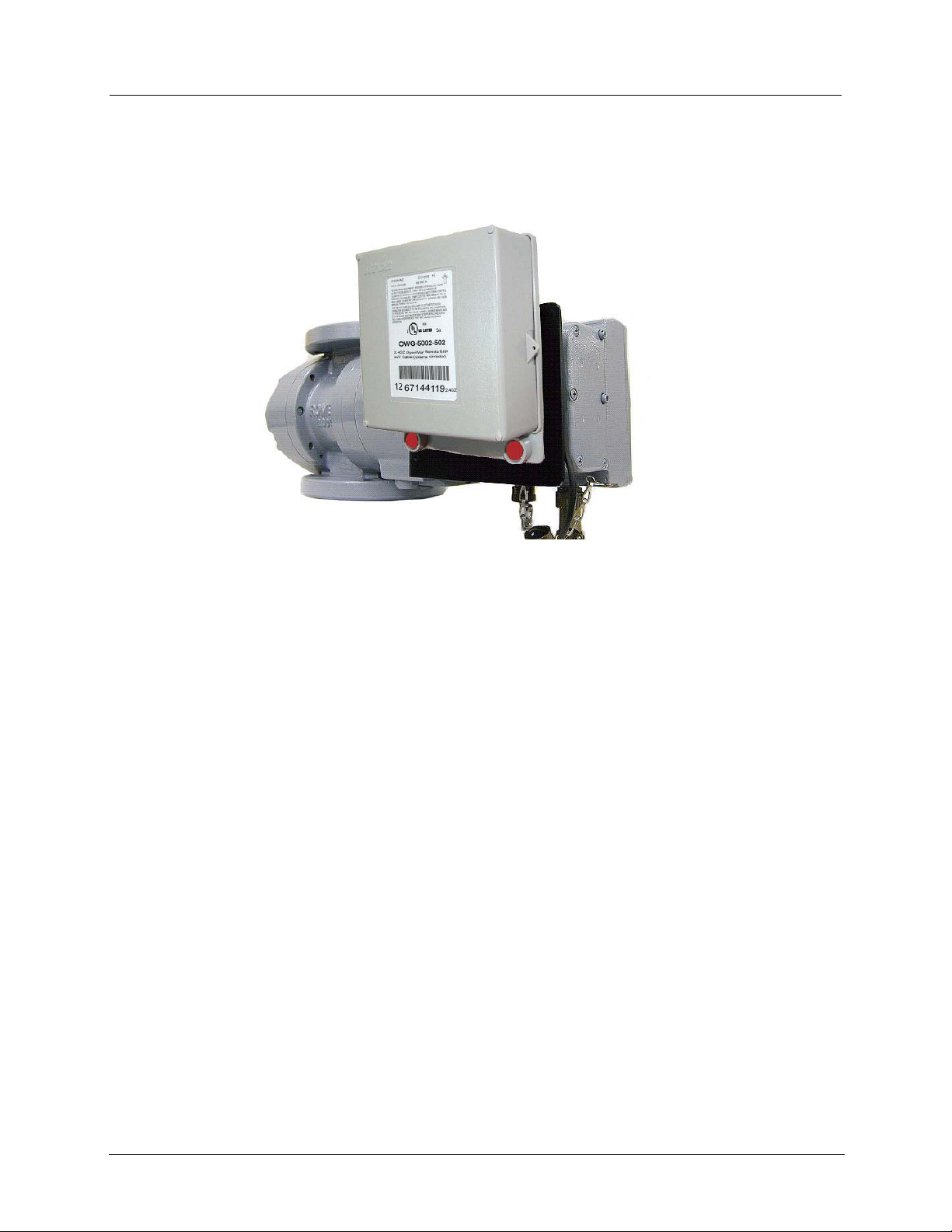

4. Mount the 2.4GZ OpenWay Remote Mount Gas Module using the pre-drilled holes on
the mounting plate and the module mounting screws. Place new tamper seals over the
two screws. Press tamper seals into place using an 11/32" nut driver or similar blunt
tool. Connect the module to the meter using the previously installed cable interface.
TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount 41
Chapter 3 Rotary Meter Installation
42 TDC-0838-000 2.4GZ OpenWay Gas Module Installation Guide - Remote Mount
Loading...
