ITOX G4V100-P, G4V100-M User Manual

G4V100-P

G4V100-M

System Board User’s Manual

935-G4V101-000(G)

A80420546

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Fur ther, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.

Caution

To avoid damage to the system:

• Use the correct AC input voltage range

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend

the manufacturer.

• Dispose of used batteries according to the battery manufacturer’s

instructions.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Notice

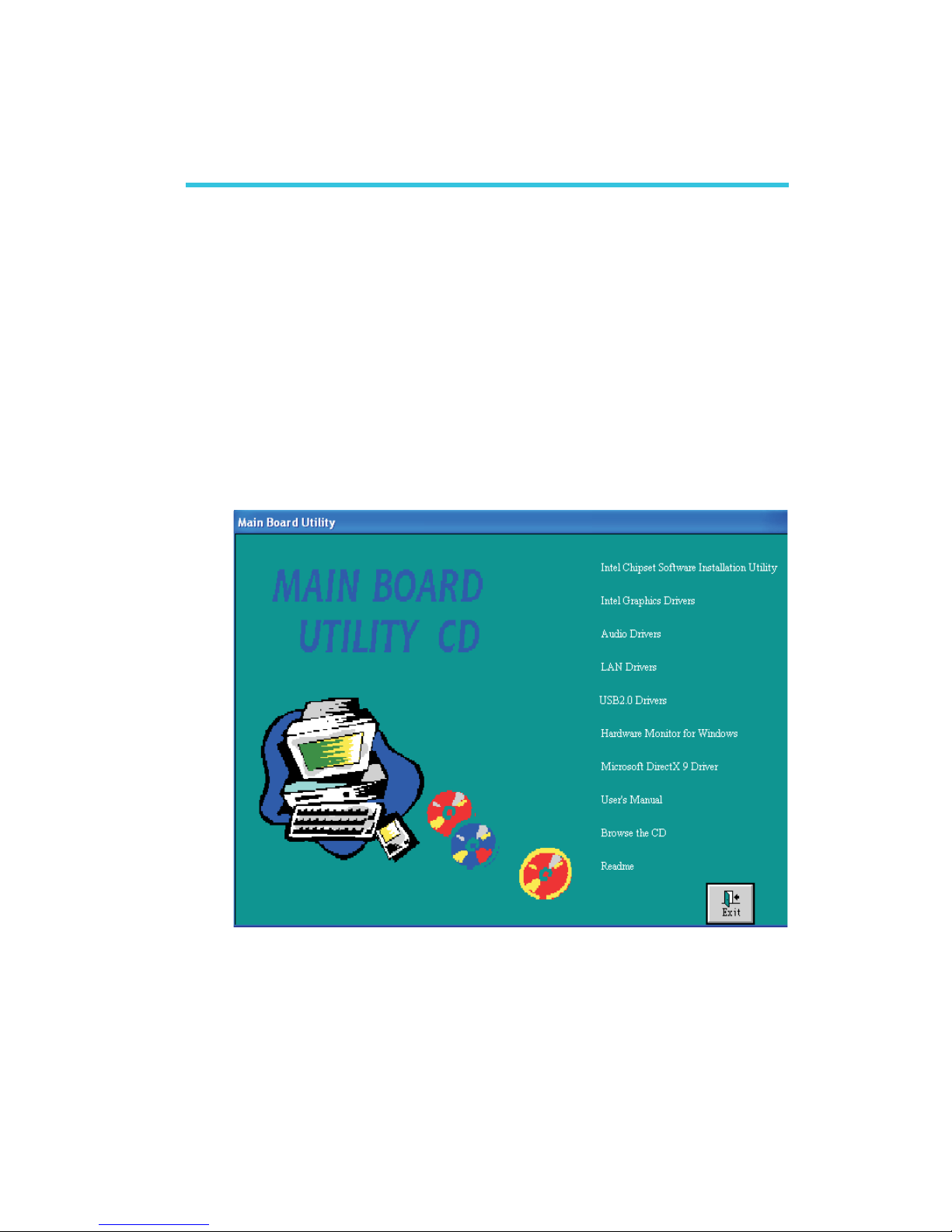

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, inser t the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Table of Contents

Chapter 1 - Introduction

1.1 Features.................................................................................................................................

1.2 Special Features of the System Board.....................................................

1.3 Package Checklist.........................................................................................................

Chapter 2 - Hardware Installation

2.1 System Board Layout ...........................................................................................

2.2 System Memory...........................................................................................................

2.3 CPU........................................................................................................................................

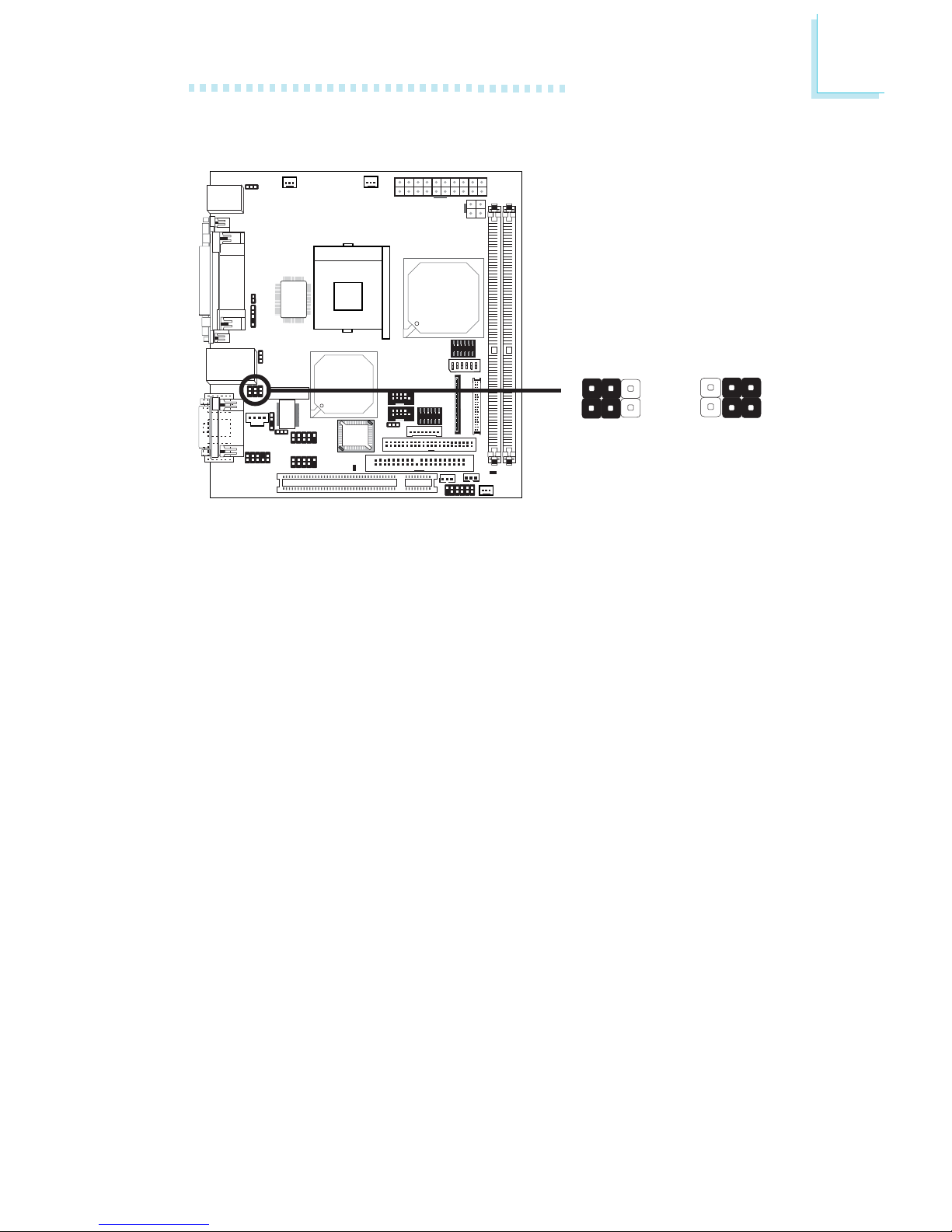

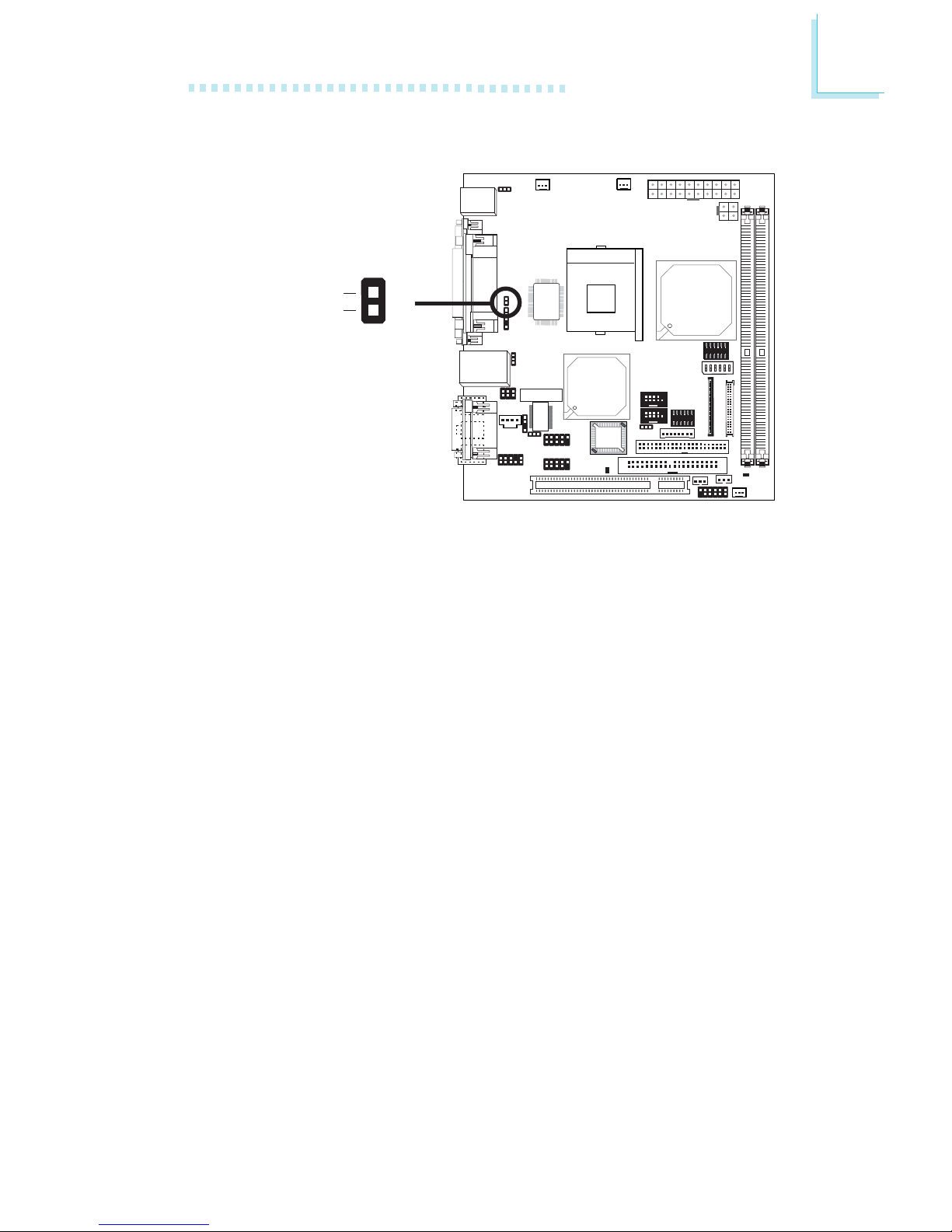

2.4 Jumper Settings.............................................................................................................

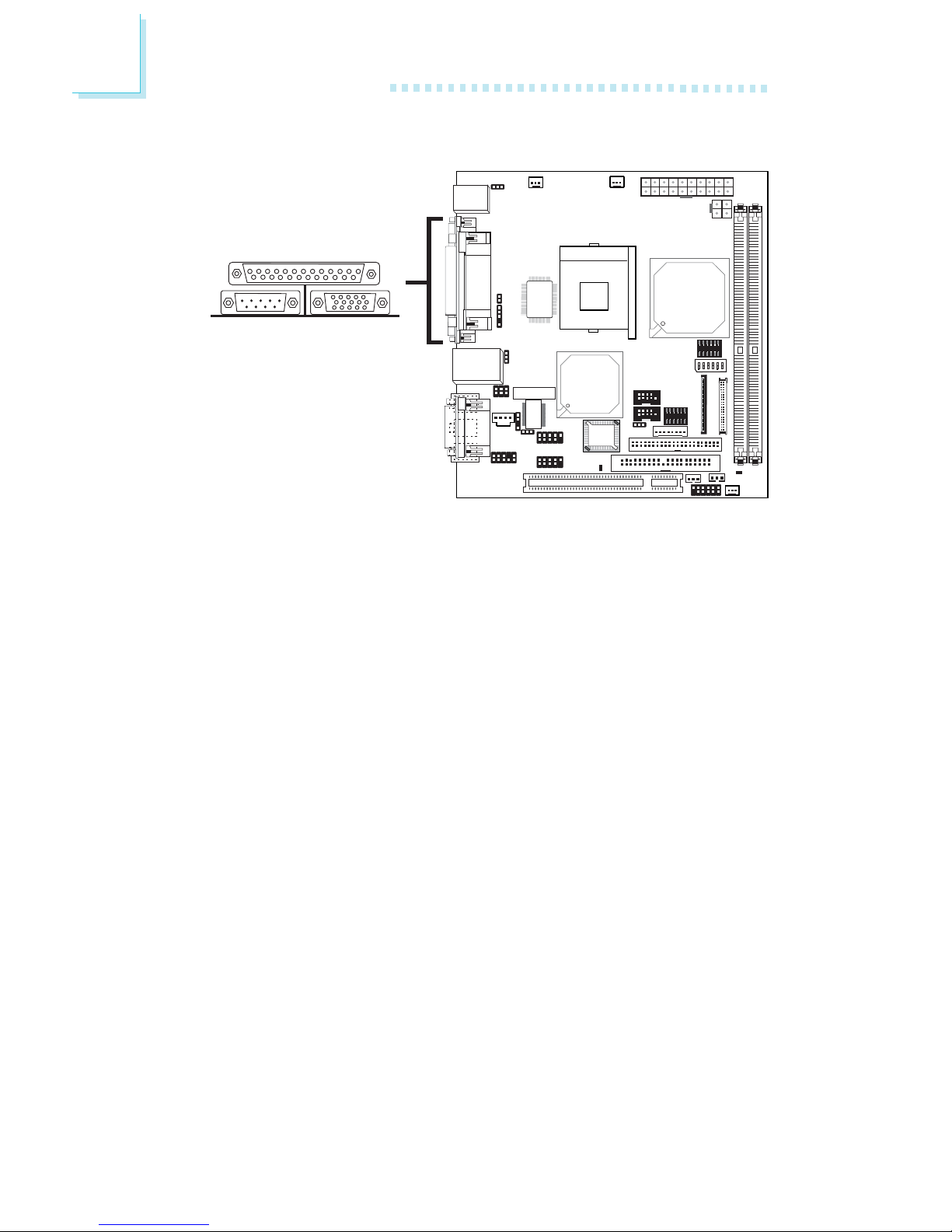

2.5 Rear Panel I/O Ports..............................................................................................

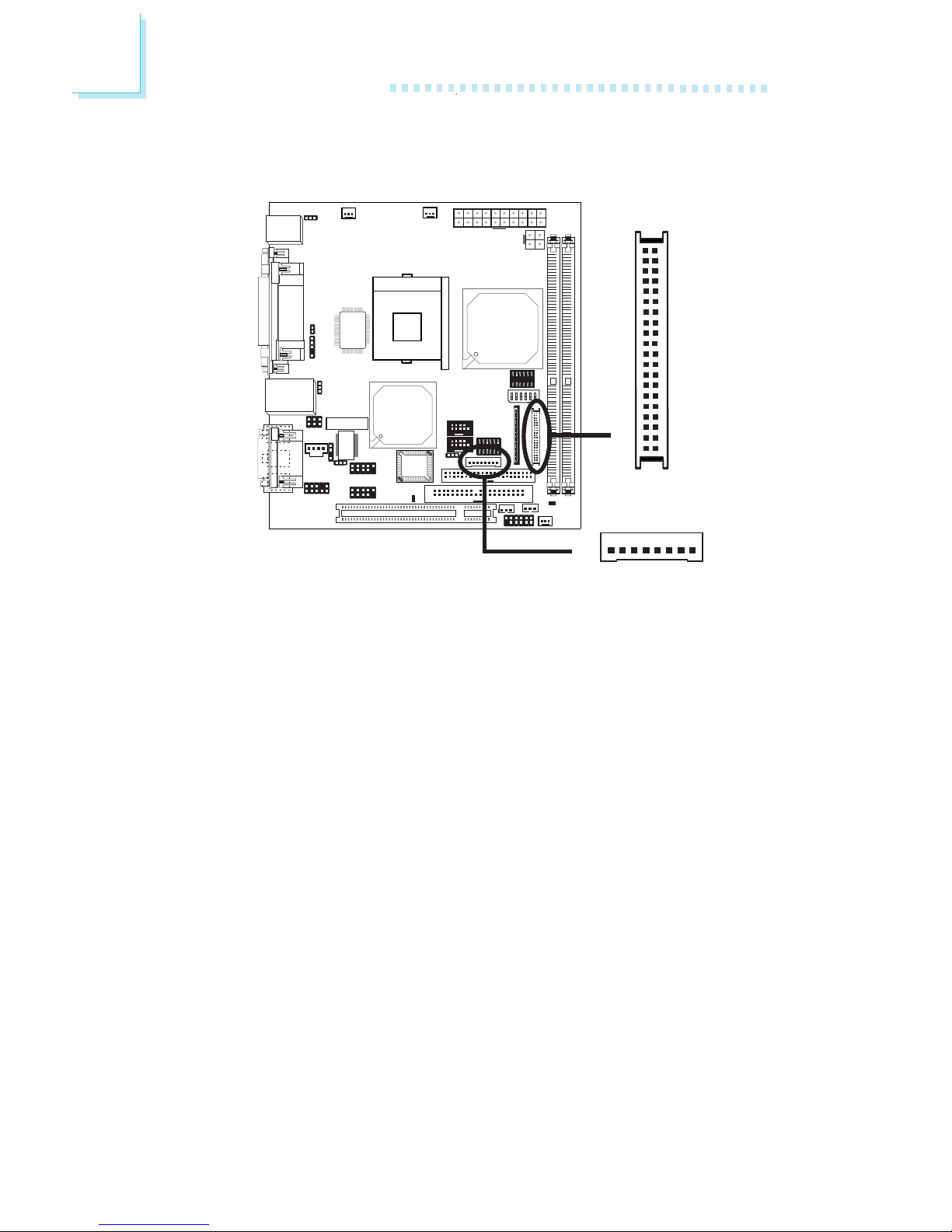

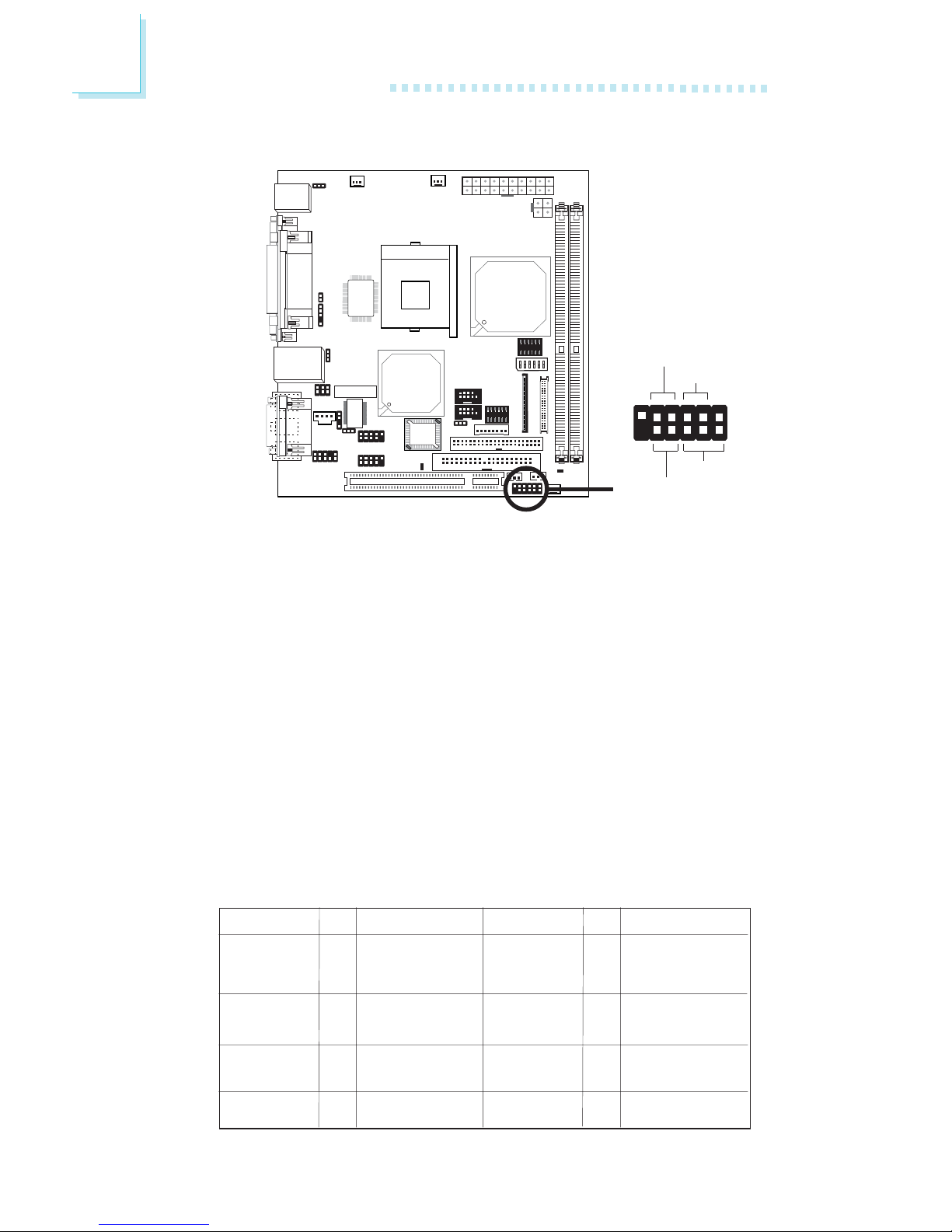

2.6 I/O Connectors...........................................................................................................

Chapter 3 - BIOS Setup

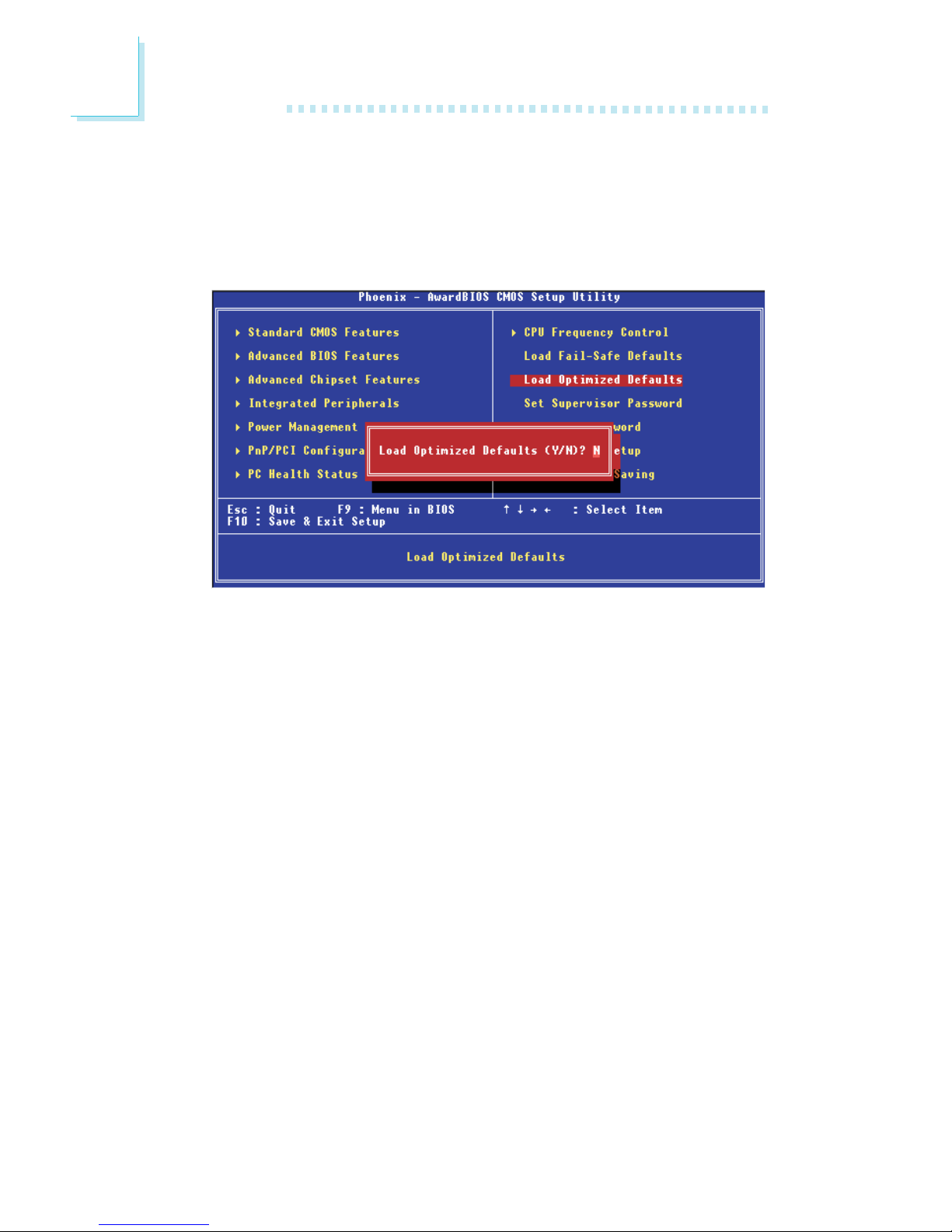

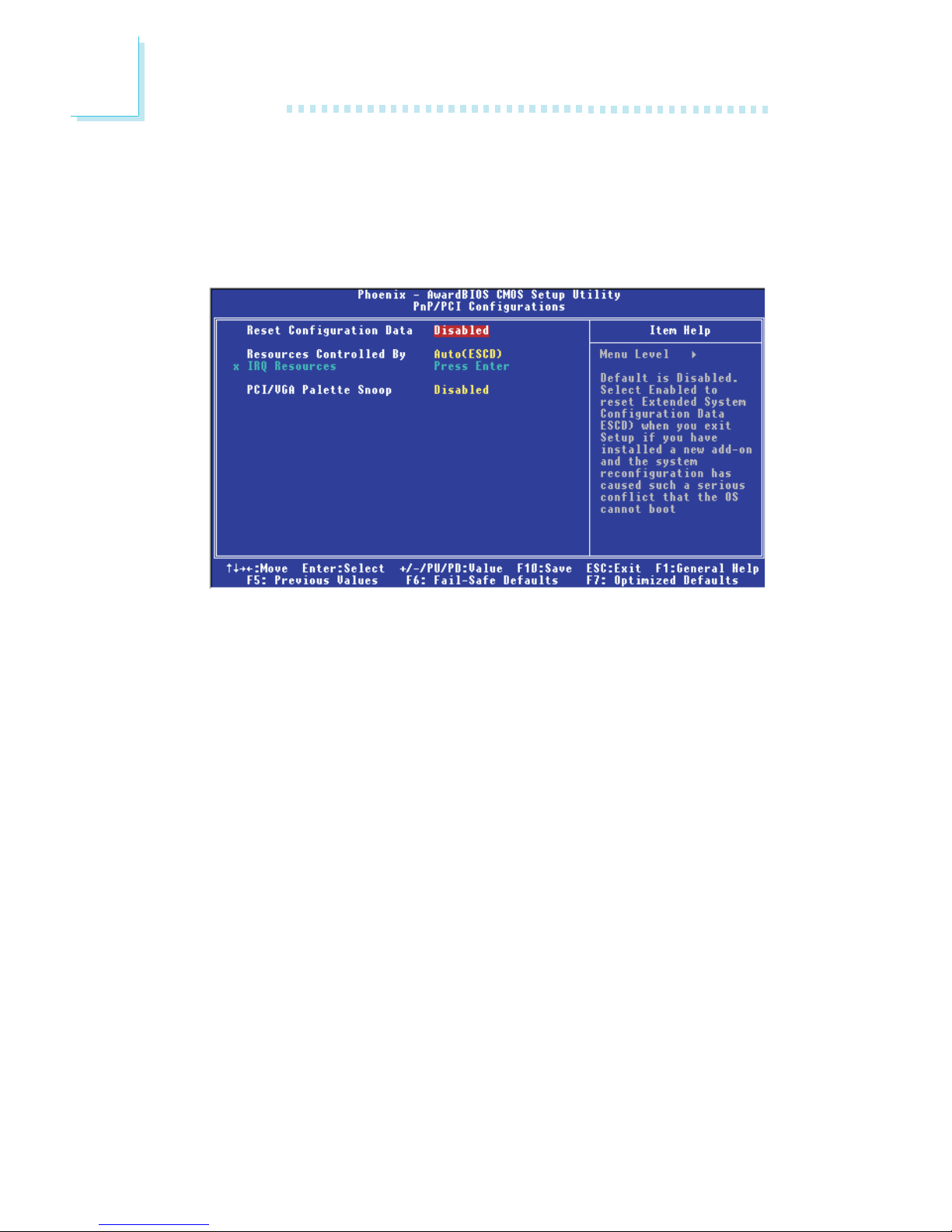

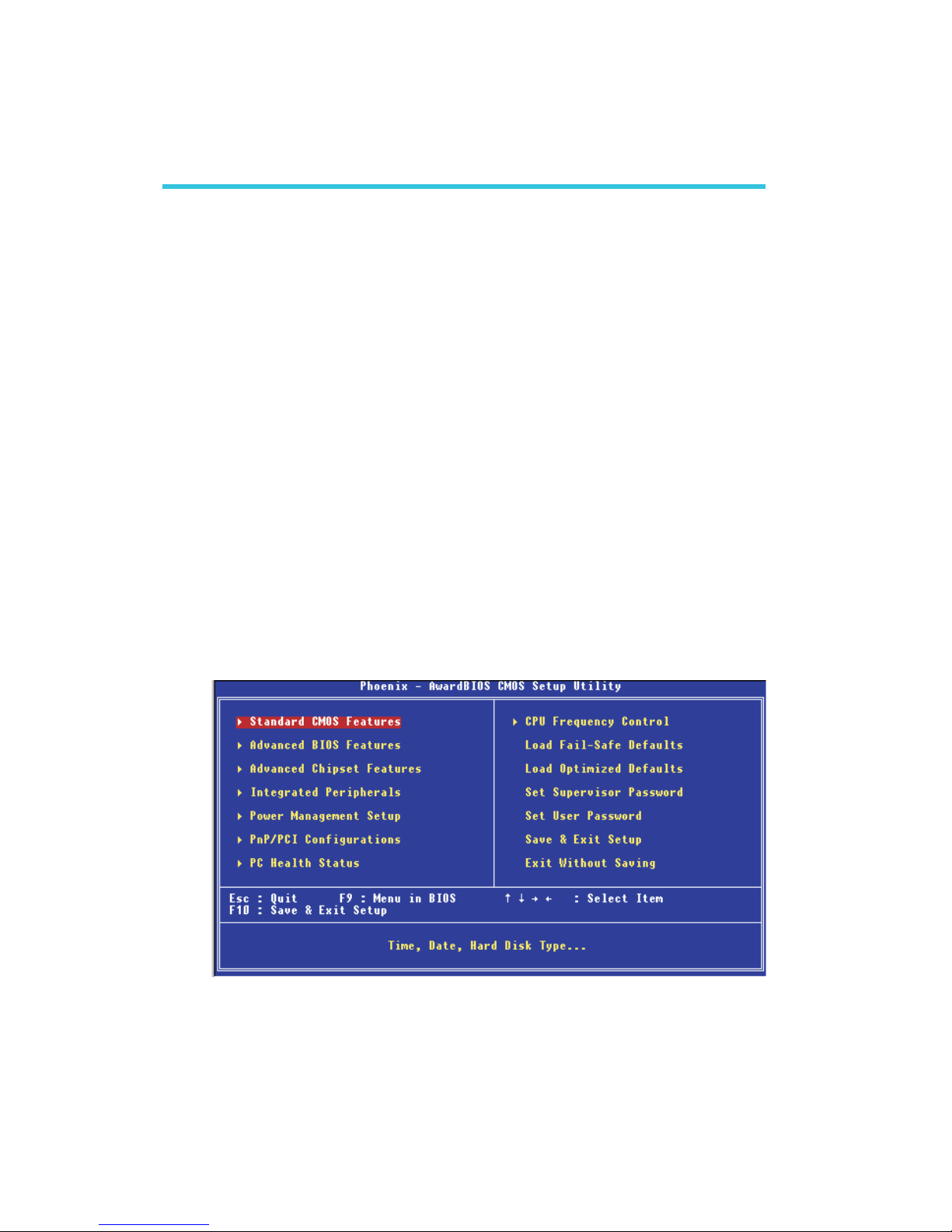

3.1 Award BIOS Setup Utility....................................................................................

3.5 Updating the BIOS.....................................................................................................

Chapter 4 - Supported Softwares

4.1 Drivers, Utilities and Software Applications.........................................

4.2 Installation Notes..........................................................................................................

7 11 14

15 16 18 23 33 45

61 96

105

Introduction

107

110 110

112

Appendix A - Watchdog Timer

A.1 Watchdog Timer.........................................................................................................

Appendix B - Using the Suspend to RAM

Function

B1 Using the Suspend to RAM Function..................................................

Appendix C - System Error Messages

C.1 POST Beep.....................................................................................................................

C.2 Error Messages............................................................................................................

Appendix D - Troubleshooting

D.1 Troubleshooting Checklist.................................................................................

106

Introduction

Chapter 1 - Introduction

1.1 Features

Processor

G4V100-P

• Intel® Pentium® 4 Processor with Hyper-Threading Technology

- 533MHz system data bus

• Intel® Pentium® 4 Northwood processor

- 533MHz/400MHz system data bus

• Intel® Celeron® Northwood processor

- 400MHz system data bus

G4V100-M

• Intel® Pentium® 4 Processor-M (478-pin)

- 400MHz system data bus

• Supplies IMVP-III voltage current tolerances at VID=1.30V maximum performance mode

Chipset

• Intel® 845GV chipset

- Intel® 845GV Graphics Memory Controller Hub (GMCH)

- Intel® 82801DB I/O Controller Hub (ICH4)

System Memory

• Two 184-pin DDR SDRAM DIMM sockets

• 2.5V unbuffered PC1600 (DDR200), PC2100 (DDR266) or PC2700 (DDR333) DDR SDRAM DIMM

• Supports maximum of 2GB system memory using 64Mbit, 128Mbit, 256Mbit or 512Mbit technology

- Double-sided x16 DDR SDRAM DIMM is not supported

BIOS

• Award BIOS, Windows® 98SE/2000/ME/XP Plug and Play compatible

• Supports SCSI sequential boot-up

• Supports DMI 2.0 function

• 4Mbit flash memory

Energy Efficient Design

• Supports ACPI specification and OS Directed Power Management

Introduction

• Supports ACPI STR (Suspend to RAM) function

• Wake-On-Events include:

- Wake-On-PS/2 Keyboard/Mouse

- Wake-On-USB Keyboard/Mouse

- Wake-On-LAN

- Wake-On-Ring

- RTC timer to power-on the system

• System power management supported

• CPU stopped clock control

• Hardware supports SMI green mode

• Microsoft®/Intel® APM 1.2 compliant

• Soft Power supported - ACPI v1.0a specification

• AC power failure recovery

Damage Free Intelligence

• Monitors CPU/system temperature and overheat alarm

• Monitors 5VSB(V)/VBAT(V)/1.5V/3.3V/5V/±12V/CPU(V) voltages and failure alarm

• Monitors CPU/chassis/2nd fan speed and failure alarm

• Read back capability that displays temperature, voltage and fan speed

• Watchdog timer function

Onboard Graphics Features

• Graphics memory

- Shares 512K/1MB/8MB of the system memory in DOS

mode

- Uses Dynamic Video Memory Technology (DVMT) in

Windows mode

• Graphics controller

- Core frequency of 200MHz

- 350MHz integrated 24-bit RAMDAC

- Analog display up to 2048x1536 @ 60Hz refresh

- 3D setup and render engine - Discrete, Triangles, Strips and

fans

- Per pixel perspective corrected texture mapping

- Software DVD at 30fps, full screen

• 2D graphics features

- Optimized 256-bit BLT engine

- 32-bit alpha blended cursor

- Programmable 3-color transparent cursor

Introduction

• 3D graphics features

- 200 megapixels/sec fill rate

- Maximum 3D resolution: 1600x1200x32 @ 85Hz

- Flat and Gouraud shading

- 16- and 24-bit Z-buffering and 16- and 24-bit W-buffering

- Vertex and programmable pixel fogging and atmospheric effects

- Double and triple render buffer

• Software drivers

- Windows® 98SE/2000/ME/XP

- Windows NT® 4.0

LVDS Transmitter

• Chrontel CH7017

• Supports scale up to 1600x1200 pixels

• 18-bit and 24-bit outputs

• 2D dither engine

• Support for second CRT DAC bypass mode

• Dual LVDS supporting pixel rates up to 330Mpixels/sec when both 12-bit input ports are ganged together

Onboard Audio Features

• Realtek ALC202A

• 18-bit stereo full-duplex codec with independent variable sampling rate

• High quality differential CD input

• True stereo line level outputs

• S/PDIF-out interface

• 2-channel audio output

Onboard LAN Features

• Uses Intel 82562EM fast ethernet controller

• IEEE 802.3, 10BASE-T/100BASE-TX compliant physical layer interface

• IEEE 802.3u Auto-Negotiation

• Digital Adaptive Equalization control

• Link status interrupt capability

• 10BASE-T auto-polarity correction

• Alert on LAN functionality

• LAN Connect I/F

• 1:1 transmit transformer ratio support

• Automatic detection of “unplugged mode”

Introduction

IDE Interface

• Supports ATA/33, ATA/66 and ATA/100 hard drives

• PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)

Processor Socket

• Socket 478

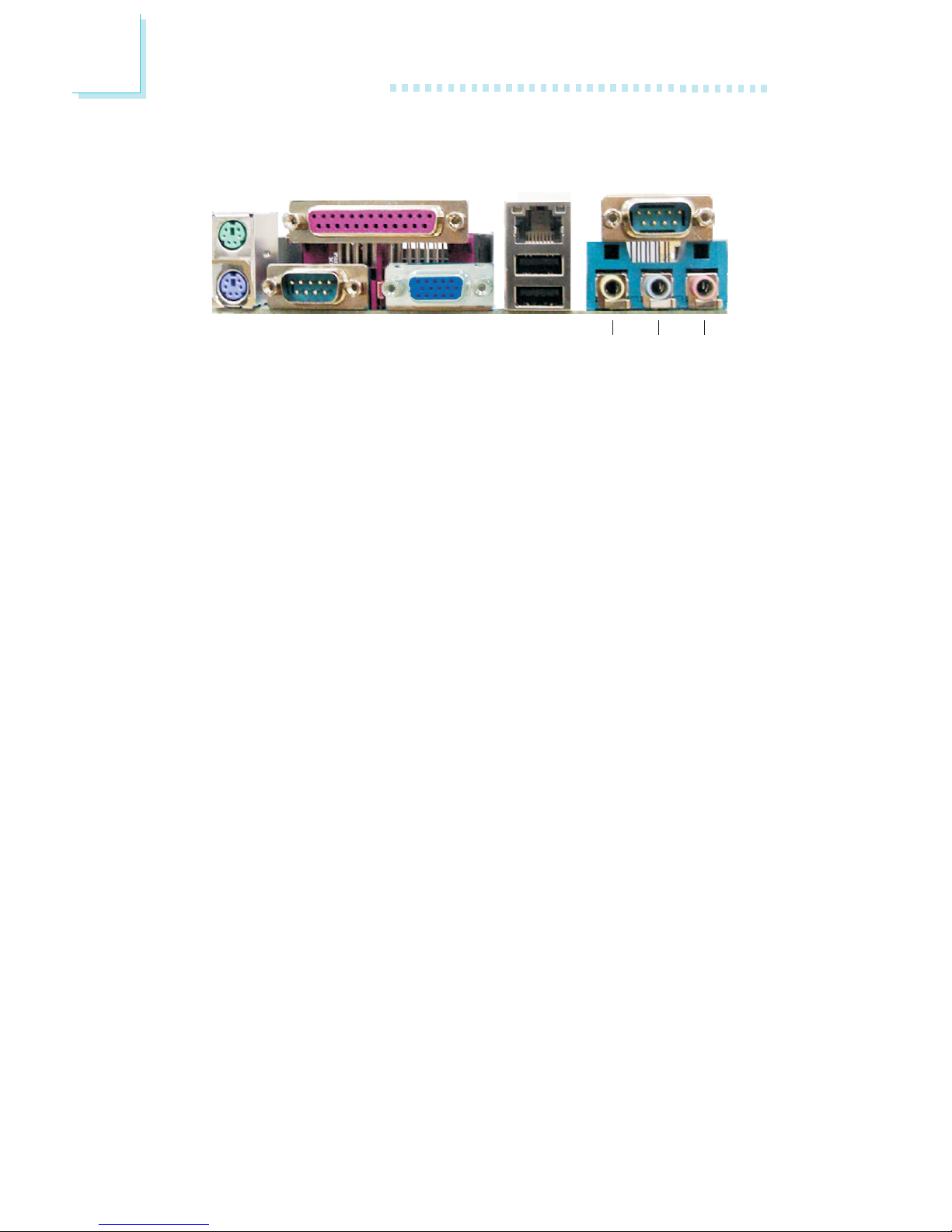

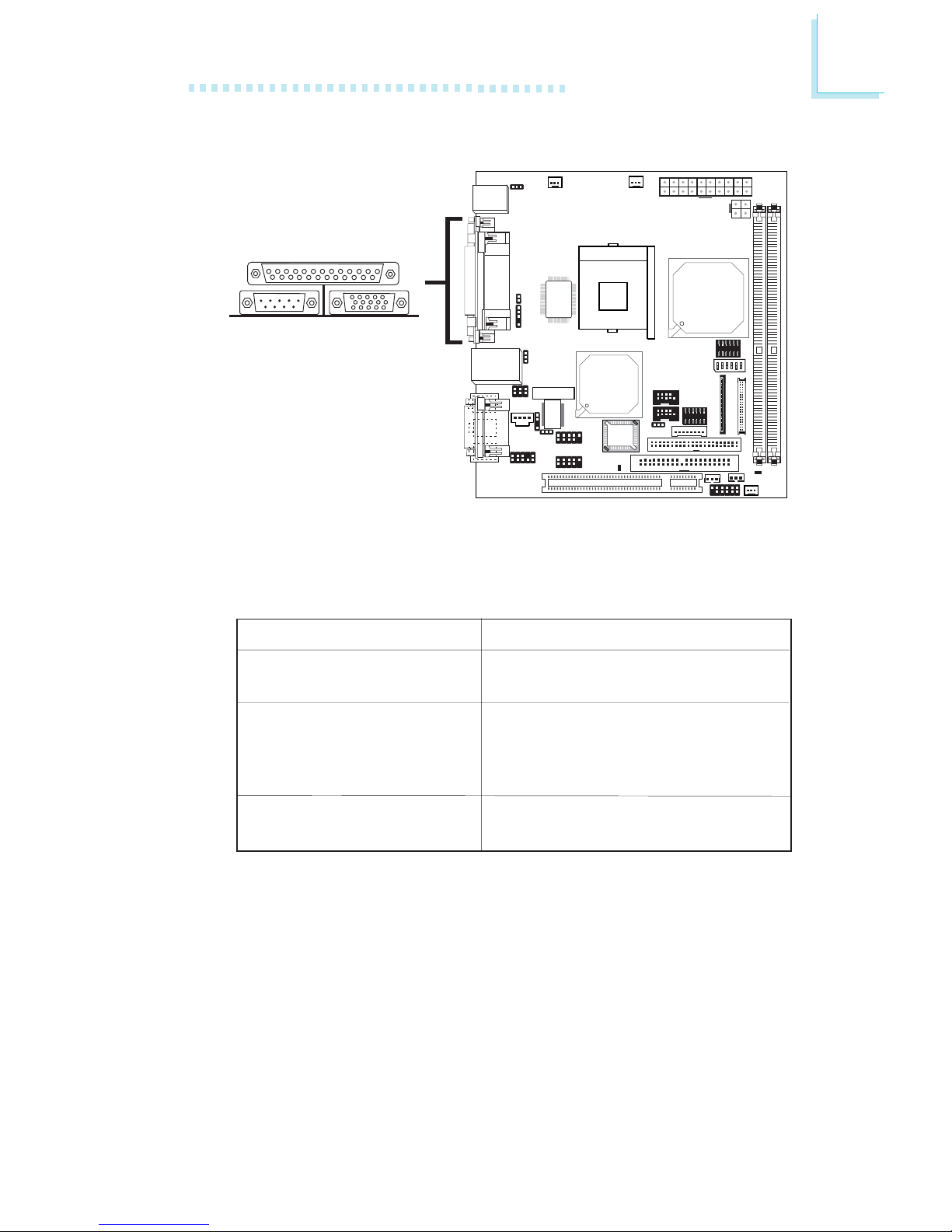

Rear Panel I/O Ports

• 2 USB 2.0/1.1 ports

• 1 RJ45 LAN port

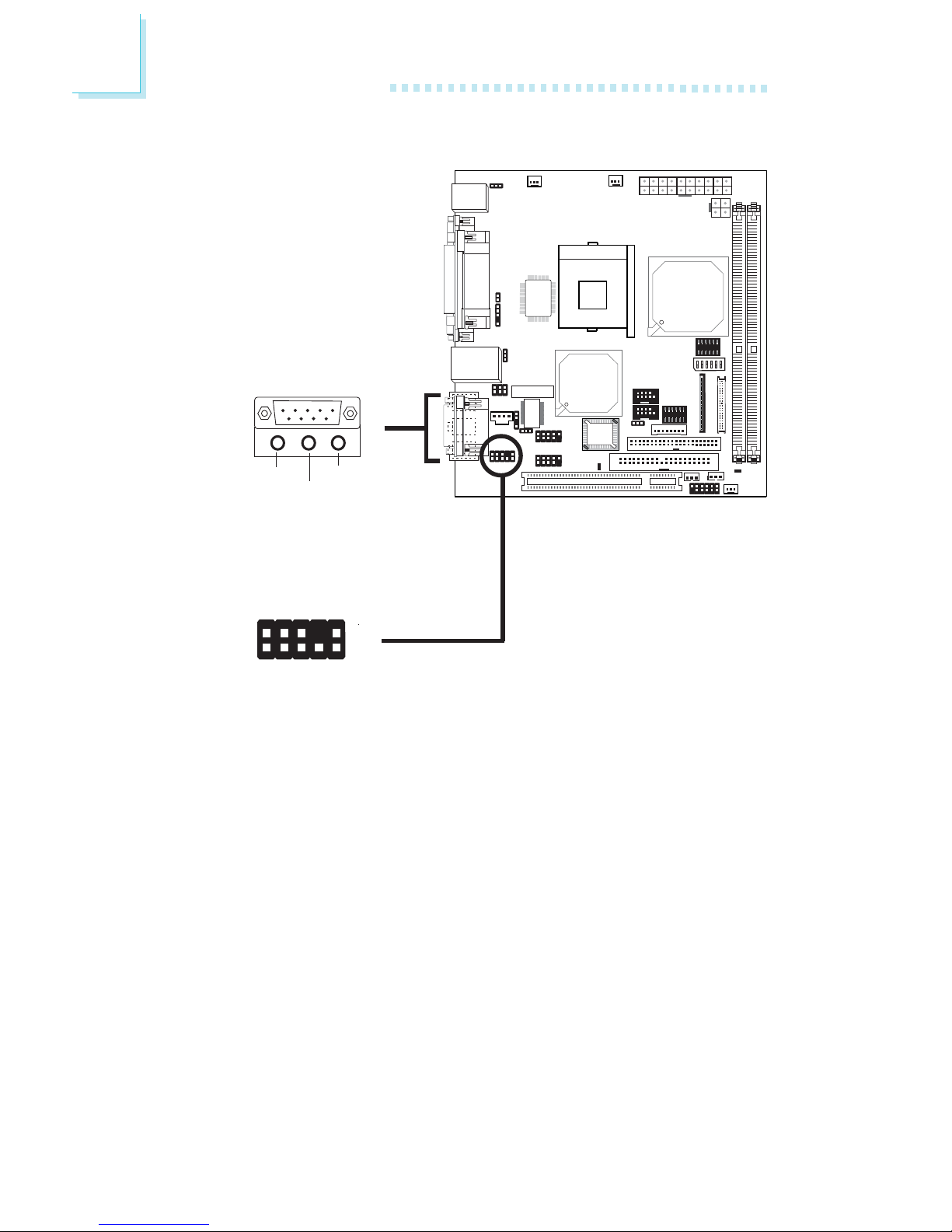

• 2 DB-9 serial ports

• 1 DB-15 VGA port

• 1 DB-25 parallel por t

• 1 mini-DIN-6 PS/2 mouse port

• 1 mini-DIN-6 PS/2 keyboard port

• 3 audio jacks: line-out, line-in and mic-in

I/O Connectors

• 2 connectors for 4 additional external USB 2.0/1.1 ports

• 1 connector for COM 3 (RS232 or LVDS)

• 1 connector for COM 4 (RS232 or RS485)

• 1 44-pin connector for LVDS LCD panel

• 1 LCD/Inverter power connector

• 1 LCD brightness control connector

• 1 front audio connector for line-out and mic-in jacks

• 1 CD-in internal audio connector

• 1 S/PDIF-out connector

• 1 IrDA connector

• 1 40-pin IDE 1 connector for 3.5" HDD

• 1 44-pin IDE 2 connector for 2.5" HDD

• 1 floppy connector (FPC connector type)

• 2 ATX power supply connectors

• 1 Wake-On-LAN connector

• 1 chassis open connector

• 3 fan connectors

Expansion Slots

• 1 PCI slot for PCI expansion card or customized riser card for 1, 2 or 3 PCI slots expansion (for low profile PCI card only)

Introduction

Compatibility

• PCI 2.2 and AC ’97 compliant

PCB

• 6 layers, mini board (Mini-ITX compatible)

• 17cm (6.7") x 17cm (6.7")

1.2 Special Features of the System Board

Hyper-Threading Technology Functionality Requirements

The system board supports Intel processors with Hyper-Threading Technology. Enabling the functionality of Hyper-Threading Technology for your computer system requires ALL of the following platforms.

Components:

• CPU - an Intel

Pentium® 4 Processor with HT Technology

• Chipset - an Intel® chipset that supports HT Technology

• BIOS - a BIOS that supports HT Technology and has it enabled

• OS - an operating system that includes optimizations for HT Technology

Please refer to Appendix B for information about enabling the functionality of the Hyper-Threading Technology. For more information on Hyper-Threading Technology, go to: www.intel.com/info/ hyperthreading.

Watchdog Timer

The Watchdog Timer function allows your application to regularly “clear” the system at the set time inter val. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.

DDR

Double Data Rate SDRAM (DDR SDRAM) is a type of SDRAM that doubles the data rate through reading and writing at both the rising and falling edge of each clock. This effectively doubles the speed of operation therefore doubling the speed of data transfer.

Introduction

S/PDIF

S/PDIF is a standard audio file transfer format that transfers digital audio signals to a device without having to be converted first to an analog format. This prevents the quality of the audio signal from degrading whenever it is converted to analog. S/PDIF is usually found on digital audio equipment such as a DAT machine or audio processing device. The S/PDIF connector on the system board sends surround sound and 3D audio signal outputs to amplifiers and speakers and to digital recording devices like CD recorders.

IrDA Interface

The system board is equipped with an IrDA connector for wireless connectivity between your computer and peripheral devices. The IRDA (Infrared Data Association) specification supports data transfers of 115K baud at a distance of 1 meter.

USB Ports

The system board supports USB 2.0 and USB 1.1 ports. USB 1.1 supports 12Mb/second bandwidth while USB 2.0 supports 480Mb/ second bandwidth providing a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

Dual Function Power Button

Depending on the setting in the “Soft-Off By PWR-BTTN” field of the Power Management Setup, this switch will allow the system to enter the Soft-Off or Suspend mode.

Wake-On-Ring

This feature allows the system that is in the Suspend mode or Soft Power Off mode to wake-up/power-on to respond to calls coming from an external modem or respond to calls from a modem PCI card that uses the PCI PME (Power Management Event) signal to remotely wake up the PC.

Important:

If you are using a modem add-in card, the 5VSB power source of your power supply must support a minimum of ≥720mA.

Introduction

Wake-On-LAN

This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is supported via the onboard LAN port, via a PCI LAN card that uses the PCI PME (Power Management Event) signal or via a LAN card that uses the Wake-On-LAN connector. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA interrupt.

Important:

The 5VSB power source of your power supply must support

≥

720mA.

Wake-On-PS/2 Keyboard/Mouse

This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.

Important:

The 5VSB power source of your power supply must support

≥

720mA.

Wake-On-USB Keyboard/Mouse

This function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state.

Important:

• If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5VSB power source of your power supply must support ≥1.5A.

• If you are using the Wake-On-USB Keyboard/Mouse function for 3 or more USB ports, the 5VSB power source of your power supply must support ≥2A.

RTC Timer to Power-on the System

The RTC installed on the system board allows your system to automatically power-on on the set date and time.

Introduction

ACPI STR

The system board is designed to meet the ACPI (Advanced Configuration and Power Interface) specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. Currently, only Windows

®®

98/2000/ME/XP supports the ACPI function. ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM function.

With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting “Standby” when you shut down Windows

®®

98/2000/ME/XP without having to go through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system.

Important:

The 5VSB power source of your power supply must support

≥

1A.

Virus Protection

Most viruses today destroy data stored in hard drives. The system board is designed to protect the boot sector and partition table of your hard disk drive.

1.3 Package Checklist

The system board package contains the following items:

; The system board ; A user’s manual ; One IDE cable ; One FDD cable ; One I/O shield ; One “Main Board Utility” CD

If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

Hardware Installation

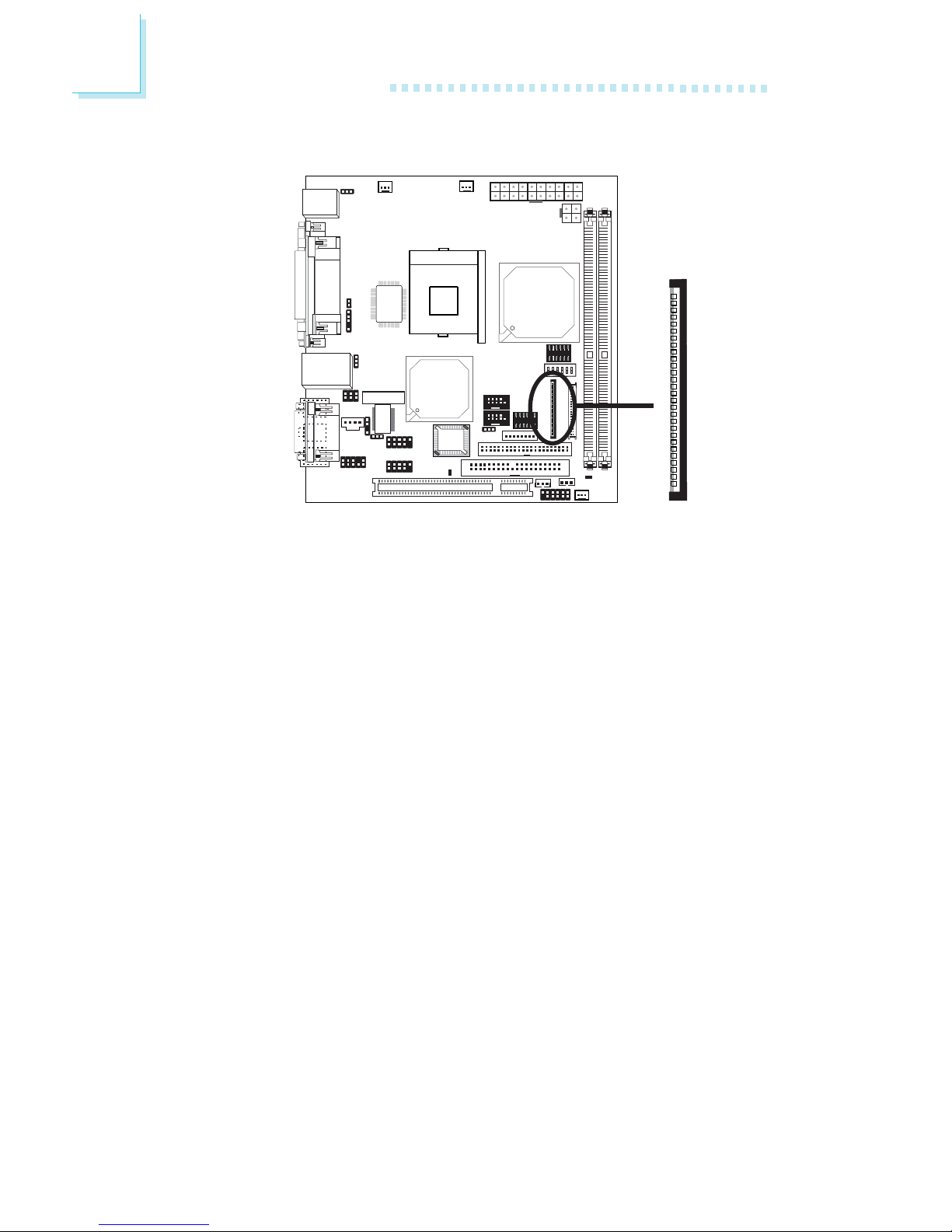

2.1 System Board Layout

Chapter 2 - Hardware Installation

Hardware Installation

2.2 System Memory

Warning:

Electrostatic discharge (ESD) can damage your system board, processor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

The system board supports DDR SDRAM DIMM. Double Data Rate SDRAM (DDR SDRAM) is a type of SDRAM that doubles the data rate through reading and writing at both the rising and falling edge of each clock. This effectively doubles the speed of operation therefore doubling the speed of data transfer.

BIOS Setting

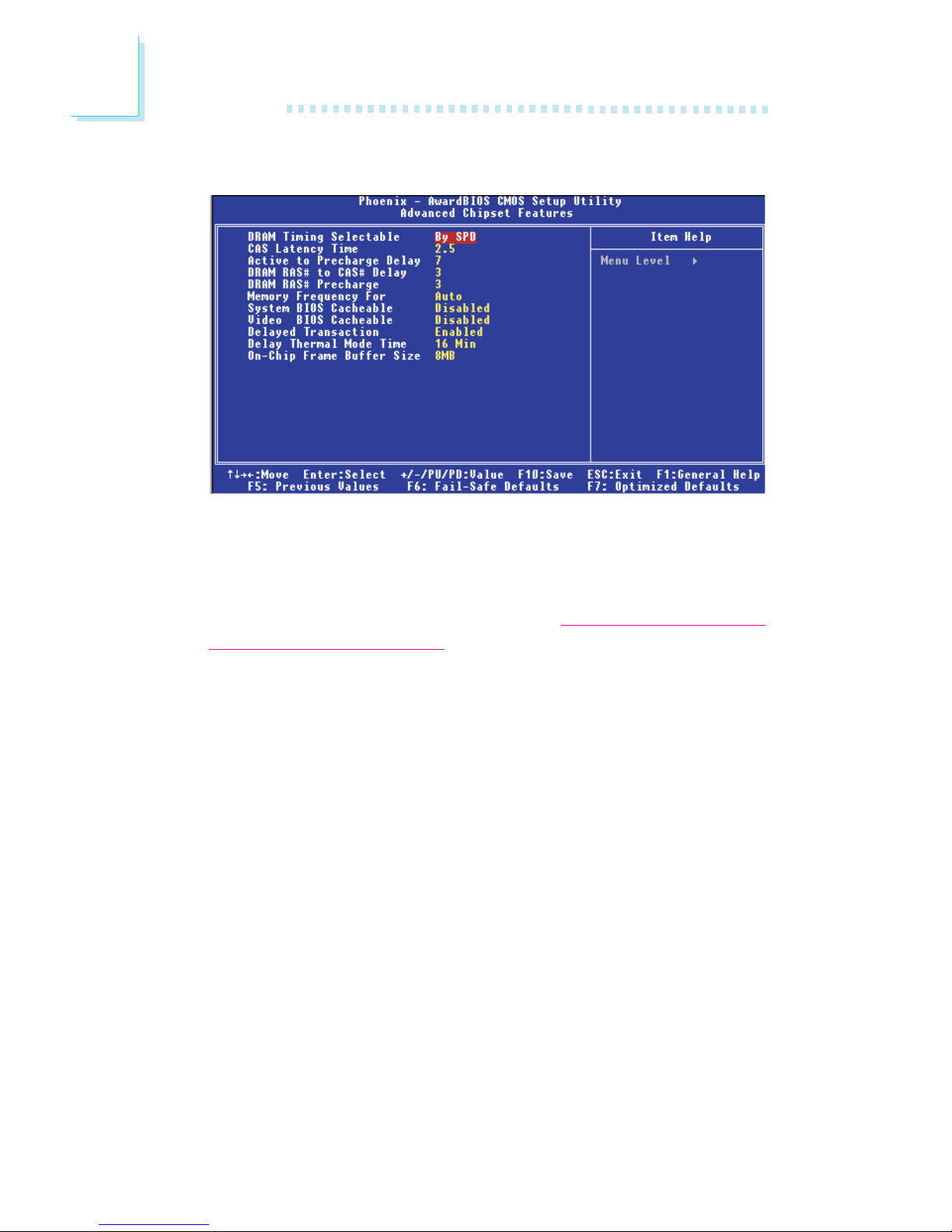

Configure the memory in the Advanced Chipset Features submenu of the BIOS.

DDR 1 DDR 2

Hardware Installation

2.2.1 Installing the DIM Module

A DIM module simply snaps into a DIMM socket on the system board. Pin 1 of the DIM module must correspond with Pin 1 of the socket.

1. Pull the “tabs” which are at the ends of the socket to the side.

2. Position the DIMM above the socket with the “notch” in the module aligned with the “key” on the socket.

3. Seat the module vertically into the socket. Make sure it is completely seated. The tabs will hold the DIMM in place.

Pin 1

Notch

Key

Tab

Hardware Installation

2.3 CPU

2.3.1 Overview

The system board is equipped with a surface mount 478-pin CPU socket. This socket is exclusively designed for installing an Intel processor.

2.3.2 Installing the CPU

1. Locate Socket 478 on the system board.

2. Unlock the socket by pushing the lever sideways, away from the socket, then lifting it up to a 90

angle. Make sure the socket is

lifted to at least this angle otherwise the CPU will not fit in properly.

Lever

CPU socket

Warning Label

(This label is exclusively for

G4V100-M only)

Hardware Installation

3. Position the CPU above the socket then align the gold mark on the corner of the CPU (designated as pin 1) with pin 1 of the socket.

Important:

Handle the CPU by its edges and avoid touching the pins.

Gold mark

4. Insert the CPU into the socket until it is seated in place. The CPU will fit in only one orientation and can easily be inserted without exerting any force.

Important:

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

Pin 1

Hardware Installation

5. Once the CPU is in place, push down the lever to lock the socket. The lever should click on the side tab to indicate that the CPU is completely secured in the socket.

2.3.3 Installing the Fan and Heat Sink

The CPU must be kept cool by using a CPU fan with heatsink. Without sufficient air circulation across the CPU and heat sink, the CPU will overheat damaging both the CPU and system board.

Note:

• Only use Intel

certified fan and heat sink.

• An Intel

boxed processor package contains a retention mechanism, heat sink, fan and installation guide. If the installation procedure in the installation guide differs from the one in this section, please follow the installation guide in the package.

• If you are installing a non-boxed processor, the heat sink,

fan and retention mechanism assembly may look different from the one shown in this section but the procedure will more or less be the same.

Hardware Installation

1. The system board comes with the retention module base already installed.

Retention

module base

Retention

hole

Retention

hole

Retention

hole

Retention

hole

2. Position the fan / heat sink and retention mechanism assembly on the CPU, then align and snap the retention legs’ hooks to the retention holes at the 4 corners of the retention module base.

Note:

You will not be able to snap the hooks into the holes if the fan / heat sink and retention mechanism assembly did not fit properly onto the CPU and retention module base.

Unsnapped

Fan / heat sink and retention mechanism assembly

Snapped

Hardware Installation

3. The retention levers at this time remains unlocked as shown in the illustration below.

Retention lever

4. Move the retention levers to their opposite directions then push them down. This will secure the fan / heat sink and retention mechanism assembly to the retention module base.

Note:

You will not be able to push the lever down if the direction is incorrect.

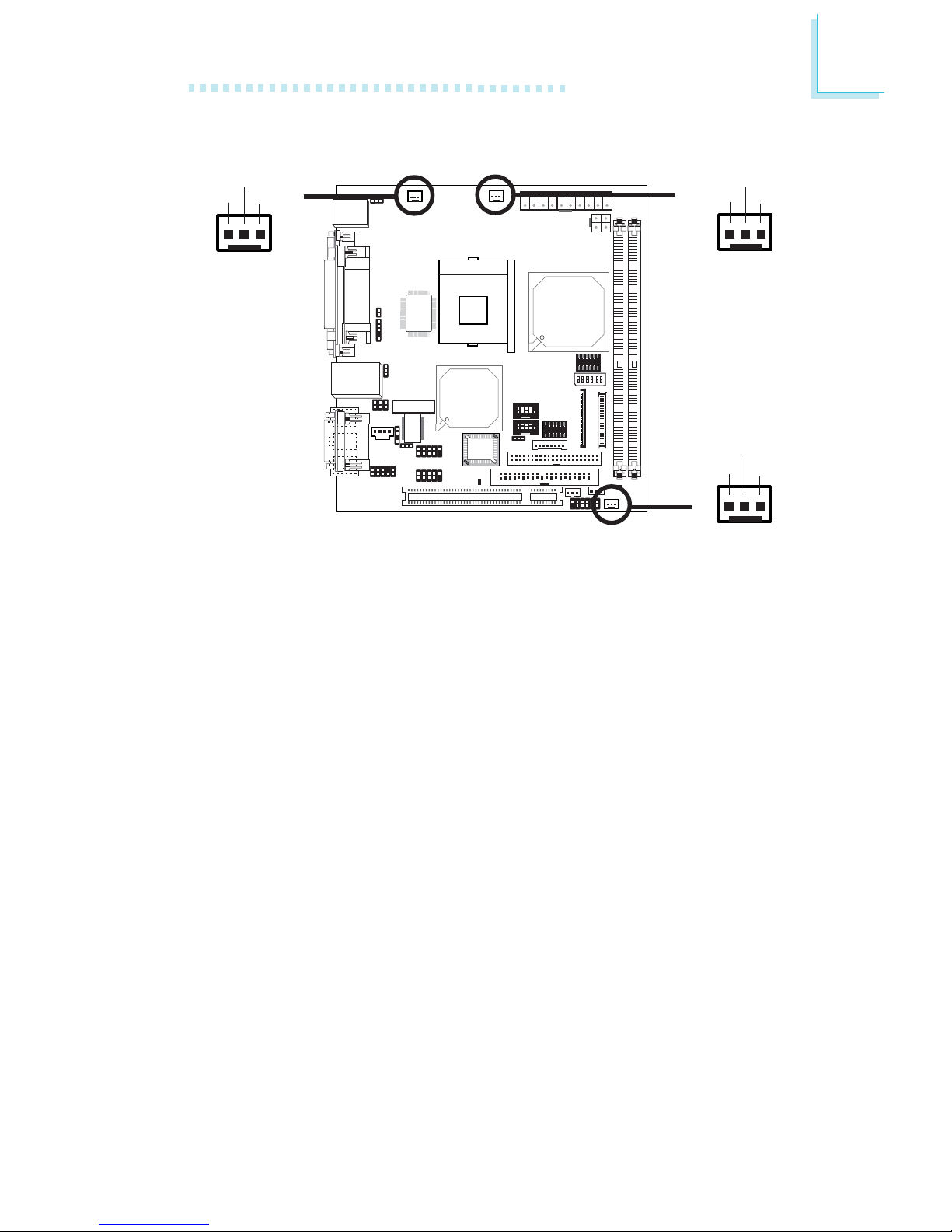

5. Connect the CPU fan’s cable connector to the CPU fan connector on the system board.

Hardware Installation

2.4 Jumper Settings

2.4.1 Clear CMOS Data

If you encounter the following,

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password. c) You are unable to boot-up the computer system because the

processor’s ratio/clock was incorrectly set in the BIOS.

you can reconfigure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP1 pins 2 and 3 to On. Wait for a few seconds and set JP1 back to its default setting, pins 1 and 2 On.

3. Now plug the power cord and power-on the system.

If your reason for clearing the CMOS data is due to incorrect setting of the processor’s ratio/clock in the BIOS, please proceed to step 4.

2-3 On:

Clear CMOS Data

1-2 On: Normal

(default)

JP1

312312

Hardware Installation

4. After powering-on the system, press <Del> to enter the main menu of the BIOS.

5. Select the CPU Frequency Control submenu and press <Enter>.

6. Set the “CPU Clock Ratio” or “CPU Clock” field to its default setting or an appropriate ratio or bus clock. Refer to the CPU Frequency Control section in chapter 3 for more information.

7. Press <Esc> to return to the main menu of the BIOS setup utility. Select “Save & Exit Setup” and press <Enter>.

8. Type <Y> and press <Enter>.

Hardware Installation

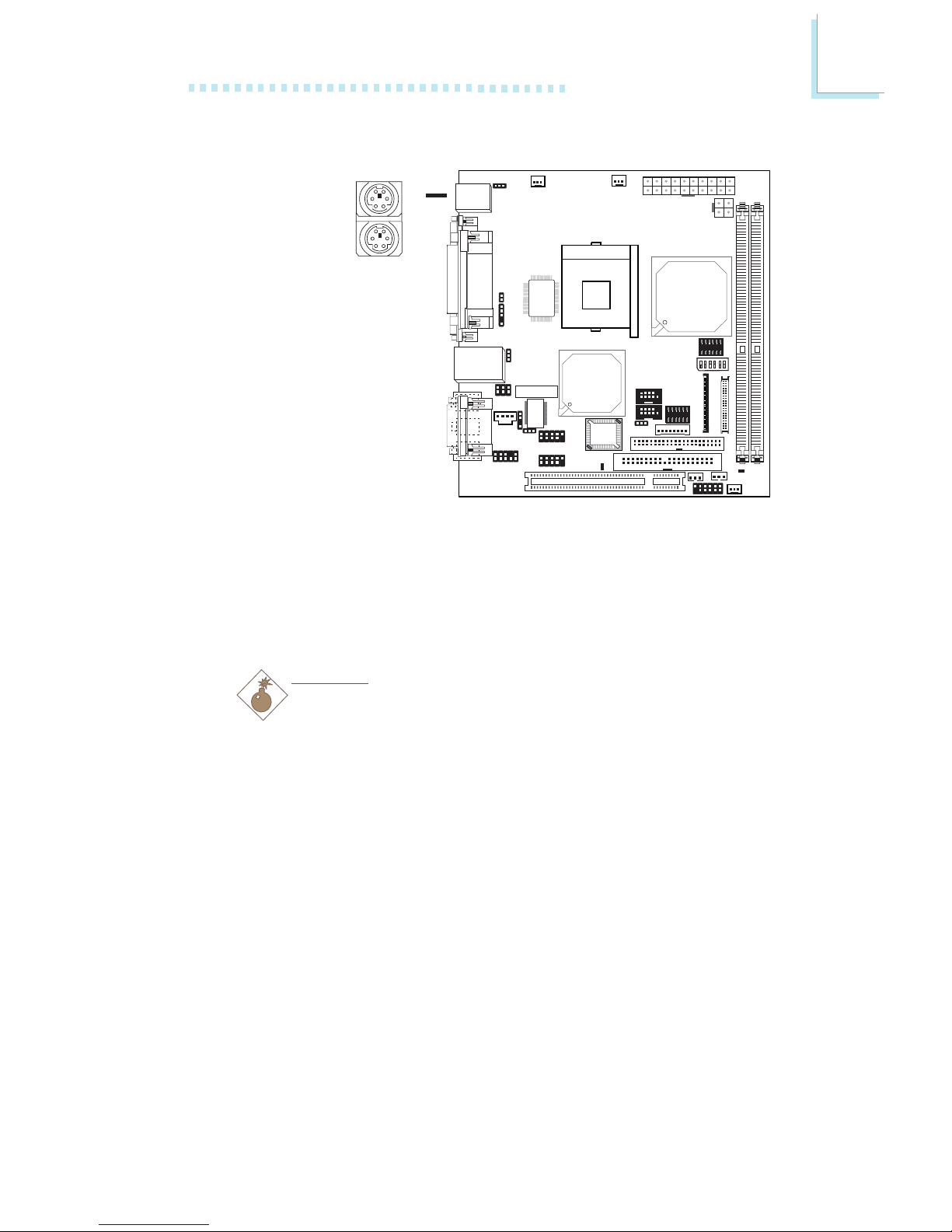

JP2 is used to select the power of the PS/2 keyboard/mouse port. Selecting 5VSB will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.

BIOS Setting

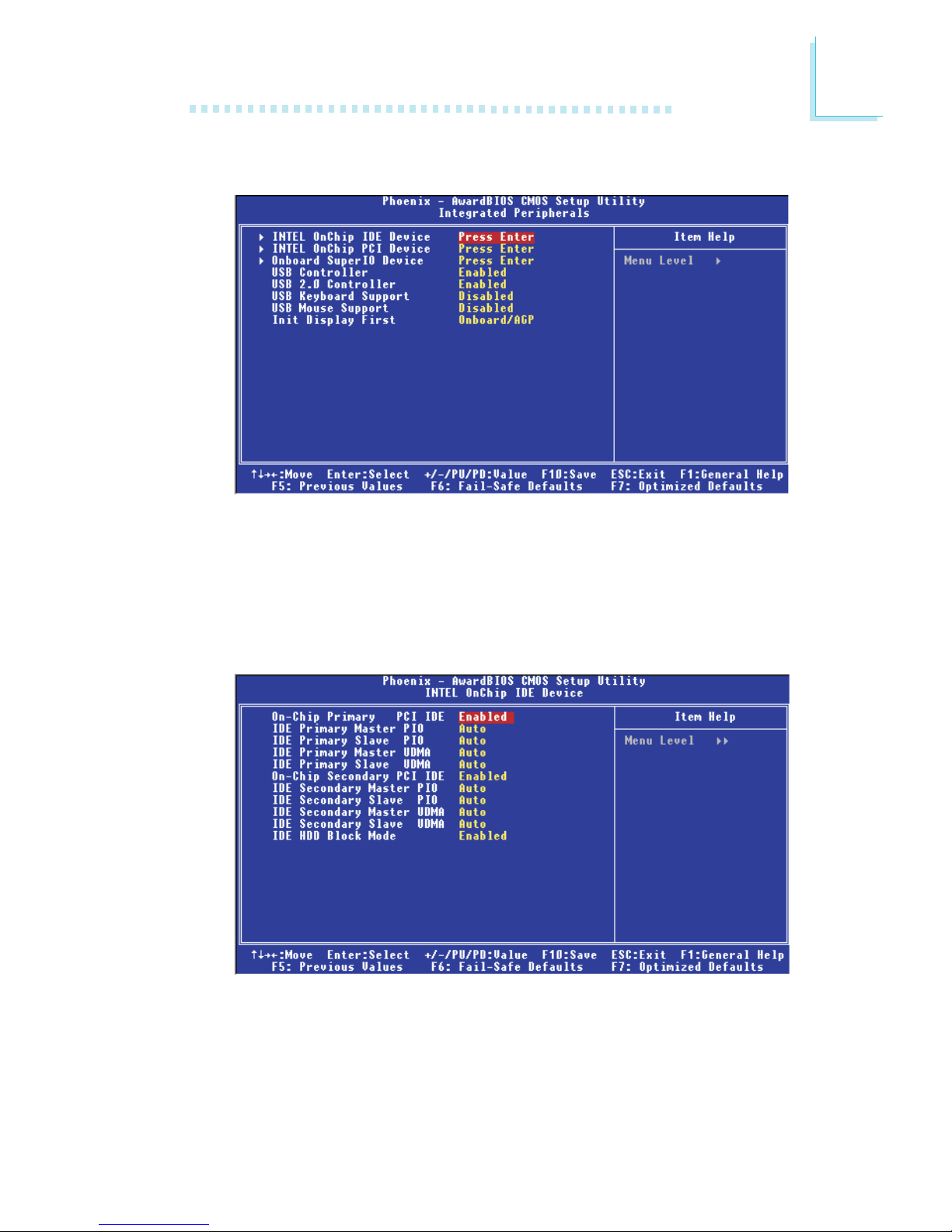

Configure the PS/2 keyboard/mouse wake up function in the Integrated Peripherals submenu (“Onboard Super IO Device” section) of the BIOS. Refer to chapter 3 for more information.

Important:

The 5VSB power source of your power supply must support

≥

720mA.

2.4.2 PS/2 Power Select

1-2 On: 5V

(default)

2-3 On: 5VSB

312312

JP2

Hardware Installation

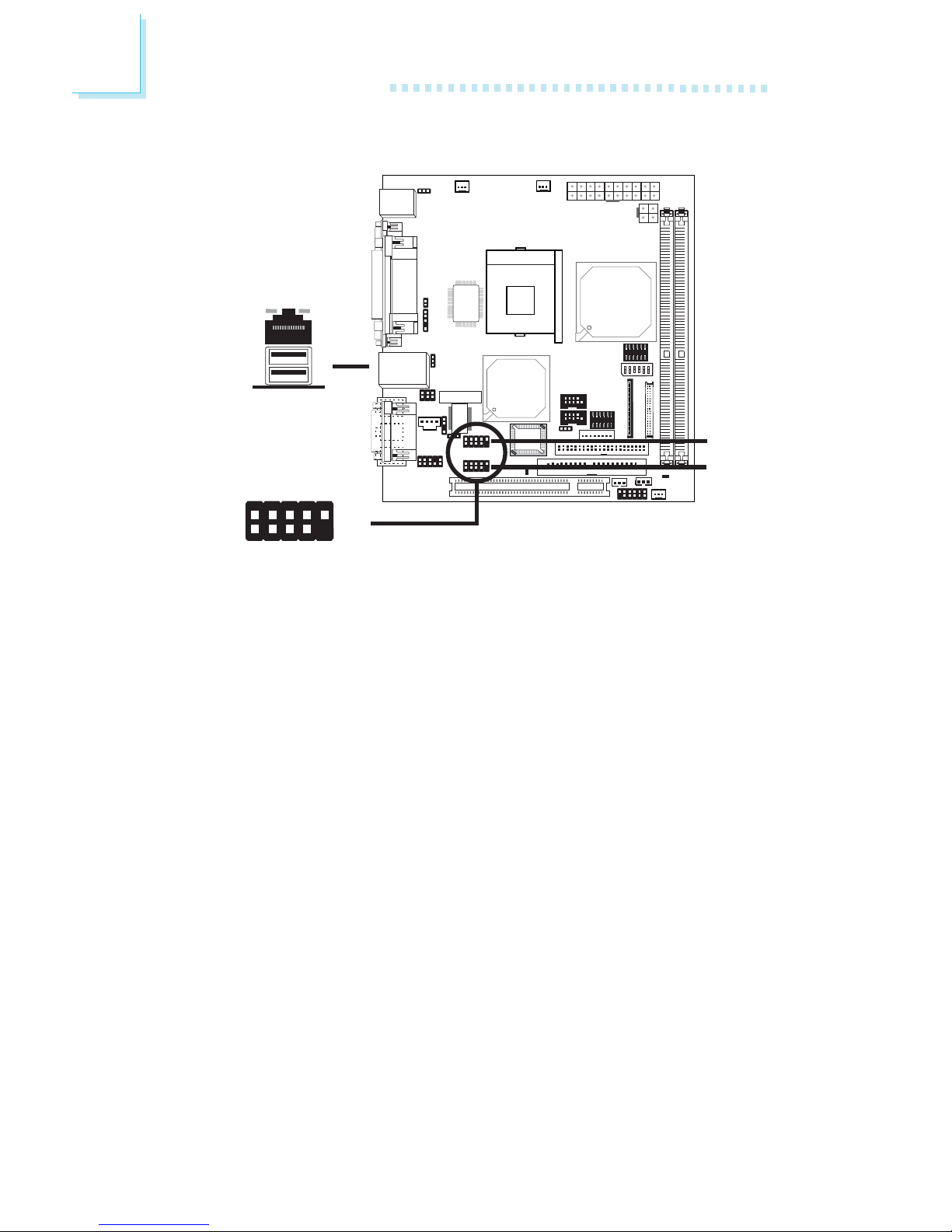

2.4.3 USB Power Select

USB 1-2

(JP4)

JP4 (for USB 1-2) and JP3 (for USB 3-6) are used to select the power of the USB ports. Selecting 5VSB will allow you to use the USB keyboard or USB mouse to wake up the system.

BIOS Setting

“USB KB WakeUp From S3(S4)” in the Power Management Setup submenu of the BIOS must be set to Enabled. Refer to chapter 3 for more information.

Important:

• If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5VSB power source of your power supply must support ≥1.5A.

• If you are using the Wake-On-USB Keyboard/Mouse function for 3 or more USB ports, the 5VSB power source of your power supply must support ≥2A.

1-2 On: 5V

(default)

2-3 On: 5VSB

USB 3-6 (JP3)

1-2 On: 5V

(default)

2-3 On: 5VSB

312312

Hardware Installation

2.4.4 LCD/Inverter Settings

JP10 is used to select the power supplied to the LCD panel as well as configure the inverter.

1-3 On: 5V

JP10

LCD Panel Power Select

3-5 On: 3.3V

Inverter On Level Select

2-4 On: 5V

4-6 On: 12V

Important:

Before powering-on the system, make sure JP10’s setting matches the LCD panel’s specification. Selecting the incorrect voltage will seriously damage the LCD panel.

Inverter On/Off Select

8-10 On:

Active Low

10-12 On:

Active High

Hardware Installation

2.4.5 LCD Brightness Control (Voltage Level Adjust)

5: Increases the voltage level 6: Decreases the voltage level

J22

Use SW1’s pins 5 and 6 or J22 to connect to the LCD Brightness Control button of the LCD Display Panel. It is used to adjust the brightness of the LCD Display Panel. Increasing or decreasing the voltage to control the LCD panel’s brightness varies among Inverters. You must refer to the Inverter’s specification to make the appropriate adjustment to the brightness of the LCD panel.

O N

456

SW1

1-2 On: Increases the voltage level 2-3 On: Decreases the voltage level

Hardware Installation

2.4.6 Panel Type Select

O N

456

SW1

Set SW1 pins 1 to 4 according to the type of LCD panel connected to the system. Please contact technical suppor t for more information about the panel type settings.

Off

Panel Type

1024x768, 18-bit

1024x768, 36-bit

1280x1024, 36-bit

800x600, 18-bit

Reserved

Hardware Installation

JP6 is used to set COM 4 to RS-232 or RS-485. If the serial device connected to this port requires 5V/12V power from the system board, set JP6 pins 9-11 and 10-12 to On. This setting automatically sets COM 4 at RS-232.

2.4.7 COM 4 RS232/RS485/AUX Select

JP6

1-3, 2-4, 7-9, 8-10 On:

RS232

(default)

3-5, 4-6, 7-9, 8-10 On:

RS485

9-11 (12V),

10-12 (5V) On:

Auxiliary power

+ 85 hidden pages

ITOX G4V100-P, G4V100-M User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
