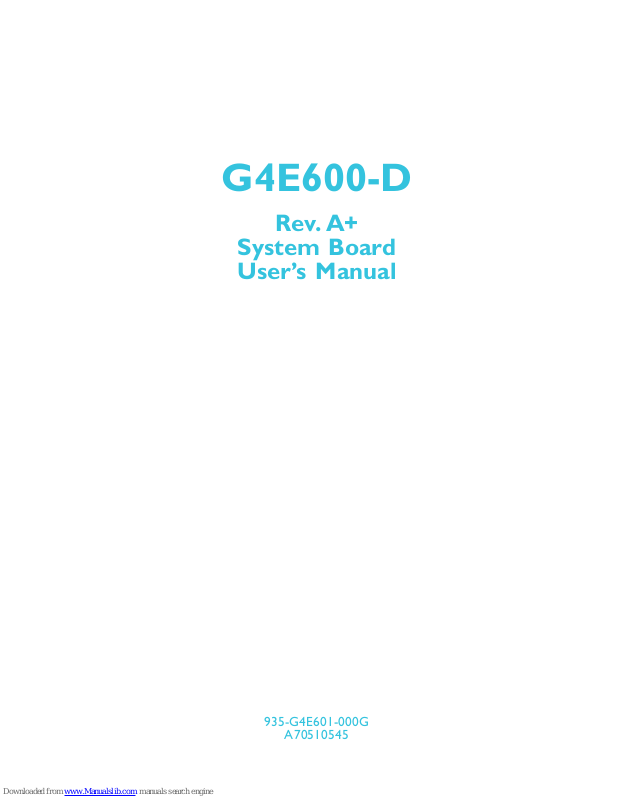

ITOX G4E600-D User Manual

G4E600-D

Rev. A+ System Board User’s Manual

935-G4E601-000G

A70510545

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Trademarks

Windows® 98 SE, Windows® ME, Windows® 2000, Windows NT

4.0 and Windows® XP are registered trademarks of Microsoft Corporation. Intel

and Pentium® 4 are registered trademarks of

Intel Corporation. Award is a registered trademark of Award Software, Inc. Other trademarks and registered trademarks of products appearing in this manual are the properties of their respective holders.

Caution

To avoid damage to the system:

• Use the correct AC input voltage range

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

Battery:  Danger of explosion if battery incorrectly replaced.  Replace only with the same or equivalent type recommend by

the manufacturer.

 Dispose of used batteries according to the battery

manufacturers instructions.

Joystick or MIDI port:  Do not use any joystick or MIDI device that requires more than

10A current at 5V DC. There is a risk of fire for devices that exceed this limit.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and the receiver.  Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

 Consult the dealer or an experienced radio TV technician for

help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Introduction

Table of Contents

Chapter 1 - Introduction

1.1 Features and Specifications..................................................................................

1.2 Package Checklist.........................................................................................................

Chapter 2 - Hardware Installation

2.1 System Board Layout ..........................................................................................

2.2 System Memory...........................................................................................................

2.3 Jumper Settings for Clearing CMOS Data........................................

2.4 Jumper Settings for Wake-On-Keyboard/Mouse..................................

2.5 Jumper Settings for Wake-On-USB Keyboard................................

2.6 Jumper Settings for Selecting the CPUs Front Side Bus......

2.7 Jumper Settings for USB 6................................................................................

2.8 Factory Use Jumper.................................................................................................

2.9 Ports and Connectors...........................................................................................

Chapter 3 - Award BIOS Setup Utility

3.1 The Basic Input/Output System.....................................................................

3.1.1 Standard CMOS Features.............................................................

3.1.2 Advanced BIOS Features..............................................................

3.1.3 Advanced Chipset Features ......................................................

3.1.4 Integrated Peripherals.........................................................................

3.1.5 Power Management Setup............................................................

3.1.6 PnP/PCI Configurations....................................................................

3.1.7 PC Health Status...................................................................................

3.1.8 CPU Frequency Control..................................................................

3.1.9 Load Fail-Safe Defaults.....................................................................

3.1.10 Load Optimized Defaults..............................................................

3.1.11 Set Supervisor Password...............................................................

3.1.12 Set User Password..............................................................................

3.1.13 Save & Exit Setup.................................................................................

3.1.14 Exit Without Saving..............................................................................

3.2 Updating the BIOS....................................................................................................

53 53 57 62 65 72 76 78 80 82 82 83 83 84 84 85

14 15 17 19 21 23 24 25 26

Introduction

90 90

Chapter 4 - Supported Softwares

4.1 Hardware Doctor..........................................................................................................

4.2 Intel 845 INF Update Utility for Windows

98SE/2000/

ME/XP.......................................................................................................................................

4.3 Audio Drivers and Software Applications.............................................

4.4 Onboard LAN Drivers for Windows.......................................................

4.5 Microsoft DirectX 8.1 Driver.............................................................................

4.6 USB 2.0 Driver................................................................................................................

4.7 Drivers and Utilities Installation Notes.....................................................

Appendix A - System Error Messages

A.1 POST Beep.......................................................................................................................

A.2 Error Messages..............................................................................................................

Appendix B - Troubleshooting

B.1 Troubleshooting Checklist....................................................................................

87 88 88 88 89 89

Introduction

1.1 Features and Specifications

1.1.1 Features

Chipset

• Intel® 845E chipset

- Intel

82845E Memory Controller Hub (MCH)

- Intel

82801DB I/O Controller Hub (ICH4)

Processor

The system board is equipped with Socket 478 for installing a Pentium

4 processor.

• Intel

Pentium® 4 processor (478-pin)

- 533MHz system data bus

- 400MHz system data bus

• Intel

Celeron® processor (478-pin)

- 400MHz system data bus

System Memory

• Two 184-pin DDR SDRAM DIMM sockets

• 2.5V unbuffered PC1600 (DDR200) / PC2100 (DDR266) DDR SDRAM DIMM

• Supports maximum of 2GB system memory using 64Mbit, 128Mbit, 256Mbit or 512Mbit technology

- Double-sided x16 DDR SDRAM DIMM is not suppor ted

• Supports ECC function

Chapter 1 - Introduction

Density Width

Single/Double

184-pin DDR

64 Mbit

SS/DS

64/128MB

X16

SS/DS

32MB/NA

Density

128 Mbit

SS/DS

128/256MB

X16

SS/DS

64MB/NA

256 Mbit

SS/DS

256/512MB

X16

SS/DS

128MB/NA

512 Mbit

SS/DS

512/1024MB

X16

SS/DS

256MB/NA

Introduction

Expansion Slots

The system board is equipped with 1 AGP slot, 5 PCI slots (1 shared with CNR slot) and 1 CNR slot.

The AGP slot only supports 1.5V AGP 4x (1066MB/sec. bandwidth) add-in cards. AGP is an interface designed to support high performance 3D graphics cards for 3D graphics applications. It handles large amounts of graphics data with the following features:

 Pipelined memory read and write operations that hide memory

access latency.

 Demultiplexing of address and data on the bus for nearly 100

percent efficiency.

CNR (Communication and Networking Riser) is an interface that supports multi-channel audio, V.90 analog modem or 10/100 Ethernet based networking riser board.

Onboard Audio Features

 18-bit stereo full-duplex codec with independent variable sam-

pling rate  High quality differential CD input  True stereo line level outputs

Onboard LAN Features

 Uses Intel 82562EX 10/100Mbps PLC  Integrated IEEE 802.3 10BASE-T and 100BASE-TX compatible

PHY  Supports IEEE 802.3u auto-negotiation  Automatic detection of "unplugged mode"  1:1 transmit transformer ratio support  10 BASE-T auto-polarity correction

Compatibility

 Microsoft PC 98 compliant  PCI 2.2, CNR 1.0 A type and AC 97 compliant  Intel AGP version 2.0

Introduction

Rear Panel I/O Ports (PC 99 color-coded connectors)

 Four USB 2.0/1.1 por ts  One RJ45 LAN port  Two NS16C550A-compatible DB-9 serial por ts  One SPP/ECP/EPP DB-25 parallel port  One mini-DIN-6 PS/2 mouse port  One mini-DIN-6 PS/2 keyboard port  Three audio jacks: line-out, line-in and mic-in

I/O Connectors

 One connector for 2 additional external USB 2.0/1.1 ports  One connector for an external game/MIDI port  One connector for IrDA interface  Two IDE connectors  One floppy drive interface supports up to two 2.88MB floppy

drives  Two ATX power supply connectors  One Wake-On-LAN connector  One Wake-On-Ring connector  CPU, chassis and second fan connectors  One opened chassis alarm connector  Three internal audio connectors (AUX-in, CD-in and TAD)

PCI Bus Master IDE Controller

 Two PCI IDE interfaces support up to four IDE devices  Supports ATA/33, ATA/66 and ATA/100 hard drives  PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)  Bus mastering reduces CPU utilization during disk transfer  Supports ATAPI CD-ROM, LS-120 and ZIP

IrDA Interface

The system board is equipped with an IrDA connector for wireless connectivity between your computer and peripheral devices. It supports peripheral devices that meet the IrDA or ASKIR standard.

Introduction

USB Ports

The system board supports 6 USB 2.0/1.1 ports. Four onboard USB 2.0/1.1 ports are located at the ATX double deck ports of the board. The J18/J22 connector on the system board allows you to connect 2 more optional USB 2.0/1.1 ports. These optional USB ports, which are mounted on a card-edge bracket, will be provided as an option. USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

BIOS

 Award BIOS, Windows® 98SE/2000/ME/XP Plug and Play com-

patible  Supports SCSI sequential boot-up  Flash EPROM for easy BIOS upgrades  Supports DMI 2.0 function

Desktop Management Interface (DMI)

The system board comes with a DMI 2.0 built into the BIOS. The DMI utility in the BIOS automatically records various information about your system configuration and stores these information in the DMI pool, which is a part of the system board's Plug and Play BIOS. DMI, along with the appropriately networked software, is designed to make inventory, maintenance and troubleshooting of computer systems easier. Refer to chapter 4 for instructions on using the DMI utility.

1.1.2 System Health Monitor Functions

The system board is capable of monitoring the following system health conditions.

 Monitors CPU/system temperature and overheat alarm  Monitors 5VSB/VBAT/1.5V/3.3V/5V/±12V/CPU voltages and

failure alarm  Monitors the fan speed of the CPU fan, chassis fan and second

fan; and failure alarm  Automatic chassis fan and second fan on/off control

Introduction

 Read back capability that displays temperature, voltage and fan

speed

 Opened chassis alarm

Refer to the PC Health Status section in chapter 3 and the Hardware Doctor section in chapter 4 for more information.

1.1.3 Intelligence

Automatic Chassis and Second Fans Off

The chassis and second fans will automatically turn off once the system enters the Suspend mode.

Dual Function Power Button

Depending on the setting in the Soft-Off By PWR-BTTN field of the Power Management Setup, this switch will allow the system to

enter the Soft-Off or Suspend mode.

Wake-On-Ring

This feature allows the system that is in the Suspend mode or Soft Power Off mode to wake-up/power-on to respond to calls coming through an internal or external modem. Refer to Wake-On-Ring Connector in chapter 2 and Resume On Ring in the Power Management Setup section in chapter 3 for more information.

Important:

If you are using a modem add-in card, the 5VSB power source of your power supply must support ≥720mA.

Wake-On-LAN

The Wake-On-LAN function allows the network to remotely wake up a Soft Power Down (Soft-Off) PC . Your LAN card must support the remote wakeup function. Refer to Wake-On-LAN Connector in chapter 2 and Resume On LAN in the Power Management Setup section in chapter 3 for more information.

Important:

The 5VSB power source of your power supply must support

≥

720mA.

Introduction

Wake-On-Keyboard/Wake-On-Mouse

This function allows you to use the keyboard or PS/2 mouse to power-on the system. Refer to Jumper Settings for Wake-OnKeyboard/Wake-On-Mouse in chapter 2 and Keyboard/Mouse Power On in the Integrated Peripherals section in chapter 3 for more information.

Important:

 The power button will not function once a keyboard

password has been set in the KB Power On Password field of the Integrated Peripherals submenu. You must type the correct password to power-on the system. If you forgot the password, power-off the system and remove the battery. Wait for a few seconds and install it back before powering-on the system.

 The 5VSB power source of your power supply must

support ≥720mA.

Wake-On-USB Keyboard

The Wake-On-USB Keyboard function allows you to use a USB keyboard to wake up a system that is in the S3 (STR - Suspend To RAM) state. Refer to Jumper Settings for Wake-On-USB Keyboard in chapter 2 and USB KB Wake-Up From S3 in the Power Management Setup section in chapter 3 for more information.

Important:

 If you are using the Wake-On-USB Keyboard function for 2

USB ports, the 5VSB power source of your power supply must support ≥1.5A.

 If you are using the Wake-On-USB Keyboard function for 4

to 6 USB ports, the 5VSB power source of your power supply must support ≥2A.

RTC Timer to Power-on the System

The RTC installed on the system board allows your system to automatically power-on on the set date and time. Refer to Resume By Alarm in the Power Management Setup section in chapter 3 for more information.

Introduction

ACPI STR

The system board is designed to meet the ACPI (Advanced Configuration and Power Interface) specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. Currently, only Windows® 98SE/2000/ME/XP supports the ACPI function. ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM function.

With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting Standby when you shut down Windows® 98SE/2000/ME/XP without having to go through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memor y) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system.

Important:

The 5VSB power source of your power supply must support

≥

1A.

AC Power Failure Recovery

When power returns after an AC power failure, you may choose to either power-on the system manually, let the system power-on automatically or return to the state where you left off before power failure occurs. Refer to PWR Lost Resume State in the Integrated Peripherals section in chapter 3 for more information.

Virus Protection

Most viruses today destroy data stored in hard drives. The system board is designed to protect the boot sector and partition table of your hard disk drive.

Introduction

1.2 Package Checklist

The system board package contains the following items:

; The system board ; A user’s manual ; One IDE cable ; One FDD cable ; One I/O shield ; One “Main Board Utility” CD

If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

Hardware Installation

2.1 System Board Layout

Chapter 2 - Hardware Installation

Mouse

COM 1 (CN1)

Parallel (CN2)

COM 2 (CN3)

Wake-OnKB/Mouse (JP1)

Socket 478

CPU fan

(J1)

ATX Main Power

Second fan

(J4)

J14

FDD

SecondaryIDE

Primary IDE

Battery

Clear CMOS

(JP3)

Firmware

Hub

Winbond

W83627

PCI Standby Power LED

PWR-LED

HD-LED

AC’97

Front audio (J13)

CPU FSB select (JP2)

+12V power (ATXP2)

Intel

RG82845

Intel

82801BD

USB 6 select

(J20 & J21)

CD-in (J7)

DIMM Standby

Power LED

AGP Slot

PCI 1 Slot

PCI 2 Slot

PCI 3 Slot

PCI 4 Slot

PCI 5 Slot

CNR Slot

AUX-in (J10)

TAD (J11)

Wake-On-Ring (J12)

DDR SDRAM

DIMM 1

ATXP1

DDR SDRAM

DIMM 2

USB 5/6 (J18/J22)

J24

ATX-SW

G-LED

Factory use only (J3)

G-SW

RESET

SPEAKER

CN4

LAN

Line-

out

Line-

Mic-

Intel

82562

Game/MIDI (J15)

IrDA (J16)

Chassis open (J19)

Wake-On-

LAN (J17)

Chassis

fan (J23)

Square denotes pin 1

USB 1

USB 2

Wake-On-USB KB for USB 1/2/3/4 (JP5)

USB 3

USB 4

J20

J21

Wake-On-USB KB for USB 5/6 (JP4)

Hardware Installation

2.2 System Memory

Warning:

Electrostatic discharge (ESD) can damage your system board, processor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

The system board is equipped with two 184-pin DDR SDRAM DIMM (Dual In-line Memory Module) sockets that suppor t 2.5V DDR SDRAM DIMM. Double Data Rate SDRAM (DDR SDRAM) is a type of SDRAM that doubles the data rate through reading and writing at both the rising and falling edge of each clock. This effectively doubles the speed of operation therefore doubling the speed of data transfer.

The system board also supports the ECC (Error Checking and Correction) function. To use this function, you must install DIMM that supports parity. Refer to chapter 1 (System Memory section) for detailed specification of the memory supported by the system board. Memor y Frequency For in the Advanced Chipset Features submenu of the BIOS must be set accordingly.

DDR SDRAM

DIMM 1

DDR SDRAM

DIMM 2

Hardware Installation

2.2.1 Installing the DIM Module

A DIM module simply snaps into a DIMM socket on the system board. Pin 1 of the DIM module must correspond with Pin 1 of the socket.

1. Pull the tabs which are at the ends of the socket to the side.

2. Position the DIMM above the socket with the notch in the module aligned with the key on the socket.

3. Seat the module ver tically into the socket. Make sure it is completely seated. The tabs will hold the DIMM in place.

Pin 1

Notch

Key

Tab

Hardware Installation

2.3 Jumper Settings for Clearing CMOS Data

Clear CMOS Data - Jumper JP3

If you encounter the following,

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password. c) You are unable to boot-up the computer system because the

processors ratio/clock was incorrectly set in the BIOS.

you can reconfigure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system.

2. Set JP3 pins 2 and 3 to On. Wait for a few seconds and set JP3 back to its default setting, pins 1 and 2 On.

2-3 On:

Clear CMOS Data

1-2 On: Normal

(default)

Clear CMOS

(JP3)

123

12 3

Hardware Installation

3. Now power-on the system.

If your reason for clearing the CMOS data is due to incorrect setting of the processors ratio/clock in the BIOS, please proceed to step 4.

4. After powering-on the system, press <Del> to enter the main menu of the BIOS.

5. Select the CPU Frequency Control submenu and press <Enter>.

6. Set the CPU Clock Ratio or Clock By Slight Adjust field to its default setting or an appropriate frequency ratio or bus clock. Refer to the CPU Frequency Control section in chapter 3 for more information.

7. Press <Esc> to return to the main menu of the BIOS setup utility. Select Save & Exit Setup and press <Enter>.

8. Type <Y> and press <Enter>.

Hardware Installation

2.4 Jumper Settings for Wake-On-Keyboard/ Wake-On-Mouse

Wake-On-Keyboard/Wake-On-Mouse - Jumper JP1

The Wake-On-Keyboard/Wake-On-Mouse function allows you to use the keyboard or PS/2 mouse to power-on the system. By default, JP1 is disabled. To use this function, set JP1 to 2-3 On. Keyboard/ Mouse Power On in the Integrated Peripherals submenu of the BIOS must be set accordingly. Refer to chapter 3 for details.

Warning:

1. If JP1 was enabled with a password set in the KB Power On Password field, and now you wish to disable the keyboard password function, make sure to set the Keyboard/Mouse Power On field to Disabled prior to setting JP1 to disabled. You will not be able to boot up the system if you fail to do so.

2-3 On: Enable

1-2 On: Disable

(default)

123

Wake-OnKB/Mouse (JP1)

Hardware Installation

2. The power button will not function once a keyboard password has been set in the KB Power On Password field of the Integrated Peripherals submenu. You must type the correct password to power-on the system.

3. The 5VSB power source of your power supply must support ≥720mA.

Hardware Installation

2.5 Jumper Settings for Wake-On-USB Keyboard

2-3 On: Enable

1-2 On: Disable

(default)

123

JP5

JP4

123

JP5

JP4

1 2 3

Wake-On-USB KB for USB 1/2/3/4 (JP5)

123

Wake-On-USB KB for USB 5/6 (JP4)

Wake-On-USB Keyboard for USBs 1 to 4 - Jumper JP5 and Wake-On-USB Keyboard for USBs 5 and 6 - Jumper JP4

The Wake-On-USB Keyboard function allows you to use a USB keyboard to wake up a system that is in the S3 (STR - Suspend To RAM) state.

Regardless of the USB port used, make sure USB KB Wake-Up From S3 in the Power Management Setup submenu of the BIOS is set to Enabled.

Hardware Installation

Important:

 If you are using the Wake-On-USB Keyboard function for 2

USB ports, the 5VSB power source of your power supply must support ≥1.5A.

 If you are using the Wake-On-USB Keyboard function for 3

or more USB ports, the 5VSB power source of your power supply must support ≥2A.

Hardware Installation

2.6 Jumper Settings for Selecting the CPUs Front Side Bus

CPU Front Side Bus Select - Jumper JP2

This jumper is used to select the front side bus of the processor installed on the system board.

1-2 On: 100MHz

2-3 On: Auto

(default)

CPU FSB select (JP2)

1 2 3

All Off: 133MHz

Hardware Installation

2.7 Jumper Settings for USB 6

J20

J21

1-2 On: USB 6 on J18/J22

(default)

2-3 On: USB 6 on CNR

USB 6 Select - Jumpers J20 and J21

These jumpers are used to select USB 6s location. Set pins 1 and 2 to On if you want USB 6 on J18/J22. Set pins 2 and 3 to On if you want USB 6 on CNR.

J20

J21

USB 6 select

(J20 & J21)

J20

1 2 3

J21

Hardware Installation

2.8 Factory Use Jumper

Factory Use Only - Jumper J3

This jumper is for factor y use only. Please leave it in its default setting - pins 1 and 2 On. Reconfiguring this jumper may cause problems.

Factory use only (J3)

123

1-2 On: Default

123

Hardware Installation

2.9 Ports and Connectors

PS/2

Mouse

PS/2

K/B

COM 1

RJ45 LAN

USB 4/3

Parallel

USB 1

USB 2

COM 2

Line-out

Line-in

Mic-in

Hardware Installation

2.9.1 PS/2 Mouse and PS/2 Keyboard Ports

PS/2 Mouse

PS/2 Keyboard

The system board is equipped with an onboard PS/2 mouse (Green) and PS/2 keyboard (Purple) ports - both at location J2 of the ATX double deck ports of the system board. The PS/2 mouse port uses IRQ12. If a mouse is not connected to this port, the system will reserve IRQ12 for other expansion cards.

The Wake-On-Keyboard/Wake-On-Mouse function allows you to use the keyboard or PS/2 mouse to power-on the system. Refer to Jumper Settings for Wake-On-Keyboard/Wake-On-Mouse in chapter 2 and Keyboard/Mouse Power On in the Integrated Peripherals section in chapter 3 for more information.

Warning:

Make sure to turn off your computer prior to connecting or disconnecting a mouse or keyboard. Failure to do so may damage the system board.

Mouse

(Green)

(Purple)

Hardware Installation

2.9.2 Serial Ports

COM 1

Serial Port

COM 2

Serial Port

The system board is equipped with onboard serial ports (COM 1: CN1 and COM 2: CN3) - both in Teal/Turquoise color located at the ATX double deck ports of the board.

These ports are RS-232C asynchronous communication por ts with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices. You can set the serial ports I/O address in the Integrated Peripherals submenu of the BIOS.

CN1

CN3

COM 1

(Teal/Turquoise)

COM 2

Hardware Installation

2.9.3 Parallel Port

The system board has a standard parallel por t (CN2 - Burgundy) located at the ATX double deck ports of the board for interfacing your PC to a parallel printer. It supports SPP, ECP, EPP and PntMode modes. You can select the por ts mode in the Integrated Peripherals submenu of the BIOS.

Parallel Port

CN2

Parallel

(Burgundy)

Hardware Installation

Setting

SPP (Standard Parallel Port)

ECP (Extended Capabilities Port)

EPP (Enhanced Parallel Por t)

PntMode

Function

Allows normal speed operation but in one direction only.

Allows parallel port to operate in bidirectional mode and at a speed faster than the SPPs data transfer rate.

Allows bidirectional par allel port operation at maximum speed.

Allows parallel port to operate in bipolar mode.

Hardware Installation

2.9.4 Universal Serial Bus Ports

Function

VCC

UP5-

UP5+

Ground

Key

Function

VCC

UP6-

UP6+

Ground

N. C.

Function

Ground

UP5+

UP5-

VCC

Onboard USB Ports (J5 and J6)

Additional USB Ports (J18/J22)

USB

(Black)

USB

(Black)

USB

(Black)

USB

(Black)

USB

(J18/J22)

Hardware Installation

The system board supports 6 USB 2.0/1.1 ports. USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals. You must have the proper drivers installed in your operating system to use the USB ports. Refer to your operating systems manual or documentation.

Four onboard USB 2.0/1.1 ports (J5 and J6 - Black) are located at the ATX double deck ports of the board.

Depending on the type of USB port cable that you are using, the J18/J22 connector on the system board allows you to connect 2 more optional USB 2.0/1.1 ports. These optional USB ports, which are mounted on a card-edge bracket, will be provided as an option. If you wish to use the optional USB ports, install the card-edge bracket to the system chassis then insert the connector that is attached to the USB por t cables to J18/J22.

Insert the USB por t cable connector to pins 1-10 if:

 One of the holes on the cable connector is plugged, meaning the

cable connector has a keying mechanism.

Insert the USB por t cable connector to pins 6-15 if:

 None of the holes on the cable connector is plugged, meaning

the cable connector has no keying mechanism.

The system board supports the Wake-On-USB Keyboard function. This function allows you to use a USB keyboard to wake up a system that is in the S3 (STR - Suspend To RAM) state. Refer to Jumper Settings for Wake-On-USB Keyboard in this chapter and USB KB Wake-Up From S3 in the Power Management Setup section in chapter 3 for more information.

Hardware Installation

2.9.5 RJ45 Fast-Ethernet Port

The system board is equipped with an onboard RJ45 fast-ethernet LAN port at location J6 of the ATX double deck ports. It allows the system board to connect to a local area network by means of a network hub. You may enable or disable the onboard LAN in the Integrated Peripherals submenu of the BIOS.

RJ45 LAN

RJ45

LAN

Hardware Installation

2.9.6 Audio Jacks

Front Audio (J13)

Function

Mic+

Mic_Vbias

AuD_R_Out

N. C.

AuD_L_Out

Function

Ground

AuD_Vcc (Avcc)

N. C.

Key

N. C.

CN4

Line-In (Light Blue)

Line-Out (Lime)

Mic-In (Pink)

Front audio (J13)

2 1

Hardware Installation

Onboard Audio Jacks

The system board is equipped with 3 audio jacks. A jack is a onehole connecting interface for inserting a plug.

Line-out Jack (Lime)

This jack is used to connect external speakers for audio output from the system board.

Line-in Jack (Light Blue)

This jack can be connected to the line-out jack of any external audio devices such as Hi-fi set, CD player, AM/FM radio tuner, synthesizer, etc. Connect a stereo cable from the line-out jack of your external device to this line-in jack.

Mic-in Jack (Pink)

Connect a microphone to the mic-in jack.

Front Audio (J13)

J13 provides you the option of connecting another line-out and micin jacks.

Hardware Installation

2.9.7 Game/MIDI Port

The system board is equipped with a connector at location J15 for connecting an external game/MIDI port. The Game/MIDI port that will be connected to J15 must be identical to that of a standard PC game adapter or game I/O port to ensure that it works well with any application that is compatible with the standard PC joystick.

2 1

16 15

Game/MIDI

(J15)

Hardware Installation

2.9.8 Internal Audio Connectors

AUX-in and CD-in

These connectors are used to receive audio from a CD-ROM drive, TV tuner or MPEG card.

Function

Left audio channel

Ground

Right audio channel

Function

Modem-out (from modem)

Ground

Modem-in (to modem)

TA D

TAD is a connector for telephony audio devices such as voice modem cards. By installing a PCI voice modem card that is also equipped with a TAD connector, connect one end of the cable (that came with the card) to the cards TAD connector and the other end to the TAD connector on the system board. The voice modem will interface with the onboard audio allowing voice to come from the external speaker.

1234

CD-in (J7)

AUX-in (J10)

TAD (J11)

Hardware Installation

2.9.9 Floppy Disk Drive Connector

The system board is equipped with a shrouded floppy disk drive connector that supports two standard floppy disk drives. To prevent improper floppy cable installation, the shrouded floppy disk header has a keying mechanism. The 34-pin connector on the floppy cable can be placed into the header only if pin 1 of the connector is aligned with pin 1 of the header. You may enable or disable this function in the Integrated Peripherals submenu of the BIOS.

Connecting the Floppy Disk Drive Cable

1. Install the 34-pin header connector of the floppy disk drive cable into the shrouded floppy disk header (J14) on the system board. The colored edge of the ribbon should be aligned with pin 1 of J14.

2. Install the other 34-pin header connector(s) into the disk drive(s). Align the colored edge of the daisy chained ribbon cable with pin 1 of the drive edge connector(s). The end-most connector should be attached to the drive you want to designate as Drive A.

FDD (J14)

Hardware Installation

2.9.10 IDE Disk Drive Connector

The system board is equipped with two shrouded PCI IDE headers that will interface four Enhanced IDE (Integrated Drive Electronics) disk drives. To prevent improper IDE cable installation, each shrouded PCI IDE header has a keying mechanism. The 40-pin connector on the IDE cable can be placed into the header only if pin 1 of the connector is aligned with pin 1 of the header. You may enable or disable the onboard primary or secondary IDE controller in the Integrated Peripherals submenu of the BIOS.

Connecting the IDE Disk Drive Cable

1. If you are connecting two IDE drives, install the 40-pin connector of the IDE cable into the primary shrouded IDE header (J9). If you are adding a third or fourth IDE device, install the 40-pin connector of the other IDE cable into the secondary shrouded IDE header (J8).

2. Install the other 40-pin header connector(s) into the device with the colored edge of the ribbon cable aligned with pin 1 of the drive edge connector(s).

Note:

Refer to your disk drive users manual for information about selecting proper drive switch settings.

Secondary

IDE (J8)

Primary IDE (J9)

Hardware Installation

Adding a Second IDE Disk Drive

When using two IDE drives, one must be set as the master and the other as the slave. Follow the instructions provided by the drive manufacturer for setting the jumpers and/or switches on the drives.

The system board supports Enhanced IDE or ATA-2, ATA/33, ATA/66 or ATA/100 hard drives. We recommend that you use hard drives from the same manufacturer. In a few cases, drives from two different manufacturers will not function properly when used together. The problem lies in the hard drives, not the system board.

Important:

If you encountered problems while using an ATAPI CD-ROM drive that is set in Master mode, please set the CD-ROM drive to Slave mode. Some ATAPI CD-ROMs may not be recognized and cannot be used if incorrectly set in Master mode.

Hardware Installation

2.9.11 IrDA Connector

Function

VCC

N. C.

IRRX

Ground

IRTX

The system board is equipped with an IrDA connector for wireless connectivity between your computer and peripheral devices. The IRDA (Infrared Data Association) specification supports data transfers of 115K baud at a distance of 1 meter.

Connect your IrDA cable to connector J16 on the system board. Set UART2 Mode Select in the Integrated Peripherals submenu of the BIOS to the type of IrDA standard supported by your device. You must have the proper drivers installed in your operating system to use this connector. Refer to your operating systems manual or documentation.

Note:

The sequence of the pin functions on some IrDA cable may be reversed from the pin function defined on the system board. Make sure to connect the cable to the IrDA connector according to their pin functions.

12345

IrDA (J16)

Hardware Installation

2.9.12 CPU Fan Connector

Function

Ground

Power

Sense

The processor must be kept cool by using a fan with heatsink. Connect the CPU fan to the 3-pin fan connector at location J1 on the system board. The system is capable of monitoring the speed of the CPU fan.

321

CPU fan

(J1)

Hardware Installation

2.9.13 Chassis Fan Connector

Function

Ground

On/Off

Sense

If you are installing a chassis fan in the system unit, connect the fans connector to location J23 on the system board. The fan will provide adequate airflow throughout the chassis to prevent overheating the processor. The system is capable of monitoring and controlling the speed of the chassis fan. The chassis fan will automatically turn off once the system enters the Suspend mode.

Chassis fan

(J23)

321

Hardware Installation

2.9.14 Second Fan Connector

Function

Ground

On/Off

Sense

If you are installing a second fan in the system unit, connect the fans connector to location J4 on the system board. The system is capable of monitoring and controlling the speed of the second fan. The second fan will automatically turn off once the system enters the Suspend mode.

321

Second fan

(J4)

Hardware Installation

2.9.15 Wake-On-LAN Connector

Function

WOL

Ground

+5VSB

The system board suppor ts the Wake-On-LAN function. This function will allow the network to remotely power-on a Soft Power Down (Soft-Off) PC. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA interrupt.

To use the Wake-On-LAN function, you must enable the Resume on LAN field in the Power Management Setup of the BIOS. Your LAN card package should include a cable. Connect one end of the cable to the wakeup header on the card and the other end to location J17 on the system board. The network will detect Magic Packet and assert a wakeup signal to power-up the system. Refer to the add-in cards manual for details. Note: Your LAN card must support the remote wake up function.

Important:

The 5VSB power source of your power supply must support

≥

720mA.

Wake-On-LAN (J17)

123

Hardware Installation

2.9.16 Wake-On-Ring Connector

Function

Ground

RI#

The Wake-On-Ring connector is used to connect to an internal modem card that has the same connector. It will allow the system that is in the Suspend mode or Soft Power Off mode to wake-up/ power-on to respond to calls coming through the internal modem card.

To use this function, connect one end of the cable (that came with the card) to the cards wake-on-ring connector and the other end to location J12 on the system board. You must also enable the Resume on Ring field in the Power Management Setup of the BIOS.

If you are using an external modem, the ring-on function will come through the serial port where the external modem is connected.

Important:

If you are using a modem add-in card, the 5VSB power source of your power supply must support ≥720mA.

Wake-On-Ring (J12)

Hardware Installation

2.9.17 Chassis Open Connector

Function

Ground

Chassis signal

N. C.

+5V

The chassis open function, when enabled, will alert you that the system chassis is open.

To use this function:

1. Connect the chassis sensor cable that is attached on your system chassis to location J19 on the system board.

2. Install the Hardware Doctor utility contained in the provided CD. By default, this function is disabled. When enabled, a warning message will appear when the chassis is open. The utility may also be configured so that a beeping alarm will sound when the chassis is open. Refer to the Hardware Doctor section in chapter 4 for instructions on installing the utility.

Chassis open (J19)

1234

Hardware Installation

Important:

Lighted LEDs serve as a reminder that you must power-off the system then turn off the power supplys switch or unplug the power cord prior to installing any memory modules or add-in cards.

2.9.18 DIMM and PCI Standby Power LEDs

DIMM Standby Power LED

This LED will turn red when the systems power is on or when it is in the Suspend state (Power On Suspend or Suspend to RAM). It will not light when the system is in the Soft-Off state.

PCI Standby Power LED

This LED will turn red when the system is in the power-on, Soft-Off or Suspend (Power On Suspend or Suspend to RAM) state.

PCI Standby Power LED

DIMM Standby

Power LED

Hardware Installation

2.9.19 Power Connectors

We recommend that you use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. An ATX12V power supply has a standard 20-pin ATX main power connector and a 4-pin +12V power connector that must be inserted onto ATXP1 and ATXP2 connectors respectively.

The 4-pin +12V power connector enables the delivery of more +12VDC current to the processors Voltage Regulator Module (VRM).

The system board requires a minimum of 250 Watt power supply to operate. Your system configuration (amount of memory, add-in cards, peripherals, etc.) may exceed the minimum power requirement. To ensure that adequate power is provided, use a 300 Watt (or greater) power supply.

ATX Main Power

(ATXP1)

+12V power (ATXP2)

Hardware Installation

Function

3.3V

Ground

+5V

Ground

+5V

Ground

PW-OK

5VSB

+12V

Function

3.3V

-12V

Ground

PS-ON

Ground

-5V

+5V

ATX Main Power Connector

Function

Ground

+12V

+12V Power Connector

Hardware Installation

2.9.20 Front Panel Connectors

HD-LED: Primary/Secondary IDE LED

This LED will light when the hard drive is being accessed.

G-LED: Green LED

This LED will not light when the systems power is on or when the system is in the S3 (STR - Suspend To RAM) state. It will blink every second when the system is in the S1 (POS - Power On Suspend) state.

ATX-SW: ATX Power Switch

Depending on the setting in the BIOS setup, this switch is a dual function power button that will allow your system to enter the SoftOff or Suspend mode. Refer to Soft-Off By PWR-BTTN in the Power Management Setup (Chapter 3).

G-SW: Green Switch

This switch will allow your system to enter the Suspend mode.

RESET: Reset Switch

This switch allows you to reboot without having to power off the system thus prolonging the life of the power supply or system.

SPEAKER: Speaker Connector

This connects to the speaker installed in the system chassis.

Front panel

connectors (J24)

Hardware Installation

PWR-LED: Power/Standby LED

When the systems power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.

Note:

If a system did not boot-up and the Power/Standby LED did not light after it was powered-on, it may indicate that the CPU or memory module was not installed properly. Please make sure they are properly inserted into their corresponding socket.

3 5

14 16

18 20

7 9

13 15 17 19

2 4 6

HD-LED

(Primary/Secondary IDE LED)

G-LED

(Green LED)

ATX-SW

(ATX power switch)

G-SW

(Green switch)

RESET

(Reset switch)

SPEAKER

(Speaker connector)

PWR-LED

(Power/Standby LED)

Pin Assignment

HDD LED Power HDD

Green LED Power Ground

PWRBT+ PWRBT-

Ground SMI

Ground H/W Reset

Speaker Data N. C. Ground Speaker Power

LED Power (+) LED Power (+) LED Power (-) or Standby Signal

Award BIOS Setup Utility

3.1 The Basic Input/Output System

The Basic Input/Output System (BIOS) is a program that takes care of the basic level of communication between the processor and peripherals. In addition, the BIOS also contains codes for various advanced features found in this system board. This chapter explains the Setup Utility for the Award BIOS.

After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the following message will appear on the screen:

Press DEL to enter setup

If the message disappears before you respond, restart the system or press the Reset button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

When you press <Del>, the main menu screen will appear.

3.1.1 Standard CMOS Features

Use the arrow keys to highlight Standard CMOS Features and press <Enter>. A screen similar to the one on the next page will appear.

Chapter 3 - Award BIOS Setup Utility

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features

Advanced BIOS Features

Advanced Chipset Features

Integrated Peripherals

Power Management Setup

PnP/PCI Configurations

PC Health Status

CPU Frequency Control

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Esc F10

: Quit : Save & Exit Setup

↑↓→← : Select Item

Time, Date, Hard Disk Type...

Award BIOS Setup Utility

Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1994 to 2079.

Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

IDE Primary Master, IDE Primary Slave, IDE Secondary Master and IDE Secondary Slave

Move the cursor to the IDE Primary Master, IDE Primary Slave, IDE Secondary Master or IDE Secondary Slave field, then press <Enter>.

IDE HDD Auto Detection

Detects the parameters of the drive. The parameters will automatically be shown on the screen.

The settings on the screen are for reference only. Your version may not be identical to this one.

↑↓→← Move

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features

Date (mm:dd:yy) Time (hh:mm:ss)

IDE Primary Master IDE Primary Slave IDE Secondary Master IDE Secondary Slave

Drive A Drive B

Video Halt On

Base Memory Extended Memory Total Memory

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General Help

Thu, Feb 13 2003 4 : 35 : 5

Press Enter None Press Enter None Press Enter None Press Enter None

1.44M, 3.5 in. None

EGA/VGA All, But Keyboard

640K 129024K 130048K

Item Help

Menu Level

Change the day, month, year and century

Enter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

u u u

Award BIOS Setup Utility

IDE Primary/Secondary Master/Slave

If you wish to define your own drive type manually, select Manual. The drive type information should be included in the documentation from your hard disk vendor. If you select Auto, the BIOS will auto-detect the HDD & CD-ROM drive at the POST stage and show the IDE for the HDD & CD-ROM drive. If a hard disk has not been installed, select None.

Capacity

Displays the approximate capacity of the disk drive. Usually the size is slightly greater than the size of a formatted disk given by a disk checking program.

Access Mode

For hard drives larger than 528MB, you would typically select the LBA type. Certain operating systems require that you select Normal or Large . Please check your operating systems manual or Help desk on which one to select.

Drive A and Drive B

These fields identify the types of floppy disk drives installed.

None No floppy drive is installed 360K, 5.25 in. 5-1/4 in. standard drive; 360KB capacity

1.2M, 5.25 in. 5-1/4 in. AT-type high-density drive; 1.2MB capacity 720K, 3.5 in. 3-1/2 in. double-sided drive; 720KB capacity

1.44M, 3.5 in. 3-1/2 in. double-sided drive; 1.44MB capacity

2.88M, 3.5 in. 3-1/2 in. double-sided drive; 2.88MB capacity

Video

This field selects the type of video adapter used for the primary system monitor. Although secondary monitors are suppor ted, you do not have to select the type. The default setting is EGA/VGA.

EGA/VGA Enhanced Graphics Adapter/Video Graphics Array. For

EGA, VGA, SVGA and PGA monitor adapters.

CGA 40 Color Graphics Adapter. Power up in 40-column

mode.

CGA 80 Color Graphics Adapter. Power up in 80-column

mode.

Mono Monochrome adapter. Includes high resolution

monochrome adapters.

Award BIOS Setup Utility

Halt On

This field determines whether the system will stop if an error is detected during power up.

No Errors The system boot will not stop for any errors detected. All Errors The system boot will stop whenever the BIOS detects

a non-fatal error.

All, But Keyboard The system boot will not stop for a keyboard

error; it will stop for all other errors.

All, But Diskette The system boot will not stop for a disk error;

it will stop for all other errors.

All, But Disk/Key The system boot will not stop for a disk or

keyboard error; it will stop for all other errors.

Base Memory

Displays the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the motherboard or 640K for systems with 640K or more memory installed on the motherboard.

Extended Memory

Displays the amount of extended memory detected during boot-up.

Total Memory

Displays the total memory available in the system.

Award BIOS Setup Utility

3.1.2 Advanced BIOS Features

The Advanced BIOS Features allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

BIOS Flash Protect

Enabled This option will protect the system from unnecessary

updating or flashing of the BIOS. When enabled, it secures the BIOS therefore any updates to the BIOS will not take effect.

Disabled Disables the BIOS flash protect function, allowing you

to update or flash the BIOS any time needed.

Virus Warning

This field protects the boot sector and partition table of your hard disk drive. When this field is enabled, the Award BIOS will monitor the boot sector and partition table of the hard disk drive. If an attempt is made to write to the boot sector or partition table of the hard disk drive, the BIOS will halt the system and an error message will appear.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced BIOS Features

Item Help

Menu Level

Allows you to choose the VIRUS warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep

↑↓→← Move

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

F5:Previous Values

+/-/PU/PD:Value

F10:Save

ESC:Exit

X X

BIOS Flash Protect Virus Warning CPU L1 & L2 Cache Quick Power On Self Test First Boot Device Second Boot Device Third Boot Device Boot Other Device Swap Floppy Drive Boot Up Floppy Seek Boot Up NumLock Status Typematic Rate Setting

Typematic Rate (Chars/Sec) Typematic Delay (Msec)

Security Option APIC Mode MPS Version Control For OS OS Select For DRAM > 64MB HDD S.M.A.R.T. Capability Full Screen LOGO Show Small Logo (EPA) Show

Disabled Disabled Enabled Enabled Floppy HDD-0 LS/ZIP Enabled Disabled Disabled On Disabled

6 250

Setup Disabled

1.4 Non-OS2 Disabled Disabled Enabled

The screen above list all the fields available in the Advanced BIOS Features submenu, for ease of reference in this manual. In the actual CMOS setup, you have to use the scroll bar to view the fields. The settings on the screen are f or reference only. Your version may not be identical to this one.

Award BIOS Setup Utility

After seeing the error message, if necessary, you will be able to run an anti-virus program to locate and remove the problem before any damage is done.

Many disk diagnostic programs which attempt to access the boot sector table will cause the warning message to appear. If you are running such a program, we recommend that you first disable this field. Also, disable this field if you are installing or running certain operating systems like Windows® 98SE/2000/ME/XP or the operating system may not install nor work.

CPU L1 & L2 Cache

This field speeds up the memory access.

Quick Power On Self Test

This field speeds up Power On Self Test (POST) after you power on the system. When Enabled, the BIOS will shor ten or skip some check items during POST.

First Boot Device, Second Boot Device, Third Boot Device and Boot Other Device

Select the drive to boot first, second and third in the First Boot Device Second Boot Device and Third Boot Device fields respectively. The BIOS will boot the operating system according to the sequence of the drive selected. Set Boot Other Device to Enabled if you wish to boot from another device.

Award BIOS Setup Utility

Swap Floppy Drive

When this field is enabled and the system is booting from the floppy drive, the system will boot from drive B instead of drive A. When this field is disabled and the system is booting from the floppy drive, the system will boot from drive A. You must have two floppy drives to use this function.

Boot Up Floppy Seek

When enabled, the BIOS will check whether the floppy disk drive installed is 40 or 80 tracks. Note that the BIOS cannot distinguish between 720K, 1.2M, 1.44M and 2.88M drive types as they are all 80 tracks. When disabled, the BIOS will not search for the type of floppy disk drive by track number. Note that there will not be any warning message if the drive installed is 360KB.

Boot Up NumLock Status

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Typematic Rate Setting

Disabled Continually holding down a key on your keyboard will

cause the BIOS to repor t that the key is down.

Enabled The BIOS will not only repor t that the key is down,

but will first wait for a moment, and, if the key is still down, it will begin to report that the key has been depressed repeatedly. For example, you would use such a feature to accelerate cursor movements with the arrow keys. You can then select the typematic rate and typematic delay in the Typematic Rate (Chars/Sec) and Typematic Delay (Msec) fields below.

Award BIOS Setup Utility

Typematic Rate (Chars/Sec)

This field allows you to select the rate at which the keys are accelerated.

Typematic Delay (Msec)

This field allows you to select the delay between when the key was first depressed and when the acceleration begins.

Security Option

This field determines when the system will prompt for the password

- ever ytime the system boots or only when you enter the BIOS setup. Set the password in the Set Supervisor/User Password submenu.

System The system will not boot and access to Setup will be

denied unless the correct password is entered at the prompt.

Setup The system will boot, but access to Setup will be denied

unless the correct password is entered at the prompt.

APIC Mode

Leave this field in its default setting.

MPS Version Control for OS

This field is used to select the MPS version that the system board is using.

OS Select for DRAM > 64MB

This field allows you to access the memory that is over 64MB in OS/2.

Award BIOS Setup Utility

HDD S.M.A.R.T. Capability

The system board supports SMART (Self-Monitoring, Analysis and Reporting Technology) hard drives. SMART is a reliability prediction technology for ATA/IDE and SCSI drives. The drive will provide sufficient notice to the system or user to backup data prior to the drives failure. The default is Disabled. If you are using hard drives that support S.M.A.R.T., set this field to Enabled. SMART is supported in ATA/33 or later hard drives.

Full Screen Logo Show

This field is applicable only if you want a particular logo to appear during system boot-up.

Enabled The logo will appear in full screen during system boot-

up.

Disabled The logo will not appear during system boot-up.

Small Logo(EPA) Show

Enabled The EPA logo will appear during system boot-up. Disabled The EPA logo will not appear during system boot-up.

Award BIOS Setup Utility

3.1.3 Advanced Chipset Features

DRAM Timing Selectable

This field is used to select the timing of the DRAM.

By SPD The EEPROM on a DIMM has SPD (Serial

Presence Detect) data structure that stores information about the module such as the memory type, memor y size, memory speed, etc. When this option is selected, the system will run according to the information in the EEPROM.

By User It allows you to configure the 2 fields that follow

(CAS Latency Time and Active to Precharge Delay). The system will run according to the settings in these two fields.

CAS Latency Time

This field is used to select the local memory clock periods.

Active to Precharge Delay

The options are 5, 6 and 7.

The settings on the screen are for reference only. Your version may not be identical to this one.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Features

Item Help

Menu Level

↑↓→← Move

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

DRAM Timing Selectable

CAS Latency Time Active to Precharge Delay

DRAM Data Integrity Mode Memory Frequency For System BIOS Cacheable Video BIOS Cacheable Video RAM Cacheable Delayed Transaction AGP Aperture Size (MB) AGP 4X Mode

By SPD

2.5 7

Non-ECC Auto Disabled Disabled Disabled Enabled 64 Enabled

X X

Award BIOS Setup Utility

DRAM Data Integrity Mode

If you are using DIMMs that suppor t the ECC (Error Checking and Correction) function, set this field to ECC. It will allow the system to recover from memor y failure. It detects single-bit and multiple-bit errors, then automatically corrects single-bit error.

Memory Frequency For

This field is used to select the memory clock speed of the DIMM.

System BIOS Cacheable

When this field is enabled, accesses to the system BIOS ROM addressed at F0000H-FFFFFH are cached, provided that the cache controller is enabled. The larger the range of the Cache RAM, the higher the efficiency of the system.

Video BIOS Cacheable

As with caching the system BIOS, enabling the Video BIOS cache will allow access to video BIOS addresssed at C0000H to C7FFFH to be cached, if the cache controller is also enabled. The larger the range of the Cache RAM, the faster the video performance.

Video RAM Cacheable

When enabled, it allows the video RAM to be cacheable thus providing better video performance. If your graphics card does not support this function, leave this field in its default setting - Disabled.

Delayed Transaction

When enabled, this function frees up the PCI bus for other PCI masters during the PCI-to-ISA transactions. This allows PCI and ISA buses to be used more efficiently and prevents degradation of performance on the PCI bus when ISA accesses are made.

Award BIOS Setup Utility

AGP Aperture Size (MB)

This field is relevant to the memor y-mapped graphics data of the AGP card installed in your system. Leave this in its default setting.

AGP 4X Mode

This field is used to enable the AGP 4x interface which transfers video data at 1066MB/sec. bandwidth thus delivering faster and better graphics to your PC. Make sure your graphics card supports the AGP 4x mode.

Award BIOS Setup Utility

3.1.4 Integrated Peripherals

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals

INTEL OnChip IDE Device

Move the cursor to this field and press <Enter>. The following fields will appear.

On-Chip Primary PCI IDE and On-Chip Secondary PCI IDE

These fields allow you to enable or disable the primary and secondary IDE controller. Select Disabled if you want to add a different hard drive controller.

IDE Primary Master/Slave PIO and IDE Secondary Master/Slave PIO

PIO means Programmed Input/Output. Rather than have the BIOS issue a series of commands to effect a transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by themselves. Your system supports five modes, 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode after checking your drive.

Auto The BIOS will automatically set the system ac-

cording to your hard disk drives timing.

The settings on the screen are for reference only. Your version may not be identical to this one.

INTEL OnChip IDE Device INTEL OnChip PCI Device Onboard Super IO Device USB Controller USB Keyboard Support Init Display First IDE HDD Block Mode

Press Enter Press Enter Press Enter Enabled Disabled AGP Enabled

Item Help

Menu Level

↑↓→← Move

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

u u u

Award BIOS Setup Utility

Mode 0-4 You can select a mode that matches your hard

disk drives timing. Caution: Do not use the wrong setting or you will have drive errors.

IDE Primary Master/Slave UDMA and IDE Secondary Master/Slave UDMA

These fields allow you to set the Ultra DMA in use. When Auto is selected, the BIOS will select the best available option after checking your hard drive or CD-ROM.

Auto The BIOS will automatically detect the settings for

you.

Disabled The BIOS will not detect these categories.

INTEL OnChip PCI Device

Move the cursor to this field and press <Enter>. The following fields will appear.

AC97 Audio

Auto Select this option when using the onboard audio

codec, primary or secondar y audio riser card, or audio/modem riser card.

Disabled Select this option when using a PCI sound card.

AC97 Modem

Auto Select this option when using a primary or

secondary modem riser card, or audio/modem riser card.

Disabled Select this option when using a PCI modem card.

Onboard AC97 Codec

Enabled This option is used to enable the onboard AC97

codec.

Disabled This option is used to disable the onboard AC97

codec. Disable the onboard AC97 codec when using a 6-channel audio CNR card or an audio PCI card.

Award BIOS Setup Utility

CNR LAN Control

Enabled Select this option to use the LAN CNR board that

is installed in the CNR slot.

Disabled Select this option to disable the LAN CNR board

that is installed in the CNR slot.

Onboard LAN Control

This field is used to enable or disable the onboard LAN chip.

Onboard Super IO Device

Move the cursor to this field and press <Enter>. The following fields will appear.

KBC Input Clock

This is used to select the input clock of your keyboard.

Keyboard/Mouse Power On

This field allows you to use the keyboard or PS/2 mouse to power-on the system. To use this function, make sure JP1 is set to 2-3 On - the Wake-On-Keyboard/Mouse function enabled. Refer to Jumper Settings for Wake-On-Keyboard/Wake-On-Mouse in chapter 2 for more information.

Disabled Default setting.

Warning:

If JP1 was previously enabled with a password set in the KB Power On Password field, and now you wish to disable the keyboard password function, make sure to set this field to disabled prior to setting JP1 to disabled (1-2 On). You will not be able to boot up the system if you fail to do so.

Password When this option is selected, move the cursor to

the KB Power On Password field and press <Enter>. Enter your password. You can enter up to 5 characters. Type in exactly the same password to confirm, then press <Enter>.

Important:

The power button will not function once a keyboard password has been set in the KB

Award BIOS Setup Utility

Power On Password field. You must type the correct password to power-on the system. If you forgot the password, power-off the system and remove the battery. Wait for a few seconds and install it back before powering-on the system.

Hot Key When this option is selected, move the cursor to

the KB Power On Hot Key field to select a function key you would like to use to power-on the system. The options are from Ctrl-F1 to Ctrl-F12.

Mouse Left When this option is selected, double-click the

left button of the mouse to power-on the system.

Mouse Right When this option is selected, double-click the

right button of the mouse to power-on the system.

Any Key Press any key to power-on the system. Keyboard 98 When this option is selected, press the wake

up key of the Windows 98 compatible keyboard to power-on the system.

Onboard FDC Controller

Enabled Enables the onboard floppy disk controller. Disabled Disables the onboard floppy disk controller.

Onboard Serial Port 1 and Onboard Serial Port 2

Auto The system will automatically select an I/O address

for the onboard serial port 1 and serial por t 2.

3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3 Allows you to

manually select an I/O address for the onboard serial por t 1 and serial por t 2.

Disabled Disables the onboard serial port 1 and/or serial

port 2.

UART2 Mode Select

The system board suppor ts IrDA function for wireless connectivity between your computer and peripheral devices. You may not use IrDA (J16) and the COM 2 serial por t (CN3) at the same time. If you are using the COM 2 serial port, make sure this field is set to Normal.

Award BIOS Setup Utility

To use the IrDA function, follow the steps below.

1. Connect your IrDA cable to connector J16 on the system board.

2. Set the UART2 Mode Select field to the type of IrDA standard supported by your IrDA peripheral/device (IrDA or ASKIR). For better transmission of data, your IrDA peripheral device must be within a 30o angle and within a distance of 1 meter.

3. Set the RxD, TxD Active and IR Transmission Delay fields appropriately.

RxD, TxD Active

The options are Hi, Lo; Lo, Hi; Lo, Lo; and Hi, Hi.

IR Transmission Delay

If this field is Enabled, transmission of data will be slower. This is recommended when you encounter transmission problem with your device.

Onboard Parallel Por t

378/IRQ7, 3BC/IRQ7, 278/IRQ5 Selects the I/O address and

IRQ for the onboard parallel port.

Disabled Disables the onboard parallel port.

Parallel Port Mode

The options are SPP, EPP, ECP, ECP+EPP and PntMode. These apply to a standard specification and will depend on the type and speed of your device. Refer to your peripherals manual for the best option.

SPP

Allows normal speed operation but in one direction only.

ECP (Extended Capabilities Port)

Allows parallel por t to operate in bidirectional mode and at a speed faster than the normal modes data transfer rate.

EPP (Enhanced Parallel Port)

Allows bidirectional parallel por t operation at maximum speed.

PntMode

Allows parallel port to operate in bipolar mode.

Award BIOS Setup Utility

If you selected EPP, the EPP Mode Select field is configurable. If you selected ECP, the ECP Mode Use DMA field is configurable. If you selected ECP+EPP, both EPP Mode Select and ECP Mode Use DMA are configurable.

EPP Mode Select

This is used to select the EPP mode.

ECP Mode Use DMA

This is used to select the DMA channel of the parallel port.

PWR Lost Resume State

Keep Off When power returns after an AC power failure, the

systems power is off. You must press the Power button to power-on the system.

Turn On When power returns after an AC power failure, the

system will automatically power-on.

Last State When power returns after an AC power failure, the

system will return to the state where you left off before power failure occurs. If the systems power is off when AC power failure occurs, it will remain off when power returns. If the systems power is on when AC power failure occurs, the system will power-on when power returns.

Game Port Address

This field is used to select the game ports address.

Midi Port Address

This field is used to select the midi por ts address. If you have selected the midi ports address, you may select its IRQ in the Midi Port IRQ field.

Midi Port IRQ

This field is used to select the midi ports IRQ.

USB Controller

This field is used to enable or disable the USB controller.

Award BIOS Setup Utility

USB Keyboard Support

If you are using a USB keyboard under DOS, set this field to Enabled. This field can be configured only if the USB Controller field is enabled.

Init Display First

This field is used to select whether to initialize the AGP or PCI first when the system boots.

AGP When the system boots, it will first initialize the AGP. PCI Slot When the system boots, it will first initialize PCI.

IDE HDD Block Mode

Enabled The IDE HDD uses the block mode. The system BIOS

will check the hard disk drive for the maximum block size the system can transfer. The block size will depend on the type of hard disk drive.

Disabled The IDE HDD uses the standard mode.

Award BIOS Setup Utility

3.1.5 Power Management Setup

The Power Management Setup allows you to configure your system to most effectively save energy.

The settings on the screen are for reference only. Your version ma y not be identical to this one.

ACPI Function

This function should be enabled only in operating systems that support ACPI. Currently, only Windows® 98SE/2000/ME/XP supports this function. When this field is enabled, the system will ignore the settings in the Suspend Mode and HDD Power Down fields. If you want to use the Suspend to RAM function, make sure this field is enabled then select S3(STR) in the field below.

ACPI Suspend Type

This field is used to select the type of Suspend mode.

S1(POS) Enables the Power On Suspend function. S3(STR) Enables the Suspend to RAM function.

X X

Phoenix - AwardBIOS CMOS Setup Utility

Power Management Setup

ACPI Function ACPI Suspend Type Power Management Video Off Method Video Off In Suspend Suspend Mode HDD Power Down Soft-Off By PWR-BTTN Resume on PCI Event Resume on Ring Resume on LAN

USB KB Wake-Up From S3

Resume by Alarm

Date(of Month) Alarm Time (hh:mm:ss) Alarm

Enabled S1(POS) User Define DPMS Yes Disabled Disabled Instant-Off Disabled Disabled Disabled

Disabled

0 0 : 0 : 0

Item Help

Menu Level

↑↓→← Move

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

Award BIOS Setup Utility

Power Management

This field allows you to select the type (or degree) of power saving by changing the length of idle time that elapses before the HDD Power Down field is activated.

Min Saving Minimum power saving time for the HDD Power

Down = 15 min.

Max Saving Maximum power saving time for the HDD Power

Down = 1 min.

User Define Allows you to set the power saving time in the

HDD Power Down field.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC + Blank This selection will cause the system to turn

off the vertical and horizontal synchronization ports and write blanks to the video buffer.

Blank Screen This option only writes blanks to the video buffer. DPMS Initializes display power management signaling. Use

this option if your video board supports it.

Video Off In Suspend

This field is used to activate the video off feature when the system enters the Suspend mode.

Suspend Mode

When the system enters the Suspend mode, the CPU and onboard peripherals will be shut off.

HDD Power Down

This is configurable only when the Power Management field is set to User Define. When the system enters the HDD Power Down mode according to the power saving time selected, the hard disk drive will be powered down while all other devices remain active.

Award BIOS Setup Utility

Soft-Off by PWR-BTTN

This field allows you to select the method of powering off your system.

Hold 4 Sec. Regardless of whether the Power Management

function is enabled or disabled, if the power button is pushed and released in less than 4 sec, the system enters the Suspend mode. The purpose of this function is to prevent the system from powering off in case you accidentally hit or pushed the power button. Push and release again in less than 4 sec to restore. Pushing the power button for more than 4 seconds will power off the system.

Instant-Off Pressing and then releasing the power button at

once will immediately power off your system.

Resume on PCI Event

Enabled Access to the onboard LAN or a PCI card such as a

modem or LAN card will cause the system to wake up. The PCI card must support the wake up function.

Disabled The system will not wake up despite access to the PCI

card.

Resume On Ring

Set this field to Enabled to use the modem ring-on function. This will allow your system to power-on to respond to calls coming through an external or internal modem. Refer to Wake-On-Ring Connector in chapter 2 for more information.

Resume On LAN

If you are using a LAN card that supports the remote wake up function, set this field to Enabled. The will allow the network to remotely wake up a Soft Power Down (Soft-Off) PC. However, if your system is in the Suspend mode, you can wake up the system only through an IRQ or DMA interrupt. Refer to Wake-On-LAN Connector in chapter 2 for more information.

Award BIOS Setup Utility

USB KB Wake-Up From S3

This field, when enabled, allows you to use a USB keyboard to wake up a system that is in the S3 (STR - Suspend To RAM) state. This can be configured only if the ACPI Suspend Type field is set to S3(STR).

Resume By Alarm

Enabled When Enabled, you can set the date and time you

would like the Soft Power Down (Soft-Off) PC to power-on in the Date (of Month) Alarm and Time (hh:mm:ss) Alarm fields. However, if the system is being accessed by incoming calls or the network (Resume On Ring/LAN) prior to the date and time set in these fields, the system will give priority to the incoming calls or network.

Disabled Disables the automatic power-on function. (default)

Date (of Month) Alarm

0 The system will power-on everyday according to the

time set in the Time (hh:mm:ss) Alarm field.

1-31 Select a date you would like the system to power-on.

The system will power-on on the set date, and time set in the Time (hh:mm:ss) Alarm field.

Time (hh:mm:ss) Alarm

This is used to set the time you would like the system to power-on. If you want the system to power-on everyday as set in the Date (of Month) Alarm field, the time set in this field must be later than the time of the RTC set in the Standard CMOS Features submenu.

Award BIOS Setup Utility

3.1.6 PnP/PCI Configurations

This section describes configuring the PCI bus system. It covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

Reset Configuration Data

Enabled The BIOS will reset the Extended System Configuration

Data (ESCD) once automatically. It will then recreate a new set of configuration data.

Disabled The BIOS will not reset the configuration data.

Resources Controlled By

The Award Plug and Play BIOS has the capability to automatically configure all of the boot and Plug and Play compatible devices.

Auto(ESCD) The system will automatically detect the settings for

you.

Manual Choose the specific IRQ in the IRQ Resources

field.

The settings on the screen are for reference only. Your version may not be identical to this one.

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Configurations

Reset Configuration Data

Resources Controlled By

IRQ Resources

PCI/VGA Palette Snoop

* PCI IRQ Assignment *

Slot 1,5 Onboard AC97/Slot 2 Slot 3 Onboard USB/Slot 4

Disabled

Auto(ESCD)

Press Enter

Disabled

Auto Auto Auto Auto

Item Help

Menu Level

Default is Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the OS cannot boot.

↑↓→← Move

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

Award BIOS Setup Utility

IRQ Resources

This field is used to set each system interrupt to either PCI Device or Reserved.

PCI/VGA Palette Snoop

This field determines whether the MPEG ISA/VESA VGA cards can work with PCI/VGA or not.

Enabled MPEG ISA/VESA VGA cards work with PCI/VGA. Disabled MPEG ISA/VESA VGA cards does not work with PCI/

VGA.

PCI IRQ Assignment

By default, an IRQ is automatically assigned to the PCI devices that are installed in the PCI slots. If a PCI device has not been assigned an IRQ, you must manually assign an IRQ for the device. During system boot-up, you will see NA for the device that does not have an IRQ assigned.

Award BIOS Setup Utility

3.1.7 PC Health Status

Current System Temperature, Current CPU Temperature, Current Chassis Fan Speed, Current CPU Fan Speed and Current Second Fan Speed

These fields show the internal temperature of the system, current temperature of the CPU and the current fan speed of the chassis fan, CPU fan and second fan in RPM (Revolutions Per Minute).

CPU(V)

This field shows the voltage of the processor.

+1.5V, +3.3V, +5V, +12V, -12V, VBAT (V) and 5VSB (V)

These fields show the output voltage of the power supply.

The settings on the screen are for reference only. Your version may not be identical to this one.

Phoenix - AwardBIOS CMOS Setup Utility

PC Health Status

Current System Temp. Current CPU Temperature Current Chassis FAN Speed Current CPU FAN Speed Current Second FAN Speed CPU(V) : +1.5 V : +3.3 V : +5 V : +12 V :

-12 V : VBAT (V) : 5VSB (V) : Shutdown Temperature

27C/80F 40C/66F 0 RPM 0 RPM 0 RPM

75oC

Item Help

Menu Level

↑↓→← Move

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

1.75 V

1.56 V

3.31 V

5.05 V

12.03 V

-11.45 V

3.21 V

5.40 V

Award BIOS Setup Utility

Shutdown Temperature

This field is used to set the temperature that would shutdown the system in order to prevent system overheat.

Note:

The onboard hardware monitor function is capable of detecting system health conditions but if you want a warning message to pop-up or a warning alarm to sound when an abnormal condition occurs, you must install the Hardware Doctor utility. This utility is included in the CD that came with the system board. Refer to the Hardware Doctor section in chapter 4 for more information.

Award BIOS Setup Utility

3.1.8 CPU Frequency Control

The settings on the screen are for reference only. Your version may not be identical to this one.

Phoenix - AwardBIOS CMOS Setup Utility

CPU Frequency Control

CPU Clock Ratio CPU Vcore Adjust Auto Detect PCI Clk Spread Spectrum Modulated Clock By Slight Adjust PCI/AGP Clock Adjust

X 8 Default Enabled Enabled 100MHz Auto

Item Help

Menu Level

↑↓→← Move

F6:Fail-Safe Defaults F7:Optimized Defaults

F1:General HelpEnter:Select

F5:Previous Values

+/-/PU/PD:Value F10:Save ESC:Exit

CPU Clock Ratio

This field is used to select the frequency ratio of the processor.

Important:

The frequency ratio of some processors may have been locked by the manufacturer. If you are using this kind of processor, setting an extended ratio for the processor will have no effect. The system will instead use its factory default ratio.

CPU Vcore Adjust

This field allows you to manually select the CPUs voltage. If you wish to use the CPUs default core voltage, leave this field in its default setting. The CPUs Vcore will be generated according to the CPU VID configuration.

Important:

Although this function is supported, we do not recommend that you use a higher voltage because unstable current may be supplied to the system board causing damage.

Award BIOS Setup Utility

Auto Detect PCI Clk

When enabled, the system will automatically send clock signals to existing PCI devices.

Spread Spectrum Modulated

Leave this field in its default setting. Do not alter this setting unless advised by an engineer or technician.

Clock By Slight Adjust

This field provides several options for selecting the external system bus clock of the processor. The available options allow you to adjust the processors bus clock by 1MHz increment.

Important:

Selecting an external bus clock other than the default setting may result to the processors or systems instability and are not guaranteed to provide better system performance.

If you selected an option other than the default setting and is unable to boot up the system, there are 2 methods of booting up the system and going back to its default setting.

Method 1: Clear the CMOS data by setting JP3 to 2-3 On. All fields in the BIOS Setup will automatically be set to their default settings.

Method 2: Press the <Insert> key and power button simultaneously, then release the power button first. Keep-on pressing the <Inser t> key until the power-on screen appears. This will allow the system to boot according to the FSB of the processor. Now press the <Del> key to enter the main menu of the BIOS. Select CPU Frequency/Voltage Control and set the CPU Clock Ratio or Clock By Slight Adjust field to its default setting or an appropriate frequency ratio or bus clock.

Note:

Use a PS/2 or AT (requires a DIN to mini DIN adapter) keyboard for method 2.

Award BIOS Setup Utility

PCI/AGP Clock Adjust

This field is used to select the AGP clock. The number that appeared before the AGP clock is its corresponding PCI clock. For example, if you selected 33/66 MHz, 66MHz is the AGP clock and 33MHz is the PCI clock.

3.1.9 Load Fail-Safe Defaults

The Load Fail-Safe Defaults option loads the troubleshooting default values permanently stored in the ROM chips. These settings are not optimal and turn off all high performance features. You should use these values only if you have hardware problems. Highlight this option in the main menu and press <Enter>. The message below will appear.

Load Fail-Safe Defaults (Y/N)? N

If you want to proceed, type <Y> and press <Enter>. The default settings will be loaded.

3.1.10 Load Optimized Defaults

The Load Optimized Defaults option loads optimized settings from the BIOS ROM. Use the default values as standard values for your system. Highlight this option in the main menu and press <Enter>. The message below will appear.

Load Optimized Defaults (Y/N)? N

Type <Y> and press <Enter> to load the Setup default values.

Award BIOS Setup Utility

3.1.11 Set Supervisor Password

If you want to protect your system and setup from unauthorized entry, set a supervisors password with the System option selected in the Advanced BIOS Features. If you want to protect access to setup only, but not your system, set a supervisors password with the Setup option selected in the Advanced BIOS Features. You will not be prompted for a password when you cold boot the system.

Use the arrow keys to highlight Set Supervisor Password and press <Enter>. The message below will appear.

Enter Password:

Type in the password. You are limited to eight characters. When done, the message below will appear:

Confirm Password:

You are asked to verify the password. Type in exactly the same password. If you type in a wrong password, you will be prompted to enter the correct password again. To delete or disable the password function, highlight Set Supervisor Password and press <Enter>, instead of typing in a new password. Press the <Esc> key to return to the main menu.

3.1.12 Set User Password

If you want another user to have access only to your system but not to setup, set a users password with the System option selected in the Advanced BIOS Features. If you want a user to enter a password when trying to access setup, set a users password with the Setup option selected in the Advanced BIOS Features.

Using users password to enter Setup allows a user to access only Set User Password that appears in the main menu screen. Access to all other options is denied. To set, confirm, verify, disable or delete a users password, follow the procedures described in the section Set Supervisor Password.

Award BIOS Setup Utility

3.1.13 Save & Exit Setup

When all the changes have been made, highlight Save & Exit Setup and press <Enter>. The message below will appear:

Save to CMOS and Exit (Y/N)? N

Type Y and press <Enter>. The modifications you have made will be written into the CMOS memory, and the system will reboot. You will once again see the initial diagnostics on the screen. If you wish to make additional changes to the setup, press <Ctrl> <Alt> <Esc> simultaneously or <Del> after memory testing is done.

3.1.14 Exit Without Saving

When you do not want to save the changes you have made, highlight Exit Without Saving and press <Enter>. The message below will appear:

Quit Without Saving (Y/N)? N

Type Y and press <Enter>. The system will reboot and you will once again see the initial diagnostics on the screen. If you wish to make any changes to the setup, press <Ctrl> <Alt> <Esc> simultaneously or <Del> after memory testing is done.

Award BIOS Setup Utility

3.2 Updating the BIOS

To update the BIOS, you will need the new BIOS file and a flash utility, AWDFLASH.EXE. Please contact technical support or your sales representative for the files.

1. Save the new BIOS file along with the flash utility AWDFLASH.EXE to a floppy disk.

2. Reboot the system and enter the Award BIOS Setup Utility to set the first boot drive to Floppy.

3. Save the setting and reboot the system.

4. After the system booted from the floppy disk, execute the flash utility by typing AWDFLASH.EXE. The following screen will appear.

5. Type the new BIOS file name onto the gray area that is next to File Name to Program then press <Enter>.

Award BIOS Flash Utility V.8.15B

(The current BIOS information will appear in this area.)

File Name to Program :

Award BIOS Setup Utility

6. The following will appear.

Do You Want to Save BIOS (Y/N)

This question refers to the current existing BIOS in your system. We recommend that you save the current BIOS and its flash utility; just in case you need to reinstall the BIOS. To save the current BIOS, press <Y> then enter the file name of the current BIOS. Otherwise, press <N>.

7. The following will then appear.

Press Y to Program or N to Exit

8. Press <Y> to flash the new BIOS.

Supported Software

4.1 Hardware Doctor

The system board comes with the Hardware Doctor utility contained in the provided CD. This utility is capable of monitoring the system’s “health” conditions and allows you to manually set a range (Highest and Lowest Limit) to the items being monitored. If the settings/ values are over or under the set range, a warning message will popup. The utility can also be configured so that a beeping alarm will sound whenever an error occurs. We recommend that you use the “Default Setting” which is the ideal setting that would keep the system in good working condition.

Note:

Use this utility only in Windows

®®

98 SE, Windows

®®

ME,

Windows

®®

2000 or Windows

®®

XP operating system.

To install the utility, insert the CD (included in the system board package) into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click the “Hardware Doctor for Windows 98SE/ME/2000/XP” button to install the utility.

4.2 Intel 845 INF Update Utility for Windows

98SE/2000/ME/XP

The CD included in the system board package contains the Intel 845 INF Update utility. If you are using Windows® 98 SE, Windows

2000, Windows® ME or Windows® XP, you need to install the utility. The utility is used for updating Windows® 98SE/2000/ME/XP's INF files so that the Intel 845 chipset can be recognized and configured properly in the system.

Installing INF Update

1. Insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear.

2. Click “Intel 845 INF Update Utility for Windows 98SE/2000/ME/ XP”.

3. The “Welcome” screen will appear. Click “Next”.

Chapter 4 - Supported Software

Supported Software

4. The “Software License Agreement” screen will appear. Click “Yes”.

5. The “Readme Information” screen will appear. You can view the content of the utility’s readme in this screen. Click “Next”.

6. The “Choose Destination Location” screen will appear showing where the utility will be located. Click “Next”.

7. The “Actions” screen will appear. Click “Next” to install the utility.

8. Restart the system.

9. Follow the prompts on the screen to continue with the installation.

4.3 Audio Drivers and Software Applications

The CD also includes audio drivers and audio playback software for Windows® 98 SE, Windows® ME, Windows NT® 4.0 and Windows

2000 operating systems. For installation instructions or information about their corresponding “readme”, click the “Read Me” button in the autorun screen. The autorun screen normally appears after the CD is inserted into a CD-ROM drive.

4.4 Onboard LAN Drivers for Windows

The CD included in the system board package contains LAN drivers. Please refer to the readme file in the CD for more information.

4.5 Microsoft DirectX 8.1 Driver

1. Insert the CD that came with the system board package into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear.

2. Click “Microsoft DirectX 8.1 Driver”.

3. Click “Yes” to continue.

4. Follow the prompts on the screen to complete installation.

5. Restart the system.

Supported Software

4.6 USB 2.0 Drivers

Click “USB 2.0 Drivers” on the main menu. A readme file about the driver will appear.

Windows

If your Windows® XP CD already includes Service Pack 1, the USB

2.0 driver will automatically install when you install the operating system. If the CD does not include Service Pack 1, it is available for download at Microsoft’s Windows Update website.

Windows

2000

If your Windows® 2000 CD already includes Service Pack 4, the USB 2.0 driver will automatically install when you install the operating system. If the CD does not include Service Pack 4, it is available for download at Microsoft’s Windows Update website.

4.7 Drivers and Utilities Installation Notes

1. "Autorun" ONLY supports the Windows® 98 SE, Windows® ME, Windows® 2000, Windows NT® 4.0 and Windows® XP operating systems. If after inserting the CD, "Autorun" did not automatically start (which is, the Main Board Utility CD screen did not appear), please go directly to the root directory of the CD and double-click "Setup".

2. All steps or procedures to install software drivers are subject to change without notice as the softwares are occassionally updated. Please contact technical support or your sales representative for the latest version of the drivers or software applications.

System Error Message

When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in the information box at the bottom. Enter Setup to correct the error.

A.1 POST Beep

There are two kinds of beep codes in the BIOS. One code indicates that a video error has occured and the BIOS cannot initialize the video screen to display any additional information. This beep code consists of a single long beep followed by three short beeps. The other code indicates that a DRAM error has occured. This beep code consists of a single long beep.

A.2 Error Messages

One or more of the following messages may be displayed if the BIOS detects an error during the POST. This list indicates the error messages for all Awards BIOSes:

CMOS BATTERY HAS FAILED

The CMOS battery is no longer functional. It should be replaced.

Caution:

Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.

CMOS CHECKSUM ERROR

Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This error may have been caused by a weak battery. Check the battery and replace if necessary.

DISPLAY SWITCH IS SET INCORRECTLY

The display switch on the motherboard can be set to either monochrome or color. This indicates the switch is set to a different

Appendix A - System Error Message

System Error Message

setting than indicated in Setup. Determine which setting is correct, either turn off the system and change the jumper or enter Setup and change the VIDEO selection.

FLOPPY DISK(S) fail (80)

Unable to reset floppy subsystem.

FLOPPY DISK(S) fail (40)

Floppy type mismatch.

Hard Disk(s) fail (80)

HDD reset failed.

Hard Disk(s) fail (40)

HDD controller diagnostics failed.

Hard Disk(s) fail (20)

HDD initialization error.

Hard Disk(s) fail (10)

Unable to recalibrate fixed disk.

Hard Disk(s) fail (08)

Sector Verify failed.

Keyboard is locked out - Unlock the key

The BIOS detects that the keyboard is locked. Keyboard controller is pulled low.

Keyboard error or no keyboard present

Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys are being pressed during the boot.

Manufacturing POST loop

System will repeat POST procedure infinitely while the keyboard controller is pull low. This is also used for the M/B burn in test at the factory.

BIOS ROM checksum error - System halted

The checksum of ROM address F0000H-FFFFFH is bad.

Memory test fail

The BIOS reports memory test fail if the memory has error(s).

Troubleshooting

B.1 Troubleshooting Checklist

This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To efficiently troubleshoot your system, treat each problem individually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes.

Some of the most common things to check when you encounter problems while using your system are listed below.

1. The power switch of each peripheral device is turned on.

2. All cables and power cords are tightly connected.

3. The electrical outlet to which your peripheral devices are connected is working. Test the outlet by plugging in a lamp or other electrical device.

4. The monitor is turned on.

5. The display’s brightness and contrast controls are adjusted properly.

6. All add-in boards in the expansion slots are seated securely.

7. Any add-in board you have installed is designed for your system and is set up correctly.

Monitor/Display

If the display screen remains dark after the system is turned on:

1. Make sure that the monitor’s power switch is on.

2. Check that one end of the monitor’s power cord is properly attached to the monitor and the other end is plugged into a working AC outlet. If necessary, try another outlet.

3. Check that the video input cable is properly attached to the monitor and the system’s display adapter.

4. Adjust the brightness of the display by turning the monitor’s brightness control knob.

Appendix B - Troubleshooting

Troubleshooting

The picture seems to be constantly moving.

1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync.

2. Move away any objects, such as another monitor or fan, that may be creating a magnetic field around the display.

3. Make sure your video card’s output frequencies are supported by this monitor.

The screen seems to be constantly wavering.

1. If the monitor is close to another monitor, the adjacent monitor may need to be turned off. Fluorescent lights adjacent to the monitor may also cause screen wavering.

Power Supply

When the computer is turned on, nothing happens.

1. Check that one end of the AC power cord is plugged into a live outlet and the other end properly plugged into the back of the system.

2. Make sure that the voltage selection switch on the back panel is set for the correct type of voltage you are using.

3. The power cord may have a “short” or “open”. Inspect the cord and install a new one if necessary.

Floppy Drive

The computer cannot access the floppy drive.

1. The floppy diskette may not be formatted. Format the diskette and try again.

2. The diskette may be write-protected. Use a diskette that is not write-protected.

3. You may be writing to the wrong drive. Check the path statement to make sure you are writing to the targeted drive.

4. There is not enough space left on the diskette. Use another diskette with adequate storage space.

Troubleshooting

Hard Drive

Hard disk failure.

1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS.

2. If the system is configured with two hard drives, make sure the bootable (first) hard drive is configured as Master and the second hard drive is configured as Slave. The master hard drive must have an active/bootable partition.

Excessively long formatting period.

1. If your hard drive takes an excessively long period of time to format, it is likely a cable connection problem. However, if your hard drive has a large capacity, it will take a longer time to format.

Parallel Port

The parallel printer doesn’t respond when you try to print.

1. Make sure that your printer is turned on and that the printer is on-line.

2. Make sure your software is configured for the right type of printer attached.

3. Verify that the onboard LPT port’s I/O address and IRQ settings are configured correctly.

4. Verify that the attached device works by attaching it to a parallel port that is working and configured correctly. If it works, the printer can be assumed to be in good condition. If the printer remains inoperative, replace the printer cable and try again.

Troubleshooting

Serial Port

The serial device (modem, printer) doesn’t output anything or is outputting garbled characters.

1. Make sure that the serial device’s power is turned on and that the device is on-line.

2. Verify that the device is plugged into the correct serial por t on the rear of the computer.

3. Verify that the attached serial device works by attaching it to a serial port that is working and configured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting.

4. Make sure the COM settings and I/O address are configured correctly.

Keyboard

Nothing happens when a key on the keyboard was pressed.

1. Make sure the keyboard is properly connected.

2. Make sure there are no objects resting on the keyboard and that no keys are pressed during the booting process.

System Board

1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is loose, power off the system, re-install the card and power up the system.

2. Check the jumper settings to ensure that the jumpers are properly set.

3. Verify that all memory modules are seated securely into the memory sockets.

4. Make sure the memory modules are in the correct locations.

5. If the board fails to function, place the board on a flat surface and seat all socketed components. Gently press each component into the socket.

6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults.

ITOX G4E600-D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
