ITOP M60A User Manual

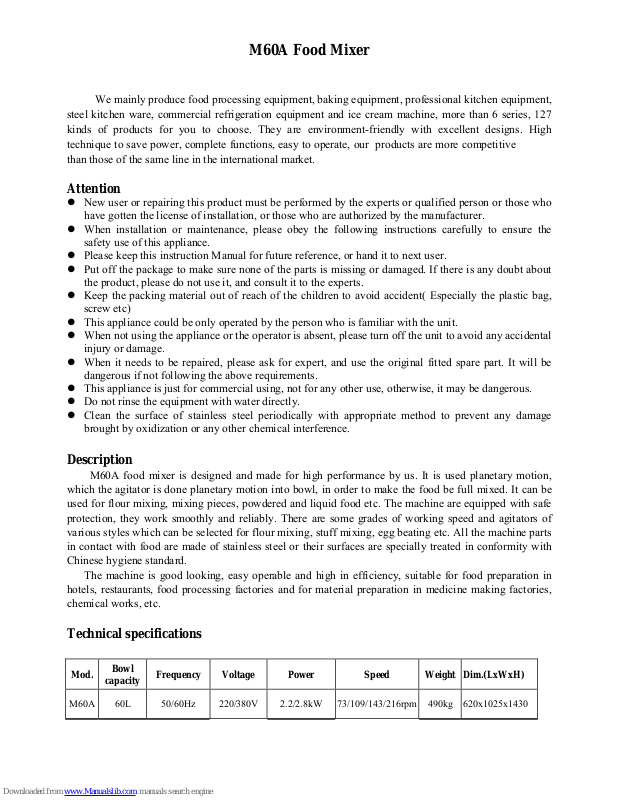

M60A Food Mixer

We mainly produce food processing equipment, baking equipment, professional kitchen equipment,
steel kitchen ware, commercial refrigeration equipment and ice cream machine, more than 6 series, 127
kinds of products for you to choose. They are environment-friendly with excellent designs. High
technique to save power, complete functions, easy to operate, our products are more competitive
than those of the same line in the international market.

Attention

z New user or repairing this product must be performed by the experts or qualified person or those who

have gotten the license of installation, or those who are authorized by the manufacturer.

z When installation or maintenance, please obey the following instructions carefully to ensure the

safety use of this appliance.

z Please keep this instruction Manual for future reference, or hand it to next user.
z Put off the package to make sure none of the parts is missing or damaged. If there is any doubt about

the product, please do not use it, and consult it to the experts.

z Keep the packing material out of reach of the children to avoid accident( Especially the plastic bag,

screw etc)

z This appliance could be only operated by the person who is familiar with the unit.
z When not using the appliance or the operator is absent, please turn off the unit to avoid any accidental

injury or damage.

z When it needs to be repaired, please ask for expert, and use the original fitted spare part. It will be

dangerous if not following the above requirements.

z This appliance is just for commercial using, not for any other use, otherwise, it may be dangerous.
z Do not rinse the equipment with water directly.
z Clean the surface of stainless steel periodically with appropriate method to prevent any damage

brought by oxidization or any other chemical interference.

Description

M60A food mixer is designed and made for high performance by us. It is used planetary motion,
which the agitator is done planetary motion into bowl, in order to make the food be full mixed. It can be
used for flour mixing, mixing pieces, powdered and liquid food etc. The machine are equipped with safe
protection, they work smoothly and reliably. There are some grades of working speed and agitators of
various styles which can be selected for flour mixing, stuff mixing, egg beating etc. All the machine parts
in contact with food are made of stainless steel or their surfaces are specially treated in conformity with
Chinese hygiene standard.
The machine is good looking, easy operable and high in efficiency, suitable for food preparation in
hotels, restaurants, food processing factories and for material preparation in medicine making factories,
chemical works, etc.

Technical specifications

Mod.

Bowl

capacity

Frequency Voltage Power Speed Weight Dim.(LxWxH)

M60A 60L 50/60Hz 220/380V 2.2/2.8kW 73/109/143/216rpm 490kg 620x1025x1430

Operation and Notes

1. Before use, check whether the power supply corresponds to that required by the machine, check

whether the external earthed wire is reliably connected.

2. The machine which 3 phase motor must be checked whether the machine rotates in the direction
indicated by the rotation mark. If the rotation direction is wrong, exchange the two of the three
livewires each other. Note: For test of machine, mixing tools should never be installed, otherwise
they would fall out in order to avoid damage to machine parts because of wrong rotation direction.

3. Select speed and agitator:

a) Spiral agitator: It is suitable for mixing dough and sticky solid food, the weight of flour must refer to

the mark, the capacity of water is 47%～50% of the flour’s, and the machine is available for low
speed.

b) Vaned disk agitator: It is suitable for thin pieces, powdered and mushy food, like stuffing, and

available for middle speed.

c) Beater: It is suitable for cream and eggs beating, and available for high speed.

Caution: Stop the machine to change speed, do not mix dough at middle or high speed.

4. Speed changing operation :B60 and B80 are adopted motor and mechanism’s concerted action to
change speed. The speed changing operation and mixer instruction must refer to the illustration
below:

5.Bowl lift:

The Bowl is driven by motor to raise or descend up to the requested position(top point, bottom point,
and stop point).

The operating method is:

1.Adjust the lifting handle to 458 comparing the horizontal line, and then raise the bowl.

2.Adjust the lifting handle to the horizontal line, and then descend the bowl.

3.When the lifting handle is between the two positions, the bowl will stop lifting.

Note: When assembling an agitator, in order to avoid falling, the backing pin on the mixing shaft must

slip into the L-shaped slot on the agitator.

6. M60 and M80 Mixers are equipped with timer, so you can select the timer control as needed. If you

use the timer, you can set the needed time on the timer.

Maintenance:

1.After use every time, clean the bowl and agitators etc., carefully, in order to ensure the machine clean

and hygienic.

2.Lubricate the lifting slideways with a small amount of oil regularly.

3.The gearbox is lubricated with special grease that will be sufficient for six months. When added or

replaced grease, it is necessary to remove the upper cover and the cover of the bearing seat.

Attention：

This appliance should be connected to the point of the supply with the impedance value Zsys less
than(0.08+j0.05)Ω.
