STB1132-25
Module Specification
Ver1.0.0
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
2/16
Version:.................................................................................................................................................3
1. Overview..........................................................................................................................................4
1.1 Brief........................................................................................................................................ 4
1.2 Features.................................................................................................................................4
1.3 Application........................................................................................................................... 4
2. Hardware System.......................................................................................................................... 5
2.1 Function block..................................................................................................................... 5
2.2 PIN assignment................................................................................................................... 6
2.3 PIN description....................................................................................................................6
2.4 Schematic diagram............................................................................................................ 7
2.5 Electronic parameter..........................................................................................................8
2.5.1 Basic parameter....................................................................................................... 8
2.5.2 Maximum parameter..............................................................................................9
2.5.3 Working Voltage......................................................................................................9
2.5.4 Working Current...................................................................................................... 9
2.5.5 External Crystal...................................................................................................... 10
2.5.6 TX parameter.......................................................................................................... 10
2.6 Dimensions.........................................................................................................................11
2.6.1 Mechanical dimensions....................................................................................... 11
2.6.2 Layout reference dimensions............................................................................................ 12
3. Process parameters.................................................................................................................... 13
3.1 Recommended temperature curve..............................................................................13
4. Package information.................................................................................................................. 13
5. Please be noticed following information and instructions should be placed in the
end-user’s operating manual................................................................................................... 14
6. FCC Certification Requirement:...............................................................................................16
iTON Technology Corp. STB1132-25
Contents
http://www.sziton.com/
3/16
Version:
Data
Version
Edit
2017-02-15
V0.01
Draft
Kain
2017-03-07
V0.02
Revised 2.2 PIN assignment
2.3 PIN description
2.4 Schematic diagram
Kain
2017-3-20
V0.03
Revised DIO12 description
Kain
2017-4-13
V1.00
Released version
Kain
深圳市中易腾达科技股份有限公司
iTON Technology Corp. STB1132-25
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
4/16
1. Overview
1.1 Brief
Bluetooth module STB1132-25 base on ST newest LE4.1 chipset BlueNRG1, establish a
bidirectional data transfer channel through UART interface between mobile phone
and client's MCU. According to the content of commands list, Client's MCU may send
the corresponding commands to set the Bluetooth module into different condition,
or send or receive data on GATT layer, Bluetooth module's status also can be read
through commands.
1.2 Features
Support LE4.1
Support OTA upgrade
Support UART upgrade
Stable and reliable performance
Support UART command
Up to 8dBm TX power
1.3 Application
Bluetooth Printer/Scanner
Mobile payment
Wireless health & fitness equipment
Wireless toys
Smart Household Electric Appliances
iTON Technology Corp. STB1132-25
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
5/16
2. Hardware System
2.1 Function block
STB1132-25
iTON Technology Corp. STB1132-25
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
6/16

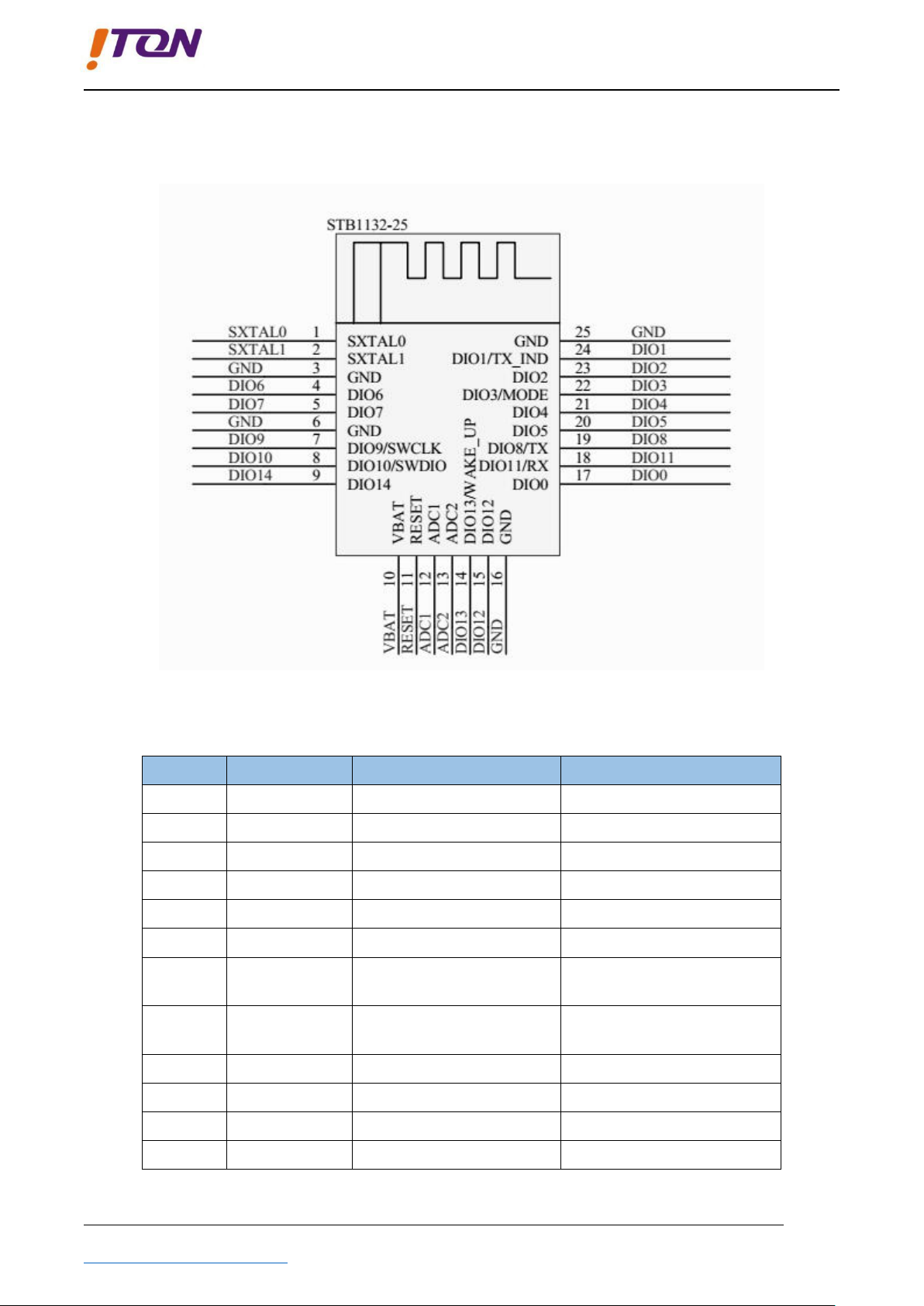

2.2 PIN assignment
2.3
PIN description
No.
Name
Description
Mark
1
SXTAL0
32.768KHz Xtal
2
SXTAL1
32.768KHz Xtal
3
GND
POWER
4
DIO6
I/O
5
DIO7
I/O
6
GND
POWER
7
SWCLK/DIO9
Software download PIN
Software download PIN,
suggest reserve on PCB
8
SWDIO/DIO10
Software download PIN
Software download PIN,
suggest reserve on PCB
9
DIO14
I/O
10
VBAT
POWER
11
REST
Module hardware reset
12
ADC1
I/O
iTON Technology Corp. STB1132-25
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
7/16
13
ADC2
I/O
14
DIO13/Wake-up
When module in sleep,
lower level this PIN to wake
up module
Pull down duration≥50ms
15
DIO12
I/O
16
GND
POWER
17
DIO0
I/0
18
UART_RX
UART RX PIN
19
UART_TX
UART TX PIN
20
DIO4
I/O
21
DIO5
I/O
22
DIO3/Mode_N
Mode select PIN
H: Data mode
L: Command mode
Default: H
23
DIO2
I/O
24
DIO1/UART_TX_
IND
Time delay control PIN for
sending data from module
to MCU
Default Close
Can use command to set up
the time delay
25
GND
POWER
2.4 Schematic diagram
iTON Technology Corp. STB1132-25
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
8/16
1) 32.768KHz may save 2uA power consumption in Sleep mode, do not connect if not
2) Wake-up PIN is used to wake-up the module when it enter low power mode, please
3) Mode-IN PIN is used to switch module between pure data mode & command mode,
4) TX-IND PIN is used to control the time delay before Module send data to MCU. Please
5) UART_RX/UART_TX, need add pull-up resister accordingly, suggest to reserve.
6) P1 is the FW download port, please reserve if the PCB space is enough.
2.5 Electronic parameter
2.5.1 Basic parameter
Item
Range
Working frequency band
2400MHz~2500MHz
Protocol specification
BT4.1
Max TX power
+8dBm
RX sensitivity
‐88dBm
Work voltage
1.7V~3.6V
Interface
UART
Baud rate
4800~921600
Size
20.5mm(L) x14 mm(W) x 2.5mm(H)
iTON Technology Corp. STB1132-25
Note:
necessary.
connect to MCU GPIO through pull-up resister R5. If this MCU GPIO with Pull-up function,
then may connect to wake-up Pin directly.
please connect to MCU GPIO through Pull-up resister R2. If this MCU GPIO with Pull-up
function, then may connect to Mode-in PIN directly.
connect to MCU GPIO through Pull-up resister R1.
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
9/16
2.5.2 Maximum parameter
Item
Min.
Max.
Unit
VCC voltage
-0.3
3.9
V
Working temperature
-20
75
℃
Storage temperature
-30
85
℃
Working range
TBD.
TBD.
2.5.3 Working Voltage
Item
Min.
Typ.
Max.
Unit
VCC Voltage
1.7
3.0
3.6
V
2.5.4 Working Current
Mode
Current（Avg.）
Unit
Notes
Sleep Mode
5
uA
Standby
mode(Discoverable)
40
uA
No advertising
57
uA
LE Reduced Power
advertising interval = 300ms
BLE Connected
400
uA
No data, connection interval
= 20ms
79
uA
No data, connection interval
= 500ms
2.39
mA
20byte/s,
connection interval = 20ms
2.92
mA
2Kbyte/s,
connection interval = 20ms
iTON Technology Corp. STB1132-25
a note：VCC=3.0v, data flow 2Kbyte/s, under open environment
Test condition: Vcc=3.0v@，Ta=25℃
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
10/16
2.5.5 External Crystal
Item
Parameter
Min.
Typ.
Max.
Unit
f
NOM
Nominal
frequency
32.768
KHz
f
TOL
Frequency
tolerance
±50
ppm
ESR
Equivalent
series
resistance
90
kΩ
PD
Drive level
0.1
µW
2.5.6 TX parameter
Item
Min.
Typ.
Max.
Unit
Maximum RF transmit power
8
dBm
LE Sensitivity
-85
dBm
iTON Technology Corp. STB1132-25
SB1132-20 may be connected with external 32.768KHz crystal, this may save
about 2uA power consumption in sleep mode. Crystal request as below:
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
11/16
2.6 Dimensions

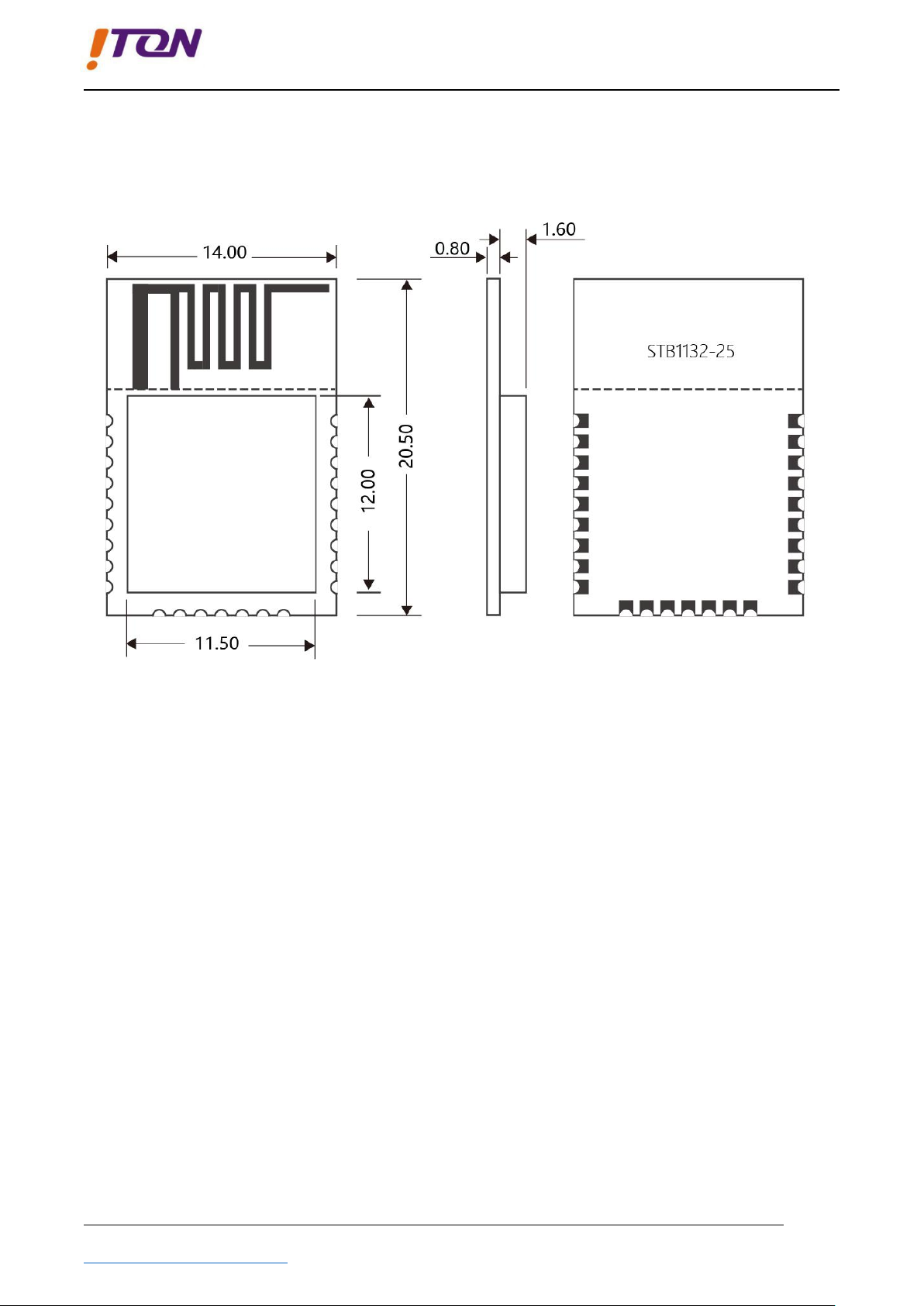

2.6.1 Mechanical dimensions
iTON Technology Corp. STB1132-25
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
12/16
2.6.2 Layout reference dimensions
Layout note:
The ANT area please keep clearance, do not routing & copper.
Filter CAP please place close to module.
Non strong interference line under module.
iTON Technology Corp. STB1132-25
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
13/16
3. Process parameters
3.1
Recommended temperature curve
4. Package information
iTON Technology Corp. STB1132-25
Referred to IPC/JEDEC standard.
Peak Temperature : <250°C
Number of Times : ≤2 times
TBD
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
14/16
5.
Please be noticed following information and instructions
The MODEL STB1132 has been granted as limited modular approval for mobile applications.
MODEL STB1132 must be installed in the designated host as specified in this manual.
2. The MODEL STB1132 and its antenna must not be co-located or operating in conjunction with any other
transmitter or antenna within a host device. This equipment complies with FCC RF radiation exposure limits
set forth for an uncontrolled environment.
3. A label must be affixed to the outside of the end product into which the MODEL STB1132 module is
incorporated, with a statement similar to the following: For MODEL STB1132: This device contains FCC ID:
2AJ22STB1132.
4. The module shall be in non-detachable construction protection into the finished products, so that the end-user
has to destroy the module while remove or install it.
5. This module is to be installed only in mobile or fixed applications. According to FCC part 2.1091(b) definition
of mobile and fixed devices is:.
iTON Technology Corp. STB1132-25
should be placed in the end-user’s operating manual
1. Separate approval is required for all other operating configurations, including portable configurations with
respect to 2.1093 and different antenna configurations.
Mobile device:
A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to
generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between
the transmitter’s radiating structure(s) and the body of the user or nearby persons. In this context, the term ‘‘fixed
location’’ means that the device is physically secured at one location and is not able to be easily moved to another
location.
Portable device:
For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the
radiating structure(s) of the device is/are within 20 centimeters of the body of the user.
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
15/16
6. Separate approval is required for all other operating configurations, including portable configurations with
iTON Technology Corp. STB1132-25
respect to FCC Part 2.1093 and different antenna configurations.
7. A certified modular has the option to use a permanently affixed label, or an electronic label. For a permanently
affixed label, the module must be labelled with an FCC ID: 2AJ22STB1132. The OEM manual must provide
clear instructions explaining to the OEM the labelling requirements, options and OEM user manual instructions that
are required
For a host using a this FCC certified modular with a standard fixed label, if (1) the module’s FCC ID is not
visible when installed in the host, or (2) if the host is marketed so that end users do not have
straightforward commonly used methods for access to remove the module so that the FCC ID of
the module is visible; then an additional permanent label referring to the enclosed module:
“Contains Transmitter Module FCC ID: 2AJ22STB1132” or “Contains FCC ID: 2AJ22STB1132” must
be used. The host OEM user manual must also contain clear instructions on how end users can
find and/or access the module and the FCC ID.
8. Host product is required to comply with all applicable FCC equipment authorizations regulations,
requirements and equipment functions not associated with the transmitter module portion. compliance must be
demonstrated to regulations for other transmitter components within the host product; to requirements for
unintentional radiators (Part 15B). To ensure compliance with all non-transmitter functions the host manufacturer
is responsible for ensuring compliance with the module(s) installed and fully operational. If a host was previously
authorized as an unintentional radiator under the Declaration of Conformity procedure without a transmitter
certified module and a module is added, the host manufacturer is responsible for ensuring that the after the module
is installed and operational the host continues to be compliant with the Part 15B unintentional radiator requirements.
Since this may depend on the details of how the module is integrated with the host, we suggest the host device to
recertify part 15B to ensure complete compliance with FCC requirement: Part 2 Subpart J Equipment Authorization
Procedures , KDB784748 D01 v07, and KDB 997198 about importation of radio frequency devices into the United
States.
深圳市中易腾达科技股份有限公司
http://www.sziton.com/
16/16
6.
FCC Certification Requirement:
The end product with an embedded - MODEL STB1132 may also need to pass the FCC Part 15
unintentional emission testing requirements and be properly authorized per FCC Part 15.
Note: If this module is intended for use in a portable device, you are responsible for separate
approval to satisfy the SAR requirements of FCC Part 2.1093.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications made to this equipment not expressly approved by iTon Technology Corp.
may void the FCC authorization to operate this equipment.
iTON Technology Corp. STB1132-25
Loading...
