User Manual
北京高科中天技术股份有限公司
Beijing Hi-Tech Zhongtian Technology Co.,Ltd.
北京市海淀区知春路23号量子银座
806-807
室
Rm. 806-807, Quantum Silver Plaza, No.23 Zhichun Rd., Haidian District,
Tel: 86-10-82351002ext 8020 Beijing, China PC: 100191
Fax:86-25-85692815 Email: oversea@iton.cn

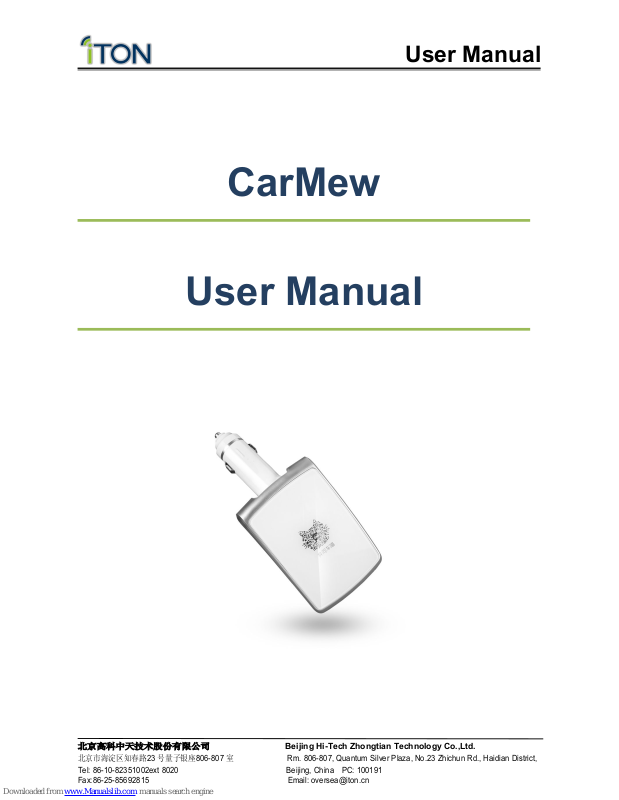

CarMew
User Manual
User Manual
北京高科中天技术股份有限公司
Beijing Hi-Tech Zhongtian Technology Co.,Ltd.
北京市海淀区知春路23号量子银座
806-807
室
Rm. 806-807, Quantum Silver Plaza, No.23 Zhichun Rd., Haidian District,
Tel: 86-10-82351002ext 8020 Beijing, China PC: 100191
Fax:86-25-85692815 Email: oversea@iton.cn
1 Features
This product is composed of CarMew equipment and an App.
CarMew is a multifunctional wireless data terminal which providing 3G Wi-Fi wireless
router function, FM emission, GPS positioning and so forth.
CarMew App is a good helper for you to manage CarMew terminal, such as Wi-Fi and
music sharing, GPS positioning, FM radio, flow reminding and recharge.
2 Operating Guide
2.1 Appearance
Picture 1-1 Appearance:
1. USB interface
2. RESET button (long press 3 seconds for Closing Off and more than 10 seconds for
Factory Reset)
3. SIM card
Picture 1-2 Indicator Light:
Blue light normally on: on work
Blue light flashing: data interaction
User Manual
北京高科中天技术股份有限公司
Beijing Hi-Tech Zhongtian Technology Co.,Ltd.
北京市海淀区知春路23号量子银座
806-807
室
Rm. 806-807, Quantum Silver Plaza, No.23 Zhichun Rd., Haidian District,
Tel: 86-10-82351002ext 8020 Beijing, China PC: 100191
Fax:86-25-85692815 Email: oversea@iton.cn
2.2 Preparation
1. Insert SIM card into CarMew
2. Insert CarMew into car cigarette lighter
3. Download and Installation App
A. Scan QR code, then selecting your device’s platform for proper installation
B. Download the app from your device’s official app store.
User Manual
北京高科中天技术股份有限公司
Beijing Hi-Tech Zhongtian Technology Co.,Ltd.
北京市海淀区知春路23号量子银座
806-807
室
Rm. 806-807, Quantum Silver Plaza, No.23 Zhichun Rd., Haidian District,
Tel: 86-10-82351002ext 8020 Beijing, China PC: 100191
Fax:86-25-85692815 Email: oversea@iton.cn
2.3 Guide
2.3.1 Home Page
1. Carrier information and signal strength
2. Used/total traffic
3. Used traffic (percentage)
4. FM channel
2.3.2 Traffic reminding
When using more than 80 percent of total traffic, it will alarm on the upper left corner
of home page.
2.3.3 Music
Slide up on home page to open "music play" interface
User Manual
北京高科中天技术股份有限公司
Beijing Hi-Tech Zhongtian Technology Co.,Ltd.
北京市海淀区知春路23号量子银座
806-807
室
Rm. 806-807, Quantum Silver Plaza, No.23 Zhichun Rd., Haidian District,
Tel: 86-10-82351002ext 8020 Beijing, China PC: 100191
Fax:86-25-85692815 Email: oversea@iton.cn
● FM: Select a blank channel which is not be occupied on your car FM, then Open
the app, go to “setting” to choose the same channel on Car- Fi.
● Operate button: including play mode switch(loop, Shuffle ), song switch, pause,
add.
● Song: indicate the current music
● Support DLNA (for Andrew) and AirPlay (for IOS)
2.3.4 Settings
Slide right on the home page to switch to the "Settings" interface
On this interface, you can set Wi-Fi and Privacy:
● Wi-Fi: set hotspot name and password
● FM: set FM channel
● Privacy: traveling tracking on/off
● Connecting: set 3G specific
(Note: If the APN is not automatically configured, select “Connecting → Custom ” to add
your APN information.)
● About: feature, hot questions, contact, buy
2.3.5 Traveling Record
Slide left on the home page to switch to “Traveling Record” interface:
User Manual
北京高科中天技术股份有限公司
Beijing Hi-Tech Zhongtian Technology Co.,Ltd.
北京市海淀区知春路23号量子银座
806-807
室
Rm. 806-807, Quantum Silver Plaza, No.23 Zhichun Rd., Haidian District,
Tel: 86-10-82351002ext 8020 Beijing, China PC: 100191
Fax:86-25-85692815 Email: oversea@iton.cn
On this page, you can check the traveling history records:
● Map Mode: Locking and unlocking the map zoom feature
● Travel Tracking: check car history traveling record by date
Note: The first user who connected to CarMew is the bind user (Only the Bind user has
right to modify settings). If you want to change the bind user, long press “Reset” more than
10 seconds to factory Reset.
