I-Tech UltraView iOP40W, UltraView iOP40WT, UltraView OP-40W, UltraView OP-40WT User Manual

User Manual

Innovative LCD Display Solutions

OP-40W / OP-40WT

UltraView

Jan 05

P.1

OP40WT Series User Manual

1. Table of Content Page.1

2. Introduction

A) Overview Page.2
B) Features Page.2
C) Dimension Diagrams Page.3
D) Technical Specifications Page.4

3. Installation

A) Package Contents Page.5
B) Caution to the user Page.5
C) Cleaning Page.5
D) Precautions Page.6-7

4. Using the System

A) Product Views Page.8
B) I/O Outlet Page.9
C) Installation Procedures Page.10
D) Setup Touchscreen (Optional) Page.11

i) For Windows Page.11

ii) For DOS Page.12-14
E) OSD Switch Page.15
F) OSD Control Page.16-23
G) Remote Control (Optional) Page.24

1. Table of Content

Disclaimer
This information is subject to change without notice. The producer of this manual accepts no
responsibility for damage or claims, resulting from misuse or misinterpretation.

Jan 05

P.2

Disclaimer
This information is subject to change without notice. The producer of this manual accepts no
responsibility for damage or claims, resulting from misuse or misinterpretation

A. Overview

B. Features

2. Introduction

OP40WT Series User Manual

This LCD monitor incorporates 40”color active matrix thin-film-transistor (TFT)
liquid crystal display to provide superior display performance. A maximum reso­lution of 1,366 x 768 is ideal for displaying complex graphics and high definition
images. Other outstanding designs that enhance this LCD monitor’s performance
are Plug & Play compatibility and OSD (On Screen Display) controls.

● High contrast color TFT LCD display support resolution up to 1,366 x 768.

● Advanced OSD control for picture quality adjustment.

● Slim and compact size

● Wide Viewing Angle

Jan 05

P.3

OP-40WT series

C. Dimension Diagrams

2. Introduction

Disclaimer
This information is subject to change without notice. The producer of this manual accepts no
responsibility for damage or claims, resulting from misuse or misinterpretation.

OP40WT Series User Manual

Jan 05

P.4

2. Introduction

Technical Specifications

Monitor

Panel SamSung 40" Widescreen LCD Panel
Display Type TFT LCD active matrix color

Resolutions 1,366 x 768
Response Time Tr=10ms, Tf=6ms
Contrast Ratio 800:1 typical

Brightness 500 cd/m2 typical
Pixel Pitch 0.648 x 0.216 mm

Panel Color 16.7M display color
Viewing Angle 85 / 85 / 85 / 85 (L / R / U / D)
Storage Temp. -20° to 65°C

Operating Temp. 0° to 50°C
MTBF 50,000 hours (Min.)

Power Supply

Power Supply 110V - 220V AC Input
Cable Length of Power

Cord

182cm

Connectors

Scart Video Scart 21-pin (female) x 1
RCA Video Composite Video (female) x 1
RCA Audio Composite Audio (female) x 2 in/out

S-video S-video (female) x 1
Component Video Component (Y/Pb/Pr) x 1

VGA HDD D-sub 15 Pin (female) x 1
DVI-D DVI-D x 1
RF TV Antenna Available in television model only

Product
Dimension

OP Series : 980(W) x 630(H) x 90(D) mm

Packing
Dimension

OP Series : 1201(W) x 851(H) x 330(D) mm

Net / Gross
Weight

OP Series : 18 Kg / 28 Kg

Disclaimer
This information is subject to change without notice. The producer of this manual accepts no
responsibility for damage or claims, resulting from misuse or misinterpretation.

OP40WT Series User Manual

After unpacking the carton, check and see if the following items are included in
good condition. Contact your supplier as soon as possible for replacing the
missing / damaged items.

● 40” TFT LCD monitor

● VGA Cable (Male to Male)

● Power Cord

● User Manual

● CD Disc

To assure continued FCC compliance, please use grounded power supply
cord and the provided shielded video interface cable with bonded ferrite cores.
If a BNC cable is going to be used, use only a shielded BNC (5) cable. Also,

The Federal Communications Commission warns the user that any

unauthorized changes or modifications to the unit if not expressly approved by
the party responsible for compliance could void the user's authority of
operating the equipment.

1. Gently wipe screen with a clean camel hair lens brush, or a soft, clean,
lint-free cloth. This removes dust and other particles that can scratch the
screen.

2. Do not apply excessive pressure to the screen surface when wiping it clean
because this may damage the LCD.

3. Do not pour or spray any liquid directly onto the screen or case of the LCD
monitor. Chemical cleaners have been reported to damage the screen or
case of the LCD monitor.

A. Package Contents

Jan 05

P.5

B. Caution to the users

C. Cleaning

3. Installation

OP40WT Series User Manual

Jan 05

P.6

Read all of these instructions and save them for later use. Follow all warnings
and instructions on the product.

Product

● Do not cover or block the vent holes in the case.

● Do not insert sharp objects or spill liquid into the LCD monitor through

cabinet slots. They may cause accident fire, electric shock or failure.

● Disconnect the power plug from the AC outlet if you will not use it for an

indefinite period of time.

● Do not attempt to service this product yourself, as opening or removing

covers may expose you to dangerous voltage points or other risks.

● Do not touch the screen directly with your fingers. You may damage the

screen, and oil from your skin in difficult to move.

● Do not apply pressure to screen. The LCD is very delicate.

D. Precautions

Power

1. Use the type of power indicated on the marking label.

Plugs

1. Do not remove any of the prongs of the monitor’s three-pronged power

plug.

2. Disconnect the power plug from the AC outlet under following

conditions ：

● If the product will not be used for an indefinite period time.

● When the power cord or plug is damaged or frayed.

● If the product does not operate normally when the operating

instructions are followed.

● Adjust only those controls that are covered by the operating

instructions. Improper adjustment of other controls may result in
damage and will often require extensive work by a qualified
technician to restore the product to normal operation.

● If the product has been dropped or the cabinet has been damaged.

● If the product exhibits a distinct change in performance, indicating a

need for service.

3. Installation

OP40WT Series User Manual

Jan 05

P.7

D. Precautions (Cont.)

Power and extension cords

1. Do not allow anything to rest on the power cord.

2. Do not locate this product where persons will walk on the cord.

3. Use the proper power cord with correct attachment plug type. If the

power source is 120V AC, use a power cord that has UL and C-UL
approvals. If the power source is a 240V AC supply, use the tandem
(T blade) type attachment plug with ground conductor power cord that
meets the respective European country’s safety regulations, such as
VDE for Germany.

4. Do not overload wall outlets or power cords. Ensure that the total of all

units plugged into the wall outlet does not exceed 10 amperes.

5. Ensure that the total ampere ratings on all units plugged into the

extension cord is not above the cord’s rating.

6. If the power supply cord, which came with your monitor, is to be

connected to the PC instead of the wall outlet, this equipment is to be
used with UL/TÜV approved computers with receptacle rated
100~240V AC, 50/60Hz, 1.0A(minimum).

Environment

1. Place the monitor on a flat and leveled surface.

2. Place the monitor in a well-ventilated place.

3. Keep the monitor away from： Overly hot, cold or humid places, places

directly under sunlight, dusty surroundings, equipment that generate
strong magnetic fields.

OP-40WT Series User Manual

3. Installation

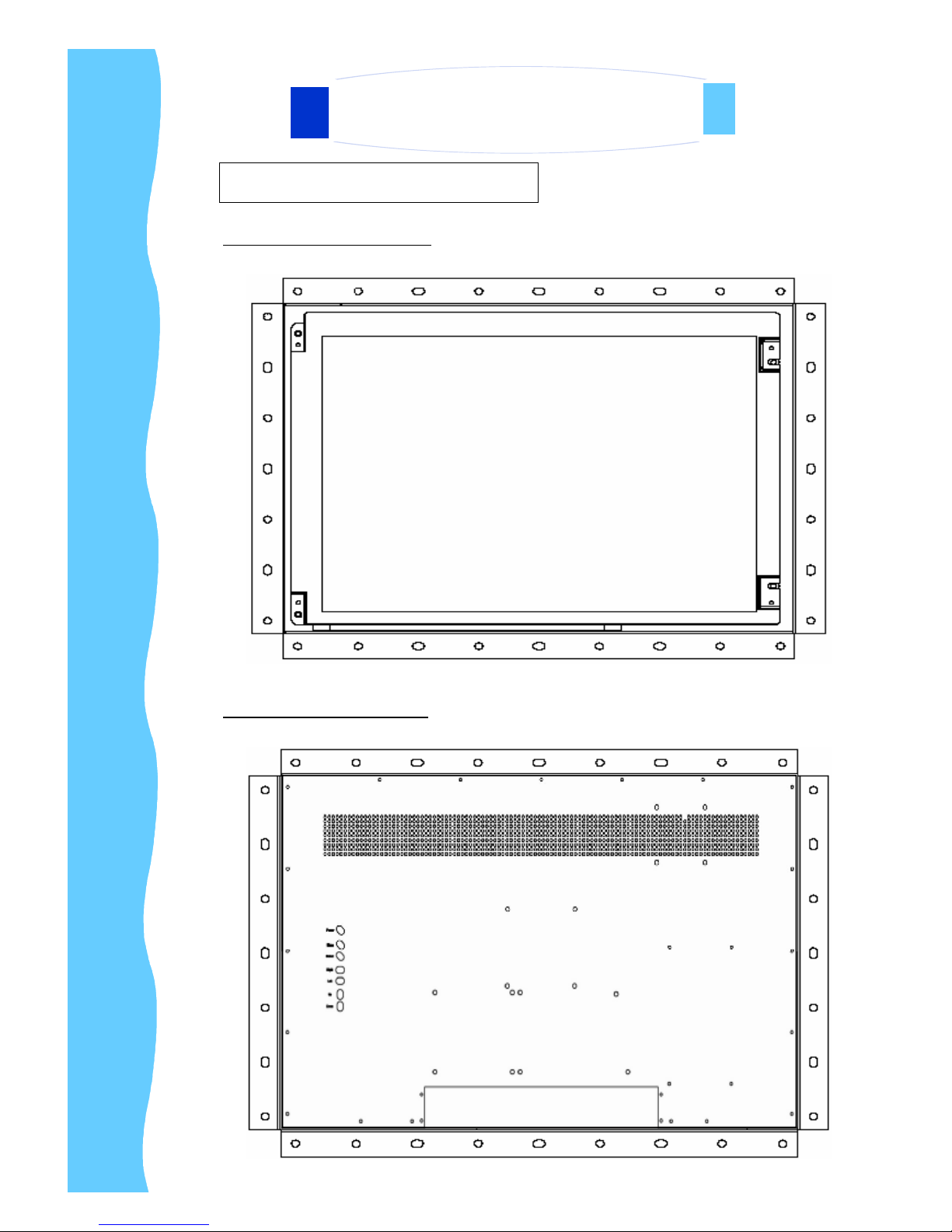

A. Product Views (Cont.)

OP Series - Front View

OP Series - Rear View

Jan 05

P.8

4. Using the System

OP-40WT Series User Manual

Jan 05

P.9

(1) AC IN ： Connect to power cord.
(2) SCART IN ： Connect to 21pin Scart connector.
(3) RCA IN ： Connect to the composite RCA video connector.
(4) Audio IN ： Connect to the RCA audio connectors.
(5) S-Video IN : Connect to the S-video connector.
(6) Audio OUT : Connect to the RCA audio connectors.
(7) Component Video IN ： Connect to Component Video connectors.
(8) VGA IN ： Connect to the 15pin sub-D connector.
(9) DVI-D IN ： Connect to the DVI-D connector.
(10) Antenna IN ： Connect to the TV antenna connector.

B. I/O Outlet

Front

OP Series

4. Using the System

(1)

(2)

(3)

(4)

(5)

(6)

(7) (8)

(9)

(10)

OP-40WT Series User Manual

Jan 05

P.10

C. Installation Procedures

This monitor is equipped with an auto-sensing power supply for
voltage ranges 100~240V, 50~60Hz. Please follow the following
instruction to install LCD monitor.

1. Make sure that the system power is turned off.

2. Plug the signal cable to the signal connector at the rear of

PC and the rear of the LCD monitor.

3. Plug the power cord to the rear view of the LCD and switch

on.

4. Connect the power cord to power source.

5. Turn on the computer and the monitor.

6. Then push the OSD menu button and use the Auto Adjust

function to fine the best mode of your computer.

4. Using the System

OP-40WT Series User Manual

D. Setup Touchscreen

Touchscreen used for UltraView products are manufactured by 3M. Here provide
TouchWare

TM

Software includes touch screen drivers for your installing.

For Windows 95, 98, Me, NT4.0, 2000 & XP

1. Open the driver CD provided along with the product or download the driver
from our Website.

2. Make sure you have completed the appropriate hardware connections.

3. Power on your system. Make sure no other application are opened.

4. Double click the “TW564SR4.exe” files.

5. Unzip the file and save it in a default folder

6. Follow the onscreen instructions to begin the installation.

Jan 05

P.11

Note: Choose Express option for automatically installs the required TouchWare

TM

software files, create a TouchWare

TM

software program files, and place a

TouchWare

TM

software icon on the Windows desktop and control panel.

TouchWareTM will also determine multiple monitor configurations at this time.

Note: Remember the path of the default folder or create a new folder by your decision.

Note: For details of Custom option, please refer to the website of 3M and download the

user guide of TouchWare

TM

software.

(http:// www.3m.com/3MTouchSystems/downloads/tecdoc.jhtml)

Note: If you have a Microsoft® IntelliPoint® or Kensington® Mousework® PS/2
mouse, installing TouchWare

TM

software will disable the special mouse

functionally of these devices

Note: To configure the settings of the touchscreen, please refer to the
TouchWare

TM

User Guideline

4. Using the System

OP-40WT Series User Manual

Jan 05

P.12

D. Setup Touchscreen

For Windows 95, 98, Me, NT4.0, 2000 & XP (Cont.)

7. Once installation is complete, restart the system. As the system restarts,
Windows detects and loads the driver.

● For serial controllers, restart the system. As the system restarts, Win-

dows detects and load the driver

● For USB controllers, connect the touch screen cable to the USB port in

your computer. After a few seconds, the system beeps to indicate it has
detected the touch screen and loaded the driver.

For DOS

When you install Touchware from DOS, the Install program only loads the
touchscreen files specific to DOS. The installation includes the following files:

● Touchscreen driver for DOS

● Touchscreen control panel for DOS

● Pen Configuration utility for DOS

● Microcal Diagnostic utility

● ThruGlass control panel for DOS

● DOS help files

If you do not plan to use any of the touchscreen files for windows, you may want
to install just the DOS touchscreen files.

1. Open the driver CD provided along with the product or download the driver
from our Website.

2. Make sure you have completed the appropriate hardware connections. If
not, the Install program cannot properly configure the touchscreen.

3. Close all applications and exit from Windows.

4. Insert the TouchWare Disk into a diskette drive.

5. Access the DOS command line prompt.

6. Change to the drive that has the TouchWare diskette. For example, enter A:
if you inserted the TouchWare diskette in Drive A.

Note: This step is not necessary for Windows 2000 or above system, The driver loads

automatically.

4. Using the System

OP-40WT Series User Manual

Jan 05

P.13

D. Setup Touchscreen

For DOS (Cont.)

7. Type INSTALL followed by the source disk drive, the destination drive, and
the destination directory.

For example, the following command copies the files from Drive A (source
drive) to Drive C (destination drive) and the \MTS\TOUCH directory :

INSTALL A: C:\MTS\TOUCH

8. Press Enter. The system reports that it is about to copy the DOS touchscreen
files and prompt for confirmation that you want to continue.

9. Press C to start the installation.

● First, the Install program copies all DOS touchscreen files from the

TouchWare diskette to the specified destination drive and directory.

● Next, the Install program automatically searched through the system

and configures the touchscreen to the proper COM port, interrupt, and
communication rate.

● Finally, the Install program prompts if you want it to automatically modify

your AUTOEXEC.BAT file

If you let the Install program modify your AUTOEXEC.BAT file, the system
automatically loads the DOS touchscreen driver whenever you start your
computer.

If you do not let the Install program modify your AUTOEXEC.BAT file, you
must load the DOS touchscreen driver before using a DOS touch application.
For more information, refer to “Loading the DOS Touchscreen Driver” in the
next page

4. Using the System

OP-40WT Series User Manual

Jan 05

P.14

D. Setup Touchscreen

For DOS (Cont.)

Loading the DOS Touchscreen Driver

After you install the files for the DOS touchscreen driver, you must load the driver
before you can run a DOS touch application or open the DOS Touchscreen
control panel.

You can run the DOS touchscreen driver from a full-screen DOS session within
Windows. However, the Windows touchscreen driver cannot be running. Error
message reads: “Windows x.x is running in 386 Enhanced mode. Device not
found.”

This means either the Windows Touchscreen driver is loaded or the COM port/
IRQ designations are incorrect.

You can manually load the DOS touchscreen driver when needed, or you can let
the system automatically load the driver when you start up your computer.

● To manually load the DOS touchscreen driver:

1. Close all applications and exit from Windows.

2. Access the DOS command line prompt.

3. Use the Change Directory (cd) command to switch to the directory that
has the DOS touch driver files. By default, the Install program loads
TouchWare into the C:\MTS|TOUCH directory.

4. Type DOSTOUCH and then press Enter. The system displays a message
that the driver is now installed. For example:

MicroTouch Mouse Emulator - Version x.x

Copyright © 1990 - 1997 MicroTouch Systems, Inc.
Driver Installed

● To automatically load the DOS touchscreen driver when you start up your

computer, add the following line to your AUTOEXEC.BAT file :

drive-designator :\directory\DOSTOUCH

where drive-designator and directory define the location (disk and path) of
the files for the DOS touchscreen. For example:

C:\MTS\TOUCH\DOSTOUCH

4. Using the System

OP-40WT Series User Manual

Jan 05

P.15

E. OSD Switch

OSD Buttons (From Top to Bottom)

Power Switch: This button is used to power ON/OFF the LCD

Menu: This button is used to enter OSD main Menu
Select: This button is used to select for composite video in-

put, RGB for VGA input , S-Video for S-Video, Scart
for Scart signal input, DVI-D for DVI digital signal
input and TV( Optional) input.

Right (à): This button is used to adjust the manual to Right

Left (ß): This button is used to adjust the manual to Left
Up (é): This button is used to adjust the manual Upward
Down(ê): This button is used to adjust the manual Downward

Steps to enter the OSD for function select:

Push the “Menu” button to show the OSD on the screen.

Push ‘â’ & ‘á’ to select the suitable category
Push “ Menu” button twice to enter the category.
Push ’â’,’á’,’é’ & ’ä’ to select the suitable function

Push “ Select” button to confirm the function and exit the OSD

4. Using the System

OP-40WT Series User Manual

Jan 05

P.16

F. OSD Control

4. Using the System

Main Menu

Picture Parameters

● To enter into the Brightness, Contrast, Saturation, Hue, Color Temp,

Flashtone and Sharpness sub-menu

PC Parameters

● To enter into Auto adjust, Clock, phase, Position and Auto Color sub-menu

Audio Setting

● To enter into the Bass, Treble, Balance, Volume and Mute sub menu

Picture In Picture (Optional)

● To enter into the PIP Size and PIP Position sub-menu

Channel Settings (Optional)

● To enter into the System, Auto Store, Manual Store, Sort and Delete sub-

menu

General Settings

● To enter into the OSD Language, OSD Position, OSD Time out , Sleep

Time, I/P Info, Factory Reset, Transparency and Deinterlacer sub-menu

HUE

SATURATION

CONTRAST

BRIGHTNESS

FLESHTONE

PICTURE PARAMETERS

SHARPNESS

OP-40WT Series User Manual

Jan 05

P.17

F. OSD Control

4. Using the System

F. OSD Control

Picture Parameters

Brightness

To perform brightness adjustment of the input signal
Use the Left ‘á’& Right ’â ' button to adjust “Brightness” from 0-100

Contrast

To adjust the contrast level of the input signal
Use the Left ‘á’& Right ’â’button to adjust “Contrast” from 0-100

Saturation

To adjust the saturation level of the input signal
Use the Left ‘á’& Right ’â’button to adjust “Saturation” from 0-100

Hue

To adjust the Hue level of the input signal
Use the Left ‘á’& Right ’â’button to adjust “Hue” from (–19)-0-(+19)

Fleshtone

To on/off the Flesfhtone of the input signal
Use the ’Select’ to activate the “Fleshtone” function

Sharpness

To adjust the sharpness level of the input signal
Use the Left ‘á’& Right ’â’button to adjust “Sharpness” from 0-100

HUE

SATURATION

CONTRAST

BRIGHTNESS

FLESHTONE

PICTURE PARAMETERS

SHARPNESS

OP-40WT Series User Manual

Jan 05

P.18

F. OSD Control

4. Using the System

F. OSD Control

PC Parameters

Auto

To perform auto adjustment of the screen output
Use the Left ‘á’& Right ’â ' button to select Yes/No for “ Auto-adjust”

Clock

To adjust input video sampling clock
Use the Left ’á ' & Right ’ â’ button to adjust “Clock”, from 0-100

Phase

To adjust input video sampling clock’s phase
Use the Left ’á ' & Right ’ â’ button to adjust “phase”, from 0-255

Position

To adjust the horizontal and vertical position of the frame
Use the L ’á’, R ’â’, U ’é’ & D ’ä’ button to adjust “H.position” &
“V.position”.

Auto Clock

To perform auto clock adjustment of the screen output
Use the Left ‘á’& Right ’â ' button to select Yes/No for “ Auto Clock”

PC PARAMETERS

POSITION

PHASE

CLOCK

AUTO

AUTOCLOCK

OP-40WT Series User Manual

Jan 05

P.19

F. OSD Control

4. Using the System

F. OSD Control

Audio Settings

Bass

To adjust the bass level of the output signal
Use the Left ‘á’& Right ’â ' button to adjust “Bass” from 0-15

Treble

To adjust the treble level of the output signal
Use the Left ‘á’& Right ’â’button to adjust “Treble” from 0-15

Balance

To perform balance adjustment of the output signal
Use the Left ‘á’& Right’â ' button to adjust “Balance” from (-10)-0-(+10)

Volume

To adjust the volume level of the output signal
Use the Left ‘á’& Right ’â’button to adjust “Volume” from 0-60

Mute

To perform Yes/No the mute function of the output signal
Use the Left ‘á’& Right ’â’button to activate the “Mute” function

AUDIO SETTINGS

VOLUME

BALANCE

TREBLE

BASS

MUTE

OP-40WT Series User Manual

Jan 05

P.20

F. OSD Control

4. Using the System

F. OSD Control

Picture-In-Picture

PIP Size

To perform small picture size selection of the input signal
Use the Up ‘é’& Down ’ä ' button to select the PIP sizes from “Off”, “ Small”,

“Medium”, “ Large”, “PAP” & “POP”.

PIP Position

To perform PIP small picture position of the input signal
Use the Left ‘á’, Right ’â’Up ‘é’& Down ’ä ' button to select the PIP posi-

tion.

OP-40WT Series User Manual

Jan 05

P.21

F. OSD Control

4. Using the System

F. OSD Control

Channel Settings

System

To perform TV System select for TV signal input
Use the Right ’â ' button to enter the NTSC Manu., Then Use U ’é’ & D ’ä’

button to select suitable Regional NTSC System

Auto Store

To perform Auto Store function for TV Channel Setting
Use the Left ’á ' & Right ’ â’ button to select Yes/No for Auto Store

Manual Store

To perform Manual Store function for TV Channel setting
Use the Left ’á ' & Right ’ â’ button to moving the Channel Setting pointer on the

Signal Indication Bar.

Sort

To perform range adjustment for Auto Store base on receivable status of TV Sig-

nal

Use the L ’á’, R ’â’, U ’é’ & D ’ä’ button to adjust The TV Channel range .

Delete

To perform delete function for TV Channel Setting
Use the L ’á’, R ’â’, U ’é’ & D ’ä’ button for “Channel Setting Delete”

CHANNEL SETTINGS

SORT

MANUAL STORE

AUTO STORE

SYSTEM

DELETE

OP-40WT Series User Manual

Jan 05

P.22

F. OSD Control

4. Using the System

F. OSD Control

General Settings (1)

OSD Languages

To perform brightness adjustment of the input signal
Use the Up ‘é’& Down ’ä ' button to select “OSD Language” from:

(1) English
(2) Chinese (中文)

(3) Deursch
(4) Francais
(5) Espanol
(6) Italiano

OSD Position

To perform OSD position of the screen
Use the Left ‘á’, Right ’â’Up ‘é’& Down ’ä ' button to select the OSD po-

sition.

OSD Time Out

To perform OSD display time out function
Use the Up ‘é’& Down ’ä ' button to select the time period from “10 Sec”, “ 30

Sec.” & “ 1 Min”.

OP-40WT Series User Manual

Jan 05

P.23

F. OSD Control

4. Using the System

General Settings (2)

Sleep Time

To perform Sleep Time setting function

Use the Up ‘é’& Down ’ä ' button to select the time period from “Off”, “

30 Mins.”, “ 60 Mins.” & “ 120 Mins.”.

IP Info

To perform IP Information display function show in the screen

Show the information about “Source”, “ Resolution.”, “Hsync.” & “Vsync.”.

Factory Reset

To perform reactivate to the factory reset function
Use the Left ‘á’& Right ’â ' button to select Yes/No for “ Factory Reset”

Transparency

To adjust the transparency level of the OSD image
Use the Left ‘á’& Right ’â’button to adjust “Transparency ” from 0-15

Deinterlacer

To perform deinterlacer function

Use the Up ‘é’& Down ’ä ' button to select the “MADI”, “ Motion”, “ Film

Mode” & “LADI”.

OP-40WT Series User Manual

Jan 05

P.24

G. Remote Control

1. Power
switches the set from to off or standby to on.

2.Number Buttons
switch the set on and select a program

3.Volume +/­adjusts the volume

4. p/q/t/u (Program Up/Down/Right/Left)
adjusts menu settings

5. Menu Setting Buttons
switch menu hot keys .

6. Mute
Switch the sound on or off.

7. Channel +/­switch the TV channel

8. Menu
select a menu

4. Using the System

Disclaimer
This information is subject to change without notice. The producer of this manual accepts no
responsibility for damage or claims, resulting from misuse or misinterpretation.

OP-40WT Series User Manual
