SLED
User’s Manual
(v3.1.5)
Document Version 1.1
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com
SLED Full Color LED Signage User’s
Manual
© 2013 i-Tech Company LLC. All rights reserved.
Under copyright law, this manual may not be reproduced in any form, in whole or in part,
without the prior written consent of I-Tech Company LLC.
Disclaimer
I-Tech Company LLC. has reviewed this manual and provides it only as a guide to
operation. All statements, technical information, and recommendations in this manual and in
any guides or related documents are believed reliable, but the accuracy and completeness
thereof are not guaranteed or warranted, and they are not intended to be, nor should they be
understood to be, representations or warranties concerning the products described.
Specifications are subject to change without notice.
Trademarks:
SLED is a trademark of i-Tech Company LLC.
I-Tech Company LLC.
41758 Christy Street
Fremont, CA 94538
Important Safety Instructions
■ Read and follow these instructions. And ke ep all in struct ions .
■ Heed all warnings.
■ Do not use this product ne ar wa ter. C lea n only w ith a d ry cloth.
■ Install in accordance with the manufacturer's instructions.
■ Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatuses that produce heat.
■ Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
■ Only use attachments/accessories specified by the manufacturer.
■ Unplug this product during lightning storms or when unused for long periods of time.
■ Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, the apparatus does not operate normally, or the
apparatus has been dropped.
■ To reduce the risk of fire or electric shock, do not expose this ap pliance to rain or
moisture.
■ Do not expose apparatus to dripping or splashing and do not place objects filled with
liquid on the apparatus.
Product Cautions
TO PREVENT POSSIBLE DANGER, ELECTRIC SHOCK, AND OTHER
INJURIES WHEN HANDLING YOUR SIGNAGE, PLEASE BE AWARE OF
OF ALL WARNINGS AND SAFETY PRECAUTIONS LISTED BELOW.
Note: Read all safety and operating instructions before operating your new SLED LED
display.
3.
Never insert anything into the LED signage, where objects can come
into contact with high voltage nodes or damage internal components.
Do not attempt to service the signage yourself. Opening or
removing covers exposes high voltage nodes and other hazards.
Refer all servicing to qualified service personnel.
Do not touch the LED signage during thunderstorms.
Unplug the signage during thunderstorms, or if it will not be us
ed for extended periods.
Failure to do so may result in electric shock or fire.
Before cleaning the LED signage, unplug it from the wall. Do not use
a damp cloth for cleaning. Never use liquid or aerosol cleaners.
To prevent overheating and ensure reliable operation, place the LED
signage only in a well indoor and ventilated location.
Contents
Important Safety Instruction
Product Cautions
Introduction
2 Application and Feature
3 Unpacking Your SLED
4 SLED Dimension
5 Hardware & Software Installation
6 Software Operation
7 Turning the Signage On and Off
8 Brightness adjustment
1
2
5
6
7
8
13
38
70
71
9
Video Playing Controlling
72
10 File Format Supported
73
11 Specification of SLED
74
4.
1
1. Introduction
SLED series models are innovated electronic LED signage, which is ch aracterized by low
power consumption and ultra-thin & lightweight for easy carry and installation. Differed from
traditional type, SLED series models, with weighs from 3~ 18kgs and thickness from 28 ~
40mm, is integrated with 8x8 full color LED modules that are constitutes by 3-in-1 RGB LED
with dot pitch 6mm, a memory card and a control system. All the SLED are activated by the
point-to-point (static) driving technology; each color shows 1,024 grayscale levels controlled
by the 10-bit PWM. Thus, SLED model can reach full color performance with natural color
blending, excellent smoothness and consistency, which is superior to any scan-driving LED
signage.
SLED is also a remarkable eco-solution tool for your business marketing. Under normal
video display, power consumption of the SLED (Model No.: LM19296F-6) is below 250W
while maximum is no more than 500W under full-power operation (RGB 256x256x256).
SLED promises you the best advertising platform for your business marketing and enables
users to utilize their creativities to the fullest in an economical way. It saves both your bills as
well as the globe.
In brief, easy installation & operation of SLED allows users to advertise their products /
brands / services wherever they prefer. Whether you mount it on the wall, hang from the
ceiling, place on a tripod, SLED can be easily managed. Sbravo’s SLED provides you a new
marketing medium for your advertising planning. Marketing yourselves wherever you go!
5.
2.1 Application
□ Indoor (semi-indoor) LED display;
□ LED message signboards
□ Advertising signage
□ Installation art or media art
2.2 Feature
□ 3-in-1 SMD LED
□ 6 mm pixel pitch
□ 10-bit (1024) grayscale PWM control for each single LED
□ Point-to-Point (static) driving mode
□ Embedded Control System
□ Thickness < 40 mm, weight 3kgs ~18kgs
Ultra-thin & lightweight for easy-mounted
□ Full color performance (more than one billion colors, 1024*1024*1024 colors),
□ Natural color-blending, consistency and smoothness
□ Low power-consumption for power saving
□ No thermal issue, cooler system needless
□ Temperature range of operation: -10 to 40°C
□ Meet RoHS compliant (lead free)
□ User Friendly Operation Interface
□ Module design for easy maintenance
□ Metal frame, thin, firm & durable
6.
3 Unpacking Your SLED
Before using your new signage, you should unpack the contents of the box and check to
make sure everything is present and undamaged.
To unpack the signage:
A. Set the box upright near the intended signage location.
B. Open the top of the box.
C. Remove the accessories box from behind the signage and set it aside.
D. Lift the LED signage out of the box.
E. Remove the pads and set the signage aside.
The accessories box should contain the items indicated below. If any items are
missing or damaged, please contact the seller immediately.
The accessories including:
A. CD x 1 (includes User’s Manual)
B. Power Adaptor x 1
C. USB Cable x 1
7.
4. SLED Dimension 4-1.
Model: SLED6448F-6
Figure 1
8.
4-2. Model: SLED12848F-6
9.

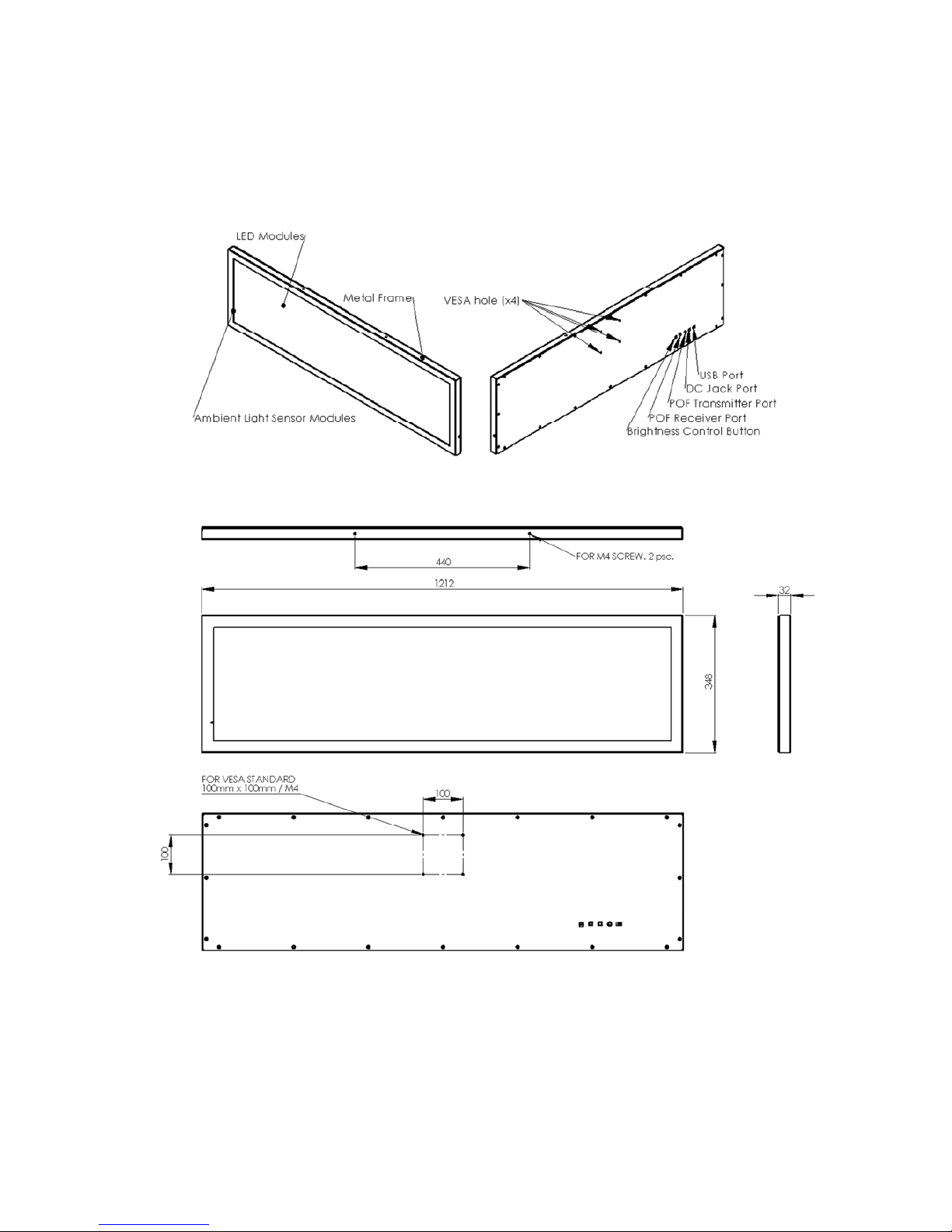

4-3. Model: SLED19248F-6
Figure 3
10.
4-4. Model: SLED25648F-6
Figure 4
11.
4-5. Model: SLED12896F-6
Figure 5
12.
5. Hardware & Software Installation
5.1. If you are going to connect several SLED to show one video file, please be make sure to
connect the SLED by Plastic optical fiber cable by Figure 6 list.
(p.s. 5.1 is unnecessary if connection is only one unit SLED).
13.

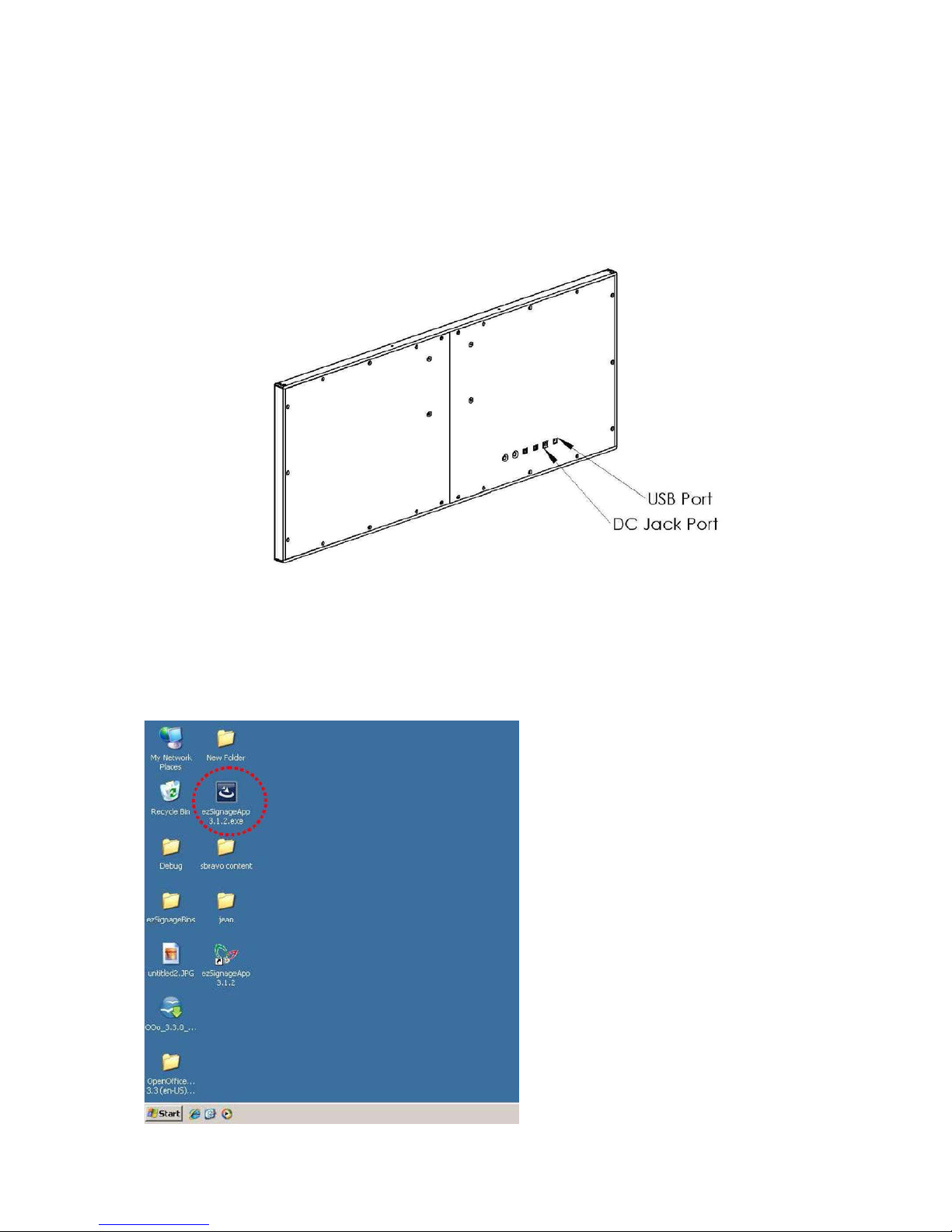

5.2. Plug in the power cable to SLED and connecting the USB cable from your computer to SLED.
(as Figure. 7.)
Figure 7
5.3. Insert the SLED software, which is attaching with SLED, to PC.
For Windows XP
A. Please execute “SLEDApp3.x.x.exe ” .
14.

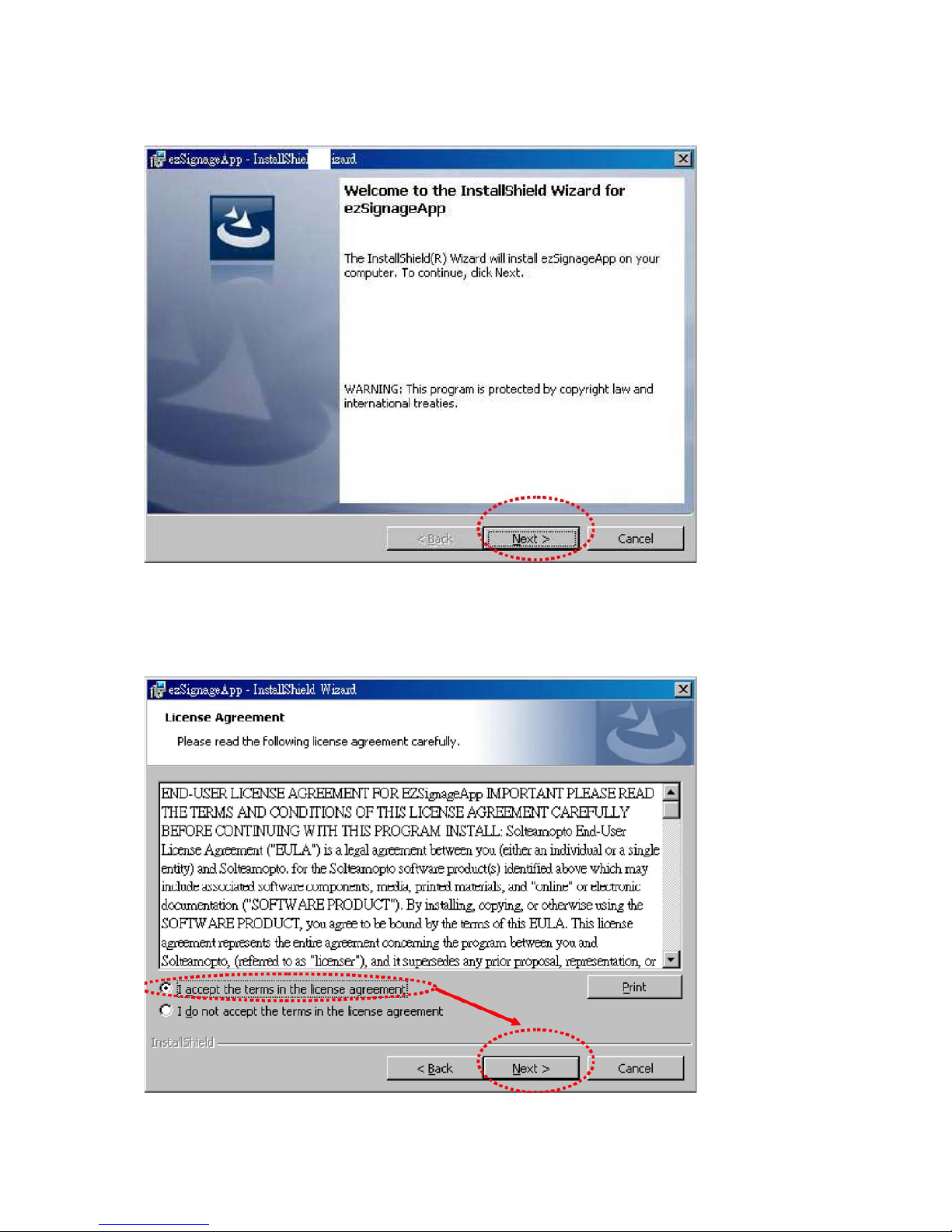

B. Click NEXT> to start installation.
C. When enter to License Agreement dialog, please select I accept the terms in the
license agreement and click Next> to next step.
15.

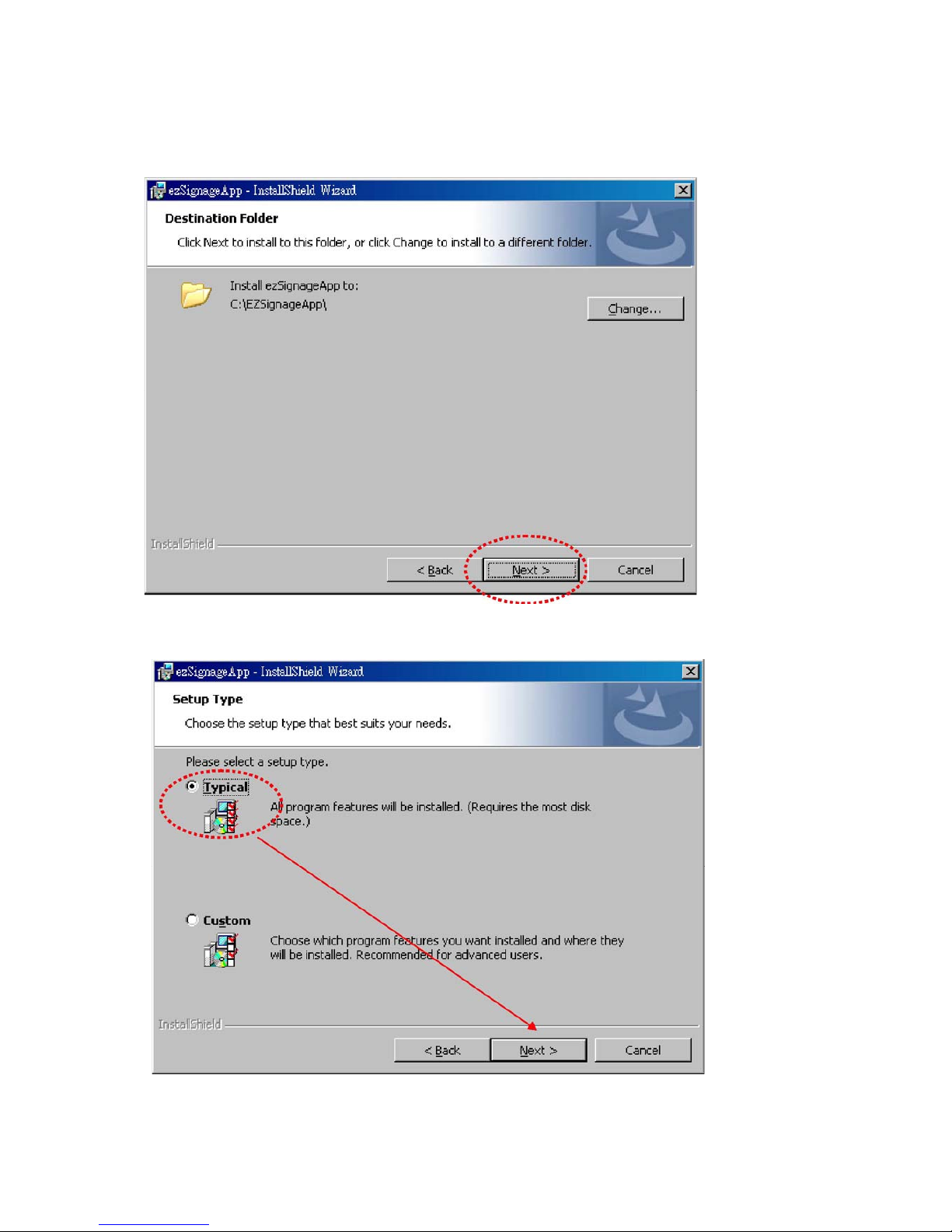

D. Please click NEXT> to next step.
E. When enter Setup Type dialog, please select Typical and click NEXT> to next step.
16.
F. When enter to Ready to Install the Program dialog, please click Install button to install
SLED APP and the status bar will track the installation status.
17.
G. Please click Finish button to finish the installation.
H. Then please install WinPcap. Please click NEXT> to next step.
18.
I. The click NEXT> to next step.
J. When enter to License Agreement dialog, please select I Agree.
19.
K. The please click Install button to start installation.
L. The click Finish to finish the installation.
20.

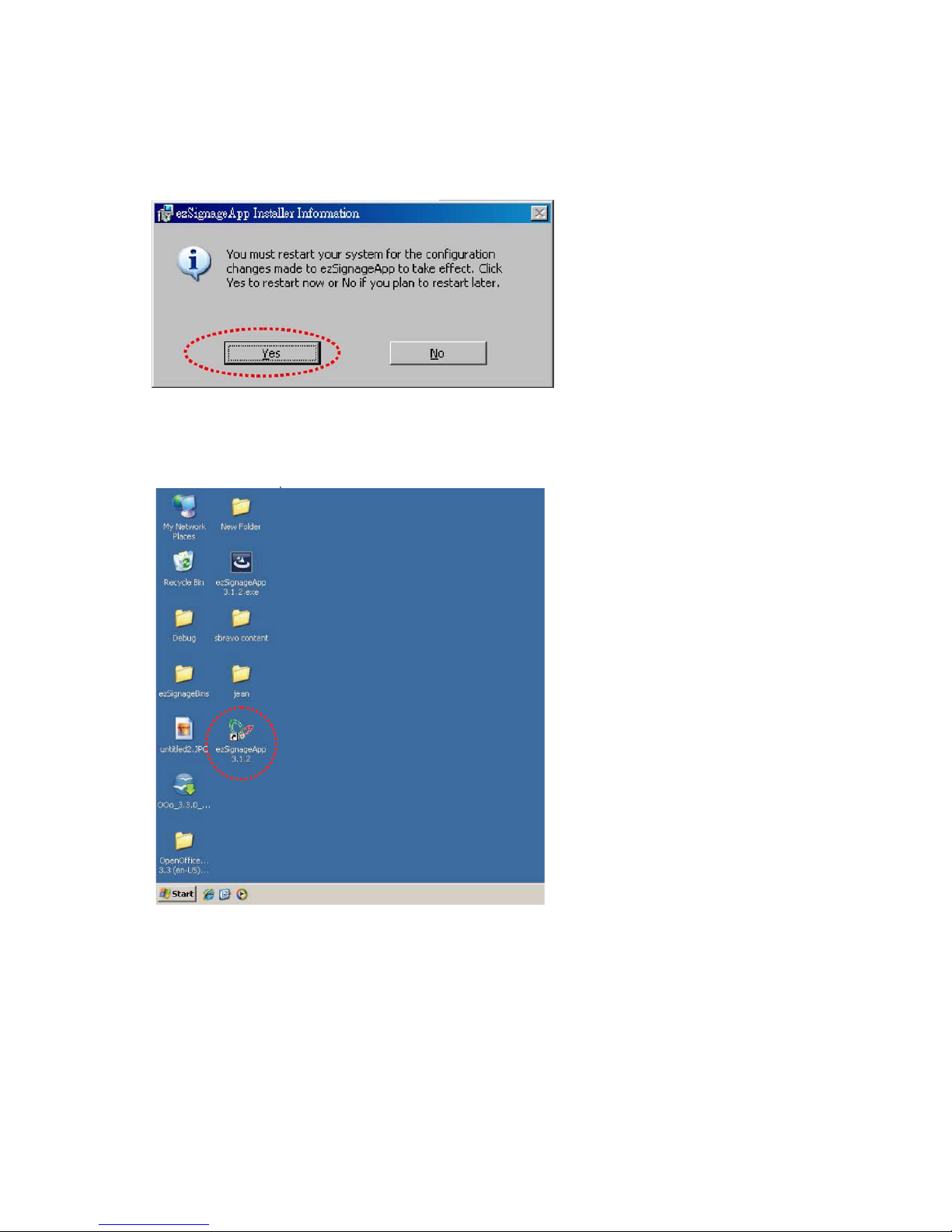

M. Please select Yes to re-start your system.
N. After re-starting the system and installed the software successfully, you may find SLEDAPP shortcut
on the desktop.
21.
【P.S.】You may also find ezSignageAPP as below figure list.
22

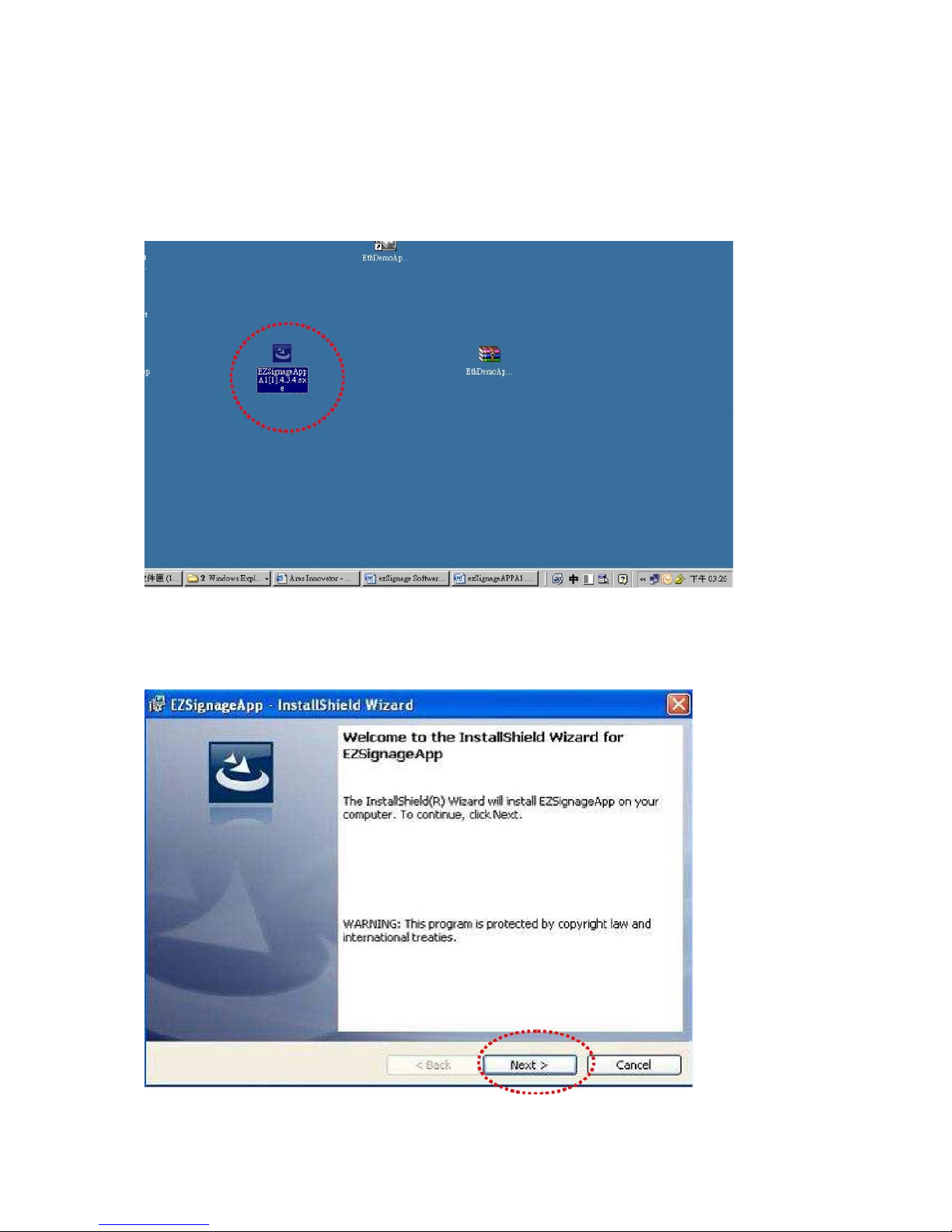

For Windows 7
A. Please execute “ezSignageAPPA3.x.x.exe
B. Click NEXT> to install EZSignageAPP
23.
