I-Tech DR117 Series, SDR117 Series, SDR119 Series, DR119 Series User Manual

USER

1U Dual Slide LCD Keyboard Drawer

17”, 19” Screen Size

MANUAL

Models

DR117 / DR119 Series

-1U Dual Slide

- 17” 19” Screen Size

- with KVM Options

Models

SDR117 / SDR119 Series

-1U Dual Slide

- 17” 19” Screen Size

- with KVM Options

- designed for SUN Servers

DR117/119 – SDR117/119 User Manual

Contents

Chapter 1 Getting Started

1.1 Important Safeguards..........................................................1

1.2 Regulatory Notice................................................................2

1.3 Package Contents...............................................................3

1.4 Before Installation................................................................4

1.5 Unpacking............................................................................4

1.6 Optional Accessories...........................................................4

1.7 Peripheral Products.............................................................5

1.8 Structure Diagram...............................................................5

1.9 Installation.......................................................................................................6

1.10 How to Install “One Man” Installation Slides............................................7-8

1.11 How to Use The Slides....................................................................................9

1.12 How to Use the Dual Slides.........................................................................10

1.13 Locking Bracket……………………………...................................................11

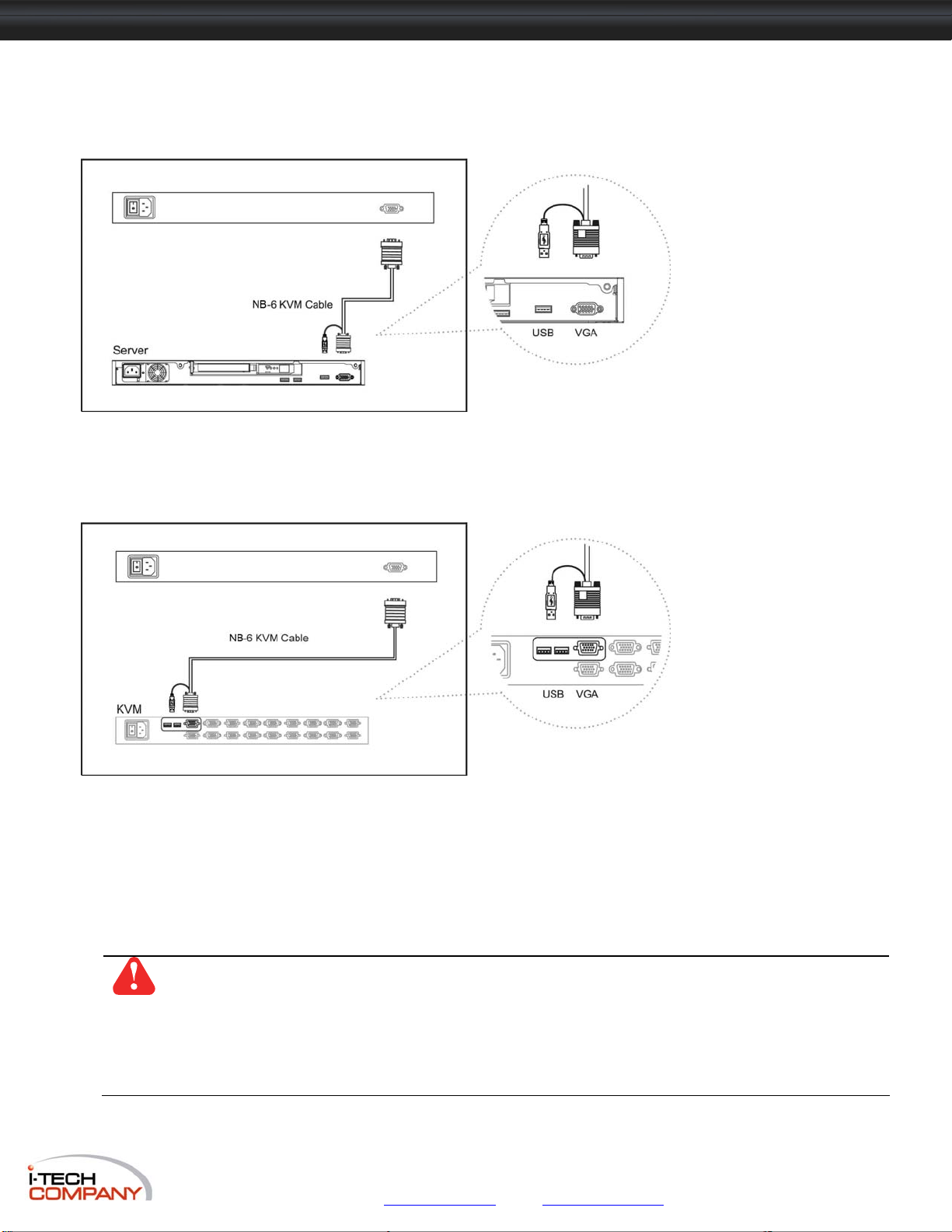

1.14 SDR117 / 119 (Single console)

- Use NB-6 to connect to server via USB interface...................................12

1.15 SDR117 / 119 (Single console)

- Use NB-6 to connect to KVM via USB interface.....................................12

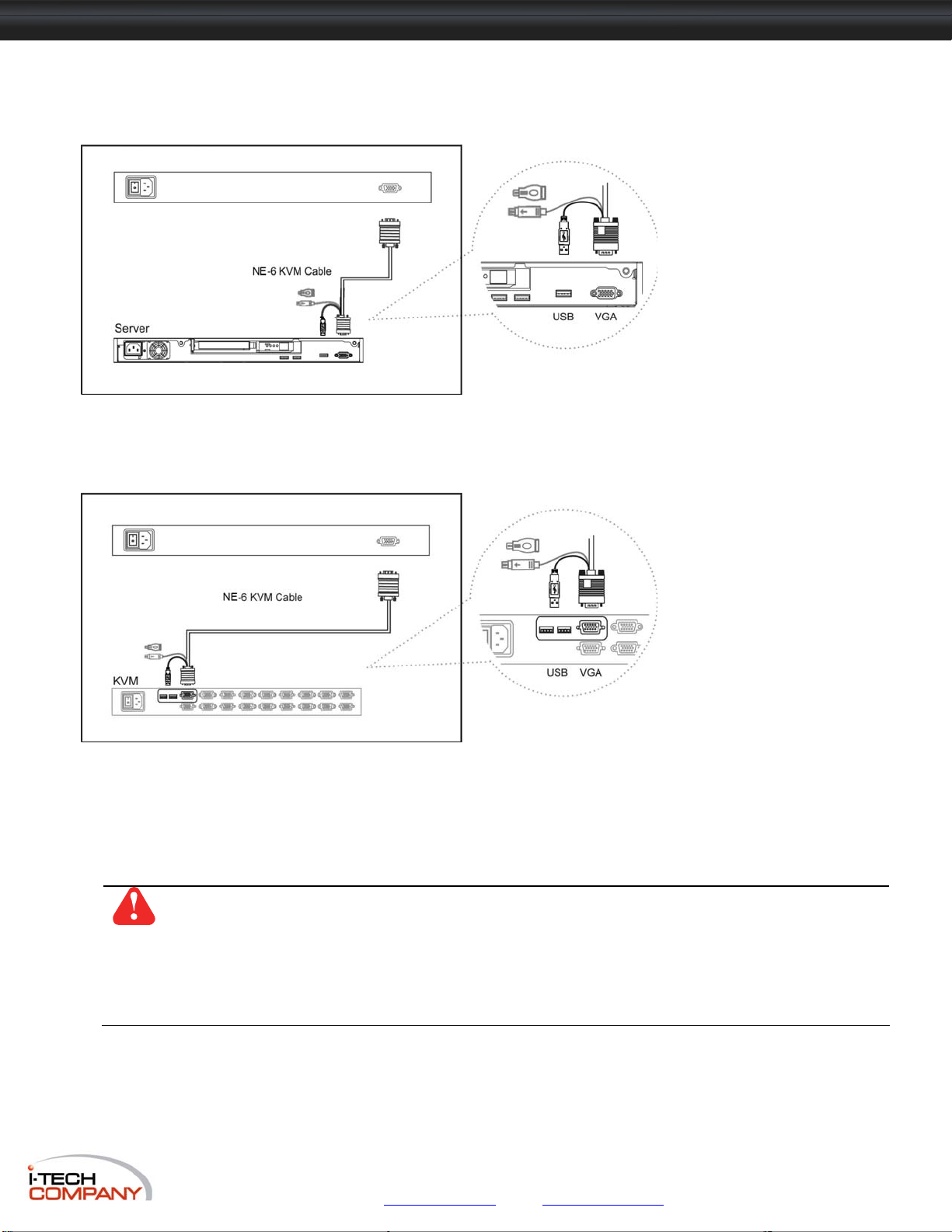

1.16 DR117 / 119 (Single console)

- Use NE-6 to connect to server via PS/2 interface..................................13

1.17 DR117 / 119 (Single console)

- Use NE-6 to connect to KVM via PS/2 interface..........................13

1.18 DR117 / 119 (Single console)

- Use NE-6 to connect to server via USB interface.........................14

1.19 DR117 / 119 (Single console)

- Use NE-6 to connect to KVM via USB interface...........................14

Chapter 2 Operation

2.1 On-screen Display Operation.............................................15

2.2 On-screen Menu................................................................16

Chapter 3 Standard Specification

3.1 Specifications....................................................................17

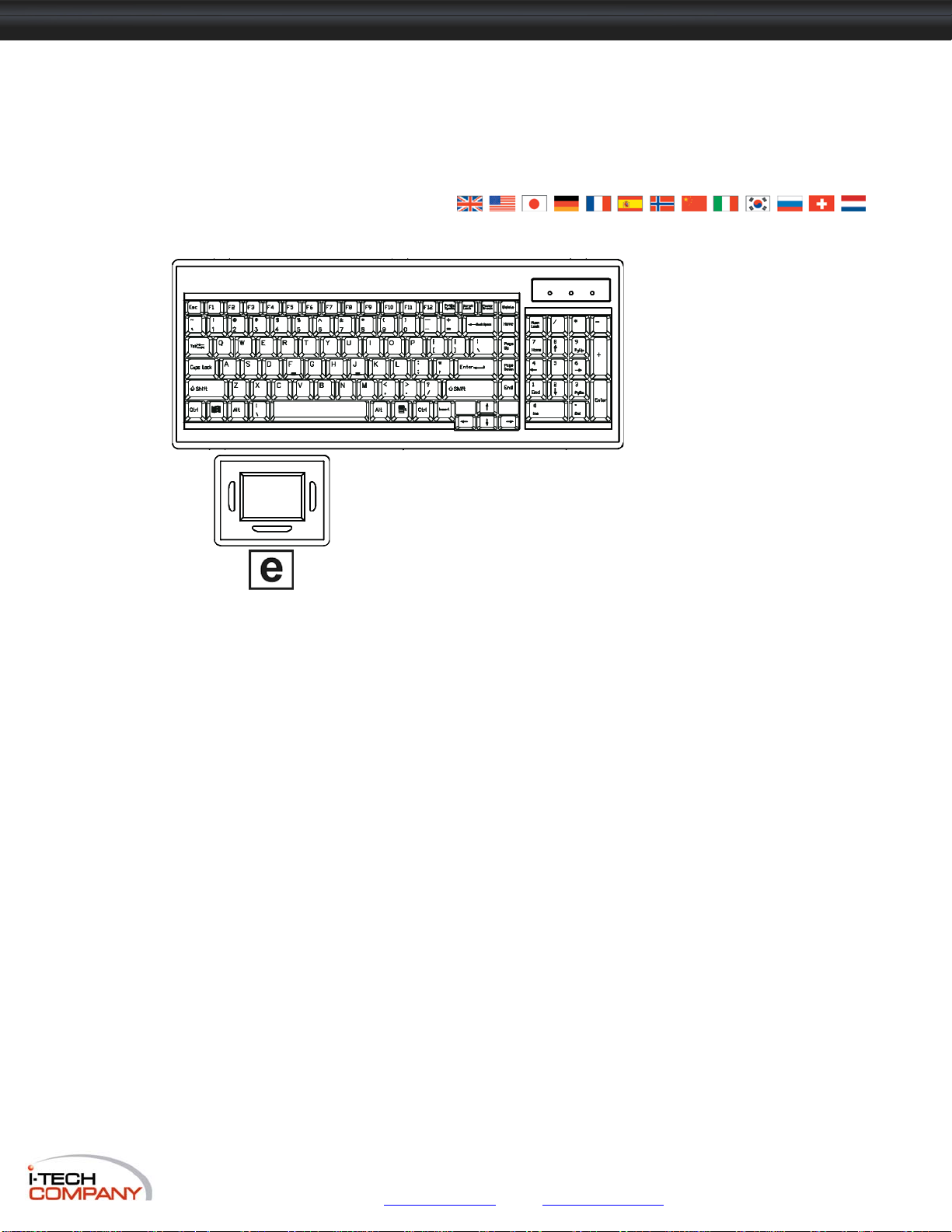

3.2 Keyboard & Mouse...................................................18-19

3.3 How to Use “NS” Keyboard................................................20

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

Contents

Chapter 4 Optional Specification

4.1 KVM Options.....................................................................21

4.2 DVI-D Input Option............................................................21

4.3 BNC + S-Video Option.......................................................21

4.4 Audio Option......................................................................22

4.5 DC power Options.............................................................23

Chapter 5 Troubleshooting...............................................................................................24

Chapter 6 Dimensions........................................................................................................25

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

1.1 Important Safeguards Chapter 1

DR117/119 – SDR117/119 User Manual

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

■ Any product, on which the serial number has been defaced, modified or removed.

■ Damage, deterioration or malfunction resulting from:

□ Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or

failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fluctuation or failure.
□ Use of supplies or parts not meeting our specifications.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.

■ Removal, installation, and set-up service charges.

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

1.2 Regulatory Notice Chapter 1

Legal Information

First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the
correctness of the contents. The information in this document is subject to change without notice. We are not liable for
any injury or loss that results from the use of this equipment.

Safety Instructions

■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned enviro-

nment with temperatures not exceeding 40º Celsius (104º Fahrenheit).

■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and
causing damage to other equipment or injury to persons nearby.

■ When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it and
the power supply. Proper air convection is necessary to keep it from overheating.

■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage

and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be
higher than the one listed on the equipment’s ratings label.

■ Observe all precautions and warnings attached to the equipment.

■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent

being damaged by transient over-voltage.

■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to
the power supply or on other hardware may cause damage, fire or electrical shock.

■ Only qualified service personnel should open the chassis. Opening it yourself could damage the equip­ ment and invalidate its warranty.

■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service
personnel.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:

■ Re-position or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a85

circuit different from that to which the receiver is connected.

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

1.3 Package Contents Chapter 1

1.

LCD keyboard drawer x 1 pc

2. NB-6

3.

USB 2-in-1 KVM cable x 1 pc (for DS series)

NE-6

Combo 4-in-1 KVM cable x 1 pc (for D series)

Fasteners for rear L-bracket x 4 pcs

4.

330mm rear mounting L-bracket x 1 pair

5.

User manual x 1 pc

6.

Power cord x 1 pc

7.

Auto switch power adapter x 1pc

or

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

1.4 Before Installation Chapter 1

■ It is very important to locate the LCD Keyboard Drawer in a suitable environment.

■ The surface for placing and fixing the LCD Keyboard Drawer should be stable and level or mounted into a

suitable cabinet.

■ Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt,
heat, water, moisture and vibration.

■ Position LCD Keyboard Drawer with respect to related facilities.

1.5 Unpacking

they are included and in good condition. If anything is missing, or damage, contact the supplier immediately.

1.6 Optional Accessories

The LCD keyboard drawer comes with the standard parts shown on the package contents. Check and make sure

1. Combo 4-in-1 KVM cable

1.1 NE-6 6 feet

1.2 NE-10 10 feet

1.3 NE-15 15 feet

2. USB 2-in-1 KVM cable

2.1 NB-6 6 feet

2.2 NB-10 10 feet

2.3 NB-15 15 feet

Power Cord

3.

3.1 IEC power cord

3.2 NEMA 5-15 power cord (US)

3.3 BS 1363 power cord (UK)

3.4 CEE 7/4 power cord (German)

3.5 AS 3112 power cord (Australia)

“ One Man” installation slides

4.

4.1 NBK-01 Single or “One Man “ installation slides

* Please refer to P.10 - 11 for Installation guidelines

Remarks:

■ NB-6 is for DS series only.

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

1.7 Peripheral Products Chapter 1

Item Model No. Description

Matrix Cat6 KVM

Matrix DB-15 KVM

Combo Cat6 KVM

Combo DB-15 KVM

PS/2 DB-15 KVM

1.8 Structure Diagram

MC0116 / MC0216 / MC0316
MC1116 / MC1216 / MC2116
MC0132 / MC0232 / MC0332
MC1132 / MC1232 / MC2132

Matrix Cat6 16 port KVM
Matrix IP Cat6 16 port KVM
Matrix Cat6 32 port KVM
Matrix IP Cat6 32 port KVM

M018/ M028 / M038
M118 / M128 / M218
M0116 / M0216 / M0316
M1116 / M1216/ M2116

Matrix DB-15 8 port KVM
Matrix IP DB-15 8 port KVM
Matrix DB-15 16 port KVM
Matrix IP DB-15 16 port KVM

NVC800 / NVCCE800 / NVCIP800
NVC1600 / NVCCE1600 / NVCIP1600

NVC3200/ NVCCE3200 / NVCIP3200

Combo Cat6 8 port KVM
Combo Cat6 16 port KVM
Combo Cat6 32 port KVM

NVS801 / NVCE800 / NVIP-802
NVS1601 / NVCE1600 / NVIP-1602

Combo DB-15 8 port KVM
Combo DB-15 16 port KVM

NV401A / NV801A / NV1601A 4 / 8 / 16 port PS/2 DB-15 KVM

1.

Adjustable rear mounting L-bracket

2.

LCD interchangeable module kit

3. LCD membrane 7. Touchpad mouse module

5.

Keyboard interchangeable module kit4

6. Carry handle to release the 2-pt lock

4. Membrane switch (KVM option) 8. 4 8 1U dual slide for LCD keyboard drawer

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

Figure 1. Installing the rear L-bracket to the LCD keyboard drawer.

■

Install each rear L-bracket using two fasteners shown

in Figure 1.

■ Leaving the fasteners slightly loose.

DR117/119 – SDR117/119 User Manual

1.9 Installation Chapter 1

Figure 2. Aligning the rear L-brackets to a suitable length for the rack.

■

Measure the front and rear mounting depth of the

rack.

■ Align each rear L-bracket to a suitable length and

tighten the fasteners shown in Figure 2.

■

Fixed the LCD keyboard drawer into the rack.

* Hardware (screws and cage nuts) for fixing the
mounting bracket to the rack is not provided.

Figure 3. Fixing the LCD keyboard drawer into the rack.

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

1.10 How to Install "One Man" Installation Slides Chapter 1

NBK-01 (Optional) Package Contents

1 Mounting bracket x 2 pcs

2 M6*15mm screw x 8 pcs

3 M6 cage nut x 6 pcs

4 4 Cup washer x 8 pcs

Install into rack

■ Attach the left and right mounting bracket to
rack 19” mounting rails.

■ Adjust the rear mouting bracket to fi t your rack.

■ M6 screw and cup washer x 6 pcs included.

you complete the installation in step

Caution : Leaving the screws slightly loose, until

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

1.10 How to Install "One Man" Installation Slides Chapter 1

■ Pick up the LCD keyboard drawer.

■ Insert the LCD keyboard drawer into the mounting

bracket.

■ Pull and hold the left & right black arrow buttons on the
rails.

■

Return the LCD keyboard drawer to park position.

■ Attach front left and right mounting ears of the LCD

keyboard drawer to vertical mounting rails.

■ M6 screw and cup washer x 2 pcs included.

Complete the installation

■ Tighten all 8 pcs of M6 screw to complete the installation.

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

1.11 How to Use the Slides Chapter 1

Figure 4. White arrow button.

Figure 5. Pushing the white arrow button.

Figure 6. Pushing the upper LCD drawer until it is located in the rack.

■ A white arrow release button is located on the
outside of each slide (shown in

■ Push the white arrow button on either side of the
upper LCD drawer to unlock (shown in
pressing the red button located on either side.

■ Hold down the white arrow button until the upper
LCD drawer is located in the rack (shown in

■ Push the either side of the lower keyboard drawer
until it is located in the rack (shown in

Figure 4

).

Figure 5)

Figure 6)

Figure 7)

. Avoid

.

.

Figure 7. Pushing the lower keyboard drawer into the rack.

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

1.11 How to Use the Dual Slides Chapter 1

Figure 8. Pulling the handle toward the front of keyboard
drawer.

Figure 9. Pulling the handle toward the front of LCD drawer.

Figure 10. Flipping up the LCD to a suitable angle.

Figure 11. Operating the LCD keyboard drawer.

■ Gently pull the handle toward the front of the

.

Figure 8

).

lower keyboard drawer (shown in

■ Push the handle toward the front of the upper
LCDdrawer (shown in

■ Flip up the LCD to a suitable angle shown in

Figure 10

■ Operate the LCD keyboard drawer shown in

Figure 11

.

.

Figure 9)

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

1.13 Locking Bracket Chapter 1

Figure 12

Figure 13

Figure 14

■ Release the locking bracket in

.

■ The locking bracket will spring open in

.

■ Flip up the LCD panel.

.

Figure 12

.

Figure 13

.

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

1.14 SDR117 / 119 (Single console)

- Use NB-6 to connect to server via USB interface

Figure 15.

1.15 SDR117 / 119 (Single console)

- Use NB-6 to connect to KVM via USB interface

Figure 16.

Remarks:

■ The above connection is only for the LCD keyboard without KVM switch built-in.

■ For the LCD keyboard drawer with KVM switch built-in, please refer to attached KVM switch user manual.

Example of connecting NB-6 2-in-1 USB KVM cable to server via USB interface

Example of connecting NB-6 2-in-1 USB KVM cable to KVM via USB interface

Caution:

servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while servers and
KVM are powered on may cause irreversible damage to the servers, KVM and LCD keyboard drawer.
Before attempting to connect anything to the LCD keyboard drawer, we suggest turning off the power to
all devices before connecting them. Apply power to connected devices again only after the LCD
keyboard is receiving power. The company is not responsible for damage caused in this way.

The LCD keyboard drawer is hot-pluggable, but components of connected devices, such as the

Chapter 1

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

1.16 DR117 / 119 (Single console) Chapter 1

- Use NE-6 to connect to server via PS/2 interface

Figure 17.

1.17 DR117 / 119 (Single console)

- Use NE-6 to connect to KVM via PS/2 interface

Figure 18.

Remarks:

■ The above connection is only for the LCD keyboard without KVM switch built-in.

■ For the LCD keyboard drawer with KVM switch built-in, please refer to attached KVM switch user manual.

Example of connecting NE-6 4-in-1 Combo KVM cable to server via PS/2 interface

Example of connecting NE-6 4-in-1 Combo KVM cable to KVM via PS/2 interface

Caution:

servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while servers and
KVM are powered on may cause irreversible damage to the servers, KVM and LCD keyboard drawer.
Before attempting to connect anything to the LCD keyboard drawer, we suggest turning off the power to
all devices before connecting them. Apply power to connected devices again only after the LCD
keyboard is receiving power. The company is not responsible for damage caused in this way.

The LCD keyboard drawer is hot-pluggable, but components of connected devices, such as the

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

1.18 DR117 / 119 (Single console) Chapter 1

- Use NE-6 to connect to server via USB interface

Figure 19.

1.19 DR117 / 119 (Single console)

- Use NE-6 to connect to KVM via USB interface

Figure 20.

Remarks:

■ The above connection is only for the LCD keyboard without KVM switch built-in.

■ For the LCD keyboard drawer with KVM switch built-in, please refer to attached KVM switch user manual.

Example of connecting NE-6 4-in-1 Combo KVM cable to server via USB interface

Example of connecting NE-6 4-in-1 Combo KVM cable to KVM via USB interface

Caution:

servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while servers and
KVM are powered on may cause irreversible damage to the servers, KVM and LCD keyboard drawer.
Before attempting to connect anything to the LCD keyboard drawer, we suggest turning off the power to
all devices before connecting them. Apply power to connected devices again only after the LCD
keyboard is receiving power. The company is not responsible for damage caused in this way.

The LCD keyboard drawer is hot-pluggable, but components of connected devices, such as the

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

2.1 On-screen Display Operation Chapter 2

Membrane Switch Function

Power light
Green = On
Orange = Power saving

Power on / off LCD

Display the OSD menu

Scrolls through menu options and adjusts the displayed control
(To auto adjustment by pressing the button

Exit the OSD screen
Toggle analog, digital & video connection (DVI-D and video options only)

for 5 seconds)

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

2.2 On-screen Menu Chapter 2

OSD Configuration Page

Image:

To enter into the brightness, contrast, colour temp, red, green, and blue

Geometry:

To enter into the auto adjust, H position, V position, phase and clock

Video:

To enter into the colour, tint, sharpness, noise reduction, DCDi and TV Setup

Audio:

To enter into volume, bass, treble, balance, AVL and mute

Misc:

To enter into the language, OSD position, graphic mode, OSD time, ratio,
reset and timer

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

3.1 Specifications Chapter 3

Item Description

Form Factor

LCD Manufacturer

Series DR SDR

Diagonal Size 17" TFT 19" TFT 17" TFT 19" TFT

Max. Resolution 1280 x 1024 1280 x 1024

Brightness (cd/m²) 300 300 300 300

Color Support 16.7 M 16.7 M 16.7 M 16.7 M

Contrast Ratio (typ.) 1000:1 1000:1 1000:1 1000:1
Viewing Angle (H/V) 160˚ x 160˚ 160˚ x 160˚ 160˚ x 160˚ 160˚ x 160˚

Display Area (mm) 338 x 270 376 x 301 338 x 270 376 x 301

Tr Response Time (ms) 1.3 1.3 1.3 1.3

LCD Panel MTBF (hrs) 50,000 50,000 50,000 50,000

VGA Signal Input Analog RGB, 0.7Vp-p

Sync. Type Separate H/V, Composite, SOG

Resolution

Plug & Play DDC EDID 1.3

Console Port (Combo)

Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption Max. 48 Watt, Standby 5 Watt

Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs.

Regulation Approval FCC, CE

Options

KVM Integration Matrix & combo KVM with IP console and 2-console selection

Keyboard & mouse Full size keyboard built-in touch-pad / trackball

Graphic Input

DC Power DC power input with 12V, 24V, 48V selection

Environmental

Operation 0˚ to 50˚C Degree
Storage -5˚ to 60˚C Degree

Relative Humidity 5~90%, non-condensing

Shock 10G acceleration (11ms duration)

Vibration 5~500Hz 1G RMS random vibration

1U rack mounting on slide-out rails

-

1152 x 900 (Direct) 1152 x 900 (Direct)

1280 x 1024 (Native) 1280 x 1024 (Native)

1280 x 720, 60 / 70 / 75 Hz 1280 x 720, 60 / 75 Hz

1280 x 1024, 60 / 70 / 72 / 75 Hz 1280 x 1024, 60 / 70 / 75 Hz

-- 1152 x 900, 66 / 76 Hz

720 x 400, 70 Hz

640 x 480, 60 / 70 / 72 / 75 Hz

800 x 600, 60 / 70 / 72 / 75 Hz

1024 x 768, 60 / 70 / 75 Hz

1152 x 864, 60 / 70 / 75 Hz

DB-15 connector for VGA / keyboard / mouse

(Combo interface)

DB-15 connector for VGA / keyboard / mouse

Support USB servers or Combo KVM switches

DVI-D, S-Video & BNC input -

SUN-compatible keyboard integrated

with 3-button touchpad / trackball

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

3.2 Keyboard & Mouse Chapter 3

For DR series

Supporting layouts

e keyboard integrated with

touchpad

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

3.2 Keyboard & Mouse Chapter 3

For SDR series

Se keyboard integrated with touchpad

■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help

■ 104 key notepad keyboard with full numerical pad and SUN function

■ USB interface

Supporting layouts

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

3.3 How to Use "S" keyboard Chapter 3

■ Press the Fn/Num button to switch the color the Num LED.

Num LED in Off mode

Key pad behaves as a SUN Solaris system
administration command mode

Three Audio / Display keys are located in the upper-right corner of the Se keyboard:

■ Audio : Mute, decrease in volume and increase in volume.

■ Display : Degauss, decrease contrast and increase contrast.

■ Please ask your supplier for full details

Num LED in Green color

Key pad behaves as a normal key pad mode

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

4.1 KVM Options Chapter 4

Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions:

■ For KVM operation, please refer to "Integrated LCD KVM Switch" user manual

■ Option with Multiple consoles Matrix KVM

■ Option with high density & cost efficient Combo KVM integration with either 8 / 16 / 32 ports

■ Option with low cost PS/2 KVM

■ Please ask your supplier for full KVM details

Remarks:

■ DS series is for Matrix & Combo KVM only.

4.2 DVI-D Options

DVI-D

Remarks:

■ Package includes 1 x 6ft DVI-D cable and 1 x 6ft 2-in-1 keyboard & mouse cable

■ In DVI-D option, no VGA signal input is included.

4.3 BNC + S-Video Option

S-Video BNC

Remarks:

■ Package includes 1 x 6ft S-Video cable

3-in-1
VGA KB mouse
console port

3-in-1

VGA KB mouse

console port

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

p

4.4 Audio Options Chapter 4

Power Audio

Remarks:

■ Audio input is 35mm audio plug

■ The s

eaker is sharing the same power with LCD.

3-in-1

VGA KB mouse

console port

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

4.5 DC Power Options Chapter 4

Model

Input rating

Input voltage: 12-Volt 24-Volt 48-Volt

Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V

Input current

- No load 50 mA 50 mA 50 mA

- Full load 4950 mA 2450 mA 1220 mA

Output rating

Output voltage: 12-Volt 12-Volt 12-Volt

Output current: 4.16A 4.16A 4.16A

Efficiency

Remarks:

■ Package does not include 1 x power cord and 1 x AC power adapter

12V

84% 85% 85%

24V

48V

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

5.1 Troubleshooting Chapter 5

1. Is interference signal appeared on LCD normal when shutting down the computer?

In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is
considered normal. The image quality can be improved by adjusting the phase or pixel rate automatically or
manually.

2. The membrane power light is not ON

Press the power On / Off on LCD membrane to check if the monitor is in the ON mode.
Check the power cord is properly connected to the LCD keyboard drawer and power outlet.

3. Screen image is not centered or sized properly
Press the

Adjust the H-position and V-position settings via On-screen menu.

4. Is the LCD keyboard drawer hot-pluggable?

The LCD keyboard drawer is hot-pluggable, but components of connected devices, such as the servers and KVMs,
may not be hot-pluggable. We suggest turning off the power to all devices before connecting them. Apply power to
connected devices again only after the LCD keyboard receives power.

For D Series

1. How do I adjust the resolution?

To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution
in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter­mined by the display card in your computer.

For DS Series

1. How can I adjust the monitor resolution to 1152 x 900 for SUN Micro system?

The NS solution LCD keyboard drawer will automatically detect the 1152 x 900 resolution, so no user configuration
should be necessary.

2. How do I adjust the resolution in MS Windows operation system?

To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution
in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter­mined by the display card in your computer.

3. The Stop-A hot key is not work in Trusted Solaris

The keyboard combination Stop-A (L1-A) is not available in Trusted Solaris by default. The security administrator can
change this.

4. Is interference signal appeared on LCD normal when shutting down the computer?

In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is
considered

button for two seconds to automatically adjust the image.

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com

DR117/119 – SDR117/119 User Manual

6.1 Dimensions Chapter 6

Model

DR117 series

Product Dimension

(W x D x H)

442 x 650 x 44 mm

17.4 x 25.6 x 1.73"

DR119 series

SDR117 series

SDR119 series

442 x 650 x 44 mm

17.4 x 25.6 x 1.73"

442 x 650 x 44 mm

17.4 x 25.6 x 1.73"

442 x 650 x 44 mm

17.4 x 25.6 x 1.73"

The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this
publication.

All brand names, logo and registered trademarks are properties of their respective owners.

Copyright 2009 i-Tech Company LLC. All rights reserved.

Packing Dimension

(W x D x H)

589 x 856 x 168 mm

23.2 x 33.7 x 6.6"

589 x 856 x 168 mm

23.2 x 33.7 x 6.6"

589 x 856 x 168 mm

23.2 x 33.7 x 6.6"

589 x 856 x 168 mm

23.2 x 33.7 x 6.6"

Net Weight

16 kg

35 lb

17 kg

37 lb

16 kg

35 lb

17 kg

37 lb

Gross Weight

22 kg

48 lb

23 kg

51 lb

22 kg

48 lb

23 kg

51 lb

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL: [e-mail] • WEB: www.iTechLCD.com
