User
Manual
RKP115 / 117 / 119
1U 15” / 17” / 19” Rackmount
TFT LCD Keyboard Drawer
Rev. : 1.0
P.1
1. Table Of Content
RKP115 / RKP117 / RKP119 User Manual
1. Table of Content P.1
2. Introduction P.2
3. Features P.2
4. Package Contents P.3
5. Optional Accessories P.4
6. Peripheral Products P.4
7. Important Safeguards P.5
8. Structure Diagram P.6
9. Dimension Diagram
RKP115 P.7
RKP117 P.8
RKP119 P.9
10. LCD OSD Menu Operation
LCD Membrane Diagram P.10
Main Menu P.10
Sub Menu P.11-12
11. Resolution Settings
For Windows P.13
For Sun Servers P.14
12. Technical Specification P.15
Rev. : 1.0
P.2
RKP Series is a combination of keyboard, mouse and monitor into a drawer,
with features such as flip-up design, adjustable brackets, built in LCD OSD to
provide effective assistant for an administrator to control PC system.
RKP Series provides cost effective for your limited IT budget over using CRT
and rack mounting. Also, it will be space saving for your compact environment
rack and effective assistant for an administrator to control PC system.
2. Introduction
3. Features
● Unique 1U mechanical design to maximize rack mountable space.
● Adjustable mounting brackets from 390 to 790mm (front to rear 19”
mounts)
● Black anodized aluminium front panel.
● Standard D-sub 15-pon VGA input connector
● Two keyboard selections supporting multiple languages
● Three models to choose from 15”, 17” or 19” LCD Panel
● Slide rails have two fixed positions to prevent movement of the keyboard
● Built in On Screen Display controlled by integral membrane switches.
● Supplied with 12V 5A remote power adapter (single power source)
Disclaimer
This information is subject to change without notice. The producer of this manual accepts no
responsibility for damage or claims, resulting from misuse or misinterpretation
RKP115 / RKP117 / RKP119 User Manual
Rev. : 1.0
P.3
Before Unpacking
It is very important to locate the LCD Keyboard Drawer in a suitable environment.
The surface for placing and fixing the LCD Keyboard Drawer should be stable and level or
mounted into a suitable cabinet.
Make sure the place has good ventilation, is out of direct sunlight, away from sources of ex-
cessive dust, dirt, heat, water, moisture and vibration.
Convenience for connecting the LCD Keyboard Drawer to the related facilities should be well
considers too.
Unpacking
The LCD Keyboard Drawer comes with the standard parts shown as above. Check and make
sure they are included and in good condition. If anything is missing, or damage, contact the
supplier immediately.
LCD Monitor1 Piece
User Manual1 Piece
DC Power Adapter1 Piece
Power Cord1 Piece
Mounting Bracket1 Pair
Fasteners4 Pieces
CD-6 3-in-1 KVM cable1 Piece
4. Package Contents
RKP115 / RKP117 / RKP119 User Manual
Rev. : 1.0
P.4
6. Peripheral Products
5. Optional Accessories
RKP115 / RKP117 / RKP119 User Manual
Model Description
SUN-31 SUN / iMac USB to PS/2 adapter
Video Input
12V / 24V / 48V DC Power Supply
Model Description
CV-401 / CV-801 / CV-1601 4-Port / 8-port / 16-Port PS/2 KVM switch
CV-1602 16-Port 2-Console PS/2 KVM switch
CV-S801 / CV-S1601 8-Port /16-port USB KVM switch
CV-S1602 16-port 2-Console USB KVM switch
CV-101 CAT.5 PS/2 KVM extender
Rev. : 1.0
P.5
Please read all of these instructions carefully before you use the device.
Save this manual for future reference.
● Unplug the LCD Keyboard Drawer from the power outlet before cleaning.
● Do not spray liquid cleaners or aerosol directly on the device. Wet a cloth with a
neutral detergent (e.g. clean water) and squeeze it tight, then clean the screen
slightly with it.
● Do not expose the LCD Keyboard Drawer directly to rain, water, moisture or
sunlight.
● Avoid pressure on the LCD screen to prevent permanent damage to the display.
● Do not attempt to service the device yourself. Improper operation may void your
warranty. Refer all servicing to qualified service personnel.
● Safe storage environment of the LCD Keyboard Drawer is ranging between –20
o
C
and 60oC. Permanent damage could occur if the LCD Keyboard Drawer is stored
outside the safe range.
● Unplug the LCD Keyboard Drawer immediately and call qualified service
personnel under the following conditions:
1. The VGA signal cord is frayed or damaged.
2. If the monitor has been exposed to rain, liquid or water.
3. If the monitor has been dropped or the casing has been damaged.
What the warranty does not cover
1. Any product, on which the serial number has been defaced, modified or
removed.
2. Damage, deterioration or malfunction resulting from:
a) Accident, misuse, neglect, fire, water, lightning, or other acts of nature,
unauthorized product modification, or failure to follow instructions supplied
with the product.
b) Repair or attempted repair by anyone not authorized by us.
c) Any damage of the product due to shipment.
d) Removal or installation of the product.
e) Causes external to the product, such as electric power fluctuation or failure.
f) Use of supplies or parts not meeting our specifications.
g) Normal wear and tear.
h) Any other causes which does not relate to a product defect.
3. Removal, installation, and set-up service charges.
7. Important Safeguards
RKP115 / RKP117 / RKP119 User Manual
Rev. : 1.0
P.6
8. Structure Diagram
1. PS/2 keyboard
2. Aluminium front panel
3. Class A active matrix TFT LCD panel
4. Rear metal case
5. LCD inverter
6. LCD membrane
7. Ball bearing telescopic slides with stopper
8. Adjustable mounting bracket
9. Optional KVM switch
• ‚ ƒ „ …
‡ ˆ †
‰
‰
RKP115 / RKP117 / RKP119 User Manual
Rev. : 1.0
P.7
RKP115 1U 15” LCD Keyboard Drawer
9. Dimension Diagram
RKP115 / RKP117 / RKP119 User Manual
15” LCD
Rev. : 1.0
P.8
RKP117 1U 17” LCD Keyboard Drawer
9. Dimension Diagram
RKP115 / RKP117 / RKP119 User Manual
17” LCD
Rev. : 1.0
P.9

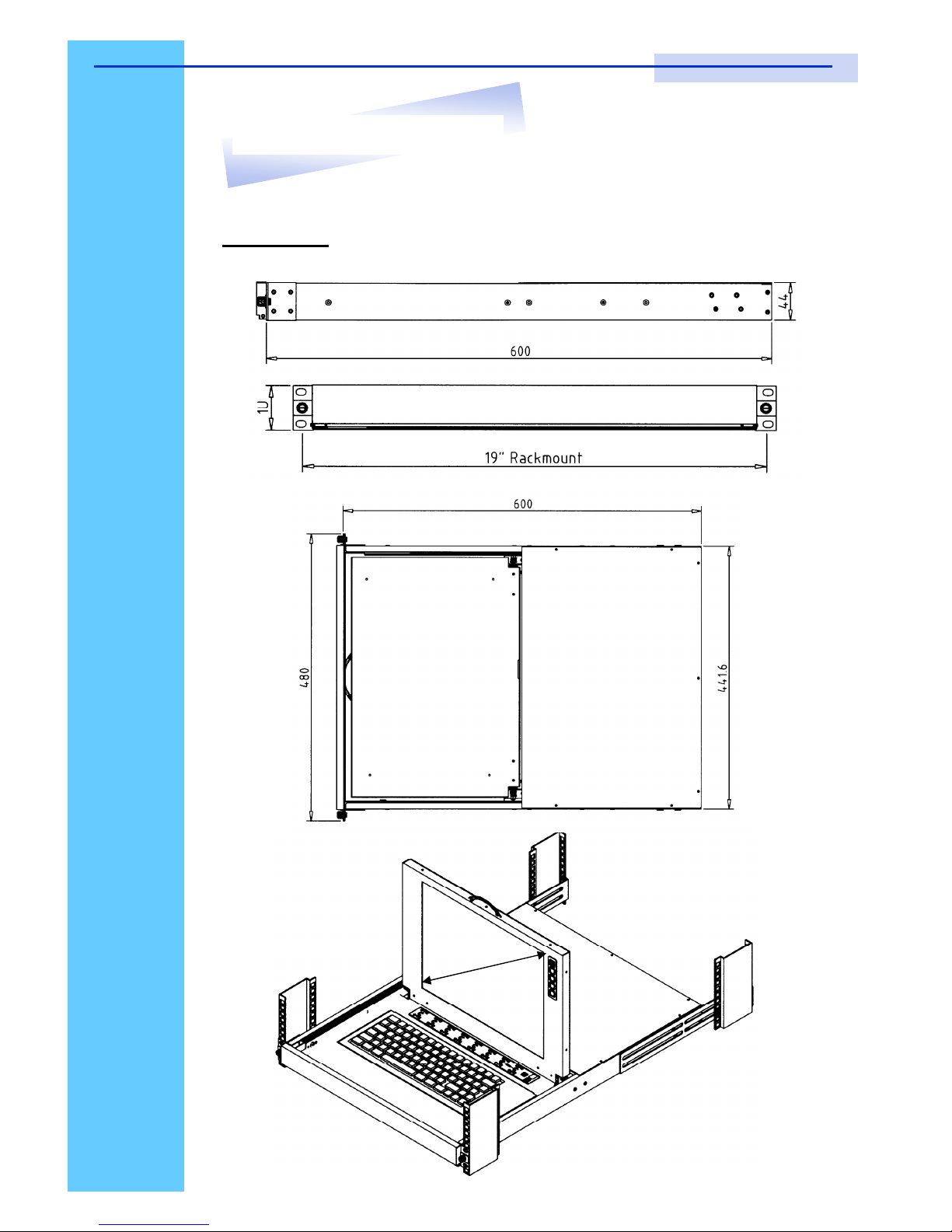

RKP119 1U 19” LCD Keyboard Drawer
9. Dimension Diagram
RKP115 / RKP117 / RKP119 User Manual
19” LCD
Rev. : 1.0
P.10
10. LCD OSD Menu Operation
LCD Membrane Diagram
Left
Right
Exit
Menu/Selection Power
MAIN MENU
BRIGHT/CONTRAST
AUTO ADJUST
PHASE/CLOCK
H/V POSITION
MISC
RESET
Main Menu
Bright / Contrast
● To enter into the Bright, Black level & Contrast sub-menu
Auto Adjust
● To perform automatic optimisations of all functions
● An “ Adjusting” message is displayed during the process
Phase / Clock
● To enter into the phase & clock sub menu
H/V Position
● To enter into the Position sub-menu
MISC
● To enter into the MISC sub-menu
Reset
● Reset to the default factory settings
RKP115 / RKP117 / RKP119 User Manual
Rev. : 1.0
P.11
Bright / Contrast
1. Brightness
● To perform brightness adjustment of the input RGB signal
● Use the Left & Right button to adjust and button to “Brightness”
2. Contrast
● To adjust the contrast level of the input signal
● Use the Left & Right button to adjust and button to “Contrast”
Phase / Clock
1. Phase
● To adjust input video sampling clock’s phase
● Use the Left & Right button to adjust and button to “Phase”
2. Clock
● To adjust input video sampling clock
● Use the Left & Right button to adjust and button to “Clock”
H/V Position
1. H.Position
● To adjust the horizontal size of the frame
● Use the Left & Right button to adjust and button to “H.position”.
2. V.Position
● To adjust the vertical position of the frame
● Use the Left & Right button to adjust and button to “V.position”.
10. LCD OSD Menu Operation
RKP115 / RKP117 / RKP119 User Manual
Rev. : 1.0
P.12
10. LCD OSD Menu Operation
MISC
1. Information
● The first header row shows the current resolution setup
● The second header row shows the horizontal frequency of the current
input signal
● The third header row shows the vertical frequency of the current input
signal
2. OSD Timer
● To modify the duration of the OSD time-out
3. Color
a) 5500K
● Select Colour Temp at 5500K
b) 6500K
● Select Colour Temp at 6500K
c) 9500K
● Select Colour Temp at 9500K
d) User
● Change Colour Temp by manual
4. Language
● To select the language of OSD menu 7 Languages :
(1) English
(2) Japanese (日本語)
(3) Chinese (中文)
(4) German
(5) Francais
(6) Espanol
(7) Italiano
RKP115 / RKP117 / RKP119 User Manual
Rev. : 1.0
P.13

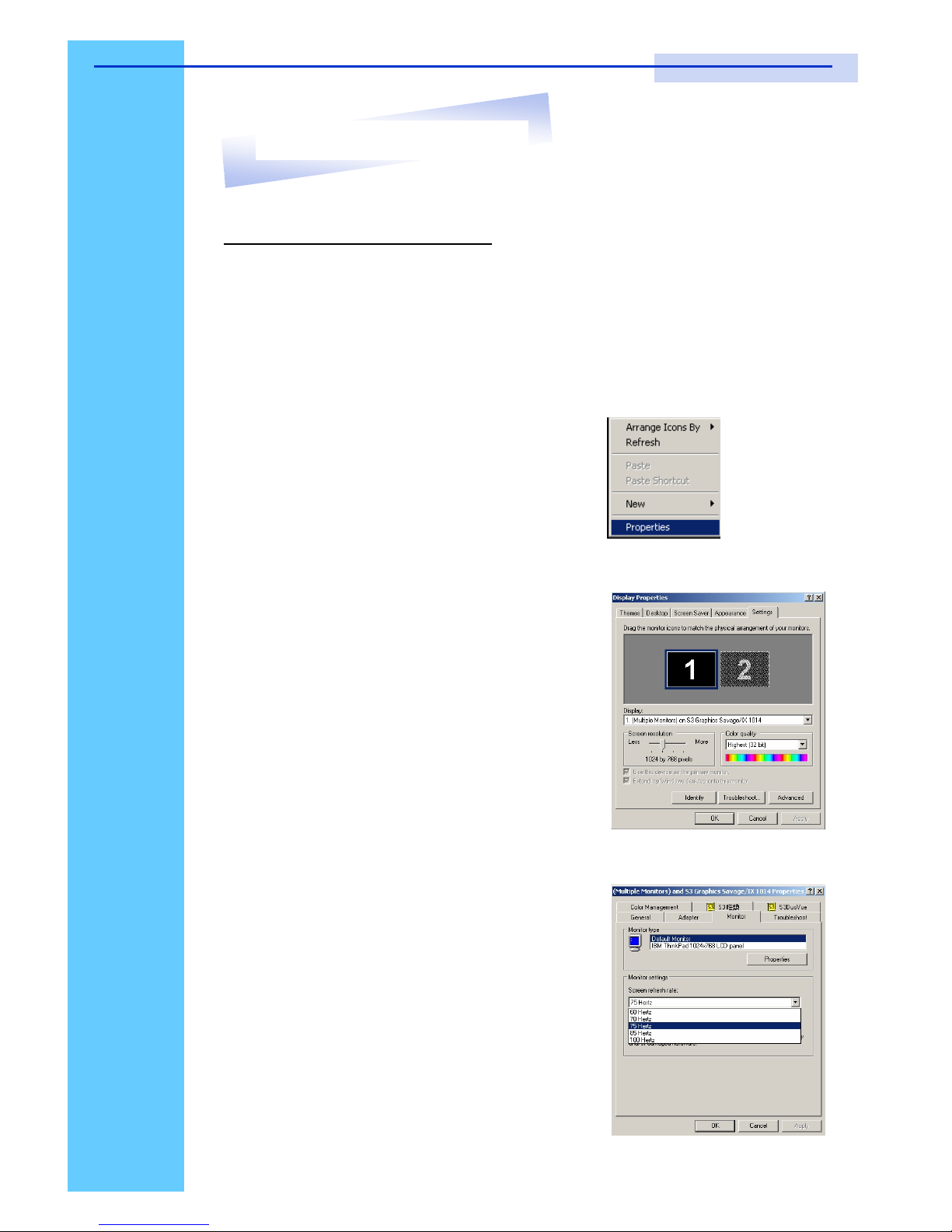

11. Resolution Settings
For Microsoft Windows
Step 1 – Press right click on the desktop
Step 2 – Choose “Properties”
Step 3 – Change the “Screen Resolution”
Step 4 – Change the “Screen refresh rate”
RKP115 / RKP117 / RKP119 User Manual
Rev. : 1.0
P.14
11. Resolution Settings
For SUN Servers
● Resolution configuration procedures should be run by qualified SUN
server administrator
● Sun Servers are using resolution at 1152 x 900 x 76Hz.
● Supported resolution mode for 15” LCD:
● 1024 x 768 x 70/75Hz
● Supported resolution mode for 17” LCD:
● 1280 x 1024 x 75Hz
● You need to change the Sun Server resolution before you connect to
LCD Display.
● Please do the following procedures to change the resolution settings :
1. As root:
You may find the following comment “/user/sbin/m64config”.
2. To view current resolution:
Type “/user/sbin/m64config – prconf”.
3. To change to 1024x768 @ 70MHz:
Type “/user/sbin/m64config – res 1024x768x70 now”.
4. The screen will be rubbish.
5. Then type “pkill Xsun”.
And Type “pkill Xsession” to restart the Xsession.
● Under Common Desktop Environment (CDE).
● To change the OpenBoot resolution, you can type the following
command in OK prompt.
1. In OK prompt, type “setenv output-device screen:r1024x768x70”.
2. Type “printenv” to confirm the resolution has been changed
to 1024x768x70Hz.
3. Then type, “reset” to restart the system.
Note : Remember to RESTART the server after these processes.
Note : Remember to RESTART the server after these processes
RKP115 / RKP117 / RKP119 User Manual
Rev. : 1.0
P.15
Print at 8/2004
12. Technical Specification
RKP115 / RKP117 / RKP119 User Manual
*All brand names, logo registered trademarks are properties of their respective owners.
Item
LCD Screen
Manufacturer
LCD Origin
Panel 15” TFT17” TFT19” TFT
Resolution
1,024 x 7681,280 x 1,0241,280 x 1,024
Brightness
300 cd/m
2
350 cd/m
2
500 cd/m
2
Color 16.2 Million16.2 Million16.7 Million
Contrast Ratio 450:1350:1500:1
Viewing Angle 140° x 125° 140° x 120° 170° x 170°
Display Area 304 x 228 mm337 x 270 mm376 x 301 mm
Pixel Pitch 0.297 mm0.264 mm0.294 mm
Response Time (Tr) 15ms
Response Time (Tf) 10ms
Back Light
Horizontal Sync. 48.4 kHz64 ~ 80 kHz64 kHz
Vertical Sync. 65 MHz60 ~ 75 Hz60 Hz
Input Signal
Power Management
Power Input
Video Input
Weight
Auto Config., Input Select, Multi-Window
15” TFT
Dimension
RKP115/117 : 439W x 44H x 600D mm
RKP119 : 439W x 44H x 650D mm
4 x Cold Cathode Fluorescent Tube
Analog RGB 0.7Vp-p
VESA DPMS
OSD Control
Brightness, Contract, Colour, Clock
RKP115 : 10.0kg
RKP117 : 11.0kg
RKP119 : 12.5kg
12V DC Adapter
15-pin D-Sub Connector
Clear EEPROM, OSD adjust
20ms
H.Position, V.Position, Phase, Scaling
South Korea
Description
5ms
