User
Manual
RKP1015 / 1017 – 801/1601
1U 15” / 17” LCD Keyboard Drawer
with PS/2 KVM
RKP1015 / RKP1017-801/1601
Rev. : 1.0
P.1
1. Table of Content P.1
2. Introduction P.2
3. Features P.2
4. Package Contents P.3
5. Optional Accessories P.4
6. Peripheral Products P.4
7. Important Safeguards P.5
8. Structure Diagram P.6
9. Dimension Diagram
RKP1015-8/1601 P.7
RKP1017-8/1601 P.8
10. LCD Session
LCD Membrane Diagram P.10
LCD OSD Control
Main Menu P.10
Sub Menu P.11-12
Resolution Settings
For Windows P.13
For SUN Servers P.14
11. KVM Session

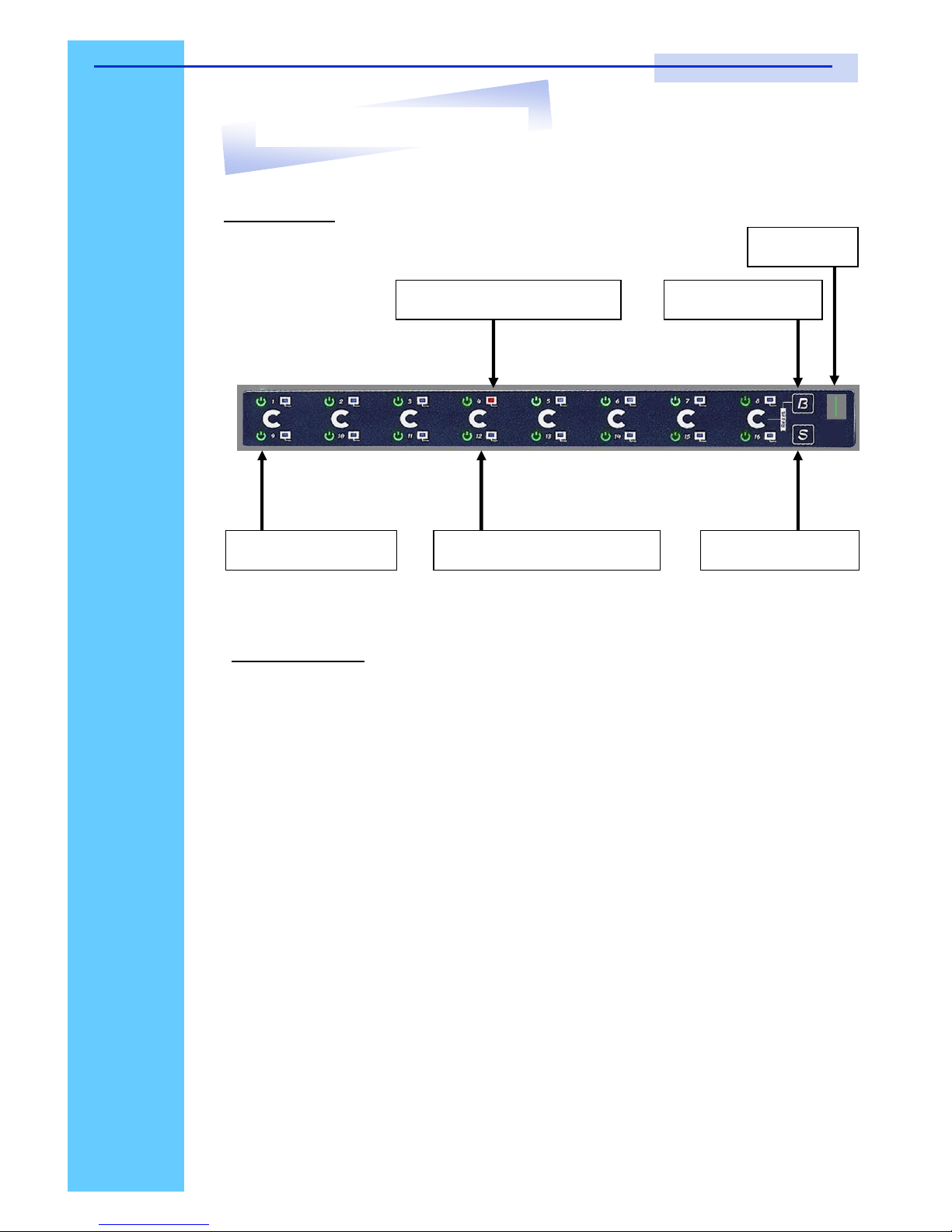

Front View P.16

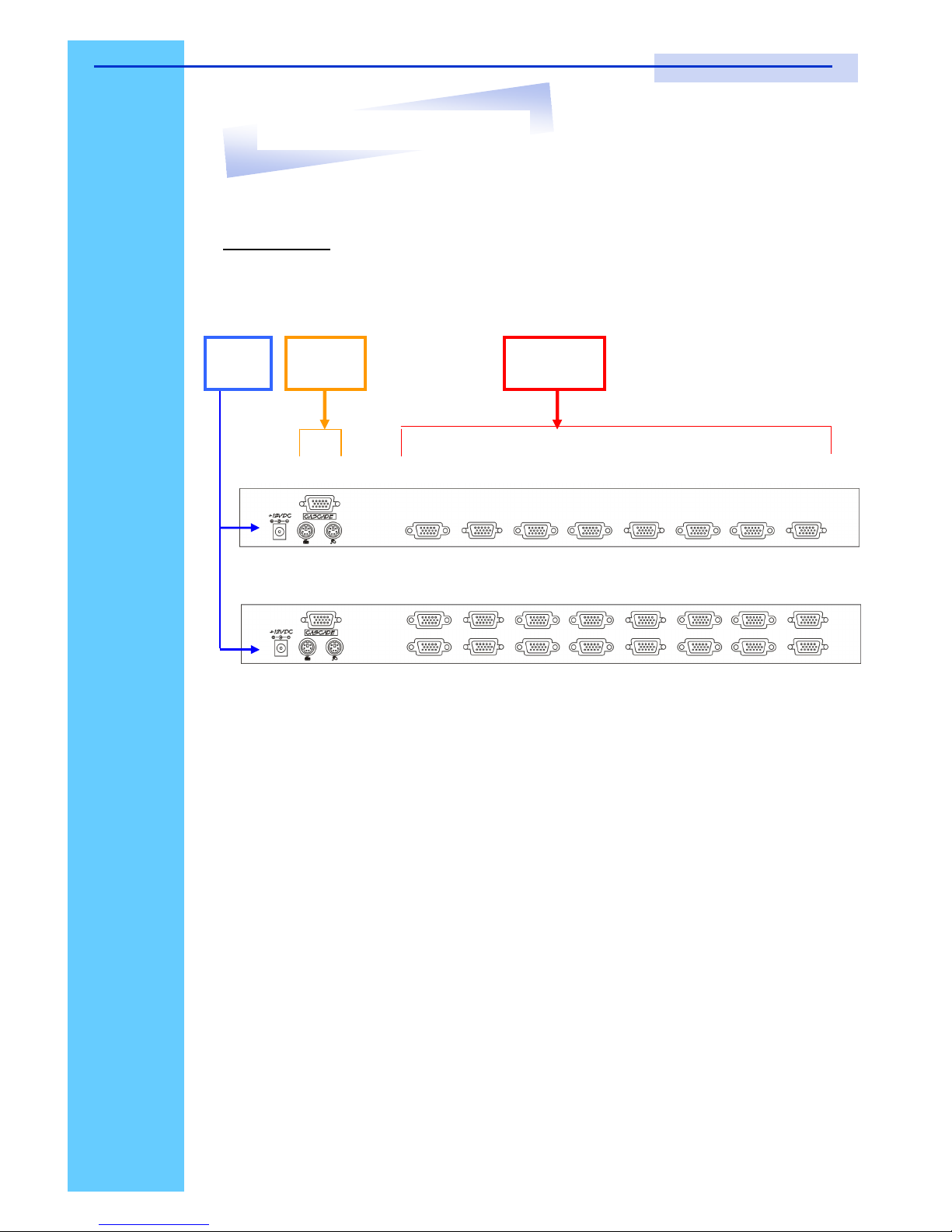

Rear View P.17

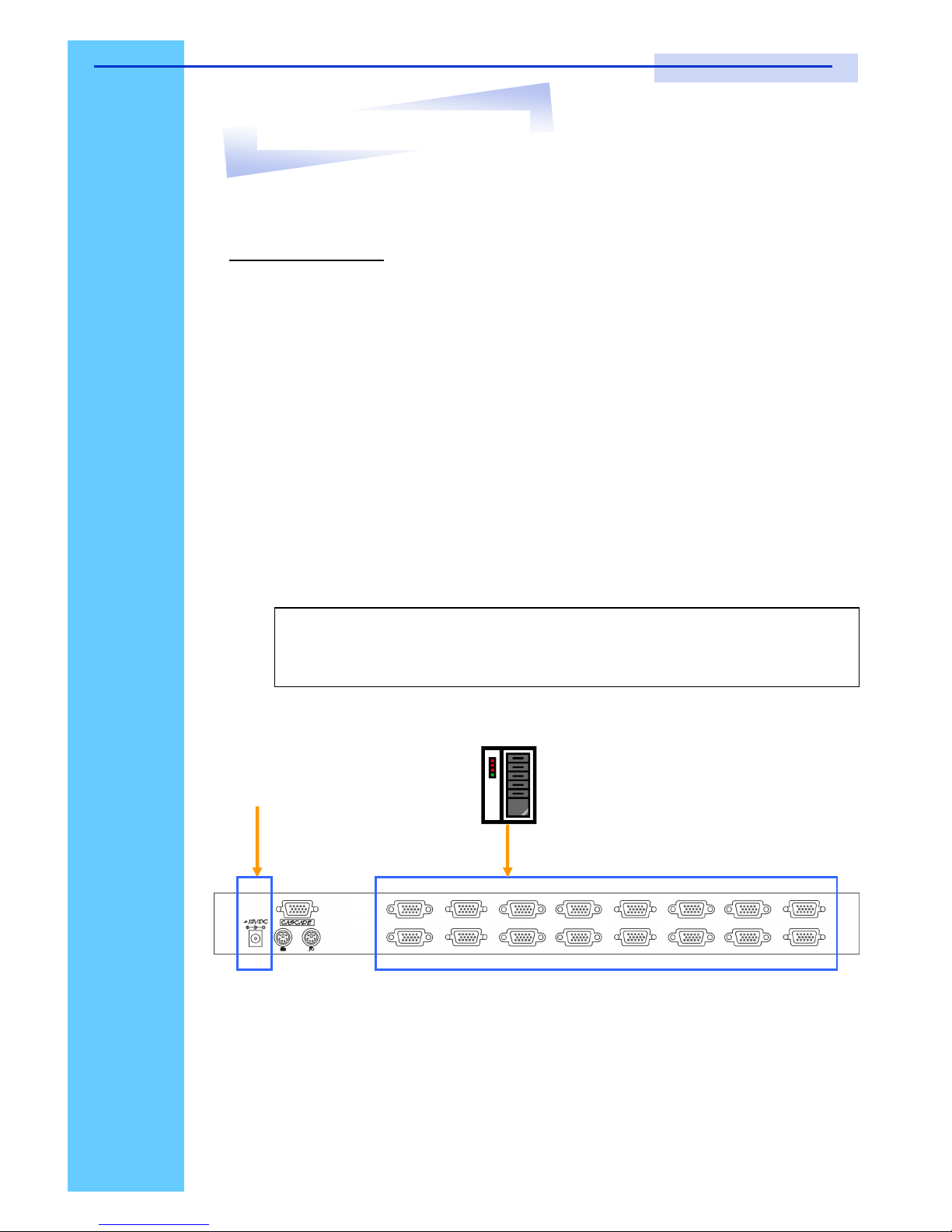

Installation Steps P.18

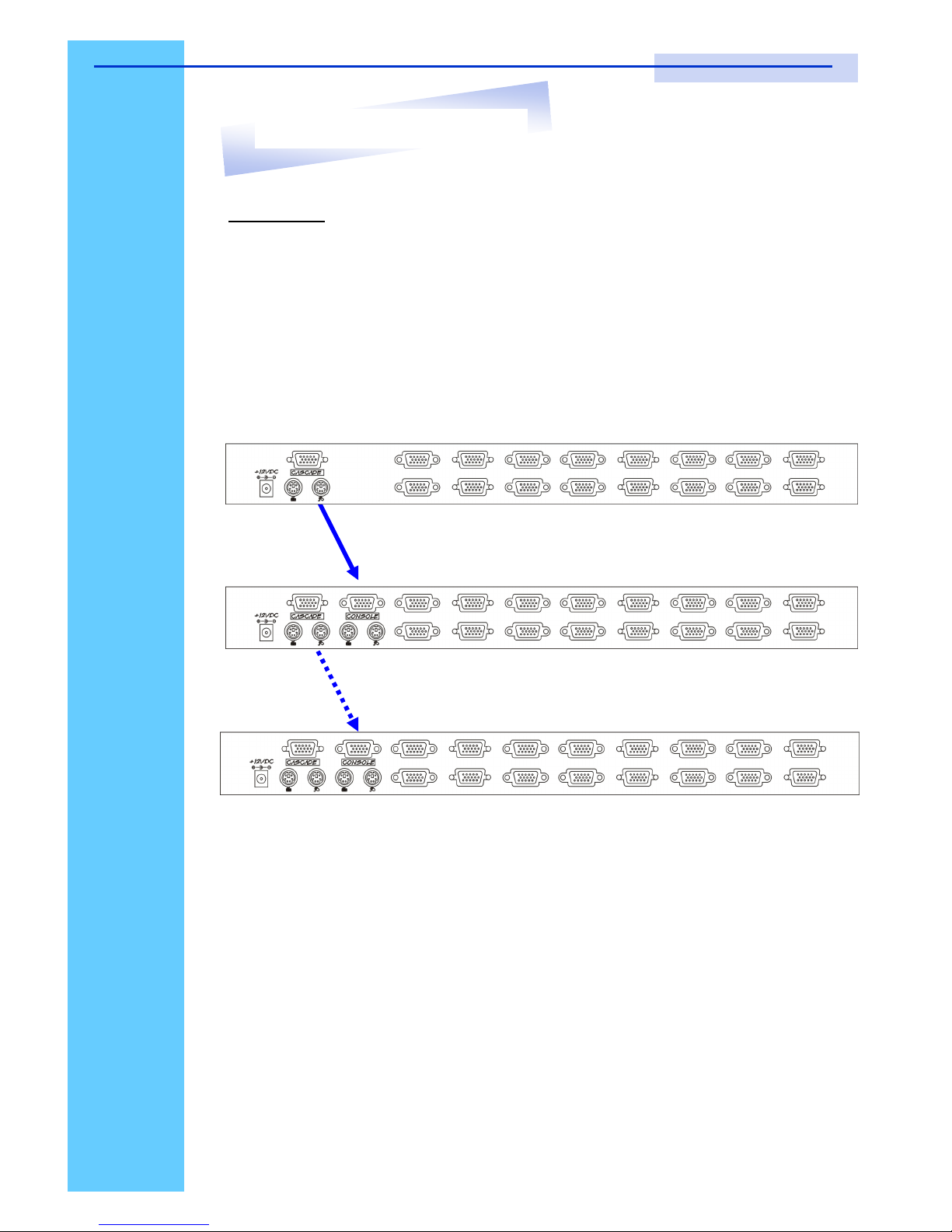

Cascading P.19
12. Start Up P.20
HotKey Command P.20
HotKey Command Operation P.21-22
KVM On Screen Display Control
OSD Structure Diagram P.23
OSD Menu Operation P.24
13. FAQ P.25
14. Technical Specification P.26-27
1. Table Of Content
Rev. : 1.0
P.2
RKP Series is a combination of keyboard, mouse and monitor into a drawer,
with features such as flip-up design, adjustable brackets, built in LCD OSD to
provide effective assistant for an administrator to control PC system.
RKP Series provides cost effective for your limited IT budget over using CRT
and rack mounting. Also, it will be space saving for your compact environment
rack and effective assistant for an administrator to control PC system.
2. Introduction
3. Features
● Adjustable mounting brackets from 390 to 790mm (front to rear 19”
mount)
● Lightweight aluminium construction—with black anodise finish
● Slim Size keyboard with GlidePoint
TM
touch pad mouse
● Standard D-Sub 15-pin VGA input connector
● Supplied with 12V 5A remote power adapter (single power resource)
● Built in On Screen Display controlled by integral membrane switches.
● 1U Height, separate sliding screen and keyboard using unique miniature
Cyber slides
● Unique monitor flip-up design allows viewing through closed glass door
of cabinet.
● Built-in KVM switch function for easy controlling and monitoring up to 16
residing servers / platforms
● Support eight characters password protection and search PC server
name
● Auto scan mode for monitoring PCs and flexible scan time from 5 ~ 99
seconds
● Hot Pluggable—Add or remove computers without powering down the
switch
● Easily switch individual button to select the PC channel using the push-
button channel selector switches, Hot keys, or via the On-Screen
Disclaimer
This information is subject to change without notice. The producer of this manual accepts no
responsibility for damage or claims, resulting from misuse or misinterpretation.
RKP1015 / RKP1017-801/1601
Rev. : 1.0
P.3
4. Package Contents
Before Unpacking
It is very important to locate the LCD Keyboard Drawer in a suitable environment.
● The surface for placing and fixing the LCD Keyboard Drawer should be stable and level
or mounted into a suitable cabinet.
● Make sure the place has good ventilation, is out of direct sunlight, away from sources of
excessive dust, dirt, heat, water, moisture and vibration.
● Convenience for connecting the LCD Keyboard Drawer to the related facilities should be
well considers too.
Unpacking
The LCD Keyboard Drawer comes with the standard parts shown as above. Check and make
sure they are included and in good condition. If anything is missing, or damage, contact the
supplier immediately.
LCD Monitor Drawer with PS/2 KVM Switch1 Piece
User Manual1 Piece
DC Power Adapter1 Piece
Power Cord1 Piece
Mounting Bracket1 Pair
Fasteners4 Pieces
CD-6 3-in-1 KVM cable8 Pieces
RKP1015 / RKP1017-801/1601
Rev. : 1.0
P.4
RKP1015 / RKP1017-801/1601
5. Optional Accessories
6. Peripheral Products
CD-6 / 10 / 156ft / 10ft / 15ft PS/2 3-in-1 cable
CA-2 / 6 / 10 / 152ft / 6ft / 10ft / 15ft PS/2 3-to-3 cable
SUN-31SUN / iMAC USB to PS/2 adapter
Others
Video Input
12V / 24V / 48V DC Power
KVM Cable
Cascade Cable
Conversion Adapter
Model Description
CV-401 / CV-801 / CV-1601 4-Port / 8-port / 16-Port PS/2 KVM switch
CV-1602 16-Port 2-Console PS/2 KVM switch
CV-S801 / CV-S1601 8-Port /16-port USB KVM switch
CV-S1602 16-port 2-Console USB KVM switch
CV-101 CAT.5 PS/2 KVM extender
Rev. : 1.0
P.5
Please read all of these instructions carefully before you use the device.
Save this manual for future reference.
● Unplug the LCD Keyboard Drawer from the power outlet before cleaning.
● Do not spray liquid cleaners or aerosol directly on the device. Wet a cloth with a
neutral detergent (e.g. clean water) and squeeze it tight, then clean the screen
slightly with it.
● Do not expose the LCD Keyboard Drawer directly to rain, water, moisture or
sunlight.
● Avoid pressure on the LCD screen to prevent permanent damage to the display.
● Do not attempt to service the device yourself. Improper operation may void your
warranty. Refer all servicing to qualified service personnel.
● Safe storage environment of the LCD Keyboard Drawer is ranging between –20
o
C
and 60oC. Permanent damage could occur if the LCD Keyboard Drawer is stored
outside the safe range.
● Unplug the LCD Keyboard Drawer immediately and call qualified service person-
nel under the following conditions:
1. If the monitor has been exposed to rain, liquid or water.
2. If the monitor has been dropped or the casing has been damaged.
What the warranty does not cover
1. Any product, on which the serial number has been defaced, modified or
removed.
2. Damage, deterioration or malfunction resulting from:
a) Accident, misuse, neglect, fire, water, lightning, or other acts of nature,
unauthorized product modification, or failure to follow instructions supplied
with the product.
b) Repair or attempted repair by anyone not authorized by us.
c) Any damage of the product due to shipment.
d) Removal or installation of the product.
e) Causes external to the product, such as electric power fluctuation or failure.
f) Use of supplies or parts not meeting our specifications.
g) Normal wear and tear.
h) Any other causes which does not relate to a product defect.
3. Removal, installation, and set-up service charges.
7. Important Safeguards
RKP1015 / RKP1017-801/1601
Rev. : 1.0
P.6

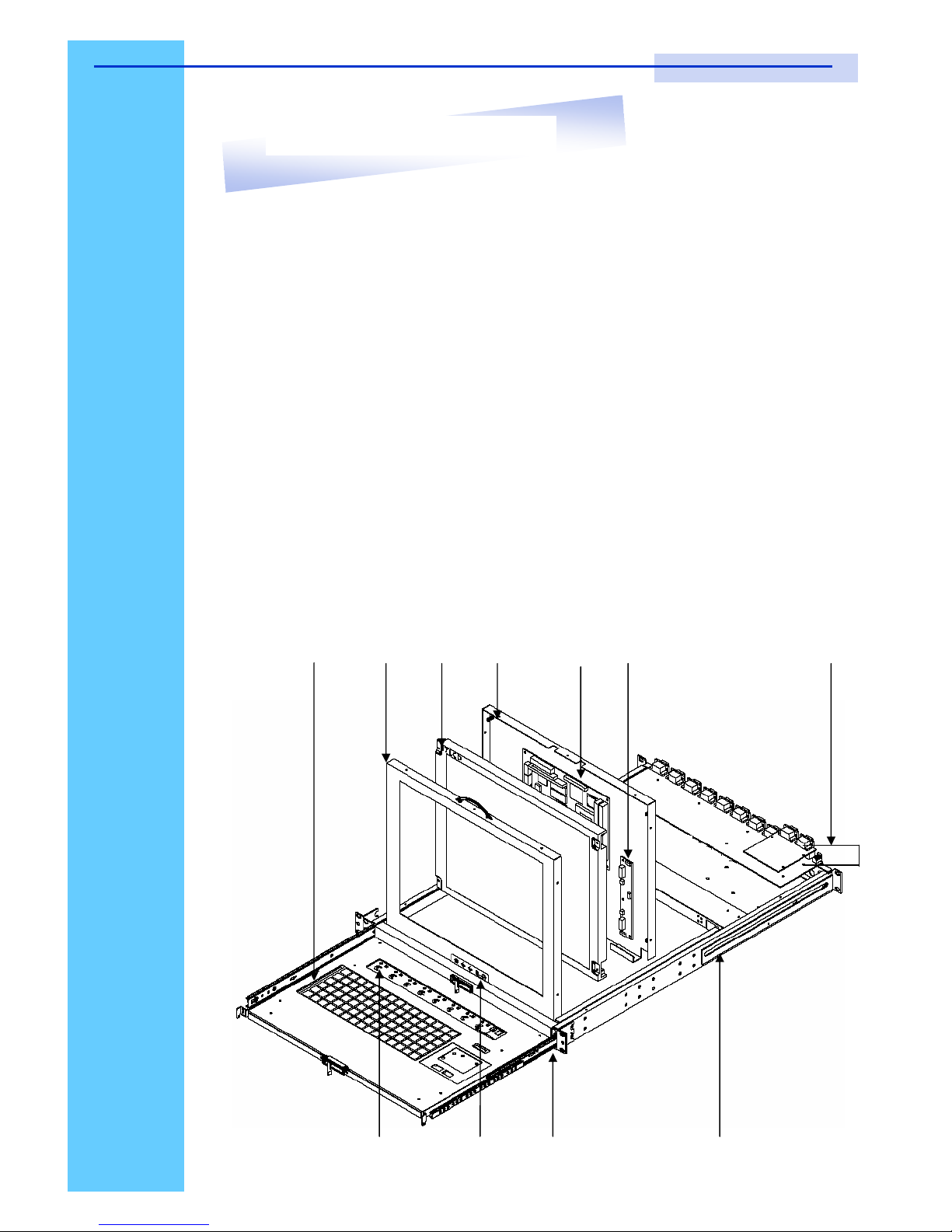

8. Structure Diagram
1. PS/2 keyboard
2. Aluminium front panel
3. Class A active matrix TFT LCD panel
4. Rear metal case
5. Analog to digital signal converter board
6. LCD inverter
7. LCD membrane
8. Ball bearing telescopic slides
9. Adjustable mounting bracket
10. KVM membrane & KVM switch board
RKP1015 / RKP1017-801/1601
• ‚ ƒ
„ …
Š
‡
ˆ
†
‰
Š
Rev. : 1.0
P.7

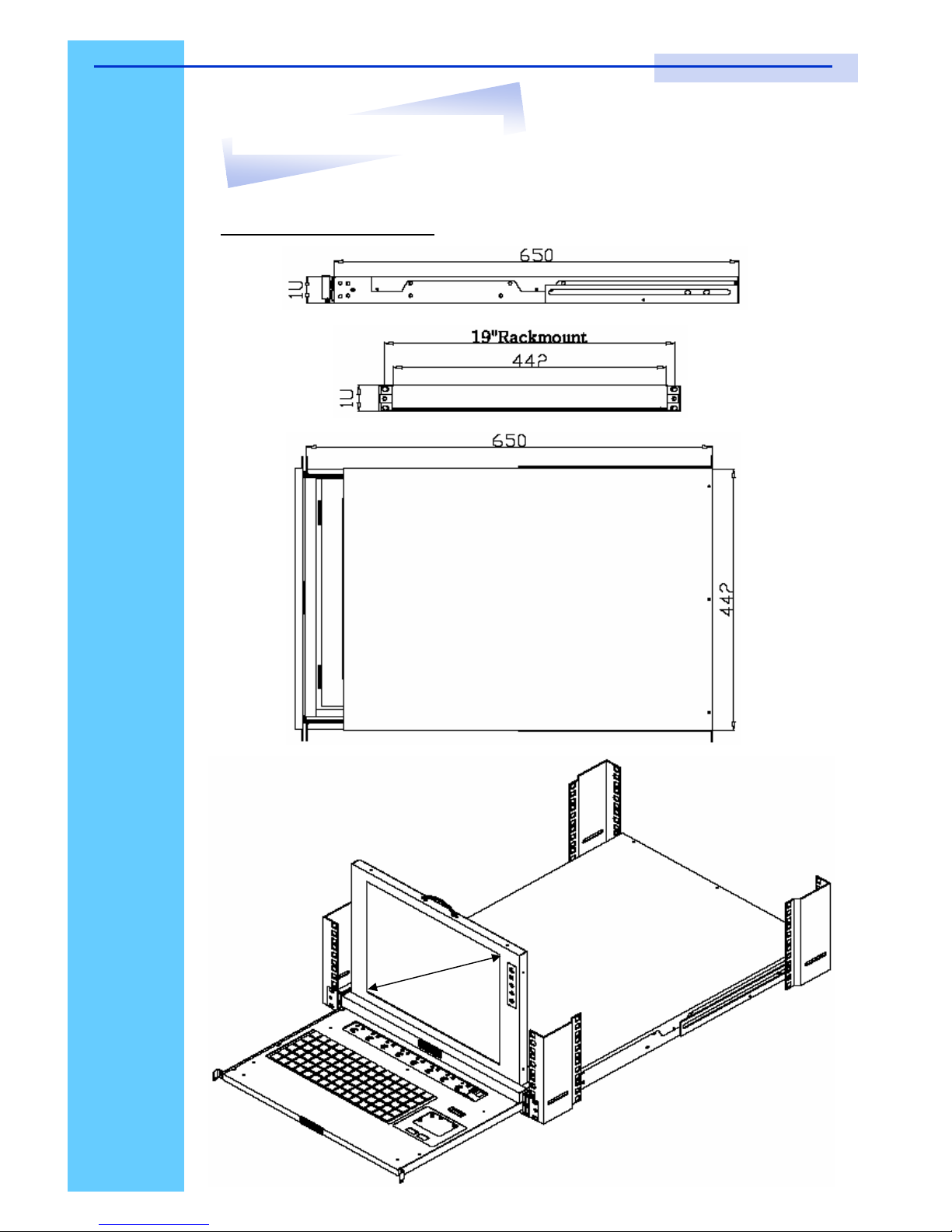

RKP1015-8/1601 1U 15” LCD Keyboard Drawer with PS/2 KVM
9. Dimension Diagram
RKP1015 / RKP1017-801/1601
15” LCD
RKP1017-8/1601 1U 15” LCD Keyboard Drawer with PS/2 KVM
9. Dimension Diagram
RKP1015 / RKP1017-801/1601
Rev. : 1.0
P.8
17” LCD
