User
Manual
RKP1015 / 1017 - 1602
1U 15” / 17” / 19” Rackmount
LCD Keyboard Drawer with
PS/2 2-Console KVM Switch
Rev. : 1.0
P.1
1. Table Of Content
1. Table of Content P.1
2. Introduction P.2
3. Features P.2
4. Package Contents P.3
5. Optional Accessories P.4
6. Peripheral Products P.4
7. Important Safeguards P.5
8. Structure Diagram P.6
9. Dimension Diagram
RKP1015-1602 P.7
RKP1017-1602 P.8
10. LCD Session
LCD Membrane Diagram P.10
LCD OSD Control
Main Menu P.10
Sub Menu P.11-12
Resolution Settings
For Windows P.13
For SUN Servers P.14
11. KVM Session
Front View P.16
Rear View P.17
Installation Steps P.18
Cascading P.19
12. Start Up P.20
HotKey Command P.20
HotKey Command Operation P.21-22
KVM OSD Control
OSD structure Diagram P.23
OSD Menu Operation P.23
Settings Session P.24
13. FAQ P.25-26
14. Technical Specification P.27-28
RKP1015 / RKP1017 User Manual
Rev. : 1.0
P.2
RKP Series is a combination of keyboard, mouse and monitor into a drawer,
with features such as flip-up design, adjustable brackets, built in LCD OSD to
provide effective assistant for an administrator to control PC system.
RKP Series provides cost effective for your limited IT budget over using CRT
and rack mounting. Also, it will be space saving for your compact environment
rack and effective assistant for an administrator to control PC system.
2. Introduction
3. Features
● Unique mechanical design to maximize rack mountable space
● Adjustable mounting brackets from 390 to 790mm (front to rear 19”
mounts
● Two keyboard selections supporting multiple languages
● Three models to choose from 15”, 17” or 19” LCD panel
● Slide rails have two fixed positions to prevent movement of the keyboard
● Supplied with 12V 5A remote power adapter (single power source)
● Support one CAT.5 remote console up to 500 feet away from KVM
switch.
● Bulit-in KVM switch function for easy controlling and monitoring up to 16
residing servers/ platforms
● Support eight characters password protection and search PC server
name
● Auto scan mode for monitoring PCs and flexible scan time from 5~99
seconds
Disclaimer
This information is subject to change without notice. The producer of this manual accepts no
responsibility for damage or claims, resulting from misuse or misinterpretation
RKP1015 / RKP1017 User Manual
Rev. : 1.0
P.3
4. Package Contents
Before Unpacking
It is very important to locate the LCD Keyboard Drawer in a suitable environment.
● The surface for placing and fixing the LCD Keyboard Drawer should be stable and level
or mounted into a suitable cabinet.
● Make sure the place has good ventilation, is out of direct sunlight, away from sources of
excessive dust, dirt, heat, water, moisture and vibration.
● Convenience for connecting the LCD Keyboard Drawer to the related facilities should be
well considers too.
Unpacking
The LCD Keyboard Drawer comes with the standard parts shown as above. Check and make
sure they are included and in good condition. If anything is missing, or damage, contact the
supplier immediately.
LCD Monitor Drawer with PS/2 KVM Switch (Two Consoles) 1 Piece
User Manual 1 Piece
DC Power Adapter 1 Piece
Power Cord 1 Piece
Mounting Bracket 1 Pair
Fasteners 4 Pieces
CD-6 3-in-1 KVM cable 8 Pieces
RKP1015 / RKP1017 User Manual
Rev. : 1.0
P.4
5. Optional Accessories
6. Peripheral Products
Model Description
CV-801 8-Port PS/2 KVM switch
CV-1601
16-Port PS/2 KVM switch
CV-101 CAT.5 PS/2 KVM extender
CD-6 / 10 / 156ft / 10ft / 15ft 3-in-1 KVM cable
CA-6 / 10 / 156ft / 10ft / 15ft PS/2 3-to-3 Cascade cable
SUN-31SUN / iMAC USB to PS/2 adapter
KVM Cable
Cascade Cable
Conversion Adapter
RKP1015 / RKP1017 User Manual
Rev. : 1.0
P.5
7. Important Safeguards
RKP1015 / RKP1017 User Manual
Please read all of these instructions carefully before you use the device.
Save this manual for future reference.
● Unplug the LCD Keyboard Drawer from the power outlet before cleaning.
● Do not spray liquid cleaners or aerosol directly on the device. Wet a cloth with
a neutral detergent (e.g. clean water) and squeeze it tight, then clean the
screen slightly with it.
● Do not expose the LCD Keyboard Drawer directly to rain, water, moisture or
sunlight.
● Do not attempt to service the device yourself. Improper operation may void
your warranty. Refer all servicing to qualified service personnel.
● Safe storage environment of the LCD Keyboard Drawer is ranging between –
20oC and 60oC. Permanent damage could occur if the LCD Keyboard Drawer
is stored outside the safe range.
● Unplug the keyboard drawer with LCD Keyboard Drawer immediately and call
a qualified service personnel under the following conditions:
1. If the LCD Keyboard Drawer has been exposed to rain, liquid or water.
2. If the LCD Keyboard Drawer has been dropped or the casing has been
damaged.
What the warranty does not cover
1. Any product, on which the serial number has been defaced, modified or
removed.
2. Damage, deterioration or malfunction resulting from:
a) Accident, misuse, neglect, fire, water, lightning, or other acts of nature,
unauthorized product modification, or failure to follow instructions supplied
with the product.
b) Repair or attempted repair by anyone not authorized by us.
c) Any damage of the product due to shipment.
d) Removal or installation of the product.
e) Causes external to the product, such as electric power fluctuation or failure.
f) Use of supplies or parts not meeting our specifications.
g) Normal wear and tear.
h) Any other causes which does not relate to a product defect.
3. Removal, installation, and set-up service charges.
Rev. : 1.0 P.6

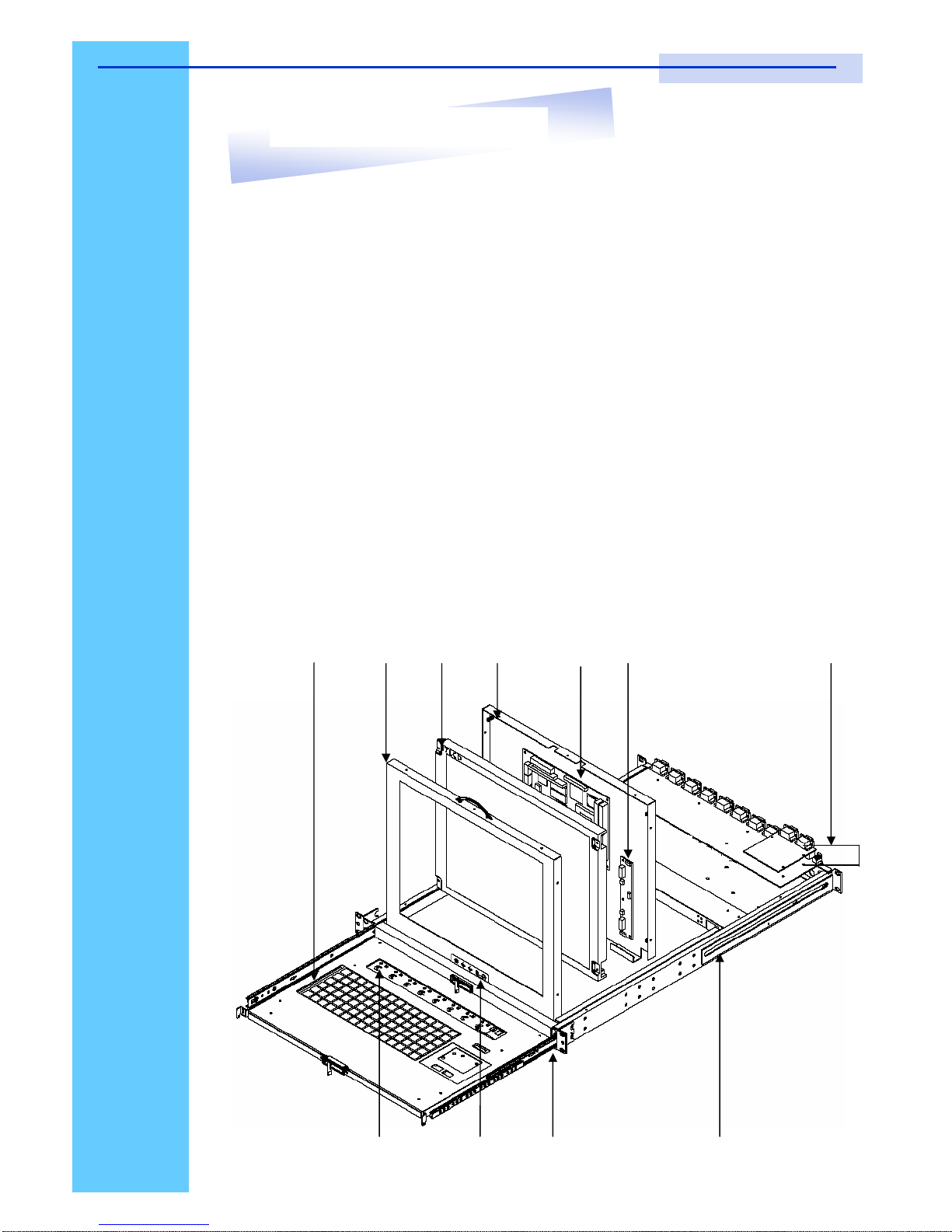

8. Structure Diagram
RKP1015 / RKP1017 User Manual
• ‚ ƒ
„
…
Š
‡
ˆ
†
‰
Š
1. Keyboard
2. Aluminium front panel
3. Class A active matrix TFT LCD panel
4. Rear metal case
5. Analog to digital signal converter board
6. LCD inverter
7. LCD membrane
8. Ball bearing telescopic slides with stopper
9. Adjustable mounting bracket
10. KVM membrane & KVM switch board
RKP1015-1602 1U 15” LCD Keyboard Drawer with PS/2 KVM
(Two Consoles)
9. Dimension Diagram
RKP1015 / RKP1017 User Manual
15” LCD
Rev. : 1.0
P.7
