Dedicated KVM switch and Rackmount screen technology
User Manual 17” Ultra High Resolution LCD 1920 x 1200
i-Tech
Company LLC
TOLL
FREE:
Page 2

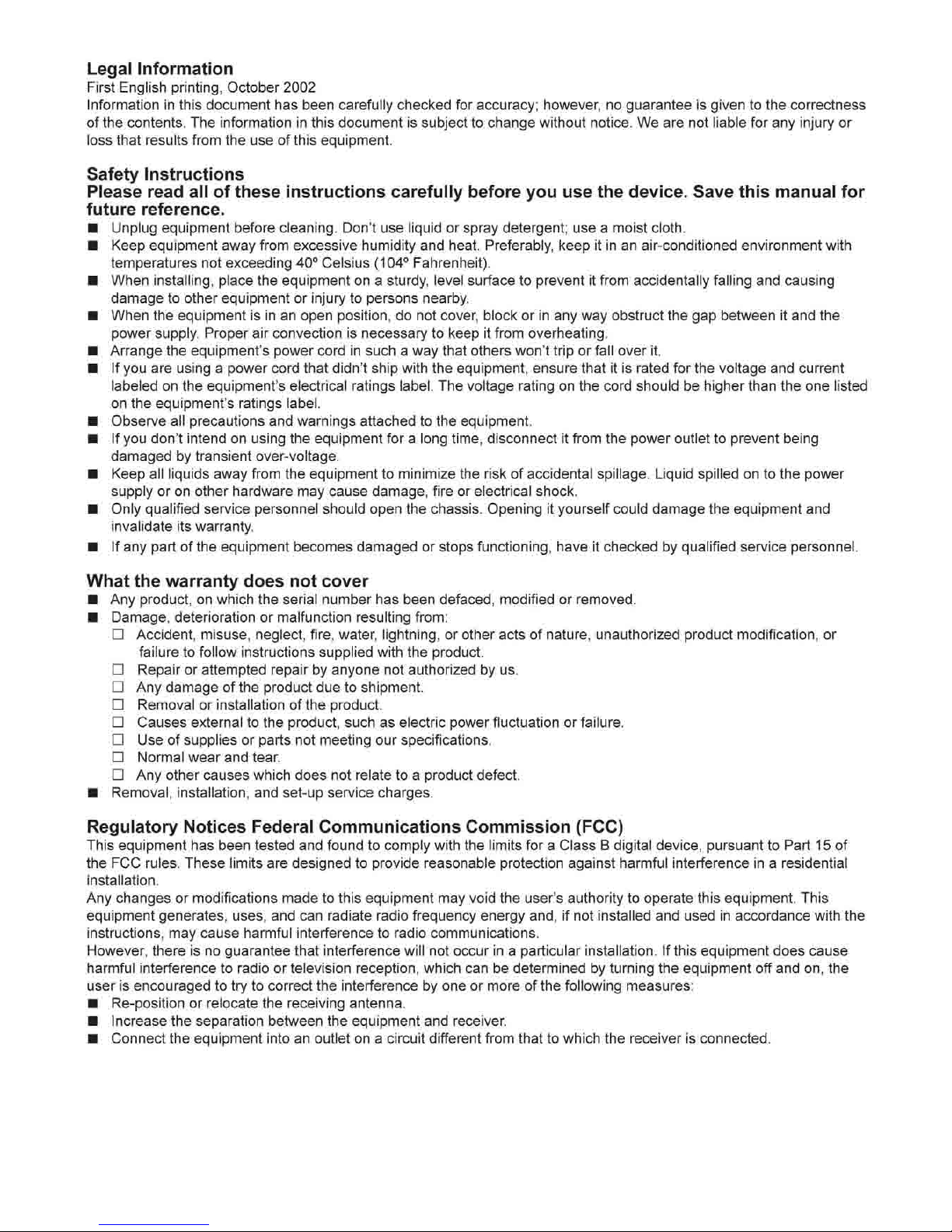

Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don't use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40° Celsius (104° Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment's power cord in such a way that others won't trip or fall over it.
■ If you are using a power cord that didn't ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment's electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment's ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don't intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■ Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modified or removed.
■ Damage, deterioration or malfunction resulting from:
D Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fluctuation or failure.
□ Use of supplies or parts not meeting our specifications.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Page 3

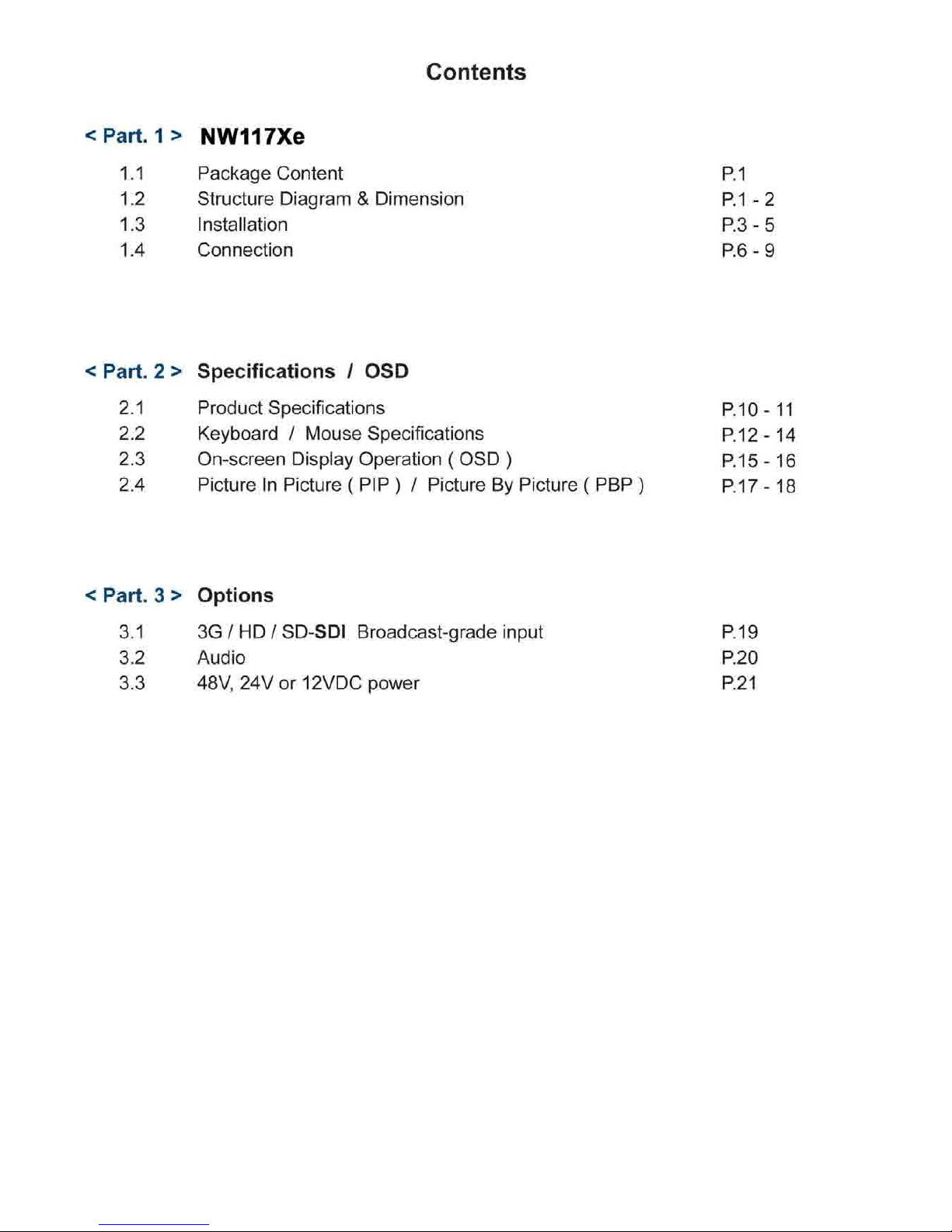

Contents
< Part.
1 >
NW117Xe
1.1
Package Content
1.2 Structure Diagram & Dimension
1.3
Installation
1.4 Connection
P.1
P.1 -2
P.3-5
P.6-9
< Part. 2 > Specifications / OSD

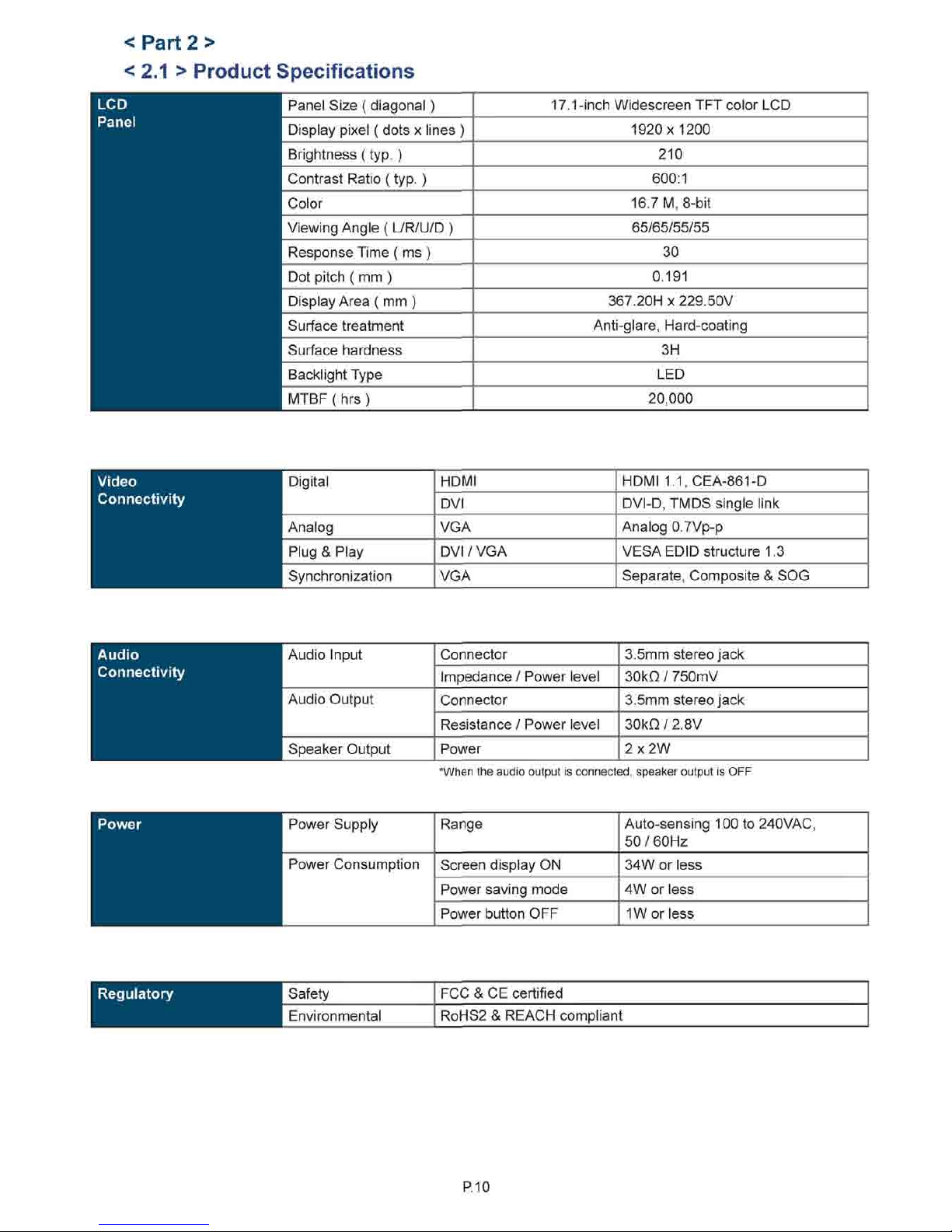

2.1 Product Specifications
P.10-11

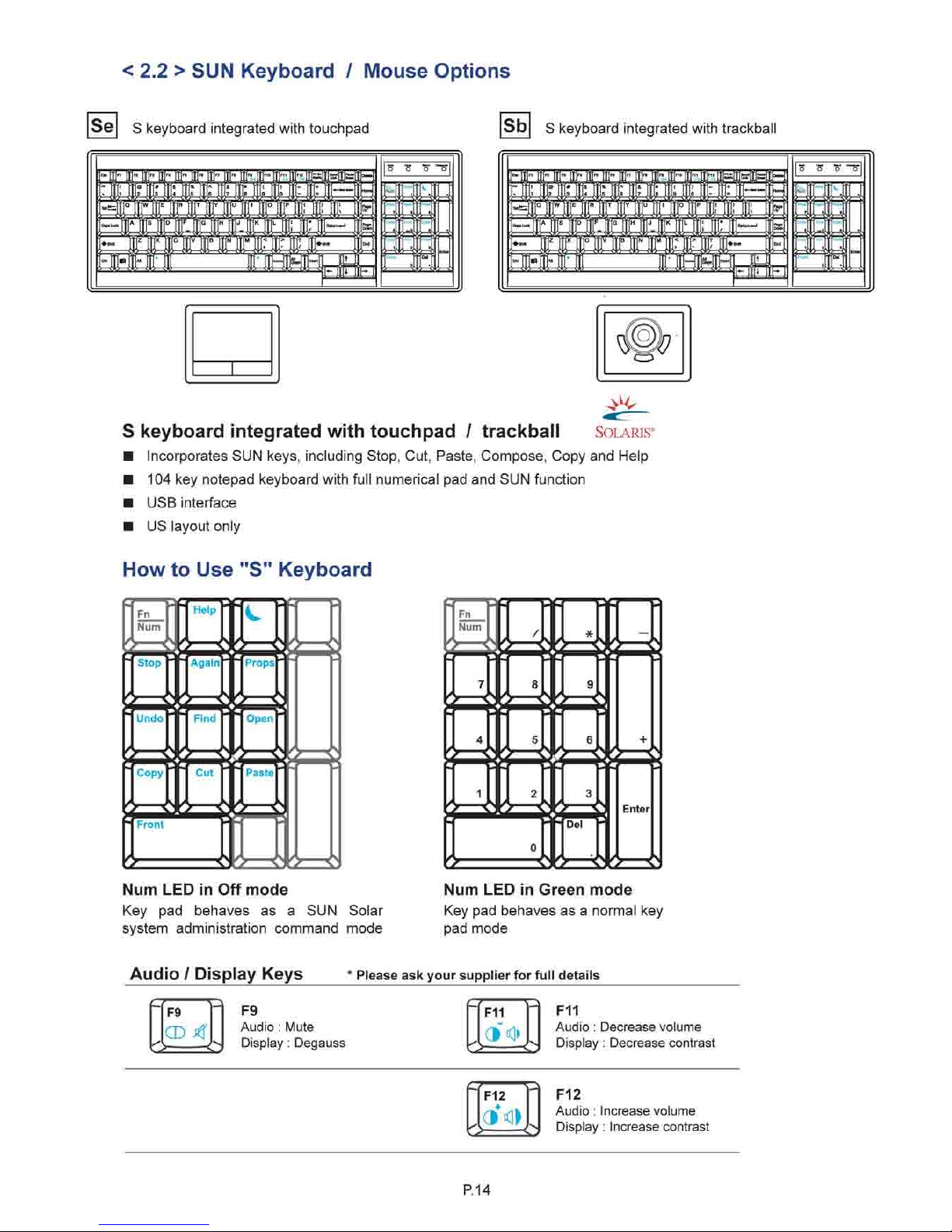

2.2 Keyboard / Mouse Specifications
P.12-14
2.3 On-screen Display Operation ( OSD )
p.
15
-16

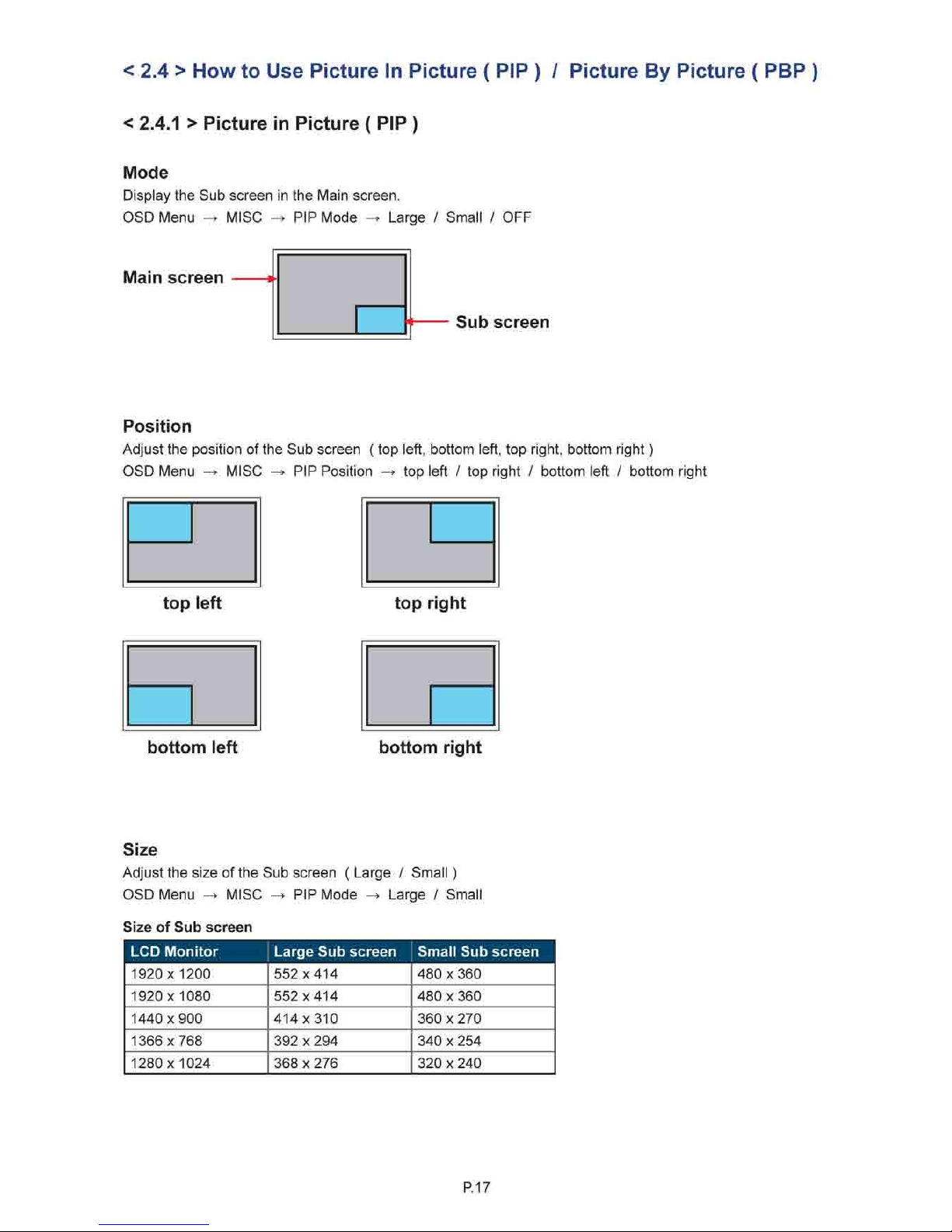

2.4 Picture In Picture ( PIP ) / Picture By Picture ( PBP )
p.
17
-18
< Part. 3 > Options

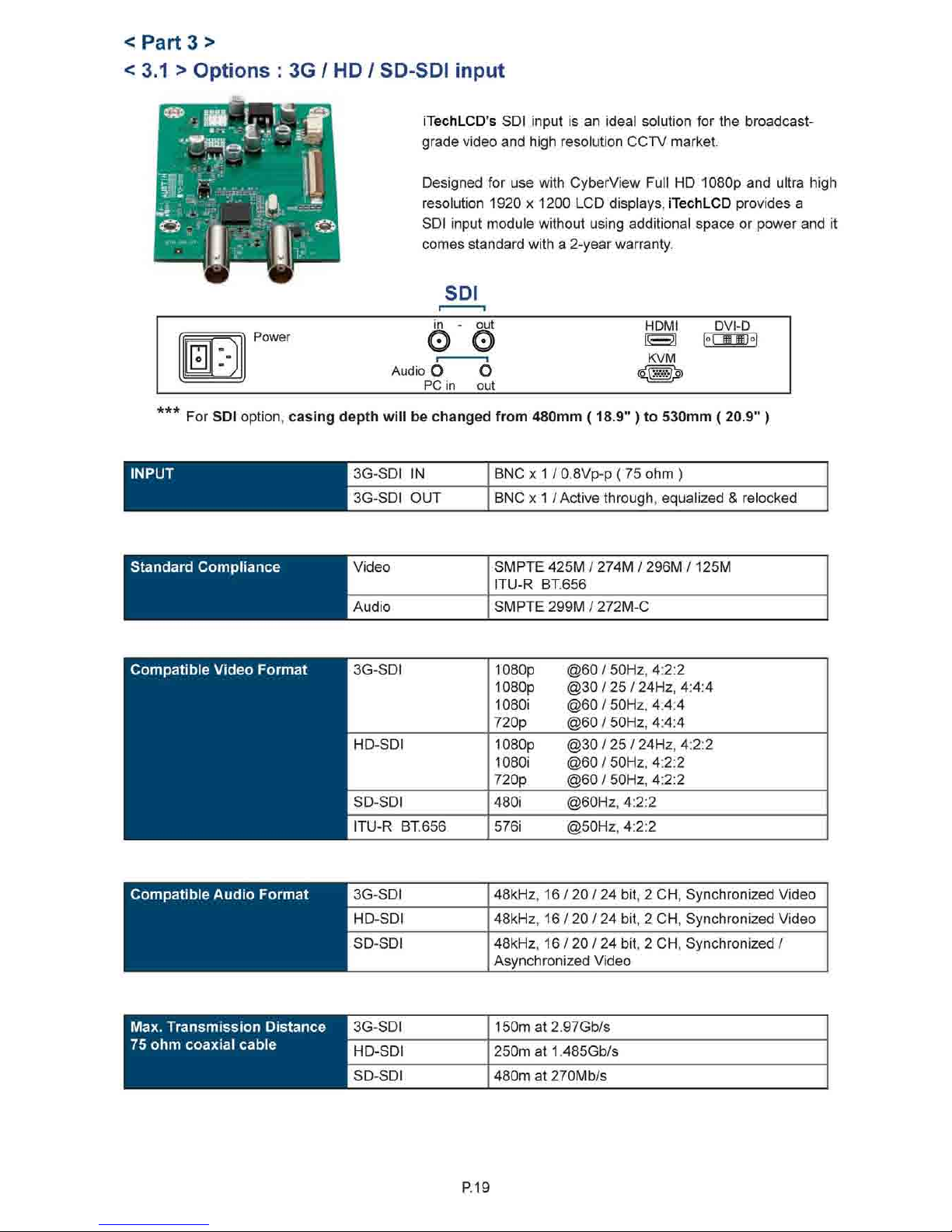

3.1 3G / HD / SD-SDI Broadcast-grade input P.19
3.2 Audio P.20
3.3 48V, 24V or 12VDC power P.21
Page 4
Contents

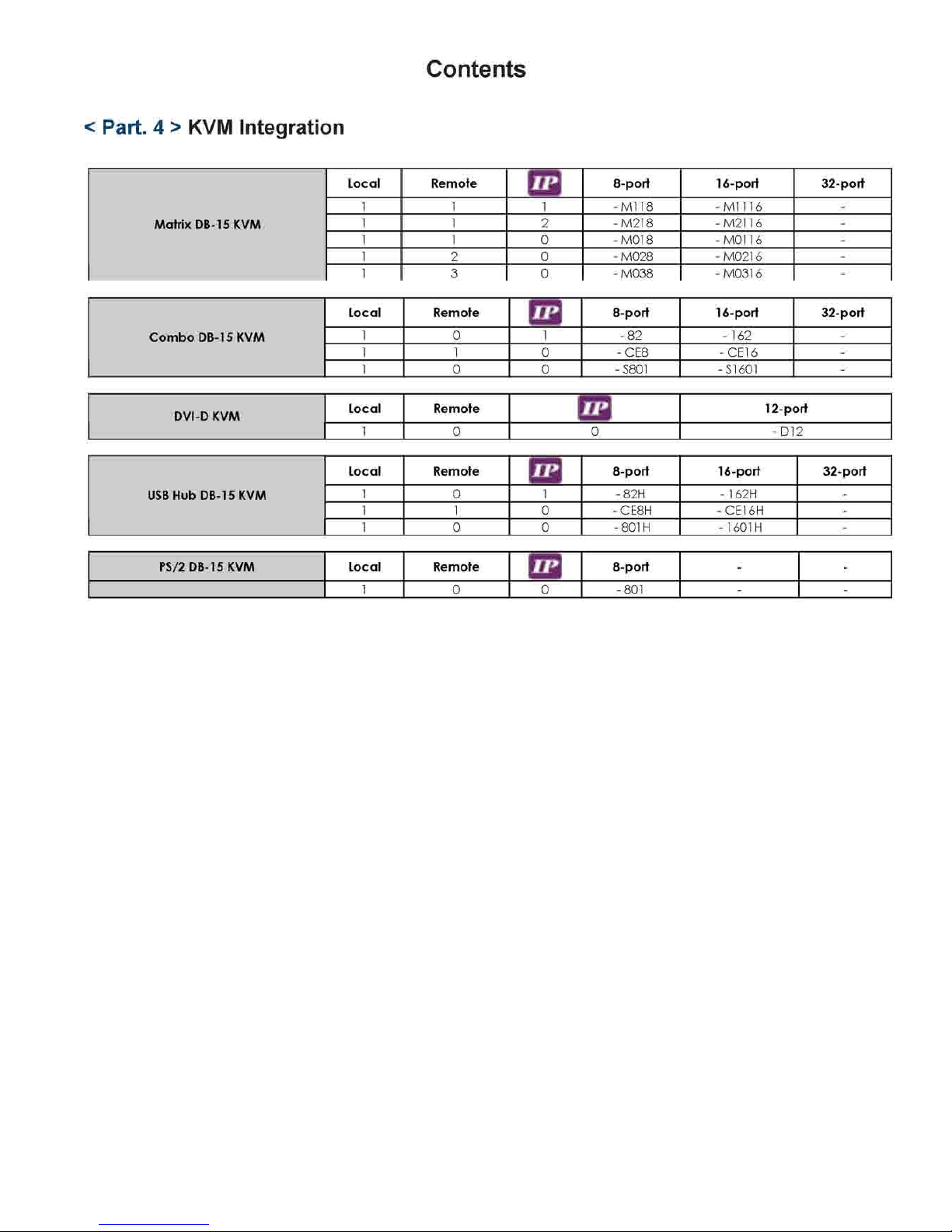

< Part. 4 > KVM
Integration
Matrix
DB-15 KVM
Local Remote
EZ3
8-port
16-port
32-port
Matrix
DB-15 KVM
1 1 l - Ml 18 - Ml 116 -
Matrix
DB-15 KVM
1 1 2 - M218 - M2116 -
Matrix
DB-15 KVM
1 1 0 - M018 - M0116 -
Matrix
DB-15 KVM
1 2 0 -
M028
-
M0216
-
Matrix
DB-15 KVM
1 3 0 -
M038
-
M0316
-
Combo
DB-15 KVM
Local Remote
EZ3
8-port
16-port 32-port
Combo
DB-15 KVM
1 0 l - 82 - 162 -
Combo
DB-15 KVM
1 1 0 - CE8 - CE16 -
Combo
DB-15 KVM
1 0 0 - S801 - S1601 -
DVI-D
KVM
Local Remote
m
12-port
DVI-D
KVM
1 0 0 - D12
USB
Hub DB-15 KVM
Local Remote
EZ3
8-port
16-port 32-port
USB
Hub DB-15 KVM
1 0 l - 82H - 162H -
USB
Hub DB-15 KVM
1 1 0 -
CE8H
-
CE16H
-
USB
Hub DB-15 KVM
1 0 0 - 801H -
1601 H
-
PS/2 DB-15 KVM
Local Remote
EZ3
8-port
- -
1 0 0 - 801 - -
Page 5

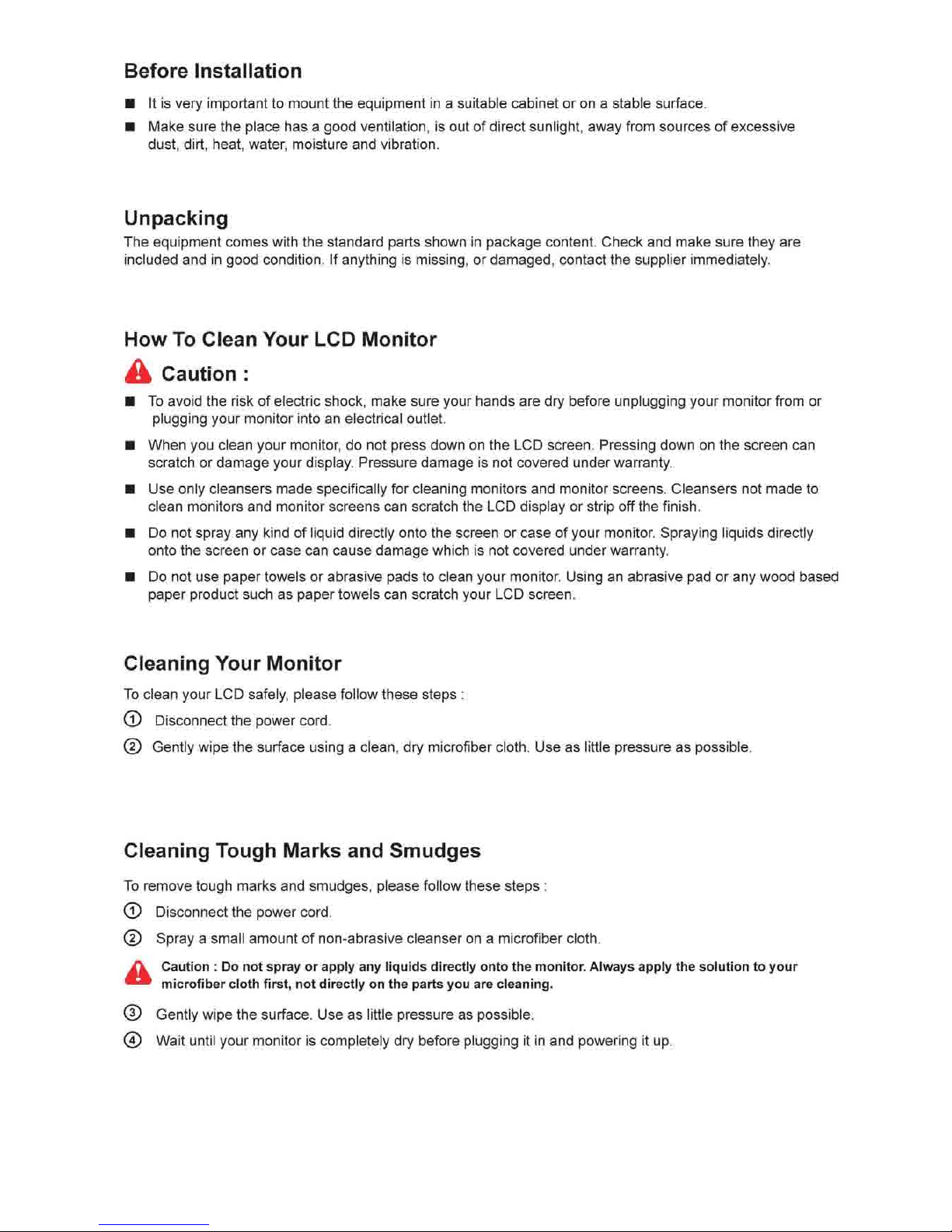

Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
4k Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the finish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
® Disconnect the power
cord.
® Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
© Disconnect the power
cord.
© Spray a small amount of non-abrasive cleanser on a microfiber cloth.
^^ Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
•* microfiber cloth first, not directly on the parts you are cleaning.
® Gently wipe the surface. Use as little pressure as possible.
® Wait until your monitor is completely dry before plugging it in and powering it up.
Page 6
< Part 1 >
< 1.1 > Package Content
NW117Xe unit
X1
- CV-6
6ft
DVI-D console cable
X 1
(Alternative : NB-6
6ft
VGA console cable
)
- Power cord
X 1
- M6 screw, cage nut & cup washer
X 8
The above package content is only for the single console models.
It varies with options such as KVM, SDI, audio & DC power.
<

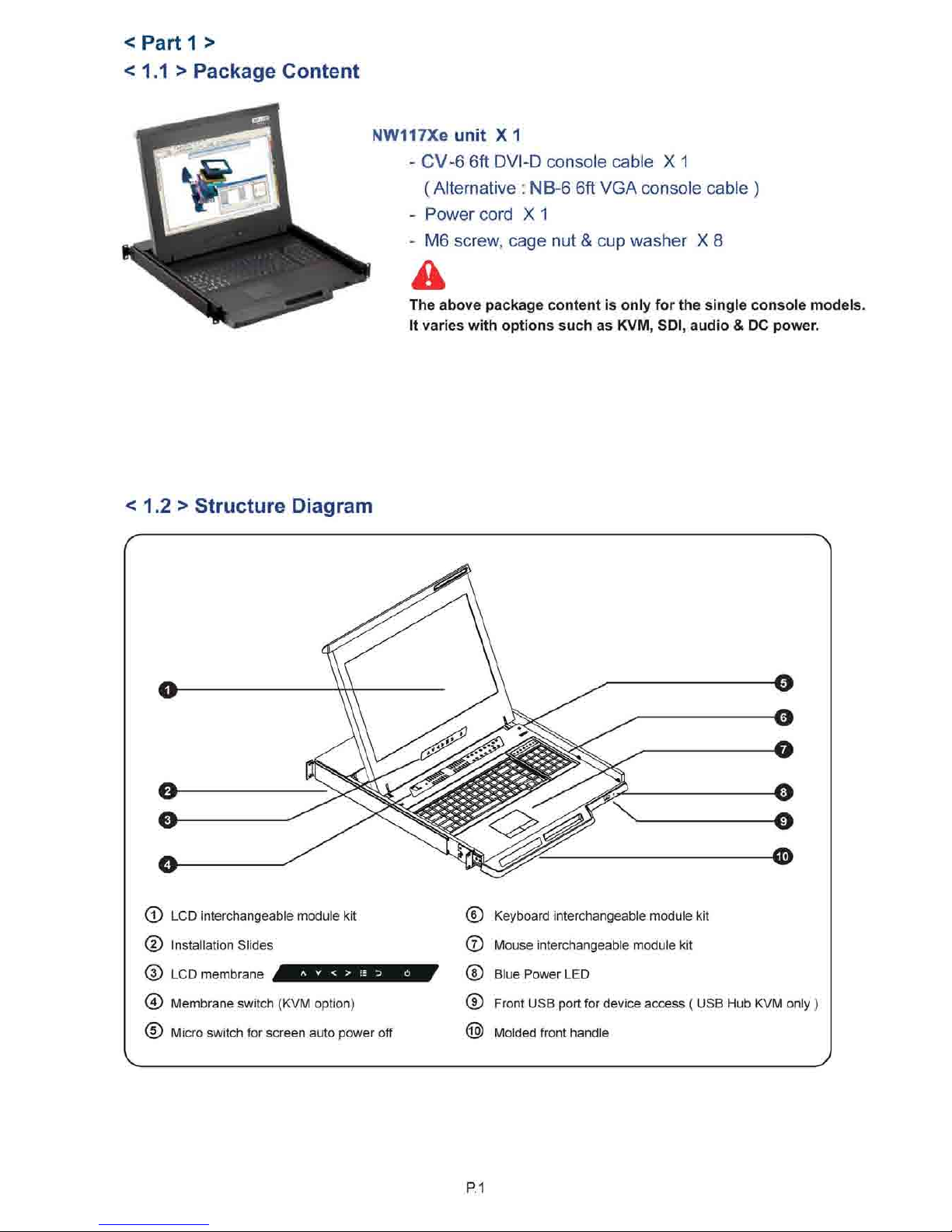

1.2 >
Structure Diagram
© LCD interchangeable module
kit
© Installation Slides
® LCD membrane
Membrane switch (KVM option)
©
Micro switch
for
screen auto power
off
© Keyboard interchangeable module
kit
® Mouse interchangeable module
kit
® Blue Power LED
® Front USB port
for
device access ( USB Hub KVM only
)
® Molded front handle
J
P.1
Page 7

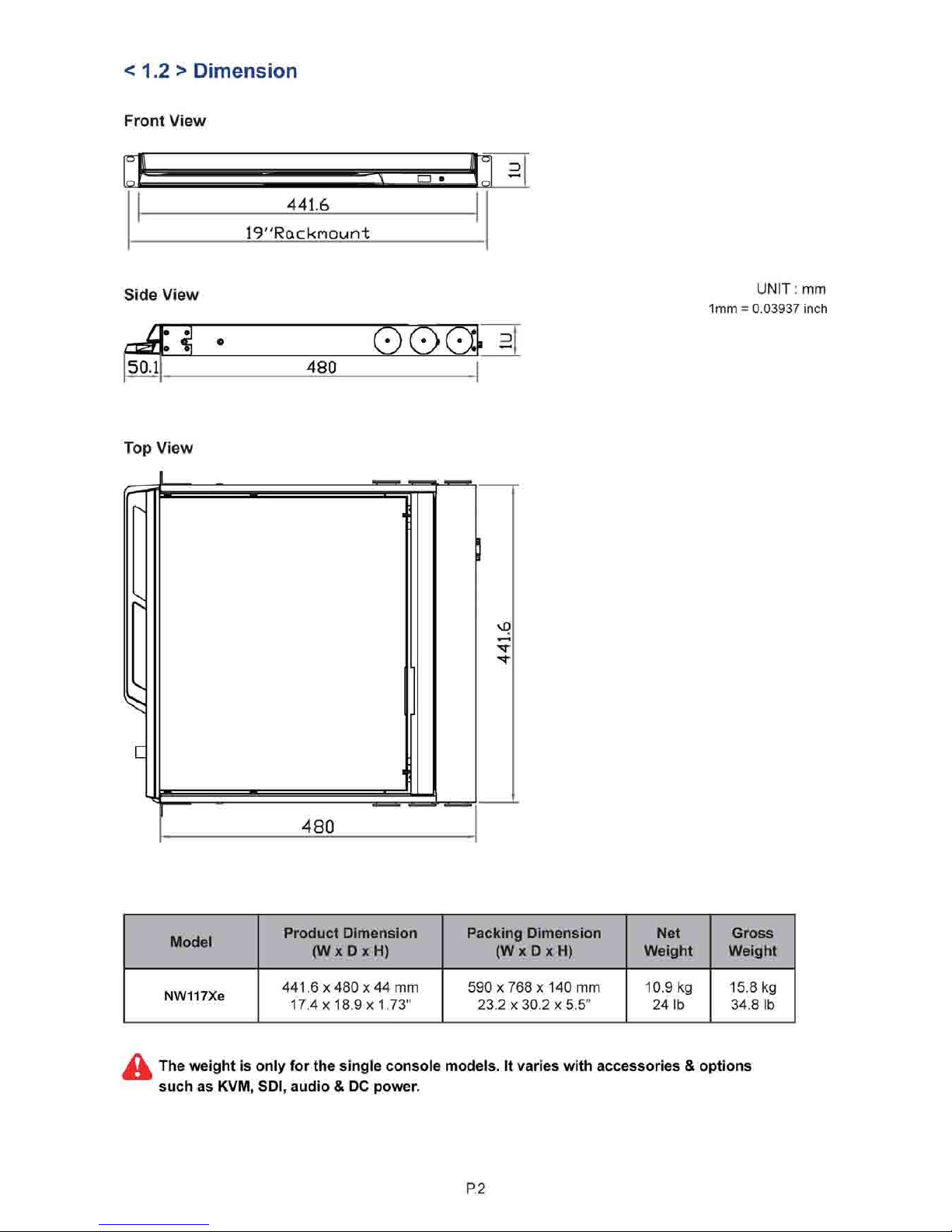

< 1.2 > Dimension
Front View
Side View
t \-^ O ft]
50.1
UNIT: mm
1mm = 0.03937 inch
0OQ-
a
480
Top View
J
[\
l
i
1
^
X
^
L
i
1 —-
480
'
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
NW117Xe

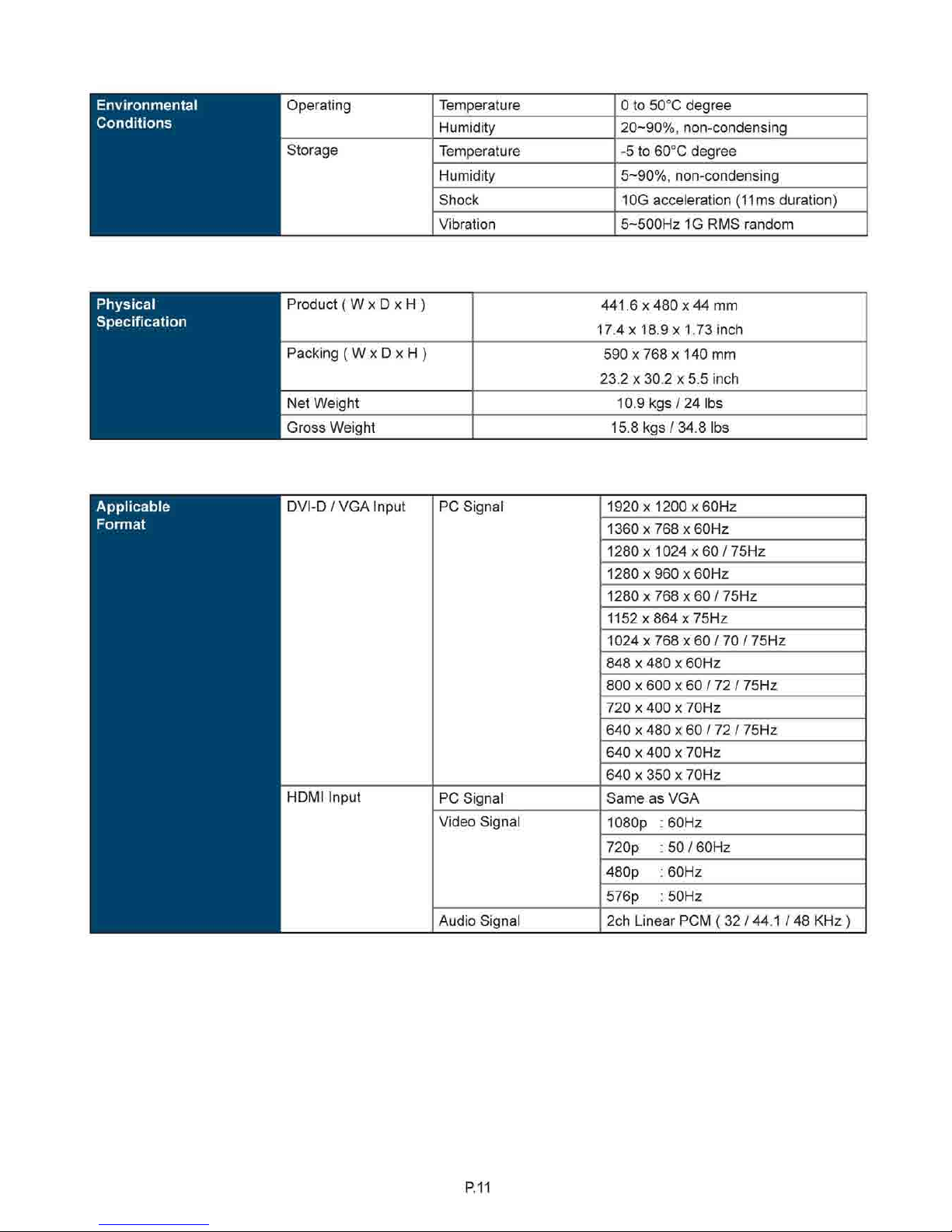

441.6x480x44 mm
17.4x18.9x1.73"
590 x 768 x 140 mm
23.2x30.2x5.5"
10.9 kg
24 lb
15.8 kg
34.8 lb
The weight is only for the single console models. It varies with accessories & options
such as KVM, SDI, audio & DC power.
P.2
Page 8

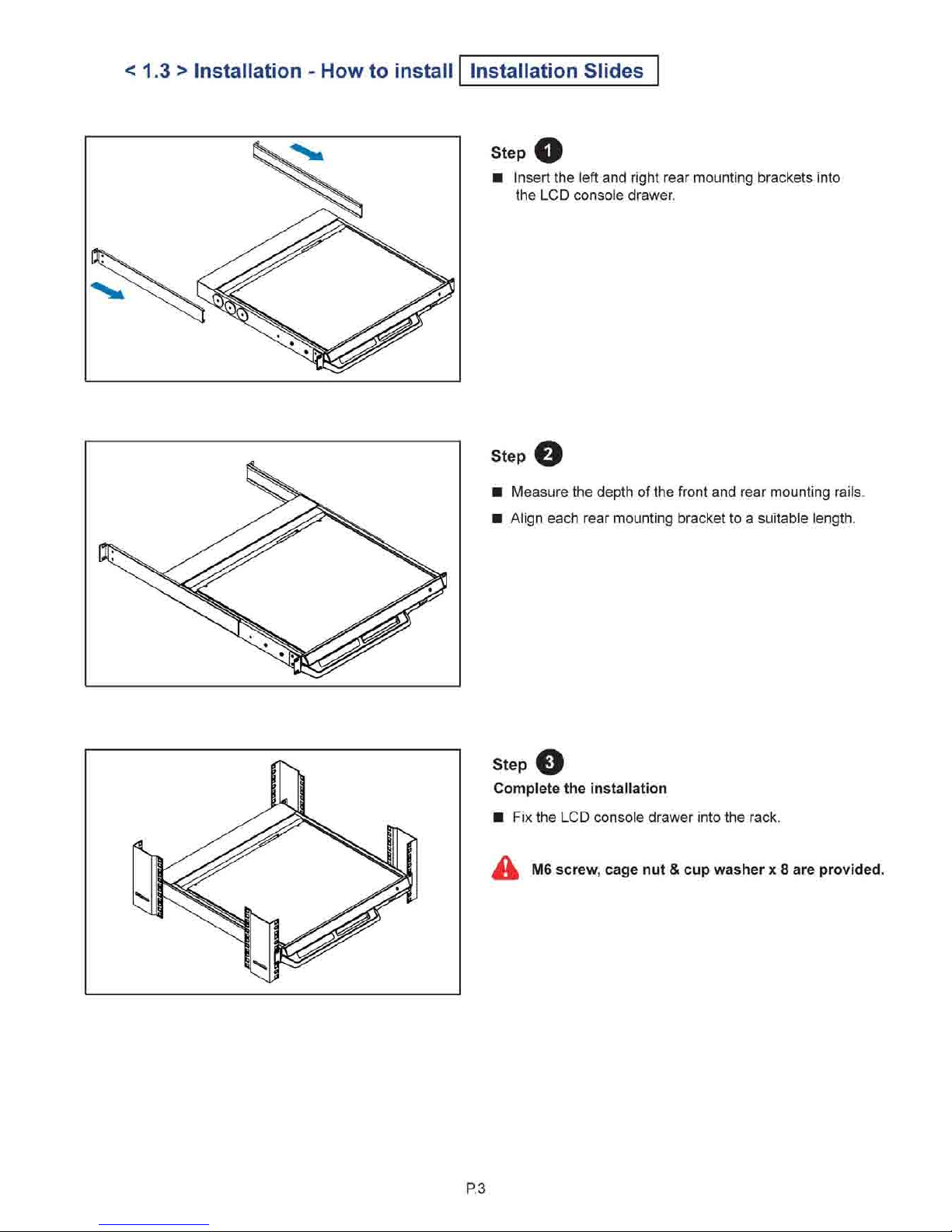

nstall Installation Slides
Step O
Insert the left and right rear mounting brackets into
the LCD console drawer.
Step O
Measure the depth of the front and rear mounting rails.
Align each rear mounting bracket to a suitable length.
Step O
Complete the installation
■ Fix the LCD console drawer into the rack.
Mm M6 screw, cage nut & cup washer x 8 are provided.
P. 3
Page 9

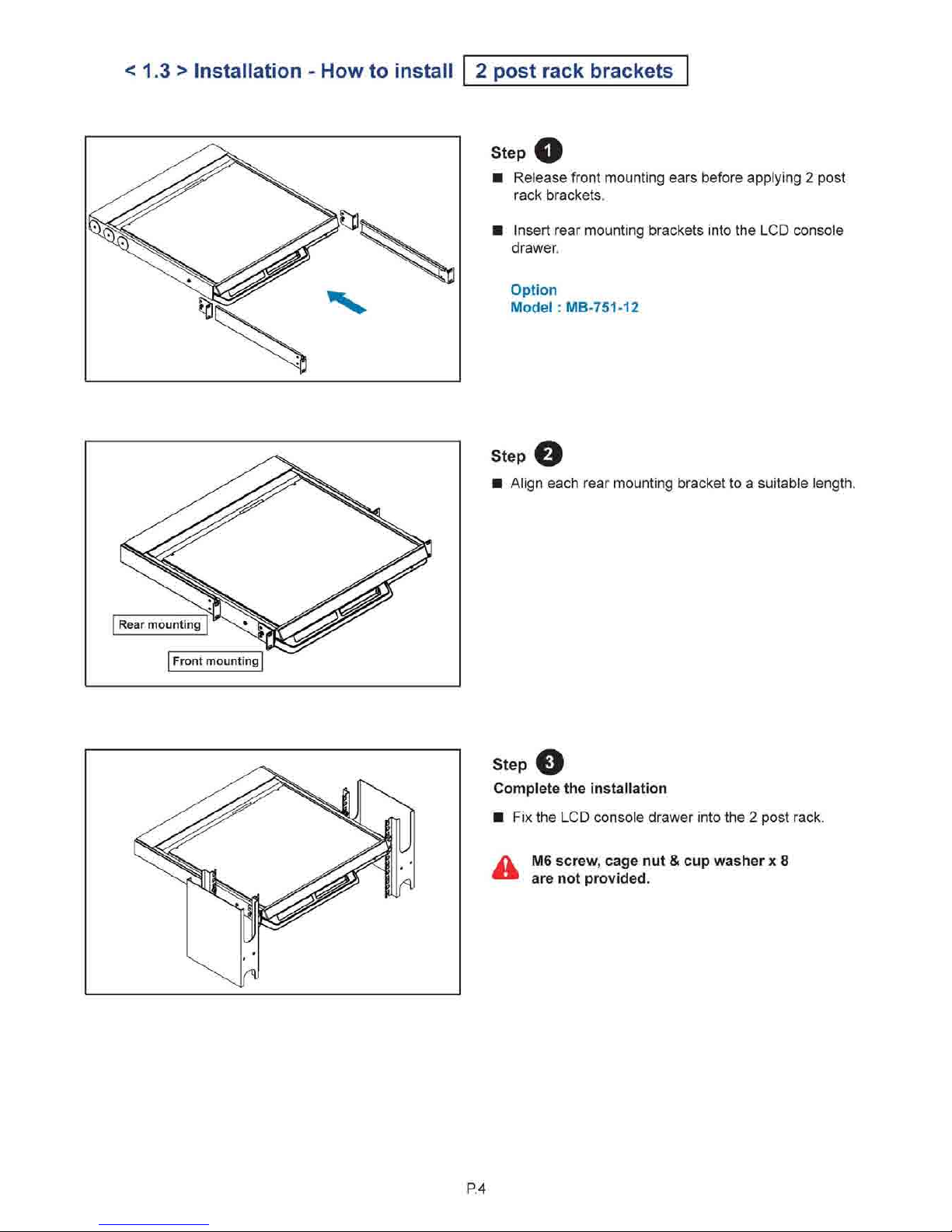

< 1.3 > Installation - How to install 2 post rack brackets
Step O
Release front mounting ears before applying 2 post
rack brackets.
Insert rear mounting brackets into the LCD console
drawer.
Option
Model :MB-751-12
Rear mounting
Front mounting
Step O
Align each rear mounting bracket to a suitable length.
Step O
Complete the installation
■ Fix the LCD console drawer into the 2 post rack.
A
M6 screw, cage nut & cup washer x 8
are not provided.
P.4
Page 10

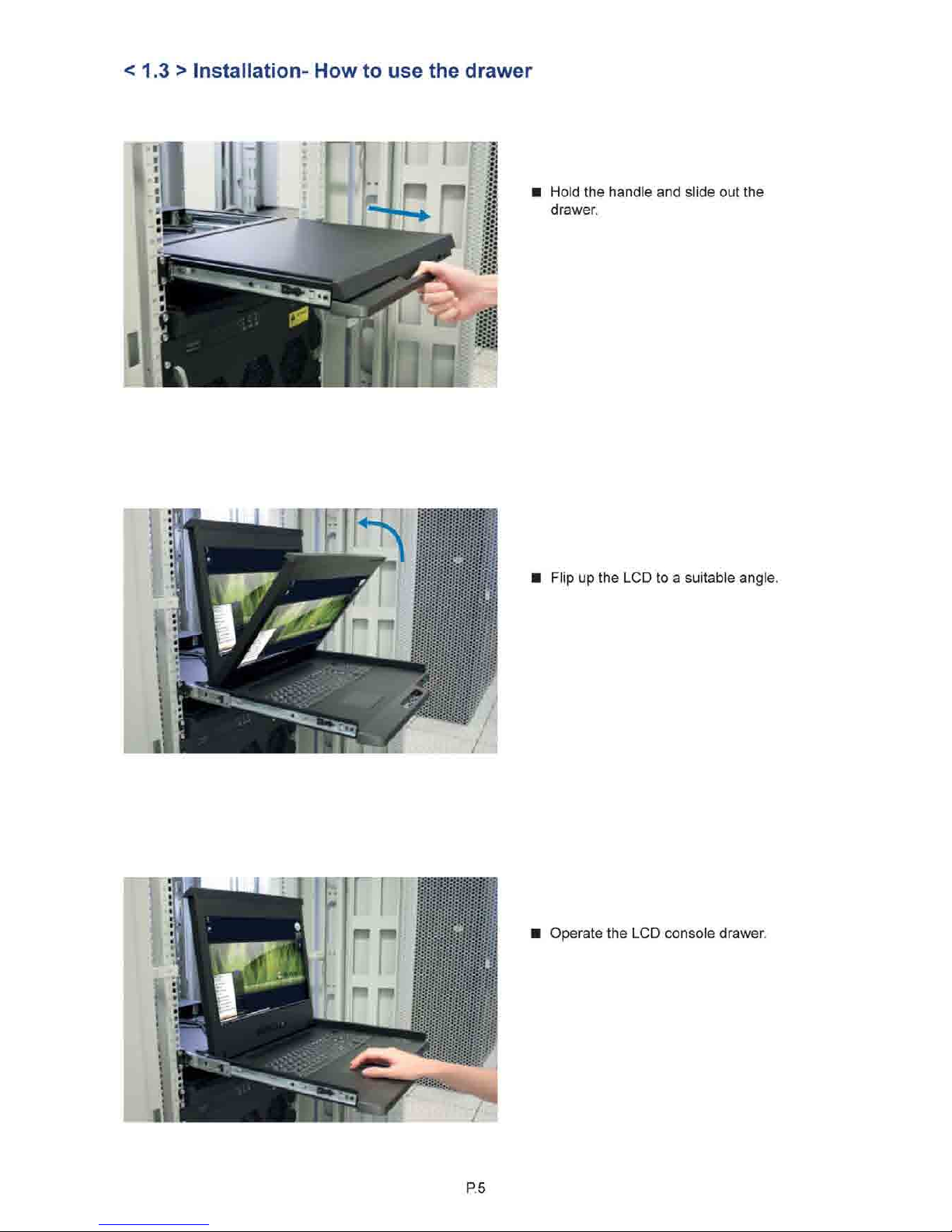

< 1.3 > Installation- How to use the drawer
Hold the handle and slide out the
drawer.
:
&-:£::£
Flip up the LCD to a suitable angle.
f H
Operate the LCD console drawer.
P. 5
Page 11

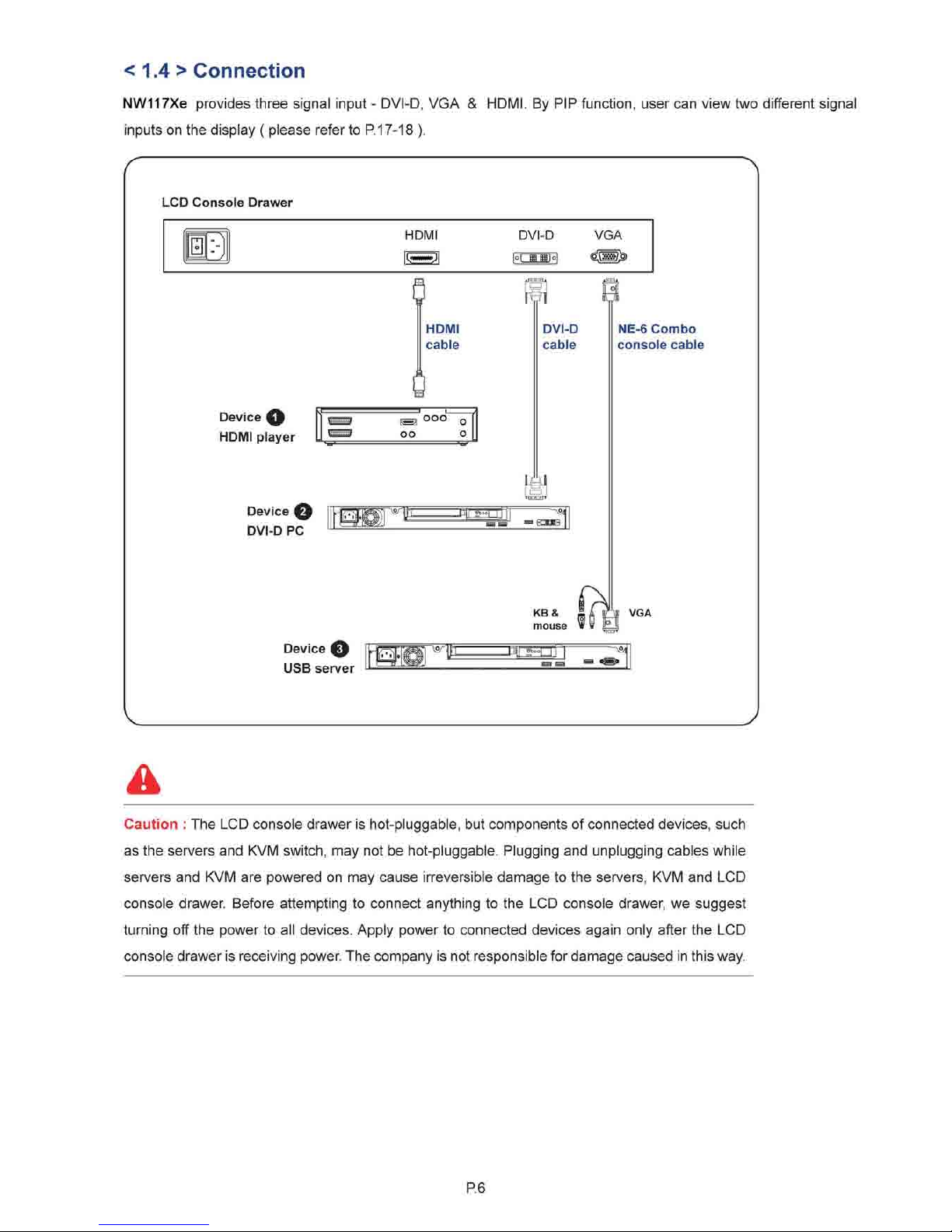

< 1.4 > Connection
NW117Xe provides three signal input - DVI-D, VGA &
HDMI.
By PIP function, user can view two different signal
inputs on the display ( please refer to
P.
17-18
).
A
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
P.6
Page 12

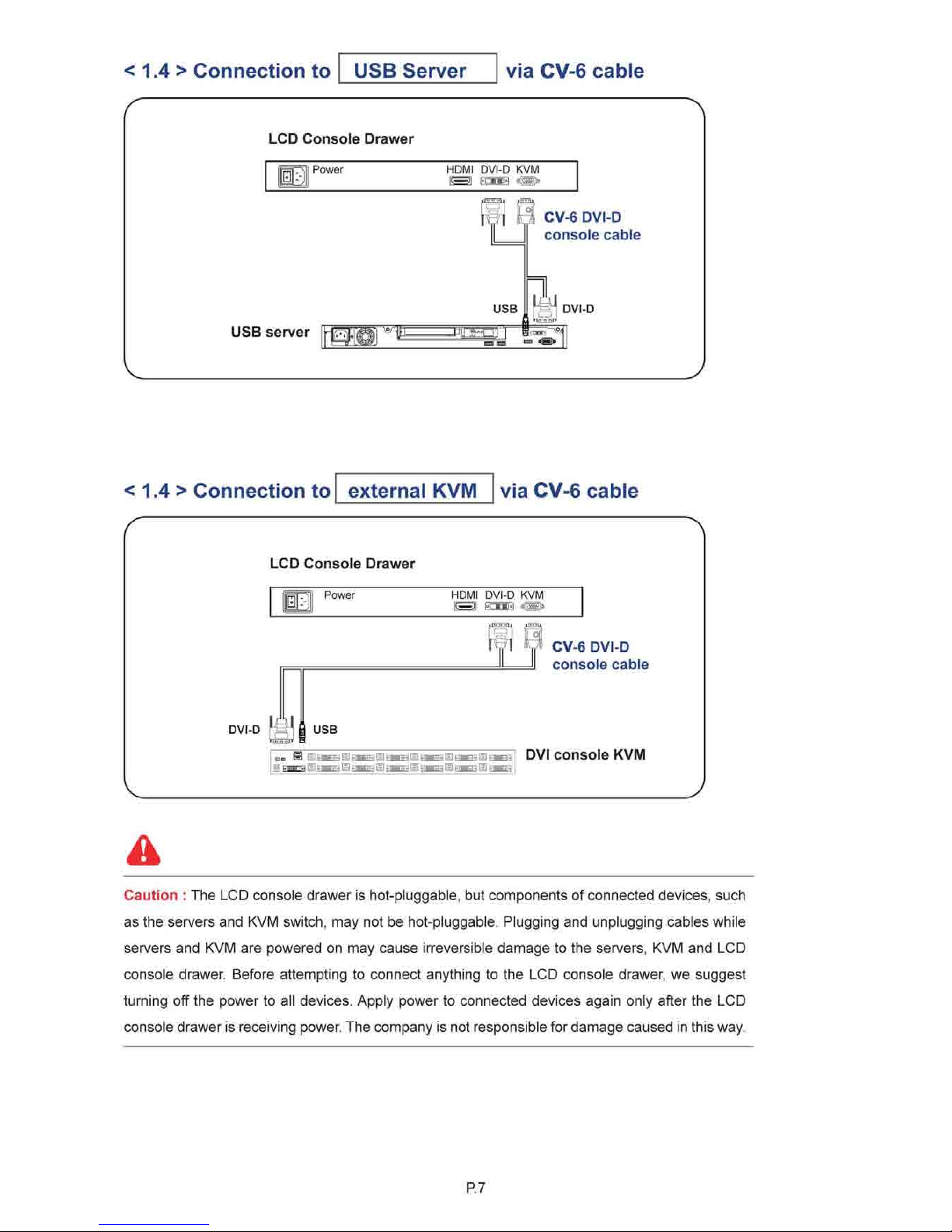

< 1.4 > Connection to USB Server via CV-6 cable
LCD Console Drawer
Power HDMI DVI-D KVM
USB server
CV-6 DVI-D
console cable
DVI-D
< 1.4 > Connection to external KVM via CV-6 cable
DVI-D
LCD Console Drawer
Si-
Power
USB
HDMI DVI-D KVM
CV-6 DVI-D
console cable
DVI console KVM
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
P.7
Page 13

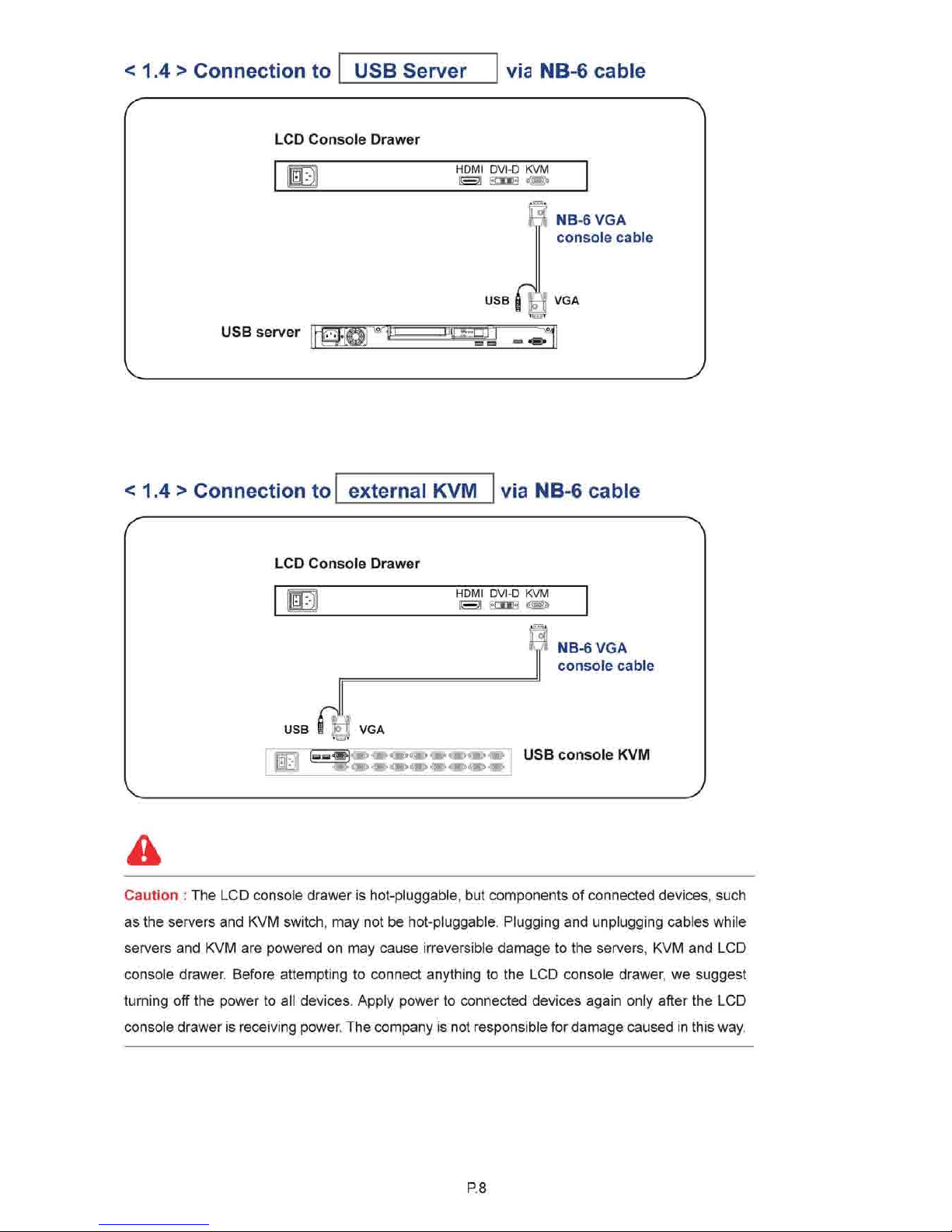

< 1.4 > Connection to USB Server via NB-6 cable
LCD Console Drawer
HDMI DVI-D KVM
USB
NB-6 VGA
console cable
VGA
USB server
^Si
< 1.4 > Connection to external KVM via NB-6 cable
LCD Console Drawer
HDMI DVI-D KVM
NB-6 VGA
console cable
USB
I % 1
VGA
E
HaH
a'^^S^'W'<S>^^"®'<S,^P"fS
D
E
Am*'
g«a
jwfc <$m>
g.«g
imp
<smg
sm&
<mx°
USB console KVM
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
P.8
Page 14

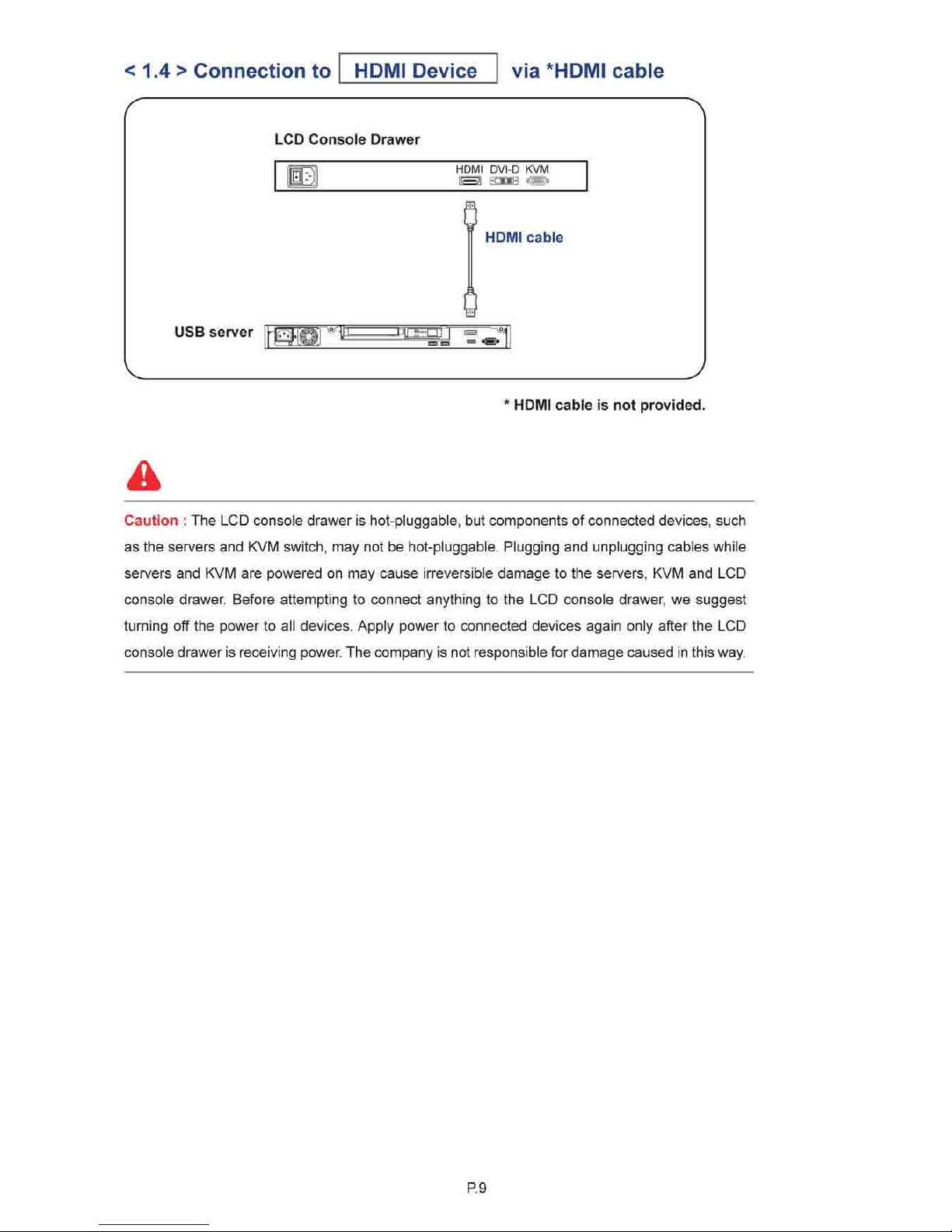

< 1.4 > Connection to HDMI Device via *HDMI cable
LCD Console Drawer
HDMI DVI-D KVM
K——;l
|°l fflmi°l <tiaa?^
HDMI cable
USB server Hg
s ~*
HDMI cable is not provided,
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
P.9
Page 15
< Part 2 >
< 2.1 > Product Specifications
Panel Size ( diagonal)
17.1-inch Widescreen TFT color LCD
Display pixel ( dots x lines )
1920x1200
Brightness (typ. )
210
Contrast Ratio (typ. )
600:1
Color
16.7 M,
8-bit
Viewing Angle (
L/R/U/D
)
65/65/55/55
Response Time ( ms )
30
Dot pitch ( mm )
0.191
Display Area ( mm )
367.20HX 229.50V
Surface treatment
Anti-glare, Hard-coating
Surface hardness
3H
Backlight Type
LED
MTBF ( hrs )
20,000
Video
Connectivity
Digital
HDMI HDMI
1.1,CEA-861-D
Digital
DVI
DVI-D,
TMDS single link
Analog
VGA
Analog 0.7Vp-p
Plug & Play DVI / VGA
VESA EDID structure 1.3
Synchronization VGA
Separate, Composite & SOG
Audio
Connectivity
Audio Input
Connector
3.5mm
stereo jack
Audio Input
Impedance / Power level 30kO / 750mV
Audio Output
Connector
3.5mm
stereo jack
Audio Output
Resistance / Power level 30kQ / 2.8V
Speaker Output
Power 2x2W
*When the audio output is connected, speaker output is OFF
Power Supply
Power Consumption
Range
Screen display ON
Power saving mode
Power button OFF
Auto-sensing 100 to 240VAC
50 / 60Hz
34W or less
4W or less
1Wor less
Regulatory
I Safety
FCC & CE certified
| Environmental
RoHS2 & REACH compliant
P.10
Page 16
Environmental
Conditions
Operating
Temperature 0 to 50°C degree
Humidity
20-90%,
non-condensing
Storage
Temperature -5to60°Cdegree
Humidity 5-90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration
5~500Hz
1G RMS random
Physical
Specification
Product (WxDxH)
441.6x480x44 mm
17.4x18.9x1.73 inch
Packing (W x D x H )
590x768x140 mm
23.2x30.2x5.5 inch
Net Weight 10.9 kgs/24 lbs
Gross Weight 15.8 kgs/34.8 lbs
DVI-D/VGA Input PC Signal 1920 x1200 x60Hz PC Signal
1360 x768 x60Hz
PC Signal
1280 x 1024 x 60 / 75Hz
PC Signal
1280 x960 x60Hz
PC Signal
1280x768x60/75Hz
PC Signal
1152 x864 x75Hz
PC Signal
1024x768x60/70/75Hz
PC Signal
848 x480 x60Hz
PC Signal
800x600x60/72/75Hz
PC Signal
720 x 400 x 70Hz
PC Signal
640 x 480 x 60 / 72 / 75Hz
PC Signal
640 x 400 x 70Hz
PC Signal
640 x 350 x 70Hz
HDMI Input
PC Signal Same as VGA
Video Signal
1080p
60Hz
Video Signal
720p
50 / 60Hz
Video Signal
480p 60Hz
Video Signal
576p 50Hz
Audio Signal 2ch Linear PCM ( 32 /
44.1
/ 48 KHz )
P.11
Page 17

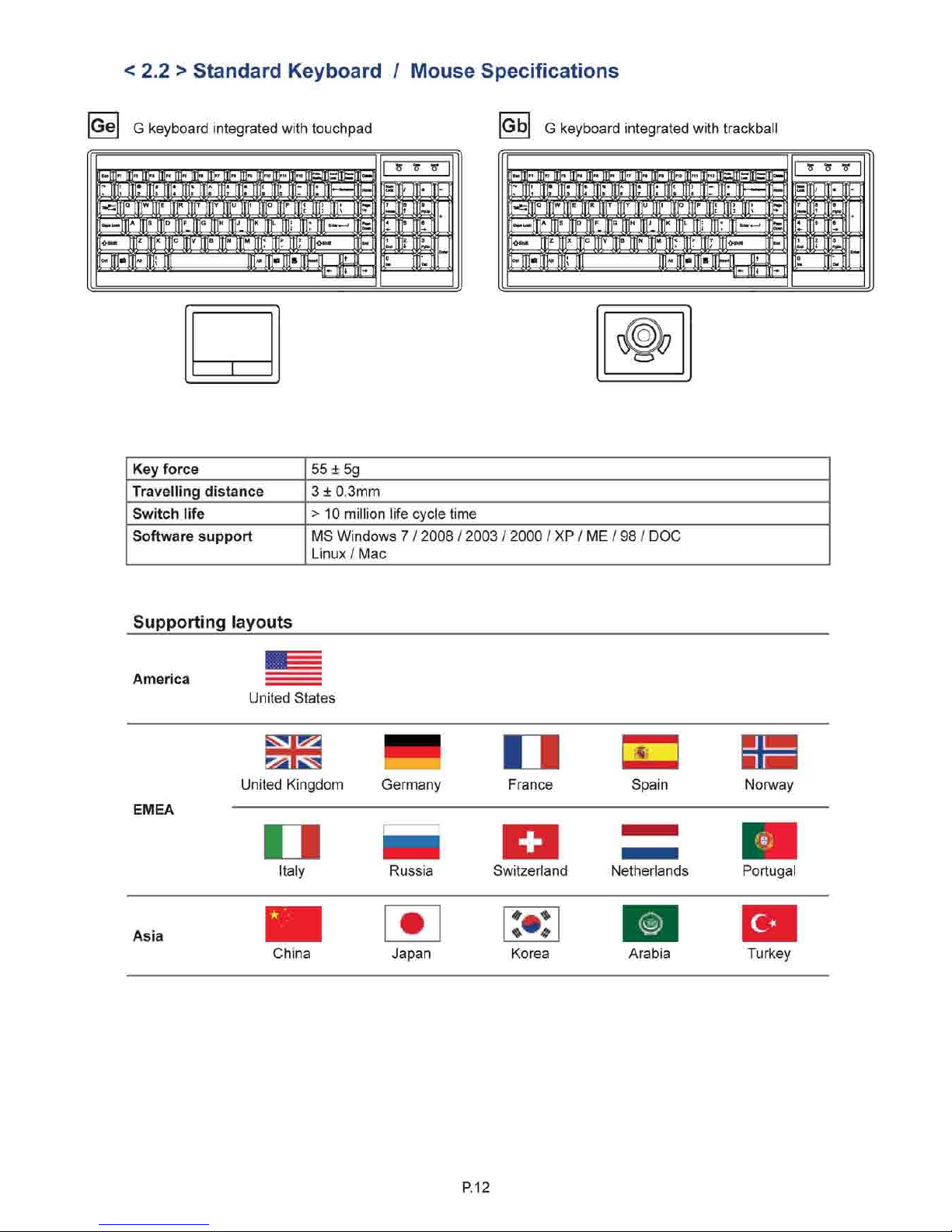

< 2.2 > Standard Keyboard / Mouse Specifications
Ge G keyboard integrated with touchpad Gb G keyboard integrated with trackball
Key force 55±5g
Travelling distance 3 ±
0.3mm
Switch life > 10 million life cycle time
Software support
MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC
Linux/ Mac
Supporting layouts
America
United States
EMEA
United Kingdom Germany
Italy
II n
France Spain
Russia Switzerland Netherlands
Norway
Portugal
Asia
China
Japan
Korea Arabia
Turkey
P.12
Page 18

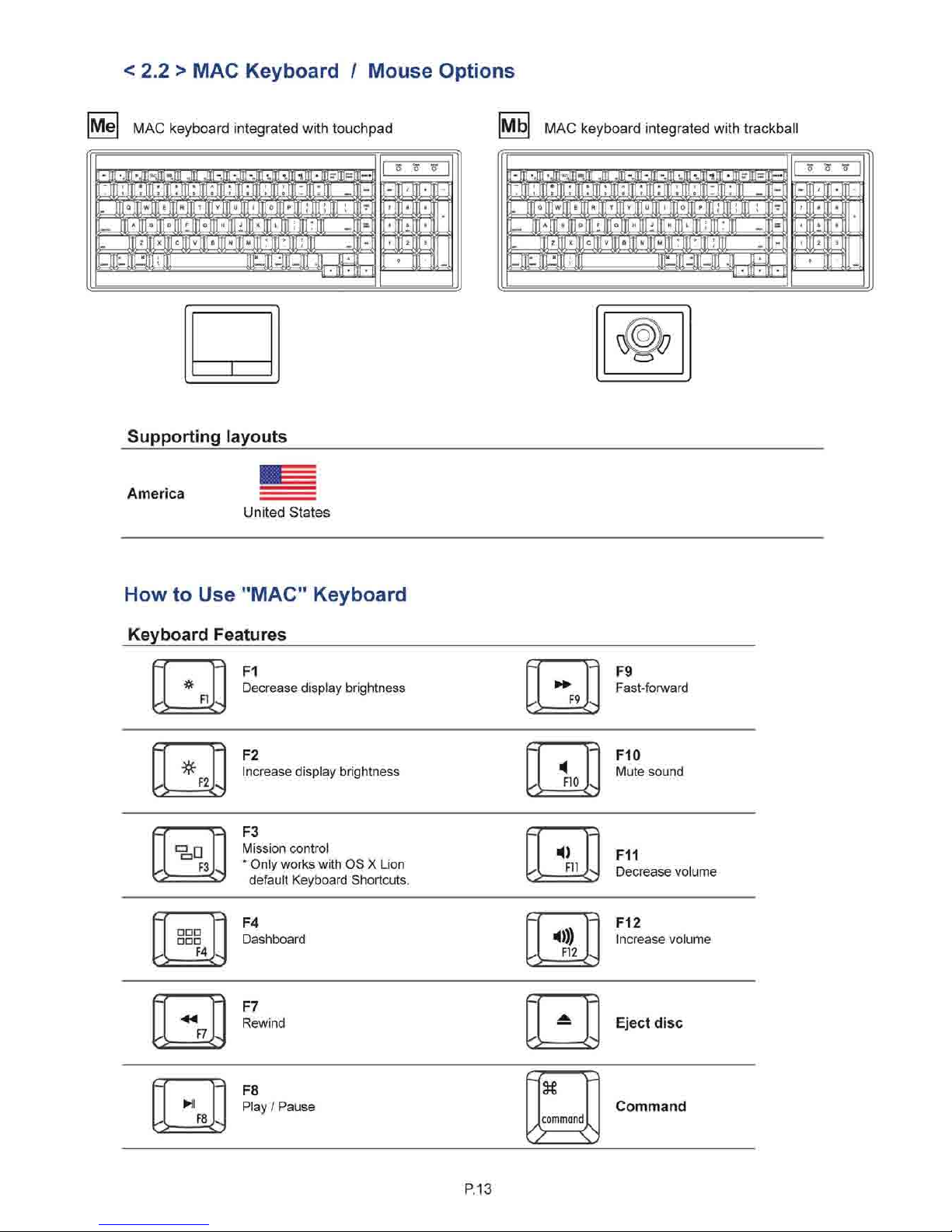

< 2.2 > MAC Keyboard / Mouse Options
Me MAC keyboard integrated with touchpad
I
i I
Mb MAC keyboard integrated with trackball
^ffl^B^B
Z X C V 116 Ml I N
QEE
Supporting layouts
America
United States
How to Use "MAC" Keyboard
Keyboard Features
ry
X^
F1
Decrease display brightness
C7
F9
F9
Fast-forward
#
F2
F2
Increase display brightness
c
A
V
F10
Mute sound
cr
^D
F3
^ F3
Mission control
* Only works with OS X Lion
default Keyboard Shortcuts.
y
A)
s—Sl^
S,
F11
Decrease volume
a
*r\
DDD
□ □□
F4
F4
Dashboard
r^
Fl2
F12
Increase volume
F7
F7
Rewind
r>
Eject disc
CT T^
F8
F8
Play / Pause
U VJ
/
K
command
\
</ \J
Command
P.13
Page 19
< 2.2 > SUN Keyboard / Mouse Options
Se
S keyboard integrated with touchpad
Sb
S keyboard integrated with trackball
S keyboard integrated with touchpad / trackball SOLARIS
■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help
■ 104 key notepad keyboard with full numerical pad and SUN function
■ USB interface
■ US layout only
How to Use "S" Keyboard
Num LED in Off mode
Key
pad
behaves
as a
SUN Solar
system administration command mode
Fn
Num
IJ 7L
L
*LI
+
7 8 9
6
+
4 5
9
6
+
1 2 3
Enter
0
■ Del
"j
Enter
*>
C
*>
<X'S V
Num LED in Green mode
Key pad behaves as a normal key
pad mode
Audio/
Display Keys *
Please ask your supplier for full details
" F9
CD
A
n—--M
F9
Audio : Mute
Display : Degauss
£7
F11
3
0
F11
Audio : Decrease volume
Display : Decrease contrast
C7
F12
F12
Audio : Increase volume
Display : increase contrast
P.14
Page 20

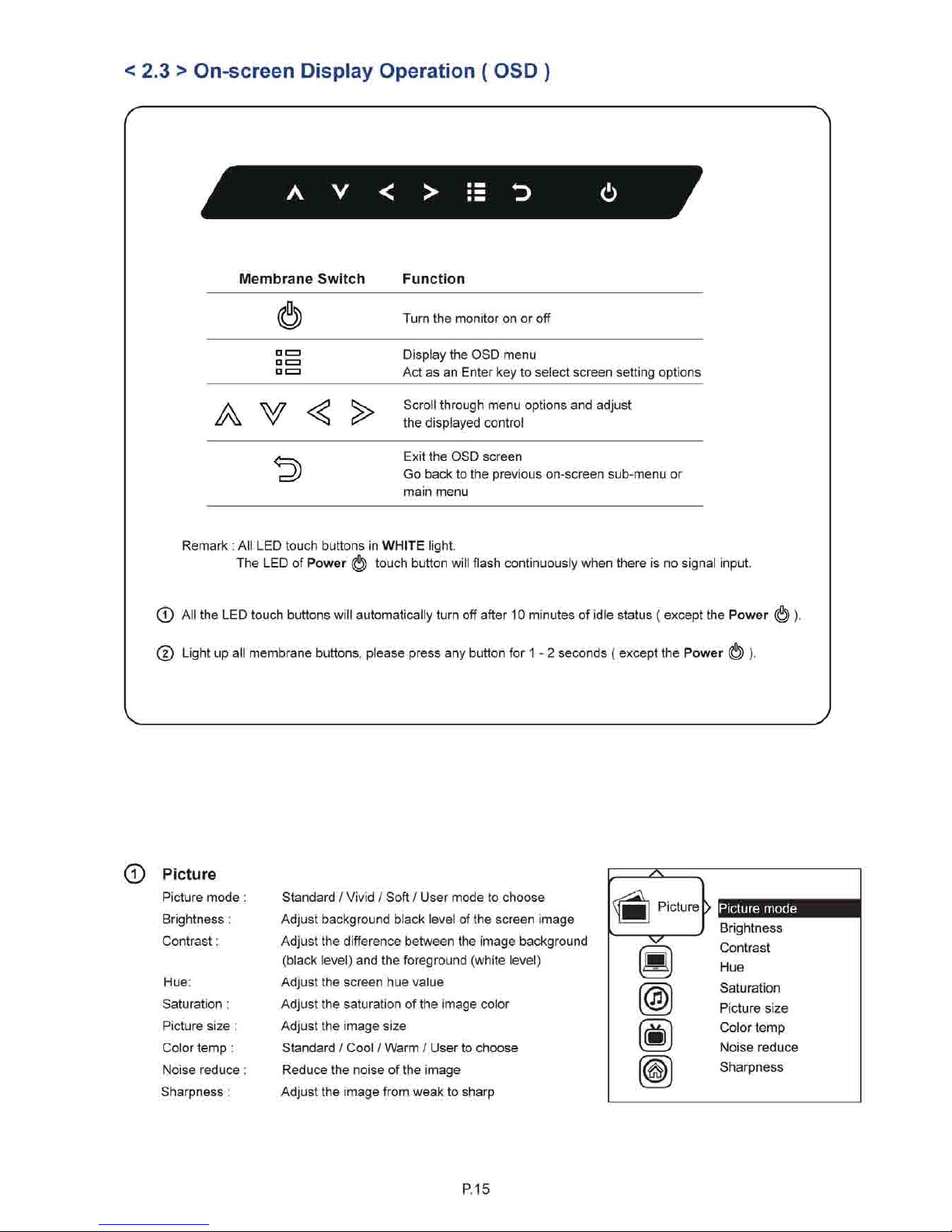

< 2.3 > On-screen Display Operation ( OSD )
Membrane Switch
Function
6
Turn the monitor on or off
DCZI
DCZI
DCZI
Display the OSD menu
Act as an Enter key to select screen setting options
A V <
>
Scroll through menu options and adjust
the displayed control
^
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Remark : All LED touch buttons in WHITE light.
The LED of Power A touch button will flash continuously when there is no signal input.
(T) All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power Q ).
(D Light up all membrane buttons, please press any button for 1 - 2 seconds (except the Power @ ).
(T) Picture
Picture mode : Standard / Vivid / Soft / User mode to choose
Brightness : Adjust background black level of the screen image
Contrast: Adjust the difference between the image background
(black level) and the foreground (white level)
Hue:
Adjust the screen hue value
Saturation : Adjust the saturation of the image color
Picture size : Adjust the image size
Color temp : Standard / Cool / Warm / User to choose
Noise reduce : Reduce the noise of the image
Sharpness : Adjust the image from weak to sharp
Brightness
Contrast
Hue
Saturation
Picture size
Color temp
Noise reduce
Sharpness
P.15
Page 21

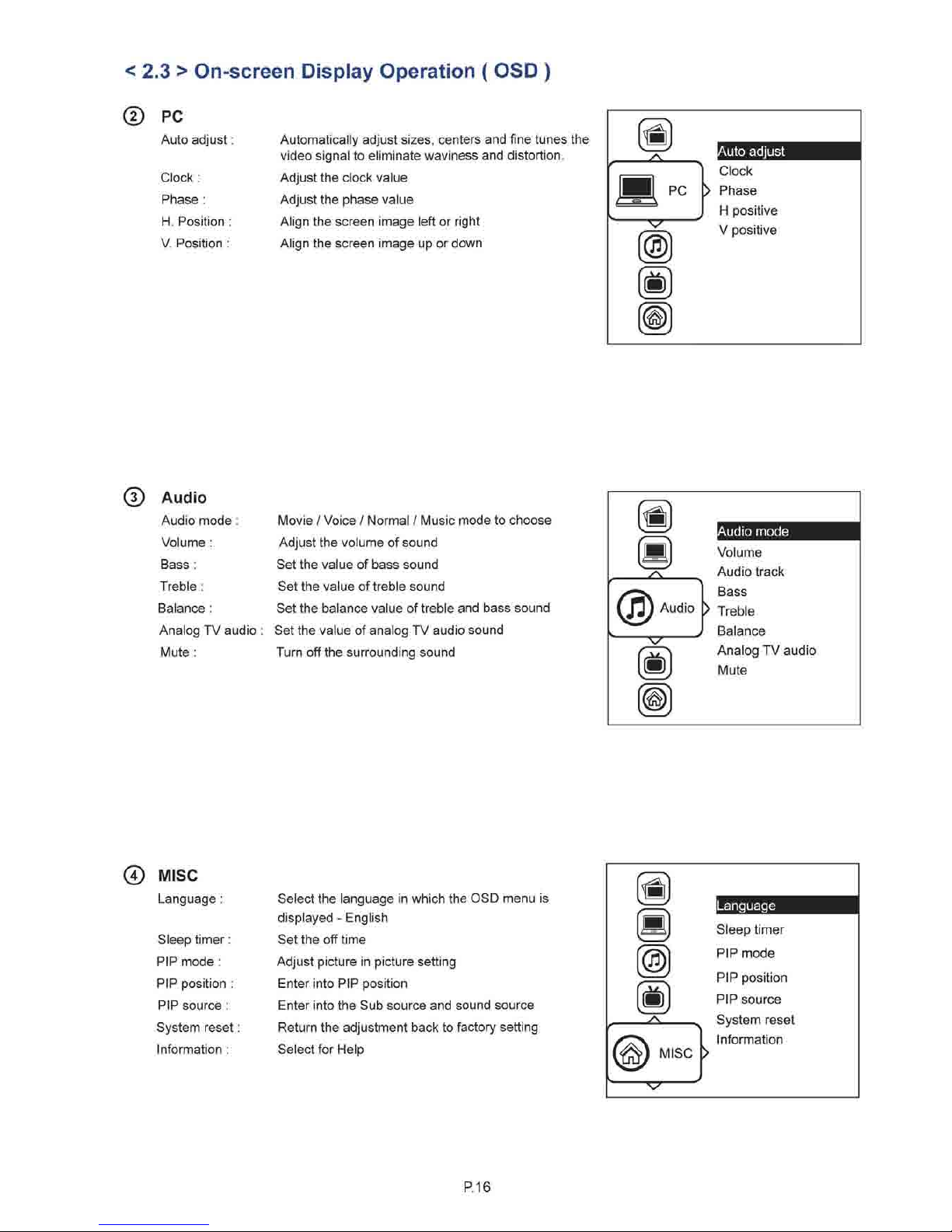

< 2.3 > On-screen Display Operation ( OSD )
© PC
Auto adjust
Clock :
Phase :
H. Position
V. Position :
Automatically adjust sizes, centers and fine tunes the
video signal to eliminate waviness and distortion.
Adjust the clock value
Adjust the phase value
Align the screen image left or right
Align the screen image up or down
ajto adjust
Clock
PC [> Phase
H positive
V positive
® Audio
Audio mode
Volume :
Bass :
Treble :
Balance :
Movie / Voice / Normal / Music mode to choose
Adjust the volume of sound
Set the value of bass sound
Set the value of treble sound
Set the balance value of treble and bass sound
Analog TV audio : Set the value of analog TV audio sound
Mute : Turn off the surrounding sound
* *
HAudio mode
Volume
Audio track
M) Audio
Bass
> Treble
Balance
Analog TV audio
Mute
0 MISC
Language :
Sleep timer:
PIP mode :
PIP position :
PIP source :
System reset
Information :
Select the language in which the OSD menu is
displayed - English
Set the off time
Adjust picture in picture setting
Enter into PIP position
Enter into the Sub source and sound source
Return the adjustment back to factory setting
Select for Help
Language
Sleep timer
PIP mode
PIP position
PIP source
System reset
Information
P.16
Page 22
< 2.4 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP )
< 2.4.1 > Picture in Picture ( PIP )
Mode
Display the Sub screen in the Main screen.
OSDMenu -> MISC -► PIP Mode -> Large / Small / OFF
Main screen
Sub screen
Position
Adjust the position of the Sub screen (top left, bottom left, top right, bottom right)
OSD Menu -> MISC -> PIP Position -► top left / top right / bottom left / bottom right
top left top right
bottom left
bottom right
Size
Adjust the size of the Sub screen ( Large / Small )
OSDMenu -> MISC -> PIP Mode -> Large / Small
Size of Sub screen
LCD Monitor Large Sub screen Small Sub screen
1920x1200 552x414 480 x 360
1920x1080 552x414 480 x 360
1440x900 414x310 360 x 270
1366x768 392 x 294 340 x 254
1280x1024 368 x 276 320 x 240
P.17
Page 23

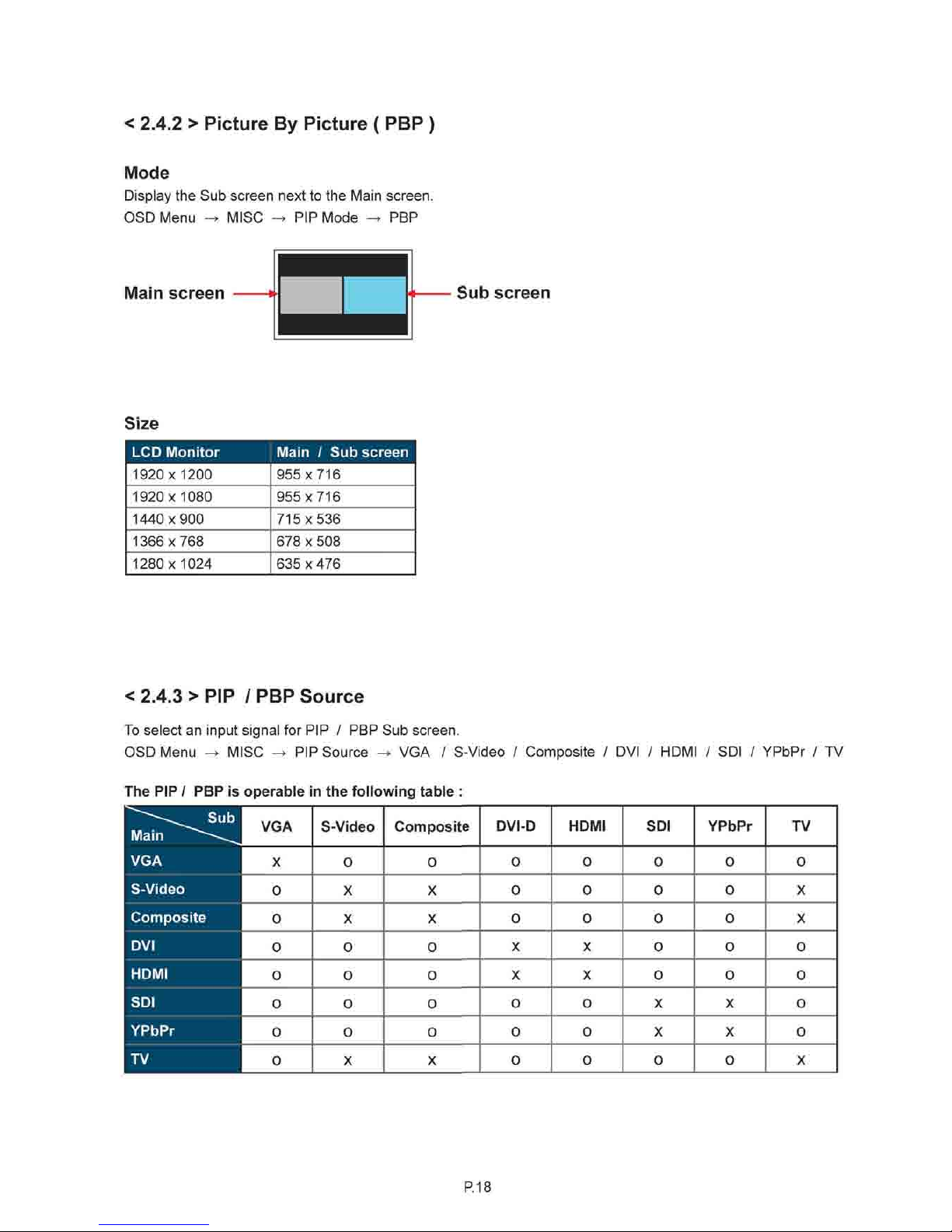

< 2.4.2 > Picture By Picture ( PBP )
Mode
Display the Sub screen next to the Main screen.
OSDMenu -> MISC -> PIP Mode -► PBP
Main screen
Sub screen
Size
LCD Monitor Main / Sub screen
1920x1200 955x716
1920x1080 955x716
1440x900 715x536
1366x768 678 x 508
1280x1024
635 x 476
< 2.4.3 > PIP / PBP Source
To select an input signal for PIP / PBP Sub screen.
OSDMenu -> MISC -> PIP Source -► VGA /
S-Video
/ Composite / DVI / HDMI / SDI / YPbPr / TV
The PIP / PBP is operable in the following table :
""""""^^ Sub
VGA
S-Video
Composite
DVI-D HDMI SDI YPbPr
TV
Main ^^^^
VGA
S-Video
Composite
DVI
HDMI
SDI
YPbPr
VGA
S-Video
Composite
DVI-D HDMI SDI YPbPr
TV
Main ^^^^
VGA
S-Video
Composite
DVI
HDMI
SDI
YPbPr
X 0 0
0 O 0 0 0
Main ^^^^
VGA
S-Video
Composite
DVI
HDMI
SDI
YPbPr
O
X X 0 O 0 0
X
Main ^^^^
VGA
S-Video
Composite
DVI
HDMI
SDI
YPbPr
0
X X 0 0 0 0
X
Main ^^^^
VGA
S-Video
Composite
DVI
HDMI
SDI
YPbPr
0 0 0
X X 0 0 0
Main ^^^^
VGA
S-Video
Composite
DVI
HDMI
SDI
YPbPr
0 0 0
X X 0 0 0
Main ^^^^
VGA
S-Video
Composite
DVI
HDMI
SDI
YPbPr
0
0 0
0 0
X X 0
Main ^^^^
VGA
S-Video
Composite
DVI
HDMI
SDI
YPbPr
0 0 0
0 0
X X
0
TV
0 X X
0 0 0 0 X
P.18
Page 24
< Part 3 >
< 3.1 > Options : 3G / HD / SD-SDI input
iTechLCD's SDI input is an ideal solution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with CyberView Full HD 1080p and ultra high
resolution 1920 x 1200 LCD displays, iTechLCD provides a
SDI input module without using additional space or power and it
comes standard with a 2-year warranty.
SDI
***
For SDI option, casing depth will be changed from 480mm (18.9" ) to 530mm ( 20.9" )
3G-SDI IN
3G-SDI OUT
BNCxI /0.8Vp-p(75ohm)
BNC x 1 /Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Standard Compliance
Audio SMPTE 299M / 272M-C
Compatible Video Format 3G-SDI 1080p @60/50Hz, 4:2:2
1080p @30/25/24Hz, 4:4:4
1080i @60/50Hz, 4:4:4
720p @60/50Hz, 4:4:4
Compatible Video Format
HD-SDI 1080p @30 / 25/24Hz, 4:2:2
1080i @60/50Hz, 4:2:2
720p @60/50Hz, 4:2:2
Compatible Video Format
SD-SDI 480i @60Hz, 4:2:2
Compatible Video Format
ITU-R BT.656
576i @50Hz, 4:2:2
Compatible Audio Format
3G-SDI 48kHz, 16/20/24 bit, 2 CH, Synchronized Video
Compatible Audio Format
HD-SDI 48kHz, 16/20/24 bit, 2 CH, Synchronized Video
Compatible Audio Format
SD-SDI
48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150mat2.97Gb/s Max. Transmission Distance
75 ohm coaxial cable
HD-SDI 250mat1.485Gb/s
Max. Transmission Distance
75 ohm coaxial cable
SD-SDI 480mat270Mb/s
P.19
Page 25

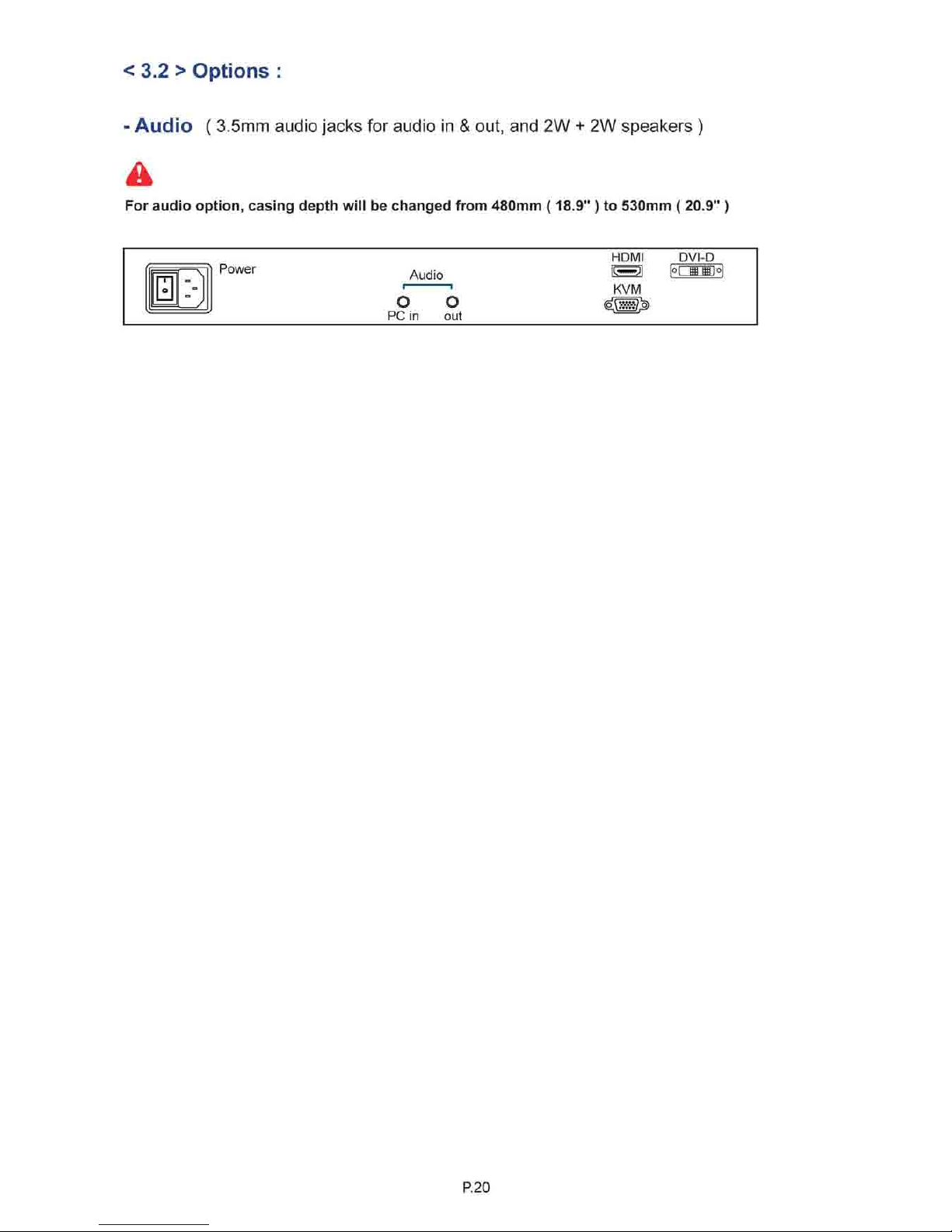

< 3.2 > Options :
- Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
For audio option, casing depth will be changed from 480mm (18.9" ) to 530mm ( 20.9" )
HDMI DVI-D
0
Power
Audio
i 1
o o
PC in out
l^^l [°l ill'
KVM
P.20
Page 26
<

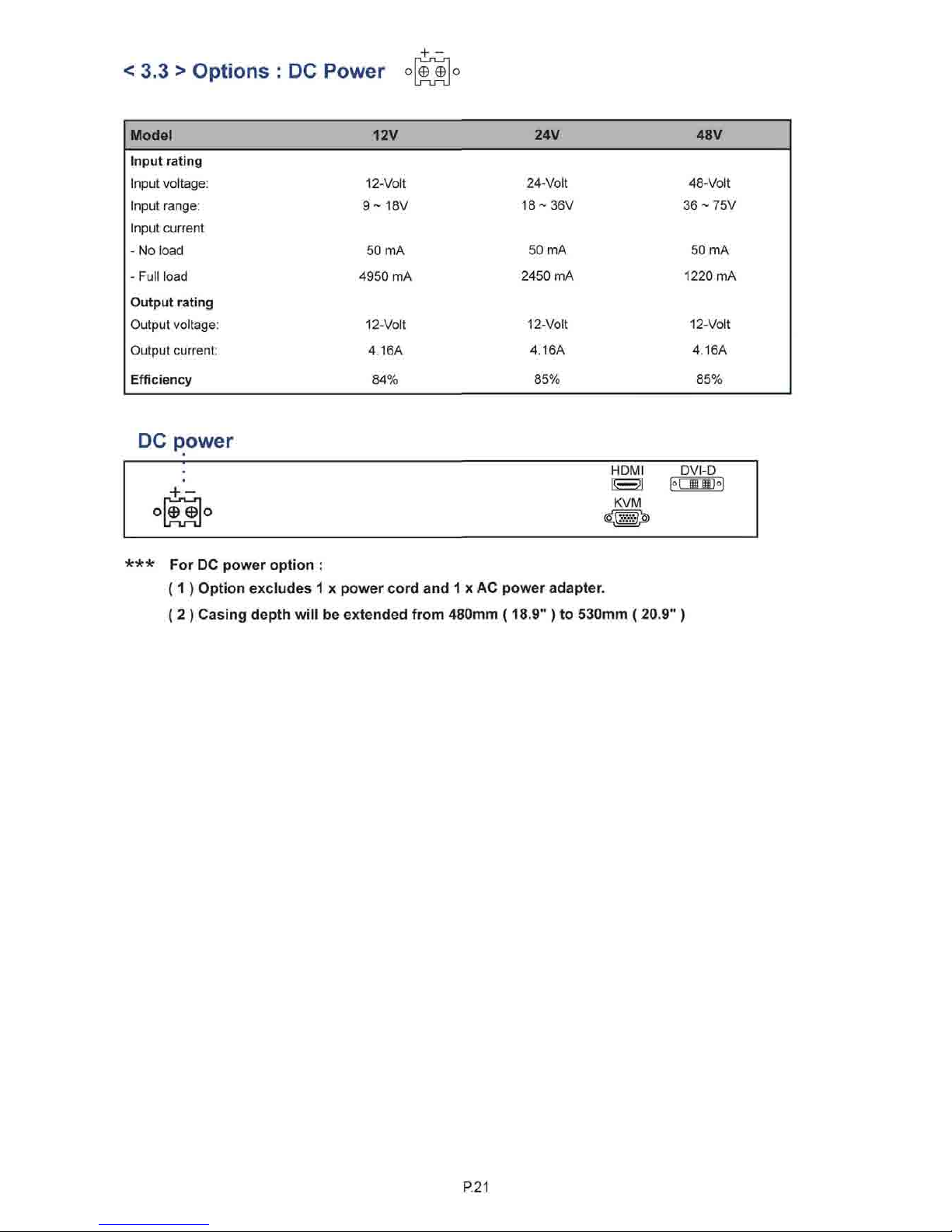

3.3 >
Options
: DC
Power
Model 12V
24V 48V
Input rating
Input voltage: 12-Volt
24-Volt 48-Volt
Input range: 9-18V
18-36V 36 ~ 75V
Input current
-
No
load 50 mA
50 mA 50 mA
- Full load 4950
mA
2450
mA
1220 mA
Output rating
Output voltage: 12-Volt
12-Volt 12-Volt
Output current: 4.16A
4.16A 4.16A
Efficiency
84%
85% 85%
DC power
***
For DC power option :
(1 ) Option excludes 1 x power cord and 1 x AC power adapter.
( 2 ) Casing depth will be extended from 480mm (18.9" ) to 530mm ( 20.9" )
P.21
Page 27
Loading...
