User Manual 17” FHD 1080p LCD
Dedicated KVM switch and Rackmount screen technology
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com
• WEB: www.iTechLCD.com
Page 2

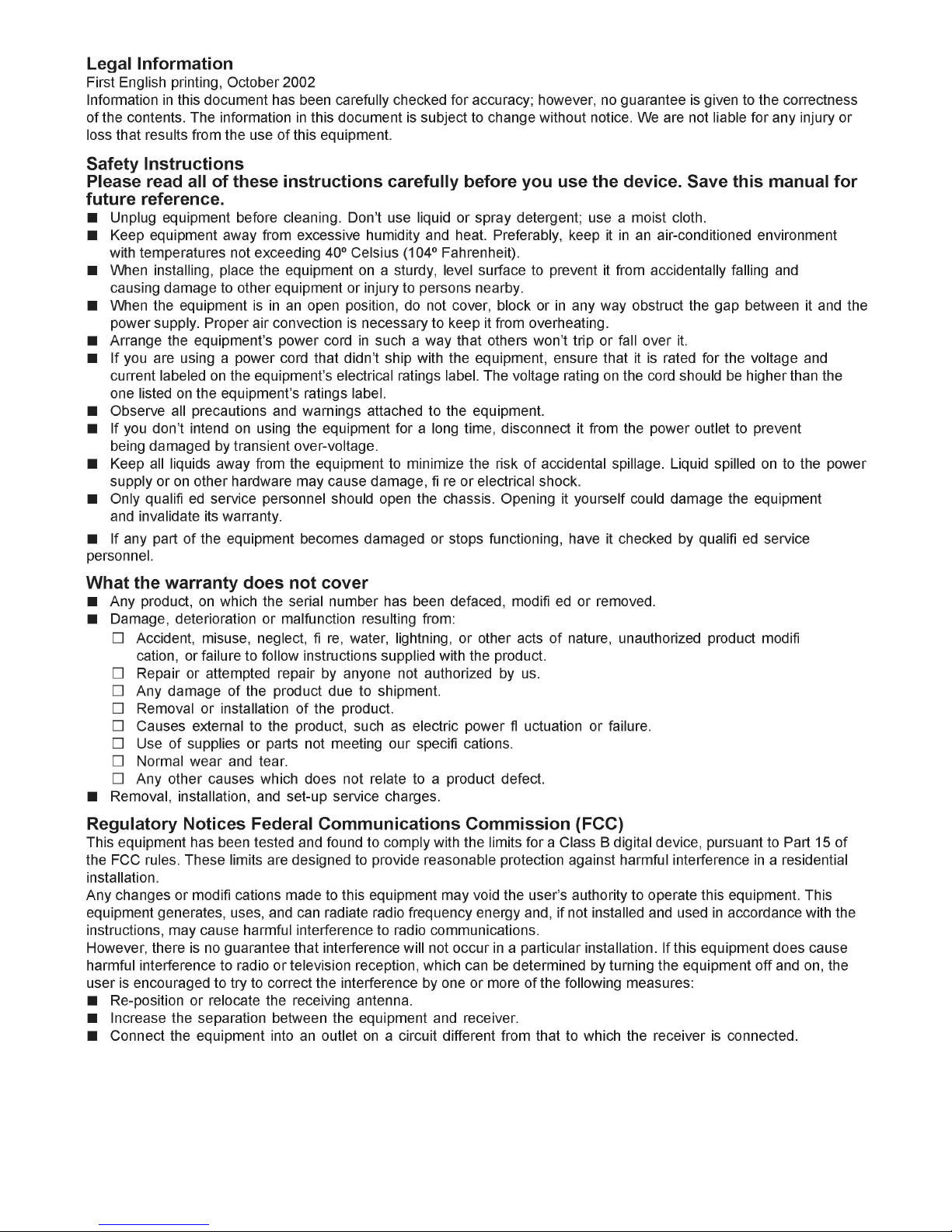

Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment
with temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and
causing damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and
current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the
one listed on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent
being damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fi re or electrical shock.
■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equipment
and invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service
personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modifi ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi
cation,
or failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Page 3
Contents
< Part. 1 > NW117HDe
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Installation
1.4 Connection
P. 1
P.1 - 2
P.3 - 5
P.6 - 7
< Part. 2 > Specifications / OSD
2.1 Product Specifications

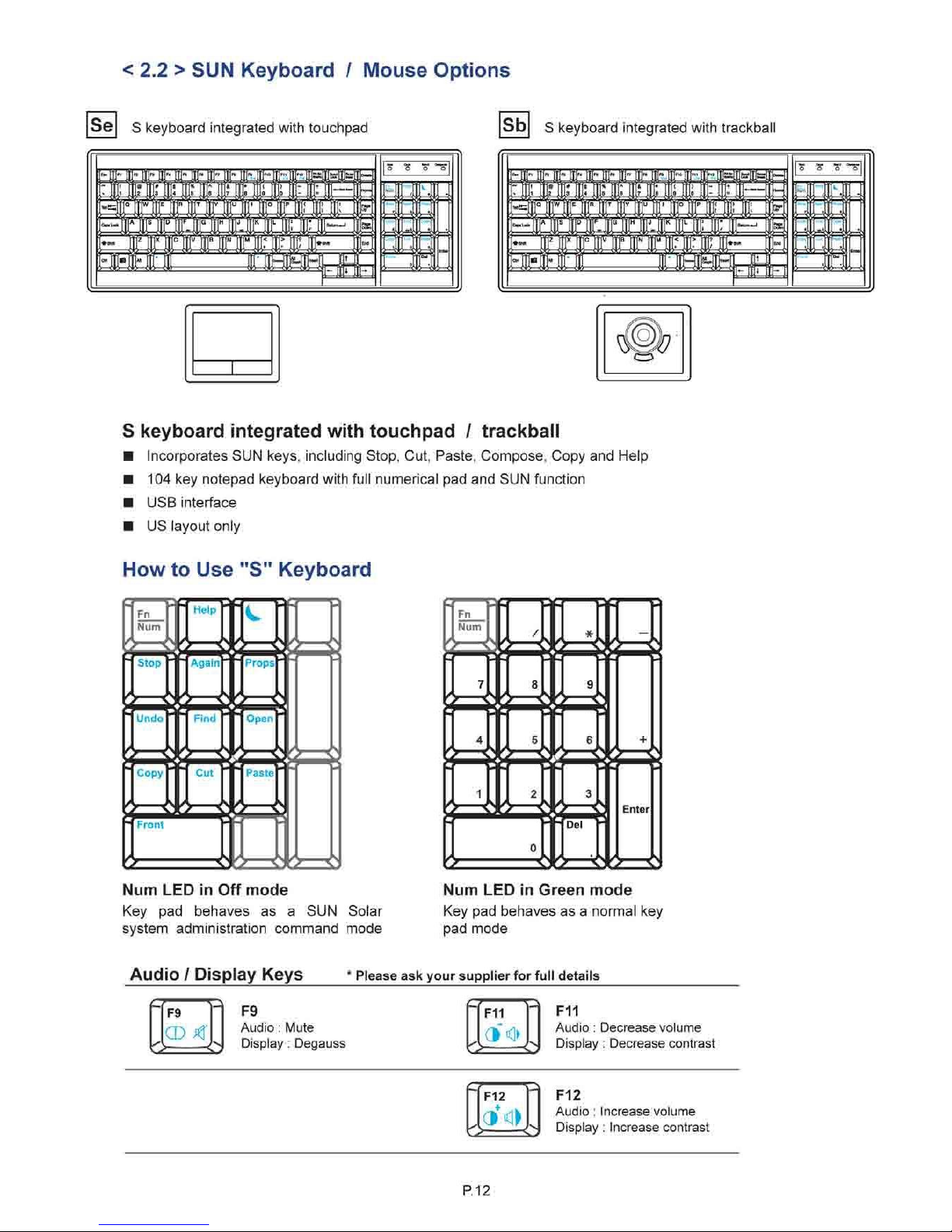

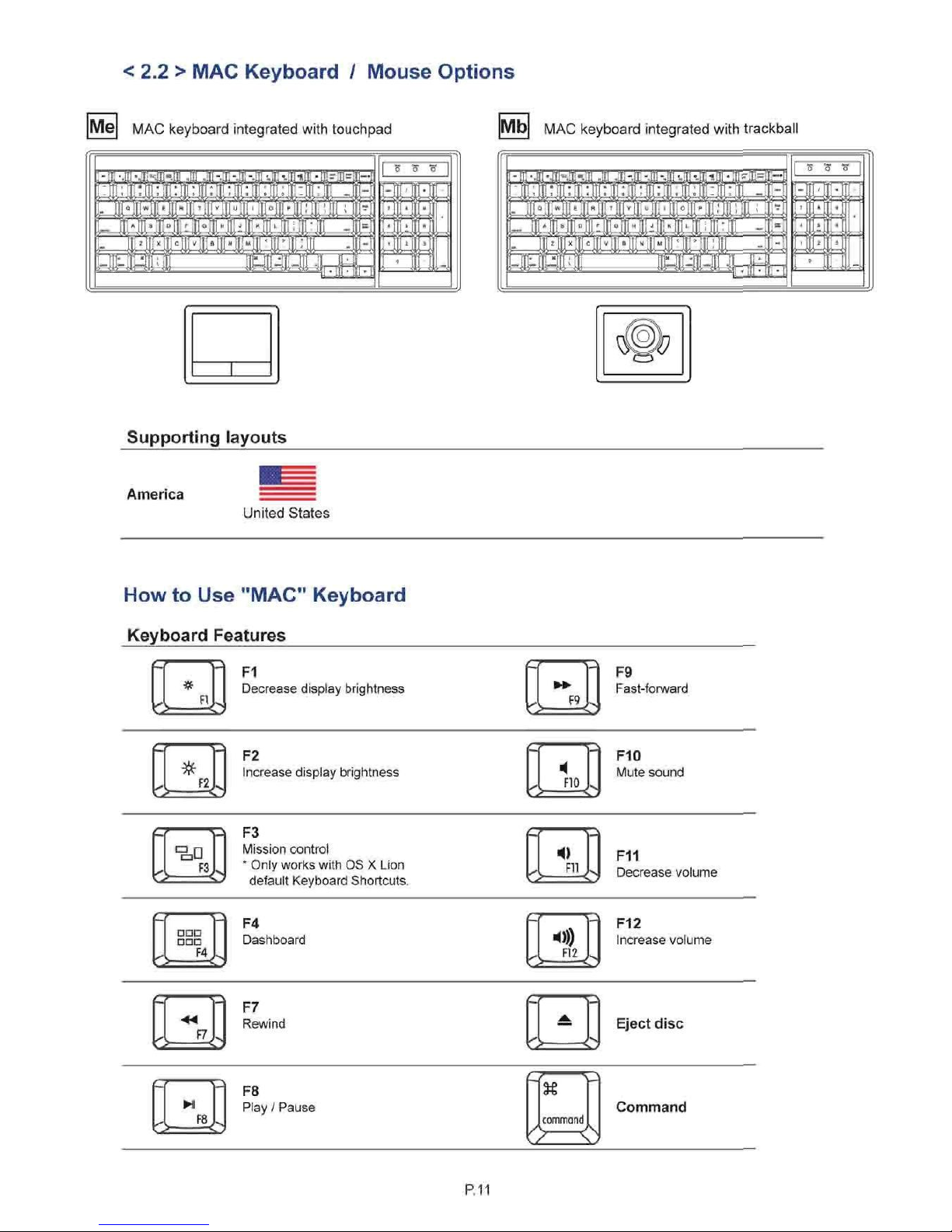

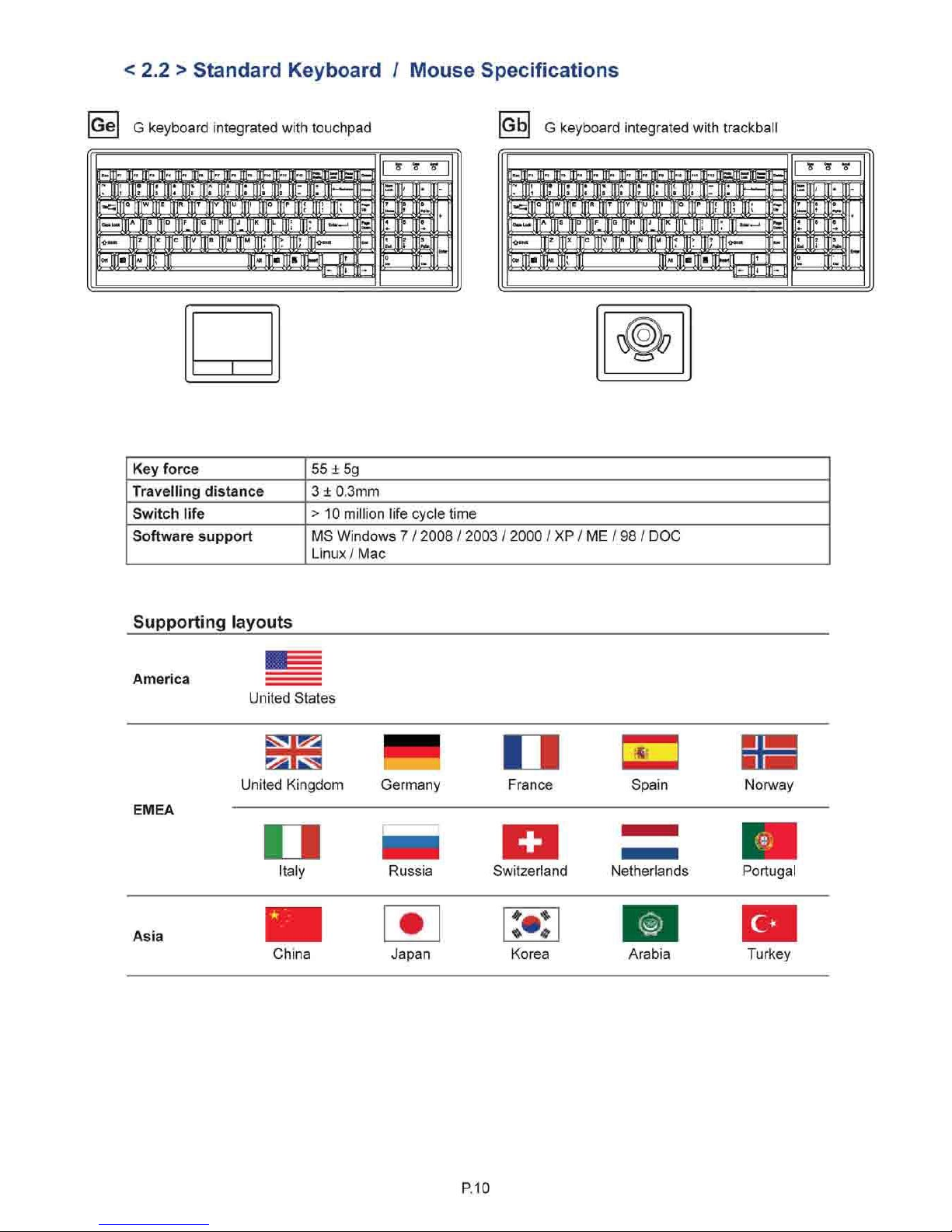

2.2 Keyboard / Mouse Specifications

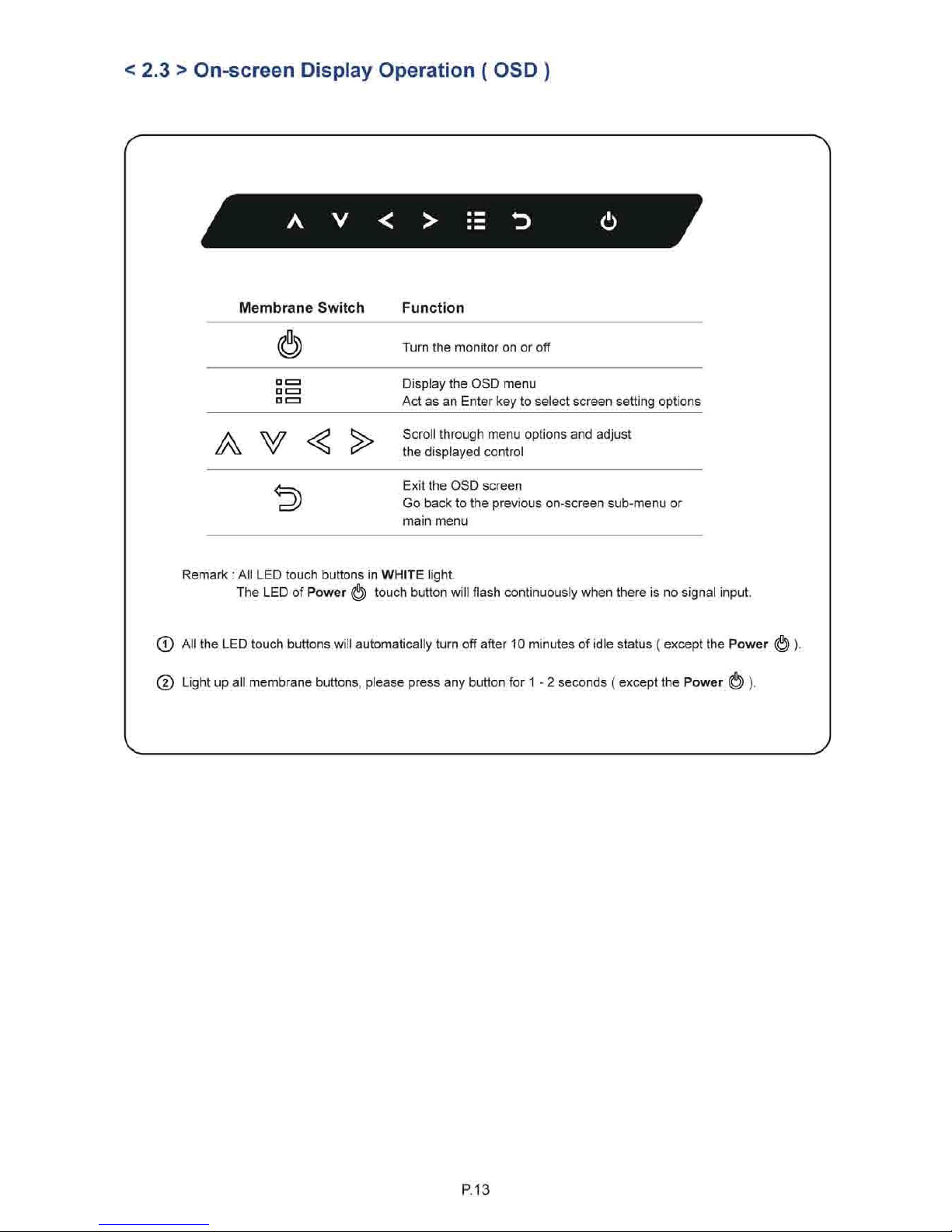

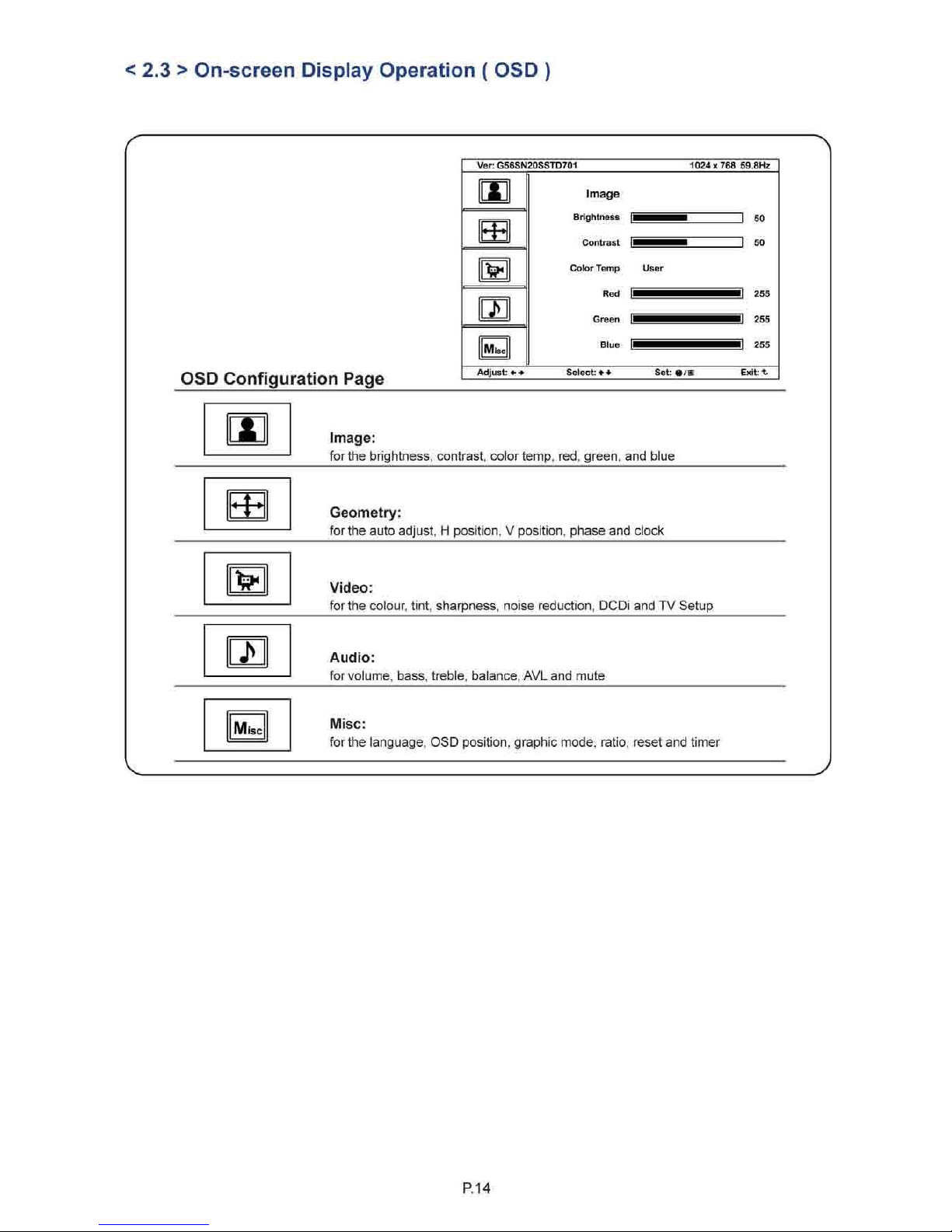

2.3 On-screen Display Operation ( OSD )
P.8 - 9
P.10 - 12
P.13 - 14
< Part. 3 > Options

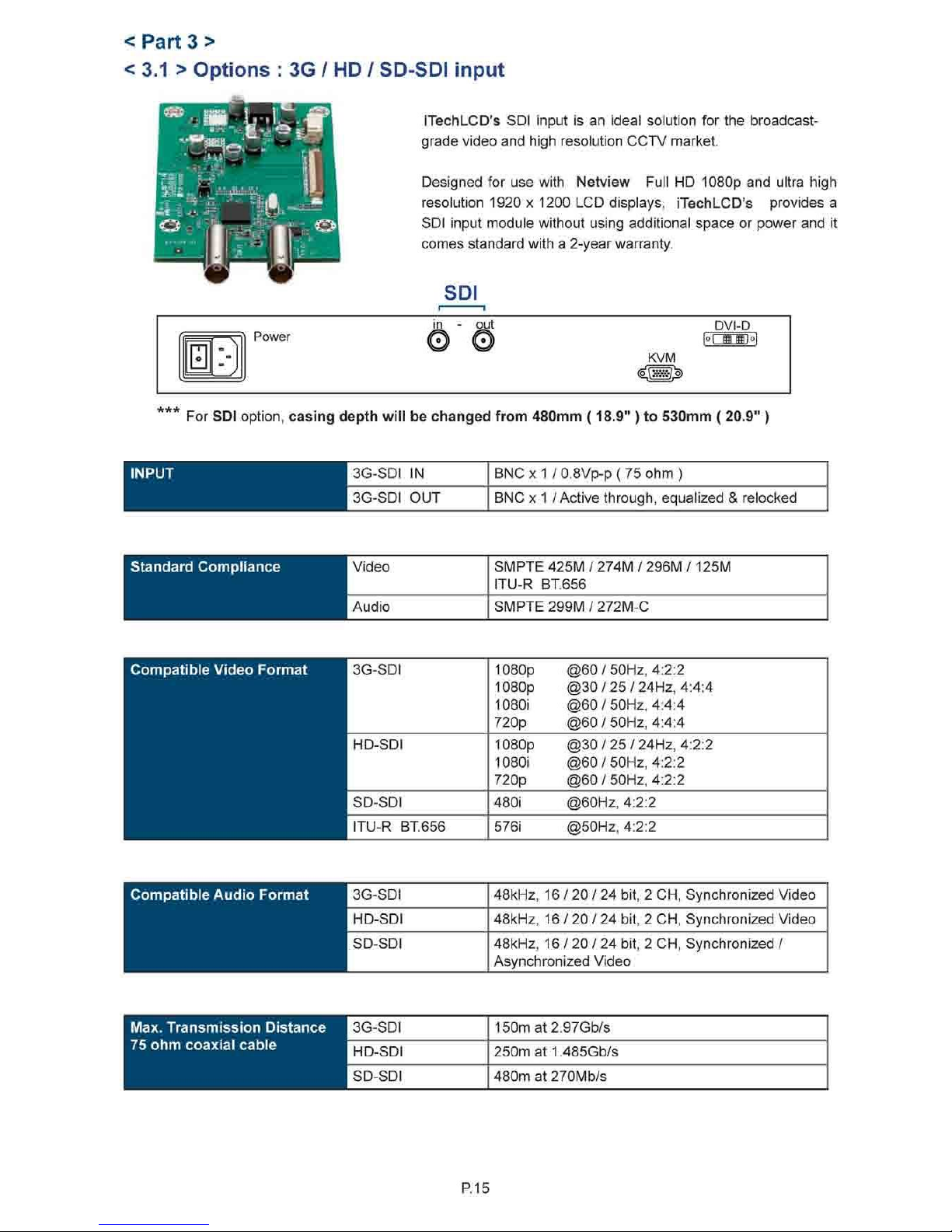

3.1 3G / HD / SD-SDI Broadcast-grade input

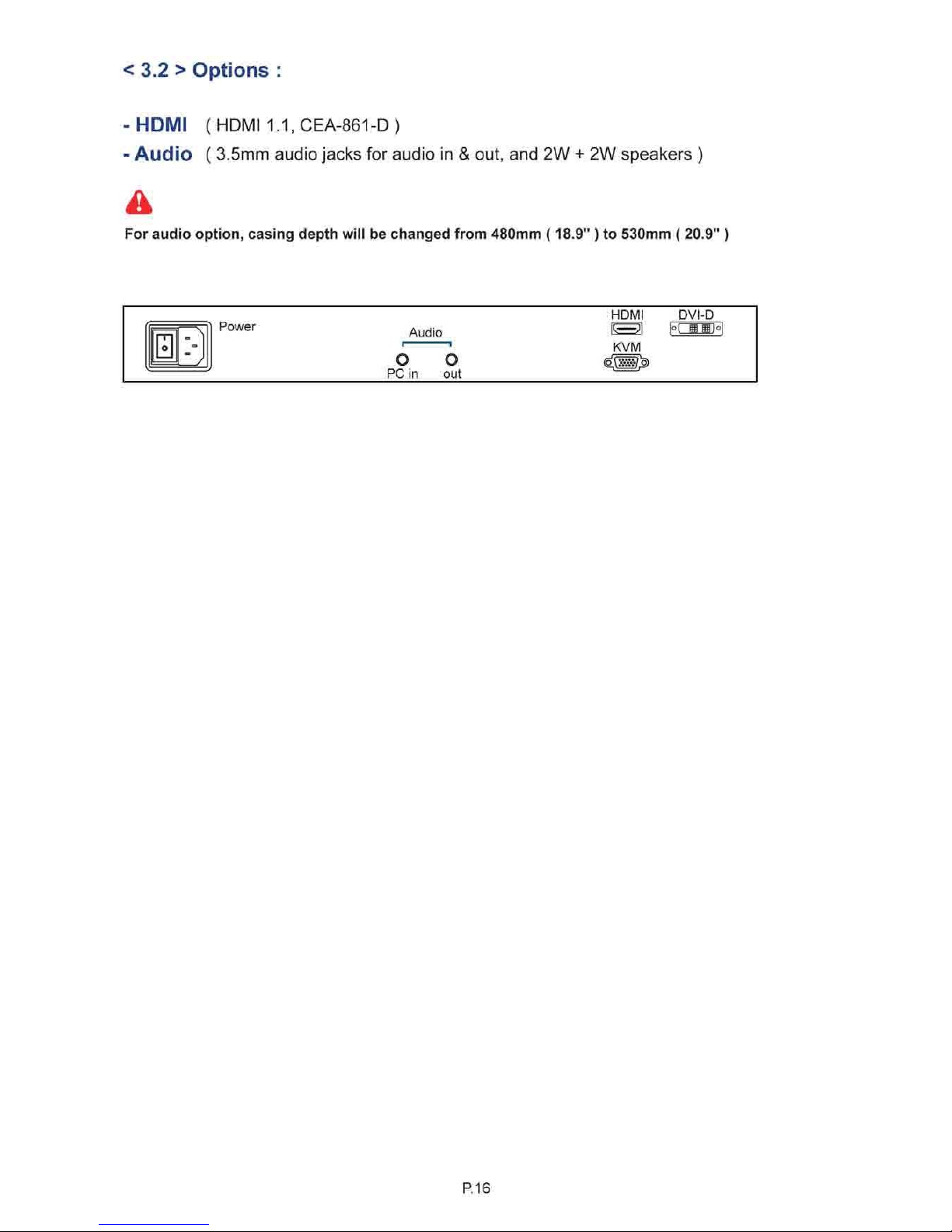

3.2 HDMI & Audio

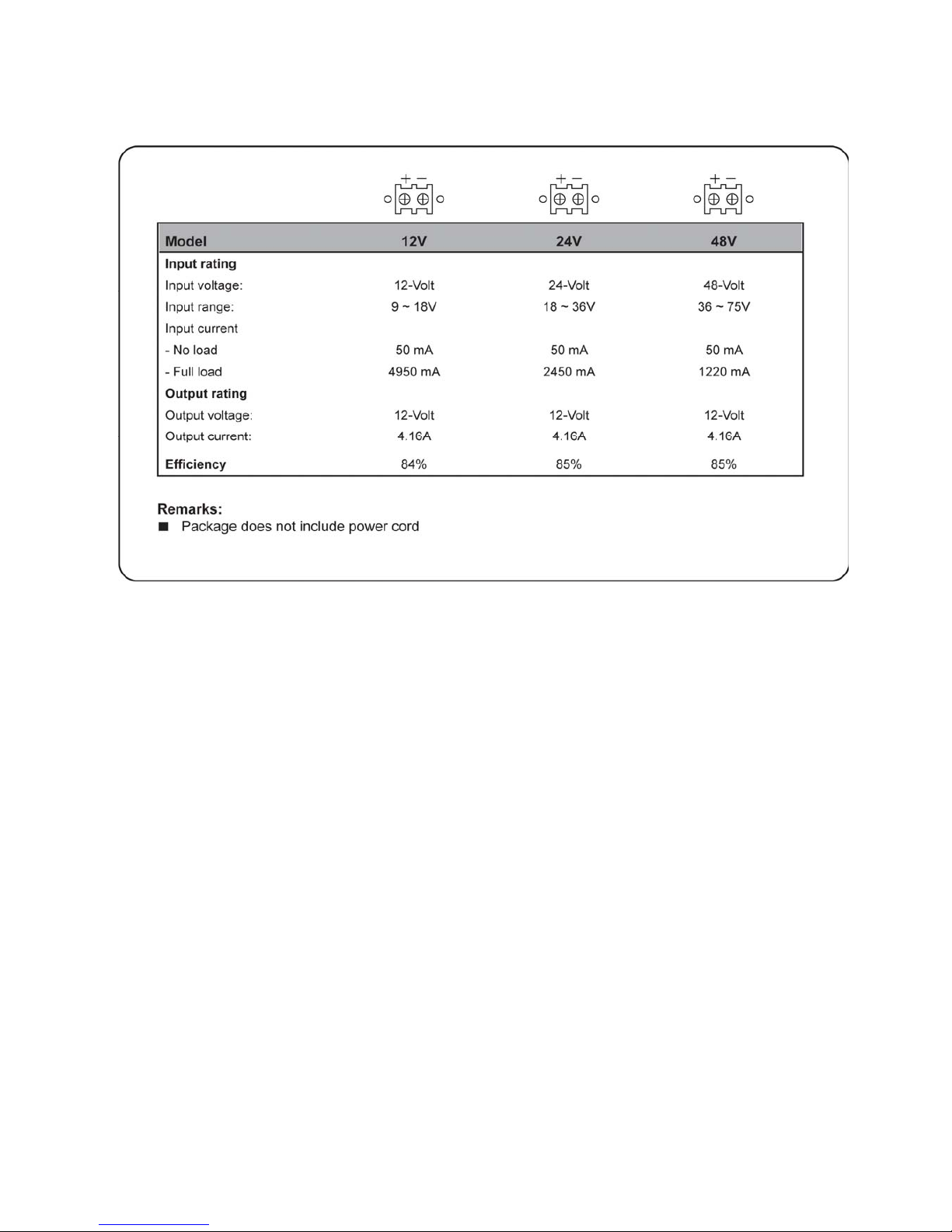

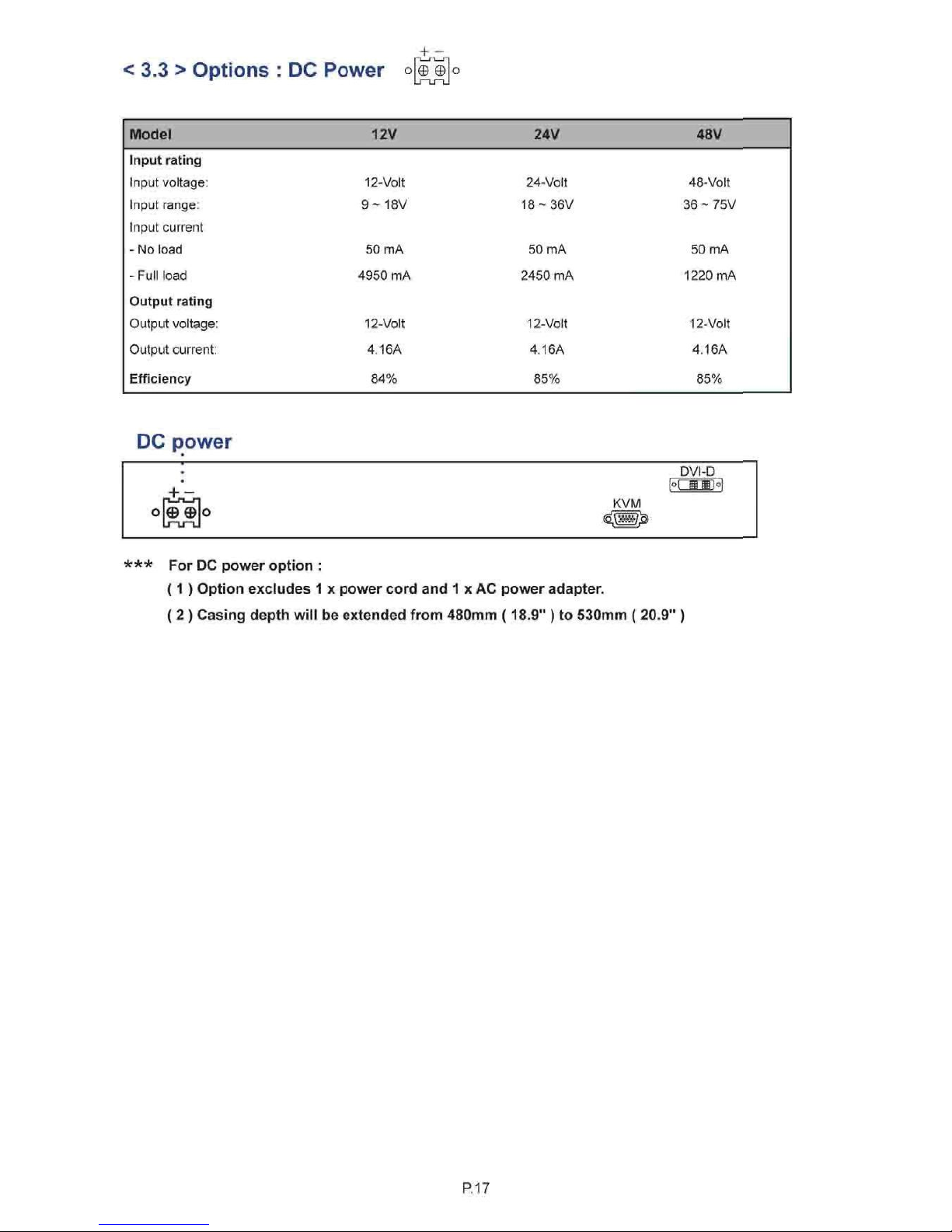

3.3 48V, 24V or 12VDC power
< Part. 4 > DVI-D KVM NVD1201

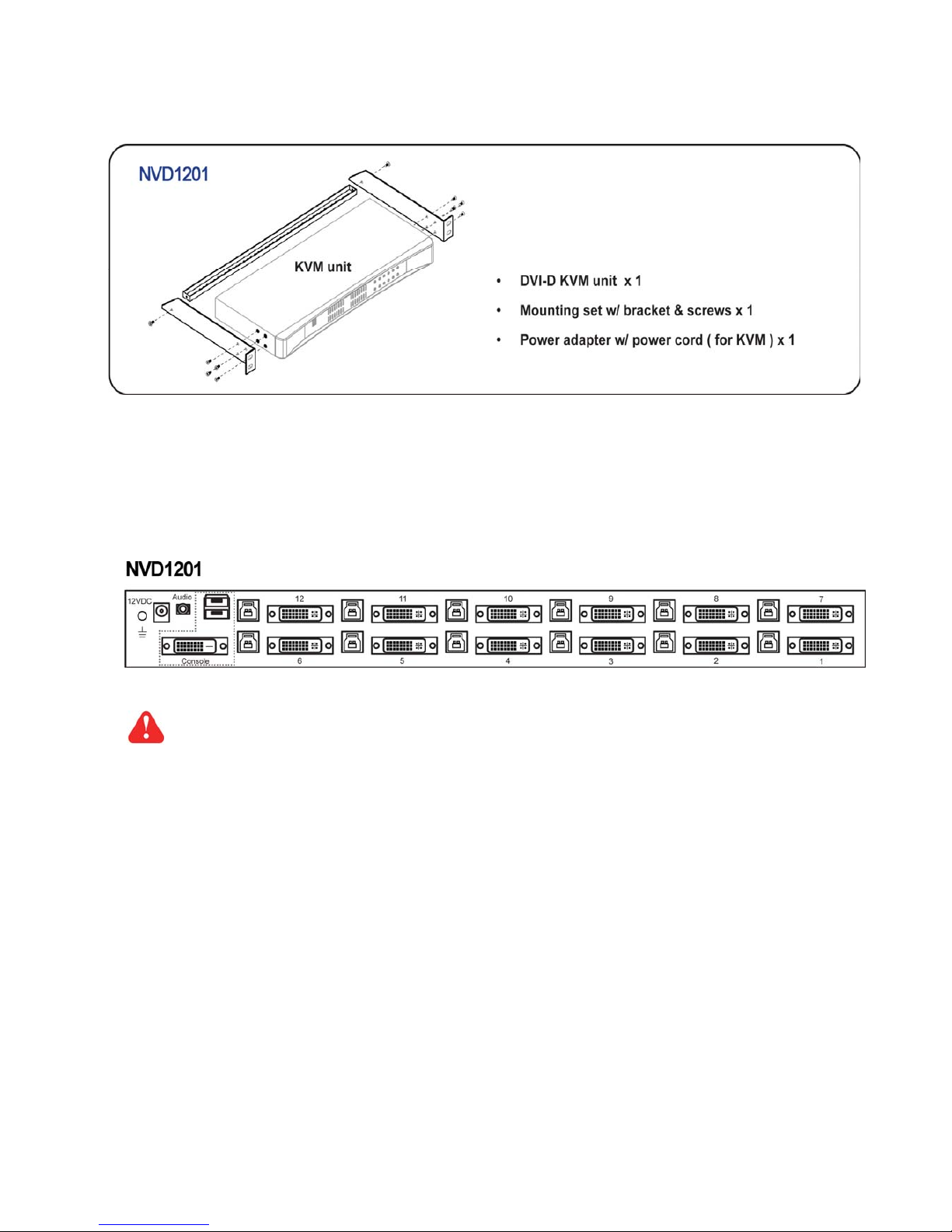

1.1 Package Contents

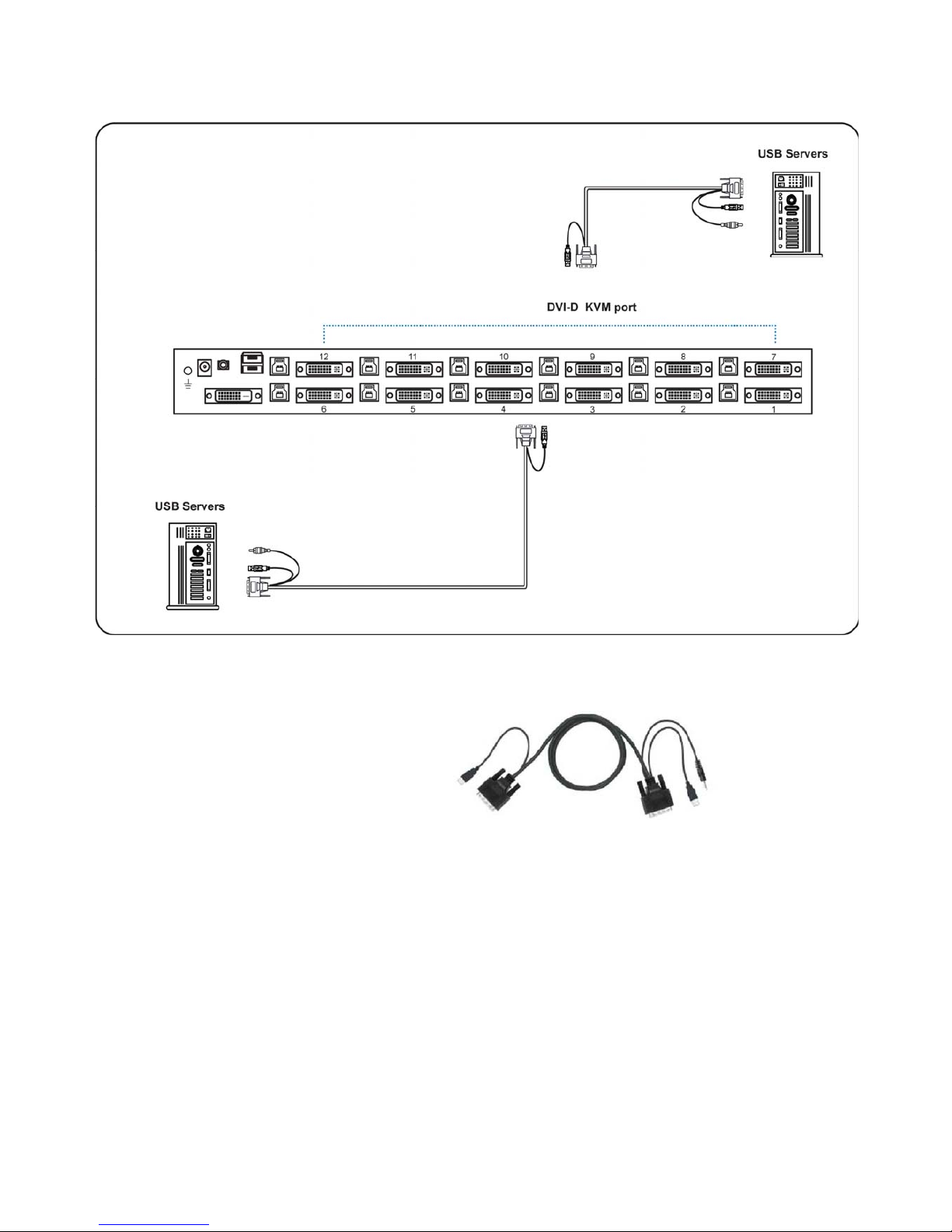

1.2 KVM port connection
1.3 Specifications
< Part. 4 > Usage
2.1 KVM Button

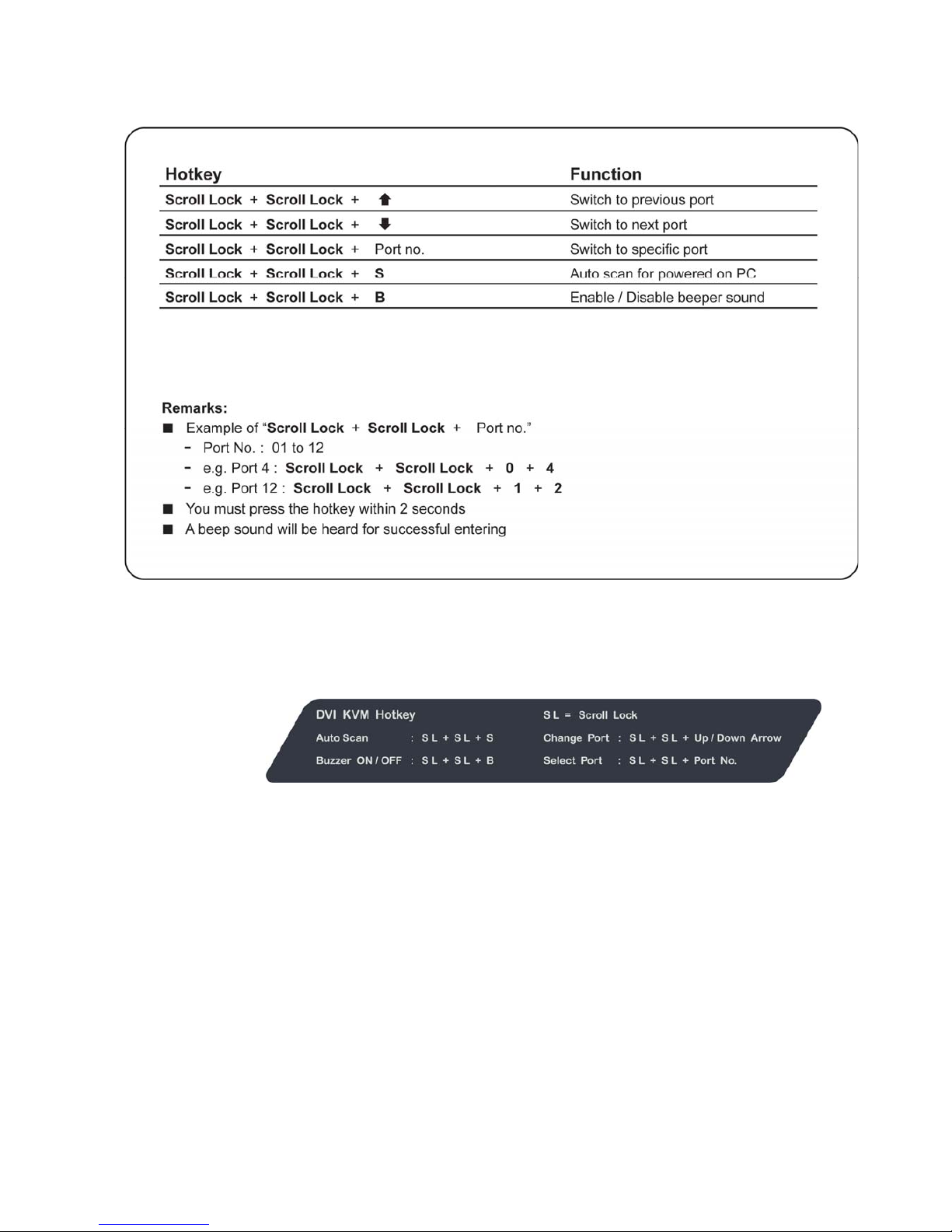

2.2 KVM Hotkey
2.3 DC power 12V, 24V, 48V Input
P.15
P.16
P.17
P.18
P.19
P.20
P.21
P.22
P.23
Page 4
Contents
< Part. 4 > KVM
Integration
Matrix
DB-15 KVM
Local Remote
EZ3
8-port
16-port
32-port
Matrix
DB-15 KVM
1 1 l - Ml 18 - Ml 116 -
Matrix
DB-15 KVM
1 1 2 - M218 - M2116 -
Matrix
DB-15 KVM
1 1 0 - M018 - M0116 -
Matrix
DB-15 KVM
1 2 0 -
M028
-
M0216
-
Matrix
DB-15 KVM
1 3 0 -
M038
-
M0316
-
Combo
DB-15 KVM
Local Remote
EZ3
8-port
16-port 32-port
Combo
DB-15 KVM
1 0 l - 82 - 162 -
Combo
DB-15 KVM
1 1 0 - CE8 - CE16 -
Combo
DB-15 KVM
1 0 0 - S801 - S1601 -
DVI-D
KVM
Local Remote
m
12-port
DVI-D
KVM
1 0 0 - D12
USB
Hub DB-15 KVM
Local Remote
EZ3
8-port
16-port 32-port
USB
Hub DB-15 KVM
1 0 l - 82H - 162H -
USB
Hub DB-15 KVM
1 1 0 -
CE8H
-
CE16H
-
USB
Hub DB-15 KVM
1 0 0 - 801H -
1601 H
-
PS/2 DB-15 KVM
Local Remote
EZ3
8-port
- -
1 0 0 - 801 - -
Page 5

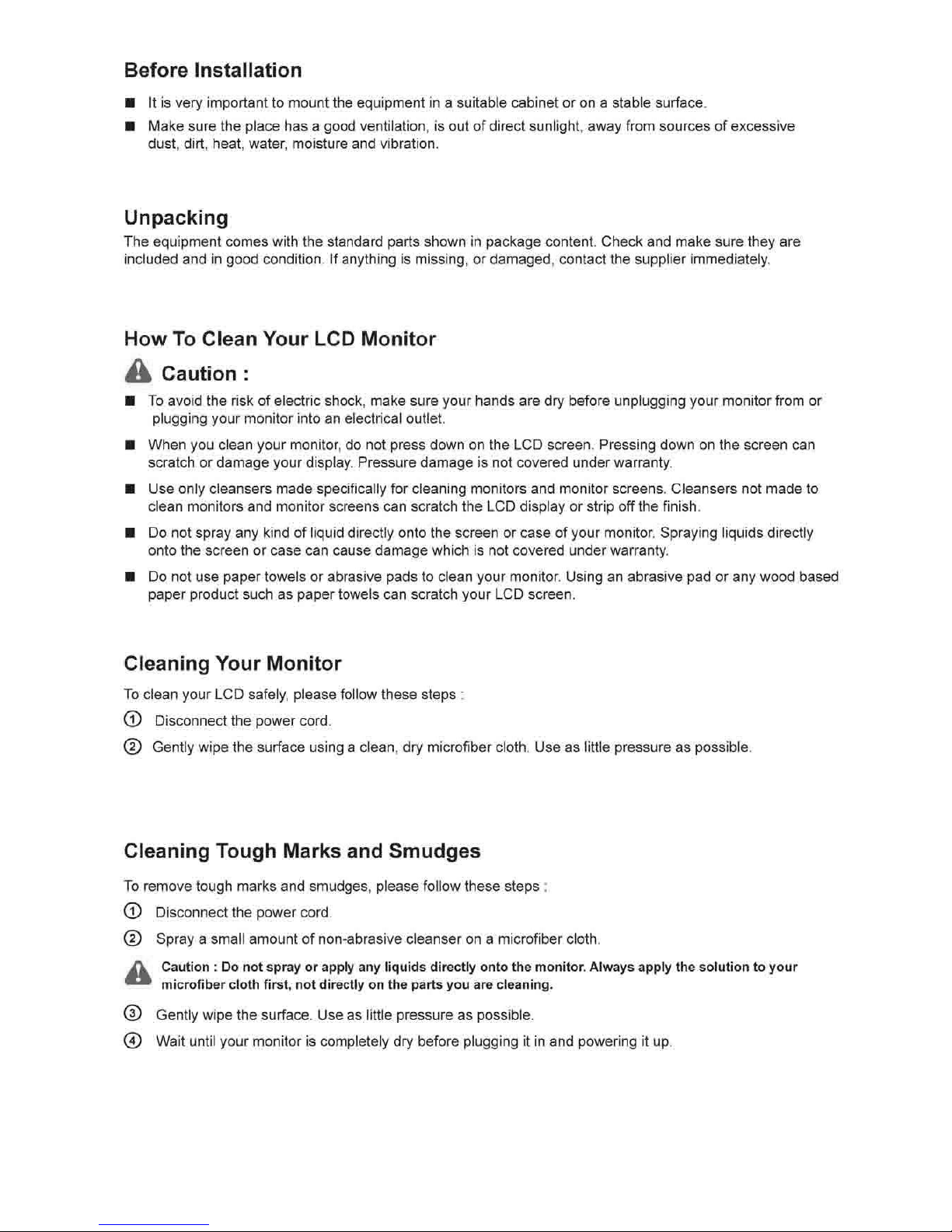

Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
4k Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the finish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
© Disconnect the power
cord.
@ Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps
© Disconnect the power
cord.
© Spray a small amount of non-abrasive cleanser on a microfiber cloth.
A Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
** microfiber cloth first, not directly on the parts you are cleaning.
® Gently wipe the surface. Use as little pressure as possible.
@ Wait until your monitor is completely dry before plugging it in and powering it up.
Page 6
< Part 1 >

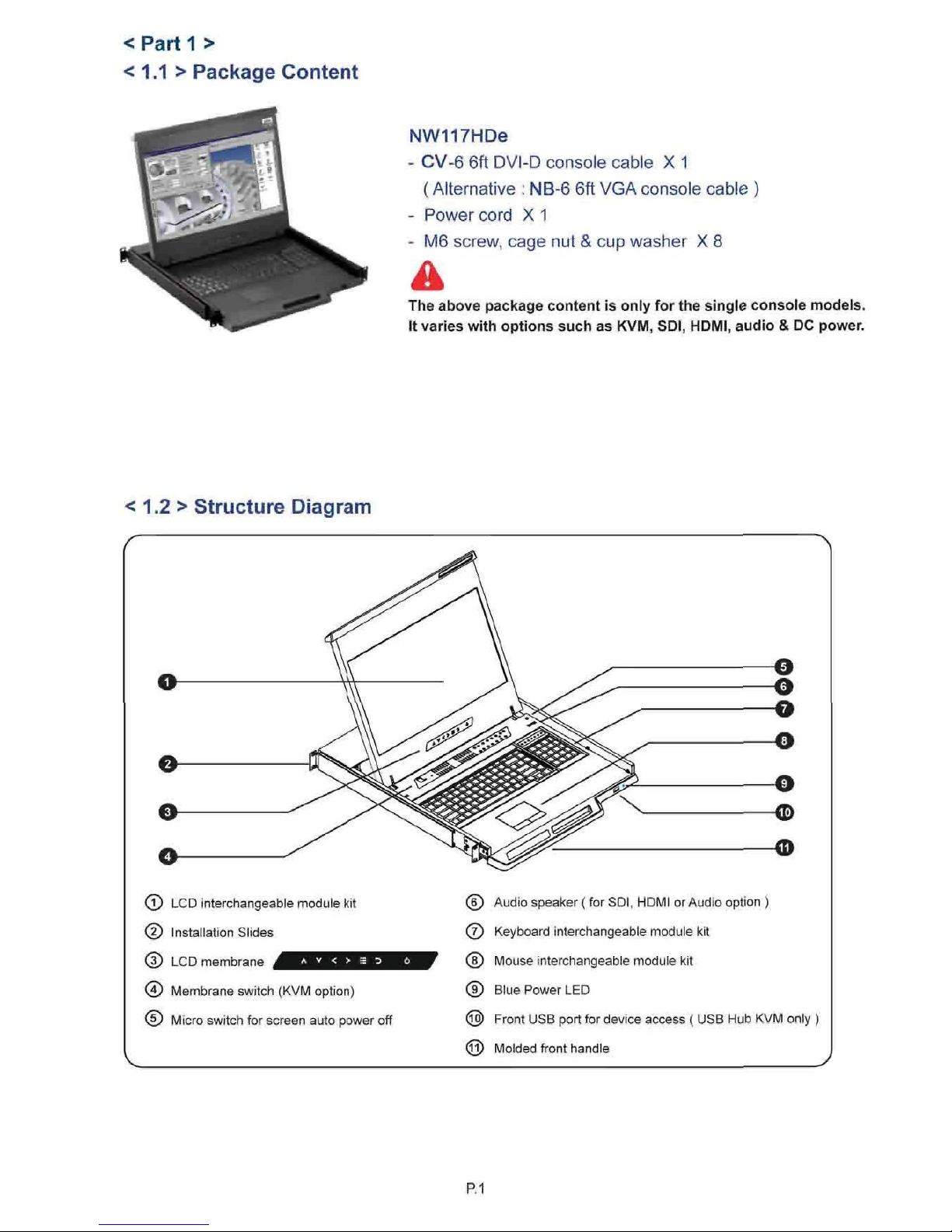

< 1.1 > Package Content
NW117HDe
- CV-6 6ft DVI-D console cable X 1
(Alternative : NB-6 6ft VGA console cable )
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
The above package content is only for the single console models.
It varies with options such as KVM, SDI, HDMI, audio & DC power.
< 1.2 > Structure Diagram
© LCD interchangeable module kit
© Installation Slides
® LCD membrane
© Membrane switch (KVM option)
© Micro switch for screen auto power off
© Audio speaker (for
SDI,
HDMI or Audio option )
© Keyboard interchangeable module kit
® Mouse interchangeable module kit
© Blue Power LED
© Front USB port for device access ( USB Hub KVM only
© Molded front handle
P.1
Page 7

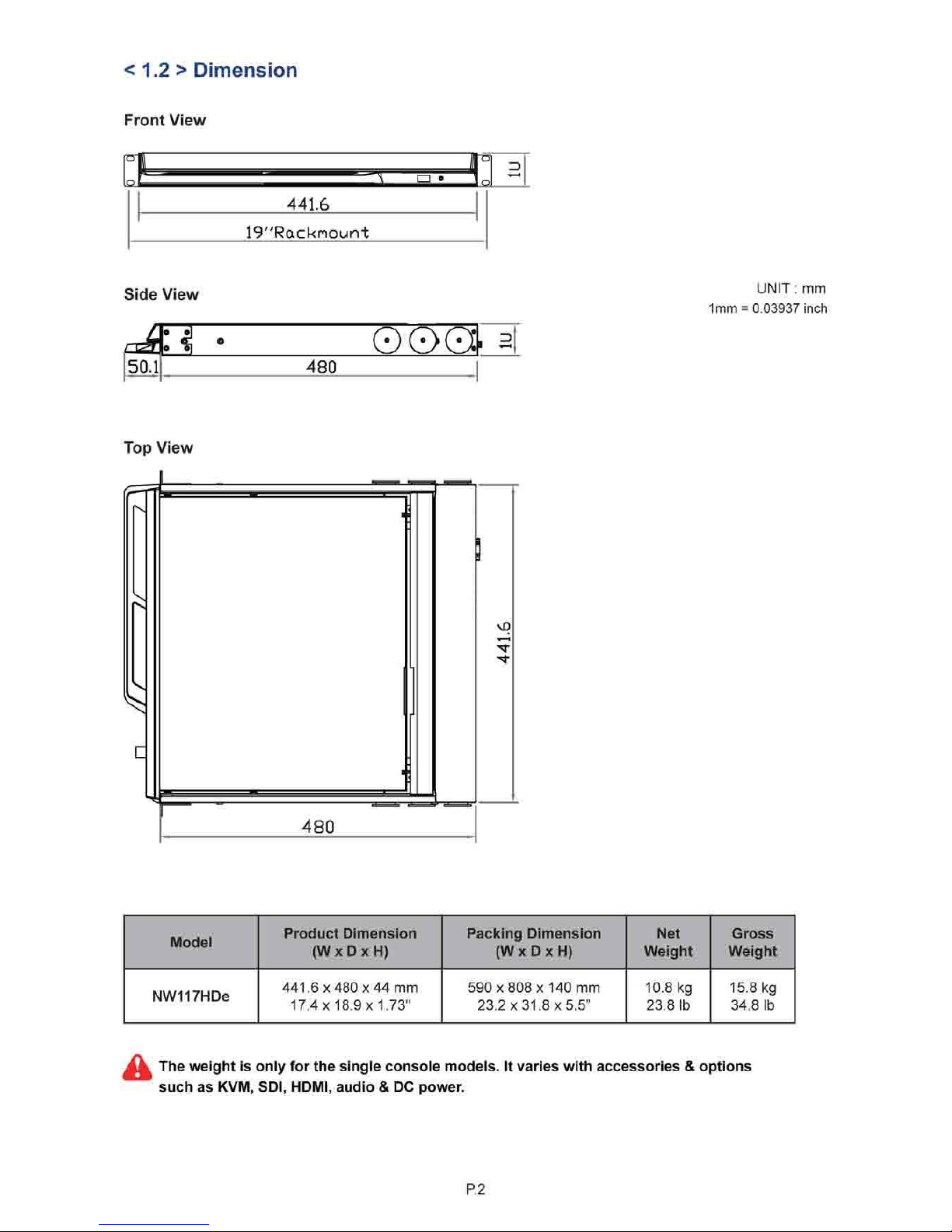

< 1.2 > Dimension
Front View
IE an
441.6
19"Rackmount
Side View
rrgf B $
50.1
UNIT: mm
1mm = 0.03937 inch
OOQ.
480
Top View
480
«—<
Model
Product Dimension
(W x D x H)
Packing Dimension
(WxDxH)
Net
Weight
Gross
Weight
NW117HDe
441.6x480x44 mm
17.4x18.9x1.73"
590 x 808 x 140 mm
23.2x31.8x5.5"
10.8 kg
23.8 lb
15.8 kg
34 8 lb
The weight is only for the single console models. It varies with accessories & options
such as KVM, SDI,
HDMI,
audio & DC power.
Page 8

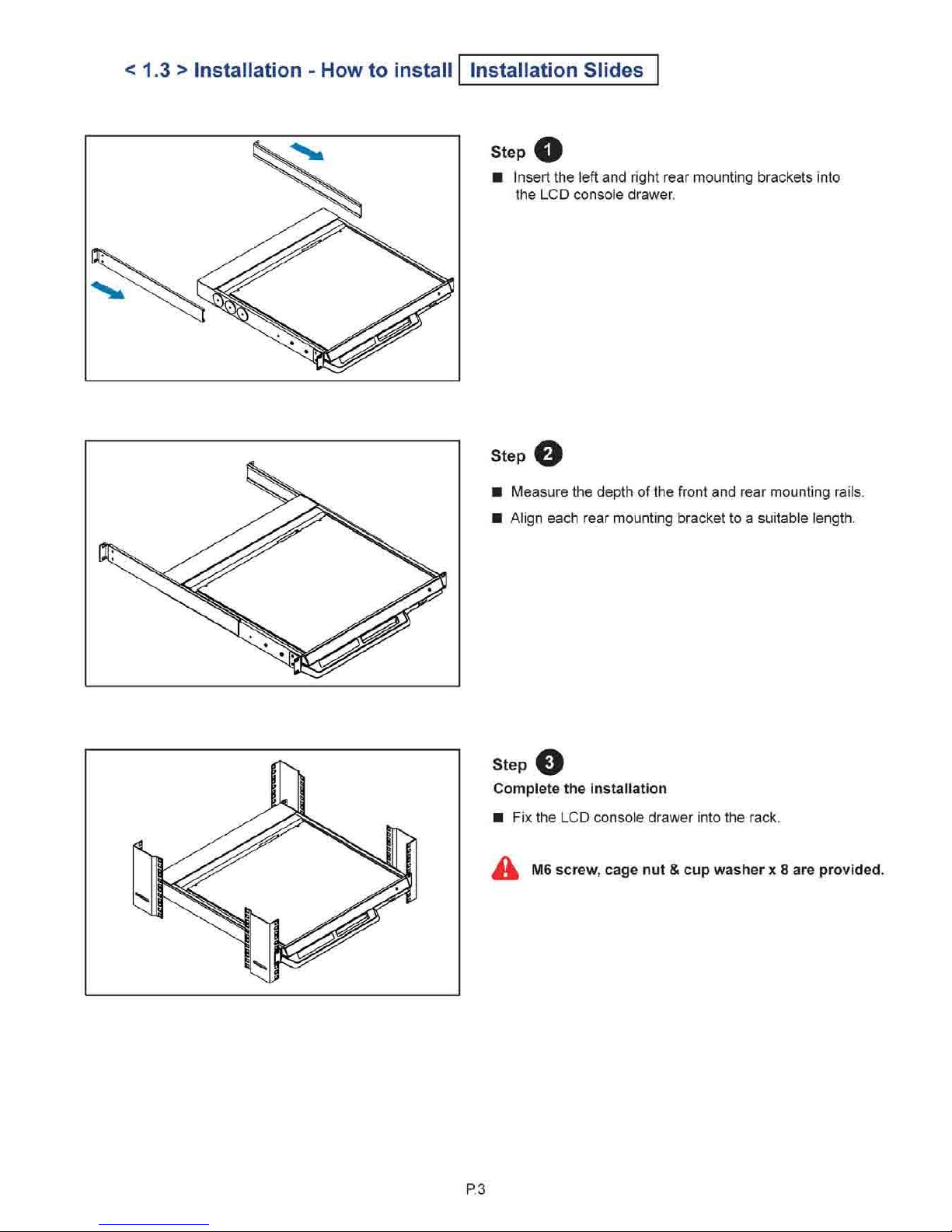

nstall Installation Slides
Step
Insert the left and right rear mounting brackets into
the LCD console drawer.
Step O
Measure the depth of the front and rear mounting rails.
Align each rear mounting bracket to a suitable length.
Step O
Complete the installation
■ Fix the LCD console drawer into the rack.
A^
M6 screw, cage nut & cup washer x 8 are provided.
Page 9

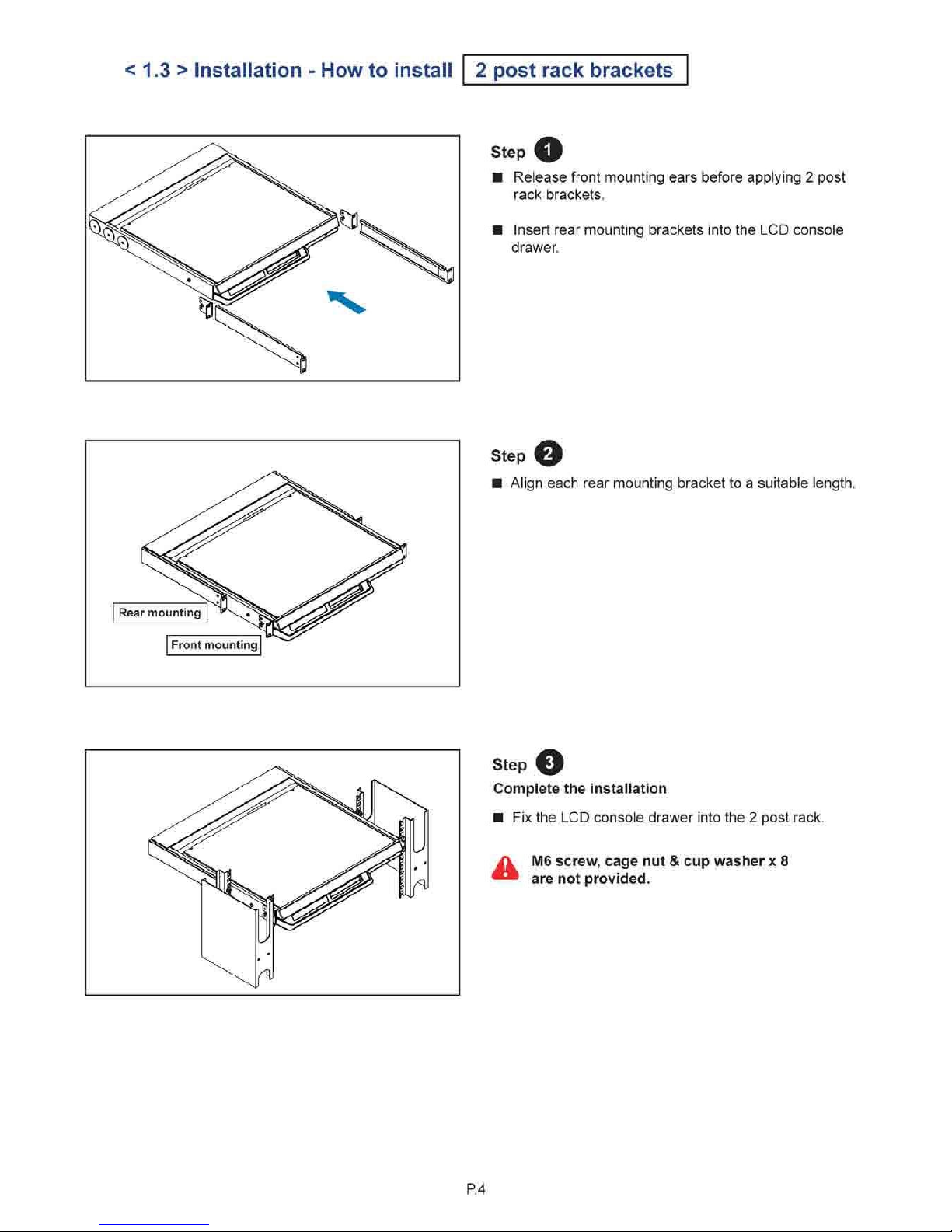

< 1.3 > Installation - How to install 2 post rack brackets
Step
Release front mounting ears before applying 2 post
rack brackets.
Insert rear mounting brackets into the LCD console
drawer.
Rear mounting
Front mounting
Step O
■ Align each rear mounting bracket to a suitable length.
Step O
Complete the installation
■ Fix the LCD console drawer into the 2 post rack.
A,
M6 screw, cage nut & cup washer x 8
are not provided.
Page 10
<

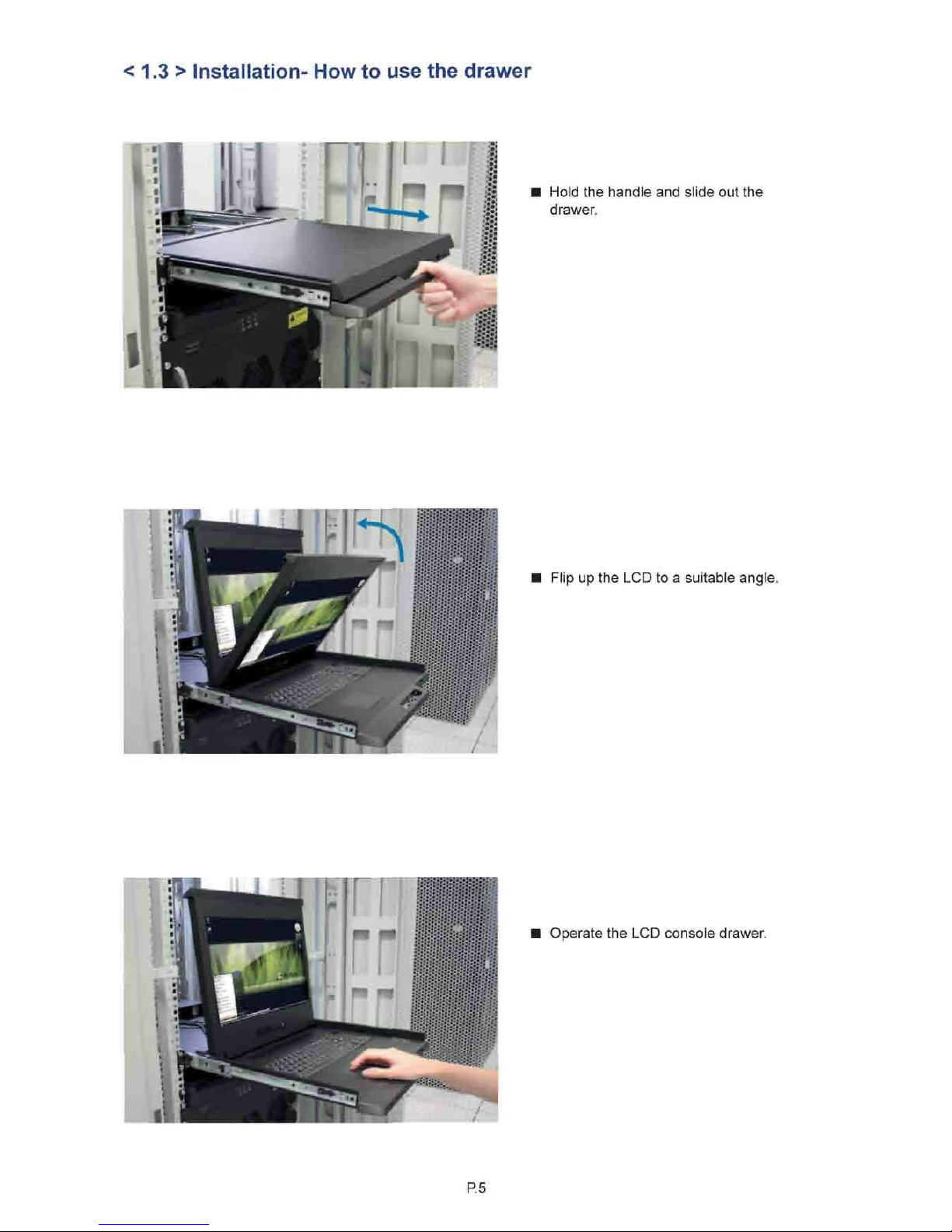

1.3 >
Installation-
How to use the
drawer
'I
"1
I
I
1
Hold
the
handle
and
slide
out the
drawer.
■^'■i':':'-:V:::V::-
:
;:::•;•;;:•:•:::::•:•■•::•:
Flip
up the
LCD
to a
suitable angle.
m
w
.
J rrl
BB
rr
!:!:•:;:•:•*;::*:
Operate
the LCD
console drawer.
••:--::::.,
P.5
Page 11

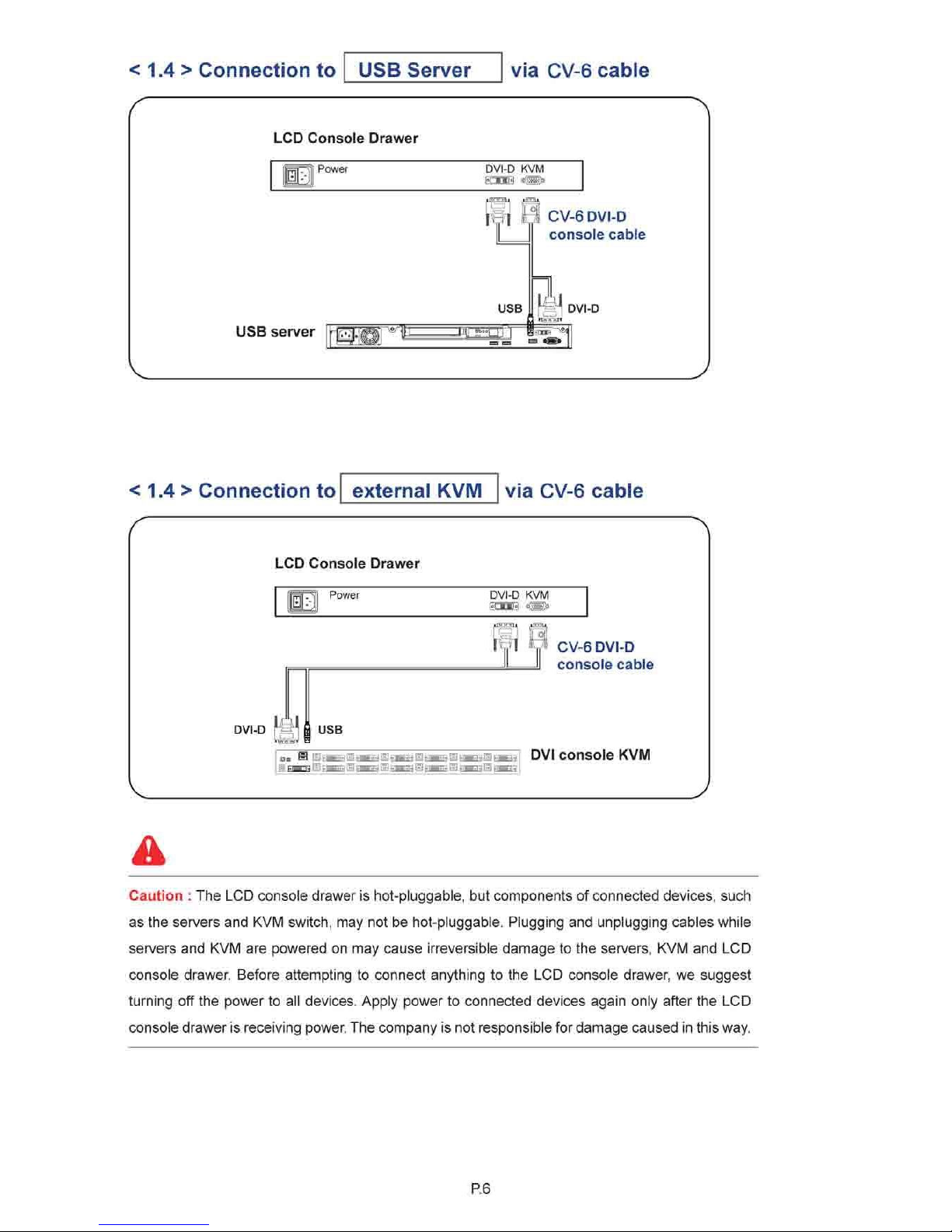

< 1.4 > Connection to USB Server via CV-6 cable
LCD Console Drawer
Power
USB server
DVI-D KVM
CV-6 DVI-D
console cable
USB
ll
DVI-D
wcBrrr
< 1.4 > Connection to external KVM via CV-6 cable
LCD Console Drawer
Power
DVI-D
DVI-D
KVM
sans <3S»
I „ I M CV-6 DVI-D
console cable
■ 'fl USB
j„.
S IBE^!3t«Hi25^l3t»5StK2ji3E«3i
3iil!':ga'iM^.F.g^-,E:.J.»^.cT,
DVI console KVM
A
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
P.6
Page 12

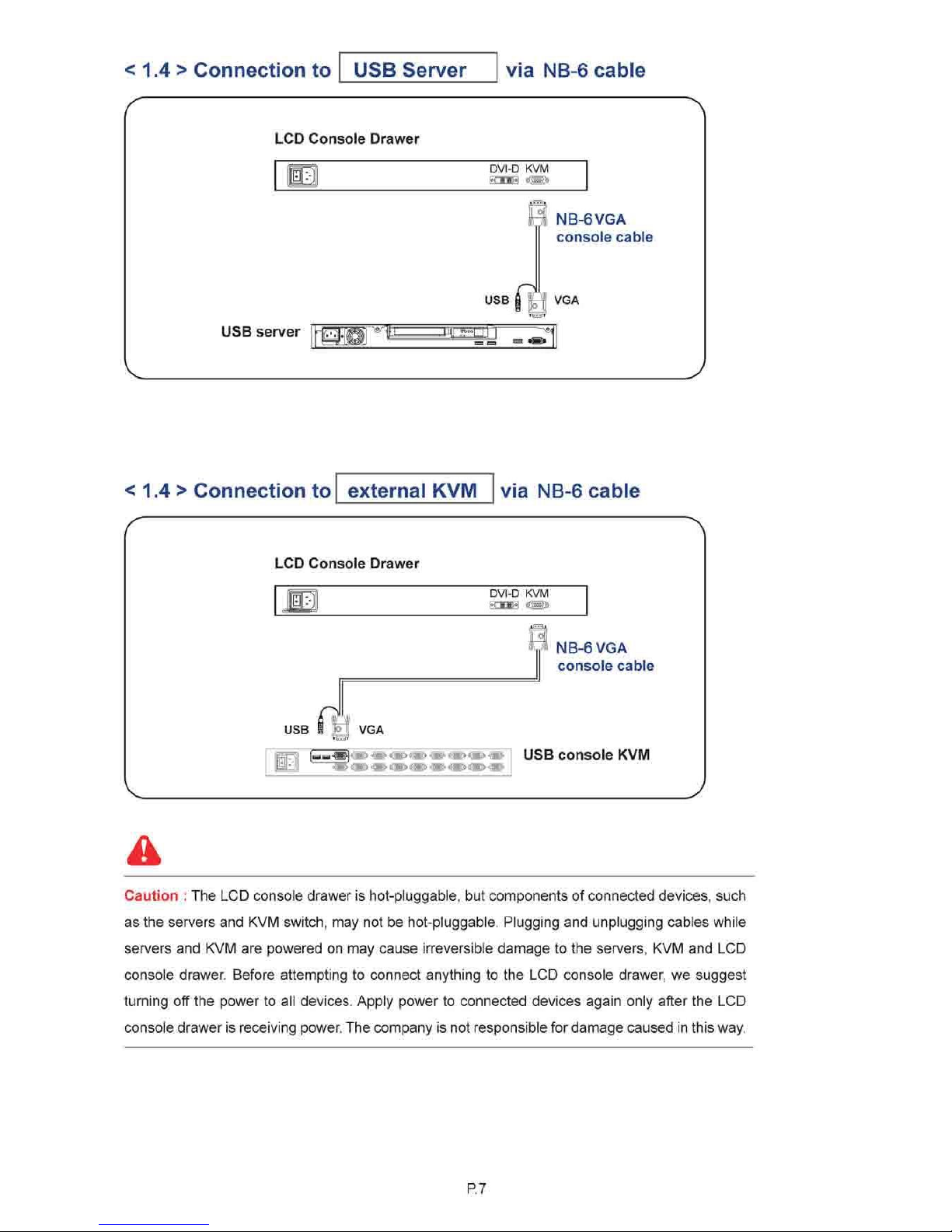

< 1.4 > Connection to USB Server via NB-6 cable
LCD Console Drawer
USB server
DVI-D KVM
•CM'. ,:....-
P
NB-6 VGA
console cable
USB
f?
T
VGA
< 1.4 > Connection to external KVM via NB-6 cable
LCD Console Drawer
DVl-D KVM
USB
NB-6 VGA
console cable
u
VGA
USB console KVM
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
P.7
Page 13
< Part 2 >

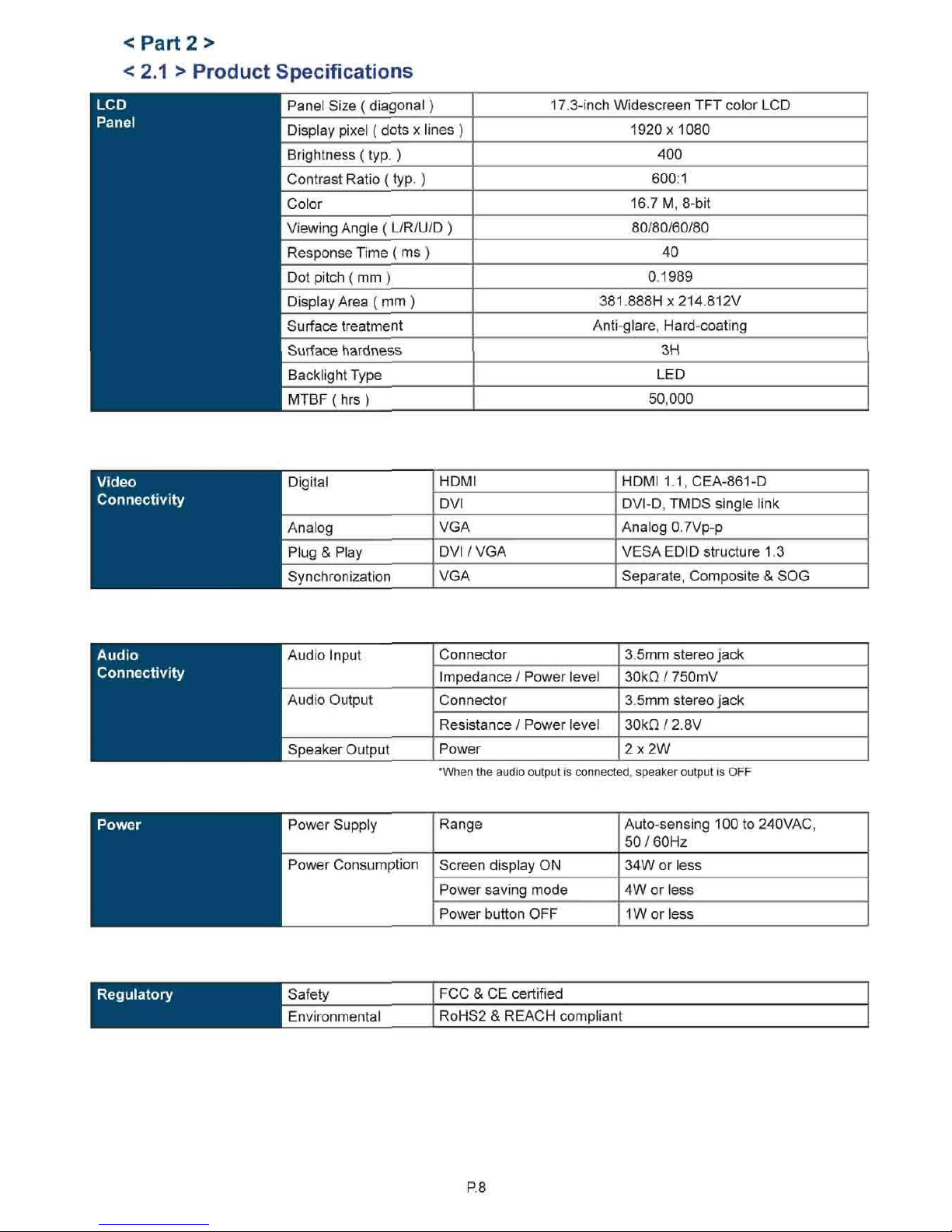

< 2.1 > Product Specifications
| Panel Size ( diagonal)
17.3-inch Widescreen TFT color LCD
| Display pixel ( dots x lines )
1920x1080
| Brightness (typ. )
400
| Contrast Ratio (typ. ) 600:1
Color 16.7 M,
8-bit
I Viewing Angle (
L/R/U/D
)
80/80/60/80
| Response Time ( ms )
40
| Dot pitch ( mm )
0.1989
Display Area ( mm ) 381.888HX 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
Backlight Type
LED
| MTBF ( hrs )
50.000
Video
Connectivity
Digital
HDMI
HDMI
1.1.CEA-861-D
DVI
DVI-D,
TMDS single link
Analog
VGA Analog
0.7Vp-p
Plug & Play
DVI / VGA VESA EDID structure 1.3
Synchronization
VGA Separate, Composite & SOG
Audio
Connectivity
Audio Input
Connector
3.5mm
stereo jack
Audio
Connectivity
Audio Input
Impedance / Power level 30kQ / 750mV
Audio
Connectivity
Audio Output
Connector
3.5mm
stereo jack
Audio
Connectivity
Audio Output
Resistance / Power level 30kfi / 2.8V
Audio
Connectivity
Speaker Output
Power 2x2W
"When the audio output is connected, speaker output is OFF
Power
Power Supply
Range
Auto-sensing 100 to 240VAC,
50 / 60Hz
Power
Power Consumption
Screen display ON 34W or less
Power
Power Consumption
Power saving mode
4W or less
Power
Power Consumption
Power button OFF 1W or less
Regulatory Safety
FCC & CE certified
Regulatory
Environmental
RoHS2 & REACH compliant
P.8
Page 14

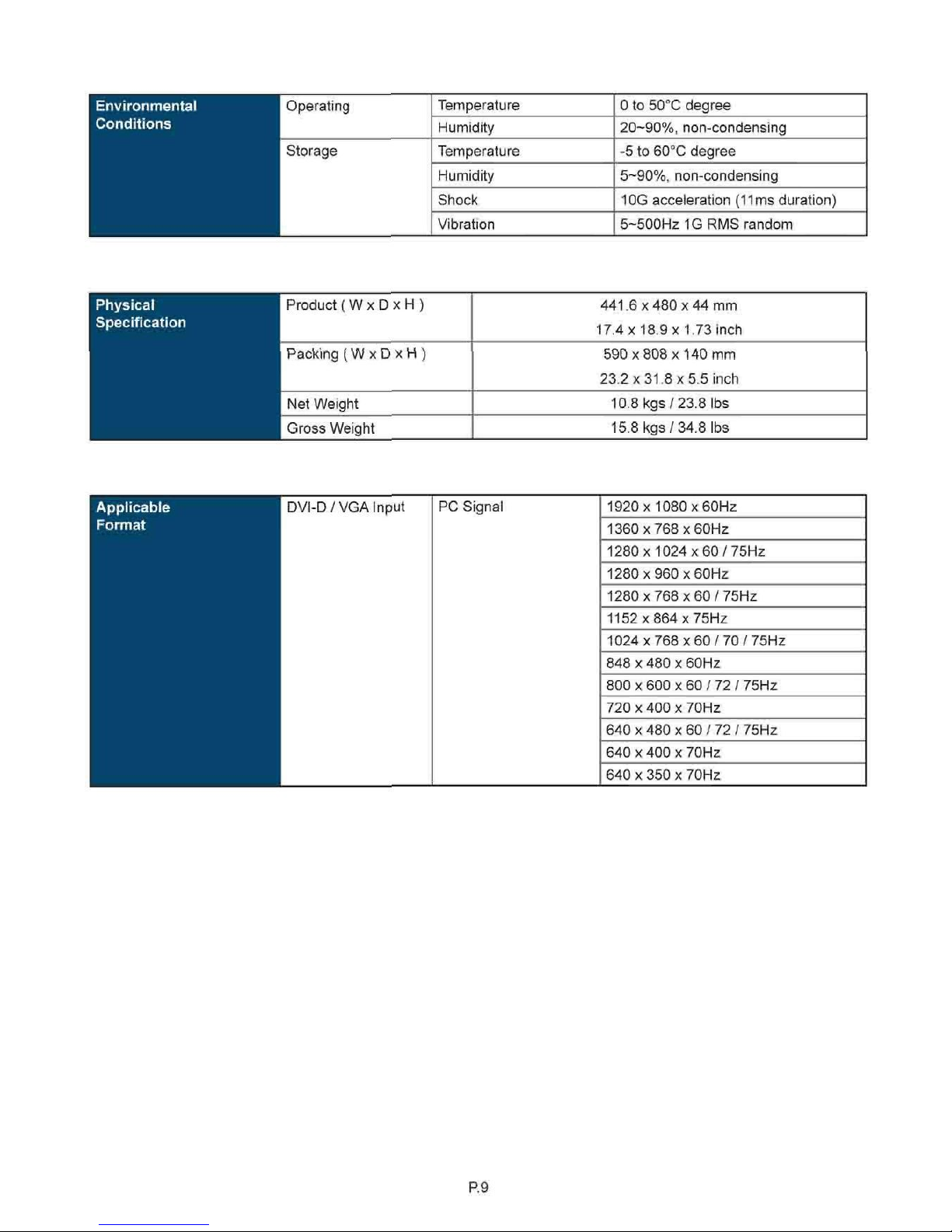

Environmental
Conditions
Operating
Temperature 0 to 50"C degree
Environmental
Conditions
Operating
Humidity
20-90%.
non-condensing
Environmental
Conditions
Storage
Temperature -5 to 60°C degree
Environmental
Conditions
Storage
Humidity 5-90%, non-condensing
Environmental
Conditions
Storage
Shock 10G acceleration (11ms duration)
Environmental
Conditions
Storage
Vibration
5~500Hz
1G RMS random
Physical
Specification
Product ( W x D x H )
441.6x480x44 mm
17.4x18.9x1.73 inch
Packing (W x D x H ) 590 x 808 x 140 mm
23.2 x 31 8 x 5.5 inch
Net Weight
I0.8kgs/23.8 lbs
| Gross Weight
15.8 kgs/34.8 lbs
Applicable
Format
DVI-D/VGA Input
PC Signal 1920 x1080 x60Hz
Applicable
Format
DVI-D/VGA Input
PC Signal
1360 x768 x60Hz
Applicable
Format
DVI-D/VGA Input
PC Signal
1280x1024x60/75Hz
Applicable
Format
DVI-D/VGA Input
PC Signal
1280 x960 x60Hz
Applicable
Format
DVI-D/VGA Input
PC Signal
1280x768x60/75Hz
Applicable
Format
DVI-D/VGA Input
PC Signal
1152x864 x75Hz
Applicable
Format
DVI-D/VGA Input
PC Signal
1024x768x60/70/75Hz
DVI-D/VGA Input
PC Signal
1024x768x60/70/75Hz
DVI-D/VGA Input
PC Signal
848 X 480 x 60Hz
DVI-D/VGA Input
PC Signal
800 x 600 x 60 / 72 / 75Hz
DVI-D/VGA Input
PC Signal
720 x 400 x 70Hz
DVI-D/VGA Input
PC Signal
640 x 480 x 60 / 72 / 75Hz
DVI-D/VGA Input
PC Signal
640 X 400 x 70Hz
DVI-D/VGA Input
PC Signal
640 X 350 x 70Hz
P.9
Page 15
< 2.2 > Standard Keyboard / Mouse Specifications
Ge G keyboard integrated with touchpad Gb G keyboard integrated with trackball
Key force 55±5g
Travelling distance 3 ±
0.3mm
Switch life > 10 million life cycle time
Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC
Linux
/ Mac
Supporting layouts
America
United States
EMEA
United Kingdom Germany
D
Italy
□ 22
France
Spain
Russia Switzerland Netherlands
Norway
Portugal
Asia
China
Japan Korea
Arabia
Turkey
Page 16
< 2.2 > MAC Keyboard / Mouse Options
Me MAC keyboard integrated with touchpad Mb MAC keyboard integrated with trackball
Supporting layouts
America
United States
How to Use "MAC" Keyboard
Keyboard Features
#
-:i
n
F1
Decrease display brightness
>-^
F9
Fast-forward
#
F2
F2
Increase display brightness
--
FIO
F10
Mute sound
F3
^ F3
Mission control
* Only works with OS X Lion
default Keyboard Shortcuts.
.'-
4)
-.
F11
Decrease volume
z
DDD
DDD
-
._ *-/
F4
Dashboard
F12
Increase volume
z
-
s
F7
Rewind
I
I l V
c
Eject disc
--
M
W Fi
F8
Play / Pause
Command
P.11
Page 17
< 2.2 > SUN Keyboard / Mouse Options
Se S keyboard integrated with touchpad
33BB1
«n
Sb S keyboard integrated with trackball
S keyboard integrated with touchpad / trackball
■ Incorporates SUN keys, including Stop. Cut, Paste, Compose. Copy and Help
■ 104 key notepad keyboard with full numerical pad and SUN function
■ USB interface
■ US layout only
How to Use "S" Keyboard
"|Fn
I Num
" Stop
t
Help "
*
Find ~
"|Fn
I Num
" Stop
t
Help "
*
Find ~
"|Fn
I Num
" Stop
t
Help "
*
Find ~
|
°>'-
!
''
"|Fn
I Num
" Stop
t
Help "
*
Find ~
P Paste
■ Front
/ \ / \K/ \
Num LED in Off mode
Key pad behaves as a SUN Solar
system administration command mode
Num LED in Green mode
Key pad behaves as a normal key
pad mode
Audio / Display Keys • Please ask your supplier for full details
-'
F9
CD %
>
1
F9
Audio: Mute
Display ; Degauss
""
Ftl
F11
Audio: Decrease volume
Display . Decrease contrast
~ F12
r>-—C
F12
Audio : Increase volume
Display : Increase contrast
P.12
Page 18
< 2.3 > On-screen Display Operation ( OSD )
^^^^^^^^^^0
Membrane Switch Function
6
Turn the monitor on or off
OCZI
an
Display the OSD menu
Act as an Enter key to select screen setting options
A V
<
>
Scroll through menu options and adjust
the displayed control
^>
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Remark : All LED touch buttons in WHITE light.
The LED of Power (jjj) touch button will flash continuously when there is no signal input.
(T) All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power @))
© Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power @> )
Page 19
< 2.3 > On-screen Display Operation ( OSD
)
OSD Configuration Page
Ver: G56SN20SSTD701
1024x768 59.8Hz
Brightness
Contrast
Color Temp User
Red
I^^M
Green
I^^^^M
Blue
I^^M
Adjust:
<
Select:** Set: «/ii
LB
Image:
for the brightness, contrast, color temp, red, green, and blue
t±3
Geometry:
for the auto adjust, H position, V position, phase and clock
is-
so
50
255
255
255
E»it:t
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
J>
Audio:
for
volume,
bass, treble, balance, AVL and mute
Misc
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
P.14
Page 20
< Part 3 >
< 3.1 > Options : 3G / HD / SD-SDI input
iTechLCD's SDI input is an ideal solution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with Netview Full HD 1080p and ultra high
resolution 1920 x 1200 LCD displays, iTechLCD's provides a
SDI input module without using additional space or power and it
comes standard with a 2-year warranty.
SDI
For SDI option, casing depth will be changed from 480mm (18.9" ) to 530mm ( 20.9" )
3G-SDI IN
3G-SDI OUT
BNC x 1 / 0.8Vp-p ( 75 ohm )
BNC x 1 /Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Standard Compliance
Audio SMPTE 299M / 272M-C
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
Compatible Video Format
HD-SDI 1080p
1080i
720p
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
Compatible Video Format
SD-SDI
480i @60Hz, 4:2:2
Compatible Video Format
ITU-R BT.656 576i @50Hz, 4:2:2
Compatible Audio Format
3G-SDI 48kHz, 16/20/24 bit, 2 CH, Synchronized Video
Compatible Audio Format
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
Compatible Audio Format
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150mat2.97Gb/s Max. Transmission Distance
75 ohm coaxial cable
HD-SDI 250m at 1 485Gb/s
Max. Transmission Distance
75 ohm coaxial cable
SD-SDI 480m at 270Mb/s
P.15
Page 21
< 3.2 > Options :
-HDMI (HDMI 1.1, CEA-861-D)
- Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
For audio option, casing depth will be changed from 480mm (18.9" ) to 530mm ( 20.9"
0
Power
Audio
i i
o o
PC
in out
HDMI
KVM
DVI-D
l°i fflffllo]
P.16
Page 22
+
-
<
3.3 >
Options
: DC
Power
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9-18V 18-36V 36
- 75V
Input current
- No load 50 mA 50 mA 50 mA
- Full load 4950 mA 2450
mA
1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A
4.16A
4.16A
Efficiency
84%
85% 85%
DC power
■
KVM
DVI-D
[°nr$n°l
o
+
—
©
©p
KVM
***
For DC power option :
(1 ) Option excludes 1 x power cord and 1 x AC power adapter.
( 2 ) Casing depth will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" )
P.17
Page 23
Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of
excessive dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.

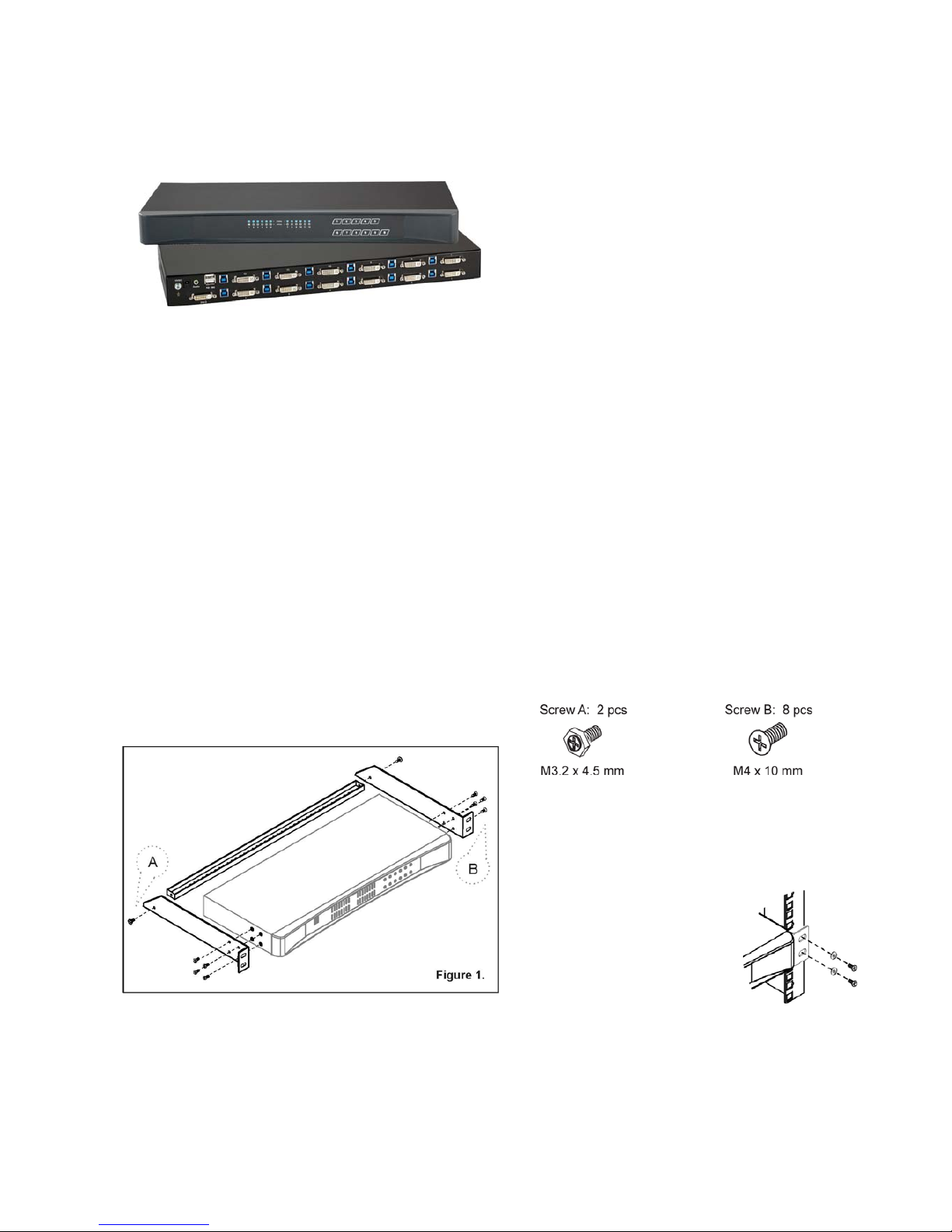

Installation for standalone KVM
■ Install each bracket using screws
provided shown in Figure 1.
■ Fix the KVM into the rack
DVI-D KVM
Model
NVD1201
Page 24
Part 1. DVI-D KVM
< 1.1 > Package Contents
DVI-D KVM
4 3
IP console, remote console, daisy-chain and OSD menu are NOT available for this model.
P.18
Page 25
< 1.2 > KVM port connection DVI-D KVM
DVI KVM Cable
NC-6: 6 feet DVI KVM cable
NC-15: 15 feet DVI KVM cable
( Server end : DVI-D + USB + Audio )
( KVM port : DVI-D + USB3.0 )
P.19
Page 26
< 1.3 > Specifications DVI-D KVM
P. 20
NVD1201
■
KVM Port
Number of ports: 12
Connector: DVI-D connector
USB 3.0 connector ( combined for keyboard, mouse & audio )
Connectivity: Combo 4-in-1 KVM cable, 6 or 15 feet
■
Local Console
Graphic connector:
1 x DVI-D
Resolution: Up to 1920 x 1200
Input device: 2 x USB type A for keyboard & mouse
Audio out: 1 x 3.5mm stereo audio
■
Management
PC Selection: Front button & keyboard hotkey
■
Compatibility
Multi-platform: Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Support: Windows 7 / Vista / 2003 / XP, Linux, Unix
■
Power
Input: 100 or 240V AC at 50 or 60 Hz via IEC type cord
Option DC: 12V / 24V / 48V DC input
Consumption: Max. 12 Watt, Standby 5 Watt
■
■
Regulatory Approval:
Environmental
Operating:
0 to 50°C
Storage:
-5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58~100Hz / 0.98G (11ms / cycle)
■
Product Information
Dimension (W x D x H): 443 x 171 x 43.6 mm / 17.4 x 6.7 x 1.72 inch
Net weight: 3 kg / 6.5 lb
■
Packing Information
Dimension (W x D x H): 500 x 400 x 90 mm / 19.7 x 15.7 x 3.5 inch
Gross weight: 5 kg / 11 lb
Page 27
2.2 KVM Hotkey
DVI-D KVM Usage
Hotkey Label
P. 22
Page 28
2.3 DC Power 12V, 24V, 48V Input
DVI-D KVM Usage
P. 23
Page 29
i-Tech
Company LLC
TOLL
FREE:
(888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com
Loading...
