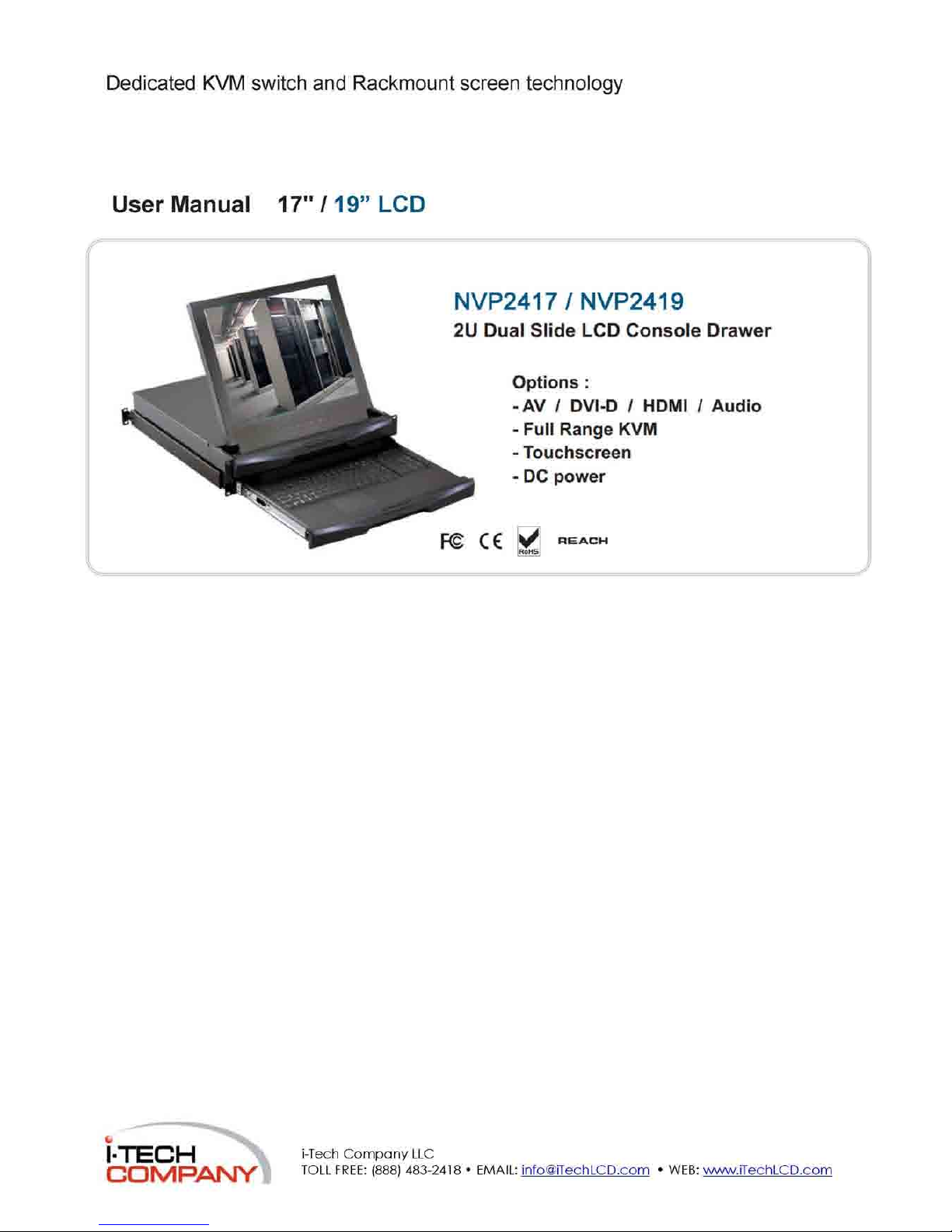

Page 1
Dedicated KVM switch and Rackmount screen technology
User Manual 17" / 19” LCD
i-Tech
Company LLC
TOLL
FREE:
(888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com
Page 2

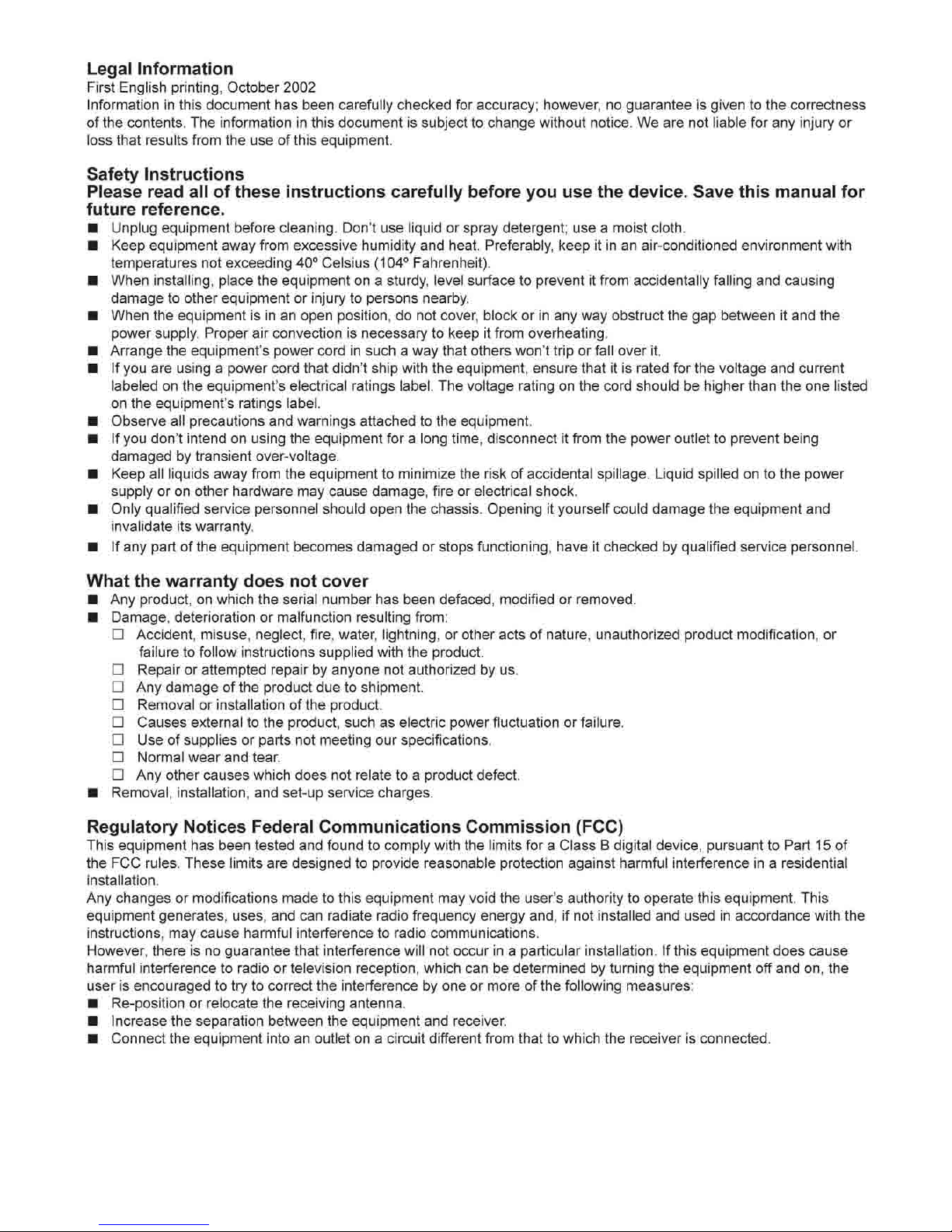

Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don't use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40° Celsius (104° Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment's power cord in such a way that others won't trip or fall over it.
■ If you are using a power cord that didn't ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment's electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment's ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don't intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■ Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modified or removed.
■ Damage, deterioration or malfunction resulting from:
D Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fluctuation or failure.
□ Use of supplies or parts not meeting our specifications.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Page 3
Contents
<Part. 1> NVP2417/NVP2419
1.1 Package Content
P.
1
1.2 Structure Diagram & Dimension P.1
1.3 Installation P.3
1.4 Connection P.5
< Part. 2 > Specifications / OSD
2.1 Product Specifications P.6

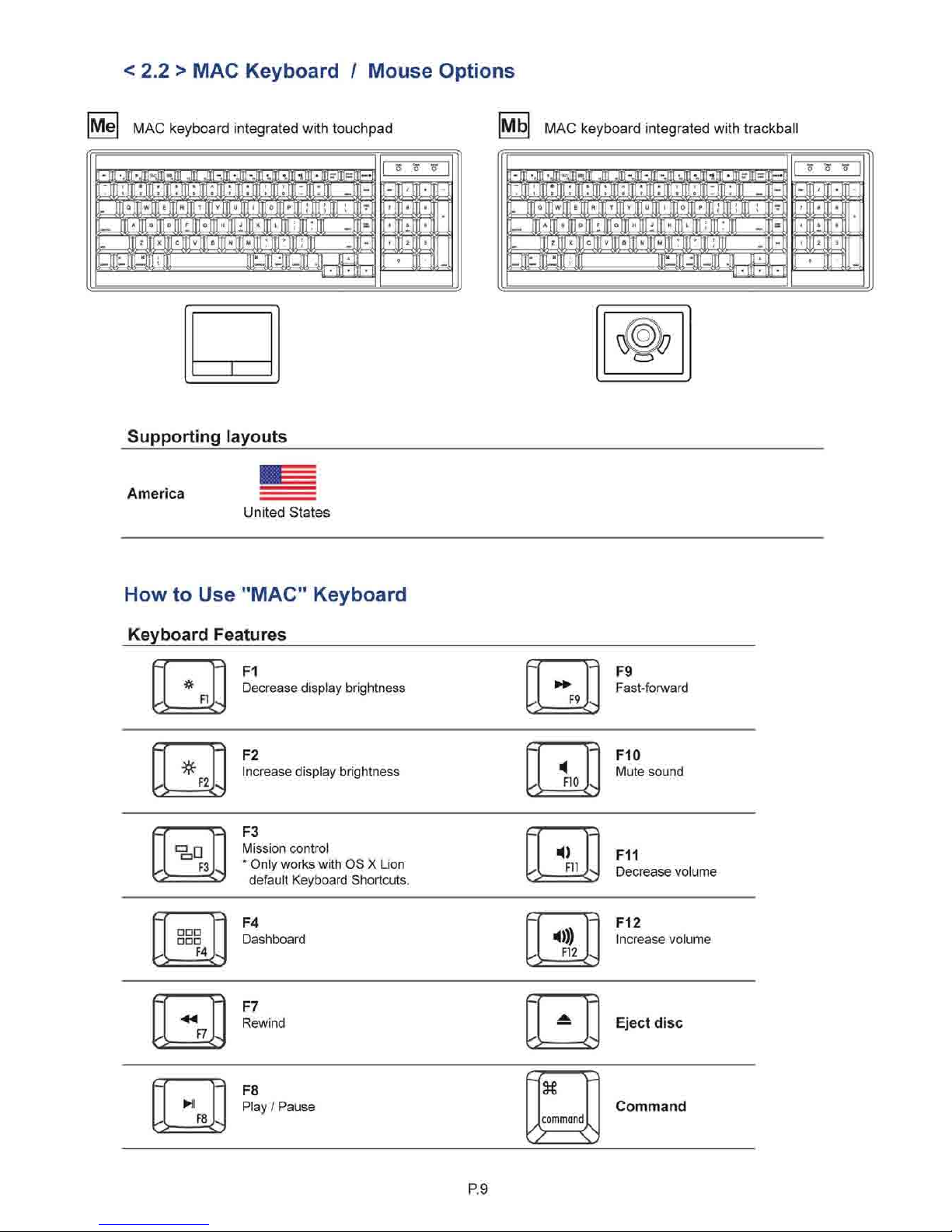

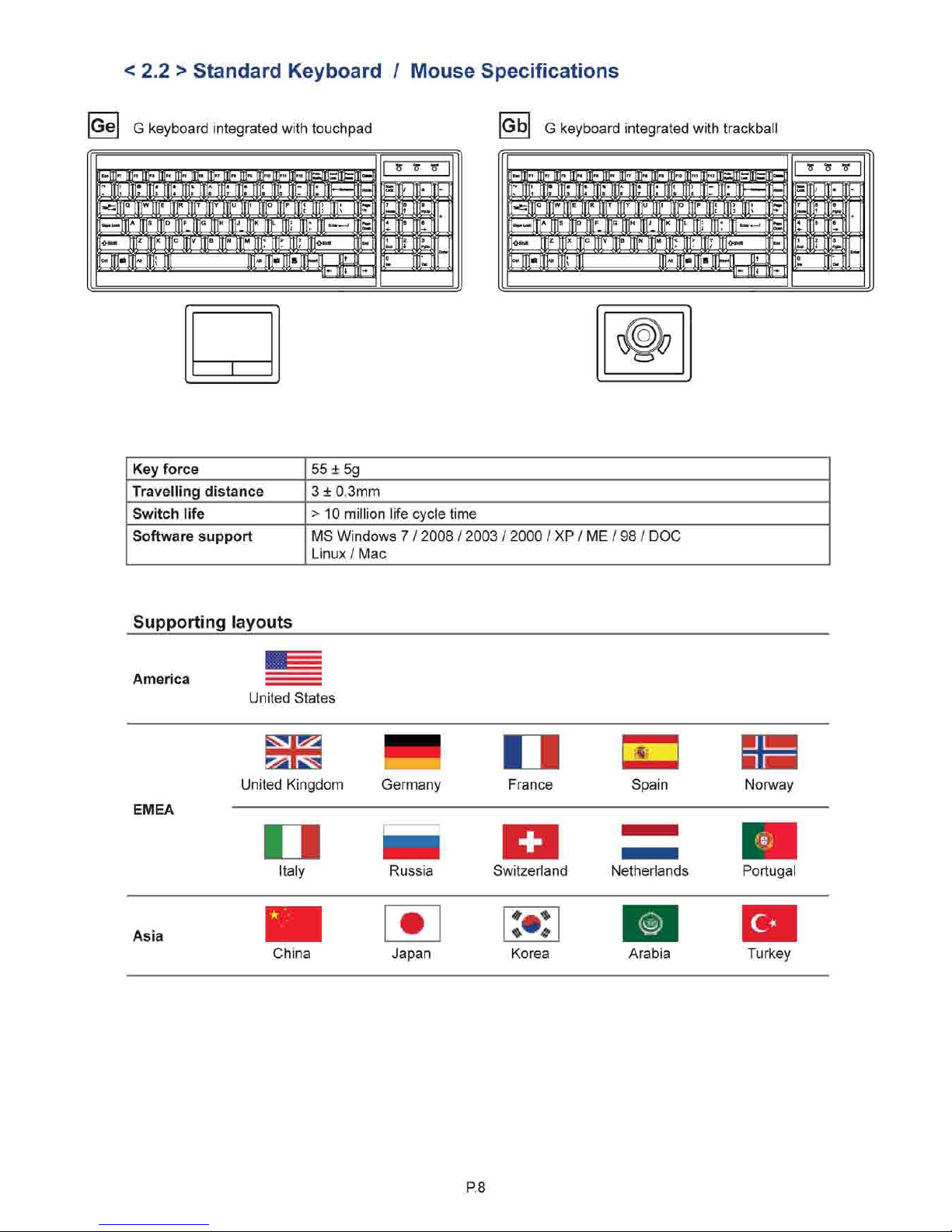

2.2 Keyboard / Mouse Specifications P.8

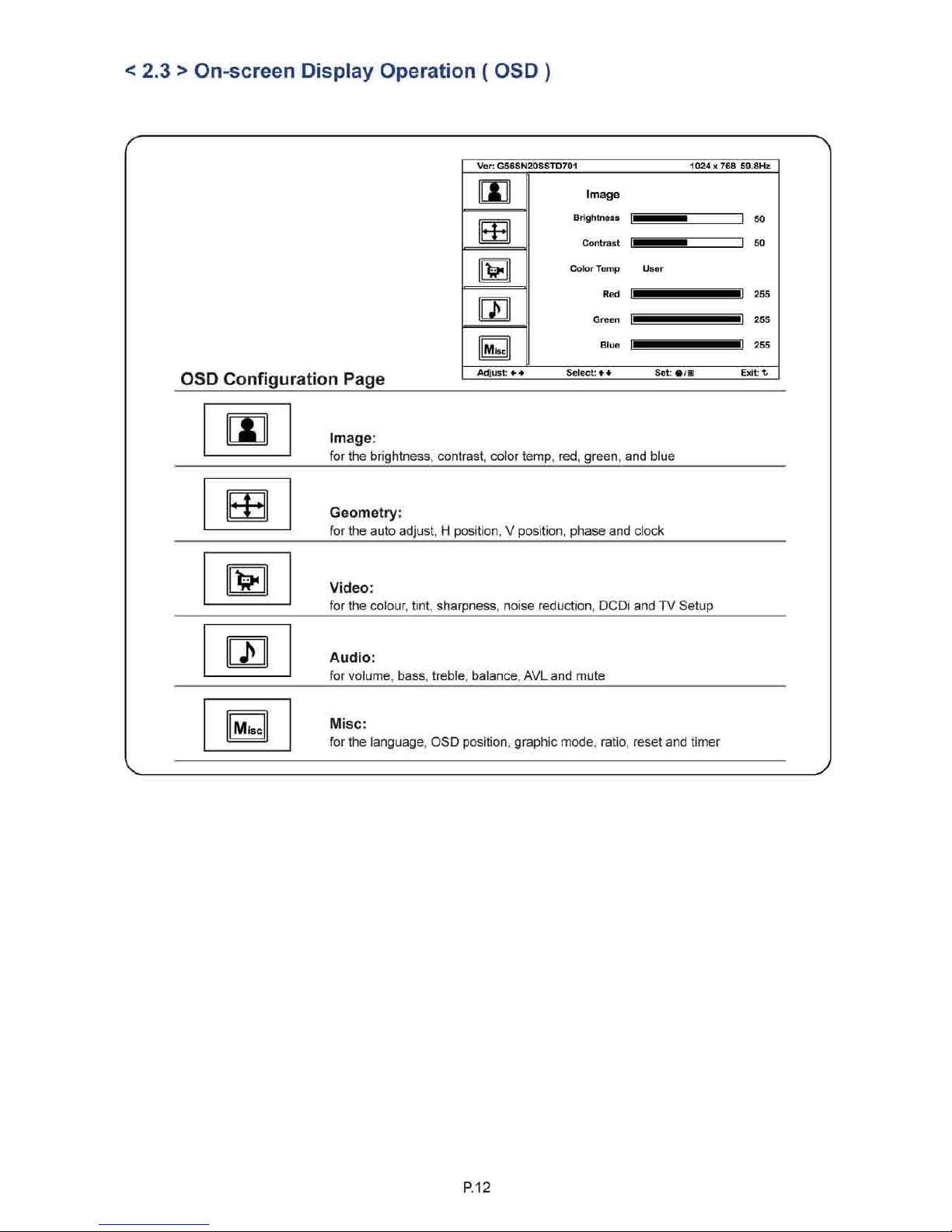

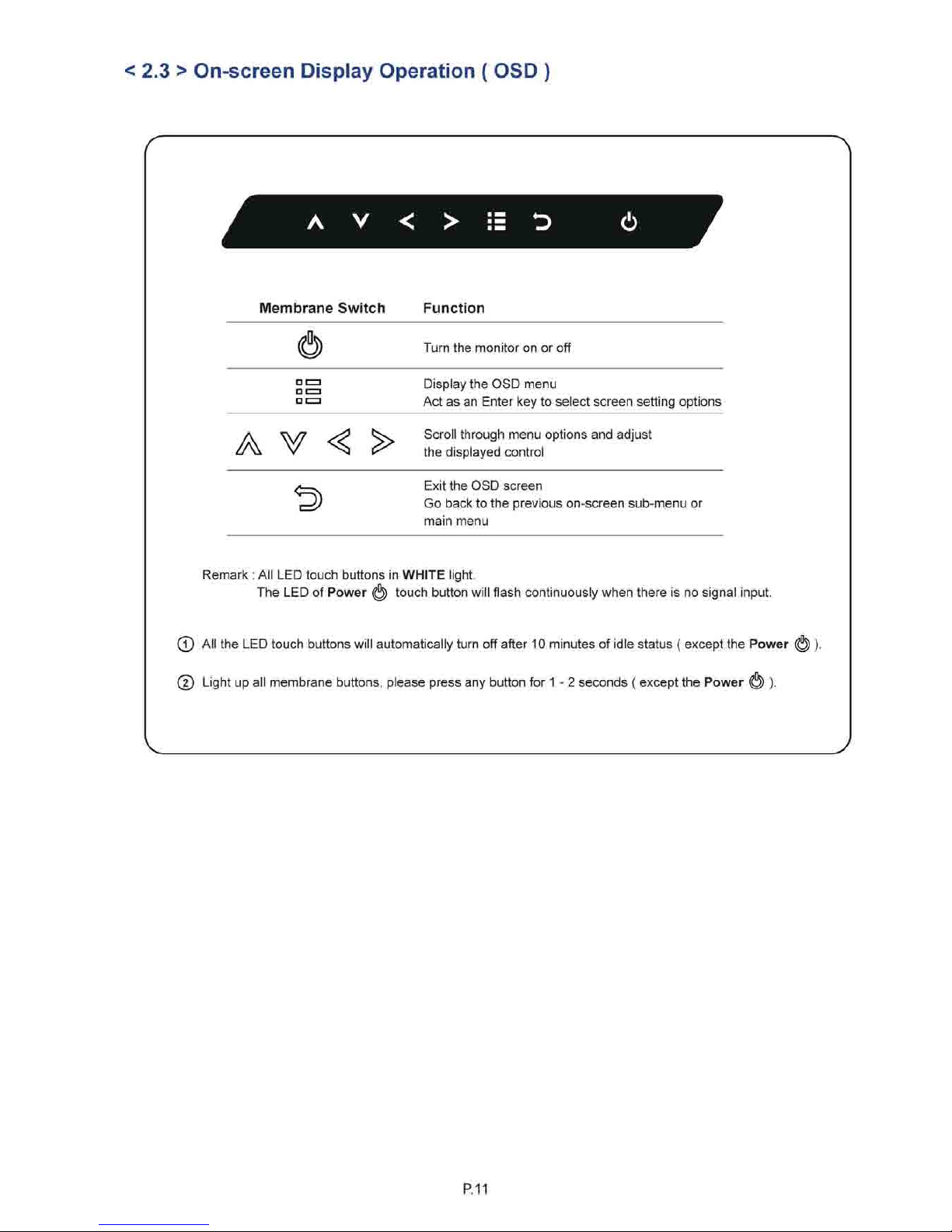

2.3 On-screen Display Operation ( OSD )
p.
11
< Part. 3 > Options

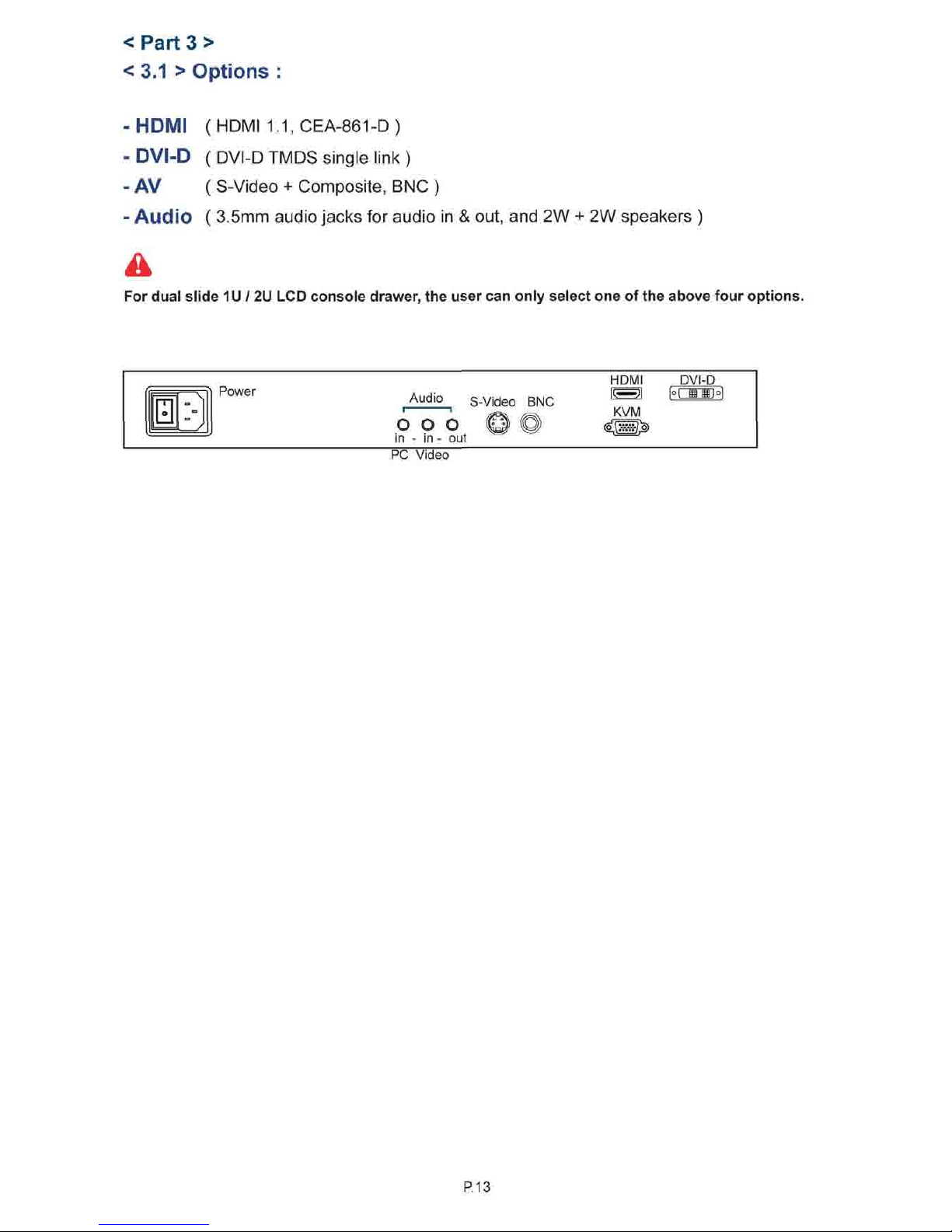

3.1
HDMI,
DVI-D, S-Video + BNC & Audio P.13

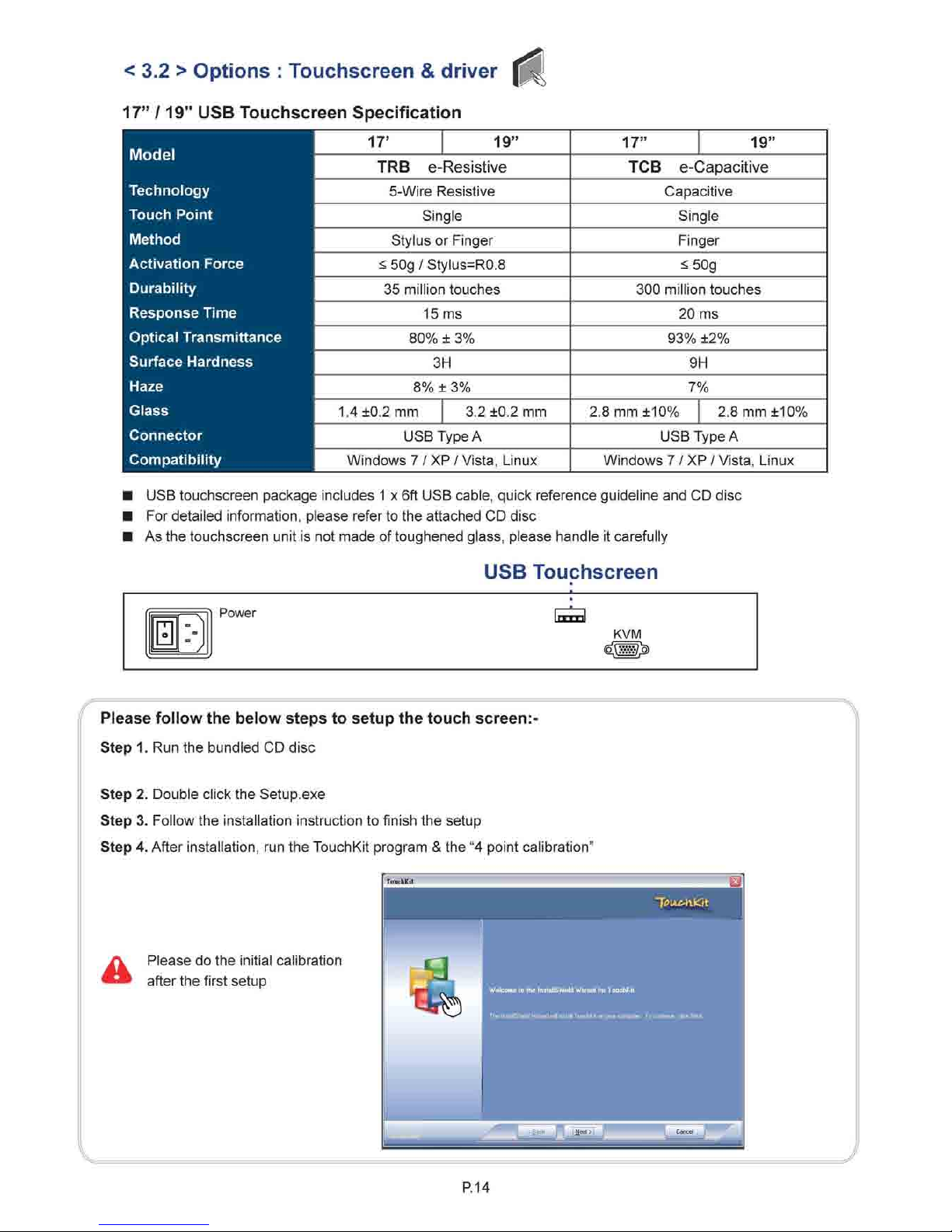

3.2 17" /19" Touchscreen : Resistive, Capacitive
P.
14

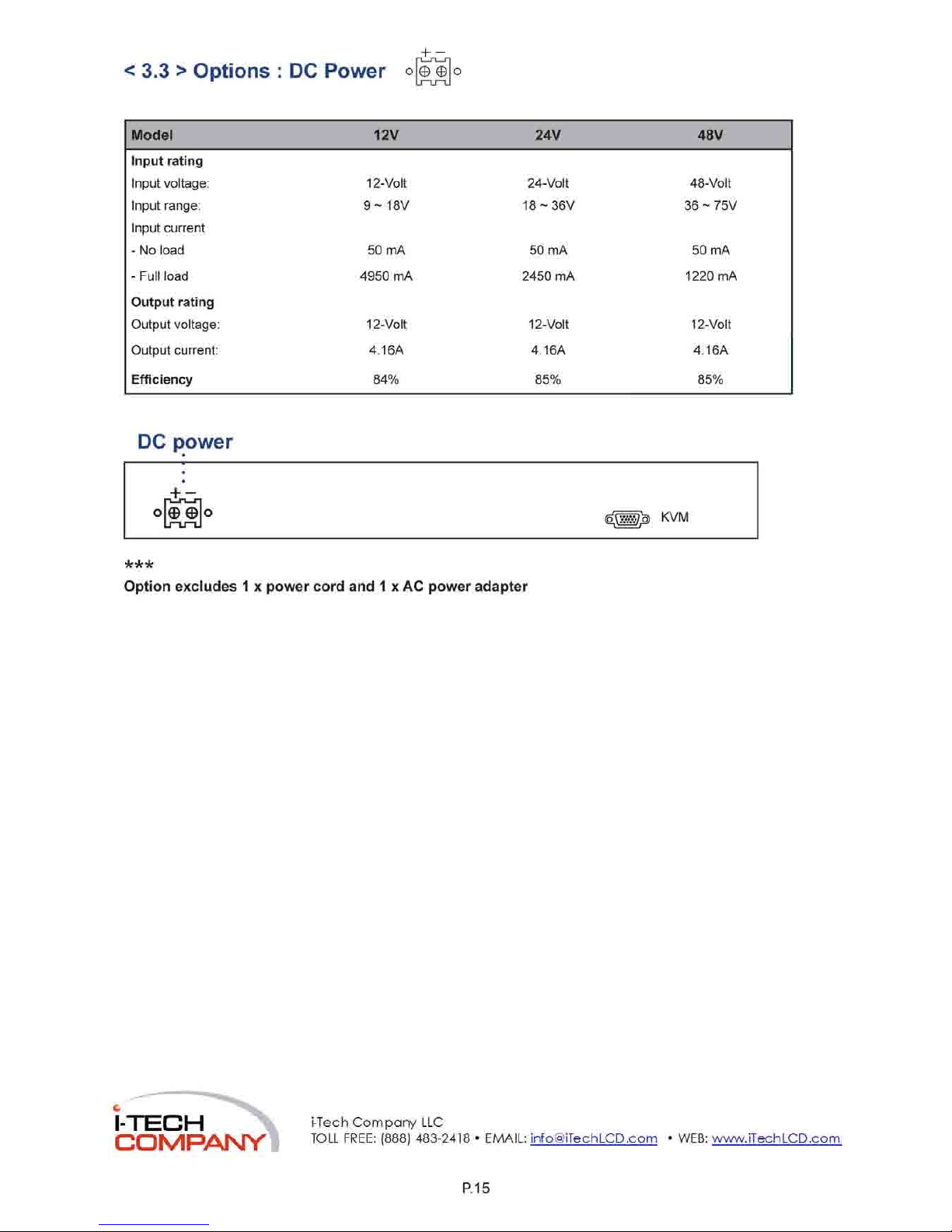

3.3 48V, 24V or 12VDC power
P.
15
Page 4

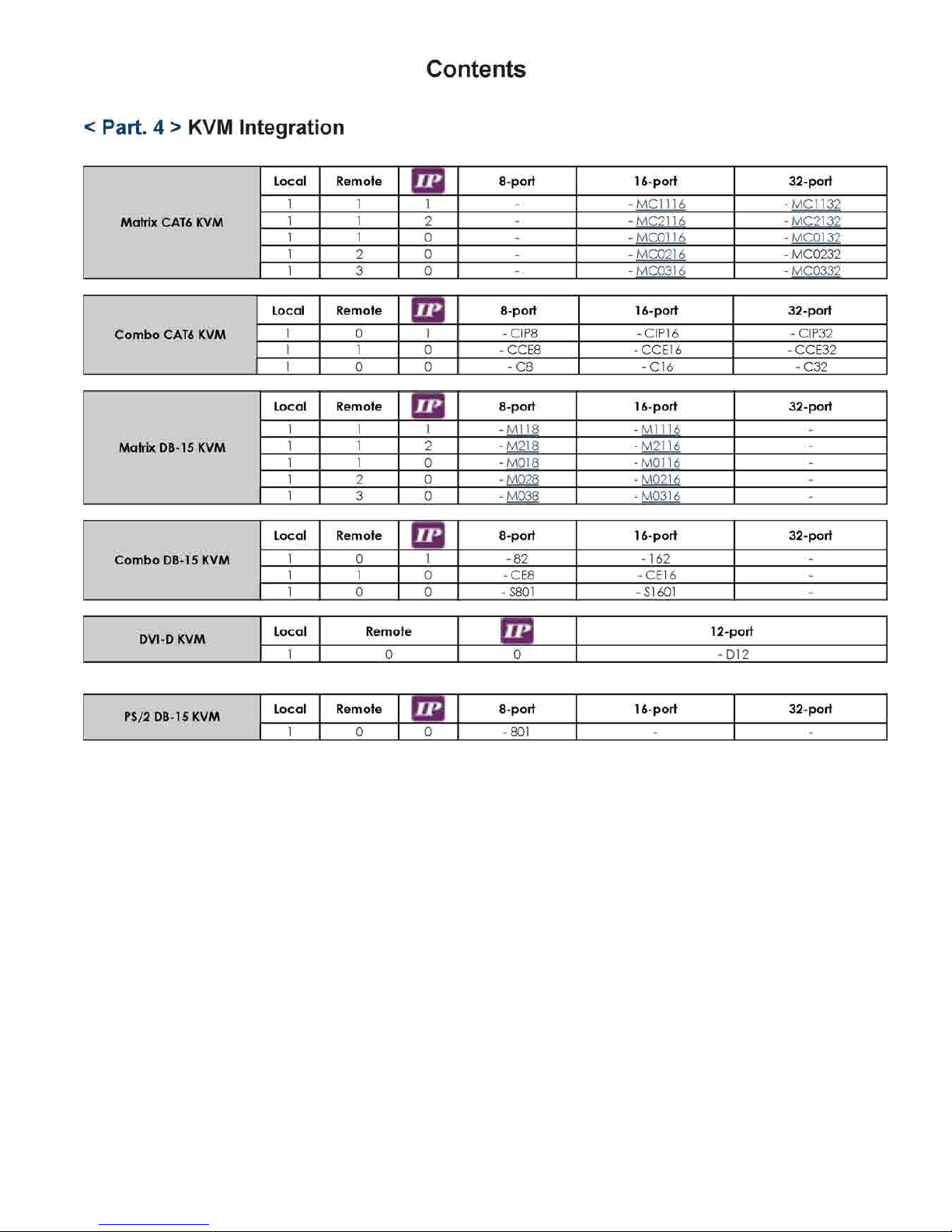

Contents
< Part. 4 > KVM Integration
Matrix CAT6 KVM
Local Remote
E3
8-port
16-port
32-port
Matrix CAT6 KVM
1 1 l - - MC1116 - MC1132
Matrix CAT6 KVM
1 1 2 - - MC2116 - MC2132
Matrix CAT6 KVM
1 1 0 - - MC0116 - MC0132
Matrix CAT6 KVM
1 2 0 - - MC0216 - MC0232
Matrix CAT6 KVM
1 3 0 - - MC0316 - MC0332
Combo CAT6 KVM
Local Remote
G3
8-port
16-port 32-port
Combo CAT6 KVM
1 0 l - CIP8 - CIP16 - CIP32
Combo CAT6 KVM
1 1 0 - CCE8 - CCE16 - CCE32
Combo CAT6 KVM
1 0 0 - C8 - C16 - C32
Matrix DB-15 KVM
Local Remote
Eza
8-port
16-port 32-port
Matrix DB-15 KVM
1 1 i - Ml 18 - Ml 116 -
Matrix DB-15 KVM
1 1 2 - M218 - M2116 -
Matrix DB-15 KVM
1 1 0 - M018 - MOl 16 -
Matrix DB-15 KVM
1 2 0 - M028 -
M021 6
-
Matrix DB-15 KVM
1 3 0 - M038 -
M031 6
-
Combo DB-15 KVM
Local Remote
EZ3
8-port
16-port 32-port
Combo DB-15 KVM
1 0 l - 82 - 162 -
Combo DB-15 KVM
1 1 0 - CE8 - CE16 -
Combo DB-15 KVM
1 0 0 - S801 -
SI
601 -
DVI-D KVM
Local Remote
(za
12-port
DVI-D KVM
1 0 0 - D12
PS/2 DB-15 KVM
Local Remote
cza
8-port
16-port 32-port
PS/2 DB-15 KVM
1 0 0 - 801 - -
Page 5

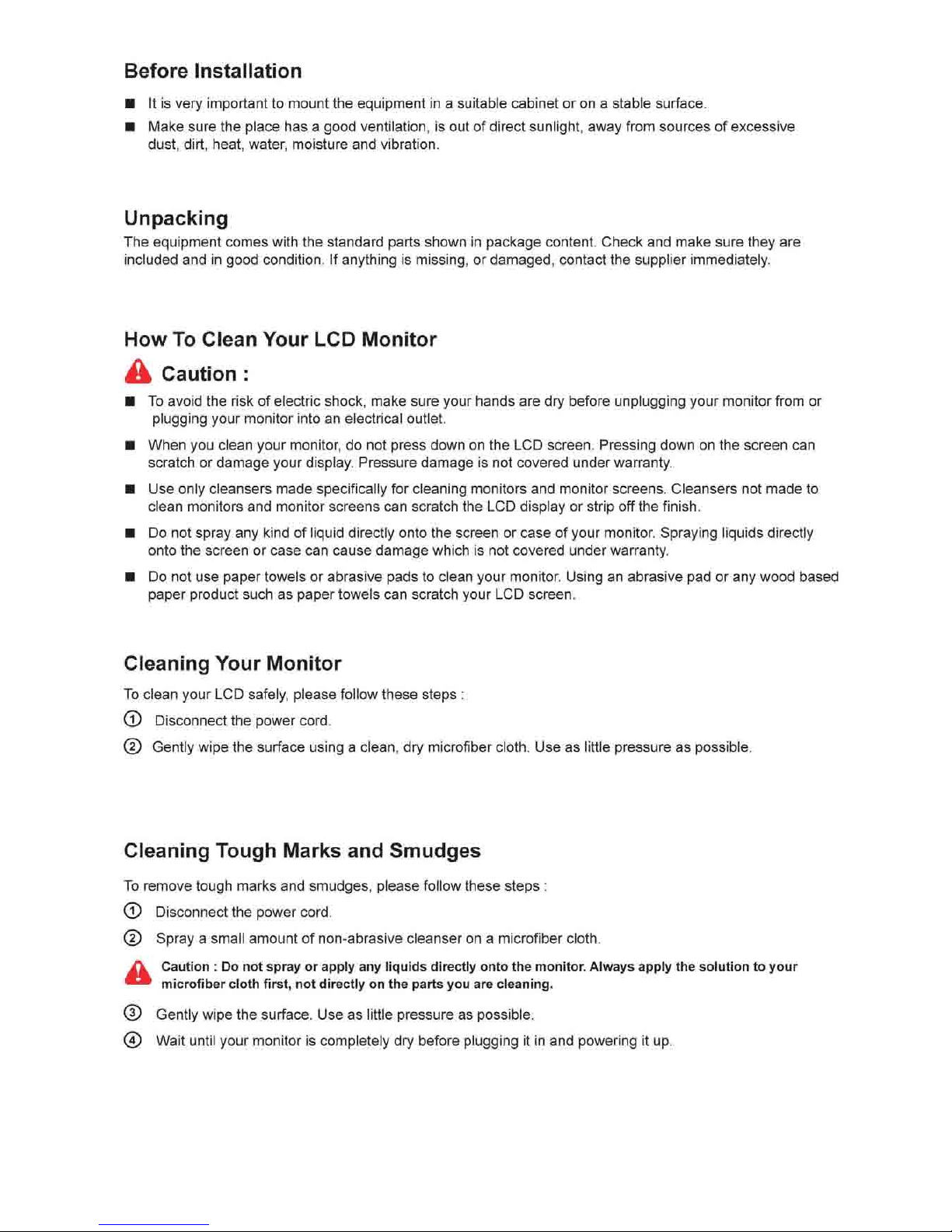

Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
4k Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the finish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
® Disconnect the power
cord.
® Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
© Disconnect the power
cord.
© Spray a small amount of non-abrasive cleanser on a microfiber cloth.
^^ Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
•* microfiber cloth first, not directly on the parts you are cleaning.
® Gently wipe the surface. Use as little pressure as possible.
® Wait until your monitor is completely dry before plugging it in and powering it up.
Page 6

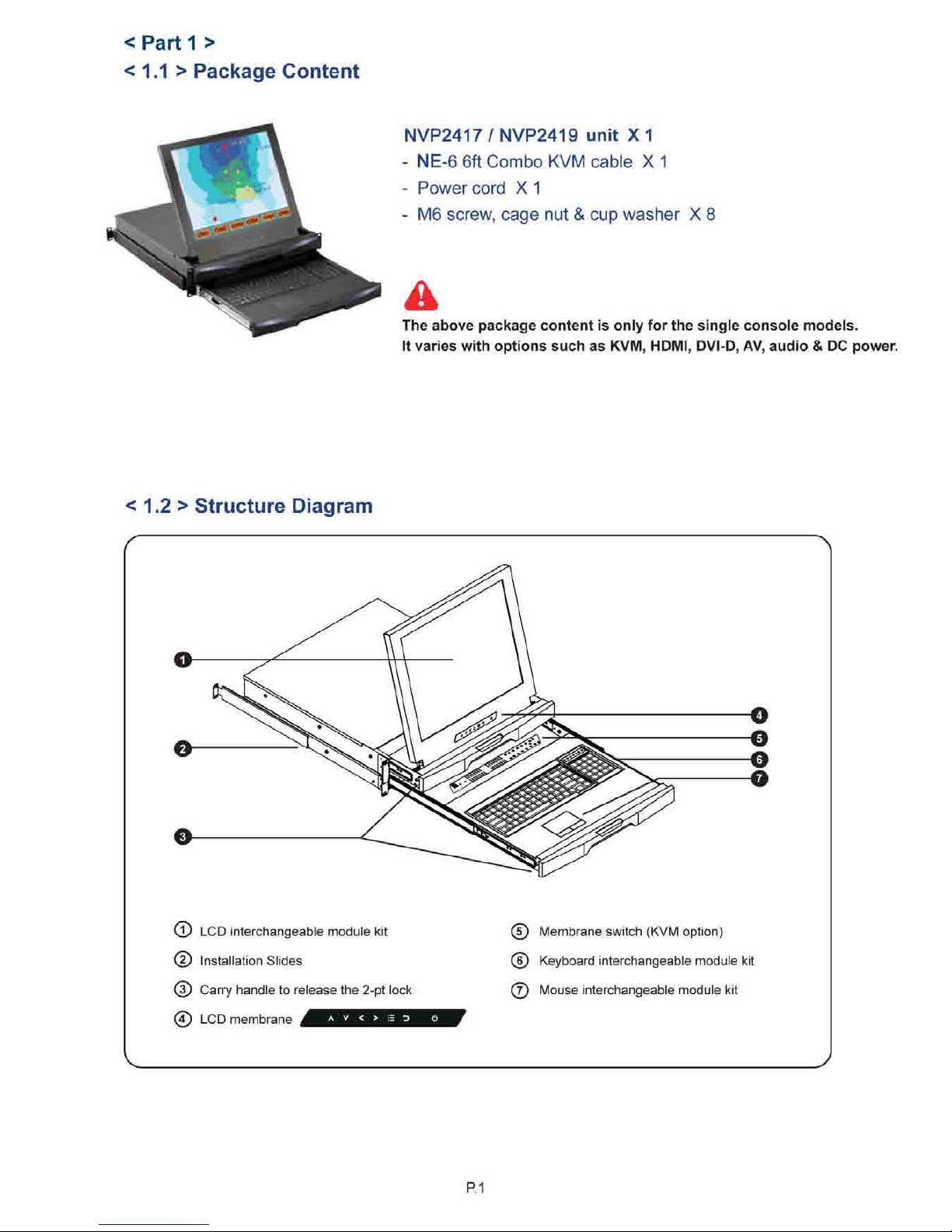

< Part 1 >
< 1.1 > Package Content
NVP2417/NVP2419 unit X1
- NE-6 6ft Combo KVM cable X 1
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
The above package content is only for the single console models.
It varies with options such as KVM, HDMI, DVI-D, AV, audio & DC power.
< 1.2 > Structure Diagram
LCD interchangeable module kit
© Installation Slides
© Carry handle to release the 2-pt lock
© LCD membrane
© Membrane switch (KVM option)
© Keyboard interchangeable module kit
(7) Mouse interchangeable module kit
P.1
Page 7

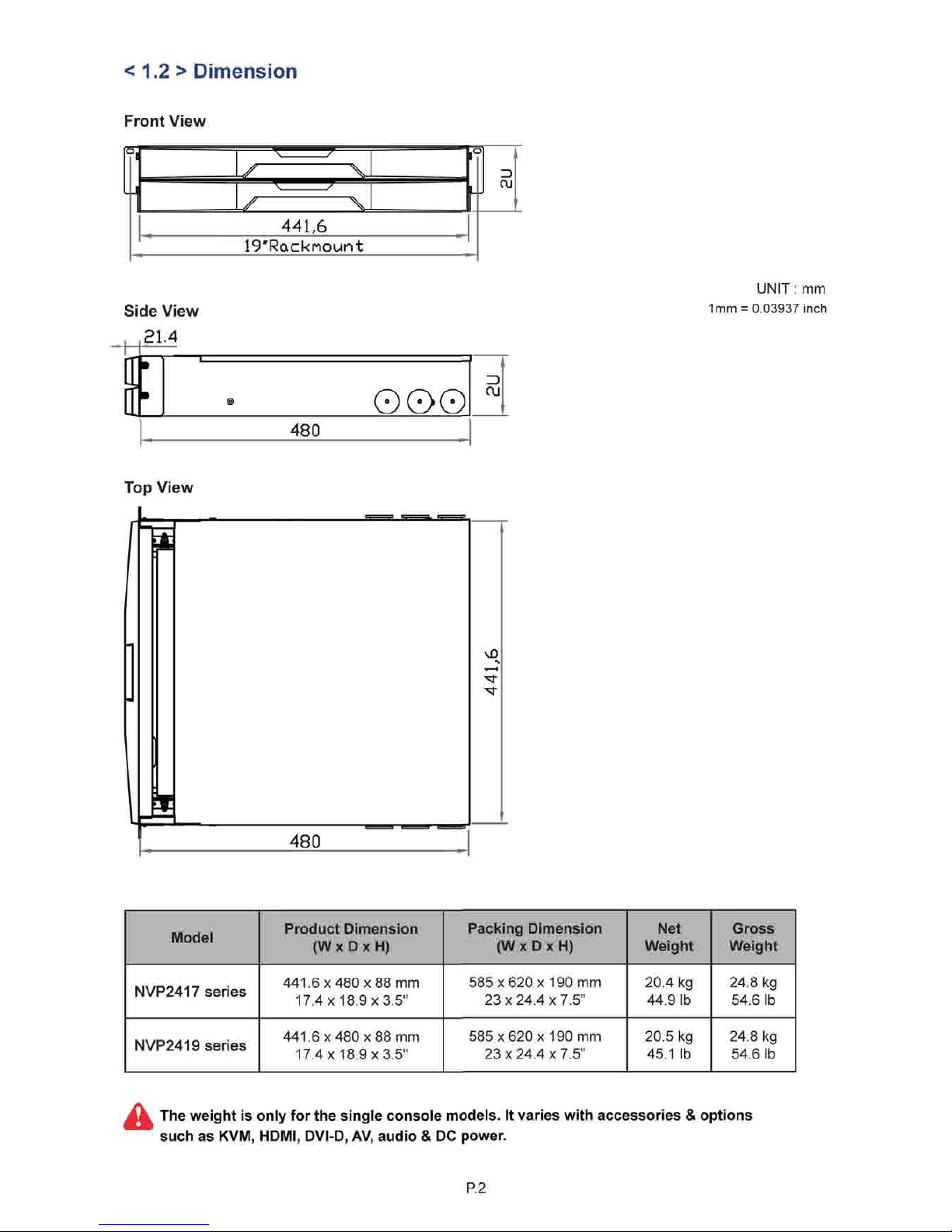

< 1.2 > Dimension
Front View
^
X
441,6
19#Rackmount
Side View
,21.4
UNIT: mm
1mm =
0.03937
inch
000
480
OJ
Top View
I
480
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
NVP2417 series
441.6x480x88 mm
17.4x18.9x3.5"
585 x 620 x 190 mm
23x24.4x7.5"
20.4 kg
44.9 lb
24.8 kg
54.6 lb
NVP2419 series
441.6x480x88 mm
17.4x18.9x3.5"
585 x 620 x 190 mm
23x24.4x7.5"
20.5 kg
45.1 lb
24.8 kg
54.6 lb
The weight is only for the single console models. It varies with accessories & options
such as KVM, HDMI, DVI-D, AV, audio & DC power.
P.2
Page 8

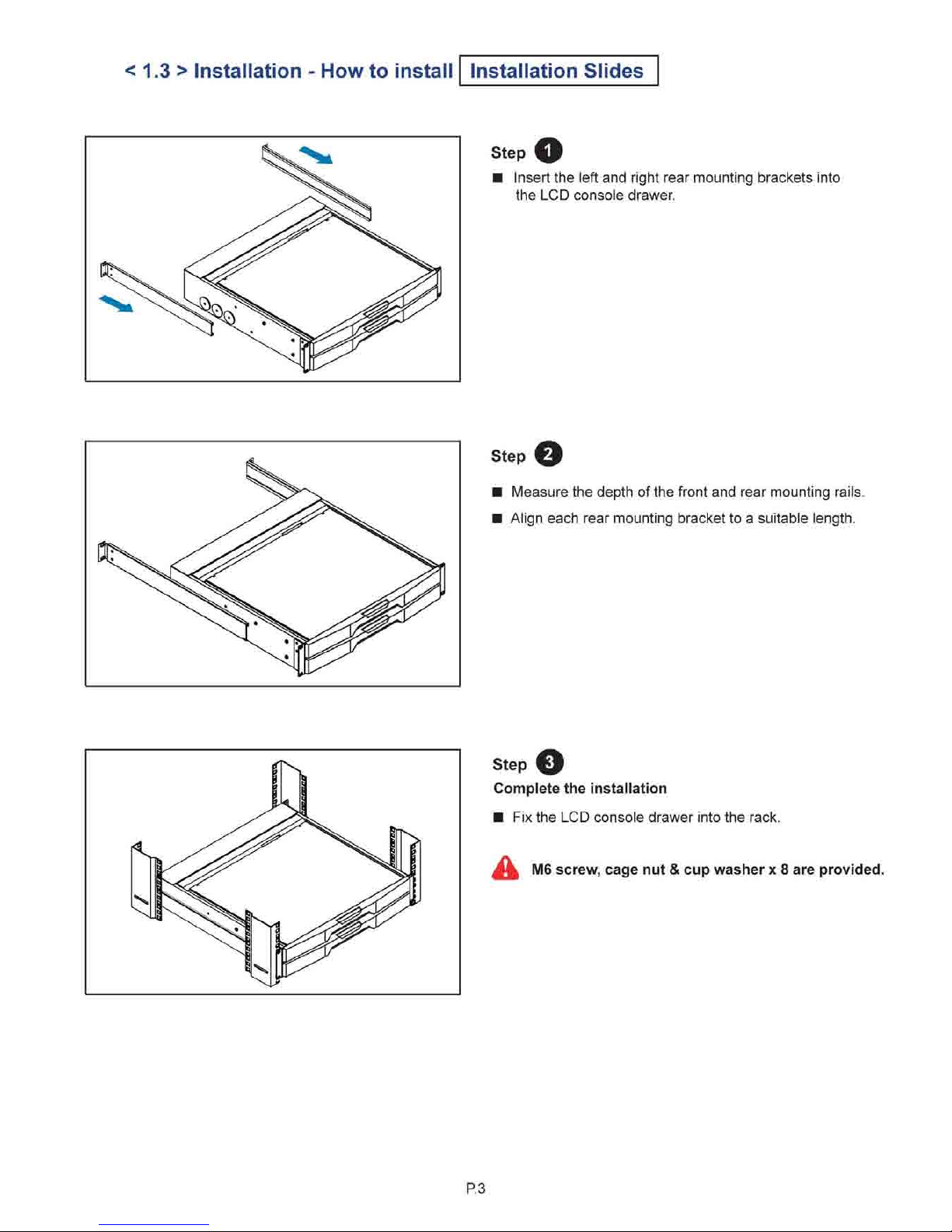

nstall Installation Slides
»
Step O
Insert the left and right rear mounting brackets into
the LCD console drawer.
Step O
Measure the depth of the front and rear mounting rails.
Align each rear mounting bracket to a suitable length.
Step O
Complete the installation
■ Fix the LCD console drawer into the rack.
Mm M6 screw, cage nut & cup washer x 8 are provided.
P. 3
Page 9

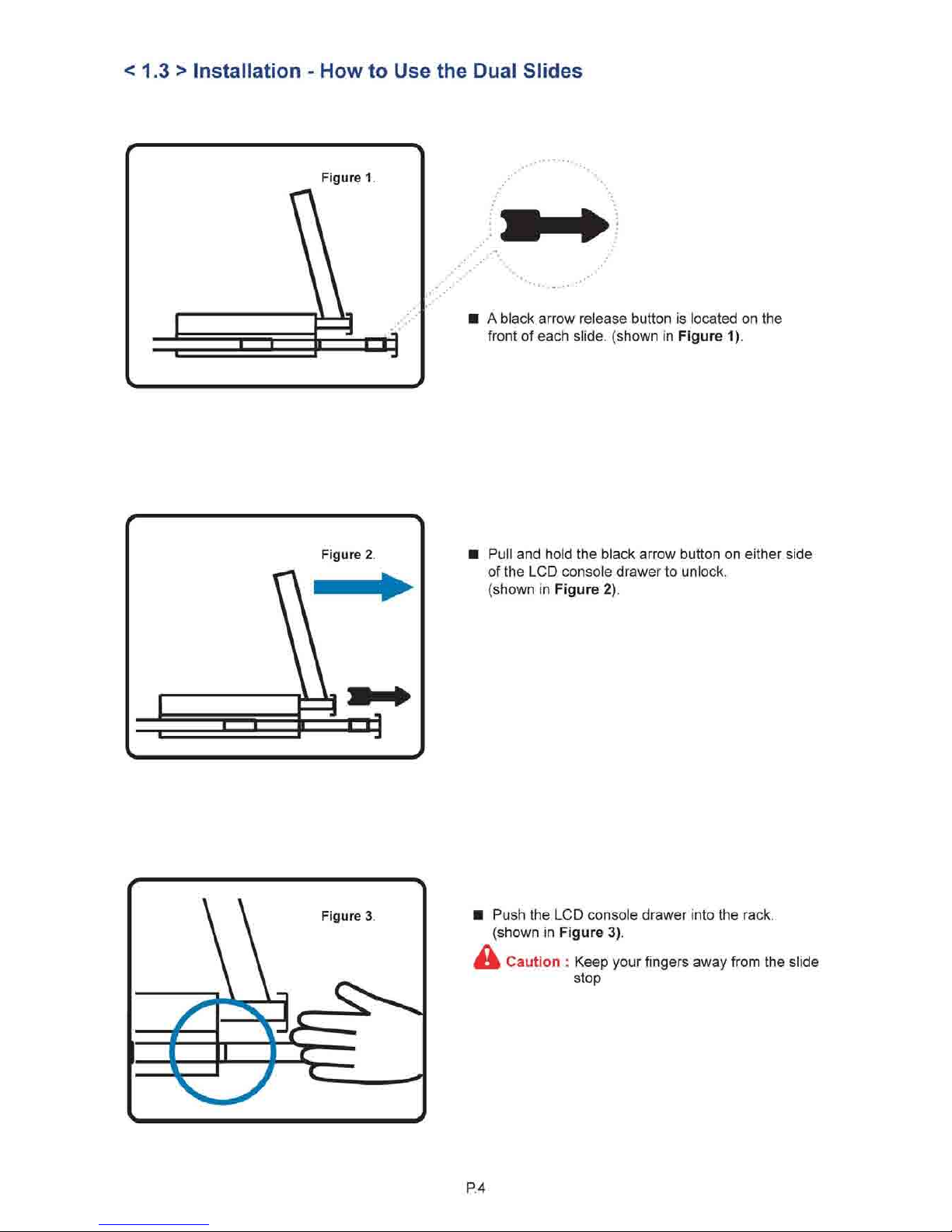

< 1.3 > Installation - How to Use the Dual Slides
A black arrow release button is located on the
front of each slide, (shown in Figure 1).
Pull and hold the black arrow button on either side
of the LCD console drawer to unlock.
(shown in Figure 2).
\
\ Figure 3.
\1
^
/■
■Vlf
>^
/■
r*—
t
r*—
I
i
J
y
y—
V
J
c—
v_^
■ Push the LCD console drawer into the rack.
(shown in Figure 3).
MM
Caution : Keep your fingers away from the slide
stop
P. 4
Page 10

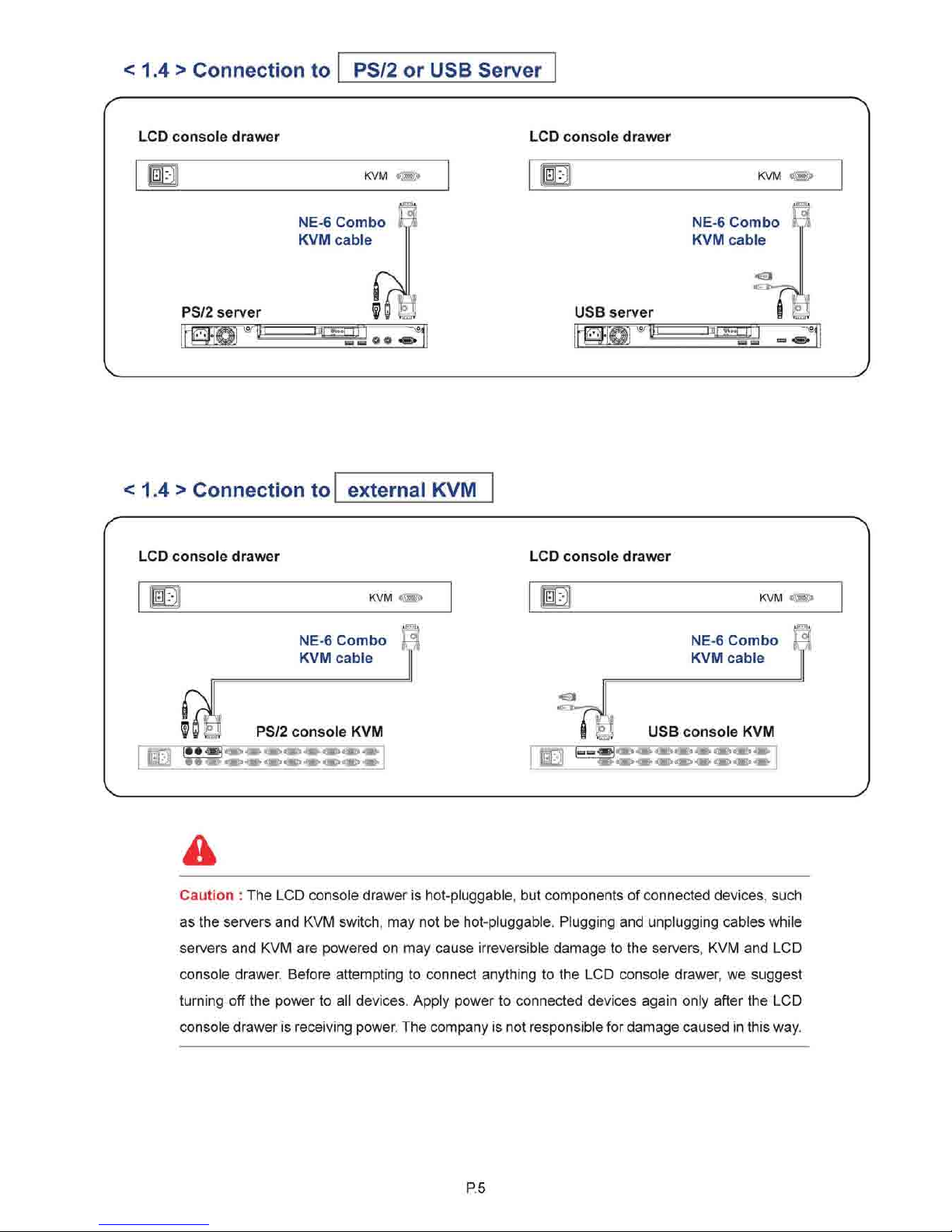

< 1.4 > Connection to PS/2 or USB Server
LCD console drawer
KVM «
LCD console drawer
m
KVM <m
NE-6 Combo
KVM cable
PS/2 server
U lHJ^gTTT;
wm @©
USB server
NE-6 Combo
KVM cable
isnoi w<^—w^urr
^S!
< 1.4 > Connection to external KVM
LCD console drawer
m
KVM *W>
90
£3 PS/2 console KVM
B
VV :'*: <M><Mfr«Q<$m&4M°<»fc«S»5>■^«fr
NE-6 Combo H
KVM cable
LCD console drawer
B
«B
KVM ^M>
NE-6 Combo F?
KVM cable
USB console KVM
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
P. 5
Page 11
< Part 2 >

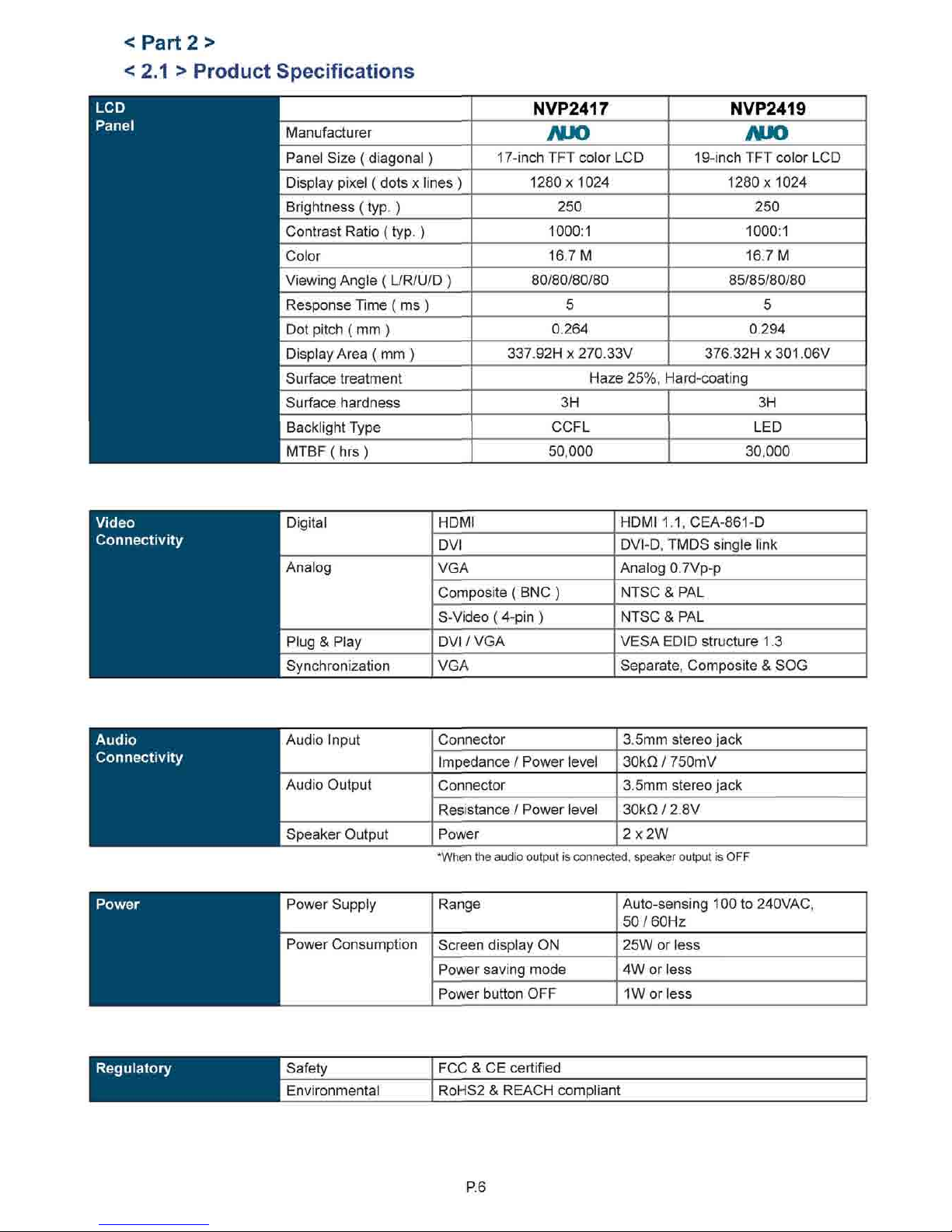

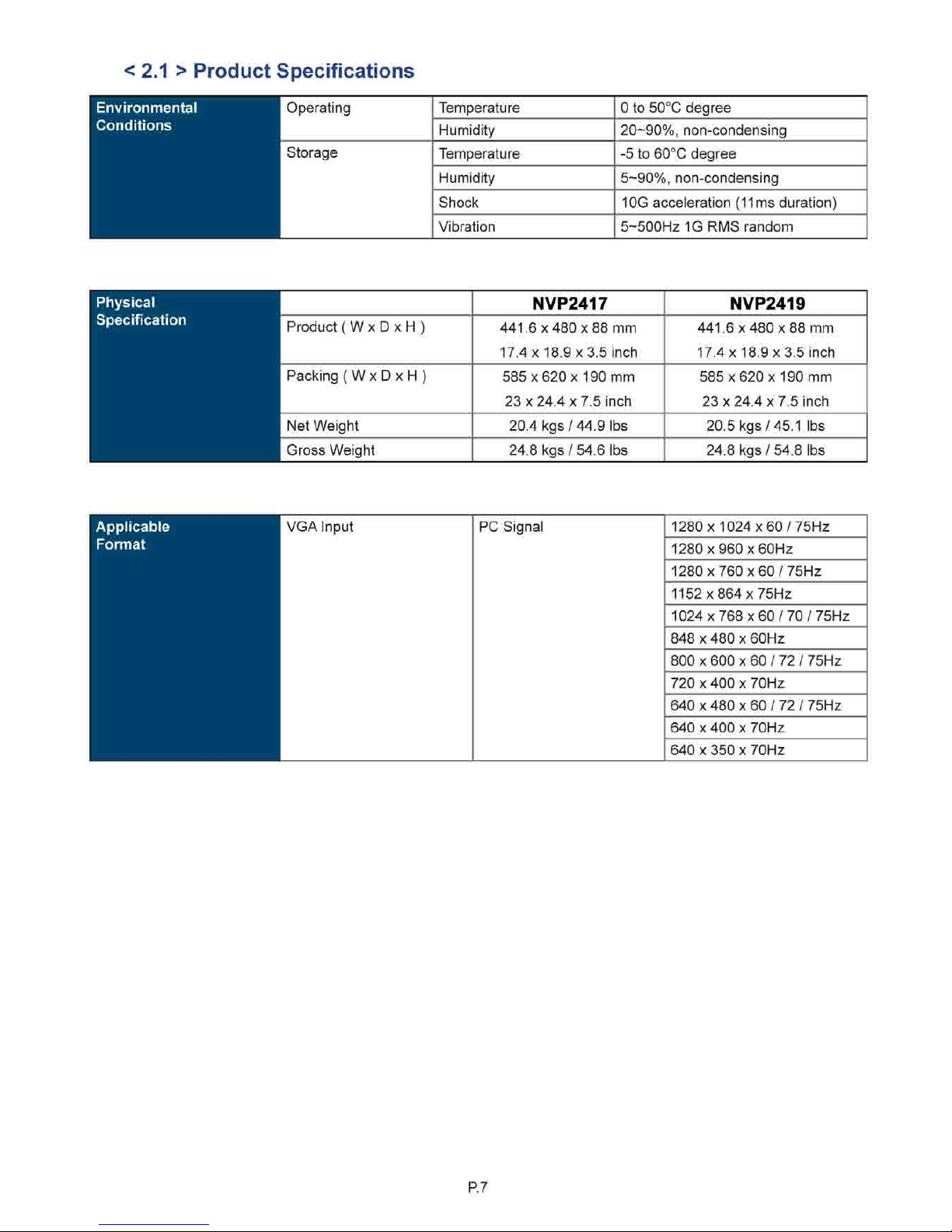

< 2.1 > Product Specifications
NVP2417 NVP2419
Manufacturer
AJO
AJO
Panel Size ( diagonal)
17-inch TFT color LCD 19-inch TFT color LCD
Display pixel ( dots x lines )
1280x1024 1280x1024
Brightness (typ. )
250 250
Contrast Ratio (typ. )
1000:1 1000:1
Color
16.7 M 16.7 M
Viewing Angle (L/R/U/D)
80/80/80/80 85/85/80/80
Response Time ( ms )
5 5
Dot pitch ( mm )
0.264 0.294
Display Area ( mm )
337.92H x 270.33V 376.32Hx301.06V
Surface treatment
Haze 25%, Hard-coating
Surface hardness
3H 3H
Backlight Type
CCFL LED
MTBF ( hrs )
50,000 30,000
Video
Connectivity
Digital HDMI HDMI
1.1.CEA-861-D
DVI
DVI-D,
TMDS single link
Analog
VGA
Analog
0.7Vp-p
Composite ( BNC ) NTSC & PAL
S-Video
(4-pin ) NTSC & PAL
Plug & Play
DVI / VGA VESA EDID structure 1.3
Synchronization VGA
Separate, Composite & SOG
Audio
Connectivity
Audio Input
Connector
3.5mm
stereo jack
Audio Input
Impedance / Power level 30kO / 750mV
Audio Output
Connector
3.5mm
stereo jack
Audio Output
Resistance / Power level 30kQ / 2.8V
Speaker Output
Power 2x2W
"When the audio output is connected, speaker output is OFF
Power Supply
Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption
Screen display ON 25W or less
Power Consumption
Power saving mode 4W or less
Power Consumption
Power button OFF 1Wor less
Regulatory Safety
FCC & CE certified
Environmental
RoHS2 & REACH compliant
R6
Page 12
< 2.1 > Product Specifications
Environmental
Conditions
_
Operating Temperature 0 to 50°C degree Operating
Humidity
20-90%,
non-condensing
Storage
Temperature -5 to 60°C degree
Storage
Humidity 5-90%, non-condensing
Storage
Shock 10G acceleration (11ms duration)
Storage
Vibration
5-500Hz
1G RMS random
Physical
Specification
NVP2417 NVP2419
Product ( W x D x H )
441.6x480x88 mm
17.4 x 18.9x3.5 inch
441.6x480x88 mm
17.4 x 18.9x3.5 inch
Packing (WxDxH )
585 x 620 x 190 mm
23x24.4x7.5 inch
585 x 620 x 190 mm
23x24.4x7.5 inch
Net Weight 20.4 kgs/44.9 lbs 20.5 kgs/45.1 lbs
Gross Weight 24.8 kgs/54.6 lbs 24.8 kgs/54.8 lbs
VGA Input PC Signal 1280 x 1024 x 60 / 75Hz
1280 x960 x60Hz
1280x760x60/75Hz
1152 x864 x75Hz
1024x768x60/70/75Hz
848 x480 x60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
P. 7
Page 13
<
2.2 >
Standard Keyboard / Mouse Specifications
Ge G
keyboard integrated with touchpad
Gb G
keyboard integrated with trackball
Key force
55±5g
Travelling distance
3 ± 0.3mm
Switch life
> 10 million life cycle time
Software support
MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC
Linux/ Mac
Supporting layouts
America
United States
EMEA
United Kingdom Germany
Italy
II n
France Spain
Russia Switzerland Netherlands
Norway
Portugal
Asia
China
Japan
Korea Arabia
Turkey
P. 8
Page 14
< 2.2 > MAC Keyboard / Mouse Options
Me MAC keyboard integrated with touchpad
I
i I
Mb MAC keyboard integrated with trackball
^ffl^B^B
Z X C V 116 Ml I N
QEE
Supporting layouts
America
United States
How to Use "MAC" Keyboard
Keyboard Features
ry
X^
F1
Decrease display brightness
C7
F9
F9
Fast-forward
#
F2
F2
Increase display brightness
c
A
V
F10
Mute sound
cr
^D
F3
^ F3
Mission control
* Only works with OS X Lion
default Keyboard Shortcuts.
y
A)
s—Sl^
S,
F11
Decrease volume
a
*r\
DDD
□ □□
F4
F4
Dashboard
r^
Fl2
F12
Increase volume
F7
F7
Rewind
r>
Eject disc
CT T^
F8
F8
Play / Pause
U VJ
/
K
command
\
</ \J
Command
P.9
Page 15

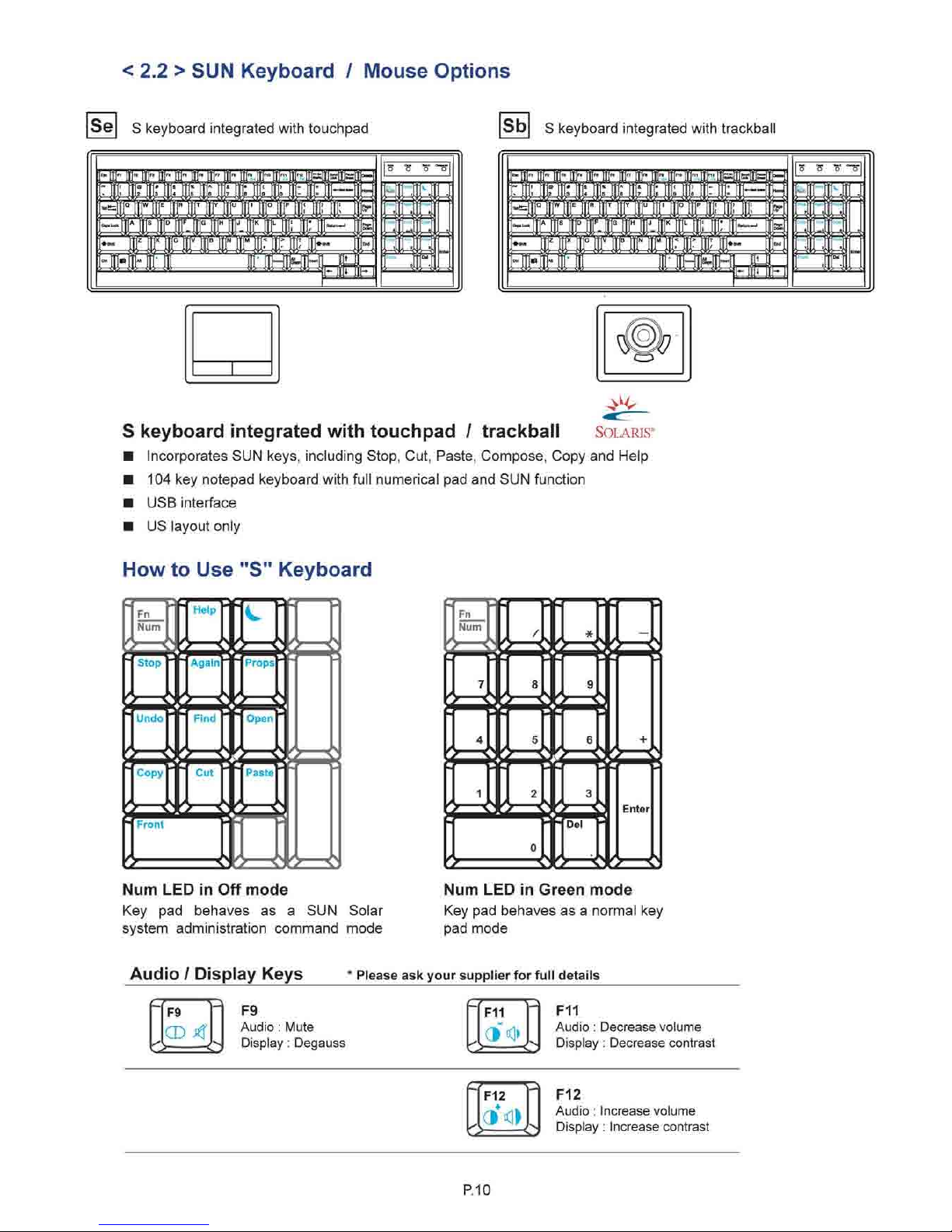

< 2.2 > SUN Keyboard / Mouse Options
Se
S keyboard integrated with touchpad
Sb
S keyboard integrated with trackball
S keyboard integrated with touchpad / trackball SOLARIS
■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help
■ 104 key notepad keyboard with full numerical pad and SUN function
■ USB interface
■ US layout only
How to Use "S" Keyboard
Num LED in Off mode
Key
pad
behaves
as a
SUN Solar
system administration command mode
Fn
Num
IJ 7L
L
*LI
+
7 8 9
6
+
4 5
9
6
+
1 2 3
Enter
0
■ Del
"j
Enter
*>
C
*>
<X'S V
Num LED in Green mode
Key pad behaves as a normal key
pad mode
Audio/
Display Keys *
Please ask your supplier for full details
" F9
CD
A
n—--M
F9
Audio : Mute
Display : Degauss
£7
F11
3
0
F11
Audio : Decrease volume
Display : Decrease contrast
C7
F12
F12
Audio : Increase volume
Display : increase contrast
P.10
Page 16
< 2.3 > On-screen Display Operation ( OSD )
Membrane Switch Function
6
Turn the monitor on or off
DCZI
Display the OSD menu
Act as an Enter key to select screen setting options
A V <
>
Scroll through menu options and adjust
the displayed control
s>
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Remark : All LED touch buttons in WHITE light.
The LED of Power A touch button will flash continuously when there is no signal input.
(T) All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power @)).
© Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power @ ).
P.11
Page 17
< 2.3 > On-screen Display Operation ( OSD )
OSD Configuration Page
Ver: G56SN20SSTD701 1024x768 59.8Hz
Mi
Brightness [1
Contrast J
Color Temp User
Red I^^M
Green [I
Blue J
Adjust: Select: ♦+ Set: ®/i=i
m
Image:
for the brightness, contrast, color
temp,
red, green, and blue
tJ3
Geometry:
for the auto adjust, H position, V position, phase and clock
to-
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
J>
Audio:
for volume, bass, treble, balance, AVL and mute
Misc
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
] 50
] 50
0 255
Q 255
Q 255
Exit: t
P.12
Page 18
< Part 3 >
< 3.1 > Options :
- HDMI ( HDMI 1.1, CEA-861-D )
- DVI-D ( DVI-D TMDS single link )
- AV ( S-Video + Composite, BNC )
- Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
For dual slide 1U / 2U LCD console drawer, the user can only select one of the above four options.
s
Power
Audi0
S-Video BNC
© O O © (©)
in - in - out
HDMI DVI-D
|^^ [°l 111'
KVM
PC Video
P.13
Page 19
< 3.2 > Options : Touchscreen & driver 0^
17"
/19" USB Touchscreen Specification
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
17' 19"
17"
19"
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
TRB
e-Resistive
TCB
e-Capacitive
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
5-Wire
Resistive Capacitive
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
Single Single
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
Stylus or Finger Finger
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
< 50g / Stylus=R0.8 ^50g
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
35 million touches 300 million touches
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
15 ms 20 ms
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
80%
± 3%
93%
±2%
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
3H 9H
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
8% ± 3% 7%
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
1.4 ±0.2 mm 3.2 ±0.2 mm 2.8 mm ±10% 2.8 mm ±10%
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
USB Type A USB Type A
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
Windows 7 / XP / Vista, Linux
Windows 7 / XP / Vista, Linux
USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
For detailed information, please refer to the attached CD disc
As the touchscreen unit is not made of toughened glass, please handle it carefully
USB Touchscreen
Please follow the below steps to setup the touch screen
Step 1. Run the bundled CD disc
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to finish the setup
Step 4. After installation, run the TouchKit program & the "4 point calibration"
Please do the initial calibration
after the first setup
P.14
Page 20
<
3.3 >
Options : DC Power
Model
12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9-18V 18-36V 36 ~ 75V
Input current
-
No
load 50 mA 50 mA 50 mA
- Full load 4950
mA
2450
mA
1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current:
4.16A 4.16A 4.16A
Efficiency
84%
85% 85%
DC power
***
Option excludes
1 x
power cord
and 1 x AC
power adapter
l-TECH
COMPANV
i-Tech
Company
LLC
TOLL FREE:
(888)
483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com
P.15
Loading...
