I-Tech NPW8215 User Manual

Dedicated KVM switch and rackmount screen technology
User Manual 21.5 FHD 1920 x 1080 LCD
r
NPW8215
8U Rackmount Display Panel
I Full
HP|
-SDI
/ MCS
-AV / HDMI / Audio
-
Touchscreen
/ DC
power
-
MIL-type
or
lockable connector
F@
C Ml
REACH
J
i-Tech
Company LLC
TOLL
FREE:
(888) 483-2418 EMAIL: info@iTechLCD.com WEB: www.iTechLCD.com
Legal Information
First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
Safety Instructions Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
Unplug equipment before cleaning. Don't use liquid or spray detergent; use a moist cloth.
Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with temperatures not exceeding 40° Celsius (104° Fahrenheit).
When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing damage to other equipment or injury to persons nearby.
When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the power supply. Proper air convection is necessary to keep it from overheating.
Arrange the equipment's power cord in such a way that others won't trip or fall over it.
If you are using a power cord that didn't ship with the equipment, ensure that it is rated for the voltage and current labeled on the equipment's electrical ratings label. The voltage rating on the cord should be higher than the one listed on the equipment's ratings label.
Observe all precautions and warnings attached to the equipment.
If you don't intend on using the equipment for a long time, disconnect it from the power outlet to prevent being damaged by transient over-voltage.
Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power supply or on other hardware may cause damage, fire or electrical shock.
Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and invalidate its warranty.
If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
Any product, on which the serial number has been defaced, modified or removed.
Damage, deterioration or malfunction resulting from: D Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product. Repair or attempted repair by anyone not authorized by us. Any damage of the product due to shipment.
Removal or installation of the product. Causes external to the product, such as electric power fluctuation or failure. Use of supplies or parts not meeting our specifications. Normal wear and tear. Any other causes which does not relate to a product defect.
Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Re-position or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Contents
< Part. 1 >
NPW8215
1.1
Package Content
1.2 Structure Diagram & Dimension
1.3
Installation
P.1 P.1 -2 P.3-4
< Part. 2 > Specifications / OSD / Remote Controller
2.1 Product Specifications P.5 - 6
2.2 On-screen Display Operation ( OSD ) P.7 - 8
2.3 Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.9 -10
< Part. 3 > Options
3.1 3G / HD / SD-SDI Broadcast-grade input
P.
11
3.2 MCS Multi-display control solution
P.
12
3.3 AV3.0 Upgrade:
P.
13
DVI-D + VGA + HDMI + BNC + S-Video + Audio
3.4
F21"
Touchscreen: Resistive, Capacitive P.14
3.5 48V, 24V or 12VDC power P.15
3.6 MIL-type or lockable connector P.16
Before Installation
It is very important to mount the equipment in a suitable cabinet or on a stable surface.
Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
4k Caution :
To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can scratch or damage your display. Pressure damage is not covered under warranty.
Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to clean monitors and monitor screens can scratch the LCD display or strip off the finish.
Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly onto the screen or case can cause damage which is not covered under warranty.
Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps : ® Disconnect the power
cord.
® Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps : © Disconnect the power
cord.
© Spray a small amount of non-abrasive cleanser on a microfiber cloth.
^^ Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
* microfiber cloth first, not directly on the parts you are cleaning.
® Gently wipe the surface. Use as little pressure as possible. ® Wait until your monitor is completely dry before plugging it in and powering it up.
< Part 1 > < 1.1 > Package Content
NPW8215 unit X1
- 6ft VGA cable X1
- Power adapter X 1
- Power cord X 1
- Fastener screw for rear bracket x 2
< 1.2 > Structure Diagram
Front view
Rear view
0 LCD panel © LCD membrane ® Latch to release the display panel from the
rear bracket @ Rear mounting bracket (D Power adapter basket
Power adapter
Power cord
DVI-D
Pnwrr RMP "i Virirn VHA
HDMI DVI-D HDMI
°( a s~]°
9 o 0 © o © #^%»
ni it in in ^^ ^^ ^s^ ^- A
HDMI
°( a s~]°
Video PC
HDMI
Basic I/O :DVI-D + VGA + HDMI w/speaker
AV3.0 upgrade : DVI-D + VGA + HDMI + BNC + S-Video + audio
Options : SDI, USB for touchscreen & DC power
P.1
< 1.2 > Dimension
Front View
Side View
64,4
en
in
CO
0^ OJ
477,5
en
in
CO
en
in
CO
§>
en
in
CO
® -
/
- * 7 - $
§>
en
in
CO
501,9
507,9
37.6
LJ
Rear View
UNIT: mm
1mm =
0.03937
inch
Bottom View
0 o o
I o
A I
°no0 0
<C2^ O @ O ©@©
4C3* °
°
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
NPW8215
501.9x64x353 mm
19.8x2.5x13.9"
555 x124 x537 mm
21.9x4.9x21.1"
10.3 kg
22.7 lb
12.7 kg
27.9 lb
P.2
< 1.3 > VESA mount Installation
M4 screw
100
VESA mount (100*100mm
Hardware and M4*4 pcs for VESA mount are not provided
P.3
< 1.3 > Rear Mounting Bracket Installation
Step O
Mount the rear bracket with M6 screw set.
8 x M6 screw set are required.
M6 screw sets are not provided.
Step O
Insert the upper part of the NPW8215 display panel into the rear bracket.
Step O
Push the lower part of the NPW8215
display panel into the rear bracket.
Step O
Fix the NPW8215 display panel into the rear bracket with two fasteners ( Left & right side ).
Lock the NPW8215 display panel by the latch ( on the bottom left & right side ).
P. 4

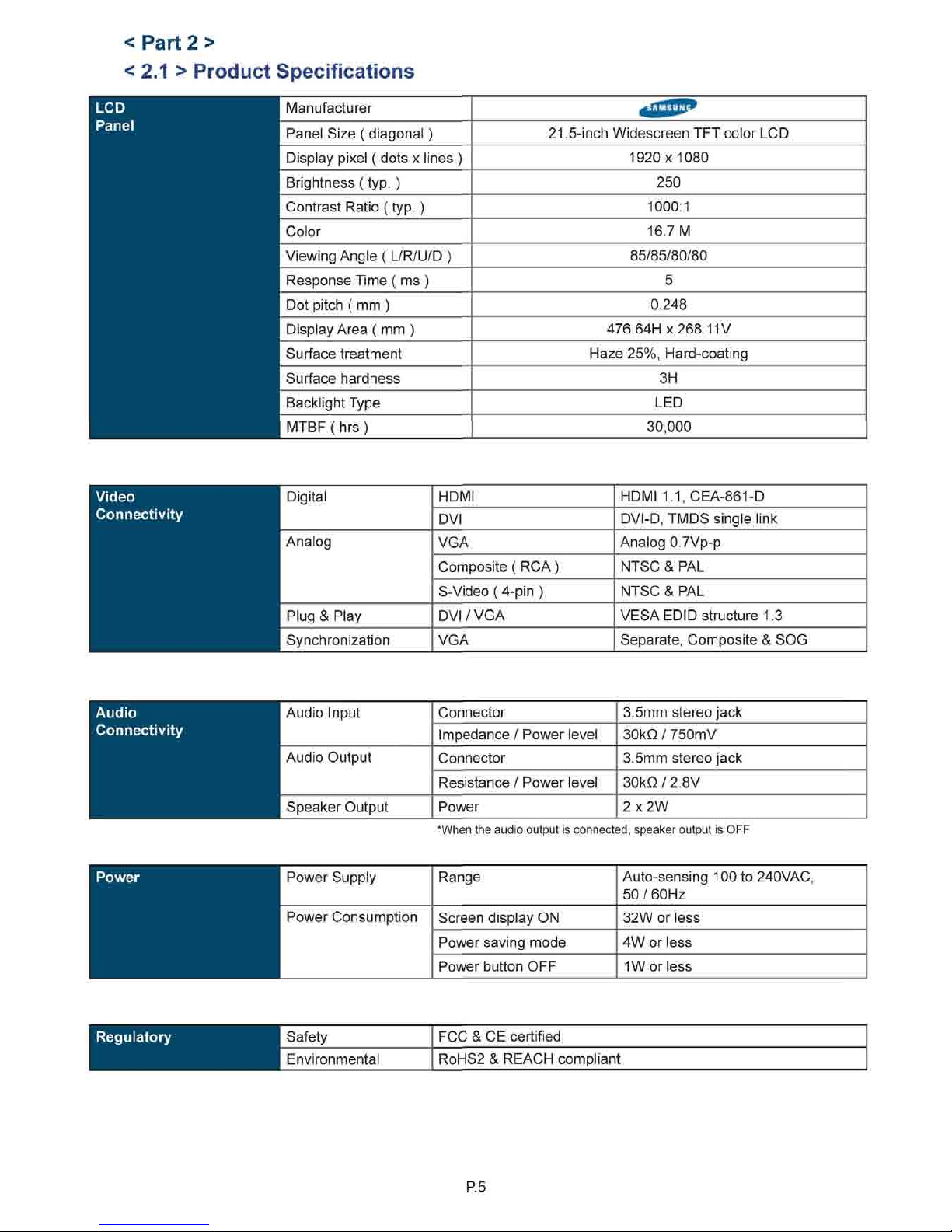

< Part 2 > < 2.1 > Product Specifications
Manufacturer
^^ H^
Panel Size ( diagonal)
21.5-inch Widescreen TFT color LCD
Display pixel ( dots x lines )
1920x1080
Brightness (typ. )
250
Contrast Ratio (typ. )
1000:1
Color
16.7 M
Viewing Angle (L/R/U/D)
85/85/80/80
Response Time ( ms )
5
Dot pitch ( mm )
0.248
Display Area ( mm )
476.64HX 268.11V
Surface treatment
Haze 25%, Hard-coating
Surface hardness
3H
Backlight Type
LED
MTBF ( hrs )
30,000
Video Connectivity
Digital HDMI HDMI
1.1.CEA-861-D
DVI
DVI-D,
TMDS single link
Analog
VGA
Analog
0.7Vp-p Composite ( RCA) NTSC & PAL S-Video
(4-pin ) NTSC & PAL
Plug & Play DVI / VGA
VESA EDID structure 1.3
Synchronization VGA
Separate, Composite & SOG
Audio Connectivity
Audio Input
Connector
3.5mm
stereo jack
Audio Input
Impedance / Power level 30kO / 750mV
Audio Output
Connector
3.5mm
stereo jack
Audio Output
Resistance / Power level
30kQ / 2.8V
Speaker Output
Power 2x2W
'When the audio output is connected, speaker output is OFF
Power Supply
Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption
Screen display ON 32W or less
Power Consumption
Power saving mode 4W or less
Power Consumption
Power button OFF 1Wor less
Regulatory
Safety
FCC & CE certified
Environmental
RoHS2 & REACH compliant
P.5
Environmental
Conditions
_
Operating Temperature 0 to 50°C degree Operating
Humidity
20-90%,
non-condensing
Storage
Temperature -5 to 60°C degree
Storage
Humidity 5-90%, non-condensing
Storage
Shock 10G acceleration (11ms duration)
Storage
Vibration
5-500Hz
1G RMS random
Physical
Specification
Product ( W x D x H )
501.9x64x353 mm
Product ( W x D x H )
19.8x2.5 x 13.9 inch
Packing (WxDxH )
555 x124 x537 mm
Packing (WxDxH )
21.9x4.9x21.1 inch Net Weight 10.3 kgs/ 22.7 lbs Gross Weight 12.7 kgs/27.9 lbs
Applicable
Format
DVI-D/VGA Input PC Signal
1920 x1080 x60Hz
DVI-D/VGA Input PC Signal
1360 x768 x60Hz
DVI-D/VGA Input PC Signal
1280 x 1024 x 60 / 75Hz
DVI-D/VGA Input PC Signal
1280 x960 x60Hz
DVI-D/VGA Input PC Signal
1280x768x60/75Hz
DVI-D/VGA Input PC Signal
1152 x864 x75Hz
DVI-D/VGA Input PC Signal
1024x768x60/70/75Hz
DVI-D/VGA Input PC Signal
848 x 480 x 60Hz
DVI-D/VGA Input PC Signal
800 x 600 x 60 / 72 / 75Hz
DVI-D/VGA Input PC Signal
720 x 400 x 70Hz
DVI-D/VGA Input PC Signal
640 x 480 x 60 / 72 / 75Hz
DVI-D/VGA Input PC Signal
640 x 400 x 70Hz
DVI-D/VGA Input PC Signal
640 x 350 x 70Hz
HDMI Input
PC Signal Same as VGA
HDMI Input
Video Signal
1080p : 50 / 60Hz
HDMI Input
Video Signal
1080i : 50 / 60Hz
HDMI Input
Video Signal
720p
:50/60Hz
HDMI Input
Video Signal
480p
:60Hz
HDMI Input
Video Signal
576p :50Hz
HDMI Input
Audio Signal 2ch Linear PCM ( 32 /
44.1
/ 48 KHz )
P.6
< 2.2 > On-screen Display Operation ( OSD )
Membrane Switch
Function
6
Turn the monitor on or off
DCZI
DCZI
DCZI
Display the OSD menu Act as an Enter key to select screen setting options
A V <
>
Scroll through menu options and adjust the displayed control
^
Exit the OSD screen Go back to the previous on-screen sub-menu or main menu
Remark : All LED touch buttons in WHITE light.
The LED of Power A touch button will flash continuously when there is no signal input.
(T) All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power Q ).
(D Light up all membrane buttons, please press any button for 1 - 2 seconds (except the Power @ ).
(T) Picture
Picture mode : Standard / Vivid / Soft / User mode to choose Brightness : Adjust background black level of the screen image Contrast: Adjust the difference between the image background
(black level) and the foreground (white level)
Hue:
Adjust the screen hue value Saturation : Adjust the saturation of the image color Picture size : Adjust the image size Color temp : Standard / Cool / Warm / User to choose Noise reduce : Reduce the noise of the image
Sharpness : Adjust the image from weak to sharp
Brightness Contrast Hue Saturation Picture size Color temp Noise reduce Sharpness
P. 7
< 2.2 > On-screen Display Operation ( OSD )
© PC
Auto adjust
Clock : Phase :
H. Position
V. Position :
Automatically adjust sizes, centers and fine tunes the video signal to eliminate waviness and distortion.
Adjust the clock value Adjust the phase value Align the screen image left or right Align the screen image up or down
ajto adjust
Clock
PC [> Phase
H positive
V positive
® Audio
Audio mode Volume :
Bass : Treble : Balance :
Movie / Voice / Normal / Music mode to choose Adjust the volume of sound
Set the value of bass sound
Set the value of treble sound
Set the balance value of treble and bass sound
Analog TV audio : Set the value of analog TV audio sound
Mute : Turn off the surrounding sound
* *
HAudio mode
Volume Audio track
M) Audio
Bass
> Treble
Balance Analog TV audio Mute
0 MISC
Language :
Sleep timer: PIP mode : PIP position :
PIP source : System reset Information :
Select the language in which the OSD menu is displayed - English Set the off time
Adjust picture in picture setting
Enter into PIP position Enter into the Sub source and sound source Return the adjustment back to factory setting Select for Help
Language
Sleep timer PIP mode PIP position PIP source System reset Information
P.8
< 2.3 > How to Use Picture In Picture ( PIP ) /
Picture By Picture ( PBP )
< 2.3.1 > Picture in Picture ( PIP )
Mode
Display the Sub screen in the Main screen. OSDMenu -> MISC - PIP Mode -> Large / Small / OFF
Main screen
Sub screen
Position
Adjust the position of the Sub screen (top left, bottom left, top right, bottom right) OSDMenu -> MISC -> PIP Position -> top left / top right / bottom left / bottom right
top left
top right
bottom left
bottom right
Size
Adjust the size of the Sub screen ( Large / Small ) OSDMenu -» MISC -> PIP Mode -> Large / Small
Size of Sub screen
LCD Monitor Large Sub screen
Small Sub screen
1920x1200 552x414 480 x 360 1920x1080 552x414 480 x 360 1440x900 414x310 360 x 270 1366x768 392 x 294 340 x 254 1280x1024 368 x 276 320 x 240
P.9
< 2.3.2 > Picture By Picture ( PBP )
Mode
Display the Sub screen next to the Main screen. OSDMenu -> MISC -> PIP Mode - PBP
Main screen
Sub screen
Size
LCD Monitor Main / Sub screen
1920x1200 955x716 1920x1080 955x716 1440x900 715x536 1366x768 678 x 508 1280x1024
635 x 476
< 2.3.3 > PIP / PBP Source
To select an input signal for PIP / PBP Sub screen. OSDMenu -> MISC -> PIP Source - VGA /
S-Video
/ Composite / DVI / HDMI / SDI / YPbPr / TV
The PIP / PBP is operable in the following table :
""""""^^ Sub
VGA
S-Video
Composite
DVI-D HDMI SDI YPbPr
TV
Main ^^^^
VGA S-Video Composite
DVI
HDMI SDI YPbPr
VGA
S-Video
Composite
DVI-D HDMI SDI YPbPr
TV
Main ^^^^ VGA
S-Video Composite
DVI
HDMI SDI YPbPr
X 0 0
0 O 0 0 0
Main ^^^^ VGA
S-Video Composite
DVI
HDMI SDI YPbPr
O
X X 0 O 0 0
X
Main ^^^^ VGA
S-Video Composite
DVI
HDMI SDI YPbPr
0
X X 0 0 0 0
X
Main ^^^^ VGA
S-Video Composite
DVI
HDMI SDI YPbPr
0 0 0
X X 0 0 0
Main ^^^^ VGA
S-Video Composite
DVI
HDMI SDI YPbPr
0 0 0
X X 0 0 0
Main ^^^^ VGA
S-Video Composite
DVI
HDMI SDI YPbPr
0
0 0
0 0
X X 0
Main ^^^^ VGA
S-Video Composite
DVI
HDMI SDI YPbPr
0 0 0
0 0
X X
0
TV
0 X X
0 0 0 0 X
P.10
< Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input
iTechLCDs' SDI input is an ideal solution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with NetView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, iTechLCD provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
DVI-D
Audio
i 1
o o o
out - in - in
Video PC
l HfflJoj
Audio
i 1
o o o
out - in - in
Video PC
SDI
Power BNC S-Video VGA
©
out © - in
HDMI
© © © cp^Jp ©
out © - in
P=^fl
ForSDI option, the AD board will be upgraded to
AV3.0,
and this comes standard with
HDMI,
DVI-D,
VGA, S-Video, BNC and audio inputs.
3G-SDI IN 3G-SDI OUT
BNCxI /0.8Vp-p(75ohm) BNC x 1 /Active through, equalized & relocked
Standard Compliance
Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Standard Compliance
Audio SMPTE 299M / 272M-C
Compatible Video Format
3G-SDI 1080p @60/50Hz, 4:2:2
1080p @30 / 25/24Hz, 4:4:4 1080i @60/50Hz, 4:4:4 720p @60/50Hz, 4:4:4
Compatible Video Format
HD-SDI 1080p @30 / 25/24Hz, 4:2:2
1080i @60/50Hz, 4:2:2 720p @60/50Hz, 4:2:2
Compatible Video Format
SD-SDI 480i @60Hz, 4:2:2
Compatible Video Format
ITU-R BT.656 576i @50Hz, 4:2:2
Compatible Audio Format
3G-SDI
48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video Compatible Audio Format
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
Compatible Audio Format
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Max. Transmission Distance 75 ohm coaxial cable
3G-SDI 150mat2.97Gb/s Max. Transmission Distance
75 ohm coaxial cable
HD-SDI 250mat1.485Gb/s
Max. Transmission Distance 75 ohm coaxial cable
SD-SDI
480mat270Mb/s
P.11
< 3.2 > Options : MCS ( Multi-display Control)
More control is always good. Especially when it is necessary and easy. iTechLCD provides MCS solution to control the OSD of various NetView LCD display up to 64 units.
The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus is used for the various LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters.
Designed for use with NetView LCD displays, iTechLCD provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty.
HDMI
B O O O ©
Audio
p0Wer
BNC
S-Video
1
out - in - in
Video
PC
•■■•;
VGA
[QLJBJBLH
DVI-D
MCS
m
<£
set out
in
Link
***
Please download the protocol of MCS control
***
For MCS option, casing depth will be changed.
RS-232C
15 feet serial cable
( over 15 feet, extender required )
B
Set switch
For the 1st and last display, push the set switch upward
For other daisy chain displays, push the set switch downward.
'L
A,;.*4
ii §1
LINK
OUT IN
1
t
OUT IN
J
t
OUT IN
I
t
Ol JT
111
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 meters
RJ-45 jack
Daisy chain up to 1,000 meters and 64 displays
up to 64 displays
P.12
< 3.3 > AV3.0 Upgrade Options :
- AV ( S-Video + Composite, BNC )
- Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
DVI-D ,
Aud
'° , Power BNC S-Video VGA HDMI
2.9.9 © ®© <mp ssa
i HHJ°]
out - in - in
Video PC
P.13
< 3.4 > Options : Touchscreen & driver p|
F21.5"
USB Touchscreen Specification
Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
TRB
e-Resistive
TCB
e-Capacitive
Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
5-Wire
Resistive Capacitive
Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
Single
Single
Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
Stylus or Finger
Finger
Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
<50g/Stylus=R0.8 ^50g
Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
10 million touches 300 million touches
Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
15 ms
20 ms
Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
80%
± 3%
87%
±2%
Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
3H
9H
Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
8% ± 3%
7%
Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
3.2 ±0.2 mm
2.8 mm ±10%
Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
USB Type A
Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
Windows
7/XP/Vista
Linux
USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc For detailed information, please refer to the attached CD disc
As the touchscreen unit is not made of toughened glass, please handle it carefully
USB Touchscreen
III
11 ll
DVI-D Power
e
VGA
cfejp
HDMI
III
11 ll
l HHJ°l
Power
e
VGA
cfejp
HDMI
III
11 ll
Power
e
VGA
cfejp
HDMI
III
11 ll
Power
e
HDMI
TRB & TCB Driver
Please follow the below steps to setup the touch screen Step 1. Run the bundled CD disc or download the driver
Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to finish the setup Step 4. After installation, run the TouchKit program & the "4 point calibration"
Please do the initial calibration
after the first setup
P.14
+ -
< 3.5 > Options : DC Power ofsTelo
Model
12V 24V
48V
Input rating
Input voltage: 12-Volt
24-Volt 48-Volt
Input range:
9-18V 18-36V
36 ~ 75V
Input current
- No load
50 mA
50 mA
50 mA
- Full load
4950 mA 2450 mA
1220 mA
Output rating
Output voltage:
12-Volt 12-Volt
12-Volt
Output current:
4.16A 4.16A
4.16A
Efficiency
84%
85%
85%
P.15
< 3.6 > Options : MIL-type or Lockable Connector
Input | Part no. 1 MIL Standard
MIL - type
Connector
DC Power *** ( Male )
MS3470W8-33P f^^D
0
MIL -DTL- 26482
MIL - type
Connector
VGA *** ( Male )
MS3470W14-15P ^^tf
%
MIL-DTL-26482
MS3470W14-15P ^^tf
%
MIL-DTL-26482
There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design flexibility possible. For more information, please contact us.
Input Part no. Standard
Lockable
Connector
DC Power ( Male )
YM-Ext-461CP001
D-type
3W3
Lockable
Connector
USB LUSB-A111 -00 _ USB LUSB-A111 -00 _
MIL - type or Lockable connectors above can be integrated with our LCD displays.
Sale service just for connectors not provided.
j-TECH
i-Tech
Company LLC
COMPANY
TOLL FREE: (888) 483-2418 * EMAIL: info@iTechLCD.com * WEB: www.iTechLCD.com
P.16
Loading...
