I-Tech NP117, NP119 User Manual

Dedicated KVM switch and rackmount screen technology
User Manual
17 / 19 LCD
NP117/NP119
1U
Drawer
Options
:
-AV / HDMI / Audio
- Touchscreen
/ DC
power
m
C
i-Tech
Company
LLC
TOLL
FREE:
(888) 483-2418 EMAIL: info@iTechLCD.com WEB: www.iTechLCD.com
Legal Information
First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
Safety Instructions Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
Unplug equipment before cleaning. Don't use liquid or spray detergent; use a moist cloth.
Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with temperatures not exceeding 40° Celsius (104° Fahrenheit).
When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing damage to other equipment or injury to persons nearby.
When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the power supply. Proper air convection is necessary to keep it from overheating.
Arrange the equipment's power cord in such a way that others won't trip or fall over it.
If you are using a power cord that didn't ship with the equipment, ensure that it is rated for the voltage and current labeled on the equipment's electrical ratings label. The voltage rating on the cord should be higher than the one listed on the equipment's ratings label.
Observe all precautions and warnings attached to the equipment.
If you don't intend on using the equipment for a long time, disconnect it from the power outlet to prevent being damaged by transient over-voltage.
Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power supply or on other hardware may cause damage, fire or electrical shock.
Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and invalidate its warranty.
If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
Any product, on which the serial number has been defaced, modified or removed.
Damage, deterioration or malfunction resulting from: D Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product. Repair or attempted repair by anyone not authorized by us. Any damage of the product due to shipment.
Removal or installation of the product. Causes external to the product, such as electric power fluctuation or failure. Use of supplies or parts not meeting our specifications. Normal wear and tear. Any other causes which does not relate to a product defect.
Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Re-position or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Contents
<Part. 1 > NP117/NP119
1.1 Package Content
P.
1
1.2 Structure Diagram & Dimension P.1
1.3 Installation P.3
< Part. 2 > Specifications / OSD
2.1 Product Specifications P.4
2.2 On-screen Display Operation (OSD ) P.6
< Part. 3 > Options
3.1
HDMI,
S-Video + BNC & Audio P.8
3.2 17" /19" Touchscreen : Resistive, Capacitive P.9
3.3 48V, 24V or 12VDC power P.1
Before Installation
It is very important to mount the equipment in a suitable cabinet or on a stable surface.
Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
4k Caution :
To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can scratch or damage your display. Pressure damage is not covered under warranty.
Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to clean monitors and monitor screens can scratch the LCD display or strip off the finish.
Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly onto the screen or case can cause damage which is not covered under warranty.
Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps : ® Disconnect the power
cord.
® Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps : © Disconnect the power
cord.
© Spray a small amount of non-abrasive cleanser on a microfiber cloth.
^^ Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
* microfiber cloth first, not directly on the parts you are cleaning.
® Gently wipe the surface. Use as little pressure as possible. ® Wait until your monitor is completely dry before plugging it in and powering it up.
< Part 1 > < 1.1 > Package Content
NP117/NP119unit X1
- 6ft VGA cable X1
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
The above package content is only for the pure model ( VGA and DVI-D only ). It varies with options such as HDMI, AV, audio, touchscreen & DC power.
< 1.2 > Structure Diagram
O O
© LCD panel © Installation Slide © Audio speaker (for HDMI
or Audio
option
© LCD OSD membrane © Carry handle to release the 2-pt lock © 2-pointlock
P.1
< 1.2 > Dimension
Front View
£
'I
\ / |t ?
3
'I
/ \
441.6
19*Racknount
s
ide View
21.4
e
000
•2|
500
UNIT: mm
1mm = 0.03937 inch
Top View
p
£ if
I
ID ID
>
<
A
vO
111
-<r
U
^r
»
s
ID
I
-
DO
I
"
(jj
[L
500
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
NP117 series
441.6x500x44 mm
17.4x18.9x1.73"
588 x758 x120 mm
23.1 x 29.8x4.7"
10.5 kg 23 lb
16.5 kg
36 lb
NP119 series
441.6x500x44 mm
17.4x19.7x1.73"
588 x758 x120 mm
23.1 x 29.8x4.7"
12.5 kg 28 lb
18.5 kg 41 lb
The weight is only for the pure models. It varies with accessories & options such as HDMI, AV, audio, touchscreen & DC power.
P.2
nstall
Installation Slides
Step O
Insert the left and right rear mounting brackets into
the display drawer.
Step O
Measure the depth of the front and rear mounting rails.
Align each rear mounting bracket to a suitable length.
Step O
Complete the installation
Fix the display drawer into the rack.
Mm M6 screw, cage nut & cup washer x 8 are provided.
P. 3
< Part 2 > < 2.1 > Product Specifications
NP117 NP119
Manufacturer
AJO AJO
Panel Size ( diagonal)
17-inch TFT color LCD 19-inch TFT color LCD
Display pixel ( dots x lines )
1280x1024 1280x1024
Brightness (typ. )
250 250
Contrast Ratio (typ. )
1000:1 1000:1
Color
16.7 M 16.7 M
Viewing Angle (L/R/U/D)
80/80/80/80 85/85/80/80
Response Time ( ms )
5 5
Dot pitch ( mm )
0.264 0.294
Display Area ( mm )
337.92H x 270.33V 376.32Hx301.06V
Surface treatment
Haze 25%, Hard-coating
Surface hardness
3H 3H
Backlight Type
CCFL LED
MTBF ( hrs )
50,000 30,000
Video Connectivity
Digital HDMI HDMI
1.1.CEA-861-D
DVI
DVI-D,
TMDS single link
Analog
VGA
Analog
0.7Vp-p Composite ( BNC ) NTSC & PAL S-Video
(4-pin ) NTSC & PAL
Plug & Play DVI / VGA
VESA EDID structure 1.3
Synchronization VGA
Separate, Composite & SOG
Audio Connectivity
Audio Input
Connector
3.5mm
stereo jack
Audio Input
Impedance / Power level 30kO / 750mV
Audio Output
Connector
3.5mm
stereo jack
Audio Output
Resistance / Power level 30kQ / 2.8V
Speaker Output
Power 2x2W
"When the audio output is connected, speaker output is OFF
Power Supply
Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption
Screen display ON 25W or less
Power Consumption
Power saving mode 4W or less
Power Consumption
Power button OFF
1Wor less
Regulatory Safety
FCC & CE certified
Environmental
RoHS2 & REACH compliant
R4
Operating Temperature 0 to 50°C degree Operating
Humidity
20-90%,
non-condensing
Storage
Temperature -5to60°Cdegree
Storage
Humidity 5-90%, non-condensing
Storage
Shock 10G acceleration (11ms duration)
Storage
Vibration
5-500Hz
1G RMS random
NP117 NP119
Product ( W x D x H )
441.6x500x44 mm
17.4x19.7x1.73 inch
441.6x500x44 mm
17.4x19.7x1.73 inch
Packing (WxDxH )
588 x 758 x 120 mm
23.1 x 29.8x4.7 inch
588 x 758 x 120 mm
23.1 x 29.8x4.7 inch Net Weight 10.5 kgs/23 lbs 12.5 kgs/28 lbs Gross Weight 16.5 kgs/ 36 lbs 18.5 kgs/41 lbs
DVI-D/VGA Input PC Signal
1280 x 1024 x 60 / 75Hz
DVI-D/VGA Input PC Signal
1280 x960 x60Hz
DVI-D/VGA Input PC Signal
1280x760x60/75Hz
DVI-D/VGA Input PC Signal
1152 x864 x75Hz
DVI-D/VGA Input PC Signal
1024x768x60/70/75Hz
DVI-D/VGA Input PC Signal
848 x480 x60Hz
DVI-D/VGA Input PC Signal
800 x 600 x 60 / 72 / 75Hz
DVI-D/VGA Input PC Signal
720 x 400 x 70Hz
DVI-D/VGA Input PC Signal
640 x 480 x 60 / 72 / 75Hz
DVI-D/VGA Input PC Signal
640 x 400 x 70Hz
DVI-D/VGA Input PC Signal
640 x 350 x 70Hz
P.5
< 2.3 > On-screen Display Operation ( OSD )
:= t>
Membrane Switch Function
6
Turn the monitor on or off
DCZI
Dl=l
Display the OSD menu Act as an Enter key to select screen setting options
A V < >
Scroll through menu options and adjust
the displayed control
S
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Remark : All LED touch buttons in WHITE light.
The LED of Power ft touch button will flash continuously when there is no signal input.
(T) All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power @ ).
@ Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power © ).
P.6
< 2.3 > On-screen Display Operation ( OSD )
OSD Configuration Page
Ver: G56SN20SSTD701 1024x768 59.8Hz
Mi
Brightness [1
Contrast J
Color Temp User
Red I^^M
Green [I
Blue J
Adjust: Select:+ Set: ®/i=i
m
Image:
for the brightness, contrast, color
temp,
red, green, and blue
tJ3
Geometry:
for the auto adjust, H position, V position, phase and clock
to-
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
J>
Audio:
for volume, bass, treble, balance, AVL and mute
Misc
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
] 50
] 50
0 255
Q 255
Q 255
Exit: t
P.7
< Part 3 >
< 3.1 > Options :
- HDMI ( HDMI 1.1, CEA-861-D )
- AV ( S-Video + Composite, BNC )
- Audio (
3.5mm
audio jacks for audio in & out, and 2W + 2W speakers )
(1 ) Either HDMI or DVI-D can be selected. ( 2 ) For the above options, casing depth will be extended from 500mm (19.7" ) to 570mm ( 22.4" )
Power
Audio S-Video BNC
o o o © ©
in - in - out
HDMI [^
VGA
DVI-D
l HHI°]
ll i
\
Power
Audio S-Video BNC
o o o © ©
in - in - out
HDMI [^
VGA
DVI-D
l HHI°]
N
=
)
Power
Audio S-Video BNC
o o o © ©
in - in - out
HDMI [^
VGA
Audio S-Video BNC
o o o © ©
in - in - out
HDMI [^
VGA
PC Video
P.8

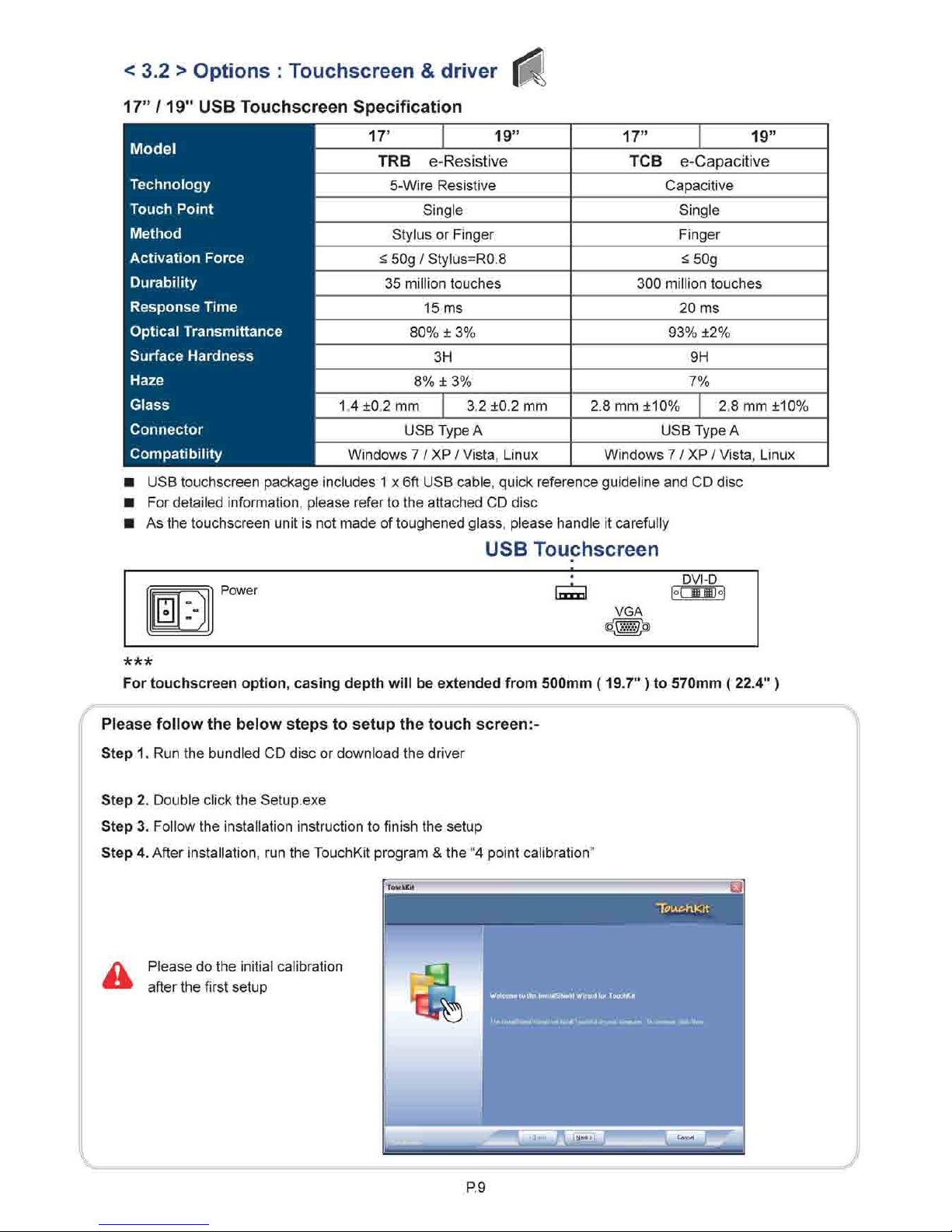

< 3.2 > Options : Touchscreen & driver 0^
17"
/19" USB Touchscreen Specification
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
17'
19"
17"
19"
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
TRB
e-Resistive
TCB
e-Capacitive
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
5-Wire
Resistive Capacitive
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
Single Single
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
Stylus or Finger Finger
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
<50g/Stylus=R0.8 <50g
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
35 million touches 300 million touches
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
15 ms 20 ms
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
80%
± 3%
93%
±2%
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
3H 9H
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
8% ± 3% 7%
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
1.4 ±0.2 mm 3.2 ±0.2 mm 2.8 mm ±10% 2.8 mm ±10%
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
USB Type A USB Type A
Model
Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility
Windows 7 / XP / Vista, Linux Windows 7 / XP / Vista, Linux
USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc For detailed information, please refer to the attached CD disc
As the touchscreen unit is not made of toughened glass, please handle it carefully
USB Touchscreen
0
Power
Irrml
s
DVI-D
VGA
•kick
For touchscreen option, casing depth will be extended from 500mm (19.7" ) to 570mm ( 22.4" )
Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver
Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to finish the setup Step 4. After installation, run the TouchKit program & the "4 point calibration'
Please do the initial calibration after the first setup
m
"Tbu^hKit
P.9
<
3.3 >

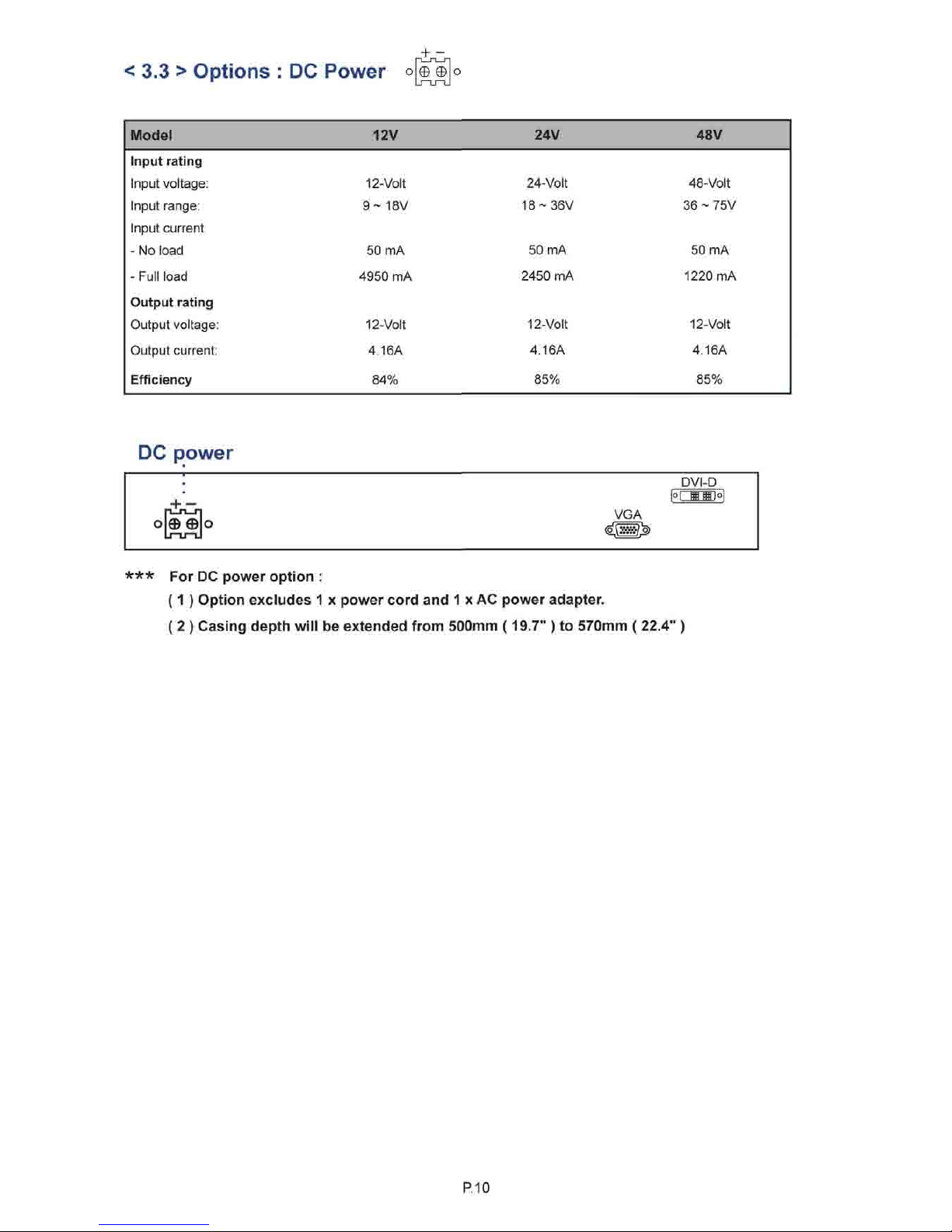

Options
: DC
Power
Model 12V
24V 48V
Input rating
Input voltage: 12-Volt
24-Volt 48-Volt
Input range: 9-18V
18-36V 36 ~ 75V
Input current
-
No
load 50 mA
50 mA 50 mA
- Full load 4950
mA
2450
mA
1220 mA
Output rating
Output voltage: 12-Volt
12-Volt 12-Volt
Output current: 4.16A
4.16A 4.16A
Efficiency
84%
85%
85%
DC power
***
For DC power option :
(1 ) Option excludes 1 x power cord and 1 x AC power adapter. ( 2 ) Casing depth will be extended from 500mm (19.7" ) to 570mm ( 22.4" )
P.10
I-TECH
COMPANY
i-Tech
Company LLC
TOLL FREE: (888) 483-2418 EMAIL: info@iTechLCD.com WEB: www.iTechLCD.com
Loading...
