Page 2
Content
Introduction...................................................................................................... 3
Hardware Installation........................................................................................ 3
The Display Timing........................................................................................... 5

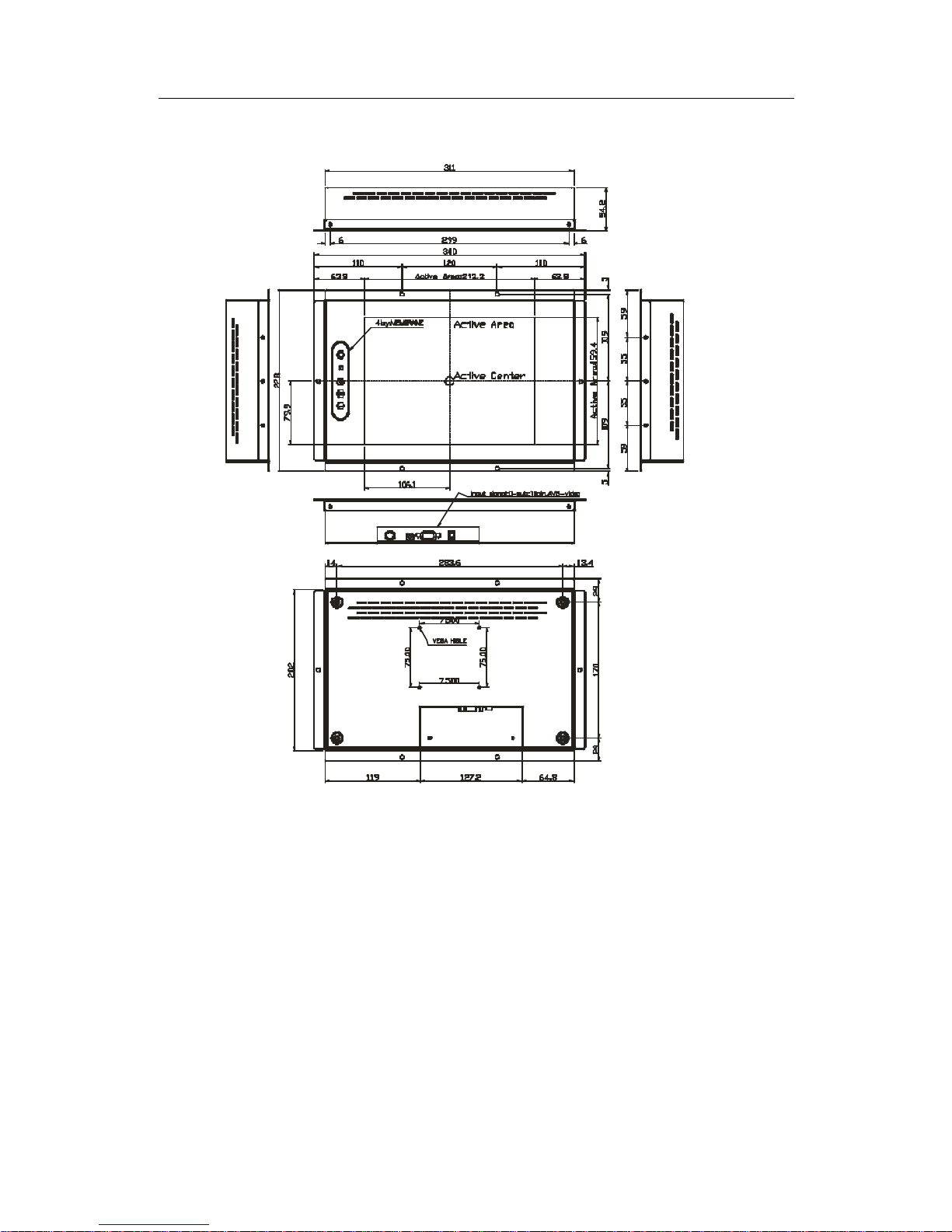

The Display Outline Dimensions....................................................................... 6
The Display Controls........................................................................................ 7

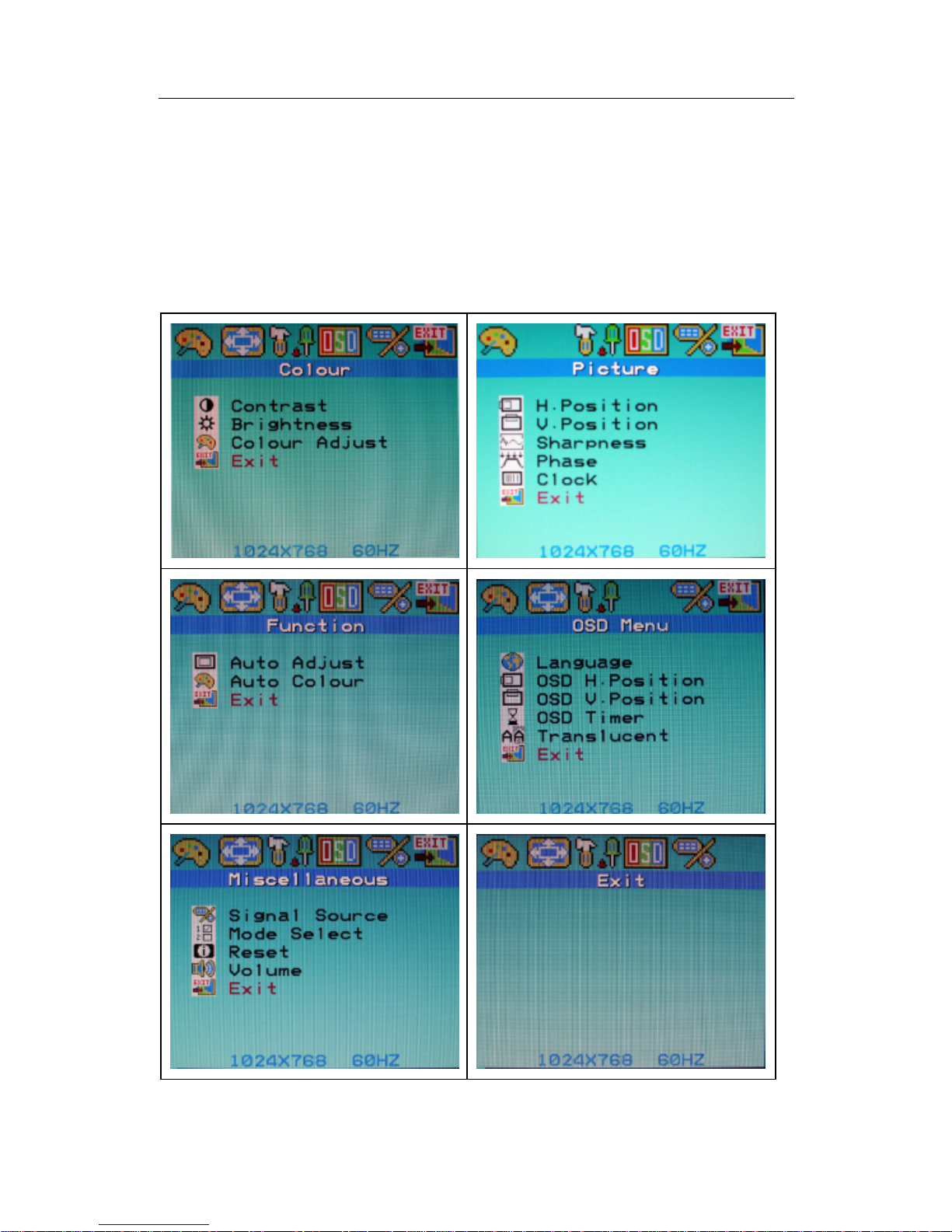

The Screen Adjustment.................................................................................... 8
Troubleshooting Tips...................................................................................... 10

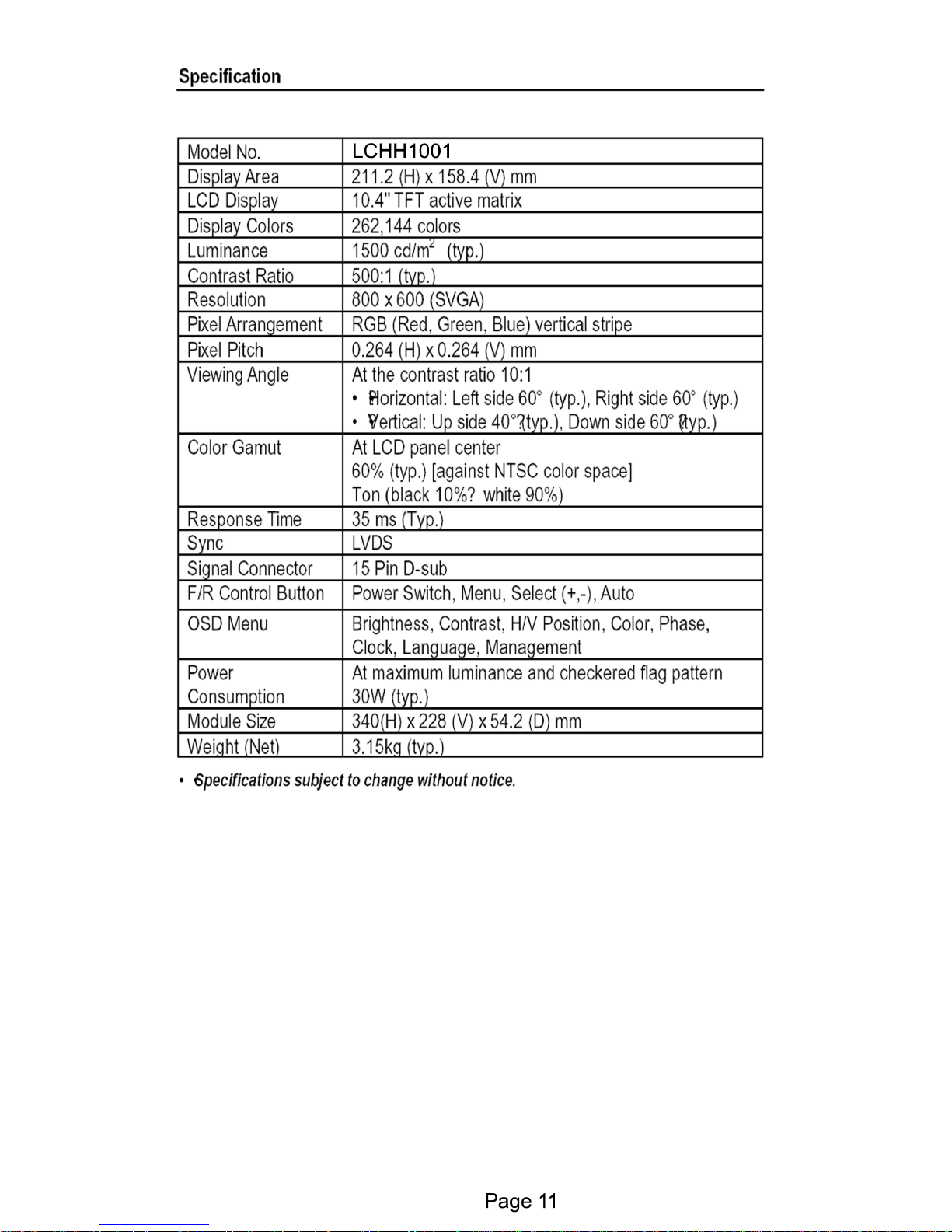

Specification....................................................................................................11
Product Safety Precautions............................................................................ 12
Page 3
Introduction
Welcome to enjoy the fantastic sightseeing world. This new technology will
bring you the whole new feeling about the “monitor”. We show here some of
the major advantages of the LCD monitor. You will really find some other
advantages when you use it.
Hardware Installation
This chapter will guide you the correct installation procedures of your LCD
monitor.
Unpacking
After you unpack your LCD Monitor, please make sure that the following items
are included in the carton and in good condition. If you find that any of these
items are damaged or missing, please contact your dealer immediately.
One LCD Monitor
15-pin D-sub Video cable (Option)
AC/DC adapter with 12V DC output (Option)
AC power cord (Option)
Quick installation Guide
Installation
This analog LCD display does not require any special drivers. Necessary
drivers are supplied by the video card manufacturer and may be found on the
diskettes supplied with the video card that came with your computer. Windows
98/2000/XP drivers for both the display and the video card are supplied on the
Windows 98/2000/XP CD or diskettes. Unfortunately, Microsoft did not provide
a complete listing of the displays on the initial retail release. You may use the
standard XGA (1024x768) as the display type. The video card must also be set
up correctly in Windows 98/2000/XP and make sure the video output of the VGA
card is on list in Section 6.1 or check your Video Card manual or Windows
98/2000/XP Read me file for further information on Video Card. After the
question listed above is solved, we continue the setup procedure as below.
1. Turn power off both Computer and Display before making any connection.
2. Install Display on the solid horizontal surface such as a table or desk.
3. Connect the power cable and the AC/DC adapter, then connect adapter toe
the back of the LCD monitor.
4. The LCD monitor comes with a 15-pin video cable; you may use this cable
for both IBM PC’s & compatibles and Macintosh.
5. Tighten the screws of the Display cable until the connectors are fastened
securely.
6. Switch on power to the Computer system, then to the monitor.
Page 4
The following picture provides the connection outline
Video Input Pin Assignment
This section describes the pin assignment of the LCD’s video connector. It is
called 15pin Mini D-sub connector.
110 6
11515
Pin No. Signal Connector
1 Red Video Signal
2 Green Video Signal
3 Blue Video Signal
4 N.C.
5 Ground
6 Ground for red video signal
7 Ground for green video signal
8 Ground for blue video signal
9 N.C.
10 Ground
11 N.C.
12 DDC data
13 Horizontal sync signal
14 Vertical sync signal
15 DDC clock
