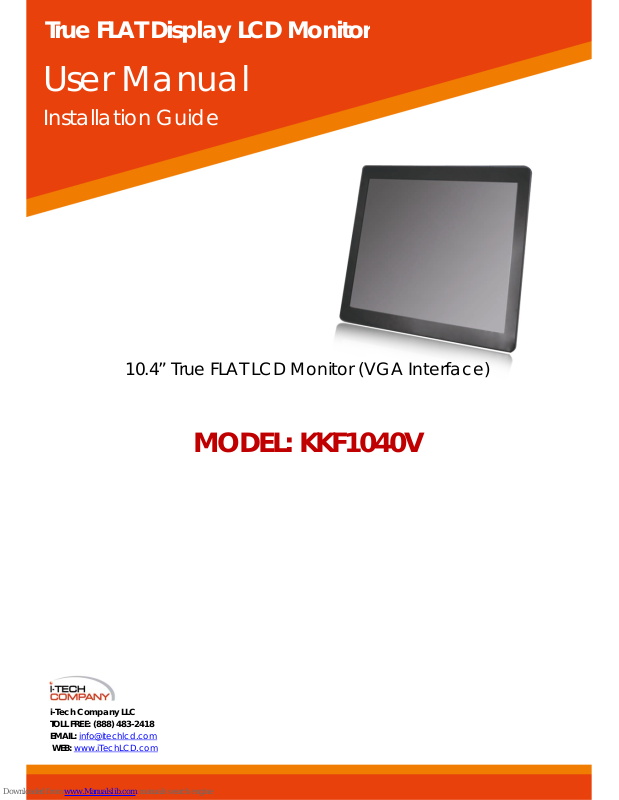

True FLAT Display LCD Monito
r
User Manual
Installation Guide
10.4” True FLAT LCD Monitor (VGA Interface)
MODEL: KKF1040V
i-Tech Company LLC
TOLL FREE: (888) 483-2418
EMAIL: info@itechlcd.com
WEB: www.iTechLCD.com
UUsseerr MMaannuuaall // IInnssttaallllaattiioonn GGuuiiddee
1100..44"" TTrruuee FFllaatt MMoonniittoorr ((VVGGAA iinntteerrffaaccee))
It will cause malfunction if the monitor is operating with unspecified power supply unit or
incorrect power voltage. Do not exposure this unit in the rain or moisture environment to reduce the risk
of fire or electric shock.
Contents
I.
FCC Warning Statement..............................................................................................2
II. Introduction...................................................................................................................3
Features................................................................................................................................................................3
Unpacking the monitor........................................................................................................................................3
III. Installation.....................................................................................................................5
I/O placement.......................................................................................................................................................5
To PC...................................................................................................................................................................5
Touch Driver installation （for Touch model only） ........................................................................................6
Control Buttons..................................................................................................................................................10
IV. For your safety ............................................................................................................10
V. Support timing chart...................................................................................................11
VI. Mechanical dimension................................................................................................11
VII. Product General Specification...................................................................................12
Warning!
2
I. FCC Warning Statement
WARNING
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Notice:
(1) An Unshielded-type power cord is required in order to meet FCC emission limits and also to prevent
interference to the nearby radio and television reception. It is essential that only the supplied power
cords are used.
(2) Use only shielded cables to connect I/O devices to this equipment.
(3) Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
3
II. Introduction
The 10.4" True Flat Monitor is color TFT LCD monitors, with compact and ecological design.
The power consumption is only 6W with LED backlight.
Features
- Optimal display resolution 800 * 600
- No ventilation hole design
- Light weight, only 800g physically for 10.4" True Flat Monitor.
- VESA 75 * 75 mm wall mount standard
- Integrate with resistive touch
Unpacking the monitor
- Put the monitor on a clean surface; make sure the box in upright position.
- Remove packing materials from inside of box.
Check accessory
Please make sure all the accessory are included:
True Flat Monitor
a. b. c. d.
a. LCD Monitor b. Power adaptor
c. VGA cable（ 8 PIN Mini DIN cable ）
d. User Manual CD
4
True Flat Monitor with stand
a. b. c. d.
True Flat Touch Monitor
a. b. c.
d. e.
a. LCD Monitor b. Power adaptor
c. VGA cable（ 8 PIN Mini DIN cable）
d. User Manual CD
a. LCD Monitor b. Power adaptor
c. VGA cable（ 8 PIN Mini DIN cable ）
d. Touch driver / User Manual CD
e. USB Touch cable
5
III. Installation
I/O placement
1 VGA （DIN Type）
2 DC Input
3 USB Input （for Touch model only）
To PC
1. Connect VGA cable from monitor to PC
2. Connect USB touch cable to PC
3. Connect DC plug to monitor and the other side to wall outlet
1
2
3
6
Touch Driver installation （for Touch model only）
1. Double click “setup.exe” from driver menu 2. Click “next” from welcome window
3. Click “next” from choose destination location window 4. Click “next” from ready to install the program
5. Click “next” from setup type 6. Click “finish” when setup completed
7
Calibration procedures:
1. Double click “POS Touch+” icon to run calibration function
2. Follow 9 points linearity calibration procedures and save the data
3. Follow free draw calibration
4. Exit calibration menu
5. Reboot PC
8
OSD settings
First Level Second Level
Third
Level
Operating Procedure
Auto Adjust
Press “UP” or “DOWN” to adjust H-phase &
H-position & V-position clock automatically.
Brightness
Press “UP” key to increase brightness, “DOWN”
key to decrease brightness.
Contrast
Press “UP” key to increase contrast, “DOWN” key
to decrease contrast.
Luminance
Exit
H. Position
Press “UP” key to shift screen right, “DOWN” key
to shift screen left.
V. Position
Press “UP” key to shift picture upward, “DOWN”
key to shift picture downward.
Clock
Adjust sampling clock of analog to digital
converter until clock is equal to pixel frequency of
video input.
Phase
By varying this “UP” “DOWN” control the exact
sampling time within the pixel can be adjusted.
Geometry
Exit
9300K
6500K
5800K
Red
Gree
n
Blue
User Preset
Exit
Press “UP” or “DOWN” to choose three types of
color temperature 9300°k, 6500°k and user define.
Color
Exit
H. Position
Adjust OSD frame horizontal location, press “UP”
key to shift frame right, “DOWN” key to shift frame
left , timeout and preset OSD.
Main
Men
u
OSD
V. Position
A
djust OSD frame vertical location, press “UP” key
to shift frame upward, “UP” key to shift frame
downward , timeout and preset OSD.
9
OSD Timeout
Exit
English
French
German
Italian
Spanish
Russian
T. Chinese
Language
S. Chinese
Press “UP” or “DOWN” to choose any one of the
following languages , English , French , Germany ,
Italian , Spanish , Russian , Traditional Chinese
and Simplified Chinese.
Color Recall
Recall All
Recall the default value.
Recall
Exit
Sharpness
Display
Information
Press “UP” key to increase sharpness, “DOWN”
key to decrease sharpness.
Miscellaneou
s
Exit
Exit
10
Control Buttons
Auto Adjusting
a.) Pressing to execute AUTO-Adjusting function. This function will set the
monitor display area to the optimal position.
b.) Sometimes this function can't achieve the optimal effects. Please follow the
manual adjusting procedure.
Menu
When the light bar move other item, the key are used to select it, and read to
adjust. Press the MENU key to activate the On Screen Display (OSD). Press
twice to turn off the OSD. After 30 sec idle time, the OSD screen will
automatically turn off.
Power
Use the power switch to turn the power ON or OFF. We recommend to turn your
system power on first, then the LCD monitor.
Up
Down
a.) When OSD mode is activated (When “MENU” key is pressed). The two keys
are used to select the adjustment items.
b.) When adjustment item is selected, the two keys are defined to decrease or
increase the value of each selected item.
IV. For your safety
1. When move the monitor, always switch off power and disconnect all cables to avoid any danger.
2. Please use the power and signal cables correctly when install or bend it.
3. In case of notice any abnormal smell or noise, please stop operation and call the nearest dealer or
service center.
11
V. Support timing chart
Timing
Mode
Reference
Standard
Resolution
Pixel
MHz
FH KHz FV Hz Interlace
H
Polarity V Polarity
Mode 1 VESA 800×600 36.000 35.156 56.250 NO + +
Mode 2 VESA 800×600 40.000 37.879 60.317 NO + +
Mode 3 VESA 800×600 50.000 48.077 72.188 NO + +
VI. Mechanical dimension
12
VII. Product General Specification
Model Monitor
Monitor with
stand
Touch Monitor
Touch Monitor
with stand
Cabinet color Black
Display size 10.4"
Active Area 211.2 * 158.4 mm
Optimal Resolution 800 * 600
Color Arrangement RGB-stripe
Brightness 300 cd/m² (typ)
Contrast Ratio 500:1
Response Time 30 ms (typ)
150 degrees (H)
Viewing Angle
110 degrees (V)
Input Video Format VGA
Touch Panel NA
5 Wires
TWN Resistive
Input Video signal
connector
Mini DIN 8 pins
Power consumption 6W 7W
Horizontal : 31.5 kHz~60.2 kHz
Input Frequency
Vertical : 56.3Hz~75Hz
Power supply DC 12V +/- 10%
Operating : 0℃~40℃
Temperature
Storage : -10℃~50℃
Operating : 20%~80%
Humidity
Storage : 10%~90%
Weight 0.9kg(net) 1.3kg(net) 1.1kg(net) 1.7kg(net)
Approvals CE, FCC
Wall Mount VESA 75 * 75 mm
