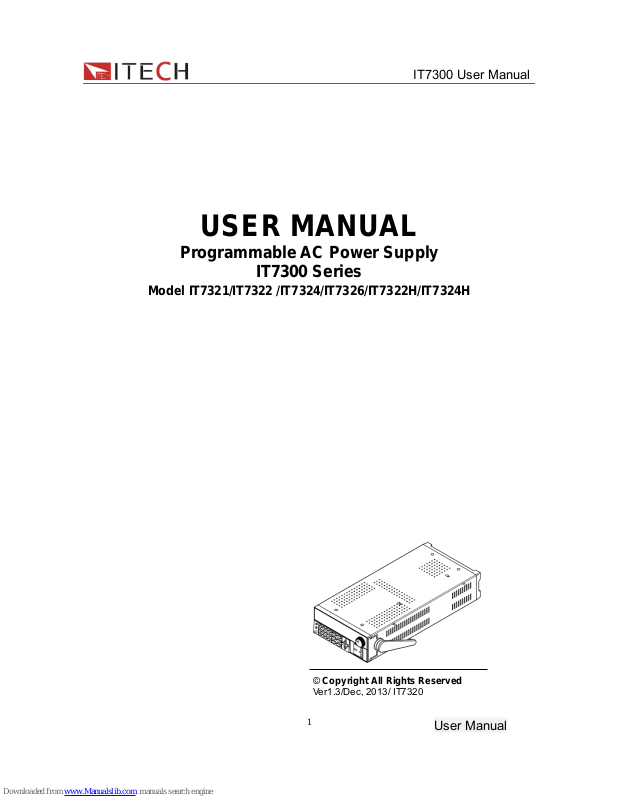

IT7300 User Manual
User Manual
1
USER MANUAL
Programmable AC Power Supply
IT7300 Series
Model IT7321/IT7322 /IT7324/IT7326/IT7322H/IT7324H
© Copyright All Rights Reserved
Ver1.3/Dec, 2013/ IT7320
IT7300User Manual
User Manual
2
IT7320 Series Programmable AC Power Supplies ........................................................... 3
Security ............................. .................... .................... ................... .................... .................... 3
Security regulation ............................................................................................................. 3
Safety symbols .......................... ................................... ................................. ...................... 3
Certification and Quality Assurance ................................................................................. 3
Introduction ........................................................................................................................... 5
Chapter1 Inspection and Installation ..................................................................................... 6
1.1 Inspection .................................................................................................................................................... 6
1.2 Dimension ........................................ ................................................ ...................................... ..................... 7
Chapter2 Quick start ........................................................................................................... 11
2.1 Front and Rear Panel ............................... ............................................................................................... 11
2.2 Front-panel Operation Overview ............................................................................................................ 14
2.3 VFD Indicator Description ....................................................................................................................... 15
Chapter3 Power on check ................................................................................................... 16
3.1 power on checkout ................................................................................................................................... 16
3.1.1 Power on the supply ..................................................................................................................... 16
3.1.2 System self-test............................................ ........................................... ...................................... 17
3.2 Output Checkout ................................................ ..................................................... ................................. 18
Chapter4 Technical specification ................... .................................. ................................... . 19
4.1 Specification.............................................................................................................................................. 19
4.2 Supplementary parameters .............................. ................................................................................. ..... 25
Chapter5 Basic Operation ................................................................................................... 26
5.1 Local/Remote Mode ..................................... .......... ..... ......... ..... .......... ......... ..... ......... ..... .......... .... ........ .. 26
5.2 Voltage Setup .......................................................... ............................. ................................. ................... 26
5.3 Frequency Setup ...................................................................................................................................... 27
5.4 Phase Angle Setup ............................................................... .............................................................. ..... 27
5.5 Output On/Off Operation ......................................................................................................................... 27
5.6 Switch the VFD display items ................................................................................................................. 28
5.7 Save and recall operation ............................. .......................................................................................... 28
5.8 Trigger operation ............... ............................................................................................... ........................ 29
5.9 Menu Operation ........................................................................................................................................ 29
5.9.1 Menu description ......................................... ..... ....................................................................... ..... 29
5.9.2 Menu function ................................................................................................................................ 31
5.10 Function operation ................................................................................................................................. 33
5.10.1 Sweep ................................................ ................... .............. ................... .............. ............... ......... 33
5.10.2 List operation(List ) ..................................................................................................................... 35
5.10.3 Dimmer ...................................................................................................................................... 38
5.11 Output range .......................................................... ................................................................................. 39
5.12 Key lock ................................................................................................................................................... 39
5.13 BNC ................................................ .............. .......... .............. .......... .............. .............. ..... ........................ 39
5.14.3-phase setup
Chapter6 Remote Operation Mode ... . .. . ... .. .. .. .. .. .. .. .. ... .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ... .. .. .. .. .. .. .. .. .. .. .. .. 43
6.1 RS232 interface ........................................................................................................................................ 43
6.2 USB interface ............................................................................................................................................ 44
6.3 LAN interface ................................... ...................................................................................... ................... 45
6.4 GPIB interface ................................................................... ...................................... ................................. 45
IT7300 User Manual
User Manual
3
IT7320 Series Programmable AC Source
Security
Please do not install replacement parts in the instrument, or perform any unauthorized
modification. Please send the instrument to our company’s maintenance department for
maintenance, to ensure its security features.
Please refer to the manual for specific information warning or precautions to avoid personal
injury or equipment damage.
There is no part that the operator can maintenance. If maintenance service is required,
please contact a trained service personnel.
Security regulation
To prevent electric shock, non-authorized personnel is strictly not allowed to open the
machine.
This equipment is strictly prohibited for use in life support systems or any other device with
security requirements.
We cannot accept responsibility for any direct or indirect financial damage or loss of profit
that might occur when using the electronic load.
Safety symbols
Warning
It reminds the user, note some operating procedures, practices, conditions and other
matters, that may lead to human casualties.
Notes:
It reminds the user of some operating procedures, practices, conditions and other matters
that may result in instrument damage or data lose for ever.
Connect it to safety earth ground using the wire recommended in the user
manual.
The symbol on an instrument indicates that the user should refer to the operating
instructions located in the manual.
High voltage danger
Certification and Quality Assurance
IT7320 series programmable AC power supply fully meet all of the technical specification in
the manual.
Warranty
Our Company gives one year warranty for the materials and manufacturing of the product
since the date of shipment.
IT7300User Manual
User Manual
4
Warranty Service
For the warranty service or repair the product, the product must be returned to the
designated maintenance units. Return the product to us for warranty service, the customer
should pre-pay the one-way Freight to the maintenance department. And our company is
responsible for the return shipping cost.
If products are returned from other countries for maintenance service, then the customer
should pay all freight, duties and other taxes.
Guarantee limit
The guarantee does not apply to the damage caused by the following conditions:
Improper or inadequate maintenance to the products by customer;
Customers use their own software or interface;
Unauthorized modification or misuse;
Operate this product not in the specified environment, or at the wrong place
configuration and maintenance.
Damage from customer self-installation of circuit, or defects due to customers use their
products .
Product model or serial number of the fuselage has been altered, deleted, removed or
made illegible;
Damage caused by accidents including but not limited to lightning, water, fire, abuse or
neglect.
Notice
If the contents of this manual is subject to change, we will not notice additionally
IT7300 User Manual
User Manual
5
Introduction
IT7320 series sets up the new standard for high performance AC power source.It equips
with all powerful features such as power line disturbance (PLD) simulation, Dimmer and
comprehensive measurement functions.With a compact and standard size of 2U.IT7320
series has built-in LAN/RS232/USB/GPIB communication interface (except IT7321, IT7321
is equipped with LAN/RS232/USB communication interface).These features make the
IT7320 series ideal for commercial,power electronics and military test applications from
bench-top testing to mass production.
Features:
High accuracy and resolution
Compact and standard size (300VA @ 2U)
Programmable frequency:45HZ-500HZ
Display Vrms,Irms,Ipeak,frequency,PF,apparent power and active power simultaneously
IEC61000-4-11,IEC 61000-4-14,IEC 61000-4-28 voltage dips and frequency variation
simulation
Power line disturbance simulation capability
Programmable voltage and current limit settings
Dimmer function
Turn on,turn off phase angle control(0-360°)
TTL signal which indicates output transient
Support front and rear panel output
List mode to generate surge,sag and other line disturbance simulations
Over-voltage,over-power,over-current,over-temperature protection features
Built-in LAN,RS-232, GPIB and USB interface programming with SCPI command
language.（IT7321 has no GPIB interface）
Memory capacity:10 groups
Mode Voltage Current Power
IT7321 300V 3A 300VA
IT7322 300V 6A 750VA
IT7322H 500V 3A 750VA
IT7324 300V 12A 1500VA
IT7324H 500V 6A 1500VA
IT7326 300V 24A 3000VA
IT7300User Manual
User Manual
6
Chapter1 Inspection and Installation
Power supply is a kind of high level safety equipment with a protected ground terminal.
Before Installation or operation, please read the safety signs and instructions in this manual
1.1 Inspection
After receive the power supply, follow these steps to check:
1. Damage
When you receive your AC source,inspect it for any obvious damage that may have
occurred during shipment.If there is damage,notify the shipping carrier and the nearest
ITECH Sales and Support Office immediately.
2.Accessories
Make sure you receive the AC source and the following accessories at the same time, if any
is missing, please contact your nearest support office.
□ a power cord (a power cord appropriate for your location)
□ CD included User’s manual and protocol
□ a factory calibration report
□ a USB cable
3. AC input
There are two kinds of mains input of IT7320 (110Vac and 220Vac).
AC input level
110VAC ± 10%, 47 to 63 Hz
220VAC ± 10%, 47 to 63 Hz
Power cord type
E
NL
E
LN
E
NL
E
LN
China America,Canada Europe England
IT-E171 IT-E172 IT-E173 IT-E174
IT7300 User Manual
User Manual
7
1.2 Dimension
1. IT7321 power supply’s dimension:
214.5mmW×88.2mmH×453.5 mmD (W:width H:height D:depth)
* refer to the Dimension below:
Unit：millimeter
IT7300User Manual
User Manual
8
2. IT7322/IT7322H/IT7324/IT7324H power supply’s dimension:
439mmW×131.4mmH×535.7 mmD (W:width H:height D:depth)
* refer to the Dimension below:
Unit：millimeter
IT7300 User Manual
User Manual
9
3. IT7326 power supply’s dimension:
437mmW×267mmH×608.30mmD (W:width H:height D:depth)
* refer to the Dimension below:
IT7300User Manual
User Manual
10
Unit:millimeter(mm)
IT7300 User Manual
User Manual
11
Chapter2 Quick start
This chapter introduces the front panel, the rear panel, key functions and VFD display of the
AC source.Make sure that you can quickly know the appearance, instruction and the key
function before you operate the power supply, Help you make better use of IT7320 series.
2.1 Front and Rear Panel
The front panel of IT7321
①②
③④ ⑤ ⑥ ⑦
The front panel of IT7322/IT7322H/IT7324
VFD display
①
② Rotary knob
③Compound key, the local
switch key and power switch
④ Numeric keys and ESC
⑤ Function keys
⑥UP, DOWN, LEFT and RIGHT
key
⑦ Output terminals
⑧ Power button
IT7300User Manual
User Manual
12
The front panel of IT7326
VFD display
①
② Rotary knob
③Power button
④Compound key, the local switch key and power switch
⑤Numeric keys and ESC
⑥Function keys
⑦UP, DOWN, LEFT and RIGHT key
⑧ Output terminals
The rear panel of IT7321
① ②③ ④ ⑤
⑥
⑦
IT7300 User Manual
User Manual
13
The rear panel of IT7322/IT7322H/IT7324/IT7324H
The rear panel of IT7326
① LAN communication interface
② RS232 communication interface
③ USB communication interface
④ Cooling fans
⑤ AC power socket
⑥ Output terminals
⑦ BNC terminal
⑧ GPIB communication interface
⑨ System Bus
⑩ Fuses
IT7300User Manual
User Manual
14
2.2 Front-panel Operation Overvie w
Key description, see the table below：
Keys
Name and the function
Shift
The shift key is used to select the alternate operation of a
key,indicated by the word under the key
Local
Local buton, switch from remote mode to local operation mode
Power
Power on key
0-9 Numeric keys
/Sweep
Number 7/Sweep function key
8
/List
Number 8/List function key
9
/*Dimmer
Number 9/Dimmer function key
Escape key.It can be used to exit keyboard entry or move up a level
in the menu.
/High/Auto
Set the voltage value/ Switch the voltage range between high range
and Auto range mode
/Phase
Set the frequency /set the phase angle
Recall
/Save
Recall the setup from internal memory/ Store the AC source
settings in non-volatile memory.
/Menu
Switch the VFD display to be apparent power,peak current,active
power and power factor/entry the menu setup
EnterEnter
/Trigger
Enter key, to confirm the number entered and operation/trigger
button, which is used to trigger the List test
On/Off
/Lock
Output on (off) keys, control power output state / keypad lock
function keys, used to lock the panel buttons
Left and right direction keys, used to set the value, to adjust the
cursor to the specified location
Up and down keys, used to turnover the item in the menu or
increase (decrease) the output voltage or current values
IT7300 User Manual
User Manual
15
2.3 VFD Indicator Description
VFD indicator function description as follow:
Char
Function description
Char
Function description
OFF Output is off Prot
OVP/OTP/OCP/OPP
Protection
Rmt
The AC source is in remote
mode
Auto Auto change the voltage range
SRQ Service request * Dimmer function is enabled
Error The power supply has an error Shift Shift button is pressed
Trig Awaiting for a trigger signal Lock Key operation is locked
IT7300User Manual
User Manual
16
Chapter3 Power on check
This chapter will introduce the procedure of power on check, including pre-check and output
check, to make sure the IT7320 series AC source can power on and work normally on the
original state.
3.1 power on checkout
Before operate the AC source, please read the following safety guide:
Warning：The power supply is shipped from the factory with a power-line cord
that has a plug appropriate for your location. Your power supply is
equipped with a 3-wire grounding type power cord; the third conductor
being the ground. The power supply is grounded only when the
power-line cord is plugged into an appropriate receptacle.
Warning：Use wire with appropriately rated load capacity of all load wires must
be able to withstand the maximum short-circuit output current of the
power without overheating. If there is more than one load, each load wire
must be able to safely carry the power of full rated short-circuit output
current.
Warning：In order to reduce the risk of fire and electric shock, make sure that the
mains supply voltage fluctuations should not exceed 10% of the operating
voltage range.
Note: In some cases, misconfigurated mains voltage for the instrument may cause
the mains fuse disconnected.
Power on pre-check includes two parts: power on check and system self check.
3.1.1 Power on the supply
Use the following steps to help solve problems you might encounter when turn on the
instrument.
1) Verify a good condition of Mains supply connection
First, verify that the power cord is firmly plugged into the power receptacle on the rear
panel of the AC source. You should also make sure that the power source you plugged the
AC source into is energized. Then, verify that the power supply is turned on.
2) Verify the power-line voltage setting.
The line voltage is set to the proper value for your country (220VAC or 110VAC) when
the power supply is shipped from the factory.
IT7321/IT7322/IT7322H/IT7324/IT7324H models support 110V/220V AC input.The AC
line switch is located at the buttom of the unit.Please pay attention to the AC level setup
before provide AC power.
IT7326 only support 220V AC input.
IT7300 User Manual
User Manual
17
3) Verify that the correct power-line fuse is installed.
If the fuse was damaged, please replace the fuse with same specification for your
power supply.
4) How to exchange the fuse
Remove the AC power cord and open the plastic cover located at the AC power
inlet,then you will see the fuse.
Replace with a fuse of the same specification and install it.
3.1.2 System self-test
After power on,the VFD will display the BIOS version:
After 1s,it will change to display as below:
If the EEPROM was damaged or the latest operation data in EEPROM was lost, the VFD
will display with a indicator light of “Error”.Access the menu could check the detailed error
information.If everything goes well,VFD will display:
System Selftest…..
BIOS VER1.10
IT7300User Manual
User Manual
18
Note:Under the screen of displaying “ITECH IT7321”,press On/Off button will quit the
and entry the normal working screen.Or it will automatically done the same operation
after 7s without any operation.
3.2 Output Checkout
The following procedures check to ensure that the AC source develops its rated outputs and
properly responds to operation from the front panel.
The following steps verify basic voltage functions without load.
1) Turn on the AC source.
2) Press
and numeric key to set a effective voltage,press
EnterEnter
to confirm
3) Press
and numeric key to set the frequency，press
EnterEnter
to confirm.
4) Press
On/Off
to turn on the output
Note:When
On/Off
button is lit which means the output is ON,Meanwhile indicator
light of “OFF” on VFD will disappear.
5） check the output waveform with a oscilloscope
set different voltage and check wether the disiplayed voltage is close to setting
voltage.
6） Ensure that the voltage can be adjusted from zero to the full rated value
OFF
200.0V 0.0mA 60.0
0.00W PF=0.000 0.0S
power
power factor output time
Output state
effective
voltage
Current
Frequency
IT7300 User Manual
User Manual
19
Chapter4 Technical specification
This chapter will introduce the main technical parameters of IT7300,such as rated
voltage/current/power and so on. Besides, this part will introduce the working environment
and storage temperature.
4.1 Specification
Model IT7321
AC INPUT
Input
Phase
1
Voltage
220Vac/110Vac±10%
Frequency
47-63Hz
Max.Current
6.3A（220Vac）or 10A(110Vac)
Power Factor
0.5(typical)
AC OUTPUT
AC output
Max.Power
300VA
Max Current(rms)
3.0A(0-150V) 1.5A(0-300V)
Max Current(peak)
12A (0-150V) 6A(0-300V)
Phase
1Φ/3W
Tot a l H ar m on ic
Distortion(T.H.D)
≤0.5% at 45-500Hz (Resistive Load)
Crest Factor
≤4
Line Regulation
0.1% max for a ±10% line change
Load Regulation
≤0.5%FS (Resistive Load)
Response Time
<100uS
SETTING
Voltage
Range
0-300V, 150/300V Auto
Resolution
0.1V
Accuracy
±(0.2% +0.6V)
Frequency
Range
45-500Hz
Resolution
0.1Hz at 45-99.9Hz
1Hz at 100-500Hz
Accuracy
0.1HZ
Phase Angle
Range
0-360°
Resolution
0.1°
Accuracy
±1°(45-65Hz)
READBACK
Voltage
Range
0-300V
Resolution
0.1V
Accuracy
±(0.2% + 0.6V)
Current(rms)
Range
L:120.0mA/ M:1.200A/ H:3.00A *
Resolution
L:0.1mA/ M:1mA/ H:10mA
Accuracy
L: ±(0.2%+0.6 mA)/ M: ±(0.2%+6mA)/ H: ±(0.2%+40mA)
Current(peak)
Range
0-12A
Resolution
0.01A
Accuracy
±(1% + 360mA)
IT7300User Manual
User Manual
20
Power
Resolution
L:0.01W/ M:0.1W/ H:1W
Accuracy
L: ±(0.2%+0.05W) (47HZ-65HZ)/ M: ±(0.2%+0.5W) (47HZ-65HZ)
/ H: ±(0.2%+2W) (47HZ-65HZ)
OTHER SPECIFICA TION
Memory
10 memories
Sync Output Signal
Output Signal 5V, BNC type
Interface
LAN, USB, RS232
Operation Environment
0-40 /20℃ -80%RH
Dimension
214.5mmW×88.2mmH×453.5mmD
Weight
9.5kg
Model IT7322
AC INPUT
Input
Phase
1
Voltage
220Vac/110ac±10%
Frequency
47-63Hz
Max.Current
15A(220Vac) or 30A(110Vac)
Power Factor
0.7(typical)
AC OUTPUT
AC output
Max.Power
750VA
Max Current(rms)
6A(0-150V) 3A(0-300V)
Max Current(peak)
24A (0-150V) 12A(0-300V)
Phase
1Φ/3W
Tot a l H ar m on ic
Distortion(T.H.D)
≤0.5% at 45-500Hz (Resistive Load)
Crest Factor
≤4
Line Regulation
0.1% max for a ±10% line change
Load Regulation
≤0.5%FS (Resistive Load)
Response Time
<100uS
SETTING
Voltage
Range
0-300V, 150/300V Auto
Resolution
0.1V
Accuracy
±(0.2% +0.6V)
Frequency
Range
45-500Hz
Resolution
0.1Hz at 45-99.9Hz
1Hz at 100-500Hz
Accuracy
0.1HZ
Phase Angle
Range
0-360°
Resolution
0.1°
Accuracy
±1°(45-65Hz)
READBACK
Voltage
Range
0-300V
Resolution
0.1V
Accuracy
±(0.2% + 0.6V)
Current(rms)
Range
L:120.0mA/ M:1.200A/ H:6.00A *
Resolution
L:0.1mA/ M:1mA/ H:10mA
Accuracy
L: ±(0.2%+0.6mA)/ M: ±(0.2%+6mA)/ H: ±(0.2%+60mA)
Current(peak)
Range
0-24A
IT7300 User Manual
User Manual
21
Resolution
0.01A
Accuracy
±(1% + 360mA)
Power
Resolution
L:0.01W/ M:0.1W/ H:1W
Accuracy
L: ±(0.2%+0.2 W) (47HZ-65HZ)/ M: ±(0.2%+2W) (47HZ-65HZ)
/ H: ±(0.2%+6W) (47HZ-65HZ)
OTHER SPECIFICA TION
Memory
10 memories
Sync Output Signal
Output Signal 5V, BNC type
Interface
LAN, USB, RS232, GPIB
Operation Environment
0-40℃/20-80%RH
Dimension
439mmW×131.4mmH×535.7mmD
Weight
40kg
Model IT7324
AC INPUT
Input
Phase
1
Voltage
220Vac/110Vac±10%
Frequency
47-63Hz
Max.Current
30A(220Vac) or 60A(110Vac)
Power Factor
0.7(typical)
AC OUTPUT
AC output
Max.Power
1500VA
Max Current(rms)
12.0A(0-150V) 6A(0-300V)
Max Current(peak)
48A (0-150V) 24A(0-300V)
Phase
1Φ/3W
Tot a l H ar m on ic
Distortion(T.H.D)
≤0.5% at 45-500Hz (Resistive Load)
Crest Factor
≤4
Line Regulation
0.1% max for a ±10% line change
Load Regulation
≤0.5%FS (Resistive Load)
Response Time
<100uS
SETTING
Voltage
Range
0-300V, 150/300V Auto
Resolution
0.1V
Accuracy
±(0.2% +0.6V)
Frequency
Range
45-500Hz
Resolution
0.1Hz at 45-99.9Hz
1Hz at 100-500Hz
Accuracy
0.1HZ
Phase Angle
Range
0-360°
Resolution
0.1°
Accuracy
±1°(45-65Hz)
READBACK
Voltage
Range
0-300V
Resolution
0.1V
Accuracy
±(0.2% + 0.6V)
Current(rms)
Range
L:120.0mA/ M:1.200A/ H:12.00A *
IT7300User Manual
User Manual
22
Resolution
L:0.1mA/ M:1mA/ H:10mA
Accuracy
L: ±(0.2%+0.6mA)/ M: ±(0.2%+6mA)/ H: ±(0.2%+80mA)
Current(peak)
Range
0-48A
Resolution
0.01A
Accuracy
±(1% + 360mA)
Power
Resolution
L:0.01W/ M:0.1W/ H:1W
Accuracy
L: ±(0.2%+0.2W) (47HZ-65HZ)/ M: ±(0.2%+2W) (47HZ-65HZ)
/ H: ±(0.2%+10W) (47HZ-65HZ)
OTHER SPECIFICA TION
Memory
10 memories
Sync Output Signal
Output Signal 5V, BNC type
Interface
LAN, USB, RS232, GPIB
Operation Environment
0-40 /20℃ -80%RH
Dimension
439mmW×131.4mmH×535.7mmD
Weight
40kg
Model IT7326
AC INPUT
Input
Phase
1
Voltage
220Vac±10%
Frequency
47-63Hz
Max.Current
60A
Power Factor
0.7(typical)
AC OUTPUT
AC output
Max.Power
3000VA
Max Current(rms)
24A(0-150V) 12A(0-300V)
Max Current(peak)
96A (0-150V) 48A(0-300V)
Phase
1Φ/3W
Tot a l H ar m on ic
Distortion(T.H.D)
≤0.5% at 45-500Hz (Resistive Load)
Crest Factor
≤4
Line Regulation
0.1% max for a ±10% line change
Load Regulation
≤0.5%FS (Resistive Load)
Response Time
<100uS
SETTING
Voltage
Range
0-300V, 150/300V Auto
Resolution
0.1V
Accuracy
±(0.2% +0.6V)
Frequency
Range
45-500Hz
Resolution
0.1Hz at 45-99.9Hz
1Hz at 100-500Hz
Accuracy
0.1HZ
Phase Angle
Range
0-360°
Resolution
0.1°
Accuracy
±1°(45-65Hz)
READBACK
Voltage
Range
0-300V
IT7300 User Manual
User Manual
23
Resolution
0.1V
Accuracy
±(0.2% + 0.6V)
Current(rms)
Range
L:120.0mA/ M:1.200A/ H:24.00A
Resolution
L:0.1mA/ M:1mA/ H:10mA
Accuracy
L: ±(0.2%+0.6 mA)/ M: ±(0.2%+6mA)/ H: ±(0.2%+100mA)
Current(peak)
Range
0-96A
Resolution
0.01A
Accuracy
±(1% + 360mA)
Power
Resolution
L:0.01W/ M:0.1W/ H:1W
Accuracy
L: ±(0.2%+0.2W) (47HZ-65HZ)/ M: ±(0.2%+2W) (47HZ-65HZ)
/ H: ±(0.2%+15W) (47HZ-65HZ)
OTHER SPECIFICA TION
Memory
10 memories
Sync Output Signal
Output Signal 5V, BNC type
Interface
LAN, USB, RS232,GPIB
Operation Environment
0-40 /20℃ -80%RH
Dimension
437mmW×267mmH×608.30mmD
Weight
105kg
Model
IT7322H
Input
Input
Phase
1
Voltage
220Vac/110ac±10%
Frequency
47-63Hz
Power factor
0.7(typical)
Output
AC
output
Max.Power
750VA
Max
Current(rms)
3A(0-250V)
1.5A(0-500V)
Max
Current(peak)
12A (0-250V)
6A(0-500V)
Phase
1Φ/3W
Tota l H a rmo nic
Distortion(T.H.
D)
≤1% at 45-500Hz (Resistive Load)
Crest Factor
≤4
Line
Regulation
0.1% max for a ±10% line change
Load
Regulation
≤0.5%FS (Resistive Load)
Response
Time
<100uS
Setting
Voltage
Range
0-500V High, 250/500V Auto
Resolution
0.1V
Accuracy
±(0.2% +1.2V)
Frequenc
y
Range
45-500Hz
Resolution
0.1Hz at 45-99.9Hz
IT7300User Manual
User Manual
24
1Hz at 100-500Hz
Accuracy
0.1HZ
Phase
angle
Range
0-360°
Resolution
0.1°
Accuracy
±1°(45-65Hz)
Measuring Range
Voltage
Range
0-500V
Resolution
0.1V
Accuracy
±(0.2% + 1.2V)
Current
（rms）
Range
L:120.0mA/ M:1.200A/ H:3.00A
Resolution
L:0.1mA/ M:1mA/ H:10 mA
Accuracy
L: ±(0.2%+0.6mA)/ M: ±(0.2%+6mA)/ H: ±(0.2%+40mA)
Current
(peak)
Range
0-12A
Resolution
0.01A
Accuracy
±(1% + 360mA)
Power
Range
L:0.01W/ M:0.1W/ H:1W
Accuracy
L: ±(0.2%+0.2W) (47HZ-65HZ)/ M: ±(0.2%+2W) (47HZ-65HZ)
/ H: ±(0.2%+6W) (47HZ-65HZ)
Specification
Memory
10 memories
Sync Output Signal
Output Signal 5V, BNC type
Interface
LAN, USB, RS232，GPIB
Operation Environment
0-40℃/20-80%RH
Dimension
439mmW×131.4mmH×535.7mmD
Weight
40kg
Model IT7324H
AC input
Input
Phase 1
Voltag e 220Vac/110Vac±10%
Current 30A(220Vac) or 60A(110Vac)
Frequency 47-63Hz
Power factor 0.7(typical)
AC output
AC output
Max.Power
1500VA
Max Current(rms)
6A(0-250V)
3A(0-500V)
Max Current(peak)
24A (0-250V)
12A(0-500V)
Phase
1Φ/3W
Total Harmonic
Distortion(T.H.D)
≤1% at 45-500Hz (Resistive Load)
Crest Factor
≤4
Line Regulation
0.1% max for a ±10% line change
Load Regulation
≤0.5%FS (Resistive Load)
Response Time
<100uS
Setting
Voltage
Range
0-500V, 250/500V Auto
Resolution
0.1V
IT7300 User Manual
User Manual
25
Accuracy
±(0.2% +0.6V)
Frequency
Range
45-500Hz
Resolution
0.1Hz at 45-99.9Hz
1Hz at 100-500Hz
Accuracy
0.1HZ
Phase Angle
Range
0-360°
Resolution
0.1°
Accuracy
±1°(45-65Hz)
Readback
Voltage
Range
0-500V
Resolution
0.1V
Accuracy
±(0.2% + 0.6V)
Current(rms)
Range
L:120.0Ma/ M:1.200A/ H:6.00A
Resolution
L:0.1mA/ M:1mA/ H:10 mA
Accuracy
L: ±(0.2%+0.4mA)/ M: ±(0.2%+6mA)/ H: ±(0.2%+60mA)
Current(Peak
)
Range
0-24A
Resolution
0.01A
Accuracy
±(1% + 360mA)
Power
Resoluiton L:0.01W/ M:0.1W/ H:1W
Accuracy
L: ±(0.2%+0.2W) (47HZ-65HZ)/ M: ±(0.2%+2W) (47HZ-65HZ)
/ H: ±(0.2%+10W) (47HZ-65HZ)
Other specification
Memory 10 memories
Sync Output Signal Output Signal 5V, BNC type
Interface LAN, USB, RS232，GPIB
Operation Environment 0-40℃/20-80%RH
Dimension 439mmW×131.4mmH×535.7mmD
Weight
40kg
*Description about the switch of current range:
When switch from low to high level(L to M,M to H) happened at the condition of Ipeak＞300%(Full rms),
When Ipeak>300%(Full rms),the current switch from low range to high range(L to M,M to H).
When Ipeak<20%(Full rms),the current switch from high range to low range(H to L).
When Ipeak<80%(Full rms),the current switch from high range to Middle range(H to M).
4.2 Supplementary parameters
Memory ：10 groups
suggested calibrationfrequency: 1time/year
Radiating mode : Fans
Operation temperature: 0 to 40 °C
Storage temperature: -20 to 70 °C.
Humidity : Max humidity: 80%
IT7300User Manual
User Manual
26
Chapter5 Basic Operation
This chapter introduce the basic operations of IT7320 series AC sourece,including the
following parts:
Local/remote mode
Voltage setup
Frequency setup
Phase angle setup
Output on/off operation
Switch the VFD display items
Save/recall operation
Trigger operation
Menu operation
Switch output voltage range
Key lock function
BNC terminals function
5.1 Local/Remote Mode
Press the local button
to change the AC source from remote to local operation.
After you power on the AC source, it defaults in local mode, all buttons are enabled.
While in remote mode, most buttons are disabled except Shift and Local keys.In addition,
the mode modificaton will not effect the output parameters.
5.2 Voltage Setup
You can set voltage within the range of rated voltage value. When you press
button, the button will be lit. This indicates that you can set voltage. There are three ways to
set output voltage through front panel.
The first way: press
,adjust cursor location through button, pressing
and
will enable you to increase or decrease the setting voltage value.
The second way: press , adjust cursor location through button, adjust
rotary knob
to change the setting voltage value.
The third way: press
button and numeric key(0 to 9) to set voltage value
IT7300 User Manual
User Manual
27
5.3 Frequency Setup
You can set frequency within the range 45Hz to 500Hz. When you press , the button
will be lit. This indicates that you can set frequency.There are three ways to set frequency
through front panel.
The first way: press
,adjust cursor location through button, pressing
and
will enable you to increase or decrease the setting frequency value.
The second way: press
, adjust cursor location through button, adjust
rotary knob
to change the setting frequency value.
The third way: press
button and numeric key(0 to 9) to set frequency value
5.4 Phase Angle Setup
You can set the starting and stop phase angle within range of 0~360° by pressing (Shift)+
(Phase),VFD will display as below:
Press numeric keys to set the starting phase angle and press
Enter
to confirm.Then the
VFD will indicate next operation to set stop phase.
5.5 Output On/Off Operation
On/Off
button is used to control the output state of AC source. When
On/Off
button is
lit,.It indicates the output in on state.When output button is dark which means the output is
turned off.
Note: make sure you have connected AC source and test DUT very well, then press
On/Off
button to minimize shock hazard.
OFF
0.0V 0.0mA 50.0
Start Phase= 0.0° 0.6S
OFF
0.0V 0.0mA 50.0
Stop Phase= 0.0° 0.6S
IT7300User Manual
User Manual
28
5.6 Switch the VFD display items
Press button to change the VFD display of bottom line.
Default VFD display:effective voltage,effective current,frequence
Active power,power fator,output time
Press
to switch the display: effective voltage,effective current,frequence
apparent power,peak current,output time
Notes: The time shown on the VFD is the output time of AC source. Press
On/Off
to
start the timing when power is on; press
On/Off
again to turn off power. The
duration of power supply will be displayed on the VFD until the next power starts
when the timer will reset. The timing is based on the decimal system: when the time
reaches 999.9 s, the timing will be displayed in minutes (m); when the time reaches
999.9 m, the timing will be displayed in hours (h).
5.7 Save and recall operation
IT7320 series AC source provides10 non-volatile registers to save instrument settings for
recall later.Each operating state includes preset voltage, preset frequency, starting and stop
phase angle, output range level and dimmer phase angle.
Press(Shift) +
Recall
(Save) key to recall /save settings.
Save operation:
To save the instrument’s settings to a register,press shift
+
Recall
(Save).You’ll be
prompted for a register number.Enter a number between 0 and 9,then press the Enter
key.The setting are saved.
OFF
0.0V 0.0mA 50.0
0.00W PF= 0.000 0.0S
OFF
0.0V 0.0mA 50.0
0.00VA 0.00Apk 0.0S
OFF
2.0V 0.0mA 50.0
Save data bank=0 0.0S
IT7300 User Manual
User Manual
29
Recall operation
press
Recall
button.You’ll be prompted for a register number.Enter a number between 0
and 9,then press the Enter key.The setting are recalled.
5.8 Trigger operation
IT7320 series AC source has three kinds of trigger modes.They are Manual,BUS and
EXTEN.
Trigger modes:
1) To use front panel trigger mode,first set the trigger source as Manual.Press shift
+Enter (trigger) to start panel trigger mode.
2) The BNC trigger connectors on the rear panel let you apply trigger signals to the AC
source.To use external trigger mode,first set the trigger source as EXTERN.
3) To use BUS trigger mode,first set the trigger source as BUS.Connect AC source by
USB,RS-232 or LAN communication interface.When the TRIG command is received,the
AC source will produce a trigger signal.
5.9 Menu Operation
5.9.1 Menu description
Press (Shift)+ （Menu）to enter menu.View the menu on the VFD,and use the
direction keys or the knob to scroll through the complete menu listed below.Press
Enter
to
enter the selected menu function,press
ESC
to return to the previous menu.
MENU
Syste
m
Init
Initialize system menu
Power-On
POWER-ON
PARAMENT
Set the Power ON/OFF state after power up.
Sav0(Def) The preset parameter stored in group 0
Rst Factory Default
Power-Out
POWER-OUT Power on state set
Off(Def) In the state of power off
Last In the state of latest power-off state
Buzzer
BUZZER Set buzzer state
On(Def) Buzzer on
Off Buzzer off
Trigger
TRIGGER SOURCE Trigger source selection.
Manual（Def)
Manual trigger
Bus Bus trigger
Extern External trigger
Communica
tion
COMMUNICATION
Communication interface and parameter
setting
OFF
2.0V 0.0mA 50.0
Recall data bank=0 0.0S
IT7300User Manual
User Manual
30
RS232(Def) RS232
Select RS232
interface
GPIB Address
Available range from
0-31
4800,8,N,1
9600,8,N,1
19200,8,N,1
38400,8,N,1
57600,8,N,1
Set Baud rate,data
bit,odd-even
check,stop bit and
address
USB Select USB interface
LAN LAN Select LAN interface
Gateway=192.168.0.1
IP=192.168.0.125
Mask=255.255.255.0
Socket Port=30000
Set gateway, IP
address, mask
address and port.
Config
CONFIG
Config menu
Volt-Min
Voltage lower limit
Volt-Min=0.0V Set Min. voltage
Volt-Max
Voltage upper limit
Volt-Max=300.0V Set Max, voltage
Freq-Min
Frequency lower limit
Freq-Min=45.0Hz
Freq-Max
Frequency upper limit
Freq-Max=500.0Hz Set frequency upper limit
Irms-Protect
Current RMS protect point
Irms-Protect=12.000A Set current RMS protect point
Delay
Irms protection will be
triggered in 1s
Immediate
Protection will be
triggered immediately.
BNC-Set
BNC PORT SETUP
I-Trigger Input interface for external trigger
I-Ri Input interface for on/off control
O-Sync
Output interface for AC phase synchronization
signal
O-On Output interface for on/off state interface
Ipeak-Prote
ct
Current peak protect point
Ipeak-Protect=12.000A Set Current peak protect point
Dimmer
DIMMER Phase dimmer
LeadingEdge
LeadingEdge Phase dimmer function
TrailingEdge TrailingEdge Phase dimmer function
Off Disable Phase dimmer function
List-Set
LIST START MODE
LIST mode is used to simulate the power line
disturbance.
On/off Enable List function
Trigger
Press Shift+Enter(Trigger)to give a trigger signal
3ø-Setup
A-Phase/ B-Phase /
C-Phase
Configure phase line of each unit.(IT7321 do
not support this function.)
IT7300 User Manual
User Manual
31
Disable/Enable
Turn on or turn off three-phase output function.
To achieve this function,user need to combine
three units.
Info
PRODUCT
INFO:
Power information
ERROR
INFO:
For look up error information
PRODUCT
INFO:
IT7321
Ver:0.01~0.0
1
Instrument type/Firmware version
5.9.2 Menu function
1. System menu
Initialize the system menu
relative factory default setup as follows:
Power-On Sav0
Power-Out Off
Buzzer On
Trigger Manual
Communication RS232
Power-On
This parameter determines the state of the AC source after power up.If you select “Rst”,the
default output parameter settings will be active after power up.The default setup is 0V,50HZ,
0° and 0°.If you select “Sav0”,then the AC source will automatically recall the output
parameters setting saved in 0 register..
Note,please save these parameters in memory0 according to 5.7.
Power-Out
This parameter sets the output on/off state at power up.If you select “Last”,the AC source
will save the output state prior to power down and revert to that state at power up.If you
select “off”,the output state is always “OFF” when the power supply is turned on.The
recommend setting is “OFF”.
Buzzer
This item can set the key sound state.If in ON mode,then when you press a button, the
power supply will beep. If in OFF mode,the beeper will not make a sound.The default set is
in ON mode.
IT7300User Manual
User Manual
32
Trigger source
The power supply supports 2 different trigger modes (Manual and Bus) for LIST test.
When Manual mode is enabled, you can generate an immediate trigger pulse by presing
(Shift)+
Enter
（Trigger）.When bus function is enabled, you can trigger the power
supply by sending a Trigger command to the power supply.The default set is Manual
Communication
There are three types of communication interfaces available:RS-232,USB and LAN.You can
choose any one of them to communicate with a PC.
RS232 interface
Avaiable baudate:4800, 9600, 19200, 38400, 57600, 115.2K
Data bit:8
Parity bit:NONE,ODD,EVEN
Address:0-31
LAN interface
Parameters need to be configured in LAN mode. Gateway, IP address, Mask address and
socket port.
Before communicating with the principal computer, choose the communication port and
perform associated configuration to ensure that communication configuration of the power
accords with that of the principal computer.
2. Config menu
Volt-Min:
Voltage lower limit setting
Volt-Max:
Voltage upper limit setting
Freq-Min:
Frequency lower limit setting
Freq-Max:
Frequency upper limit setting
Irms-Protect: Current RMS upper limit setting
Ipeak-Protect: Peak Current upper limit setting
3. Instrument information
Step Operation VFD display
1
Press
(Shift)+ （Menu）to enter menu
operation
MENU
System Config Info
2
press right direction key to select INFO,press
Enter
PRODUCT INFO:
IT7321 Ver:0.06~0.06
IT7300 User Manual
User Manual
33
5.10 Function operation
5.10.1 Sweep
The Sweep function is used to test efficiency of switching power supply and capture the
voltage and frequency at the maximum power point. The voltage and frequency of power
may be altered in the form of step ladder by setting the initial voltage, final voltage, step
voltage, initial frequency, final frequency, step frequency and one-step time. The one-step
time may be indicated in seconds, minutes or hours. A maximum of 10 files may be stored.
As the test closes, voltage, frequency and current at the maximum power point may be
displayed.
> Edit sweep file
Note: In the following operations, up and down keys are used to turn over steps, but not to
increase or decrease value.When up arrow appears in the lower left corner,you can press
the up key to jump to the previous step.When down arrow appears in the lower right
corner,press down key can entry the next step.
STEP OPERATION VFD DISPLAY
1
Press
(Shift)+ (Sweep)to enter menu
operation
SWEEP
Edit Recall Disable
2
Press
Enter
to confirm when Edit is shining.
START VOLTAGE
Voltage= 0.0
V
3 Press number key or knob to set start voltage, press
Enter
to confirm
END VOLTAGE
Voltage= 0.0
V
4 Press numeric key or knob to set stop voltage, press
Enter
to confirm
STEP VOLTAG
Voltage=0.1
V
5 Press numeric key or knob to set step voltage, press
Enter
to confirm
TIME UNIT
Second Minute Hour
6 Press left and right arrow keys to select time unit
second, minute and hour, press
Enter
to confirm
STEP TIME
Time=2.0
S
7
Set step last time(0.1s~999.9s)，press
Enter
to
confirm
START FREQUENCY
Frequency=50.0
Hz
8
Set start frequency(45Hz~500Hz), press
Enter
to
confirm
END FREQUENCY
Frequency=50.0
Hz
9
Set stop frequency(45Hz~500Hz), press
Enter
to
confirm
STEP FREQUENCY
Frequency=1.0
Hz
10
Set step frequency,press
Enter
to confirm
SWEEP SAVE
No Yes
11 Press left and right arrow keys to select whether
save sweeping file,” No” means do not saving ,” Yes”
means saving.
SWEEP SAVE
Save data bank=0
12
Select save position(0~9), press
Enter
to confirm,
VFD display “SaveData success! “ for 1 second.
SWEEP
Edit Recall Disable
IT7300User Manual
User Manual
34
>Recall sweep file
STEP OPERATION VFD DISPLAY
1
Press multiple keys
(Shift)+ (Sweep) to menu
operation
SWEEP
Edit Recall Disable
2
Press right arrow key then press
Enter
key to
confirm when Recall key is shining.
RECALL SWEEP
Recall Sweep=0
3 Press numeric key to select needed recall file and
press
Enter
key to confirm. VFD display “Recall
Data success! “ for 1 second.
SWEEP
Edit Recall Disable
> Set sweep test state and start test
STEP OPERATION VFD DISPLAY
1
Press multiple keys
(Shift)+ (Sweep) to menu.
SWEEP
Edit Recall Disable
2 Press right arrow key to “Disable”, press down arrow
key and
Enter
to infirm when “Disable” is shining.
the words”Sweep” appears at the right bottom,which
means the Sweep function is active.
3
Press
On/Off
key to start sweep test.
EnterEnter
key
will shining during test and will stop after that with
power off automatically.
To exit Sweep test function
STEP OPERATION VFD DISPLAY
1
Press multiple key
(Shift)+ (Sweep) to menu
operation.
SWEEP
Edit Recall Enable
2 Press right arrow key to “Enable”, press down arrow
key and
Enter
key to confirm and then exit sweep
function(Sweep words will disappeared on lower
right of VFD display )
IT7300 User Manual
User Manual
35
5.10.2 List operation
With List operation applied to the alternating power supply, alternating waveform sequences
in various ranges may be output. The surge/trapped wave may be added as required to
simulate fluctuation of network voltage so as to evaluate the test result of the instrument
under such situation.
Various alternating sequences with output varied may be formed by listing the voltage,
frequency, slope, surge/trapped wave each step.
.
Surges wave
List sequences of IT7320 series can be stored into a non-volatile register,with a capacity of
100 steps.The user can edit up to 10 files.Following shows how to edit,recall and run a list
file:
> Set Trigger Source
The surge/trapped wave test of LIST may be manually triggered to control the start time of
the surge/trapped wave.
Operation:
(1)Press
(Shift)+ (Menu) to entry the menu. Then the system will keep
flickering------press
Enter
to confirm.
(2)Press right key to select Trigger.When selected,trigger item will be twinkling.Press
Enter
to confirm.
(3)Press right key to select Manual and press
Enter
to confirm.
IT7300User Manual
User Manual
36
>Edit LIST File
Steps Operation VFD display
1
Press (Shift)+
8
(List) button,select
Edit,press
Enter
to confirm.
LIST
Edit Recall Disable
2 Press numeric key,set the step
counts(range:1~100),press
Enter
to confirm.
STEP COUNT
Step Count=0
3 Press numeric key,set number of
cycles(range:1~1000),press
Enter
to confirm.
LIST REPEAT
List Repeat=0
4
Set the first step voltage and press
Enter
to confirm.
LIST VOLTAGE
Step 0 Voltage=0.0
V
5
Set the first step frequency and press
Enter
to
confirm.
LIST FREQUENCY
Step 0 Frequency=0.0
Hz
6
Set the slope(0.1~999.9),press
Enter
to confirm.
LIST SLOPE
Step 0 Slope=0.0S
7
Set the time unit:S,min,hour,press
Enter
to confirm.
DWELL UNIT
Second Minute Hour
8
Set delay time(0.1~999.9),press
Enter
to confirm.
LIST DWELL
Step 0 Dwell=0.0S
9 Disable or enable the surges or trap
state,press
Enter
to confirm.If select Disable,then
do nothing for step10-step12.
SD STATE
Disable Enable
10 Press left/right key to set whether create
surges/wave traps continouly.If select Yes,power
supply will create surges/wave traps in at intervals of
100ms.Press
Enter
to confirm.
SD CONTINUE
No Yes
11 Press numeric keys to set voltage of surges/wave
traps,press
Enter
to confirm.If set voltage is higher
than current working voltage,then it is surges,or it is
wave traps.
SD VOLTAGE
Step 0 Voltage=0.0V
12 Set the starting time of
surges/wavetraps,press
Enter
to confirm.With the
restriction of frequency,the max settable time is
20ms.
SD SITE
Step 0 Site= 0ms
13 Set the duration time of surges/wave traps.Press
Enter
to confirm.
SD TIME
Step 0 Time=0ms
14 Repeat step4-13. LIST VOLTAGE
Step 1 Voltage=0.0V
15 NO:Do not save the list file,after power off the
unit,current file will lose.
Yes:Save list file to assigned memory room for
quickly recall at any time.
LIST SAVE
No Yes
16 Store file to specified storage space(0~9
groups),press
Enter
to confirm.VFD will display
“Save data success!”
LIST SAVE
Save data bank=0
IT7300 User Manual
User Manual
37
> Set LIST State
steps operation VFD display
1
Press (Shift)+
8
(List) to entry the List menu.
LIST
Edit Recall Disable
2 Press right key to select Disable,when it flicker,press
up/down key to select Enable,and press
Enter
to
confirm.Now the List mode is enabled.Escape
menu,the front panel will display “LIST 0”.
LIST
Edit Recall Enable
> Run LIST File
After enable the List mode,press
On/Off
to turn on the output,it will begin to
run.Meanwhile,you will see
Enter
button keep flickering.The output will vary according to
the edited steps.
Press
On/Off
button can quit the running state of List file.
> Quit LIST Mode
Steps Operation VFD display
1
Press
(Shift)+
8
(List) to entry the List menu.
LIST
Edit Recall Enable
2 Press right key to select Enable,when it flicker,press
up/down key to select Disable,and press
Enter
to
confirm.
LIST
Edit Recall Disable
>Recall LIST Mode
When several List files are stored into the non volatile memory,user can recall the assigned
file by Recall operation.
Steps Operation VFD display
1
Press
(Shift)+
8
(List)button to entry the List
menu
LIST
Edit Recall Disable
2 Press right key to select Recall,when it
flicker,press
Enter
to confirm.Press the file number
to recall the assigned file.Press
Enter
to confirm.
RECALL LIST
Recall List=0
3 When recall successfully,the VFD will display”Recall
data success!”.
LIST
Edit Recall Disable
After recall,please enable the LIST state,then quit the menu and press ON/OFF to trigger
the execution.
IT7300User Manual
User Manual
38
5.10.3 Dimmer
The leading and lagging edge of the waveform can by concealed and the phase angle set
with Dimmer function to regulate the active power, thus adjusting the lighting intensity.
Dimmer of leadin g edge :
Dimmer of lagging edge:
Dimmer operation:
> Active dimmer function, set LeadingEdge /LaggingEdge
1
Press multiple keys
(Shift)+ （Menu）to
menu
MENU
System Config Info
2 Press right arrow key to select “ Config”, press
Enter
to confirm when “Config” is shining
CONFIG
Volt-Min Volt-Max >
3
Press right arrow key to “Dimmer” press
Enter
to
confirm when “Dimmer” is shining.
DIMMER
LeadingEdge TrailingEdge
Off
4 Select “LeadingEdge” or “LaggingEdge” to active the
function. Press
Enter
key to confirm when it is
shining. Shining”*” indicate on VFD means dimmer
function is in used, conversely,”*” disappeared.
DIMMER
LeadingEdge TrailingEdge
Off
IT7300 User Manual
User Manual
39
> Set phase angle and start test
1
Press compound key
(Shift)+
9
（*Dimmer）and
enter menu operation
OFF
9.0V 0.0mA 50.0
Dimmer=30.0°
2
Press numeric key to set angle, press
Enter
to
confirm. Also you can adjust angle by knob to view
real-time waveform changes along .
3
Press
and numeric key to set voltage
based on requirement. Press
Enter
4 Power source output dimmer wave with “*” shining.
5.11 Output range
IT7320 series AC source will allow switchover between High range and Auto range. Take
IT7321 as example, the voltage, current and apparent power at the High range is
300V/1.5A/300VA; the voltage, current and apparent power at the Low range is
150V/3A/300VA. Auto range refers to auto switchover mode between High range and Low
range.
You can choose the range according to actual test requirements. When Auto range is
chosen, the switchover between High range and Low range will be performed by the
instrument automatically, thus sparing complicated operations such as manual setting.
Switch High range and Auto range:
Press
(Shift) and (High/Auto) together to switch between High range and Auto
range. When High range is chosen, press the
(Shift) and (High/Auto) together
to switch to Auto range. The indicator “Auto” on the VFD will be on.
Note: There is a temporary OFF to the AC source during the switchover of range
5.12 Key lock
The front panel keys can be locked to prevent unwanted changes to output settings and AC
source configurations.Follow the steps below to enable/disable key lock.
Press
( (Shift)+
On/Off
（Lock）button to set the key lock state.If keyboard has been
locked,the indicator light ”Lock” will display on the VFD .In addition,when keyboard are
locked,all buttons can’t be used except ON/OFF key and (Shift) key. Press
(Shift)+
On/Off
（Lock） once again will relieve key lock function.
5.13 BNC
There is a composite terminal at the rear panel of the AC source(see description of rear
OFF
0.0V 0.0mA 50.0
0.00W PF=0.000 Lock
IT7300User Manual
User Manual
40
panel), which can be used as:
1. Input signal:
I-Trigger: serve as input signal by external trigger. Connect the positive and negative end of
the terminal to generate a trigger signal
I-On: serve as the control signal for On/Off. When the positive and negative end of the
terminal is in short circuit, the status of AC source is On; when the circuit is open, the status
of AC source is OFF
2. Output signal:
O-Sync: as synchronizing signal of alternating phase
O-On: as status signal for On/Off. When the status of AC source is ON, the terminal will
output high level; when the status of power supply is OFF, the terminal will output low level
Before using BNC terminal,you need to define its function firstly by following steps below:
1
Press multiple key
(Shift)+ （Menu）to
menu operation.
MENU
System Config Info
2 Press right arrow key and select “config”, press
Enter
key when “Config” is shining.
CONFIG
V-Min V-Max >
3
Press right arrow key to BNC-Set and press
Enter
key when “BNC-Set” is shining.
BNC PORT SETUP
I-Trigger I-On O-Phase
O-On >
4 Press left and right arrow keys to select interface
function and press
Enter
. Press ESC key to exit
menu.
5.14 3ø-Setup
IT7300 series(except IT7321 model) support 3-phase output via three units.The three units
need to be connected together via SYSTEM BUS.3-phase output includes two connection
types of “Y” or “Delta”.
IT7300 User Manual
User Manual
41
Y type connection:
Delta connection:
GND
GND
IT7300User Manual
User Manual
42
SYSTEM BUS：
User need to connect three units together via a straight network cable.
Please see figure above.
3-phase configuration:
(1)Configure phase line of each unit.For example,specify the #1-IT7324 to A
phase,#2-IT7324 is set to B phase and #3-IT7324 is set to C phase.
(2)The phase-A unit will search B-phase and C-phase units automatically.
(3)Press
(Shift)+ （Menu）to enter the menu operation,press right-key to select
CONFIG,then press
Enter
button to confirm.
(4)Press right key to select 3ø-Setup,then press enter to configure the A,B,C phase.
Two parameters need to be set from the menu to enable this function:
A-Phase/ B-Phase / C-Phase Configure the phase line of each unit
Disable/Enable Turn on or turn off 3-phase function
OFF
3ø-Setup
A-Phase Disable
IT7300 User Manual
User Manual
43
Chapter6 Remote Operation Mode
IT7320 series AC source has three standard communication interface: RS232, USB,
LAN.You can choose any one of them to communicate with PC.
6.1 RS232 interface
There is a DB9 connector at the rear of the power supply, when connect to computer,
you need to select a cable with COM port on both side;
To active communication,you need to enable the settings in menu to be the same with the
PC communication configuration.
Note：The RS232 settings must match the settings in front panel system information. If any
change, please press
(Shift)+ (Menu)key to modify the menu: SYST SET\COMM.
RS-232 data format
RS-232 data is a 10-bit word with one start bit and one stop bit.The number of start bit is
not programmable.Stop bit is selectable between 1&2.Besides,you can set the parity bit in
the menu using the front panel
(Shift)+ key.
Parity options are stored in a non-volatile memory.
Baud Rate
The front panel
(Shift)+ button allows the user to set baud rate which is stored in
the non-volatile memory: 4800,9600,19200 38400,57600,115200
RS-232 connection cable
Adopt the RS232 cable with DB-9 interface because the serial port of RS232 can be
connected with that of the controller (e.g. PC). The modulating cable of the air-conditioner is
not recommended. The pins of plug are shown as the following table.
If your computer is provided with a RS232 interface with DB-25 plug, a cable and a adapter
with DB-25 plug (one end) and DB-9 plug (the other end) are required (not the modulating
cable of the air-conditioner)
RS-232 plug pins
Pin number Description
1 No connection
2 TXD, transfer date
3 RXD, receive data
4 No connection
5 GND, ground
6 No connection
7 CTS, clear transfer
8 RTS, ready to transfer
9 No connection
IT7300User Manual
User Manual
44
RS-232 Troubleshooting:
In case of connection failure of RS232, perform following check:
Check if the computer and power supply are provided with same Baud rate, parity check bit,
data bit and flow control. The power supply shall be configured with one start bit (fixed) and
one or two stop bits.
Just as described in the RS232 connector, appropriate interface cable or adapter shall be
adopted. Notes: even if the cable is equipped with right plug, internal wiring may be
incorrect.
The interface cable must be connected to the right serial port (COM1 and COM2) of the
computer.
Communication Settings
Before communication, you should first make the following parameters of power supply and
PC matches.
Baud Rate: 9600 (4800,9600,19200,38400,57600,115200). You can enter the system menu
from the front panel, and then set the baud rate.
Data bits: 8
Stop Bits: 1
Calibration (none, even, odd)
EVEN 8 data bits, have even parity
ODD 8 data bits have odd parity
NONE 8 data bits, no parity
Local Address: (0 ~ 31, the factory default setting is 0)
Parity=None Start Bit 8 Data Bits Stop Bit
6.2 USB interface
Connect the power supply and the computer using a cable with two USB interfaces (each
end). All functions of power supply may be programmed through USB.
The functions of USB488 interface are as follows
488.2 USB488 Interface.
Receive requests of REN_CONTROL, GO_TO_LOCAL and LOCAL_LOCKOUT.
Receive the command MsgID=TRIGGER USBTMC and convey the TRIGGER
command to the functional layer.
The functions of USB488 component are as follows:
1. Able to read all compulsory SCPI commands.
2. SR1 enabled.
3. RL1 enabled.
DT1 enabled.
IT7300 User Manual
User Manual
45
6.3 LAN interface
Press (Shift) + (Menu) on the front panel together to access the menu. Select
LAN in the Communication from System and then configure Gateway, IP, Mask and
SocketPort in the LAN option.
Connect the LAN interface of power supply to the computer with a reticle (crossed).
6.4 GPIB interface
Use a IEEE488 bus to connect GPIB interfaces of power supply and PC. Please ensure
that the screws have been screwed down in order to have a full connection. Then
press
+ (Menu) to enter the system menu to set the address. The address range
of power supply is 0-31.After you set the address, please press
button to confirm,
GPIB address is saved in nonvolatile memory.
IT7300User Manual
User Manual
46
Support process
If you have a problem, follow these steps:
1 Check the documentation that come with the product
2 Visit the ITECH online service Web site is www.itechate.com
,ITECH is available to all ITECH
customers. It is the fastest source for up-to-date product information and expert assistance and includes
the following features :
Fast access to email AE
Software and driver updates for the product
Call ITECH support line 4006-025-000
Loading...
