Dedicated LCD display solutions
User Manual
24"
LCD
^
V
iAP-W2400X
Aluminum front bezel
INAP-W2400X
^
Front NEMA4/IP65
IOP-W2400X
Universal Mounting Open Frame
pg C€
^
REACH
r^
|-T~E^j|"~I
i-Tech
Company LLC
C^DN^RA^TY
TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don't use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40° Celsius (104° Fahrenheit),
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment's power cord in such a way that others won't trip or fall over it.
■ If you are using a power cord that didn't ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment's electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment's ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don't intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■ Only qualified service personnel shojld open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modified or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
D Repair or attempted repair by anyone not authorized by us.
D Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fluctuation or failure.
D Use of supplies or parts not meeting our specifications.
D Normal wear and tear.
D Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures;
■ Re-position or relocate the receiving antenna
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Contents
< Part. 1 > IAP-W2400X / iNAP-W2400X
1.1 Package Content P.1
1.2 Structure Diagram & Dimension P.2
1.3 Mounting Hardware & Installation P.4
<Part. 2> iOP-W2400X
2.1 Package Content P.6
2.2 Structure Diagram & Dimension P.7
2.3 Mounting Hardware & Installation P.9
< Part. 3 > Specifications / OSD / Remote Controller
3.1 Product Specifications
P.
10
3.2 On-screen Display Operation (OSD )
P.
12
3.3 Picture In Picture ( PIP ) / Picture By Picture ( PBP ) R14
3.4 Remote Controller ( RC-2 )
P.
16
< Part. 4 > Options
4.1 Option Table
P.
17
4.2 3G/HD/SD-SDI Broadcast-grade input P.18
4.3 MCS Multi-display control solution
P.
19
4.4 Resistive (single point touch ) P.20
4.5 48V or 24VDC power P.21
4.6 MlL-type or lockable connector P.22
4.7 TV (Analog) P.23
Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
4k Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the finish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
© Disconnect the power
cord.
@ Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps
© Disconnect the power
cord.
© Spray a small amount of non-abrasive cleanser on a microfiber cloth.
A Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
** microfiber cloth first, not directly on the parts you are cleaning.
® Gently wipe the surface. Use as little pressure as possible.
@ Wait until your monitor is completely dry before plugging it in and powering it up.
< Part 1 >
< 1.1 > Package Content - iAP / JNAP-W2400X 24" High Resolution LCD Display
iAP / JNAP-W2400X
24"
High Resolution LCD display X 1
6ft VGA cable X 1
Power cord X 1
Remote controller X 1
Mounting hardware X 1 pack
- Mounting bracket x 4 pcs
- M4* 6mm screw x 8 pcs
- M4* 50mm screw x 8 pcs
Basic I/O
P.1
< 1.2 > Structure Diagram - iAP / JNAP-W2400X
Front view
IAP-W2400X
JNAP-W2400X
en
© Rear case
® LCD panel
© 6mm aluminum front bazel
@ Audio speaker, pair
© LCD membrane
© Remote sensor
Rear view
® o o « * * r
-,—:—
■ ° • ■ • n n • - • -
r
i
i
ri n
r
. . 1
1
'—3 :—1
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
iAP-W2400X
INAP-W2400X
620.4 x
87.1
x 426 mm
24.4 x 3.4 x 16.8 inch
701 x 138 x685 mm
27.6 x 5.4 x 27 inch
11.8 kg
26 lbs
15.5 kg
34.1 lbs
P. 2
< 1.2 > Dimension - iAP / JNAP-W2400X 24" High Resolution LCD Display
Front View Side View
o
in
3?
JAP-W2400X
iNAP-W2400X
nj
3?
C°D
520.4
50
620.4
59.5
87
Rear View
o
596.5
253.2
80
5864
UNIT: mm
1mm ■
0.03937
inch
Bottom View
I
620.4
I "
• • ■
Co Co
CO
C
H
I C3» L
O- '
o ®@® d o ^~~^ ■>
1
U
p
I ^
•■■''K
1
U
p
462,6
586.4
< 1.3 > Panel Mount Installation - iAP / INAP-W2400X
Mounting
bracket
x4 pcs
l£
Hardware set part no. UV-BK#2
Q M4*6mm
screw
x8 pcs
Q M4*50mm screw
x8 pcs
...•'
"■4
o
«.
a
^
Steps
■ Install 4 mounting brackets with 8 x M4*6mm screws
■ Adjust the LCD panel with 8 x M4*50mm screws and fix it on the surface.
< 1.3 > VESA mount Installation - iAP / iNAP-W2400X 24" High Resolution LCD Display
>?
^
\
M4 screw
100
VESA mount (100*100mm )
Hardware and M4*4 pcs for VESA mount are not provided
P.5
< Part 2 >

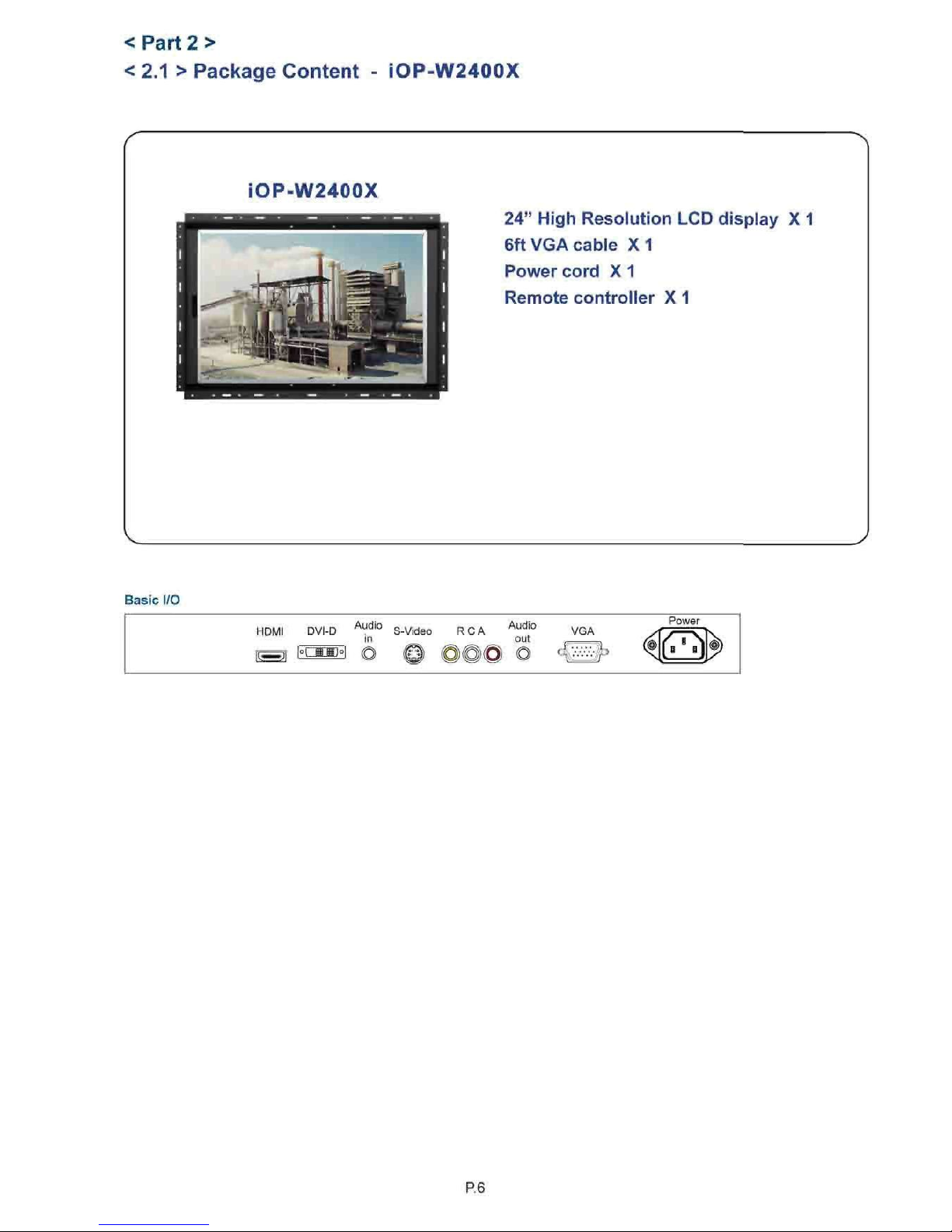

< 2.1 > Package Content - iOP-W2400X
IOP-W2400X
24"
High Resolution LCD display X 1
6ft VGA cable X1
Power cord X 1
Remote controller X 1
Basic I/O
P.6
< 2.2 > Structure Diagram - iOP-W2400X 24" High Resolution LCD Display
Front view
JOP-W2400X
(T) Rear case
(f) LCD panel
(D Audio speaker, pair
@ Universal open frame mounting
© LCD membrane
© Extended remote sensor membrane cable
Rear view
® o i> ♦ * m f>
66cm from AD board to sensor end
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
IOP-W2400X
617 4 x 80 6x423 mm
24.3x3.2x16.7 inch
701 x 138 x685 mm
27.6 x 5.4 x 27 inch
9.8 kg
21.6 lbs
13.5 kg
29.7 lbs
P. 7
< 2.2 > Dimension - iOP-W2400X
Front View Side View
32,837 37,37 37,37, 76 , 76 37,37 37,37,3732.2"?
f
JOP-W2400X
% 17.5 T^
_^£ _ 518.4
617,4
53
80,6
or'
Rear View
8
f
M4*4pcs
181.3 | 100 \
TT
586,4
UNIT: mm
1mm =
0.03937
inch
Bottom View
617,4
o °
462,6
586,4
P. 8

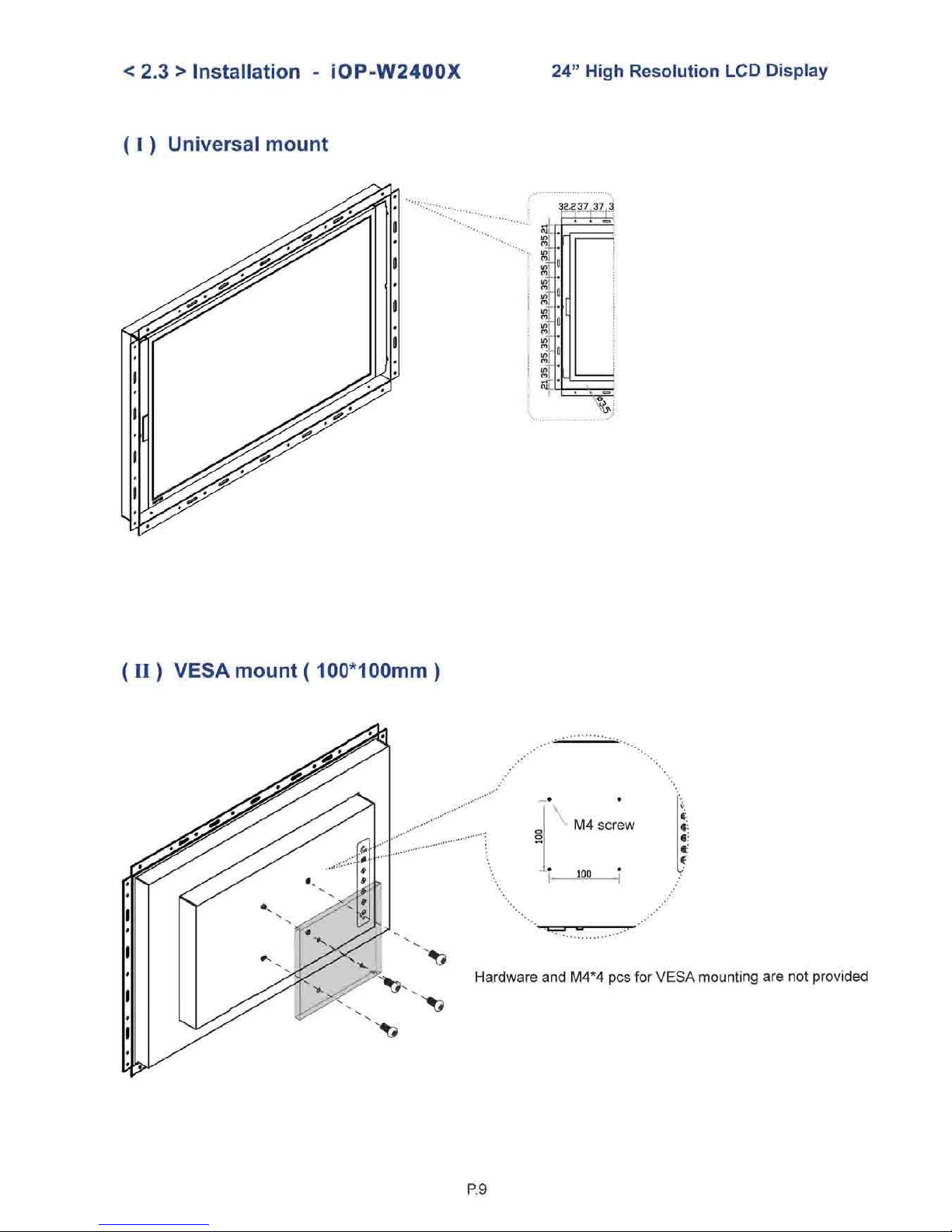

< 2.3 > Installation - JOP-W2400X
24"
High Resolution LCD Display
(1 ) Universal mount
'"■:;^::r-
32-237J37.3
• 8
8
- R!
8
T
K
8
5
(II) VESA mount (100*100mm )
^
...-•'
...-"
M4 screw
^ 19B 3
i
y
Hardware and M4M pcs for VESA mounting are not provided
< Part 3 >
< 3.1 > Product Specifications
Mechanical
Design
iAP / iNAP-W2400X
iOP-W2400X
Mechanical
Design
Front Panel
Black. RAL 9005
-
Mechanical
Design
Rear Casing Black, RAL 9005
Black. RAL 9005
Mechanical
Design
VESA Mounting 100 x 100mm
100x 100mm
Mechanical
Design
Other Mounting Panel mount
Universal mount
Mechanical
Design
Protection
3mm protective glass -
Panel Size ( diagonal ) 24.1-inch Widescreen TFT color LCD
Display pixel ( dots x lines ) 1920x1200
Brightness (typ. ) 400
Contrast Ratio (typ. ) 1000:1
Color 1.07 b
Viewing Angle (
L/R/U/D
) 89/89/89/89
Response Time ( ms )
13
Dot pitch ( mm ) 0.27
Display Area ( mm ) 518.40Hx 324.0V
Surface treatment Anti-glare. Hard-coating
Surface hardness
3H
Backlight Type CCFL
MTBF ( hrs) 40,000
Video
Connectivity
Digital HDMI HDMI
1.1.CEA-861-D
Video
Connectivity
Digital
DVI
DVI-D,
TMDS single link
Video
Connectivity
Analog
VGA Analog
0.7Vp-p
Video
Connectivity
Analog
Composite ( RCA) NTSC & PAL
Video
Connectivity
Analog
S-Video ( 4-pin
) NTSC & PAL
Video
Connectivity
Plug & Play DVI/VGA
VESA EDID structure 1.3
Video
Connectivity
Synchronization
VGA
Separate, Composite & SOG
Audio
Connectivity
Audio Input Connector
3.5mm
stereo jack Audio Input
Impedance / Power level
30kQ / 750mV
Audio Output
Connector
3.5mm
stereo jack
Audio Output
Resistance / Power level 30kQ / 2.8V
Speaker Output
Power 2x2W
•When the audio output is connected, speaker output is OFF
Power Power Supply
Range
Auto-sensing 100 to 240VAC,
50 / 60Hz
Power
Power Consumption
Screen display ON
125Worless
Power
Power Consumption
Power saving mode
9W or less
Power
Power Consumption
Power button OFF 2W or less
P.10
< 3.1 > Product Specifications
Regulatory
24"
High Resolution LCD Display
Safety FCC & CE certified
Environmental
RoHS2 & REACH compliant
Environmental
Conditions
Operating
Temperature 0 to 50"C degree Environmental
Conditions
Operating
Humidity
20-90%,
non-condensing
Environmental
Conditions
Storage
Temperature -5 to 60°C degree
Environmental
Conditions
Storage
Humidity
5-90%. non-condensing
Environmental
Conditions
Storage
Shock 10G acceleration (11ms duration)
Storage
Vibration
5~500Hz
1G RMS random
Physical
Specification
iAP / iNAP-W2400X
iOP-W2400X
Physical
Specification
Product (WxDxH)
620.4x87.1 x 426 mm
24.4x3.4x16.8 inch
617.4x80.6x423 mm
24.3 x 3.2 x 16.7 inch
Physical
Specification
Packing (W x D x H )
701 x 138 x685 mm
27.6 x 5.4 x 27 inch
701 x 138 x685 mm
27.6 x 5 4 x 27 inch
Physical
Specification
Net Weight 11.8 kgs/ 26 lbs
9.8 kgs/21.6 lbs
Physical
Specification
Gross Weight
15.5 kgs/34.1 lbs
13.5 kgs/29.7 lbs
Applicable
Format
DVI-D/
VGA Input PC Signal 1920 x1200 x60Hz Applicable
Format
DVI-D/
VGA Input PC Signal
1360 x768 x60Hz
Applicable
Format
DVI-D/
VGA Input PC Signal
1280 x 1024 x 60 / 75Hz
Applicable
Format
DVI-D/
VGA Input PC Signal
1280 x960 x60Hz
Applicable
Format
DVI-D/
VGA Input PC Signal
1280x768x60/75Hz
Applicable
Format
DVI-D/
VGA Input PC Signal
1152 x864 x75Hz
Applicable
Format
DVI-D/
VGA Input PC Signal
1024x768x60/70/75Hz
DVI-D/
VGA Input PC Signal
1024x768x60/70/75Hz
DVI-D/
VGA Input PC Signal
848 x 480 x 60Hz
DVI-D/
VGA Input PC Signal
800 x 600 X 60 / 72 / 75Hz
DVI-D/
VGA Input PC Signal
720 x 400 x 70Hz
DVI-D/
VGA Input PC Signal
640 x 480 x 60 / 72 / 75Hz
DVI-D/
VGA Input PC Signal
640 x 400 x 70Hz
DVI-D/
VGA Input PC Signal
640 x 350 x 70Hz
HDMI Input
PC Signal
Same as VGA
HDMI Input
Video Signal
1080p 60Hz
HDMI Input
Video Signal
720p 50 / 60Hz
HDMI Input
Video Signal
480p 60Hz
HDMI Input
Video Signal
576p 50Hz
HDMI Input
Audio Signal
2ch Linear PCM ( 32 /
44.1
/ 48 KHz )
Composite /
S-Video
Input
NTSC 525 lines. 60 fields / sec
Composite /
S-Video
Input
PAL 625 lines, 50 fields / sec
P.11
< 3.2 > On-screen Display Operation ( OSD )
O Power light
• Green = On
• Orange = Power saving
©<►<►♦*
Membrane Switch Function
e
Power on / off LCD
Display the OSD menu
<$><!><£ 3>
Scrolls through menu options and adjusts the displayed control
(To auto adjustment by pressing the burton <$> for 5 seconds)
(P>
Exit the OSD screen
Toggle analog, digital & video connection (DVI-D and video options only)
© Picture
Picture mode : Standard / Vivid / Soft / User mode to choose
Brightness : Adjust background black level of the screen image
Contrast: Adjust the difference between the image background
(black level) and the foreground (white level)
Hue:
Adjust the screen hue value
Saturation : Adjust the saturation of the image color
Picture size : Adjust the image size
Color temp Standard / Cool / Warm / User to choose
Noise reduce : Reduce the noise of the image
Sharpness : Adjust the image from weak to sharp
Brightness
Contrast
Hue
Saturation
Picture size
Color temp
Noise reduce
Sharpness
© PC
Auto adjust
Clock :
Phase:
H. Position :
V. Position :
Automatically adjust sizes, centers and fine tunes the
video signal to eliminate waviness and distortion.
Adjust the clock value
Adjust the phase value
Align the screen image left or right
Align the screen image up or down
m
fSl
■
PC
s
i
' uto adjust
Clock
^ Phase
H positive
V positive
< 3.2 > On-screen Display Operation ( OSD ) 24" High Resolution LCD Display
© Audio
Audio mode:
Volume:
Bass
Treble:
Balance :
Analog TV audio
Mute :
Movie / Voice / Normal / Music mode to choose
Adjust the volume of sound
Set the value of bass sound
Set the value of treble sound
Set the balance value of treble and bass sound
Set the value of analog TV audio sound
Turn off the surrounding sound
\udio mode
Volume
Audio track
Bass
b Treble
Balance
Analog TV audio
Mute
©
TV
Auto search :
Manual search !
Fine tune:
Color system :
Sound system ;
Channel edit
Automatica ly search
Search the TV manual
Fine tune the TV signal
Adjust the TV color
Adjust the TV sound
Edit the channel
1
uto search
Manual search
Fine tune
Color system
Sound system
> Channel edit
© MISC
Language:
Sleep timer:
PIP mode :
PIP position :
PIP source:
System reset
Information :
Select the language in which the OSD menu is
displayed - English
Set the off time
Adjust pictu'e in picture setting
Enter into PIP position
Enter into the Sub source and sound source
Return the adjustment back to factory setting
Select for Help
fS
■Language
[©
*»
'
Sleep timer
PIP mode
PIP position
PIP source
System reset
Information
>
(§) MISC
Sleep timer
PIP mode
PIP position
PIP source
System reset
Information
>
V
P.13
< 3.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP )
< 3.3.1 > Picture in Picture ( PIP )
Mode
Display the Sub screen in the Main screen.
OSD Menu • MISC • PIP Mode • Large / Small / OFF
Main screen
Sub screen
Position
Adjust the position of the Sub screen (top left, bottom left, top right, bottom right)
OSD Menu -* MISC — PIP Position -* top left / top right / bottom left / bottom right
top left top right
bottom left
bottom right
Size
Adjust the size of the Sub screen (Large / Small)
OSD Menu -» MISC — PIP Moce -* Large / Small
Size of Sub screen
LCD Monitor
Large Sub screen Small Sub screen
1920x1200 552x414 480 x 360
1920x1080 552x414 480 x 360
1440x900
414x310
360 x 270
1366x768 392 x 294
340 x 254
1280x1024 368 x 276 320 x 240
P.14
24"
High Resolution LCD Display
< 3.3.2 > Picture By Picture ( PBP )
Mode
Display the Sub screen next to the Main screen.
OSD Menu - MISC -* PIP Mode • PBP
Main screen Sub screen
Size
LCD Monitor Main / Sub screen
1920x1200 955x716
1920x1080 955x716
1440x900 715x536
1366x768
678 x 508
1280x1024 635 x 476
< 3.3.3 > PIP / PBP Source
To select an input signal for PIP / PBP Sub screen.
OSD Menu — MISC -* PIP Source -> VGA /
S-Video
/ Composite / DVI / HDMl / SDI / YPbPr / TV
The PIP / PBP is operable in the following table :
"^*^ Snh
VGA
S-Video
Composite DVI-D
HDMl
SDI
YPbPr
TV
Main ^"""--^^
VGA
VGA
S-Video
Composite DVI-D
HDMl
SDI
YPbPr
TV
Main ^"""--^^
VGA X
0 0 O O 0 0
0
S-Video
Composite
O
X X 0 O
0
0
X
S-Video
Composite
O X
x
0 O 0 0
X
DVI
0 0 0 X
X
0 0
0
HDMl
0 0 0
X
X
0 0
0
SDI
YPbPr
0 0 0 0 0 X X
0
SDI
YPbPr
0 0
0 0
0 X
X 0
TV
0
X X 0
0 0 0
X

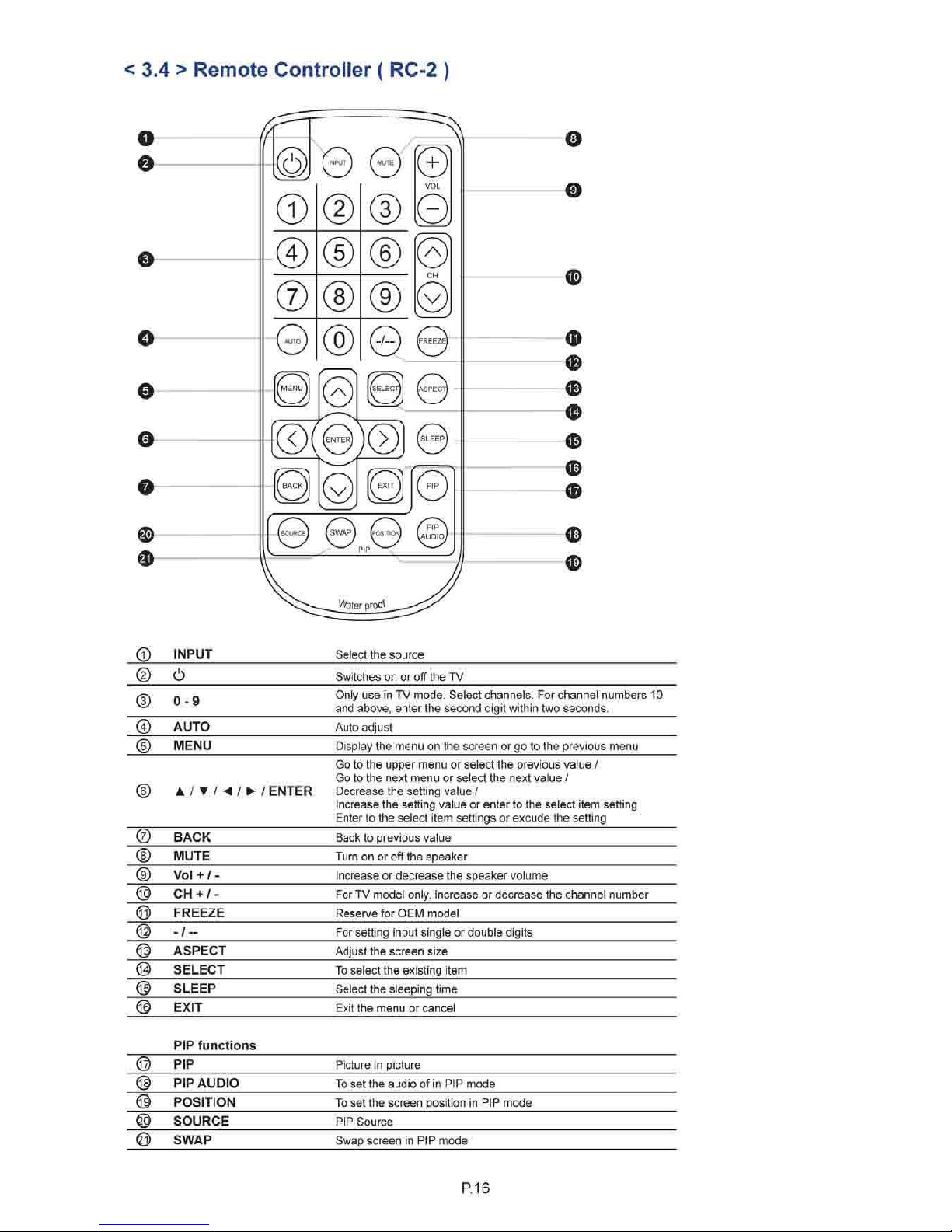

< 3.4 > Remote Controller ( RC-2 )
O
O
©
©
©
©
®
®
©
©
&
VOL
a
B
CH
©
©
f \
(MENUJ
f/\) ^EL=CTJ ksPECTJ
M0W@
f i-^z \
O © 0 0
(ecu^
(sWA=)
U^
QjJJ
o
o
<E)
<D
<£>
©
©
INPUT Select the source
(2)
0
Switches on or off the TV
©
0-9
Only use in TV mode Select channels. For channel numbers 10
and above, enter the second digit within two seconds
©
AUTO
Auto adjust
©
MENU
Display the menu on the screen or go to the previous menu
▲ /T / < I ► /ENTER
Go to the upper menu or select the previous value /
Go to the next menu or select the next value /
Decrease the setting value /
Increase the setting value or enter to the select item setting
Enter to the select item settings or excude the setting
©
BACK Back to previous value
©
MUTE Turn on or off the speaker
©
Vol + / - Increase or decrease the speaker volume
©
CH + /- Fcr TV model only, increase or decrease the channel number
©
FREEZE Reserve for OEM model
©
-/- Fcr setting input single or double digits
©
ASPECT Adjust the screen size
©
SELECT
To
select the existing item
©
SLEEP Select the sleeping time
©
EXIT Exit the menu or cancel
PIP functions
©
PIP Picture in picture
©
PIP AUDIO To set the audio of
in
PIP mode
©
POSITION To set the screen position in PIP mode
©
SOURCE PP Source
SWAP
Swap screen in PIP mode
< Part 4 > Options
24"
High Resolution LCD Display
< 4.1 > Option Table
Options iAP/iNAP
iOP
SDI
y y
Touchscreen
•
y
MCS multi-screen control
y
y
MIL-type / lockable connector
y y
DC Power
y
y
TV
•
y
P.17
< 4.2 > Options : 3G / HD / SD-SDI input
iTechLCDs' SDI input is an ideal solution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with NetView Full HD 1080p and ultra high
resolution 1920 x 1200 LCD displays, iTechLCD provides a
SDI input module without using additional space or power and it
comes standard with a 2-year warranty.
SDI
3G-SDI IN
3G-SDI OUT
BNC x 1 / 0.8Vp-p ( 75 ohm )
BNC x 1 /Active through, equalized & relocked
Standard Compliance
Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Standard Compliance
Audio SMPTE 299M / 272M-C
Compatible Video Format 3G-SDI 1080p @60/50Hz, 4:2:2
1080p @30 / 25 / 24Hz, 4:4:4
1080i @60/50Hz, 4:4:4
720p @60 / 50Hz, 4:4:4
Compatible Video Format
HD-SDI 1080p @30 / 25 / 24Hz, 4:2:2
1080i @60 / 50Hz, 4:2:2
720p @60 / 50Hz, 4:2:2
Compatible Video Format
SD-SDI 480i @60Hz, 4:2:2
Compatible Video Format
ITU-R BT.656 576i @50Hz, 4:2:2
Compatible Audio Format 3G-SDI 48kHz, 16/20/24 bit, 2 CH, Synchronized Video Compatible Audio Format
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
Compatible Audio Format
SD-SDI 48kHz, 16/20/24 bit, 2 CH, Synchronized /
Asynchronized Video
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150mat2.97Gb/s Max. Transmission Distance
75 ohm coaxial cable
HD-SDI 250mat1.485Gb/s
Max. Transmission Distance
75 ohm coaxial cable
SD-SDI 480m at 270Mb/s
P.18
< 4.3 > Options : MCS
24"
High Resolution LCD Display
MCS
( Multi-display Control)
More control is always good. Especially when it is necessary and
easy. iTechLCD provides MCS solution to control the OSD of
various NetView LCD display up to 64 units.
The RS-232C is used for the communication between the PC and
the first display via a 15 feet serial cable while the CAN bus is
used for the various LCD displays cascade together via CAT 5/6
cable,
and daisy chain up to 1,000 meters.
Designed for use with NetView LCD displays, iTechLCD
provides a MCS input module without using additional space or
power and it comes standard with a 2-year warranty.
MCS
Please download the protocol of MCS control
HDMI DVI-D Audio s-Video RCA Audio
in
out
VGA
Power
■ ■
HDMI DVI-D Audio s-Video RCA Audio
in
out
VGA
^(T**)^
<£EMHLBH
HDMI DVI-D Audio s-Video RCA Audio
in
out
VGA
^(T**)^
<£EMHLBH
S
£LJO^ <Q p @@® ©
VGA
^(T**)^
Link in out set
S
£LJO^ <Q p @@® ©
VGA
RS-232C
15 feet serial cable
( over 15 feet, extender required )
LINK
H
OUT
,••-'
....■-"
I
a
\
Set switch
For the 1st and last display,
push the set switch upward
For other daisy chain displays.
f
/
/
push the set switch downward/
IN
J
Cat5 / 6 cable
max. 300 meters
OUT
L
IN OUT
RJ-45 jack
Cat5 / 6 cable
max. 300 meters
Daisy chain up to 1,000
meters and 64 displays
J
L
IN
J
OUT
Cat5 / 6 cable
max. 300 meters
up to 64 displays
< 4.4 > Options : Touchscreen & driver
X24"
USB Touchscreen Specification
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
TRB
e-Resistive
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
5-Wire
Resistive
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
Single
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
Finger or Stylus
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
2048 x 2048
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
-
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
15 ms
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
^50g
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
3H
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
80%
± 3%
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
8% ± 3%
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
10 million touches
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
ITO Film
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
ITO Glass
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
2.2 ±0.2 mm
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
USB Type A
Model
Technology
Touch Point
Input Type
Resolution
Touch Point Accuracy
Response Speed
Activation Force
Surface Hardness
Light Transmission
Haze
Durability
Top Layer
Bottom Layer
Thickness
Connector
Compatibility
Windows 7 / XP / Vista, Linux
USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
For detailed information, please refer to the attached CD disc
As the touchscreen unit is not made of toughened glass, please handle it carefully
USB Touchscreen
HDMI DVI-D Audio
S-Video
RCA Audio
in out
VGA
Power
HDMI DVI-D Audio
S-Video
RCA Audio
in out
r^i»
HDMI
loCiEiH © <& POO O <@b b™] <®
r^i»
HDMI
loCiEiH © <& POO O
< 4.4 > Options : Touchscreen & driver
TRB Driver
24"
High Resolution LCD Display
Please follow the below steps to setup the touch screen:-
Step 1. Run the bundled CD disc or download the driver
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to finish the setup
Step 4. After installation, run the TouchKit program & the "4 point calibration"
Please do the initial calibration
after the first setup
>
T"u«-HKit
< 4.5 > Options : DC Power
+ -
Model
24V 48V
Input rating
Input voltage: 24-Volt 48-Volt
Input range: 18-36V 36 r 75V
Input current
- No load 180 mA 90 mA
- Full load 8396 mA 4198 mA
Output rating
Output voltage:
24-Volt 24-Volt
Output current 9 0A 9.0A
Efficiency
88% 89%
< 4.6 > Options : MIL-type or Lockable Connector
Input Part no. MIL Standard |
MIL - type
Connector
DC Power ***
(Male)
MS3470W8-33P tfS^Q
MIL -DTL- 26482 MIL - type
Connector
VGA ***
(Male )
MS3470W14-15P
%
MIL -DTL- 26482
VGA ***
(Male )
MS3470W14-15P
%
MIL -DTL- 26482
There are several additional MIL DC and VGA connector types with varying design
characteristics to meet cost considerations and to provide users with the most
design flexibility possible. For more information, please contact us.
Input Part no. Standard |
Lockable
Connector
DC Power
( Male)
YM-Ext-461CP001
D-type
3W3 Lockable
Connector
USB
LUSB-A111 -00
USB
LUSB-A111 -00
*** MIL - type or Lockable connectors above can be integrated with our LCD displays.
Sale service just for connectors not provided.
P.22
<
4.7 >
Options
: TV
(Analog
)
24"
High Resolution LCD Display
TV
HDMI
F=5|
DVI-D Audio S-Video
in
RCA Audio
; VGA
out
Power
HDMI
F=5|
DVI-D Audio S-Video
in
RCA Audio
; VGA
out
<
(ft|
ffl
HDMI
F=5|
H
HHH Q ifHii
@©®>
o «t^»
<
(ft|
ffl
HDMI
F=5|
H
HHH Q ifHii
@©®>
o «t^»
***
For RC-2 remote controller specifications, please refer to P.16
R23
I-TECH
COMPANY
i-Tech
Company LLC
TOLL FREE: (888) 483-241
8 • EMAIL: info wiTechLCD.com •
WEB:
www.iTech LCD .com
Loading...
