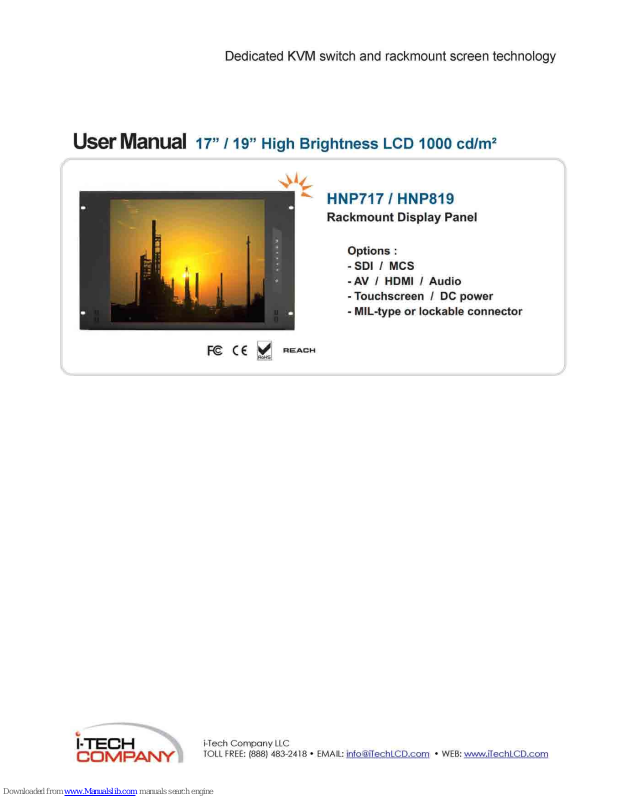

Dedicated KVM switch and rackmount screen technology
User Manual
17” / 19” High Brightness LCD 1000 cd/m
2
HNP717/HNP819
Rackmount Display Panel
Options :
-SDI / MCS
-AV / HDMI / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
F© C€ k/
REACH
i-Tech
Company LLC
TOLL
FREE:
(888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don't use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40° Celsius (104° Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment's power cord in such a way that others won't trip or fall over it.
■ If you are using a power cord that didn't ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment's electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment's ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don't intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■ Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modified or removed.
■ Damage, deterioration or malfunction resulting from:
D Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fluctuation or failure.
□ Use of supplies or parts not meeting our specifications.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Contents
> HNP717/HNP819
Package Content P.1
Structure Diagram & Dimension P.1
Installation P.4
> Specifications / OSD / Remote Controller
Product Specifications P.5
On-screen Display Operation ( OSD ) P.7
> Options
3G/HD/SD-SDI Broadcast-grade input P.9
MCS Multi-display control solution
P.
10
AV2.2D Upgrade : DVI-D + VGA + BNC + S-Video + Audio
P.
11
AV2.2H Upgrade : HDMI + VGA + BNC + S-Video + Audio P.11
AV3.0 Upgrade :
P.
12
DVI-D + VGA + HDMI + BNC + S-Video + Audio
H17"
/ H19" Touchscreen : Resistive, Capacitive P.13
48V, 24V or 12VDC power
P.
14
MIL-type or lockable connector P.15
Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
4k Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the finish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
® Disconnect the power
cord.
® Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
© Disconnect the power
cord.
© Spray a small amount of non-abrasive cleanser on a microfiber cloth.
^^ Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
•* microfiber cloth first, not directly on the parts you are cleaning.
® Gently wipe the surface. Use as little pressure as possible.
® Wait until your monitor is completely dry before plugging it in and powering it up.
< Part 1 >
< 1.1 > Package Content
HNP717/HNP819X1
6ft VGA cable X1
Power adapter X 1
Power cord X 1
< 1.2 > Structure Diagram
Front view
A
o
o ||
o
A
a o
o
o ||
HNP717
■
<
V
A
HNP819 |H
&
o
o ||
HNP717
6
II o
%9
A
S
e
II o
w
u
II
S
e
II o
Rear view
Power adapter
0 LCD panel
@ LCD membrane
(D Audio speaker
(5) Power adapter basket
Power cord
DVI-D
Audio
0 O O O
out - in - in
Video PC
Power BNC S-Video VGA
© © ©
c|5x?|o
HDMI
Basic I/O
AV2.2D upgrade
AV2.2H upgrade
AV3.0 upgrade
Options
DVI-D + VGA
DVI-D + VGA + BNC + S-Video + audio
HDMI + VGA + BNC + S-Video + audio
HDMI + DVI-D + VGA + BNC + S-Video + audio
USB for touchscreen & DC power
SDI (AV3.0 upgrade required )
P.1
< 1.2 > Dimension - HNP717
Front View
Side View
o
o II
II
HNP717 g
OJ
340
o
II
A
V
<
>
A
in
CO
OJ
o
CO
o
o II
II
II °
II
463
480
-^ ^-
Bottom View
UNIT: mm
1mm =
0.03937
inch
480
O Q® Oooo J fe
440
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
HNP717
480x54.2x310 mm
18.9x2.1 x12.2 inch
529 x124 x495 mm
20.8x4.9x19.5 inch
6 kg
13 lbs
8.5 kg
19 lbs
P.2
<
1.2 >
Dimension - HNP819
Front View
Side View
o
°
II
HNP819
o
CO
379
c
©
•
©
©
©
e
!!c
o
°
II
HNP819
o
CO
379
c
©
•
©
©
©
e
!!c
o>
OJ
5
00
in
CO
o
°
II
c
©
•
©
©
©
e
!!c
o>
OJ
5
00
in
CO
463
480
CO
ON
co
Bottom View
UNIT:
mm
1mm = 0.03937
inch
480
C2^
O © °
®o®
J
fe
440,6
CO
CO
in
Model
Product Dimension
(W
x D x H)
Packing Dimension
(W
x D x H)
Net
Weight
Gross
Weight
HNP819
480x53.3x354.8
mm
18.9x2.1
x 14
inch
539
x129
x529
mm
21.2x5.1 x20.8 inch
6.5
kg
14
lbs
9
kg
20
lbs
P. 3
< 1.3 > Installation
Step O
■ Mount the display panel with M6 screw set.
■ M6 screw x 4 pcs required ( Left & right side ).
M6 screw sets are not provided.
Step O
Fix the LCD into the rack.
P.4
< Part 2 >
< 2.1 > Product Specifications
HNP717 HNP819
Panel Size ( diagonal)
17-inch TFT color LCD 19-inch TFT color LCD
Display pixel ( dots x lines )
1280x1024 1280x1024
Brightness (typ. )
1000 1000
Contrast Ratio (typ. )
1000:1 1000:1
Color
16.7 M
16.7 M
Viewing Angle (L/R/U/D)
85/85/80/80
80/80/80/80
Response Time ( ms )
5 5
Dot pitch ( mm )
0.264 0.294
Display Area ( mm )
337.92H x 270.33V 376.32Hx301.05V
Surface treatment
Anti-glare Haze 25%, Hard-coating
Surface hardness
3H 3H
Backlight Type
LED LED
MTBF ( hrs )
50,000 50,000
Video
Connectivity
Digital HDMI HDMI
1.1.CEA-861-D
DVI
DVI-D,
TMDS single link
Analog
VGA
Analog
0.7Vp-p
Composite ( BNC ) NTSC & PAL
S-Video
(4-pin ) NTSC & PAL
Plug & Play DVI / VGA
VESA EDID structure 1.3
Synchronization VGA
Separate, Composite & SOG
Audio
Connectivity
Audio Input
Connector
3.5mm
stereo jack
Audio Input
Impedance / Power level 30kO / 750mV
Audio Output
Connector
3.5mm
stereo jack
Audio Output
Resistance / Power level 30kQ / 2.8V
Speaker Output
Power 2x2W
"When the audio output is connected, speaker output is OFF
Power Supply
Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption
Screen display ON 35W or less
Power Consumption
Power saving mode 4W or less
Power Consumption
Power button OFF
1Wor less
Regulatory
Safety
FCC & CE certified
Environmental
RoHS2 & REACH compliant
R5
Operating Temperature 0 to 50°C degree Operating
Humidity
20-90%,
non-condensing
Storage
Temperature -5to60°Cdegree
Storage
Humidity 5-90%, non-condensing
Storage
Shock 10G acceleration (11ms duration)
Storage
Vibration
5-500Hz
1G RMS random
HNP717 HNP819
Product ( W x D x H )
480x54.2x310 mm
18.9x2.1 x 12.2 inch
480 x 53.3 x 354.8 mm
18.9x2.1 x 14 inch
Packing (WxDxH )
529 x 124 x495 mm
20.8 x 4.9 x 19.5 inch
539 x 129x529 mm
21.2x5.1 x 20.8 inch
Net Weight 6kgs/13lbs
6.5kgs/14lbs
Gross Weight
8.5kgs/19lbs
9 kgs / 20 lbs
DVI-D/VGA Input PC Signal 1280 x 1024 x 60 / 75Hz DVI-D/VGA Input PC Signal
1280 x960 x60Hz
DVI-D/VGA Input PC Signal
1280x760x60/75Hz
DVI-D/VGA Input PC Signal
1152 x864 x75Hz
DVI-D/VGA Input PC Signal
1024x768x60/70/75Hz
DVI-D/VGA Input PC Signal
848 x 480 x 60Hz
DVI-D/VGA Input PC Signal
800 x 600 x 60 / 72 / 75Hz
DVI-D/VGA Input PC Signal
720 x 400 x 70Hz
DVI-D/VGA Input PC Signal
640 x 480 x 60 / 72 / 75Hz
DVI-D/VGA Input PC Signal
640 x 400 x 70Hz
DVI-D/VGA Input PC Signal
640 x 350 x 70Hz
P.6
< 2.2 > On-screen Display Operation ( OSD )
HNP819
O Power light
• Green = On
• Orange = Power saving
Membrane Switch
•©<►♦*♦
Function
e
Power on / off LCD
Display the OSD menu
«>«»#€>
Scrolls through menu options and adjusts the displayed control
(To auto adjustment by pressing the button <§> for 5 seconds)
if*
Exit the OSD screen
Toggle analog, digital & video connection (DVI-D and video options only)
HNP717
i=
t>
Membrane Switch
Function
6
Turn the monitor on or off
DCZI
Dl=l
DCZI
Display the OSD menu
Act as an Enter key to select screen setting options
A V <
>
Scroll through menu options and adjust
the displayed control
^
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Remark : All LED touch buttons in WHITE light.
The LED of Power (§) touch button will flash continuously when there is no signal input.
(T) All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power © ).
© Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power @ ).
P. 7
< 2.2 > On-screen Display Operation ( OSD )
OSD Configuration Page
Ver: G56SN20SSTD701 1024x768 59.8Hz
Mi
Brightness [1
Contrast J
Color Temp User
Red I^^M
Green [I
Blue J
Adjust: Select: ♦+ Set: ®/i=i
m
Image:
for the brightness, contrast, color
temp,
red, green, and blue
Geometry:
for the auto adjust, H position, V position, phase and clock
to-
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
J>
Audio:
for volume, bass, treble, balance, AVL and mute
Misc
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
] 50
] 50
0 255
Q 255
Q 255
Exit: t
P.8
< Part 3 >
< 3.1 > Options : 3G / HD / SD-SDI input
iTechLCDs' SDI input is an ideal solution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with NetView Full HD 1080p and ultra high
resolution 1920 x 1200 LCD displays, iTechLCD provides a
SDI input module without using additional space or power and it
comes standard with a 2-year warranty.
SDI
DVI-D
Audio
i 1
o o o
out - in - in
Video PC
|°l HfflJoj
Audio
i 1
o o o
out - in - in
Video PC
Power BNC S-Video VGA
©
out © - in
HDMI
0 © © cp^Jp ©
out © - in
P=^fl
For SDI option, the AD board will be upgraded to
AV3.0,
and this comes standard with
HDMI,
DVI-D,
VGA, S-Video, BNC and audio inputs.
3G-SDI IN
3G-SDI OUT
BNCxI /0.8Vp-p(75ohm)
BNC x 1 /Active through, equalized & relocked
Standard Compliance
Video
SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Standard Compliance
Audio
SMPTE 299M / 272M-C
Compatible Video Format
3G-SDI
1080p
1080p
1080i
720p
@60/50Hz, 4:2:2
@30 / 25/24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60/50Hz, 4:4:4
Compatible Video Format
HD-SDI 1080p
1080i
720p
@30 / 25/24Hz, 4:2:2
@60/50Hz, 4:2:2
@60/50Hz, 4:2:2
Compatible Video Format
SD-SDI
480i @60Hz, 4:2:2
Compatible Video Format
ITU-R BT.656
576i @50Hz, 4:2:2
Compatible Audio Format
3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
Compatible Audio Format
HD-SDI
48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
Compatible Audio Format
SD-SDI
48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI
150mat2.97Gb/s
Max. Transmission Distance
75 ohm coaxial cable
HD-SDI
250mat1.485Gb/s
Max. Transmission Distance
75 ohm coaxial cable
SD-SDI 480mat270Mb/s
P.9
< 3.2 > Options : MCS
( Multi-display Control)
More control is always good. Especially when it is necessary and
easy. iTechLCD provides MCS solution to control the OSD of
various NetView LCD display up to 64 units.
The RS-232C is used for the communication between the PC and the
first display via a 15 feet serial cable while the CAN bus is used for the
various LCD displays cascade together via CAT 5/6 cable, and daisy
chain up to 1,000 meters.
Designed for use with NetView LCD displays, iTechLCD
provides a MCS input module without using additional space or power
and it comes standard with a 2-year warranty.
HDMI
Audio
p0Wer
BNC S-Video
1
O O O 0
nil
it _ in _ in ^-"^
\
1
out - in - in
Video PC
MCS
VGA DVI-D
set out
in
Link
Please download the protocol of MCS control
For MCS option, casing depth will be changed.
RS-232C
15 feet serial cable
( over 15 feet, extender required )
B
Set switch
For the 1st and last display,
push the set switch upward
For other daisy chain displays,
push the set switch downward.
in m
LINK
RJ-45 jack
OUT IN
OUT IN OUT IN OUT
I
t
! I
I
t
Cat5 / 6 cable
Cat5 / 6 cable Cat5 / 6 cable
max. 300 meters
max. 300 meters max. 300 meters
Daisy chain up to 1,000 up to t 64 displays
meters and 64 displays
P.10
<
3.3 >
AV2.2D Upgrade Options
:
-DVI-D (DVI-DTMDS single link)
-
AV (
S-Video + Composite, BNC
)
- Audio ( 3.5mm audio jacks
for
audio
in &
out, and
2W + 2W
speakers
)
DVI-D
,
Aud
'° , Power
BNC
S-Video
VGA
c&b
l°n~s]°]
O O O
C%
(8) fft
out - in - in ^ ^=^ ^^ > j
Video
PC
<
3.4 >
AV2.2H Upgrade Options
:
- HDMI ( HDMI 1.1, CEA-861-D
)
-
AV (
S-Video + Composite, BNC
)
- Audio ( 3.5mm audio jacks
for
audio
in &
out, and
2W + 2W
speakers
)
,
Aud
'° , Power
BNC
S-Video
VGA
HDMI
0 0 0 © 0 ©
ejSb
s
nut -in- in ^^ ^=^ ^e^ 11 A
[i-——wj
out - in - in '^ ^^ ^^ "fc i'" I' ]l
Video
PC
P.11
< 3.5 > AV3.0 Upgrade Options :
- HDMI ( HDMI 1.1, CEA-861-D )
-DVI-D ( DVI-D TMDS single link)
- AV ( S-Video + Composite, BNC )
- Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
DVI-D , , Power BNC S-Video VGA
[°rjm°l O O O fS © fl£| J*^h
out - in - in ^ ^=^ ^^ \, j-
Video PC
HDMI
P.12
< 3.6 > Options : Touchscreen & driver 0^
H17"
/ H19" USB Touchscreen Specification
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
17' 19"
17"
19"
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
TRB
e-Resistive
TCB
e-Capacitive
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
5-Wire
Resistive Capacitive
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
Single Single
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
Stylus
or
Finger Finger
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
<50g/Stylus=R0.8 <50g
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
35 million touches 300 million touches
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
15
ms
20
ms
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
80%
± 3%
93%
±2%
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
3H 9H
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
8%
± 3%
7%
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
1.4
±0.2
mm
3.2 ±0.2
mm
2.8 mm ±10% 2.8 mm ±10%
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
USB Type
A
USB Type
A
Model
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
Windows
7 / XP /
Vista, Linux Windows
7 /
XP / Vista, Linux
USB touchscreen package includes 1 x 6ft
USB cable, quick reference guideline and
CD
disc
For detailed information, please refer to
the
attached
CD
disc
As
the
touchscreen unit
is not
made
of
toughened glass, please handle
it
carefully
USB Touchscreen
DVI-D Power
0
VGA
Irxxxil
[°l HH)°]
Power
0
VGA
Please follow
the
below steps
to
setup
the
touch screen
Step 1. Run
the
bundled
CD
disc
or
download
the
driver
Step
2.
Double click
the
Setup.exe
Step
3.
Follow the installation instruction
to
finish
the
setup
Step 4. After installation, run
the
TouchKit program
& the "4
point calibration"
Please
do the
initial calibration
after the first setup
E
T^u^KKit
P.13
+ -
< 3.7 > Options : DC Power opiTelo
Model
24V
48V
Input rating
Input voltage: 24-Volt
48-Volt
Input range: 18-36V
36 - 75V
Input current
- No load
50 mA
50 mA
- Full load
4880 mA
2442 mA
Output rating
Output voltage: 12-Volt
12-Volt
Output current: 8.3A
8.3A
Efficiency
85%
86%
P.14
< 3.8 > Options : MIL-type or Lockable Connector
Input Part no. MIL Standard
MIL -type
Connector
DC Power ***
( Male )
MS3470W8-33P ffltf)
MIL-DTL-26482 MIL -type
Connector
VGA ***
( Male )
MS3470W14-15P ^^tf)
MIL -DTL- 26482
VGA ***
( Male )
MS3470W14-15P ^^tf)
MIL -DTL- 26482
There are several additional MIL DC and VGA connector types with varying design
characteristics to meet cost considerations and to provide users with the most
design flexibility possible. For more information, please contact us.
Input Part no. Standard
Lockable
Connector
DC Power
( Male )
YM-Ext-461CP001
^0
D-type
3W3
Lockable
Connector
USB
LUSB-A111 -00
USB
LUSB-A111 -00
MIL - type or Lockable connectors above can be integrated with our LCD displays.
Sale service just for connectors not provided.
P.15
I-TECH
COMPANV
i-Tech
Company LLC
TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com
WEB:
www.iTechLCD.com
Loading...
