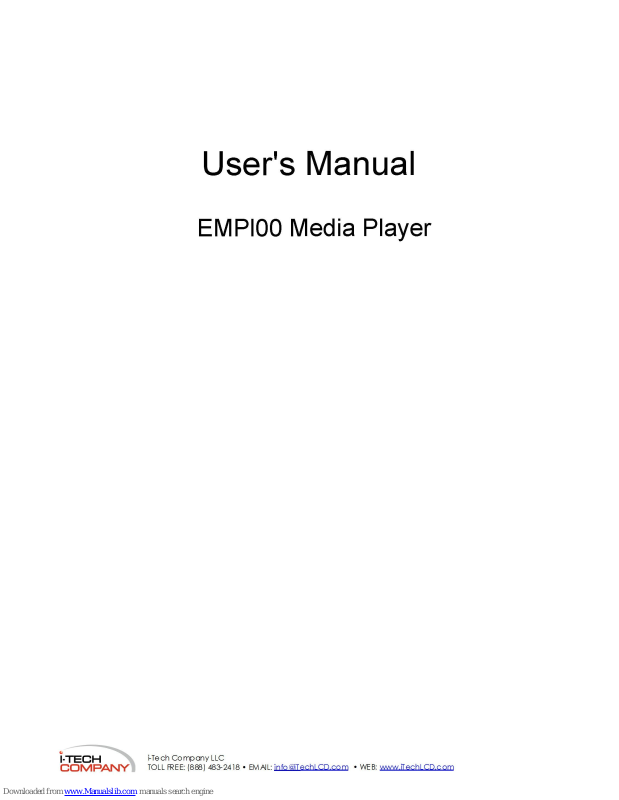

User's Manual
EMPIOO Media Player
i
l-TECH
i-Tech Company LLC
COMPANY
TOLL REE: (888) 483-2418 • FMAII-info@iTechlCD.com • WFR: www.iTochl CD.com
EMPIOO User's Manual
Chapter 1 : General Spec
1-1 Specification :
Video Function
Input Format : 480P
Video Function
Output Format : 720P, SD Progressive, SD Interlace
Video Function
MPEG 111
Video Function
XViD
Video Function
AVI
Photo Function
JPEG Photo playback
Photo Function
JPEG minimum 16x16 pixels, Maximum 5120x3840 pixels
Audio Function
MP3 music playback
Audio Function
AC3
Media Card Supported
CF,
SD, USB drive
Convenient Features
(By Remote Controller)
Auto-Play, Auto-repeat
Convenient Features
(By Remote Controller)
Support Timer to programming power on/off
Convenient Features
(By Remote Controller)
Support play list to specify files to play
Convenient Features
(By Remote Controller)
Support calendar
Convenient Features
(By Remote Controller)
Play/Pause , Stop
Convenient Features
(By Remote Controller)
Page up , Page Down
1-2 Features:
1-2-1.
Auto-play, Auto-repeat when power on (only when CF, SD, USB drive
are installed)
1-2-2.
File supported : JPG > MP3 > MPEG1/2 > AVI > XviD
1-2-3.
Timer setting function : 3 different timer mode to show.
1-2-4.
Support Play List management : May pre-set programs for everyday
with selected programs.
1-2-5.
Support Calendar Function
1-2-6.
Support Software Upgrade
1-3 Remote Control Buttons Function (photo1)
1-3-1. POWER Power On/Off
1-3-2. Ʒ selection key, in menu press up, down, left and right
to make your selection.
1-3-3.
Forward
1-3-4.
Rewind
1-3-5. Stop
1-3-6.
Play
1-3-7. Enter/Confirm
1-3-8. VOL -,VOL+ Volume Up / Volume Down
Following function key must be operate under” STOP MODE”:
1-3-9. VGA Output port switch key (VGA mode is standard, others as
optional)
1-3-10. DISPLAY General function setting menu, you may select OSD
language (Chinese, English). Video Signal output
format( NTSC, PAL), and Sound output parameter
setting.
1-3-11. 10+ Main functions setting menu
(Time,Timer, Playlist, disconnection memory function
setting)
1-3-12. A-B Storage disk selection between CF, SD, USB
1-3-13. SETUP File copy, move, rename, delete, new file function key
1-3-14. USB Firmware Version Information Key
1-3-15. MUTE Mute Key
(Photo1) Remote Controller DimensionΚ85*51mm
Chapter 2 : Operating Instruction
2-1 General Setting
2-1-1. Press “Ϯ” to stop play, and then press “DISPLAY” to General Parameter setup
(photo 2)
2-1-2. Picture Mode to display
(photo 3)
2-1-3 OSD Language
(photo 4)
2-2 Video Setup
2-2-1 Select “VIDEO OUTPUT”
(photo 5)
2-2-2 Select “TV DISPLAY”
(photo 6)
2-2-3 Select “TV TYPE”
(photo 7)
2-2-4 Select “RESOLUTION”
(photo 8)
2-3 Preferences Setting
2-3-1 You could set the photo size to be display on screen
(photo 9)
Chapter 3 : Special Function Setting
3-1 Time / Date
3-1-1 Press “Ϯ” to stop play, and then press “10+” to Special function setting
(photo 10)
3-1-2 Time Setting
(photo 11)
3-2 Timer setting to turn on/off power daily
User can set maximum 5 different time period to turn on/off independently. In each time
period, user set the starting and ending time, and ON/OFF option.
(photo 12)
3-3 Timer setting to weekly turn on/off power
Pls refer following photo13, it shows, Sunday power off, and from Monday~Saturday will play
normally.
(photo 13)
3-4 Subtitle Adjustment
(photo 14)
3-5 Video Adjustment Setting
This function is use for setting different color, contrast, brightness … etc. Photo 16 shows the
default value.
(photo 15)
(photo 16)
3-6 Power on password Setting
If the setting is on, everytime you change the SD/CF cards You must enter correct password in
order to play.
(photo 17)
(photo 18)
3-7 Play List Setting
3-7-1 : Use the function built-in OSD, as photo 20 shows the order of play list on Monday,
01-υ04-υ04-υ01-υ04-υ04……every day can be set, Filename must begin with 2 digits.
ex: 01kk…, 02XX..etc
(photo 19)
(photo 20)
3-7-2 : Set up the timer file and content file holders at root directory of the flash disk. There
is no need to setup the playlist in photo 20 if you use This function.
The timer file name has to be : timer.txt
You could setup max. up to 5 timer schedule.
The timer format is : !6:00-8:30, ( ! means power on at 6:00 , - means power off at
8:30, ending with , )
!6:00-8:30,
!8:31-10:00,
!11:00-13:00,
!14:00-16:00,
!16:01-18:00,
8:31 means to continuously play next content file holder right after
8:30 and the previous file holder.
The next, You should setup a / b / c / d /e max. up to 5 content file holders at root
directory. 6:30~8:30 play file holder a, 8:31~10:00 play file holder b, 11:00~13:00
play flie holder c, … All the content file name in each content file holder must begin
with 2 digits. ex: 01kk…, 02XX..etc
3-8 Misc Setting
Select Automatic Play Mp3+File yes/no, or before use setting on the play list and use
connection disconnect function….etc.
(photo 21)
(photo 22)
Chapter 4 : Others Function Setting
4-1 : Regarding OTG, Rename filename …etc:
4-1-1. May only USB or SD card’s file and copy to CF card.
4-1-2. Includes Copy, Move, Delete, Rename, New Folder…function.
4-1-3. OTG Operating InstructionΚ
(a) press”Stop” key, will stop playing.
(b) press”A-B”, on the monitors left upper corner will shows CF CARD,
SD CARD,USB DVE 1, 3 options, Selcect USB DVE 1, files need to be
copy to SD CARD or CF CARD file.
(c) Press “SETUP” button to login copy option, select copy option and
press “Enter”.
(d) Important Remark:
(1) Select rename file, press”SETUP” button to login to Rename
function.(Name can only be name in English)
(2) Up, Down, Left, Right Select Letter, After finish Naming
press”Stop”buttontoexit.
(Photo 23)
4-2 : Text Message Function:
Inside the CF, set a line of Text Contents which
is
being shown.
Ex: 0ad_10.txt,
0 represent small character
of
ad advertise
sign,
(0) small characters(1 )medium character(2) larger character.
UnderscordelO means spaces between each characters and time period
