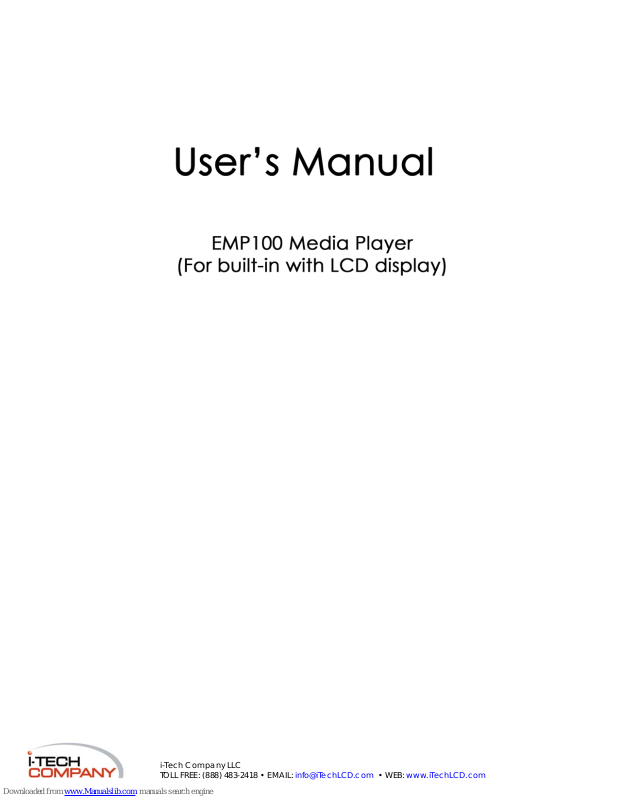

Media Player User’s Manaul (ESS8381)
Chapter 1 : General
1-1 Specification：
Video Function
MPEG-1 video playback
MPEG-2 video playback
MPEG-4 at full screen D1 video playback
AVI
Video Bandwidth - ASF simple profile 320 x 240 video
Photo Function
Motion JPEG playback
JPEG photo playback
Progressive JPEG photo playback
Photo Bandwidth Motion JPEG Maximum 10 fps
JPEG minimum 16x16 pixels, Maximum 5120x3840 pixels
Audio Function
MP3 music playback
DIVX
WMA music playback
AAC audio decode and playback
Audio bandwidth - MP3 minimum 32Kbps, Maximum 256Kbps
Media Card Supported
CF / SD / USB
Convenient Features
Auto-Play, Auto-repeat
(By Remote Controller) Support Timer to programming power on/off
Support play list to specify files to play
Support calendar
Support Disconnection Memory to continuously play where it break
Support auto copy content from USB disk to CF card with password
Play/Pause , Stop
Page up , Page Down
Photo Zoom In/Out
Photo Rotation
Programmable Photo Slide Timing
1-2 Features:
1-2-1. Auto-play, Auto-repeat when power on (only when CF, SD, USB drive
are installed)
1-2-2. File supported：JPG，MP3，MPG1/2/4，AVI，DIVX
1-2-3. Timer setting function : May set up to 5 different times to broadcast.
1-2-4. Support Play List management : May pre-set programs for everyday
with selected programs.
1-2-5. Support Disconnection Memory Function : Media player will continue
where it break
1-2-6. Support Calendar Function
1-2-7. Support Corner Display Function
(Ex : set up ad_20.bmp under CF card’s ROOT file 20 means display
corner time, Remark: 1. BMP must be 16 colors 2. Length must not be
longer than 140 and brightness not great than 90)
1-2-8. Support OTG(On The Go) functions, copy between cards.
1-2-9. Support file name change, moved, delete, new folder function
1-2-10. Support Text Message Function, only need to save text message in the
storage cards.
1-2-11. Support Play History Function, Alarm Function
(In CF card create new folder with filename “alarm”, put the MP3 file
under the folder, set file name as follow ex: 09%20.mp3, means at
9:20 plays this MP3 file, everyday supports up to 5 different alarm.
1-2-12. Support Background Music Function
(During playing JPG file, press”10+” button, background MP3 files will
play automatically in order)
(Press”0” button to select JPG file play mode, press”1” button to
select JPG file play speed)
1-2-13. Support Software Upgrade
1-3 Remote Control Buttons Function (photo1)
1-3-1. POWER Power On/Off
1-3-2. ▲ ▼ selection key, in menu press up, down, left and right
to make your selection.
1-3-3. Forward
1-3-4. Rewind
1-3-5. Stop
1-3-6. Play
1-3-7. Enter/Confirm
1-3-8. VOL-,VOL+ Volume Up / Volume Down
Following function key must be operate under” STOP MODE”:
1-3-9. VGA Output port switch key (VGA mode is standard, others as
optional)
1-3-10. DISPLAY General function setting menu, you may select OSD
language (Chinese, English). Video Signal output
format( NTSC, PAL), and Sound output parameter
setting.
1-3-11. 10+ Main functions setting menu
(Time,Timer, Playlist, disconnection memory function
setting)
1-3-12. A-B Storage disk selection between CF, SD, USB
1-3-13. SETUP File copy, move, rename, delete, new file function key
1-3-14. USB Firmware Version Information Key
1-3-15. MUTE Mute Key
(Photo1) Remote Controller Dimension：85*51mm
Chapter 2 : Operating Instruction
2-1 General Setting
2-1-1. Press “ ” to stop play, and then press “DISPLAY” to General
Parameter setup
(Photo 2)
2-1-2. Picture Mode to display
(Photo 3)
2-2 Preferences Setting
2-1-1 You could set the photo size to be display on screen
(Photo 4)
2-2-2 Set your display type
(Photo 5)
2-2-3 Set the video display port (RGB defaulted)
You could also set the display by remote controller “VGA” key
(Photo 6)
Chapter 3 : Special Fu nction Setting
3-1 Time / Date
Press “ ” to stop play, and then press “10+” to Special function setting
(Photo 7)
3-1-2. Time Setting
(Photo 8)
3-2 Timer setting to turn on/off power daily
Each day supports 5 different setting, Each line represent period of Time
Setting.
First column shows Timer is valid on not, On means enable, Off means
disable.
Second column shows, Turn on time at which hour
Third column shows, Turn on time at which minute
Forth column shows, Turn off time at which hour
Fifth column shows, Turn off tim at which minute
Pls refer photo 9, it shows, every day at 8:30~12:10 is on, 13:00~17:30 is on,
all other time will be Off.
(Photo 9)
3-3 Timer setting to weekly turn on/off power
Pls refer following photo 10, it shows, Sunday power off, and from
Monday~Saturday will play normally.
(Photo 10)
3-4 Screen Adjustment Setting
This function is use for setting different color, contrast, brightness … etc.
Photo 11 shows the default value.
(Photo 11)
3-5 Power on password Setting
If the setting is on, everytime you change the SD/CF cards
You must enter correct password in order to play.
(photo 12)
3-6 Play List Setting
3-6-1 : Use the function built-in OSD, as photo 13 shows the order of play list
on Monday, 01-〉04-〉04-〉01-〉04-〉04……every day can be set,
Filename must begin with 2 digits. ex: 01kk…, 02XX..etc
(photo 13)
3-6-2 : Set up the timer file and content file holders at root directory of the
flash disk. There is no need to setup the playlist in photo 13 if you use
This function.
The timer file name has to be : timer.txt
You could setup max. up to 5 timer schedule.
The timer format is : !6:00-8:30, ( ! means power on at 6:00 , - means
power off at 8:30, ending with , )
!6:00-8:30,
!8:31-10:00,
!11:00-13:00,
!14:00-16:00,
!16:01-18:00,
8:31 means to continuously play next content file holder right after
8:30 and the previous file holder.
The next, You should setup a / b / c / d /e max. up to 5 content file
holders at root directory. 6:30~8:30 play file holder a, 8:31~10:00
play flie holder b, 11:00~13:00 play flie holder c, …
All the content file name in each content file holder must begin with
2 digits. ex: 01kk…, 02XX..etc
3-7 Misc Setting
Select Automatic Play Mp3+File yes/no, or before use setting on the play list
and use connection disconnect function….etc.
(Photo 14)
Chapter 4 : Others Fu nction Setting
4-1 : Regarding OTG, Rename filename …etc:
4-1-1. May only USB or SD card’s file and copy to CF card.
4-1-2. Includes Copy, Move, Delete, Rename, New Folder…function.
4-1-3. OTG Operating Instruction：
(a) press”Stop” key, will stop playing.
(b) press”A-B”, on the monitors left upper corner will shows CF CARD,
SD CARD,USB DVE 1, 3 options, Selcect USB DVE 1, files need to be
copy to SD CARD or CF CARD file.
(c) Press “SETUP” button to login copy option, select copy option and
press “Enter”.
(d) Important Remark:
(1) Select rename file, press”SETUP” button to login to Rename
function.(Name can only be name in English)
(2) Up, Down, Left, Right Select Letter, After finish Naming
press”Stop”buttontoexit.
(Photo 15)
4-2 : Text Message Function:
Inside the CF, set a line of Text Contents which is being shown.
Ex: 0ad_10.txt,
0 represent small character of ad advertise sign,
(0) small characters(1)medium character(2) larger character.
Underscorde10 means spaces between each characters and time period.
