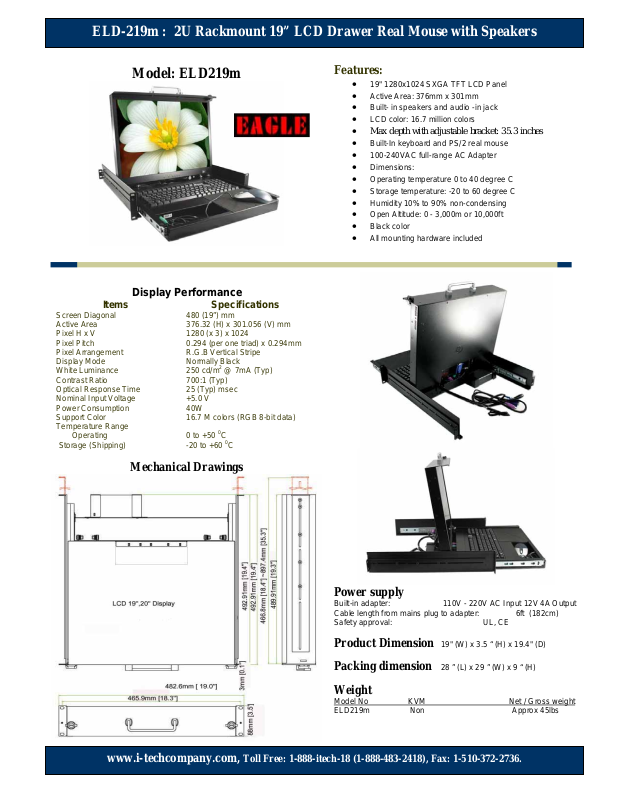

Model: ELD219m
Display Performance
ELD-219m : 2U Rackmount 19” LCD Drawer Real Mouse with Speakers
Screen Diagonal 480 (19”) mm
Active Area 376.32 (H) x 301.056 (V) mm
Pixel H x V 1280 (x 3) x 1024
Pixel Pitch 0.294 (per one triad) x 0.294mm
Pixel Arrangement R.G.B Vertical Stripe
Display Mode Normally Black
White Luminance 250 cd/m
Contrast Ratio 700:1 (Typ)
Optical Response Time 25 (Typ) msec
Nominal Input Voltage +5.0 V
Power Consumption 40W
Support Color 16.7 M colors (RGB 8-bit data)
Temperature Range
Operating
Storage (Shipping)
Items Specifications
2
@ 7mA (Typ)
0 to +50
-20 to +60
0
C
0
C
Mechanical Drawings
Features:
• 19" 1280x1024 SXGA TFT LCD Panel
• Active Area: 376mm x 301mm
• Built- in speakers and audio -in jack
• LCD color: 16.7 million colors
• Max depth with adjustable bracket: 35.3 inches
• Built-In keyboard and PS/2 real mouse
• 100-240VAC full-range AC Adapter
• Dimensions:
• Operating temperature 0 to 40 degree C
• Storage temperature: -20 to 60 degree C
• Humidity 10% to 90% non-condensing
• Open Altitude: 0 - 3,000m or 10,000ft
• Black color
• All mounting hardware included
Power supply
Built-in adapter: 110V - 220V AC Input 12V 4A Output
Cable length from mains plug to adapter: 6ft (182cm)
Safety approval: UL, CE
Product Dimension 19" (W) x 3.5 “ (H) x 19.4" (D)
Packing dimension 28 ” (L) x 29 ” (W) x 9 “ (H)
Weight
Model No KVM Net / Gross weight
ELD219m Non Approx 45lbs
www.i-techcompany.com, Toll Free: 1-888-itech-18 (1-888-483-2418), Fax: 1-510-372-2736.
