USER
1U Dual Slide LCD Keyboard Drawer
17”, 19” Screen Size
MANUAL
Models
DR117 / DR119 Series
-1U Dual Slide
- 17” 19” Screen Size
- with KVM Options
Models
SDR117 / SDR119 Series
-1U Dual Slide
- 17” 19” Screen Size
- with KVM Options
- designed for SUN Servers
DR117/119 – SDR117/119 User Manual
Contents
Chapter 1 Getting Started
1.1 Important Safeguards..........................................................1
1.2 Regulatory Notice................................................................2
1.3 Package Contents...............................................................3
1.4 Before Installation................................................................4
1.5 Unpacking............................................................................4
1.6 Optional Accessories...........................................................4
1.7 Peripheral Products.............................................................5
1.8 Structure Diagram...............................................................5
1.9 Installation.......................................................................................................6
1.10 How to Install “One Man” Installation Slides............................................7-8
1.11 How to Use The Slides....................................................................................9
1.12 How to Use the Dual Slides.........................................................................10
1.13 Locking Bracket……………………………...................................................11
1.14 SDR117 / 119 (Single console)
- Use NB-6 to connect to server via USB interface...................................12
1.15 SDR117 / 119 (Single console)
- Use NB-6 to connect to KVM via USB interface.....................................12
1.16 DR117 / 119 (Single console)
- Use NE-6 to connect to server via PS/2 interface..................................13
1.17 DR117 / 119 (Single console)
- Use NE-6 to connect to KVM via PS/2 interface..........................13
1.18 DR117 / 119 (Single console)
- Use NE-6 to connect to server via USB interface.........................14
1.19 DR117 / 119 (Single console)
- Use NE-6 to connect to KVM via USB interface...........................14
Chapter 2 Operation
2.1 On-screen Display Operation.............................................15
2.2 On-screen Menu................................................................16
Chapter 3 Standard Specification
3.1 Specifications....................................................................17
3.2 Keyboard & Mouse...................................................18-19
3.3 How to Use “NS” Keyboard................................................20
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com
DR117/119 – SDR117/119 User Manual
Contents
Chapter 4 Optional Specification
4.1 KVM Options.....................................................................21
4.2 DVI-D Input Option............................................................21
4.3 BNC + S-Video Option.......................................................21
4.4 Audio Option......................................................................22
4.5 DC power Options.............................................................23
Chapter 5 Troubleshooting...............................................................................................24
Chapter 6 Dimensions........................................................................................................25
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com
1.1 Important Safeguards Chapter 1
DR117/119 – SDR117/119 User Manual
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modified or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fluctuation or failure.
□ Use of supplies or parts not meeting our specifications.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com
DR117/119 – SDR117/119 User Manual
1.2 Regulatory Notice Chapter 1
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the
correctness of the contents. The information in this document is subject to change without notice. We are not liable for
any injury or loss that results from the use of this equipment.
Safety Instructions
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned enviro-
nment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and
causing damage to other equipment or injury to persons nearby.
■ When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it and
the power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage
and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be
higher than the one listed on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent
being damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to
the power supply or on other hardware may cause damage, fire or electrical shock.
■ Only qualified service personnel should open the chassis. Opening it yourself could damage the equip ment and invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service
personnel.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a85
circuit different from that to which the receiver is connected.
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com
DR117/119 – SDR117/119 User Manual

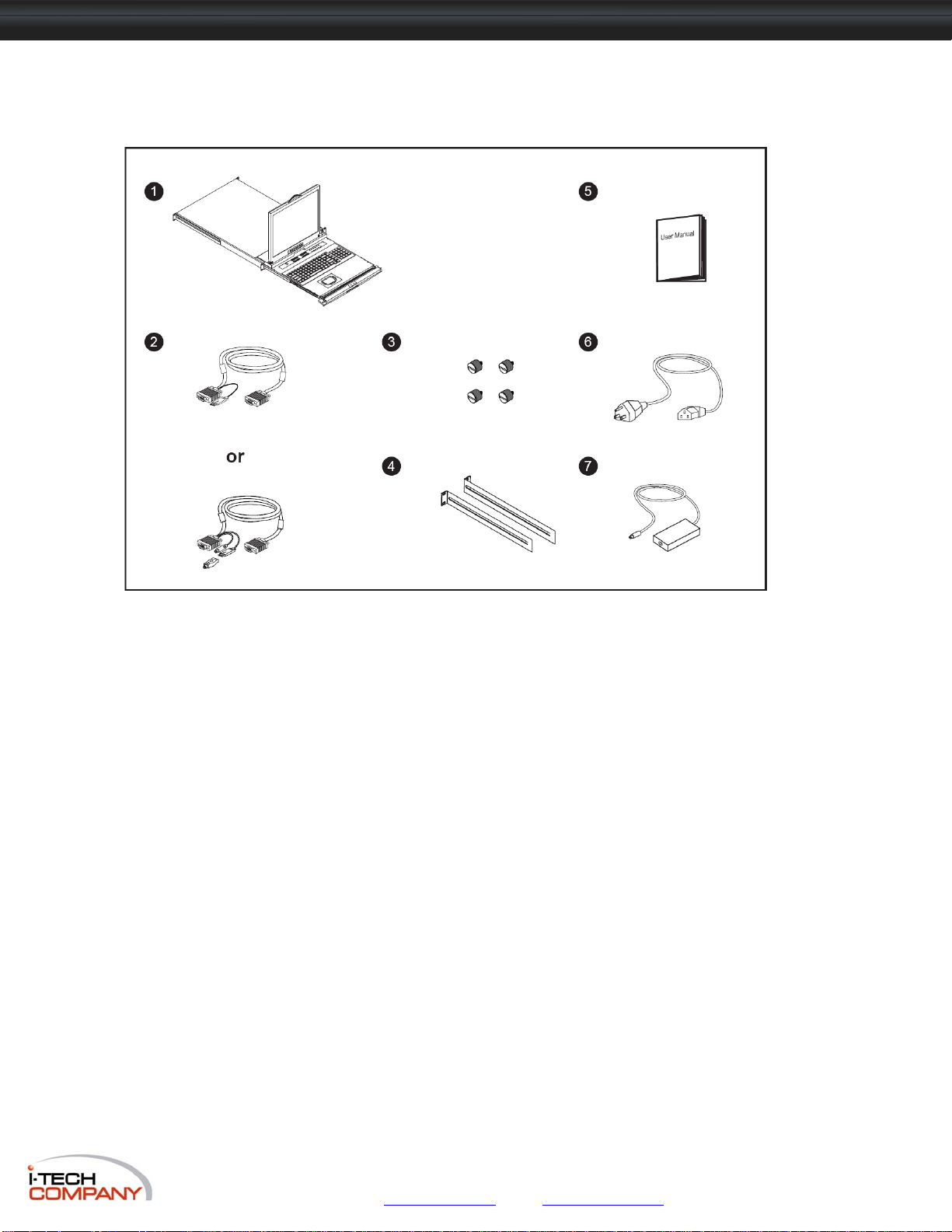

1.3 Package Contents Chapter 1
1.
LCD keyboard drawer x 1 pc
2. NB-6
3.
USB 2-in-1 KVM cable x 1 pc (for DS series)
NE-6
Combo 4-in-1 KVM cable x 1 pc (for D series)
Fasteners for rear L-bracket x 4 pcs
4.
330mm rear mounting L-bracket x 1 pair
5.
User manual x 1 pc
6.
Power cord x 1 pc
7.
Auto switch power adapter x 1pc
or
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com
DR117/119 – SDR117/119 User Manual
1.4 Before Installation Chapter 1
■ It is very important to locate the LCD Keyboard Drawer in a suitable environment.
■ The surface for placing and fixing the LCD Keyboard Drawer should be stable and level or mounted into a
suitable cabinet.
■ Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt,
heat, water, moisture and vibration.
■ Position LCD Keyboard Drawer with respect to related facilities.
1.5 Unpacking
they are included and in good condition. If anything is missing, or damage, contact the supplier immediately.

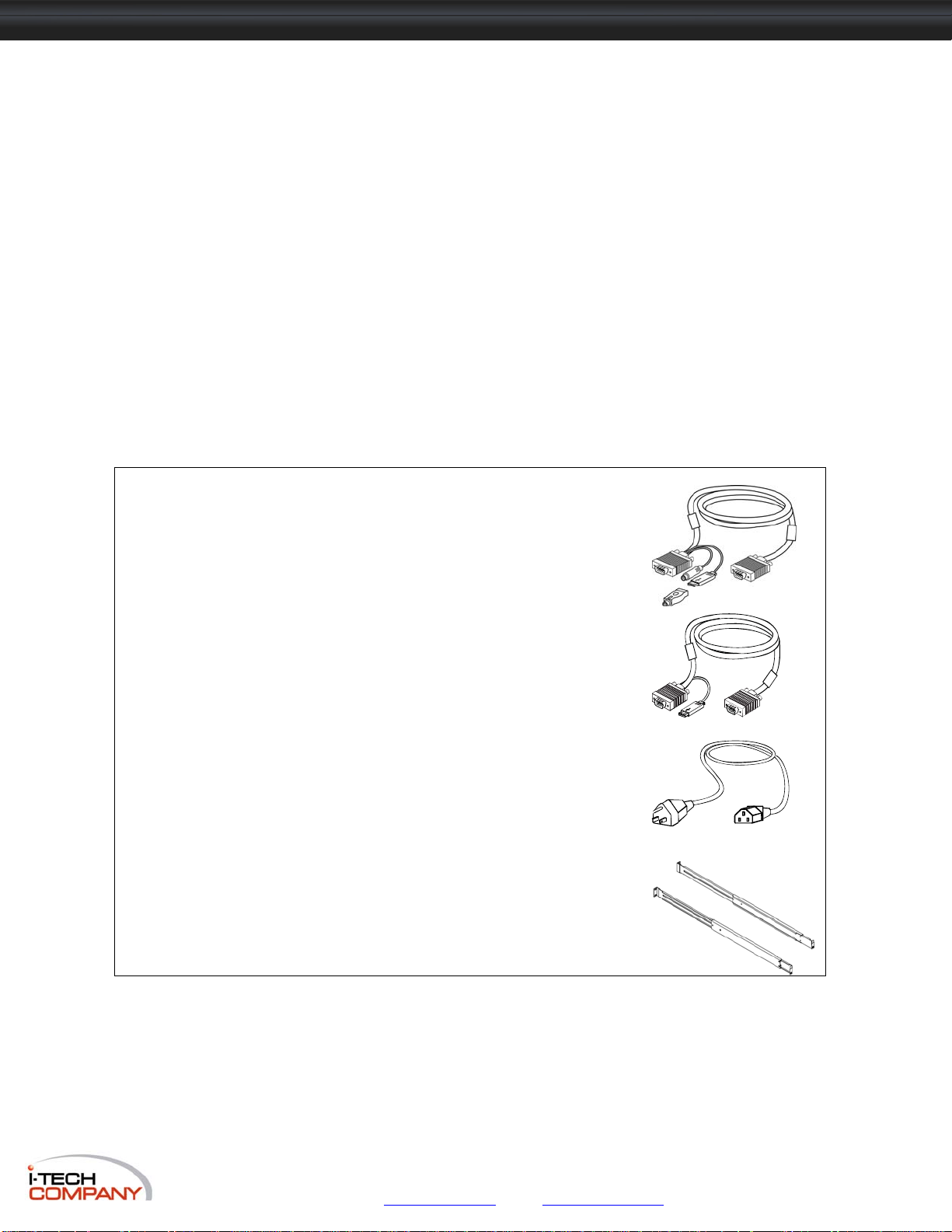

1.6 Optional Accessories
The LCD keyboard drawer comes with the standard parts shown on the package contents. Check and make sure
1. Combo 4-in-1 KVM cable
1.1 NE-6 6 feet
1.2 NE-10 10 feet
1.3 NE-15 15 feet
2. USB 2-in-1 KVM cable
2.1 NB-6 6 feet
2.2 NB-10 10 feet
2.3 NB-15 15 feet
Power Cord
3.
3.1 IEC power cord
3.2 NEMA 5-15 power cord (US)
3.3 BS 1363 power cord (UK)
3.4 CEE 7/4 power cord (German)
3.5 AS 3112 power cord (Australia)
“ One Man” installation slides
4.
4.1 NBK-01 Single or “One Man “ installation slides
* Please refer to P.10 - 11 for Installation guidelines
Remarks:
■ NB-6 is for DS series only.
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com
DR117/119 – SDR117/119 User Manual

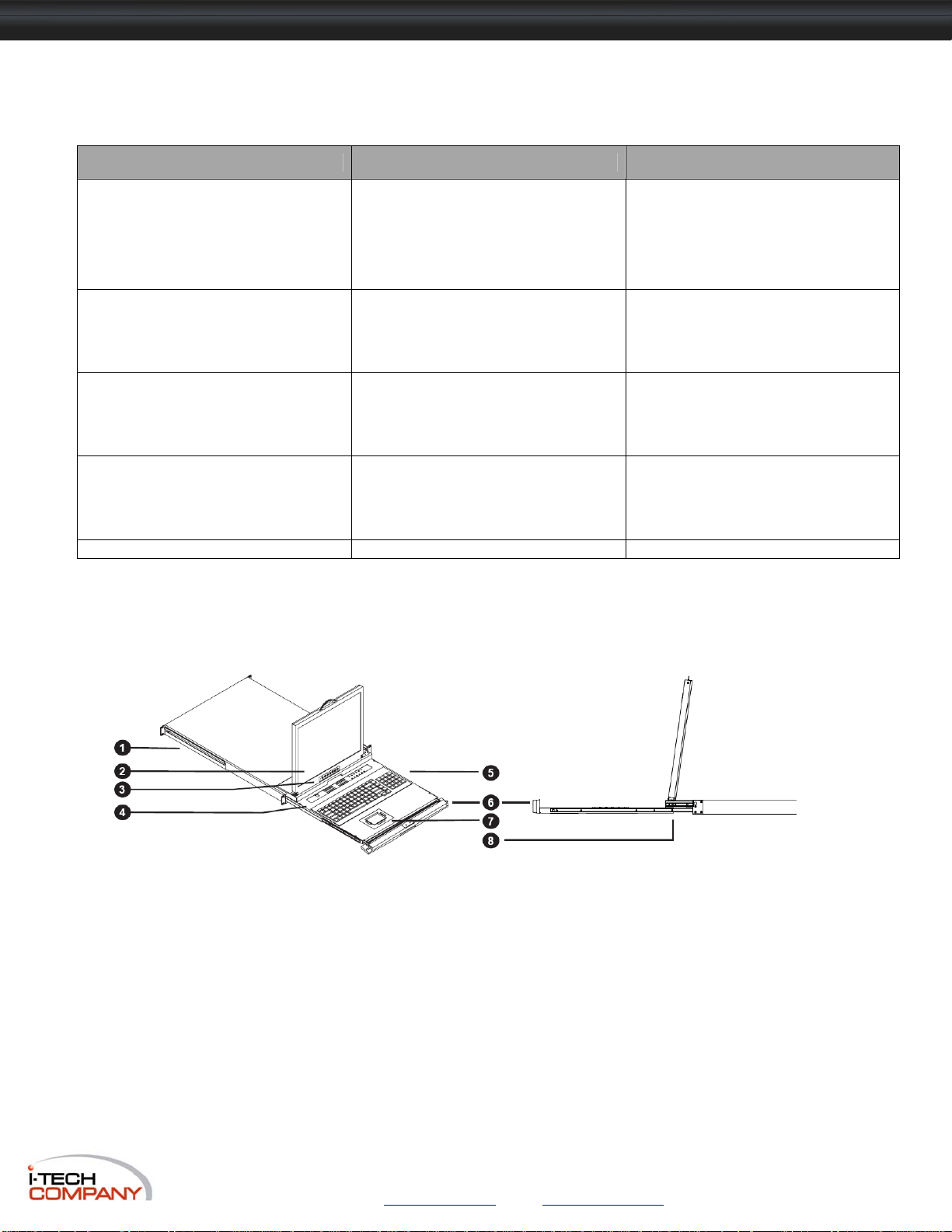

1.7 Peripheral Products Chapter 1
Item Model No. Description
Matrix Cat6 KVM
Matrix DB-15 KVM
Combo Cat6 KVM
Combo DB-15 KVM
PS/2 DB-15 KVM
1.8 Structure Diagram
MC0116 / MC0216 / MC0316
MC1116 / MC1216 / MC2116
MC0132 / MC0232 / MC0332
MC1132 / MC1232 / MC2132
Matrix Cat6 16 port KVM
Matrix IP Cat6 16 port KVM
Matrix Cat6 32 port KVM
Matrix IP Cat6 32 port KVM
M018/ M028 / M038
M118 / M128 / M218
M0116 / M0216 / M0316
M1116 / M1216/ M2116
Matrix DB-15 8 port KVM
Matrix IP DB-15 8 port KVM
Matrix DB-15 16 port KVM
Matrix IP DB-15 16 port KVM
NVC800 / NVCCE800 / NVCIP800
NVC1600 / NVCCE1600 / NVCIP1600
NVC3200/ NVCCE3200 / NVCIP3200
Combo Cat6 8 port KVM
Combo Cat6 16 port KVM
Combo Cat6 32 port KVM
NVS801 / NVCE800 / NVIP-802
NVS1601 / NVCE1600 / NVIP-1602
Combo DB-15 8 port KVM
Combo DB-15 16 port KVM
NV401A / NV801A / NV1601A 4 / 8 / 16 port PS/2 DB-15 KVM
1.
Adjustable rear mounting L-bracket
2.
LCD interchangeable module kit
3. LCD membrane 7. Touchpad mouse module
5.
Keyboard interchangeable module kit4
6. Carry handle to release the 2-pt lock
4. Membrane switch (KVM option) 8. 4 8 1U dual slide for LCD keyboard drawer
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com
Figure 1. Installing the rear L-bracket to the LCD keyboard drawer.
■
Install each rear L-bracket using two fasteners shown
in Figure 1.
■ Leaving the fasteners slightly loose.
DR117/119 – SDR117/119 User Manual
1.9 Installation Chapter 1
Figure 2. Aligning the rear L-brackets to a suitable length for the rack.
■
Measure the front and rear mounting depth of the
rack.
■ Align each rear L-bracket to a suitable length and
tighten the fasteners shown in Figure 2.
■
Fixed the LCD keyboard drawer into the rack.
* Hardware (screws and cage nuts) for fixing the
mounting bracket to the rack is not provided.
Figure 3. Fixing the LCD keyboard drawer into the rack.
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com
