i.Tech Clip Radio
2 3
Contents
HSILGNE
i.Tech Clip Radio Bluetooth Headset gives you more freedom on the move. Pair with compatible Bluetooth mobile phones and this headset makes it easier for you to carry on
with your tasks whilst making or taking a call. High sensitivity Radio Receiver makes you enjoy Radio Stereo Programs by connecting to your personal headphones using the
3.5mm earphone socket.
i.Tech Clip Radio Bluetooth Headset is compliant with Bluetooth specification Version 2.0 Class 2, and is compatible with the latest mobile phones supporting Bluetooth Headset,
Handsfree Profiles, A2DP and AVRCP.
02 03
i.Tech Clip Radio Bluetooth Headset Overview ............................................................................................................................................................................................ 5
Getting Started .................................................................................................................................................................................................................................................... 6
Charging Your Headset ...................................................................................................................................................................................................................................... 6-7
Normal Charging Time ....................................................................................................................................................................................................................... 7
Talk Time, Music Playing Time and Standby Time ....................................................................................................................................................................... 7
Battery Low Indication ....................................................................................................................................................................................................................... 7
Turning Your Headset On and Off .................................................................................................................................................................................................................... 7
Pairing Your Headset .......................................................................................................................................................................................................................................... 8
Using Your Clip Radio Headset ......................................................................................................................................................................................................................... 9
Answering a Call ................................................................................................................................................................................................................................... 9
Ending a Call .……................................................................................................................................................................................................................................. 9
Answering a Call when Listening to Stereo Audio ....................................................................................................................................................................... 9
Dialing from Your Mobile Phone ...................................................................................................................................................................................................... 9
Voice Dialing from Your Headset …………....................................................................................................................................................................................... 9
Last Number Redialing from Your Headset ................................................................................................................................................................................... 9
Rejecting a Call (Handsfree Profile ONLY) ....................................................................................................................................................................................... 9
Transferring a Call (Handsfree Profile ONLY) .................................................................................................................................................................................. 9
FM Radio ................................................................................................................................................................................................................................................................ 10-11
Listening to Radio ................................................................................................................................................................................................................................ 10
FM Auto Scan .……................................................................................................................................................................................................................................. 10
FM Manual Tuning ................................................................................................................................................................................................................................ 10
Pre-set and Recall the Pre-set Channel ........................................................................................................................................................................................... 10-11
Answering a Call when Listening to Radio ……….......................................................................................................................................................................... 11
Remote Control Function (AVRCP) .................................................................................................................................................................................................................... 11
Adjusting the Volume ......................................................................................................................................................................................................................................... 12
Resetting or Removing Pairing ......................................................................................................................................................................................................................... 12
HSILGNE
4 5
Contents
Care and Maintenance ........................................................................................................................................................................................................................................ 12-13
HSILGNE
Headset ................................................................................................................................................................................................................................................... 12-13
Built-in Battery ...................................................................................................................................................................................................................................... 13
Charger .................................................................................................................................................................................................................................................... 13
Safety Information .............................................................................................................................................................................................................................................. 13-14
Troubleshooting .................................................................................................................................................................................................................................................. 14
Declaration of Conformity (DoC) ...................................................................................................................................................................................................................... 15
Product Specifications ........................................................................................................................................................................................................................................ 15
04 05

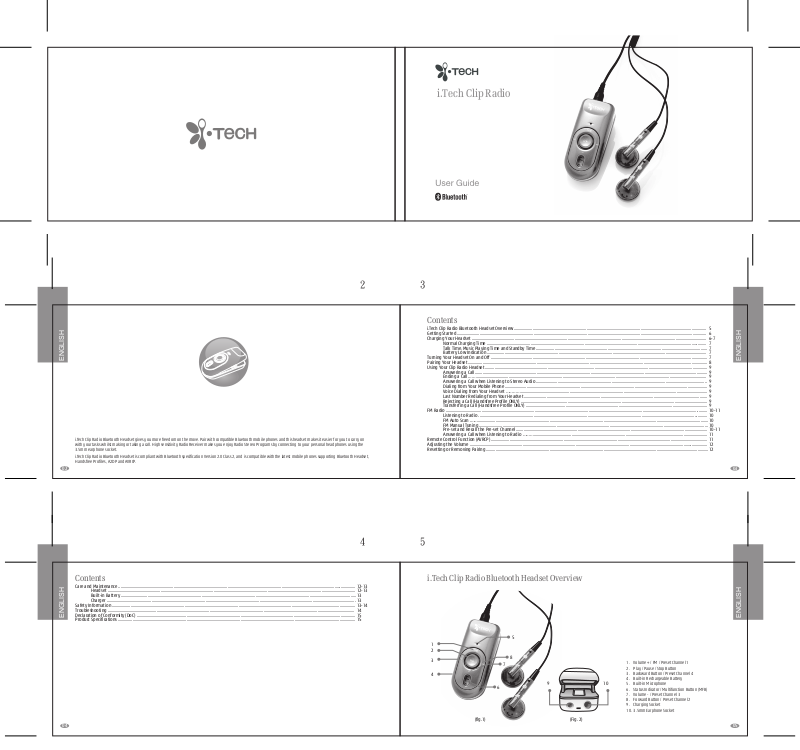

i.Tech Clip Radio Bluetooth Headset Overview
1
2
3
4
(fig.1)
5
8
7
6
(Fig. 2)
1. Volume + / FM / Preset Channel 1
2. Play / Pause / Stop Button
3. Backward Button / Preset Channel 4
4. Built-in Rechargeable Battery
109
5. Built-in Microphone
6. Status Indicator / Multifunction Button (MFB)
7. Volume - / Preset Channel 3
8. Forward Button / Preset Channel 2
9. Charging Socket
10. 3.5mm Earphone Socket
HSILGNE
6 7
Getting Started
HSILGNE
To use your i.Tech Clip Radio Bluetooth Headset (“the headset”), please follow the steps below:
1. Ensure your headset is fully charged
2. Pair your charged headset with a Bluetooth-enabled mobile phone
Charging Socket
Charger
Figure 3
Figure 4
Charger Plug
Charging Your Headset
The headset comes with a built-in rechargeable battery. Prior to using the headset for the first time, it is recommended to fully charge the battery first.
06 07
Important : The headset will turn off and no operation while in charging mode. For details, please refer to "Charging your headset" section.
Charging Your Headset
Insert the charger plug into the headset’s charging socket (refer to Figure 4) and plug the mains charger to an AC wall outlet. The light on the Clip Radio status indicator
will stay red during charging.
IMPORTANT: Charging indication will be delayed for a few seconds if the headset has not been used for a long time or the battery is drained.
Normal Charging Time
It takes about three hours to fully charge the battery. When the battery is fully charged, the status indicator will turn blue and remain on. Unplug the mains charger from
the AC wall outlet and the charger plug from the headset. Press and hold the MFB (refer to Figure 1) for two seconds to turn on the headset. Please refer to “Turning Your
Headset On and Off” for further details.
Talk Time, Music Playing Time and Standby Time
A fully charged battery can offer up to 6.5 hours of talk time, 6.5 hours of music playing time and up to 200 hours of standby time. When there are no calls the headset
should remain turned on in standby mode.
Battery Low Indication
When the battery has become low when the headset is on, the status indicator will flash red and the headset will emit a beep* every minute. Please follow the instructions
described above to recharge the battery.
*If you are pairing your headset and your mobile phone in a noisy environment, we advise you to put on the earphone first so that the beep will be more audible.
Turning Your Headset On and Off
Turning On the Headset
Press and hold the MFB
IMPORTANT: Press the MFB again when you want to turn on the headset to re-activate pairing and ensure the connection between the headset and the mobile phone is
resumed. For pairing, please refer to “Pairing Your Headset”.
Turning Off the Headset
Press and hold the MFB
IMPORTANT: To disconnect the Bluetooth connection, press the headset’s MFB firmly to turn it off. If you will not be using the headset for a while, we advise you turn off
the Bluetooth function on your mobile phone as well.
(see Figure 1) for two seconds until you hear a short beep.
for two seconds until you hear a long beep.
8 9
Pairing Your Headset
The headset works with Bluetooth-enabled mobile phones
HSILGNE
only. Prior to using and pairing your headset for the first time,
please check if your mobile phone is Bluetooth-enabled. This
information will normally feature on the packaging or user
guide that is provided with your mobile phone.
The pairing instructions for a typical Bluetooth-enabled
mobile phone are explained on the next page. The headset
pairing procedure may vary depending on the model of your
mobile phone. Please contact the manufacturer of your
mobile phone or its agent for further information.
1. Place the headset and the mobile phone where they are no more than one metre apart.
2. Ensure the headset is off. (The status indicator is unlit and does not flash.)
3. Press and hold the MFB until the headset’s status indicator flashes blue and red alternately.
4. Activate your mobile phone’s Bluetooth function. Please refer to your mobile phone user guide for details.
5. Set the mobile phone to search for Bluetooth devices within the one metre range, as instructed in the mobile phone user guide, and select “i.Tech Clip Radio” from the
list.
6. Enter the pre-programmed passkey “0000” and press “OK” to pair your headset and mobile phone. When the pairing is completed, the headset’s status indicator will
flash blue rapidly for five times followed by a long beep.
7. Go back to your mobile phone’s main menu. For certain mobile phone models, once the headset is activated, a headset icon will be shown on the screen. You should
now be able to make and receive calls using your headset.
IMPORTANT: If the pairing cannot be completed within two minutes after the pairing mode has been activated, the headset’s status indicator will flash purple-red
accompanied by three beeps and will then turn off automatically. Please repeat steps 2 to 7 above to pair the headset and the mobile phone again.
08 09
Up to 1 metre
Figure 5
Using Your Headset
Answering a Call
When there is an incoming call, you will hear the ring through the earphone. Press the MFB
way.
Ending a Call
Press the MFB
once to end your call, or end the call via your mobile phone in the normal way.
Answering a Call when Listening to Stereo Audio
Press the MFB
once to answer the call and when finished, press the MFB once to resume stereo audio.If the other party you are speaking to ends the call, stereo audio will
automatically resume without having to pressing the MFB
NOTE: To receive stereo audio from your mobile handset or PDA, please make sure they support Bluetooth A2DP phone.
Dialing from Your Mobile Phone
Simply make calls on your mobile phone in the normal way.
Voice Dialing from Your Headset
If your mobile phone is equipped with the voice dialing function, simply press the MFB
IMPORTANT: For voice dialing, you must record the voice tag (the person’s name) into your mobile phone before using the voice dialing function on the headset. Please
refer to your mobile phone user guide on how to record the voice tag.
Last Number Redialing from Your Headset
Press the MFB on your headset twice.
IMPORTANT:
1. Last Number Redialing is suspended when operating in FM Radio mode.
2. The above functions are only applicable to mobile phones with Bluetooth Handsfree Profile. Functionality varies depending on the mobile phone model you have.
Please refer to your mobile phone user guide for additional information.
Rejecting a Call (Handsfree Profile ONLY)
Press and hold the Volume Key
Transferring a Call (Handsfree Profile ONLY)
Press and hold the Volume Key
for two seconds until the incoming call is rejected.
for two seconds until the call is transferred from the headset to your mobile phone.
.
once to accept the call or answer the call via your mobile phone in the normal
on your headset, and when you hear a beep say the voice tag.
HSILGNE
HSILGNE
10 11
FM Radio
Listening to Radio
HSILGNE
Please connect your personal stereo earphone to the 3.5mm earphone socket. Power up the headset by following the section “Turning Your Headset On and Off”. Press
and hold the “+/FM
NOTE:
1. Whenever you switch your radio on, it will play the last channel you listened to.
2. You can listen to radio with the Clip Radio headset without the need to pair or conect with your mobile phone.
FM Auto Scan
Press and hold the “>>
short beep and when it scans over one cycle and still not finding any channel, you will hear two short beeps and it is then stop scanning.
FM Manual Scan
Press the “>>
Pre-set Channels
There are four pre-set channels that you can pre-set. Please simply follow the instruction below to pre-set the channels.
1. Firstly, you need to search the channel that you wish to pre-set by either AUTO SCAN or MANUAL SCAN.
2. Press the MFB key TWICE until the status indicator flashes Red and Green rapidly, then press the “+/FM
long beep and will see the status indicator flash Red and Green for 2 seconds.
NOTE :
• You can pre-set other channels with same procedures -
“
“
“
“
• You can overwrite a pre-set channel simply by setting a new channel in its position.
10 11
” key for two seconds until the status indicator turns green. The FM radio is now activated.
” or “<<” key for two seconds to start the auto search to the nearest radio channel. When it scans over the FM frequency boundary, you will hear a
” or “<<” key once will scan pass 50 Hz, and you can keep pressing until you find your desired channel.
+/FM ” key represents pre-set Channel 1
>> ” key represents pre-set Channel 2
_
” key represents pre-set Channel 3
<< ” key represents pre-set Channel 4.
” key to assign the pre-set channel to Channel-1. You will hear a
FM Radio
Recall a Pre-set Channel
You can easily recall a pre-set channel by following the below instructions:
1 Firstly, you need to pre-set the channel beforehand. (Please refer to "Pre-set Channels" section.
2 Press the MFB key ONCE until the status indicator flashes Red and Green rapidly, then press the “+/FM
Pre-set Channel-2 and so on. You will hear a long beep and will see the status indicator flash Red and Green for 2 seconds.
Answering a Call when Listening to Radio
once to answer the call and when finished, press the MFB once to resume radio.
Press the MFB
If the other party you are speaking to ends the call, radio will automatically resume without having to pressing the MFB
” key to recall the Pre-set Channel-1 or press the “>>” to recall the
Remote Control Function (AVRCP)
Play / Pause
1. Press once to play music
2. Press once again to pause music
NOTE : To stop playing music, please press and hold the “Play” key for three seconds.
Stop
Press and hold the Play button for three seconds.
Volume Control
Press the “+” to increase the audio volume. Press the “
volume. Maximum audio level is 12.
_
“ to decrease the audio
Forward
” to skip or select a new next track.
Press “>>
Press and hold “>>
Backward
Press “<<
Press and hold “<<
NOTE: To activate the AVRCP (remote control feature) your device must support
Bluetooth AVRCP .
” to fast forward when playing music.
” to repeat or select previous track.
” to fast backward when playing music.
.
HSILGNE
12 13
• Do not
Adjusting the Volume
Push “ +/FM+/FM ” to increase the volume or push “
HSILGNE
_ _
” to decrease the volume.
Resetting or Removing Pairing
You may reset the headset to its original settings anytime. To do this you also clear all current pairing settings.
1. Insert the charger plug into the headset’s charging socket.
2. Press and hold “ ” either upward or downward for 20 seconds until the status indicator flashes blue and red rapidly.
3. Release the “ ” button.
4. Press and hold “ ” again until the status indicator shows blue and red.
5. The headset is reset and will resume the charging mode.
NOTE: After resetting, all previous pairing settings are cleared.NOTE: After resetting, all previous pairing settings are cleared.
Care and Maintenance
Headset
your headset before placing it in your pocket or bag. If the MFB is accidentally depressed, your mobile phone may place an unintended call.
• Turn off
expose the headset to liquid, moisture or humidity as it is not waterproof.
• Do not
• Do not use ab
• Do not
• Do not l
• Do not l
• Do not
• Do not
12 13
rasive cleaners to clean the headset.
expose the headset to extremely high or low temperatures.
eave your headset under the hot sun for a long time.
eave your headset near open flames such as cooking burners.
dispose of the headset in a fire as it will result in explosion.
bring your headset into contact with any sharp objects as this will cause scratches and damage.
stick anything inside the headset as this may damage internal components.
tempt to disassemble the headset as it does not contain serviceable components.
• Do not at
• Do not pull or d
• If
Built-in Bat
Do not attempt to replace the headset’s battery as it is in-built and is not changeable.
•
Charge the battery in accordance with the instructions supplied with this user guide.
•
Use only the charger supplied by the headset’s original manufacturer to charge the battery.
•
rger
Cha
Use only the charger supplied by the headset’s original manufacturer to charge the headset. Other chargers may look the same, but they could be dangerous.
•
Do not attempt to disassemble the charger as it may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the headset
•
is subsequently used.
Do not use the charger outdoors or in damp areas.
•
Only charge the headset’s built-in battery in accordance with the instructions described in this user guide.
•
Avoid charging the headset in extremely high or low temperatures.
•
rag the earphone-wire with force.
you will not use the headset for a long period, please store it in a dry place that is free from extreme temperatures and dust.
tery
Safety Information
• Check and observe local laws regarding the use of a mobile phone and headset while driving. If you use the headset while driving, ensure your full attention and
focus. It is your responsibility to drive safely. Consider to pull off the road before making or answering a call.
Never leave your headset above any air bag deployment area inside your car as serious injury may result when an air bag deploys.
•
Never allow children to play with the headset – small parts may be of choking hazard.
•
Observe all signs and displays that require an electrical device or RF radio product to be switched off in designated areas. These could include hospitals, blasting areas,
•
and potentially explosive atmospheres.
Turn off your headset prior to boarding an aircraft. Do not use your headset inside an aircraft.
•
HSILGNE
14 15
Safety Information
• To prevent damage to your hearing, please do not set the listening volume too high.
HSIL
Never use the headset while taking a bath.
•
Do not use the headset in a sauna or steam room.
•
G
Do not keep your headset near a wash basin or other wet places.
•
NE
Do not use the headset outdoors in the rain.
•
Do not clean the headset while it is being charged. Always unplug the charger first before cleaning the headset.
•
Do not attempt to modify the headset for other purpose.
•
Do not attempt to force open or mutilate the built-in battery.
•
Replace the earphone when it shows signs of breaking from the wire.
•
Disposal of the packaging and the headset should be done in accordance with the local regulations.
•
Troubleshooting
If you are unable to connect your headset and mobile phone, please try the following:
Ensure your the battery is fully charged. Turn off your headset, and then turn it on again.
•
Ensure the headset is paired with your mobile phone.
•
Ensure your mobile phone’s Bluetooth function is activated. (For some phone models, a headset icon will appear on the phone’s screen.) Please refer to your mobile
•
phone user guide for specific instructions.
Ensure the headset is within 10 metres of your mobile phone and there are no obstructions, such as walls or other electronic devices, in between.
•
he above suggestions do not solve your problem, please recharge the headset and remove your mobile phone battery for a while. Then start pairing again.
If t
Tech Clip Radio Bluetooth Headset is compliant with and adopts the Bluetooth Specification Version 2.0 Class 2. However, interoperability between the headset and
The i.
other Bluetooth-enabled products is not guaranteed because it depends on compatibility. For more information on the compatibility between the headset with other
Bluetooth-enabled products, please check with the respective manufacturer or visit http://www.itechdynamic.com.
14 15
Declaration of Conformity (DoC)
We, i.Tech Dynamic Limited., declare that the following product:
Product Name: i.Tech Clip Radio
Model No.: C51-A06093-XX
conformity with the following essential requirements of Council Directive 1999/5/EC (referred to as R&TTE Directive): Article 3.1a, 3.1b and 3.2. and the product is
is in
manufactured in accordance with Annex II of the above directive.
copy of the Declaration of Conformity can be found at:
A
http://www.itechdynamic.com.
Product Specifications
Bluetooth Specification: Version 2.0 Class 2
rofile Supported: Headset, Handsfree Profiles, A2DP and AVRCP
Bluetooth P
requency: 2.4GHz spectrum
Range of F
requency Range: 87.5 MHz to 108 MHz
FM F
rging Time: Within 3 hours
Nominal Cha
Talk Time*: Up to 6.5 hours
Music Playing Time*: Up to 6.5 hours (Radio Play
Standby Time*: Up to 200 hours
Dimensions: 55 mm (
Weight: 21 g
vary due to the user’s habit, different modes of operation, and mobile phone settings.
*May
L) x 24 mm (W) x 27 mm (H)
rams
ing Time included)
16 17
HSILGNE
HSI
LGN
2006 Hutchison Harbour Ring Enterprises Limited
E
All rights in this publication are reserved and no part may be reproduced without
the prior written permission of the publisher. The contents of this publication are
believed to be correct at the time of going to press, but any information,
specifications, products or services mentioned may be modified, supplemented or
withdrawn without further notice.
The Stylized i.Tech logos are trademarks owned by Hutchison Harbour Ring
Enterprises Limited or its affiliates.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Caution: Changes or modifications not expressly approved by
for compliance could void the user's authority to operate the equipment.
®
and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc,
Bluetooth
USA and licensed to i.Tech Dynamic Limited.
www.itechdynamic.com
16
the party responsible
i.Tech declares under our sole responsibility that the headset is in conformity
with t
he provisions of the following Council Directives: 1999/5/EC
Dispose of the packaging and this product in
accordance with the latest provisions.
Notes on Environmental Protection
Notes on Environmental Protection
After the implementation of the European Directive 2002/96/EU in the national
legal system, the following applies: Electrical and electronic devices must not be
disposed of with domestic waste. Consumers are obliged by law to return
electrical and electronic devices at the end of their service lives to t
collection points that are set up for this purpose or designated points of sale.
However, such details are defined by the national law of the respective country.
This symbol on the product, the instruction manual or the packaging indicates
he product is subject to these regulations. By recycling, reusing the
that t
materials, or other forms of utilizing old devices, you are making an important
contribution in protecting our environment.
Printed in China
11/2006
he public
Loading...
