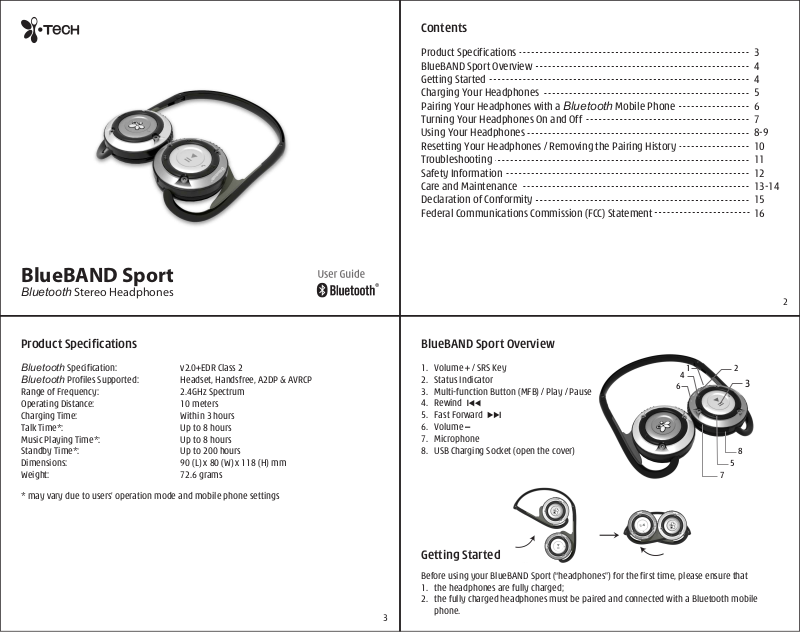

BlueBAND Sport
Bluetooth Stereo Headphones
Contents
Product Specifications
BlueBAND Sport Overview
Getting Started
Charging Your Headphones
Pairing Your Headphones with a Bluetooth Mobile Phone
Turning Your Headphones On and Off
Using Your Headphones
Resetting Your Headphones / Removing the Pairing History
Troubleshooting
Safety Information
Care and Maintenance
Declaration of Conformity
Federal Communications Commission (FCC) Statement
3
4
4
5
6
7
8-9
10
11
12
13-14
15
16
2
Product Specifications
Bluetooth Specification: v2.0+EDR Class 2
Bluetooth Profiles Supported: Headset, Handsfree, A2DP & AVRCP
Range of Frequency: 2.4GHz Spectrum
Operating Distance: 10 meters
Charging Time: Within 3 hours
Talk Time*: Up to 8 hours
Music Playing Time*: Up to 8 hours
Standby Time*: Up to 200 hours
Dimensions: 90 (L) x 80 (W) x 118 (H) mm
Weight: 72.6 grams
* may vary due to users’ operation mode and mobile phone settings
BlueBAND Sport Overview
1. Volume + / SRS Key
2. Status Indicator
3. Multi-function Button (MFB) / Play / Pause
4. Rewind
5. Fast Forward
6. Volume
7. Microphone
8. USB Charging Socket (open the cover)
I
I
I
Getting Started
Before using your BlueBAND Sport (“headphones”) for the first time, please ensure that
1. the headphones are fully charged;
2. the fully charged headphones must be paired and connected with a Bluetooth mobile
3
phone.
1
4
6
2
3
8
5
7
Charging Your Headphones
The headphones come with a built-in rechargeable battery. Prior to using the headphones for
the first time, you are recommended to fully charge the battery.
Use only the supplied charger to charge the headphones.
Status
• Charging
• Fully charged
• Low battery
• Out of battery
● 3 hours are required to fully charge the headphones.
● Charging indication will be delayed for a few seconds if the headphones have not been used
for a long time or the battery is drained.
Status Indicator Audio
• Red light
• Blue light
• Flashing red light
• a short beep every 1 minute
• The light goes off
Pairing Your Headphones with a Bluetooth Mobile Phone
Pairing is only required the first time you use the headphones. Please refer to your mobile
phone user guide for pairing instructions.
1) Ensure the headphones are off.
2) To activate the pairing mode, press and hold the headphones’ MFB for 8 seconds without
releasing your finger until its status indicator flashes blue and red light alternately.
3) Activate your mobile phone’s Bluetooth, search Bluetooth devices, select “BlueBAND
Sport” and enter the password “8888”. When the pairing is completed, the headphones’
status indicator will flash blue light rapidly for five times.
If the pairing cannot be completed within 3 minutes after the pairing mode has been activated,
the headphones’ status indicator will flash purple rapidly for five times and then turns off.
Repeat steps 1 to 3 to pair both devices again.
5
6
Turning Your Headphones On and Off
Function
Turn on
When you turn on your headphones for the first time, the headphones
automatically enter the pairing mode, i.e. the status indicator flashes blue and
red alternately. This allows you to immediately pair your headphones and mobile
phone. Please refer to “Pairing Your Headphones with a
Turn off
● If your headphones are paired with your mobile phone, press the MFB once more
after you turned on the headphones to re-connect the mobile phone and
headphones.
● If you do not plan to use the headphones for a while, you are recommended to turn
off the
Button Audio Status Indicator
Press and hold the
MFB for 2 seconds
Press and hold the
MFB for 2 seconds
Bluetooth function of your mobile phone.
a short beep
a long beep
Flashing blue light for 3 times
Bluetooth Mobile Phone”.
Red light for 2 seconds and
then the light goes off
Using Your Headphones
Call Functions
Function Button Audio Status Indicator
Answer a call
End a call
Adjust Volume
Voice Dialing
say the voice tag as soon as you hear the short beep and you must have recorded the voice
tag into your mobile phone
Last No. Redial
Call Waiting
Call Reject
Call Transfer
(headset to mobile phone)
Call Transfer (mobile phone
back to headset)
7 8
Press the MFB once
Press the
MFB once
Press the Volume + / Volume
once to increase / decrease by 1
step (Total 8 levels)
Press once
Double click
Press the
MFB once
Press and hold either volume key
for 2 seconds
While speaking, press and hold
either volume key for 2 seconds
While speaking, press
once
a short beep
a short beep
Flashing purple light
Flashing blue light
Flashing blue light
Flashing blue light
Flashing blue light
Flashing blue light
Flashing blue light
Flashing blue light
Using Your Headset (cont’d)
Music Playing Functions (A2DP and AVRCP Applicable Only)
Function Button Audio Status Indicator
Disable SRS
(the default is SRS ON)
Enable SRS
Answer a call when playing
music
End a call and resume music
Play
Pause
Fast Forward
Next Track
Rewind
Replay
Adjust Volume
*If SRS is enabled, the status indicator will flash blue light twice every time.
When playing music, press and hold
the Volume + for 2 seconds
same as "above" 2 short beeps
MFB once
Press the
Press the
MFB once
Press‟II once
Press‟II once
Press and hold I
Press ‟ I once
Press and hold I
Press I‟ once
Press the Volume + / Volume
once to increase / decrease by 1
level (Total 8 levels)
a short beep Flashing blue light
once
Flashing blue light
twice
Flashing purple light
when there is a call
Flashing blue light*
Flashing blue light*
Flashing blue light*
Flashing blue light*
Flashing blue light*
Flashing blue light*
Flashing blue light*
Flashing blue light*
Resetting Your Headphones / Removing the Pairing History
You may reset the headphones to its default settings. Resetting will also remove the pairing
settings of your headphones with the mobile phone.
1. Connect the supplied charger to your headset and then to AC power. The status indicator will
stay red.
2. Press and hold the Volume + for 10 seconds until the status indicator flashes purple.
3. Release the Volume + .
4. Press and hold the Volume + again until the status indicator flashes purple and then release
the Volume + .
5. The status indicator will stay red again and the headphones are reset.
Bluetooth headset is designed to work with Bluetooth devices. Due to large
i.Tech
variability between different Bluetooth devices from different manufacturers,
interoperability between the headset and all Bluetooth-enabled products is not
guaranteed.
9 10
Troubleshooting
I can't hear anything in my headphones.
• Ensure the headphones are turned on and are properly charged.
• Ensure the headphones are properly paired with the mobile phone.
• Make sure that the mobile phone is connected with the headphones – if it does not
connect, either refer to the mobile phone's Bluetooth menu or by pressing the MFB once
(see “Turning Your Headphones On and Off” and “Pairing Your Headphones with a
Bluetooth Mobile Phone”).
I can't connect my headphones with mobile phone.
• Ensure your headphones are turned on and are properly charged.
• Ensure the headphones are properly paired with your mobile phone.
• Ensure your mobile phone’s Bluetooth feature is activated. Please refer to your mobile
phone user guide for specific instruction.
• Ensure the headphones are within ten metres range of your mobile phone and there are
no obstructions, such as walls or other electronic devices in between.
If the above steps do not solve your problem, please recharge the headphones and remove
your mobile phone’s battery for a while.
I can’t turn off the headphones.
Recharge the headphones for two seconds then disconnect the charger from the
headphones. The headphones now turn off.
Safety Information
• Check and observe local laws regarding the use of a mobile phone and headphones while
driving. If you use the headphones while driving, ensure your full attention and focus. It
is your responsibility to drive safely. Consider to pull off the road before making or
answering a call.
• Never leave your headphones above any air bag deployment area inside your car as
serious injury may result when an air bag deploys.
• Never allow children to play with the headphones – small parts may be of choking hazard.
• Observe all signs and displays that require an electrical device or RF radio product to be
switched off in designated areas. These could include hospitals, blasting areas, and
potentially explosive atmospheres.
• Turn off your headphones prior to boarding an aircraft. Do not use your headphones
inside an aircraft.
• To prevent damage to your hearing, please do not set the listening volume too high.
• Do not attempt to modify the headphones.
• Never use the headphones while taking a bath.
• Do not use the headphones in a sauna or steam room.
• Do not keep the headphones near a wash basin or other wet places.
• Do not use the headphones outdoors in the rain.
• Do not use the headphones in stormy weather.
• Do not clean the headphones while they are being charged. Always disconnect the
charger from the headphones before cleaning.
• Do not attempt to force open the built-in battery.
• Dispose of the battery and the headphones according to local regulations. Do not dispose
of them as household waste.11 12
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Care and Maintenance
headphones
• Turn off your headphones before placing it in your pocket or bag. If the MFB is accidentally
depressed, your mobile phone may place an unintended call.
• Do not expose the headphones to liquid, moisture or humidity, or rain as it is not waterproof.
• Do not use abrasive cleaners to clean the headphones.
• Do not expose the headphones to extremely high or low temperatures.
• Do not leave the headphones in direct sunlight for an extended period of time.
• Do not leave the headphones near open flames such as cooking burners.
• Do not dispose of the headphones in a fire as it will result in explosion.
• Do not bring the headphones into contact with any sharp objects as this will cause scratches
and damages.
• Do not stick anything inside the headphones as this may damage internal components.
• Do not attempt to disassemble the headphones as they do not contain serviceable
components.
• If you do not plan to use the headphones for a long period, please store them in a dry place
that is free from extreme temperatures and dust.
Care and Maintenance (cont’d)
• Only charge the headphones built-in battery in accordance with the instructions described in
this user guide.
• Avoid charging the headphones in extremely high or low temperatures.
• Do not connect the headphones to the charger while on an active call.
Built-in Battery
• Do not attempt to replace the headphones‘ battery as it is in-built and is not changeable.
• Dispose of the battery according to local regulations. Do not dispose of the battery as
household waste.
• Charge the battery in accordance with the instructions supplied with this user guide.
• Use only the charger supplied by the headphones’ original manufacturer to charge the
battery.
Charger
• Use only the charger supplied by the headphones’ original manufacturer to charge the
headphones. Other chargers may look similar but using them could be dangerous and could
damage the headphones.
• Do not attempt to disassemble the charger as it may expose you to dangerous voltages or
other risks. Incorrect reassembly can cause electric shock when the headphones are
subsequently used.
• Do not use the charger outdoors or in damp areas.
13 14
Declaration of Conformity
We, i.Tech Dynamic Limited, declare that the following product:
Product Name: i.Tech BlueBAND Sport
Model No.: C51-B08003-XX
is in conformity with the following essential requirements of Council Directive 1999/5/EC
(referred to as R&TTE Directive): Article 3.1a, 3.1.b and 3.2. and the product is manufactured
in accordance with Annex II of the above directive.
A copy of the Declaration of Conformity can be found at http://www.itechdynamic.com.
i.Tech declares under our sole responsibility that the headset is in conformity with the
provisions of the following Council Directives: 1999/5/EC.
Notes on Environmental Protection
After the implementation of the European Directive 2002/96/EU in the national legal system,
the following applies: Electrical and electronic devices must not be disposed of with domestic
waste. Consumers are obliged by law to return electrical and electronic devices at the end of
their service lives to the public collection points that are set up for this purpose or designated
points of sale. However, such details are defined by the national law of the respective country.
This symbol on the product, the instruction manual or the packaging indicates that the product
is subject to these regulations. By recycling, reusing the materials, or other forms of utilizing
old devices, you are making an important contribution in protecting our environment.
Federal Communications Commission (FCC) Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible
for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
15
16
2008 Hutchison Harbour Ring Enterprises Limited
All rights in this publication are reserved and no part may be reproduced without the prior
written permission of the publisher. The contents of this publication are believed to be correct
at the time of going to press, but any information, specifications, products or services
mentioned, and product I.D. shown may be modified, supplemented or withdrawn without
further notice.
The Stylized i.Tech logos are trademarks owned by Hutchison Harbour Ring Enterprises
Limited or its affiliates. All other trademarks or registered trademarks belong to their
respective owners.
Dispose of the packaging and this product in accordance with the latest provisions.
is a trademark of SRS Labs, Inc. WOW HD technology is incorporated under license from SRS Labs, Inc.
04/2008
17
Loading...
