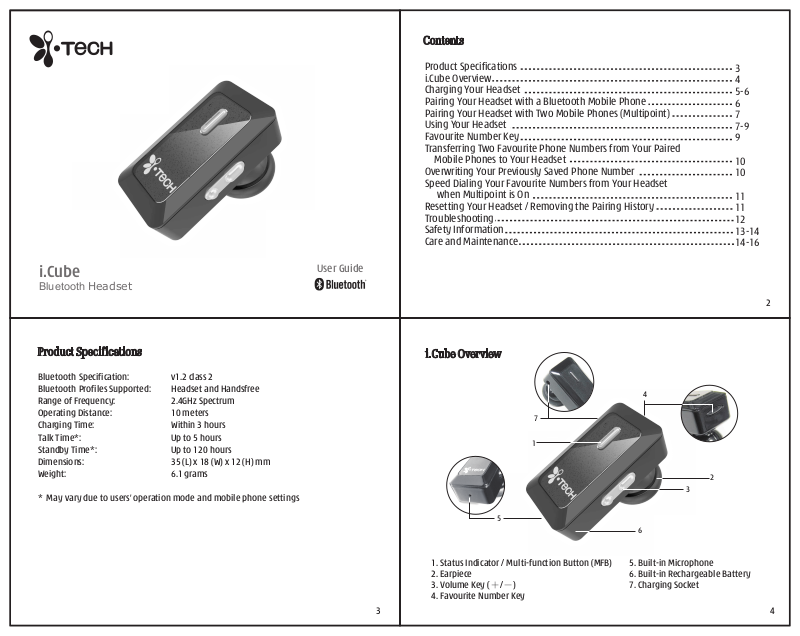

Contents
i.Cube
Bluetooth Headset
Product Specifications
Bluetooth Specification: v1.2 class 2
Bluetooth Profiles Supported: Headset and Handsfree
Range of Frequency: 2.4GHz Spectrum
Operating Distance: 10 meters
Charging Time: Within 3 hours
Talk Time*: Up to 5 hours
Standby Time*: Up to 120 hours
Dimensions: 35 (L) x 18 (W) x 12 (H) mm
Weight: 6.1 grams
* May vary due to users’ operation mode and mobile phone settings
User Guide
Product Specifications
i.Cube Overview
Charging Your Headset
Pairing Your Headset with a Bluetooth Mobile Phone
Pairing Your Headset with Two Mobile Phones (Multipoint)
Using Your Headset
Favourite Number Key
Transferring Two Favourite Phone Numbers from Your Paired
Mobile Phones to Your Headset
Overwriting Your Previously Saved Phone Number
Speed Dialing Your Favourite Numbers from Your Headset
when Multipoint is On
Resetting Your Headset / Removing the Pairing History
Troubleshooting
Safety Information
Care and Maintenance
i.Cube Overview
4
7
1
5
6
3
4
5-6
6
7
7-9
9
10
10
11
11
12
13-14
14-16
2
2
3
1. Status Indicator / Multi-function Button (MFB)
2. Earpiece
3. Volume Key (＋/－)
4. Favourite Number Key
3 4
5. Built-in Microphone
6. Built-in Rechargeable Battery
7. Charging Socket
Getting Started
Before using your i.Cube (“headset”) for the first time, please ensure that
1. the headset is fully charged;
2. the fully charged headset must be paired and connected with a Bluetooth mobile
phone.
Charging Your Headset
The headset comes with a built-in rechargeable battery. Prior to using the headset for
the first time, you are recommended to fully charge the battery.
Charging Socket
fig.2
Use only the supplied charger to charge the headset.
Charging Your Headset (cont’d)
Status Status Indicator Audio
• Charging • Red light
• Fully charged • Blue light
• Low battery • Flashing red light • a short beep every 1 minute
• Out of battery • The light goes off
♦ 3 hours are required to fully charge the headset.
♦ Charging indication will be delayed for a few seconds if the headset has not been used
for a long time or the battery is drained.
Pairing Your Headset with a Bluetooth Mobile Phone
1) Ensure the headset is off.
2) To activate the pairing mode, press and hold the headset’s MFB for 8 seconds without
releasing your finger until its status indicator flashes alternating blue and red lights.
3) Activate your mobile phone’s Bluetooth, search Bluetooth devices, select “i.Cube” and
enter the passcode “0000”. When the pairing is completed, the headset’s status indicator
will flash a blue light rapidly five times.
If the pairing cannot be completed within three minutes after the pairing mode has been
activated, the headset’s status indicator will flash purple rapidly five times and then turns
5
off. Repeat steps 1 to 3 to pair both devices again.
6
Pairing Your Headset with Two Mobile Phones (Multipoint)
i.Cube supports a Multipoint function to allow simultaneous pairing of the headset
with two mobile phones.
1. Follow the pairing procedure as instructed in “Pairing Your Headset with a
Bluetooth Mobile Phone” to pair the headset with the first mobile phone.
2. Repeat the pairing procedure for the second mobile phone.
3. On the first mobile phone’s menu, activate its Bluetooth connection with the
headset.
Using Your Headset
Function Button Audio Status Indicator
Power ON Press and hold the MFB for 2 a short beep Flashing blue light
seconds
When you turn on your headset for the first time, the headset automatically enters
the pairing mode, i.e. the status indicator flashes alternating blue and red lights.
This allows you to immediately pair your headset and mobile phone.
If your headset is paired with your mobile phone, press the MFB once more after
you turned on the headset to re-connect the mobile phone and the headset.
Power OFF Press and hold the MFB for 2 a long beep
seconds
If you do not plan to use the headset for a while, you are recommended to turn off
the Bluetooth function of your mobile phone.
Red light for two seconds
and then the light goes off
Using Your Headset (cont'd)
Function Button Audio Status Indicator
Answer a Call Press the MFB once Flashing blue light
Answer a Second Call Press the MFB once to terminate a beep Flashing purple light
intended for your other
mobile phone once again to answer the second call intended for your
End a Call Press the MFB once Flashing blue light
Adjust Volume Press the Vol＋/－once to a short beep Flashing blue light
increase / decrease by 1 level
Mute a Call Press either volume key for 2
seconds 5 seconds
Cancel Call Muting Press either volume key for 2 2 short beeps
seconds
Voice Dialing Press the MFB once
Say the voice tag as soon as you hear the short beep and you must have recorded the voice
tag into your mobile phone.
Last No. Redial Double click the MFB Flashing blue light
7
the first call, then press the MFB when there is a second
call other mobile phone
2 beeps every Flashing blue light
Flashing blue light
a short beep Flashing blue light
8
Using Your Headset (cont'd)
Function Button Audio Status Indicator
Reject a Call Press and hold either volume a short beep Flashing blue light
key and the MFB simultaneously
for 2 seconds
Transfer a Call While speaking, press and hold a short beep Flashing blue light
(headset to mobile phone) either volume key and MFB
simultaneously for 2 seconds
Transfer a Call While speaking, press the MFB a short beep Flashing blue light
(mobile phone back to once
headset)
Favour ite Number Key (Mobile phone must support Bluetooth OPP)
The function of “Favourite Number Key” allows you to save your two favourite phone
numbers from each of your two mobile phones paired with the headset (total four
numbers), as well as to speed dial them. Instructions on the next page may vary with
different phone models.
Transferring Two Favourite Phone Numbers from One of Your Two Paired
Mobile Phones to Your Headset
1) Ensure the headset is paired with the mobile phone and is turned off.
2) To activate the OPP mode, first press the Favourite Number Key
keep pressing both keys simultaneously for 8 seconds without releasing your fingers
until the status indicator flashes alternating blue and red lights.
3) On your mobile phone’s phonebook, select a phone number you want to save in the
headset, then go to “Send Contact”, select “Bluetooth”, then “i.Cube”. When sent,
“Sent” will be shown on your mobile phone’s screen, indicating that the number has
been sent and saved in the headset.
If a number cannot transfer to the headset within 3 minutes after the OPP mode has
been activated, the headset will automatically turn off.
To save another favourite phone number, repeat steps 1 to 3.
To transfer two more favourite numbers from your another paired mobile phone to the
headset, also repeat steps 1 to 3.
then the MFB and
Overwriting Your Previously Saved Phone Number
If you have already saved four favourite numbers in the headset and now you want to
save a new one. The new one will automatically overwrite the first number you had
9
previously saved in sequential order (First in First out).
10
Speed Dialing Your Favourite Numbers from Your Headset when
Multipoint is On
1) Ensure the headset is connected with both mobile phones and is turned on.
2) Press the Favourite Number Key
number saved (Last in First out) from your last mobile phone used.
3) Press the Favourite Number Key
number saved from your last mobile phone used.
once, then the MFB once to speed dial the last
twice, then the MFB once to speed dial the previous
Resetting Your Headset / Removing the Pairing History
You may reset the headset to its default settings. Resetting will also remove the pairing
settings of your headset with the mobile phone.
1. Connect the supplied charger to your headset and then to AC power. The status
indicator will stay red.
2. Press and hold the Vol +
3. Release the Vol +
4. Press and hold the Vol + again until the status indicator flashes purple and then
release the Vol +
5. The status indicator will stay red again and the headset is reset.
Bluetooth headset is designed to work with Bluetooth devices. Due to large
i.Tech
variability between different Bluetooth devices from different manufacturers,
interoperability between the headset and all Bluetooth-enabled products is not
guaranteed.
for 10 seconds until the status indicator flashes purple.
.
.
11
Troubleshooting
I can hear crackling noise.
To receive the best audio quality, it is recommended to wear your headset on the same
side of the body as your mobile phone.
I can't hear anything in my headset.
• Ensure the headset is turned on and is properly charged.
• Ensure the headset is properly paired with the mobile phone.
• Make sure that the mobile phone is connected with the headset – if it does not
connect, either refer to the mobile phone's Bluetooth menu, or press the MFB once
(see “Using Your Headset” and “Pairing Your Headset with a Bluetooth Mobile Phone”).
I can't connect my headset with my mobile phone.
• Ensure your headset is turned on and is properly charged.
• Ensure the headset is properly paired with your mobile phone.
• Ensure your mobile phone’s Bluetooth feature is activated. Please refer to your
mobile phone user guide for specific instruction.
• Ensure the headset is within ten meters' range of your mobile phone and there are no
obstructions, such as walls or other electronic devices in between.
If the above steps do not solve your problem, please recharge the headset and remove
your mobile phone’s battery for a while.
I can’t turn off the headset.
Recharge the headset for two seconds then disconnect the charger from the headset.
The headset now turns off.
12
Safety Information
• Check and observe local laws regarding the use of a mobile phone and a headset while
driving. If you use the headset while driving, ensure your full attention and focus. It is
your responsibility to drive safely.
• Never leave your headset above any air bag deployment area inside your car, as
serious injury may result when an air bag deploys.
• Never allow children to play with the headset – small parts may be of choking hazard.
• Observe all signs and displays that require an electrical device or RF radio product to
be switched off in designated areas. These could include hospitals, blasting areas, and
potentially explosive atmospheres.
• Turn off your headset prior to boarding an aircraft. Do not use your headset inside an
aircraft.
• To prevent damage to your hearing, please do not set the listening volume too high.
• Do not attempt to modify the headset.
• Never use the headset while taking a bath.
• Do not use the headset in a sauna or steam room.
• Do not keep the headset near a wash basin or other wet places.
• Do not use the headset outdoors in the rain.
• Do not use the headset in stormy weather.
• Do not clean the headset while it is being charged. Always disconnect the charger from
the headset before cleaning.
Safety Information (cont'd)
• Do not attempt to force open the built-in battery.
• Dispose of the battery and the headset according to local regulations. Do not dispose
of them as household waste.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Care and Maintenance
Headset
• Turn off your headset before placing it in your pocket or bag. If the MFB is accidentally
depressed, your mobile phone may place an unintended call.
• Do not expose the headset to liquid, moisture or humidity, or rain as it is not
waterproof.
• Do not use abrasive cleaners to clean the headset.
Care and Maintenance (cont’d)
• Do not expose the headset to extremely high or low temperatures.
• Do not leave the headset in direct sunlight for an extended period of time.
• Do not leave the headset near open flames such as cooking burners.
• Do not dispose of the headset in a fire, as it will result in explosion.
• Do not bring the headset into contact with any sharp objects, as this will cause scratches
and damages.
• Do not stick anything inside the headset, as this may damage internal components.
• Do not attempt to disassemble the headset as it does not contain serviceable
components.
• If you do not plan to use the headset for a long period, please store it in a dry place that
is free from extreme temperatures and dust.
• Only charge the headset’s built-in battery in accordance with the instructions described
in this user guide.
• Avoid charging the headset in extremely high or low temperatures.
• Do not connect the headset to the charger while on an active call.
13
Care and Maintenance (cont’d)
Built-in Battery
• Do not attempt to replace the headset’s battery as it is in-built and is not changeable.
• Dispose of the battery according to local regulations. Do not dispose of the battery as
household waste.
• Charge the battery in accordance with the instructions supplied with this user guide.
• Use only the charger supplied by the headset’s original manufacturer to charge the
battery.
Charger
• Use only the charger supplied by the headset’s original manufacturer to charge the
headset. Other chargers may look similar but using them could be dangerous and
could damage the headset.
• Do not attempt to disassemble the charger, as it may expose you to dangerous
voltages or other risks. Incorrect reassembly can cause electric shock when the
headset is subsequently used.
• Do not use the charger outdoors or in damp areas.
15 16
14
Declaration of Conformity
We, i.Tech Dynamic Limited, declare that the following product:
Product Name: i.Tech i.Cube
Model No.: C51-B08010-XX
is in conformity with the following essential requirements of Council Directive 1999/5/EC
(referred to as R&TTE Directive): Article 3.1a, 3.1.b and 3.2. and the product is manufactured
in accordance with Annex II of the above directive.
A copy of the Declaration of Conformity can be found at http://www.itechdynamic.com.
Notes on Environmental Protection
After the implementation of the European Directive 2002/96/EU in the national legal
system, the following applies: Electrical and electronic devices must not be disposed of with
domestic waste. Consumers are obliged by law to return electrical and electronic devices at
the end of their service lives to the public collection points that are set up for this purpose
or designated points of sale. However, such details are defined by the national law of the
respective country. This symbol on the product, the instruction manual or the packaging
indicates that the product is subject to these regulations. By recycling, reusing the
materials, or other forms of utilizing old devices, you are making an important contribution
in protecting our environment.
2008 Hutchison Harbour Ring Enterprises Limited
All rights in this publication are reserved and no part may be reproduced without the prior
written permission of the publisher. The contents of this publication are believed to be
correct at the time of going to press, but any information, specifications, products or
services mentioned, and product I.D. shown may be modified, supplemented or
withdrawn without further notice.
The Stylized i.Tech logos are trademarks owned by Hutchison Harbour Ring Enterprises
Limited or its affiliates. All other trademarks or registered trademarks belong to their
respective owners.
17
Federal Communications Commission (FCC) Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
18
Dispose of the packaging and this product in accordance with the latest provisions.
06/2008
19
Loading...
