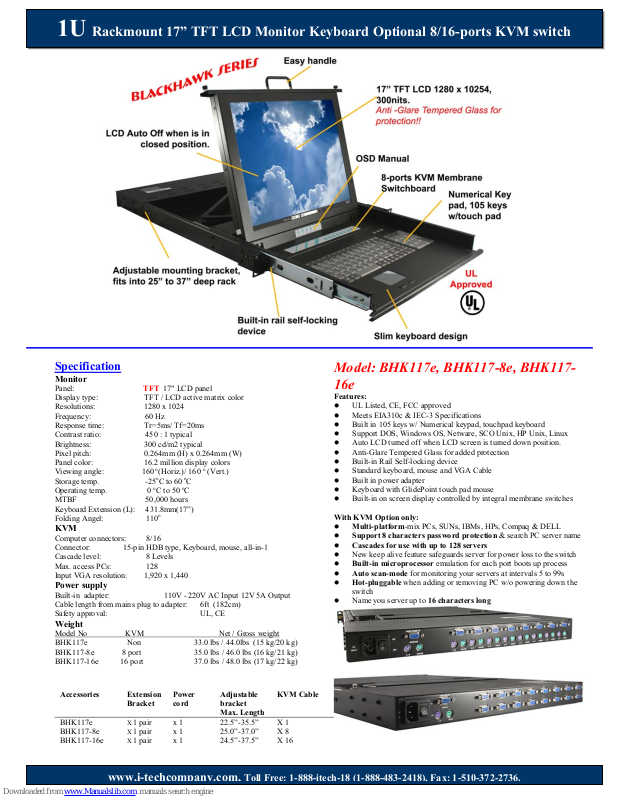

Page 1
1U Rackmount 17” TFT LCD Monitor Keyboard Optional 8/16-ports KVM switch
Specification
Monitor
Panel: TFT 17" LCD panel
Display type: TFT / LCD active matrix color
Resolutions: 1280 x 1024
Frequency: 60 Hz
Response time: Tr=5ms/ Tf=20ms
Contrast ratio: 450 : 1 typical
Brightness: 300 cd/m2 typical
Pixel pitch: 0.264mm (H) x 0.264mm (W)
Panel color: 16.2 million display colors
Viewing angle: 160
Storage temp. -25
Operating temp. 0
MTBF 50,000 hours
Keyboard Extension (L): 431.8mm(17”)
Folding Angel: 110
KVM
Computer connectors: 8/16
Connector: 15-pin HDB type, Keyboard, mouse, all-in-1
Cascade level: 8 Levels
Max. access PCs: 128
Input VGA resolution: 1,920 x 1,440
Power supply
Built-in adapter: 110V - 220V AC Input 12V 5A Output
Cable length from mains plug to adapter: 6ft (182cm)
Safety approval: UL, CE
Weight
Model No KVM Net / Gross weight
BHK117e Non 33.0 lbs / 44.0lbs (15 kg/20 kg)
BHK117-8e 8 port 35.0 lbs / 46.0 lbs (16 kg/21 kg)
BHK117-16e 16 port 37.0 lbs / 48.0 lbs (17 kg/22 kg)
Accessories Extension
BHK117e
BHK117-8e X 1 pair x 1 25.0”-37.0” X 8
BHK117-16e
o
(Horiz.)/ 160 o (Vert.)
o
C to 60 oC
o
C to 50 oC
o
Bracket
X 1 pair x 1 22.5”-35.5” X 1
X 1 pair x 1 24.5”-37.5” X 16
Power
cord
Adjustable
bracket
Max. Length
KVM Cable
Model: BHK117e, BHK117-8e, BHK11716e
Features:
z UL Listed, CE, FCC approved
z Meets EIA310c & IEC-3 Specifications
z Built in 105 keys w/ Numerical keypad, touchpad keyboard
z Support DOS, Windows OS, Netware, SCO Unix, HP Unix, Linux
z Auto LCD turned off when LCD screen is turned down position.
z Anti-Glare Tempered Glass for added protection
z Built-in Rail Self-locking device
z Standard keyboard, mouse and VGA Cable
z Built in power adapter
z Keyboard with GlidePoint touch pad mouse
z Built-in on screen display controlled by integral membrane switches
With KVM Option only:
z Multi-platform-mix PCs, SUNs, IBMs, HPs, Compaq & DELL
z Support 8 characters password protection & search PC server name
z Cascades for use with up to 128 servers
z New keep alive feature safeguards server for power loss to the switch
z Built-in microprocessor emulation for each port boots up process
z Auto scan-mode for monitoring your servers at intervals 5 to 99s
z Hot-pluggable when adding or removing PC w/o powering down the
switch
z Name you server up to 16 characters long
-
-
-
-
-
-
-
-
-
-
