I-Tech BES1200-CD1 User Manual

BES1200-CD1

12.1” High Speed Panel PC

w/Touch Screen, 12V DC Adapter,

1 x Expansion Slot

Copyright Disclaimers

The accuracy of contents in this manual has passed through checking and review
before publishing. I-Tech Company LLC., the manufacturer and publisher, is not liable
for any infringements of patents or other rights resulting from its use. The
manufacturer will not be responsible for any direct, indirect, special, incidental

or consequential damages arising from the use of this product or
documentation, even if advised of the possibility of such damage(s).
This manual is copyrighted and i-Tech Company LLC. reserves all
documentation rights. Unauthorized reproduction, transmission, translation,
and storage of any form and means (i.e., electronic, mechanical, photocopying,

recording) of this document, in whole or partly, is prohibited, unless granted
permission by i-Tech Company LLC.
i-Tech Company LLC. reserves the right to change or modify the contents of this

document without any notice. i-Tech Company LLC. assumes no responsibility for
any errors or omissions that may appear in this manual, nor does i t make a ny
commitment to update the information contained herein.

Trademarks

iTech is a registered trademark of i-Tech Company LLC.
ISB is a registered trademark of i-Tech Company LLC
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
AMI is a registered trademark of AMI Software, Inc.

All other trademarks, products and or product names mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.

i-Tech Company LLC
TOLL FREE: [phone] • EMAIL:

[e-mail] • WEB: www.iTechLCD.com

Table of Contents

Chapter 1 General Description ................................. 1

1.1 Major Features .................................................................. 2

1.2 Specifications ................................................................... 2

1.3 Dimensions ....................................................................... 5

Chapter 2 Unpacking ................................................ 7

2.1 Opening the Delivery Package ......................................... 7

2.2 Inspection ......................................................................... 7

Chapter 3 Hardware Install ation ....... ...................... 9

3.1 HDD/CD-ROM/PCI Card Installation ................................. 9

Chapter 4 Touch Screen Driver Installation .......... 11

4.1 Resistive Type Touch Screen Driver Installation ............ 11

Declaration of Conformity -- CE Mark

iTech Company hereby acknowledges that compliance testing in
accordance with applicable standards of the EU’s EMC Directive,
89/336/EEC, was successfully completed on a sample of the equipment
identified below:

Equipment Class:
Product Model Series:
This Product Complies With:

Information Technology Equipment

BES1200-CD1

EN55022: Class A for Radiated em is sions
EN50082-2: Heavy Industrial EMC Immunity

We, the undersigned, hereby declare that the equipment specified above
conforms to the above directives and standards.

Manufacturer:

iTech Company LLC.

Safety Instructions

The safety recommendations outlined in this section are to be read,
understood and followed before operating the product. Keep this
information in a safe place for future reference. Failure to comply with any
of the following safety procedures could result in serious hazard.

■ Do not operate product for any purposes other than its intended use

■ This product is intended for indoor use only

■ Do not operate product if power cord is damaged in anyway

■ Do not insert objects into openings

■ Do not immerse product in water or permit liquids to spill inside

■ Turn off power when unattended or not in use. Unplug product before

moving it or when it is not in use for an extended period of time. The socket­outlet shall be installed near the equipment and shall be easily accessible

■ Do not alter or extend electric plug. Plug is configured for appropriate
electrical supply

■ Do not overload electrical outlets beyond their capacity as this can result in a fire

NOTE: DO NOT TOUCH THE PRODUCT OR ANY OTHER SENSITIVE

COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTIONS.

Life Expectancy of Constituent Parts

This section describes the life expectancy of constituent parts (backlight,
power supply, internal cooling fan and touch screen) which make up to
BES1200-CD1.

■ TFT Display Backlight

Display brightness decreases over time with use. The expected operating
lifetime of the backlight time to reach 50% initial brightness) is 30,000 hours
(assuming continuous lit state at 25 degrees C). Actual lifetime before
replacement is about 30,000 hours, although this depends on operating
conditions.

■ Touch Screen

The operating lifetime of the touch screen is approximately 1 million
operations (as tested by mechanical manipulation under 100g of force at a
rate of two presses per second)

Chapter 1

General Description

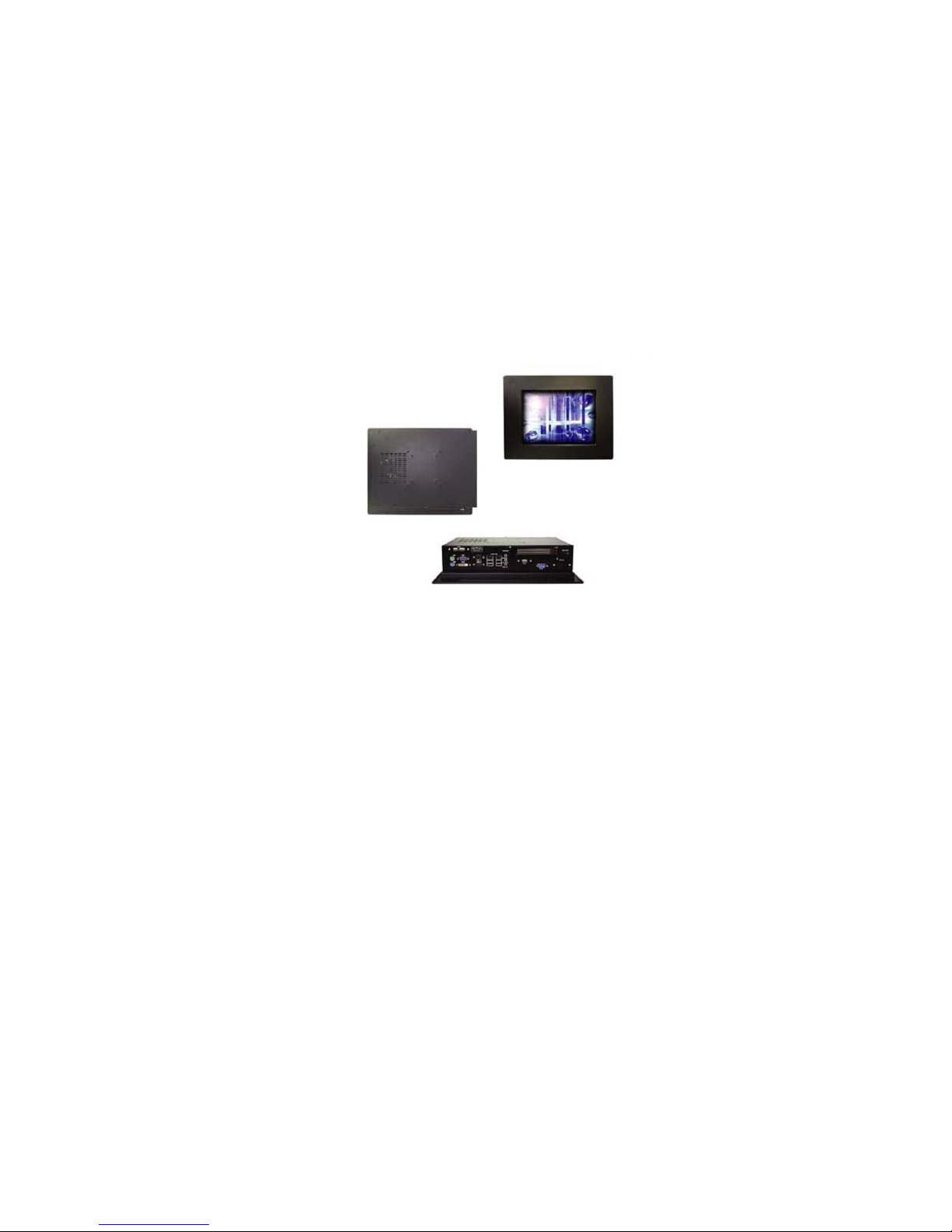

The BES1200-CD1 is an industrial-grade panel PC that provides
convenient expandability through is one PCI system slots.

The rear design of BES1200-CD1 enhances the disassembly
process when required. A single drive bay is available for one HDD
that can be easily installed before assembly.

The BES1200-CD1 has a 12.1” display and a touch screen that
operates under all types of working environment. It also comes with a
reliable power supply and one 4cm ball bearing cooling fan that
enhance system stability.

The unit can also be mounted in several configurations. A variety of
iTech SBCs is compatible with the BES1200-CD1.

• The BES1200-CD1 is IBM PC/AT compatible and can draw

from a large body of hardware and software resources
worldwide

• 12V DC in 120W adapter with UL, CE, CSA, TUV approved

1

• The user can select the operating system he wants to use just like

an ordinary personal computer. An operating system such an MS­DOS, Windows can be selected to suit the application.

• The BES1200-CD1 features an all-in-one flat display.

• Keyboard less operations are possible through the use of a touch

screen. In addition to a watchdog timer indispensable in FA
applications.

You can select from a broad range of variations to arrive at the optimum
configuration for your application and budget.

1.1 Major Features

The BES1200-CD1 series comes with the following features:

> Aluminum front panel design
> 12.1” TFT color panel display w/touch screen
> Built-in 12V DC adapter
> BES1200-CD1-C w/HS-1752, provides Intel® P-M/C-M processor,

6 x COM, 6 x USB2.0, Parallel

> BES1200-CD1-Q w/ HS-1750, provides Intel® Core™ Duo

processor, 4 x COM, 6 x USB2.0, Parallel, DVI display, PCI
expansion slot

> Onboard graphics, dual GB Ethernet, audio controller
> 1 x 2.5” HDD space, 1 x slim CD-ROM space
> 2 x 4cm ball bearing cooling fan

1.2 Specifications

• System

BES1200-CD1-C

■ SBC:

HS-1752

■ CPU:

Intel® P-M/C-M processor in the u-FCPGA 478 package (option)

■ BIOS:

Award BIOS with 4Mb SPI Flash EEPROM

■ System Chipset:

Intel® 915GME/ICH6-M

■ System Memory:

2 x 240-pin DIMM socket up to 2GB DDR2/533 SDRAM

■ Display Chipset:

Intel® 915GME

2

■ Audio Chipset:

RealTek ALC655 5.1CH audio codec

■ Ethernet Chipset:

Dual RealTek RTL8111B 10/100/1000 Mbps LAN

■ Drive Bay:

1 x 2.5” HDD space 1 x
Slim CD-ROM space

■ Watchdog Timer:

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

■ External I/O:

6 x USB2.0, 6 x COM, VGA, 2 x LAN, Parallel, PS/2 KB/MS, MIC
In, Line In, Line Out

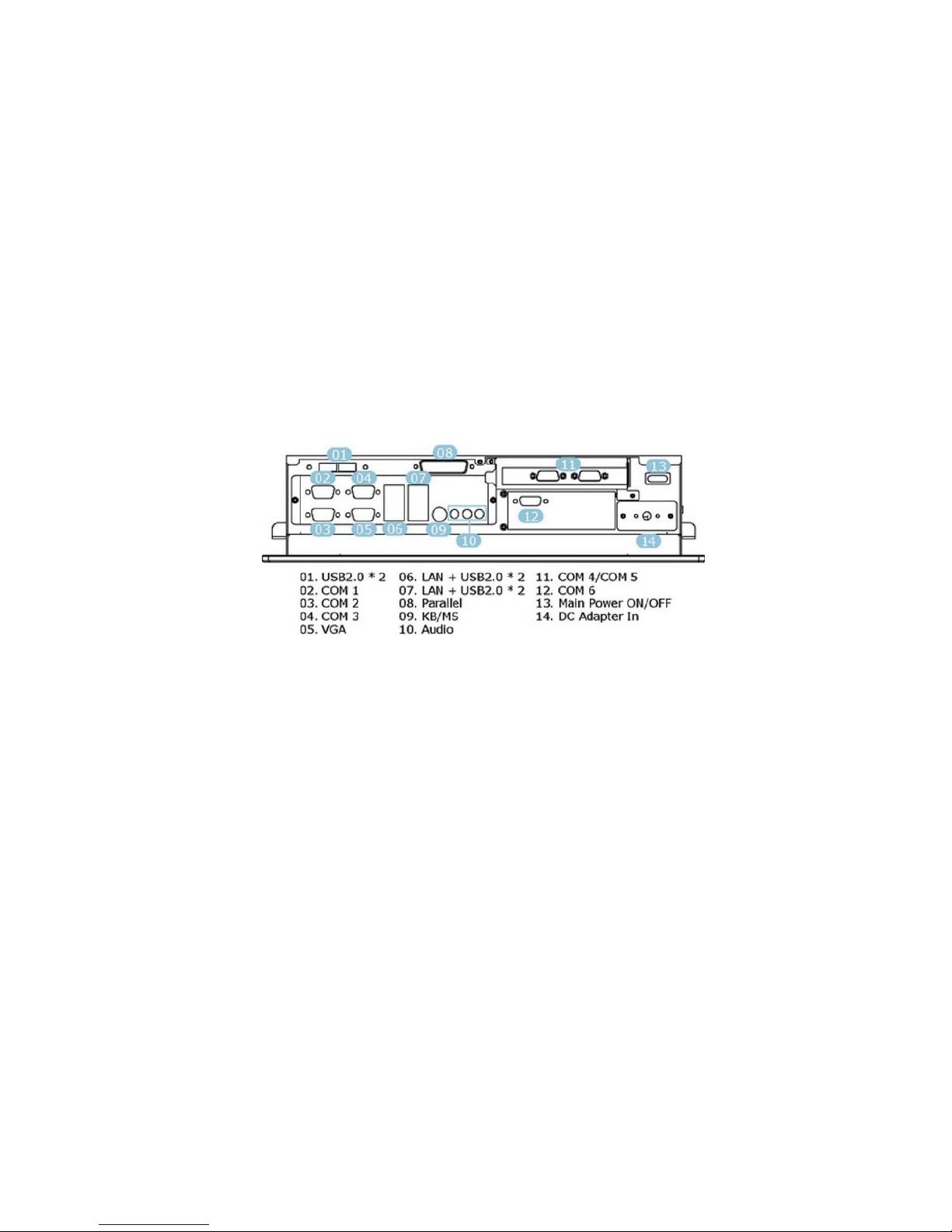

■ Rear I/O:

BES1200-CD1-Q

■ SBC:

HS-1750

■ CPU:

Intel® P-M/C-M processor in the u-FCPGA 478 package (option)

■ BIOS:

Award BIOS with 4Mb Flash EEPROM

■ System Chipset:

Intel® 945GME/ICH7-M

■ System Memory:

2 x 200-pin SO-DIMM socket up to 4GB DDR2/667 SDRAM

Display Chipset:

CRT: Intel® 945GME
DVI: Chrontel CH7307

■ Audio Chipset:

RealTek ALC655 5.1CH audio codec

■ Ethernet Chipset:

Dual Marvell 88E8053 10/100/1000 Mbps LAN

3

Drive Bay:

1 x 2.5” HDD space 1 x
Slim CD-ROM space

■ Watchdog Timer:

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

■ Expansion Interface:

1 x Standard PCI expansion slot

■ External I/O:

6 x USB2.0, PS/2 KB, PS/2 MS, VGA, DVI, 4 x COM, Parallel,
2 x LAN, MIC In, Line In, Line Out

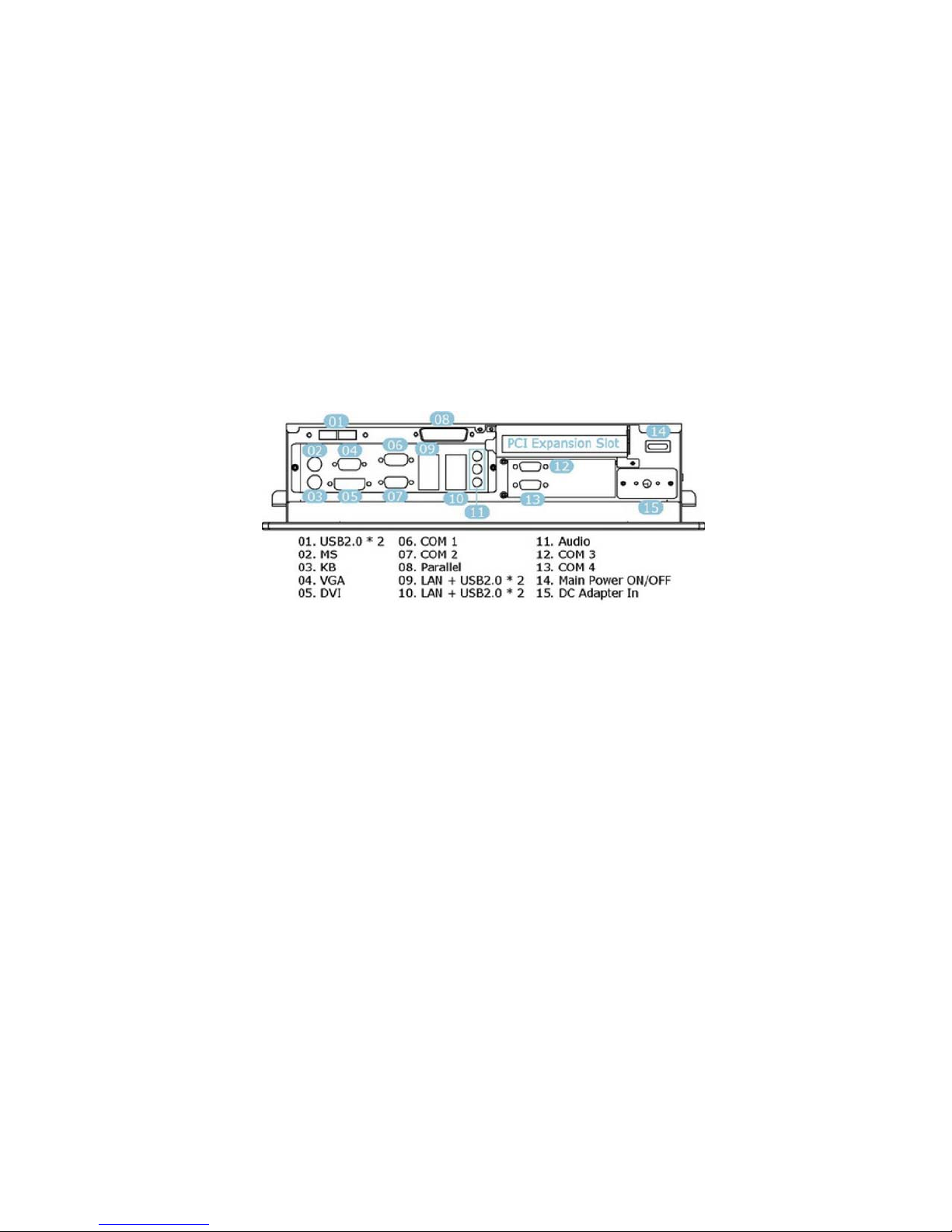

■ Rear I/O:

• Mechanical

■ Thermal System:

2 x 4cm ball bearing cooling fan

■ Dimensions (LxHxW):

37.0 x 29.0 x 8.9 cm

■ Cut Out Size (LxH):

33.4 x 25.4 cm

■ Operation/Storage Temperature:

0~+45 degrees C/-20~+70 degrees C

■ EMC:

FCC/CE

■ Front Panel Protection:

IP65 compliance

■ Power Adapter:

12V DC in 120W Adapter

• Panel Specifications

■ LCD Size:

12.1”

■ Max Resolution:

800x3(RGB) x 600

4

■ Brightness (cd/m2):

400 (typ.)

■ Contrast Ratio:

600:1 (typ.)

■ LCD Color:

16.2M/262K colors

■ Pixel Pitch (mm):

0.3075 x 0.3075

■ Touch Screen:

12.1” resistive

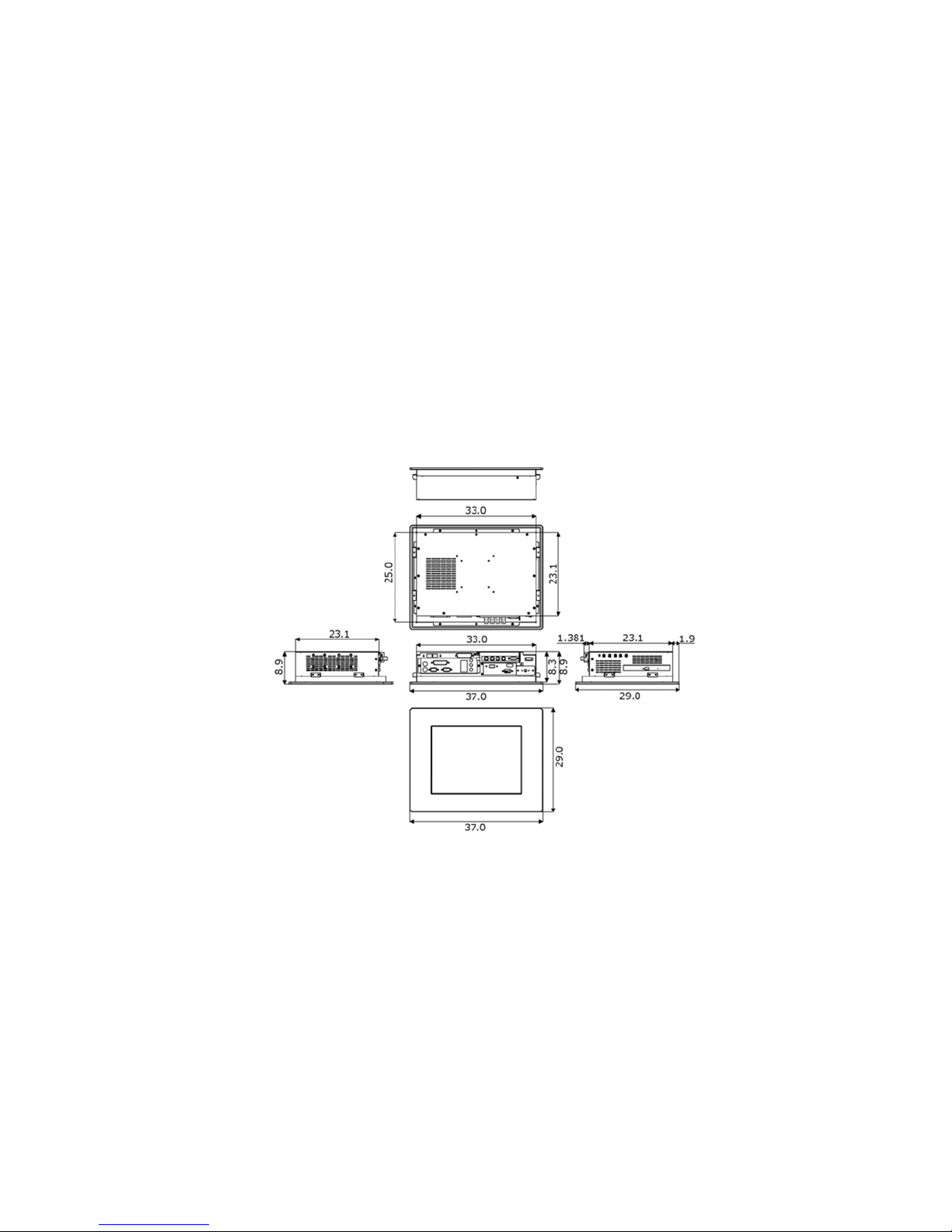

1.3 Dimensions

5

This page intentionally left blank.

6

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The BES1200-CD1 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety instructions in front of this manual describe anti-static
precautions and procedures.

2.2 Inspection

After unpacking the Panel PC, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The BES1200-CD1 delivery
package contains the following items:

■

BES1200-CD1 x 1, w/Power Cable

■

Utility CD Disk x 1, including System Board User’s Manual x 1 and
BES1200-CD1 User’s Manual x 1

It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.

7

This page intentionally left blank.

8

Chapter 3

Hardware Installation

This chapter tells how to install components into the Panel PC system.
External interface please refers to system board’s manual.

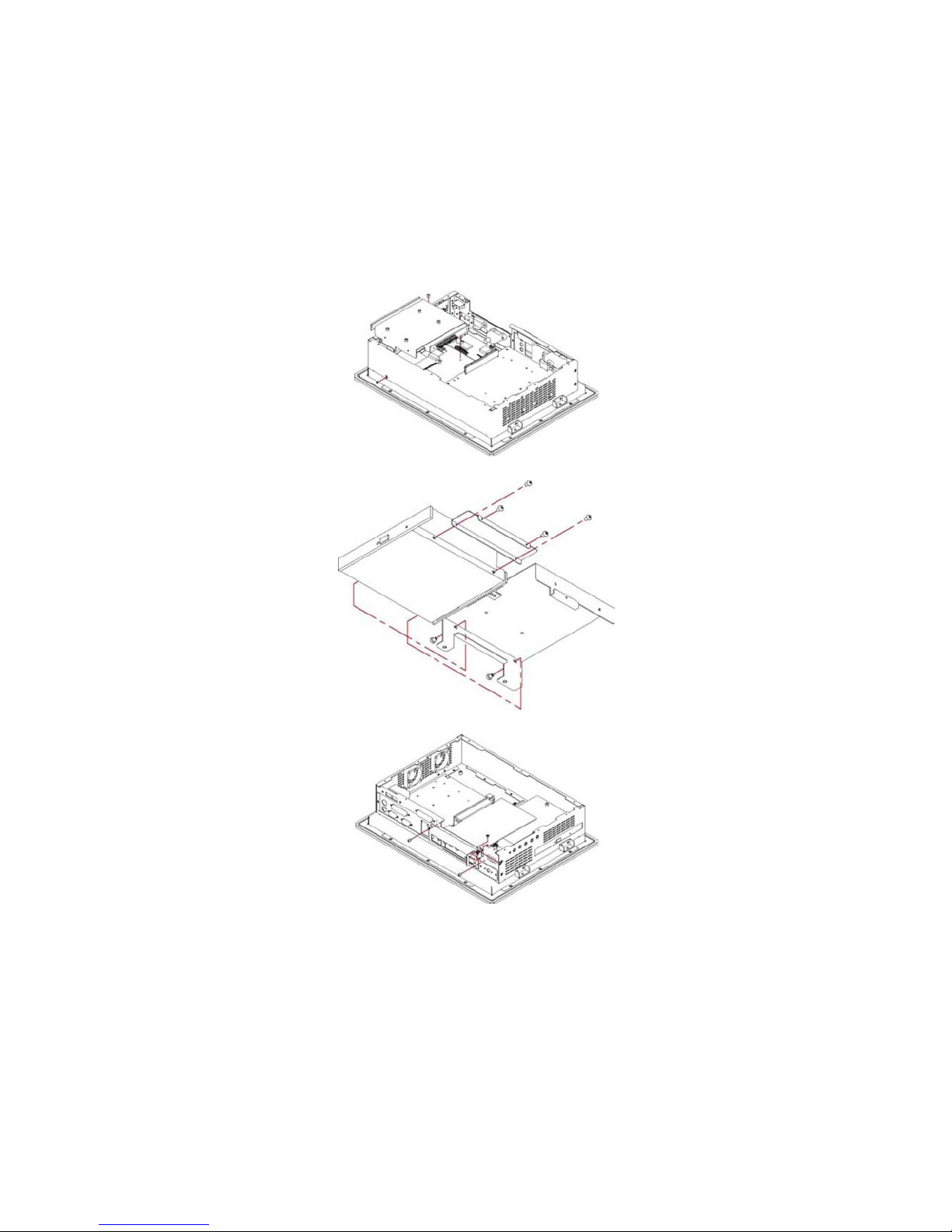

3.1 HDD/CD-ROM/PCI Card Installation

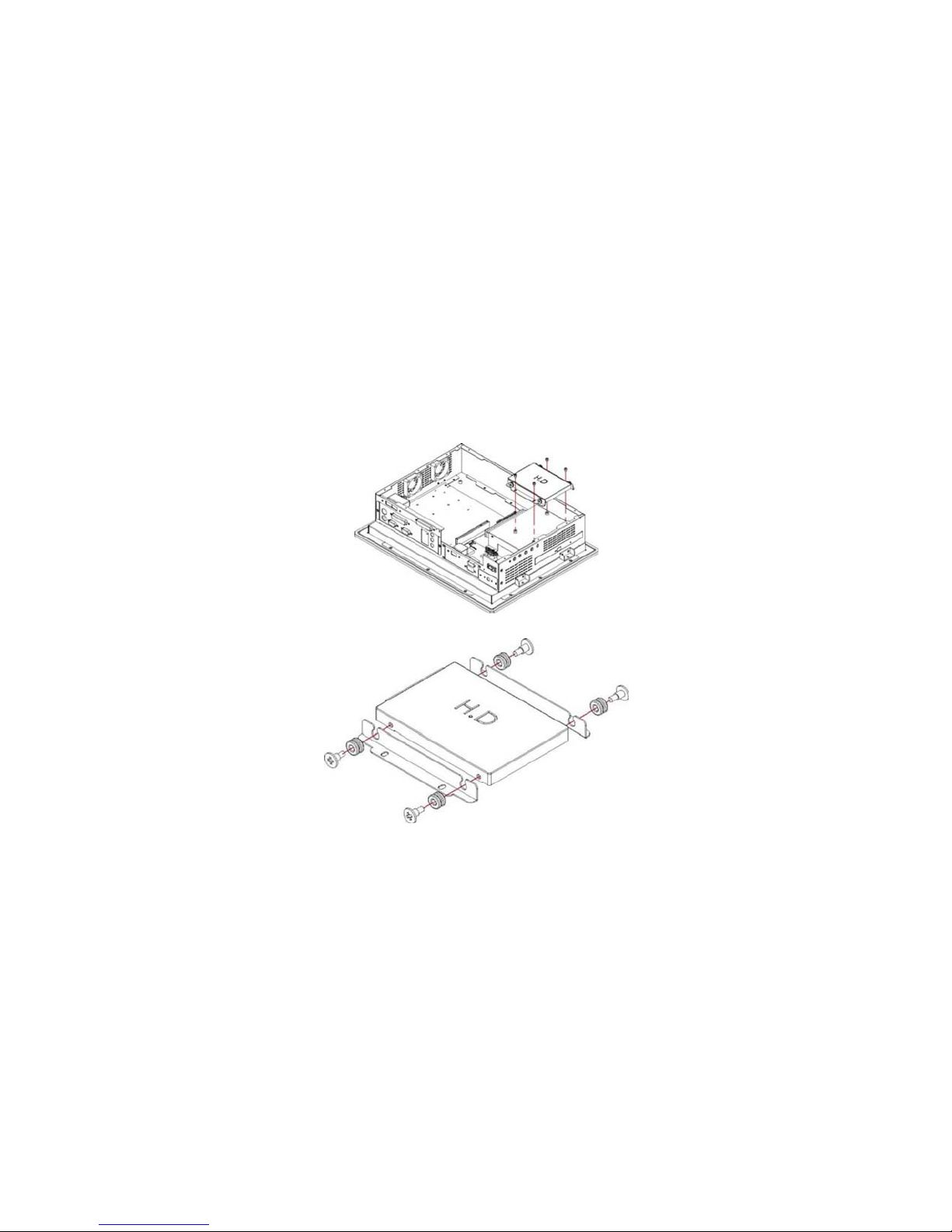

1. Remove the HDD drive bay holding bracket.

2. Install the holding bracket with HDD.

9

3. Remove the CD-ROM drive holding bracket.

4. Install the holding bracket with CD-ROM.

5. Install the PCI Card with chassis.

10

Chapter 4

Touch Screen Driver Installation

This chapter illustrates the detail information of touch screen driver
installation procedures. The utility disk that came with the delivery
package contains an auto-run program that invokes the installation
programs for the touch screen driver. The following sections describe
the installation procedures of driver based on WINXP operating
systems. Other operation system may slightly be different.

4.1 Resistive Type Touch Screen Driver
Installation

1. Insert Utility CD disk into your CD-ROM drive. The main menu will
pop up as shown below. Select “Touch Panel” to install touch
screen driver.

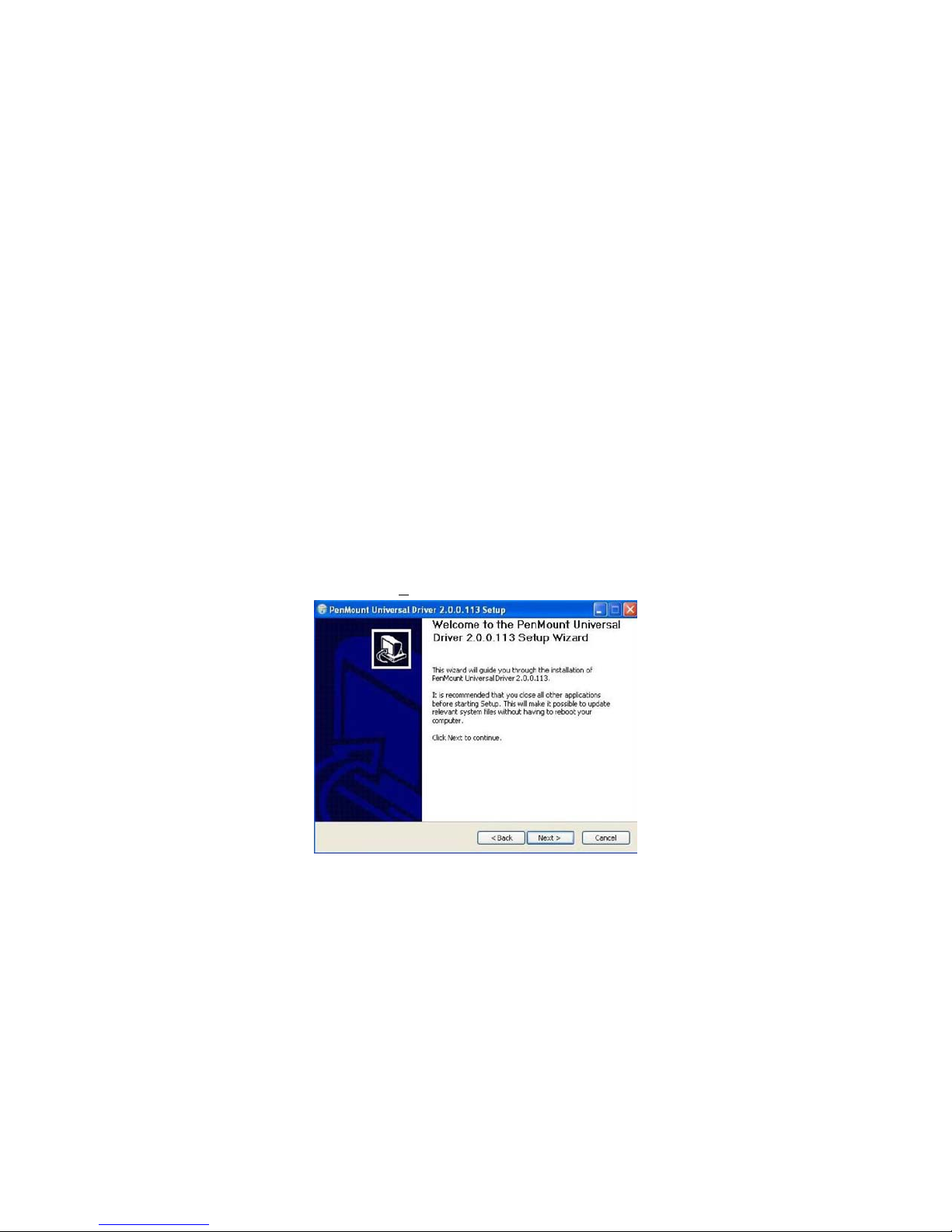

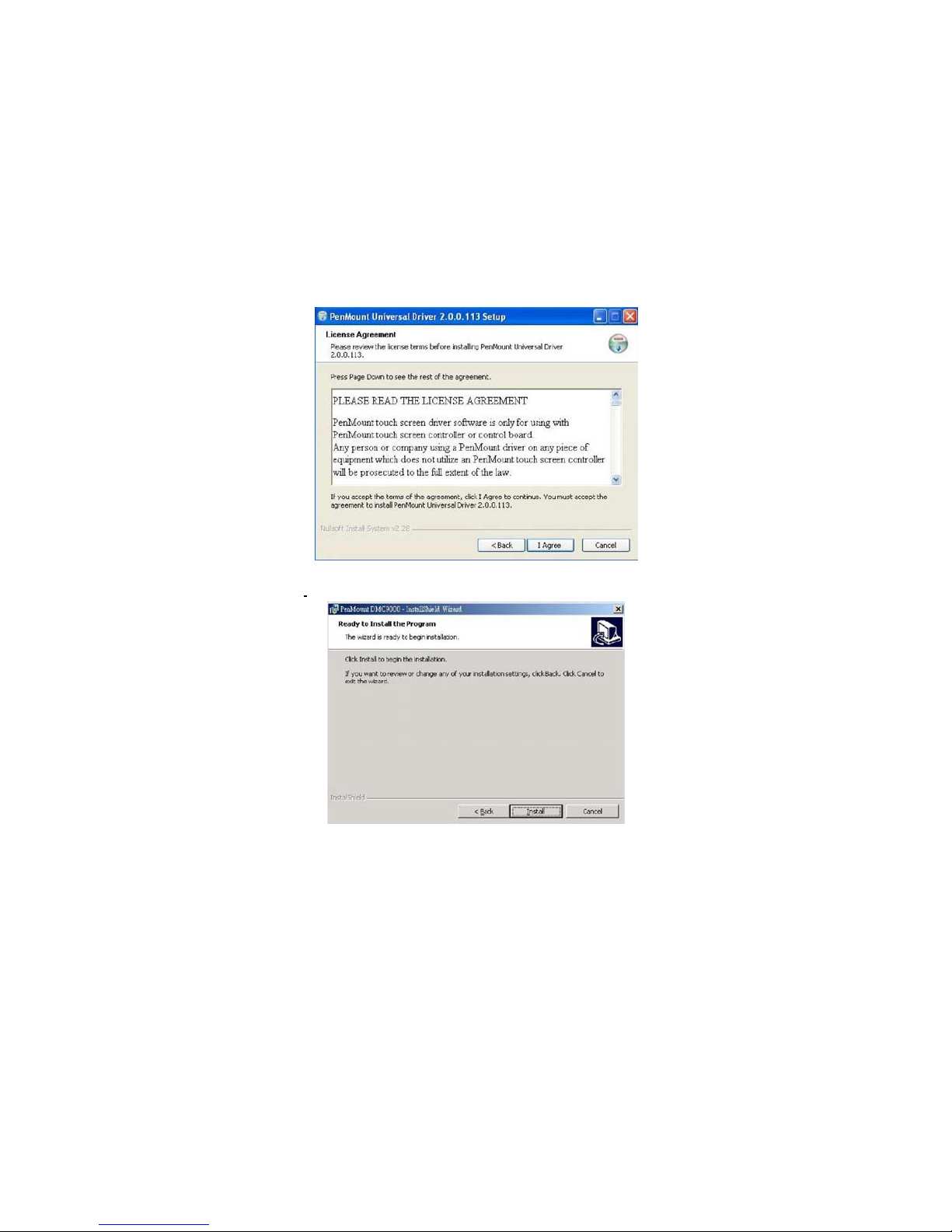

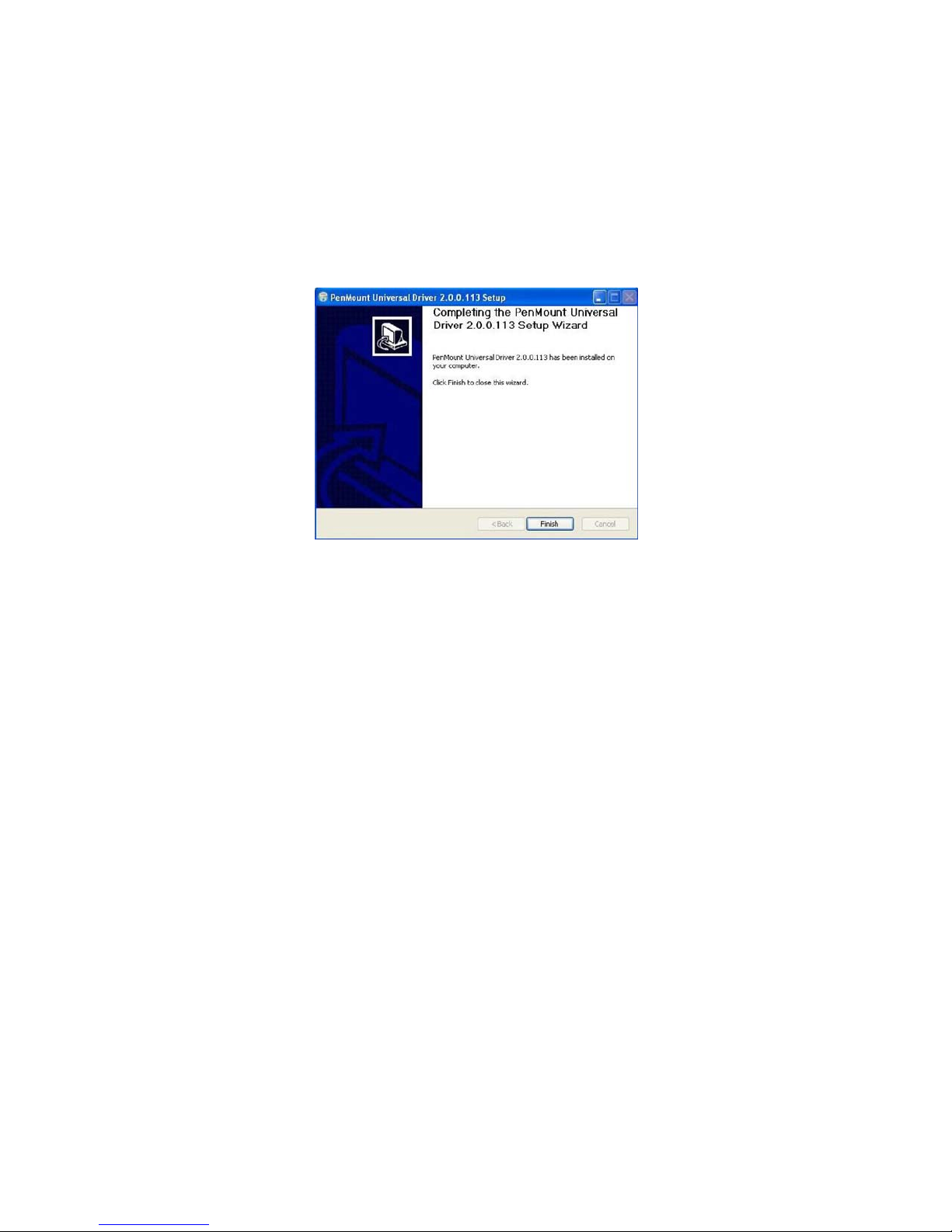

2. The screen displays “PenMount Universal Driver Setup
Wizard”, click on Next> to install continue.

11

3. The next screen is “License Agreement”, select “I Agree” to keep

driver install.

4. Select the directory where the driver installed and click

“Install” to go on.

12

5. Once the Install Shield Wizard finishes updating your system, it will

prompt you to restart the computer. Click on Finish to exit the
wizard.

13

4.1.1 PenMount Control Panel

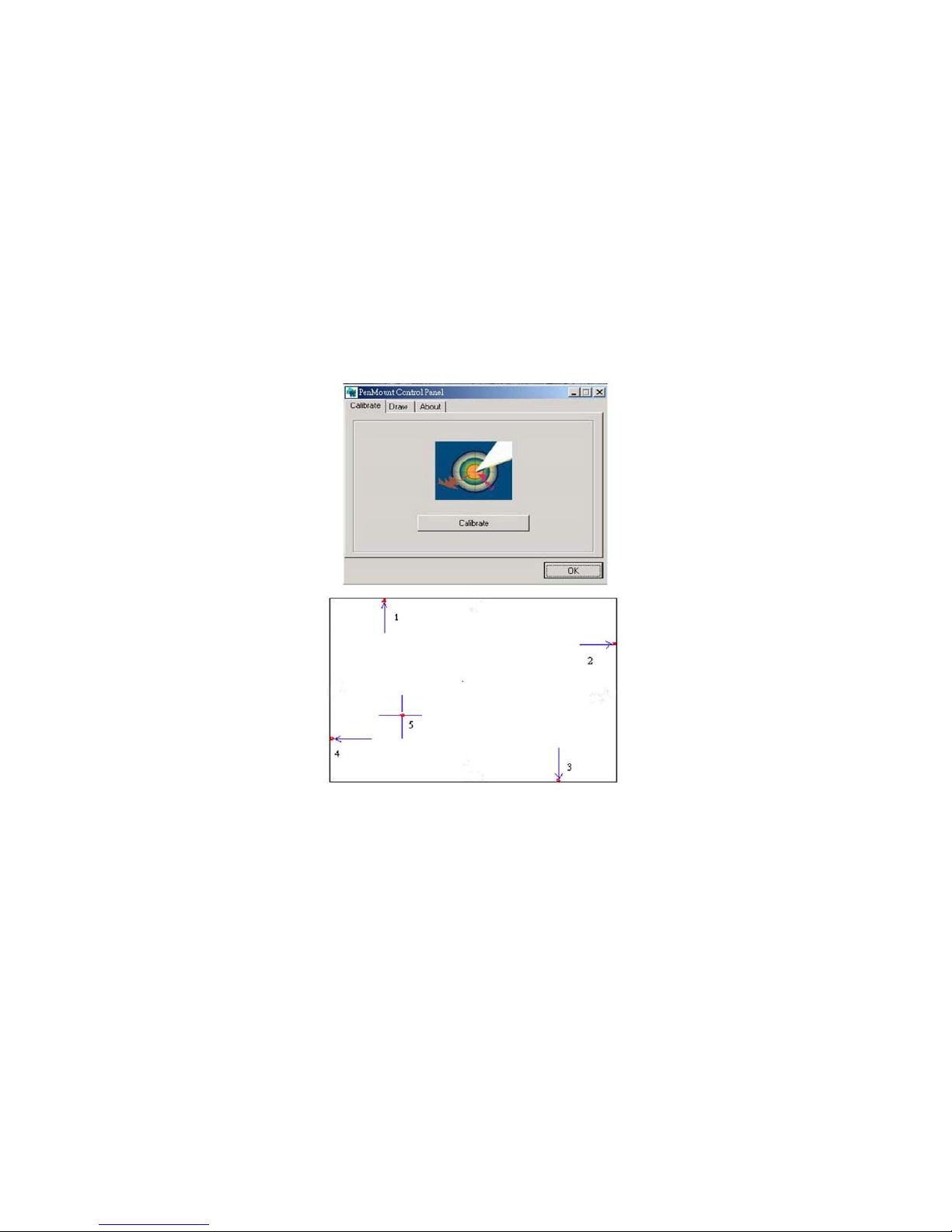

• Calibrate

To adjust the display with touch screen, click on “Calibrate” button and
follow the calibrate point to do the calibration, there are five points on
screen for calibration.

14

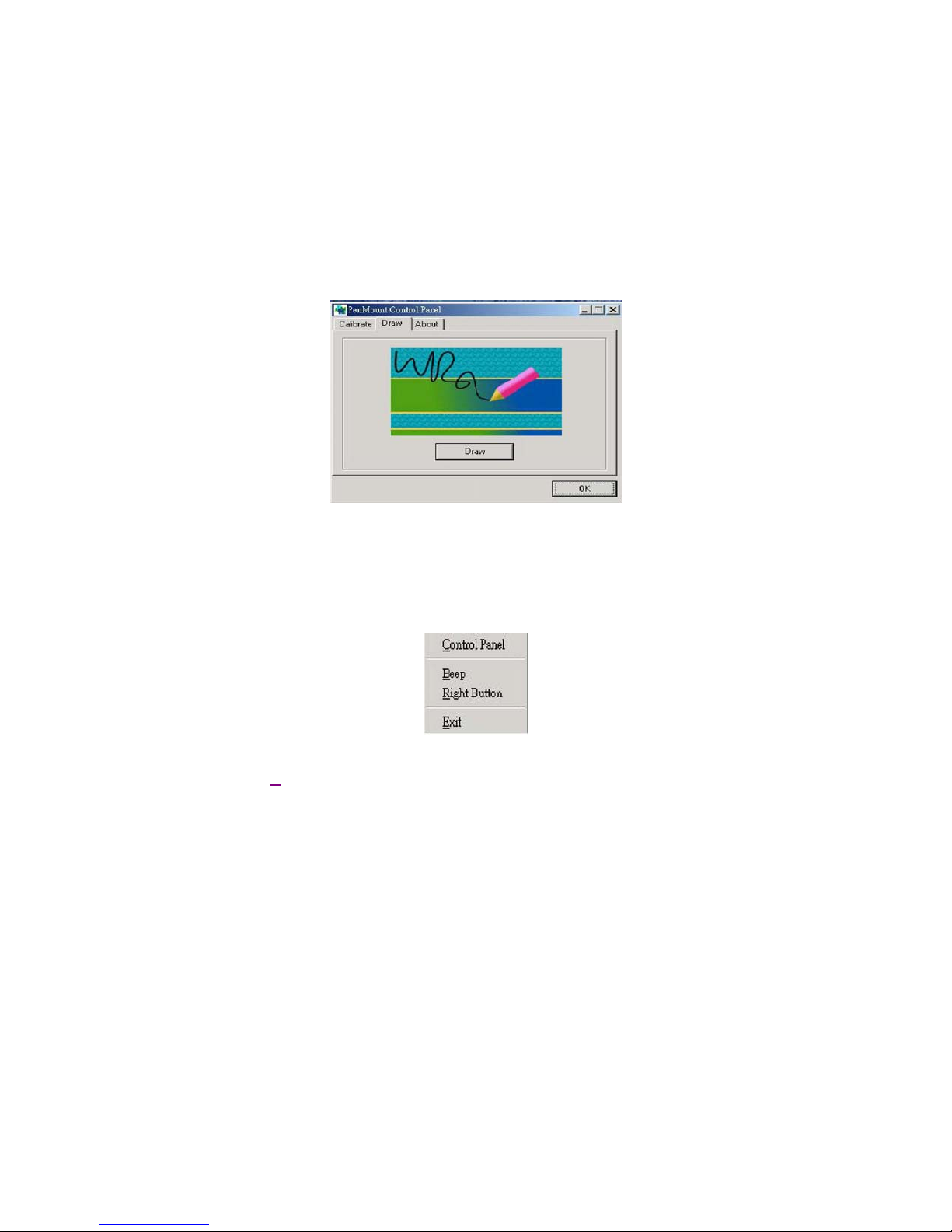

• Draw

Test or demonstrate PenMount touch screen operation, also the touch
location is shown on the display, touch DRAW to start.

• About

It shows information about PenMount controller and driver version.

4.1.2 PenMount Monitor

The PenMount monitor icon is shown in the menu bar of Windows
system when turn on PenMount monitor from PenMount Utilities.

There are several functions on PenMount monitor:

• Control Panel

When select this function, there is a mouse icon shown in the right­button place of screen. It shows Left Button being as default for
normal use, change Right/Left button by clicking the mouse icon box.
Blue area expresses what button has been selected or actived.

15

• Right Button

Change Right/Left button by clicking the mouse icon box. Blue area
expresses what button has been or actives.

• Beep

Turn on or off beep sound.

• Exit

Close the PenMount Monitor function.

16
