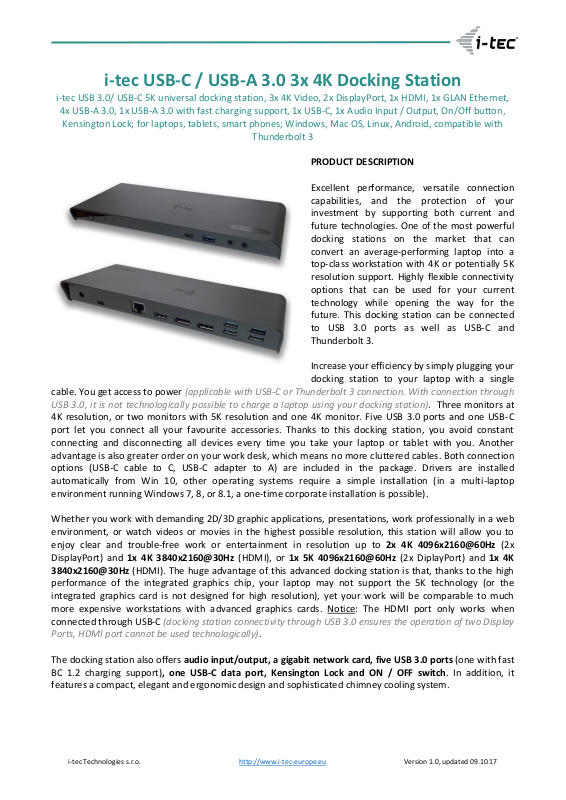

i-tec CATRIPLE4KDOCKPD User Manual
i-tec USB-C / USB-A 3.0 3x 4K Docking Station
i-tec USB 3.0/ USB-C 5K universal docking station, 3x 4K Video, 2x DisplayPort, 1x HDMI, 1x GLAN Ethernet,
4x USB-A 3.0, 1x USB-A 3.0 with fast charging support, 1x USB-C, 1x Audio Input / Output, On/Off button,
Kensington Lock; for laptops, tablets, smart phones; Windows, Mac OS, Linux, Android, compatible with
Thunderbolt 3
PRODUCT DESCRIPTION
Excellent performance, versatile connection
capabilities, and the protection of your
investment by supporting both current and
future technologies. One of the most powerful
docking stations on the market that can
convert an average-performing laptop into a
top-class workstation with 4K or potentially 5K
resolution support. Highly flexible connectivity
options that can be used for your current
technology while opening the way for the
future. This docking station can be connected
to USB 3.0 ports as well as USB-C and
Thunderbolt 3.
Increase your efficiency by simply plugging your
docking station to your laptop with a single
cable. You get access to power (applicable with USB-C or Thunderbolt 3 connection. With connection through
USB 3.0, it is not technologically possible to charge a laptop using your docking station). Three monitors at
4K resolution, or two monitors with 5K resolution and one 4K monitor. Five USB 3.0 ports and one USB-C
port let you connect all your favourite accessories. Thanks to this docking station, you avoid constant
connecting and disconnecting all devices every time you take your laptop or tablet with you. Another
advantage is also greater order on your work desk, which means no more cluttered cables. Both connection
options (USB-C cable to C, USB-C adapter to A) are included in the package. Drivers are installed
automatically from Win 10, other operating systems require a simple installation (in a multi-laptop
environment running Windows 7, 8, or 8.1, a one-time corporate installation is possible).
Whether you work with demanding 2D/3D graphic applications, presentations, work professionally in a web
environment, or watch videos or movies in the highest possible resolution, this station will allow you to
enjoy clear and trouble-free work or entertainment in resolution up to 2x 4K 4096x2160@60Hz (2x
DisplayPort) and 1x 4K 3840x2160@30Hz (HDMI), or 1x 5K 4096x2160@60Hz (2x DiplayPort) and 1x 4K
3840x2160@30Hz (HDMI). The huge advantage of this advanced docking station is that, thanks to the high
performance of the integrated graphics chip, your laptop may not support the 5K technology (or the
integrated graphics card is not designed for high resolution), yet your work will be comparable to much
more expensive workstations with advanced graphics cards. Notice: The HDMI port only works when
connected through USB-C (docking station connectivity through USB 3.0 ensures the operation of two Display
Ports, HDMI port cannot be used technologically).
The docking station also offers audio input/output, a gigabit network card, five USB 3.0 ports (one with fast
BC 1.2 charging support), one USB-C data port, Kensington Lock and ON / OFF switch. In addition, it
features a compact, elegant and ergonomic design and sophisticated chimney cooling system.
i-tec Technologies s.r.o. http://www.i-tec-europe.eu Version 1.0, updated 09.10.17
i-tec Part Number
Product Description & EAN
CATRIPLE4KDOCKPD
CATRIPLE4KDOCKPDUK
USB-C / USB-A 5K/4K Triple Display Docking Station
EAN 8595611702365
USB-C / USB-A 5K/4K Triple Display Docking Station
EAN 8595611702372
Hardware
Bus type
USB-C / USB-A (for connecting to a laptop with USB-C or
USB-A interface (USB-C connecting cables and USB-C
adapter on USB 3.0 included)
Supported displays
3 (for USB-C connection)
2 (for USB-A connection)
Ports
HDMI (only for USB-C connection)
1x 4K resolution up to 3840x2160@30Hz
DisplayPort
2x 4K resolution up to 4096x2160@60Hz, (5K resolution
5120x2880@60Hz if 1 monitor is connected via 2 DP
cables)
USB 3.0 Type A
4x USB 3.0 (5 Gbps), USB Hot Swapping support
PRODUCT OVERVIEW AND FEATURES
1x USB-C port for connecting to a laptop with USB-C or USB-A interface (USB-C connecting cable and
USB-C adapter on USB 3.0 included)
Graphic Interface: 2x Display Port and 1x HDMI (HDMI port available when USB-C is connected).
Resolution:
- 1 monitor connected via 2 DP cables: 1x DP + 1x DP supports up to 5K 5120x2880@60Hz (graphics
card on your computer may not support 5K resolution), and also 1 monitor connected via HDMI with
support up to 1x 4K 3840x2160@30Hz (HDMI port available when USB-C is connected)
- 2 monitors connected via Display Ports, support up to 4K 4096x2160@60Hz anf 1 monitor
connected via HDMI supporting up to 4K 3840x2160@30Hz (HDMI port available when USB-C is
connected)
5x USB-A 3.0 port for connecting your existing USB 3.1/3.0/2.0 devices and high-speed data transfer
(5 Gbps), USB Hot Swapping support, including 1x USB 3.0 with fast charging support (BC 1.2)
1x USB-C 3.1 gen. 1 data port for connecting your USB-C devices and high-speed data transfer (5
Gbps), USB Hot Swapping support
1x Ethernet GLAN RJ-45 port for high-speed network and Internet access over Gigabit Ethernet,
10/100/1000 Mbps speed support
Chipset: Display Link DL6950, VIA VL813, Texas Instruments TPS65950
Separate microphone input and earphone output, 1x 3.5 mm Audio out 5.1, 1x 3.5 mm Mic in
ON/OFF switch – for the docking station switching on/off
LED indication
Kensington lock
1 power input for charging – external power adapter (output: 20V/6.75A)
OS: Windows 7 / 8 / 8.1 / 10 32/64 bit, Mac OS X, Linux Ubuntu 14.04 / 16.04, Android 6 and higher.
Windows 10 – automatic installation of drivers from OS. Other operating systems – manual
installation of drivers (with the option of corporate installation in Windows 7, 8, 8.1). Firmware
updates automatically.
SPECIFICATION
i-tec Technologies s.r.o. http://www.i-tec-europe.eu Version 1.0, updated 09.10.17
